My final project idea is hand with skelital structure and muscularture basically a life like robotic hand, it has been on my mind tough I do not want to make one with wires and pullies I want to make somesort of muscle that would move the arm and fingers pulling on them like a actual muscle would I've been thinking about hydrolics or pnumatics also muscle wire with a bladder that has muscle wire inserted into the bladder.
New Finaly project
I scrapped my first idea
I found the scale of what i wanted to do earlyer kind of too much so i decided to make somehting that would be fun and also i would be more able to use what ive learned in FabAcademy and utilise the weekkly assignments better.

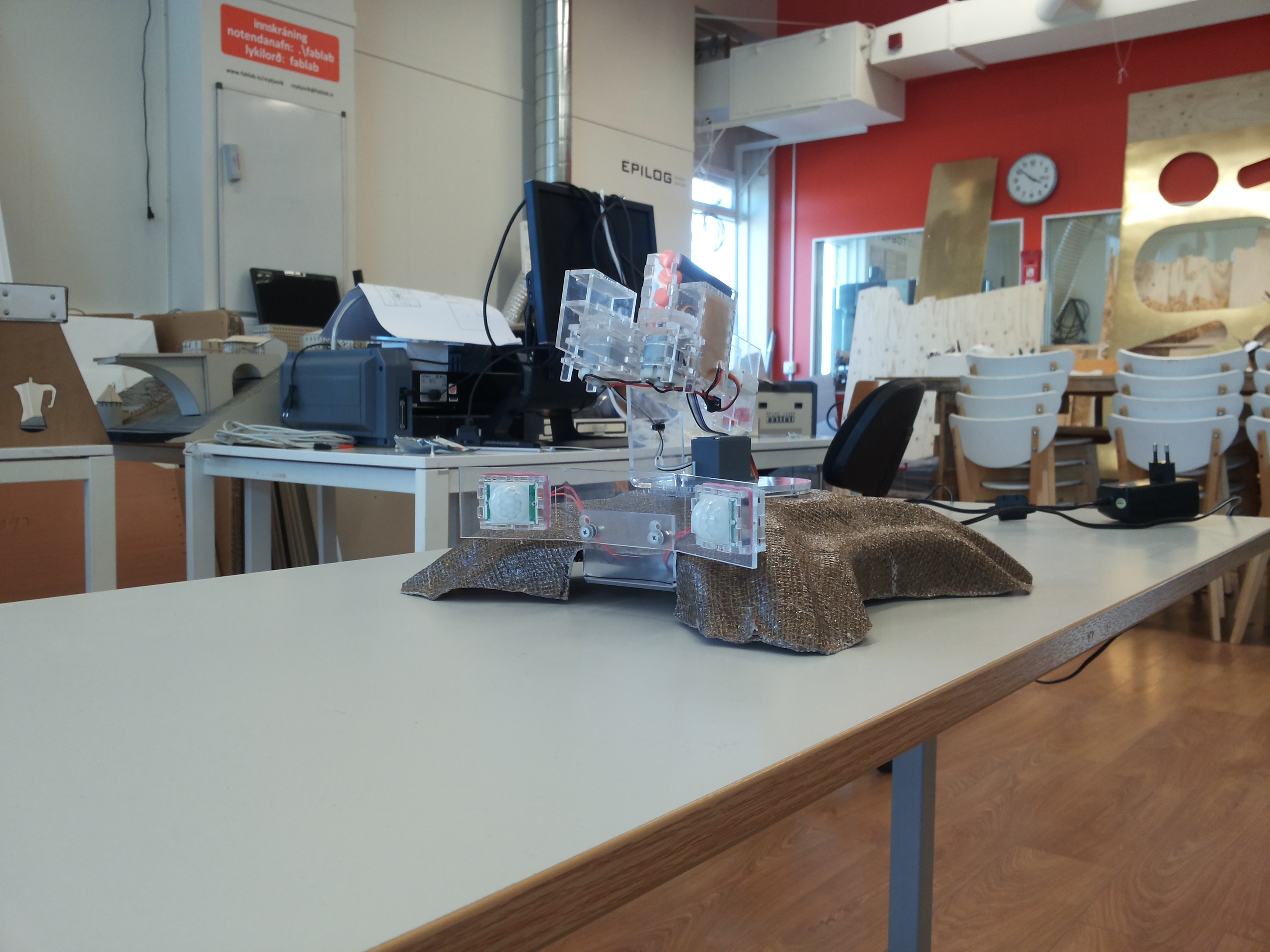

So i decided to make a NERF turret wich would have IR sensors for detection and servos to move it to its target and fire it, My earlyer idea was to mount a nerf gun to a mount and use it as is with the turret part
but seeing the mechanics of it and how simple it was to make (more complex with all the programming i had to do) with just a pusher and two dc motors to spin the flyweels. I went on making a Fun desktop warfare tool.
See See week Seventeen for more of my thought prosess Here
and week eightnteen Here
and week eightteen to nineteen and beyond Here
Files used for making the NERF launcher and turret
Here is a list of what files and programs that were used to make it
- 1testflyweel.pdf Flyweel
- extralongConnector.pdfconnector for the motor brackets
- NERF launhcer assembly.svg
- NERF Turret parts Ring and sensors and command.svg
- hello.nerf.44.cProgramming for the NERF Comand board
- hello.nerf.44.c.make
- hello.nerflaunhcer.44c programming code for the nerf launcher
- hello.nerflaunhcer.44c.make
- NerfNode.brd the board for the nerf launcher itself
- NerfNode.sch
- PowerandCOMnew.brd Small baord for the power input to both the boards and to send and recive signals between the Node and the command board also instead of a finla 6 pin hedder i solderd on a power jack
- PowerandCOMnew.sch
- suports3.stl mold for the turret base is an .stl file becosue the Vcarve file is lost or ive missplaced it
- controlboard2.sch The Nerf Control board
- controlboard2.brd
The Bill of materials
- 2 ATtiny 44 $1.50 link
- 4 six pin hedders
- 4 four pin hedder
- 2 20 MHz resinator $0.60 link h
- 5 0k resistors (
- 2 5.0 Regulator $0.91 link
- 3 10k resistor $0.10
- 5 10uF capasitor $0.22 link
- 2 1uF capasitor $0.24 Link
- 3 three male pins
- 1 mosfed
- 1 499 resistor
- 1 Zener diode
- Circuit plate
- 2-3 servos from Hobby king HobbyKing™ HK15138 Standard Analog Servo 4.3kg EU3.06
- HobbyKing™ HKSCM9-5 Single Chip Digital Servo EU2.94 EU2.94
- 2-3 IR sensors 5 for $8.48 on amazon Amazon IR detector
- canvas material, epoxy resin, 2 plates of 3mm plexi, screws ,nuts, washers, bolts e.c.t
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
What ive learned from this
What ive learned form this.. Well allot but ive learned that i need to keep organised and try to shedual myself better.
