so i decided to use the step response board with the RBG light from the input assignment for this assignment. i designed and am affecting its output function which is the light. click the above pic for video.
click here for Eagle schematic file
click here for Eagle board file

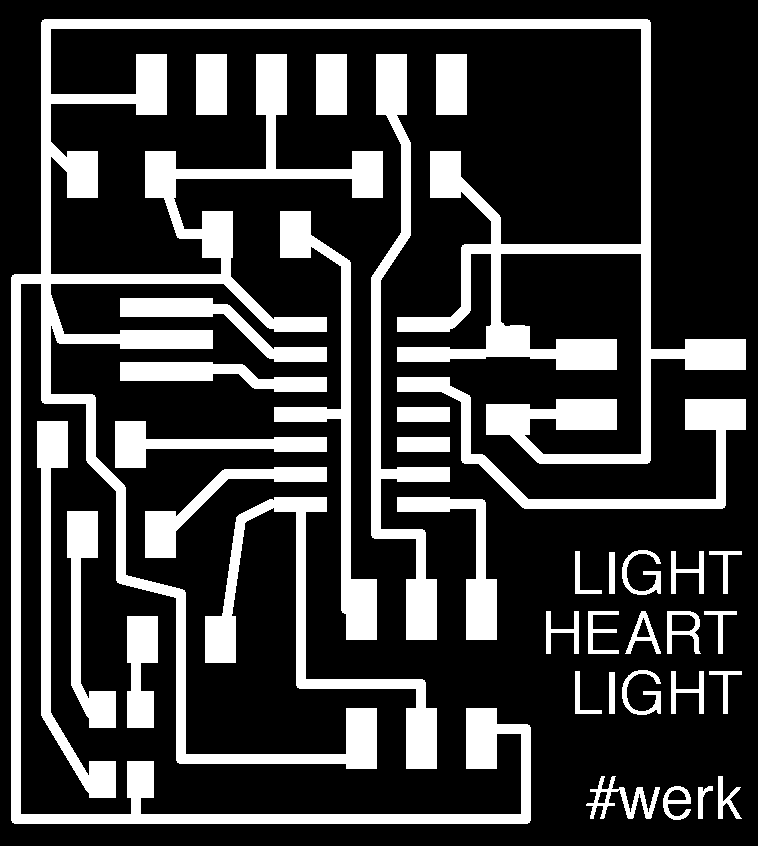

click here for png file
when programming; i kept referring to the c code and make files for the RGB.45 for the structure and looking at the pinout diagrams of ATTINY45 and ATTINY44here are my additions and changes:
in the hardware i changed:
FTDI Rx- old: PB2 new: PA4
microchip- old: ATTINY45 new: ATTINY44
4-pin header Pin 1 (rx) old: PB3 new: PA0
4-pin header Pin 4 (tx) old: PB4 new: PA1
and added:
20 Mhz Xtal to PB0 and PB1
1K resistor to PB2
1K resistor to PA7
499K resistor to PA6
connected to RBG LED
so in the program i had to make these changes. i went to the makefile and inserted "44" everywhere i saw "45" and renamed the file. then changed the crystal speed setting from 8 to 20 MHz. i then went into the c code and defined PORTA as led_pin_1, and DDRA. then i redfined the pin color names to correspond with my set-up.... uh oh...
re-ran after making a few adjustments...
yay! and from here i modified the delay from 25 to 100, 1000, and 10.
click here for my c code.
click here for my makefile.
now that this is working and i can see how to manipulate the light, i will go back and work on making it correspond with the input device that is on this board.
