Introduction

In this assignment, we make a communication of some microprocessor; this communication can be make by some forms.
In this opportunity, I made the communication by cable.

For make this can see the information of

Carlos Moreno

(Click in the name for view more information of your assignment).

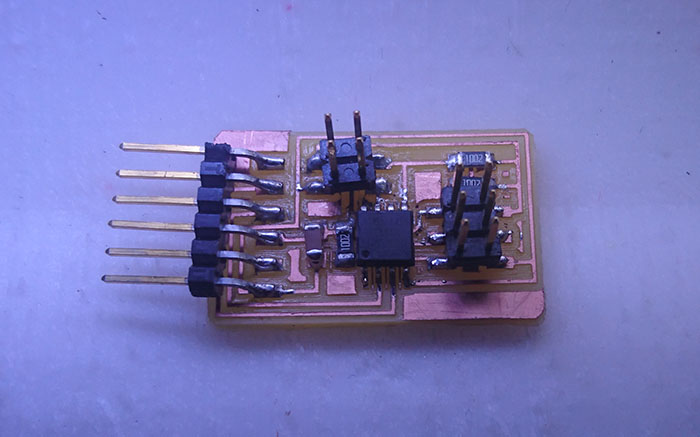

First, make other board is the control of communication, his name is Master

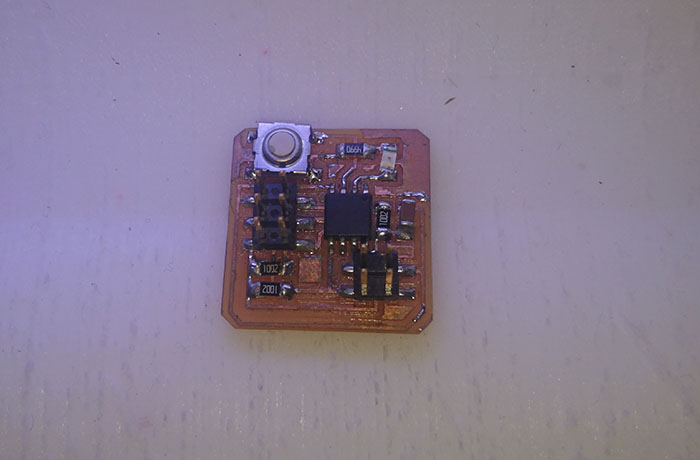

Second, make two boards that turn on a led whit the button, his name Slave.

Programing

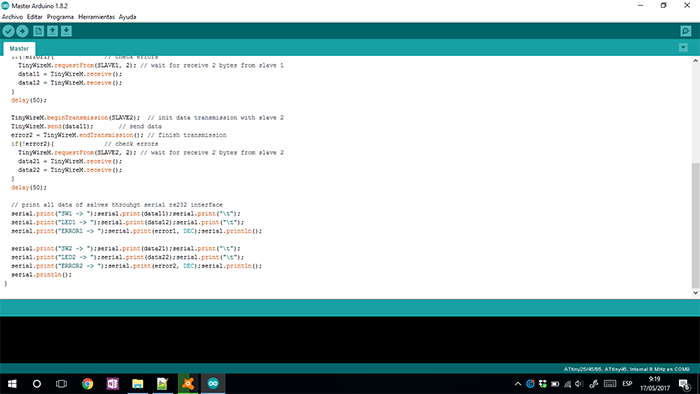

Master

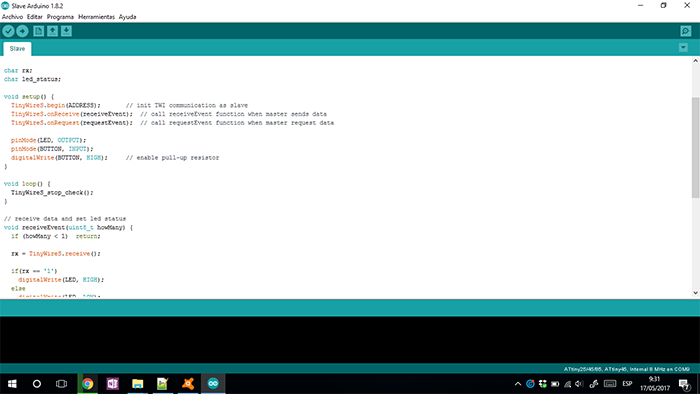

Slave

Vibration System

Design and build a wired &/or wireless network connecting at least two processors

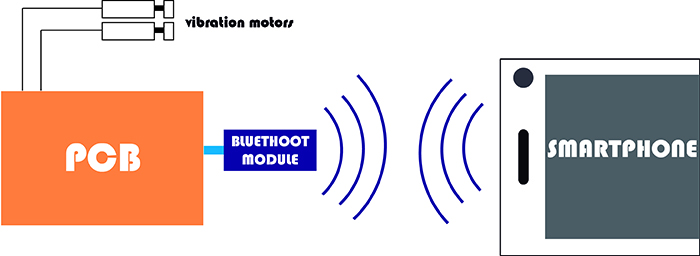

For this practice, you can obtain a wireless communication using bluethoot to control a vibration system using an Android application that was used in the final project. To do this, I developed the design of the PCB, transmission and reception ports, TX and RX ports, as you can see in the following diagram.

This system I use to generate a compaction of material by vibration of the motors, which are control from an Android app.

Materials:
Vibration motors
Bluethoot module (HC05)
Board designed.

For this I develop a plaque which can be found the documentation of the final project.

Final project

This application can control the vibration motors using a slider from zero to one hundred, this slider change the voltage value to increase or decrease the intensity of vibration.

Learning outcomes

Demonstrate workflows used in network design and construction

Implement and interpret networking protocols

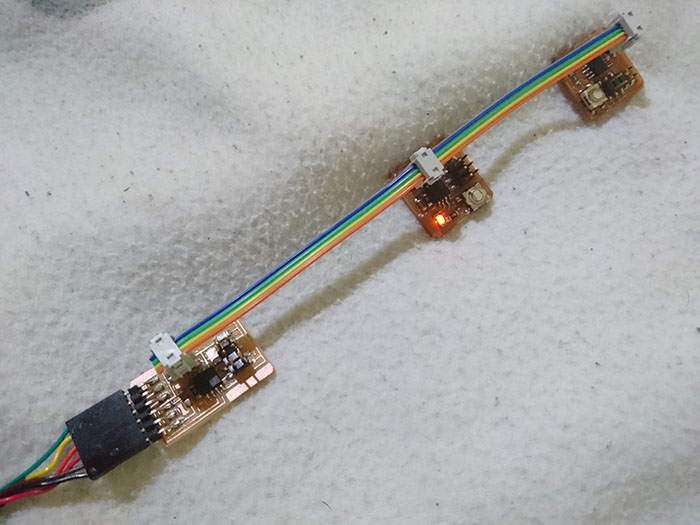

In the top can see one practic and the Vibration System can see all process of my assignment

Week15.rar

Programing
