MAKE SOMETHING BIG: In this assignment make a design of a personal desktop, similar to a small workstation, to work with a laptop and various office implements, the idea is to use it in my university because I have a small workspace and should optimize the use of the same.
1/4" drill bit
9mm MDF

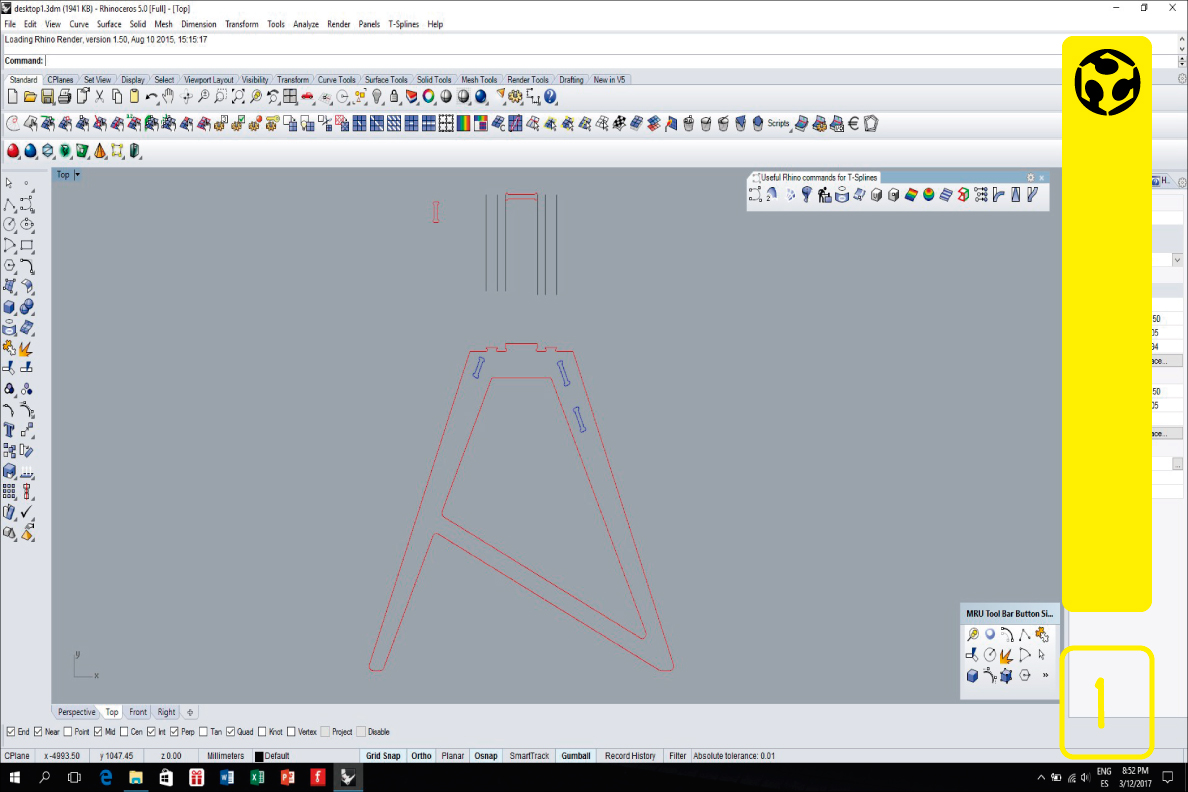

1. Start with the design of the workstation.

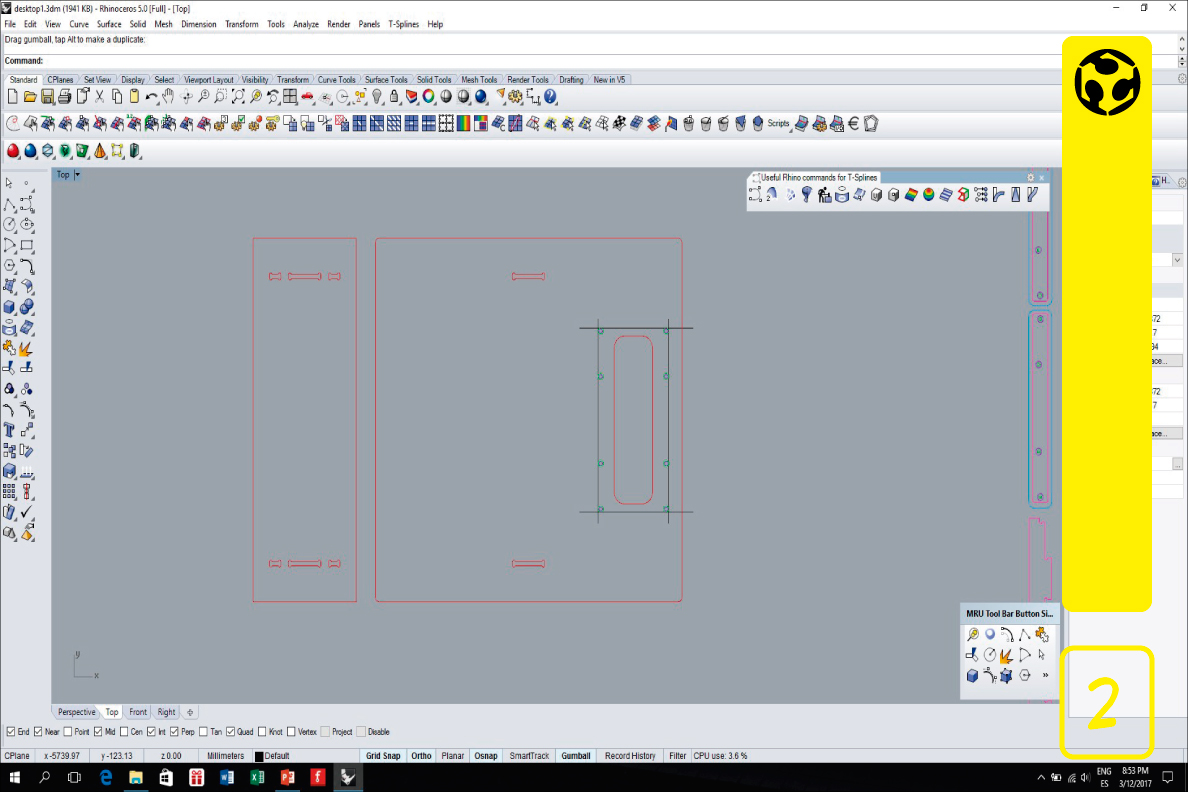

2. Desktop design process.

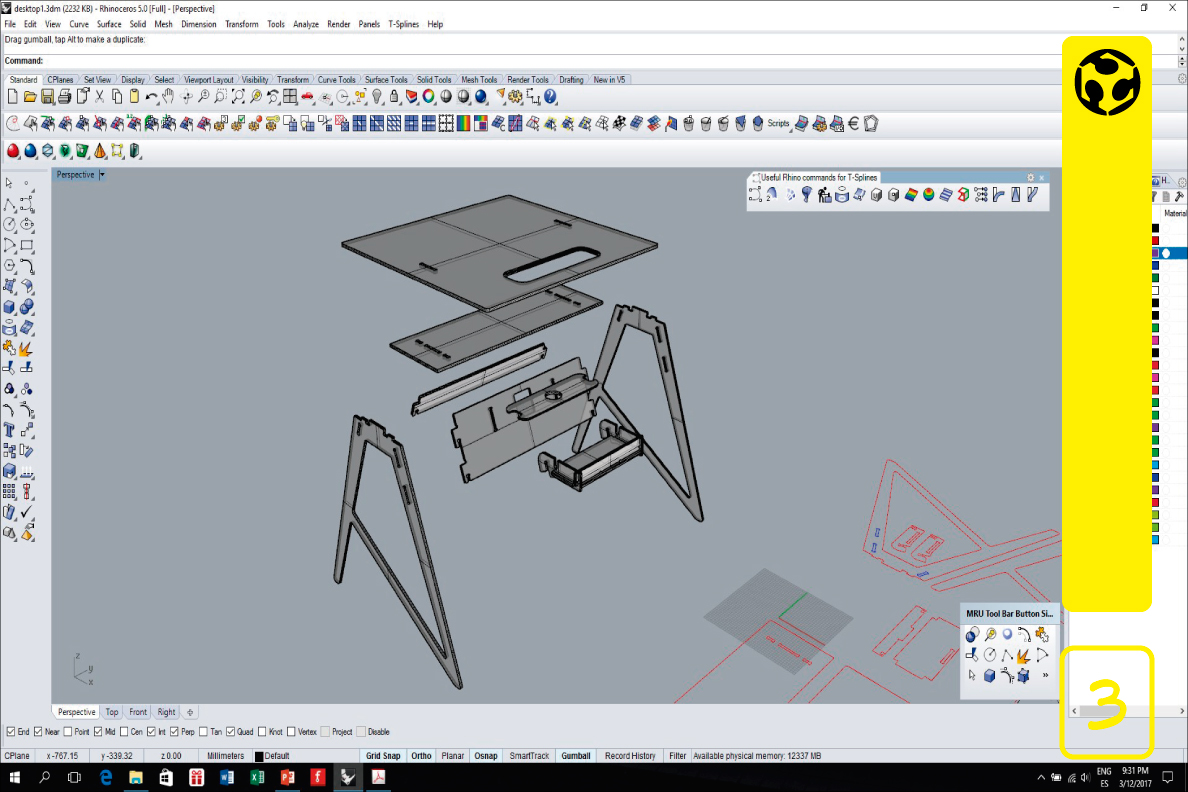

3. 3d model, prototype.

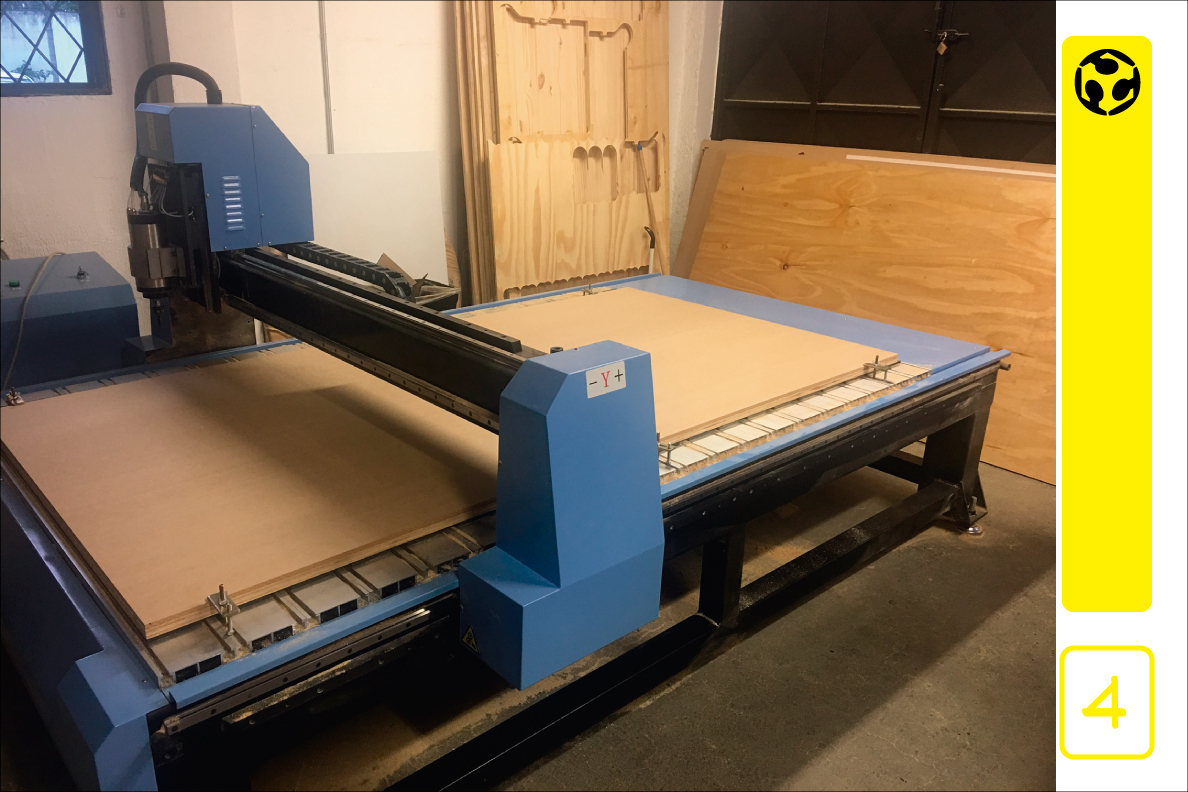

4. Router CNC M-1325a, The program of control is compatible with type 3, Artcam, UG, Pro-E, Mastercam and Ucancam V9 files, and others.

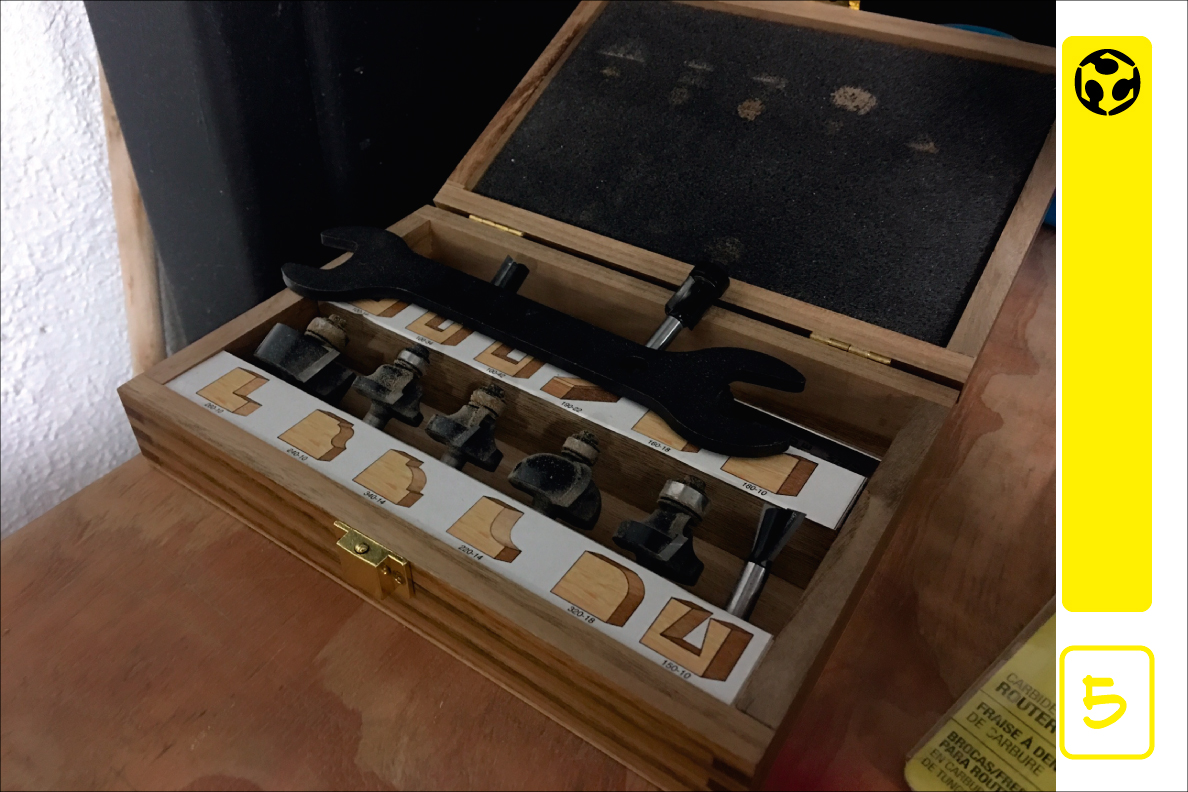

5. These are the different types of bits that we can use in the machine, with different angles and shapes.

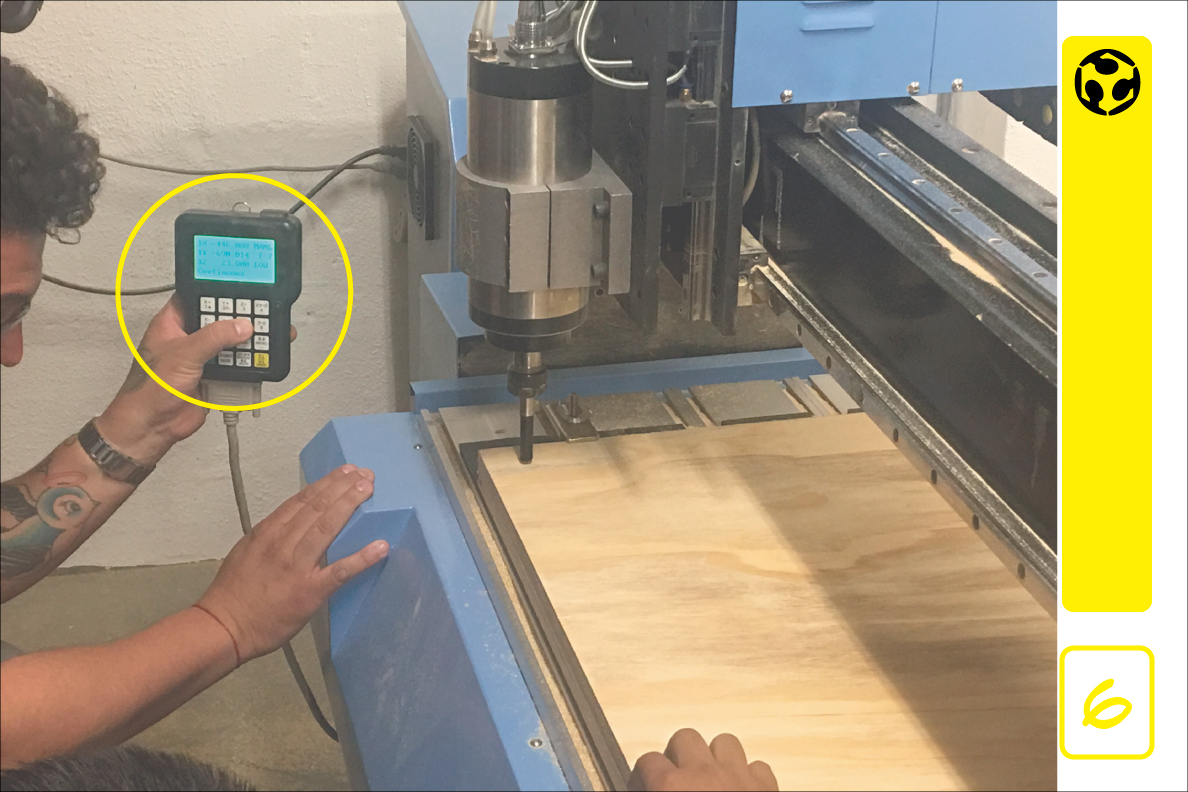

6. With this control, we manage and configure the different axes X, Y, Z.

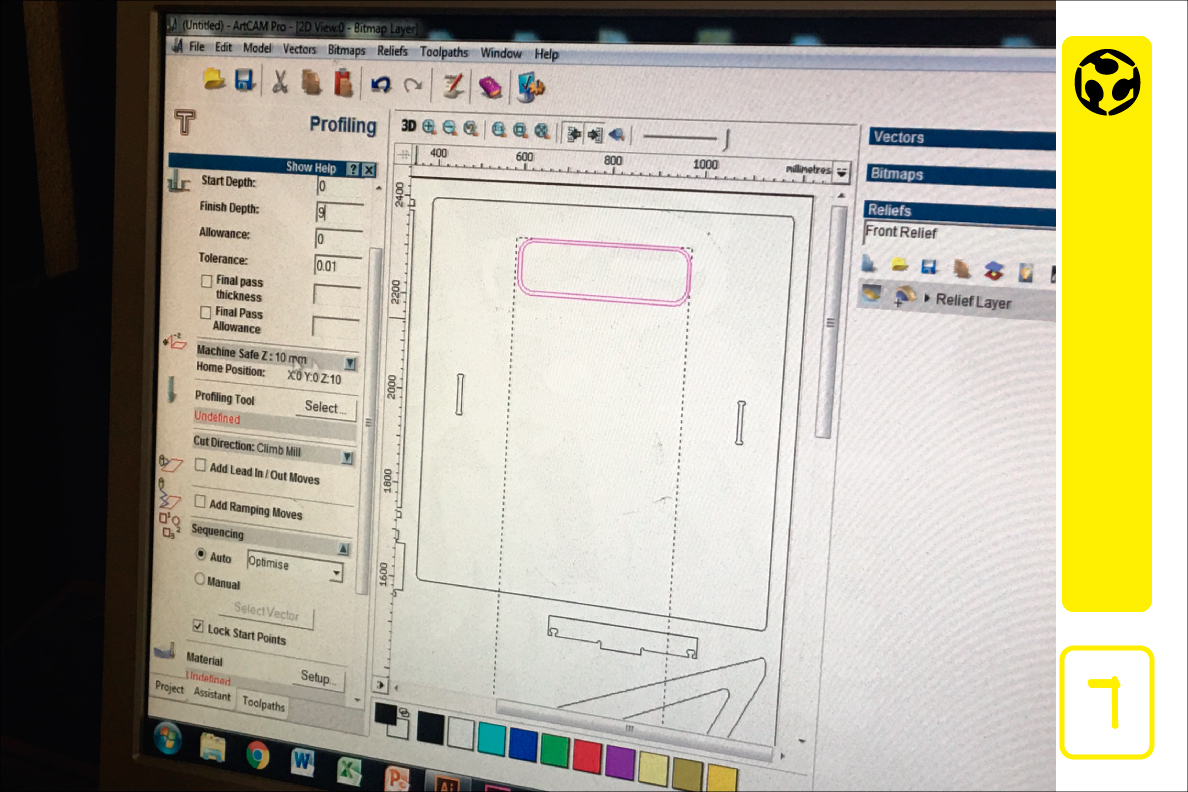

7. open the file in artcam pro software and select the profiling tool, select the curves, and set the finish depth of the drill.

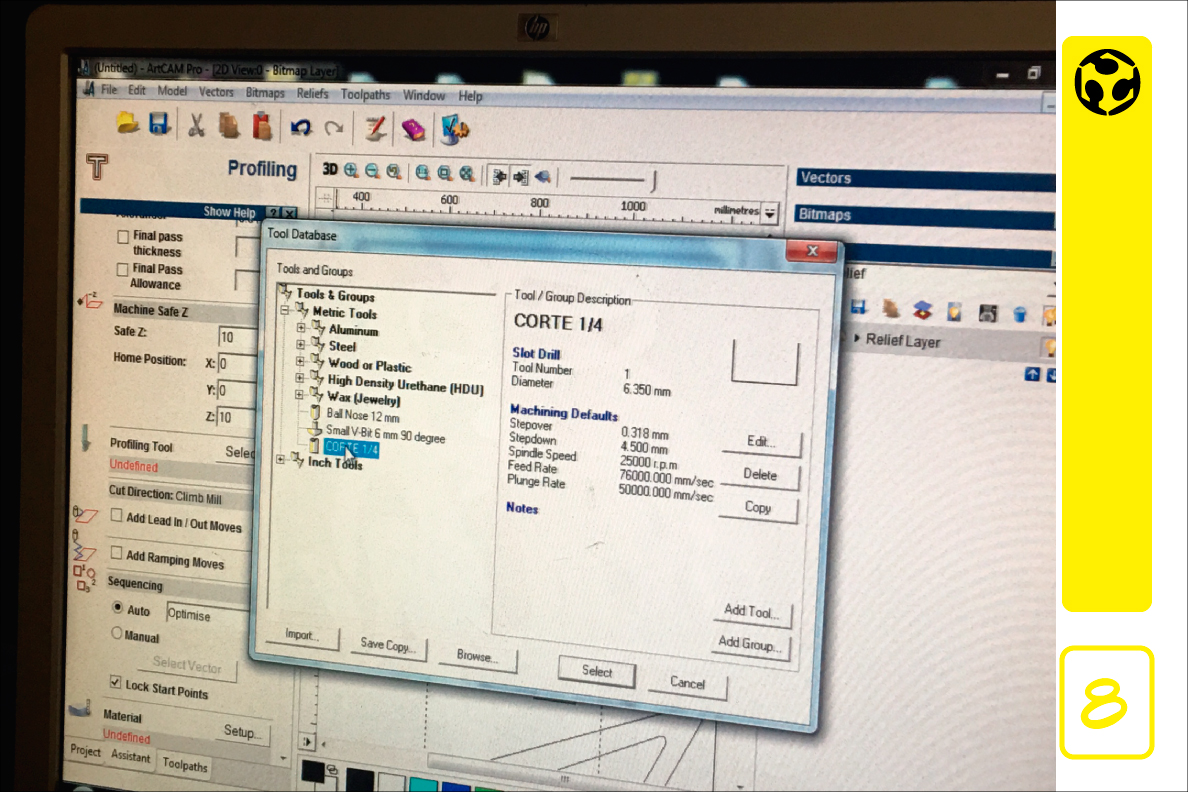

8. I look for the configuration of the profiling tool and select the drill, in this case was the 1/4" drill.

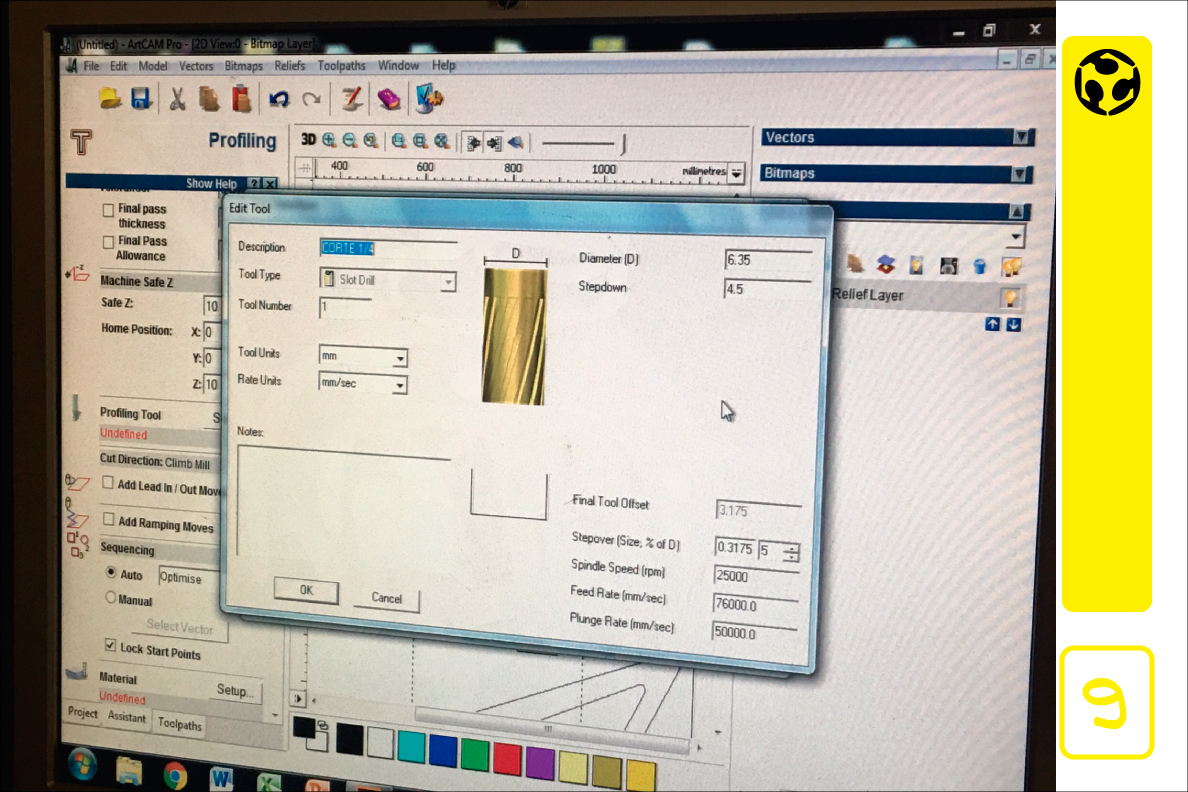

9. i set up the drill, the diameter and the stepdown.

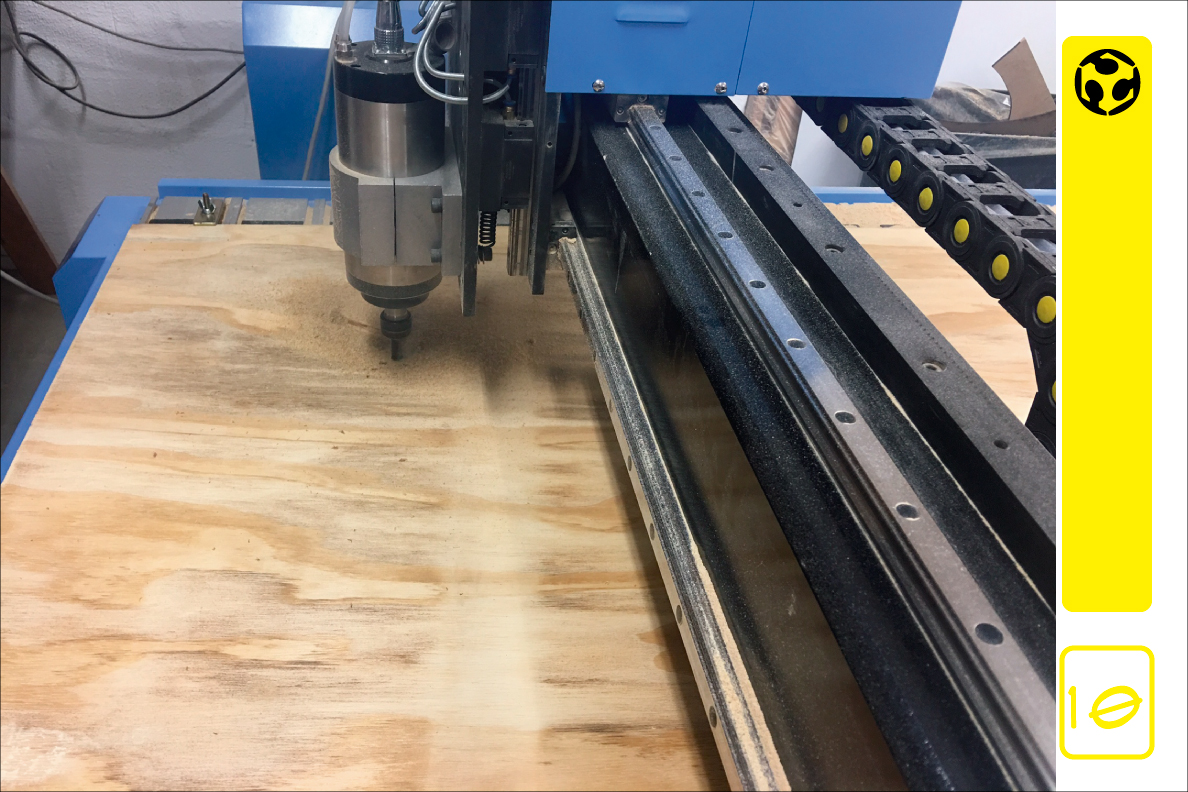

10. With the previous configuration we started to cut the pieces in 9mm MDF.

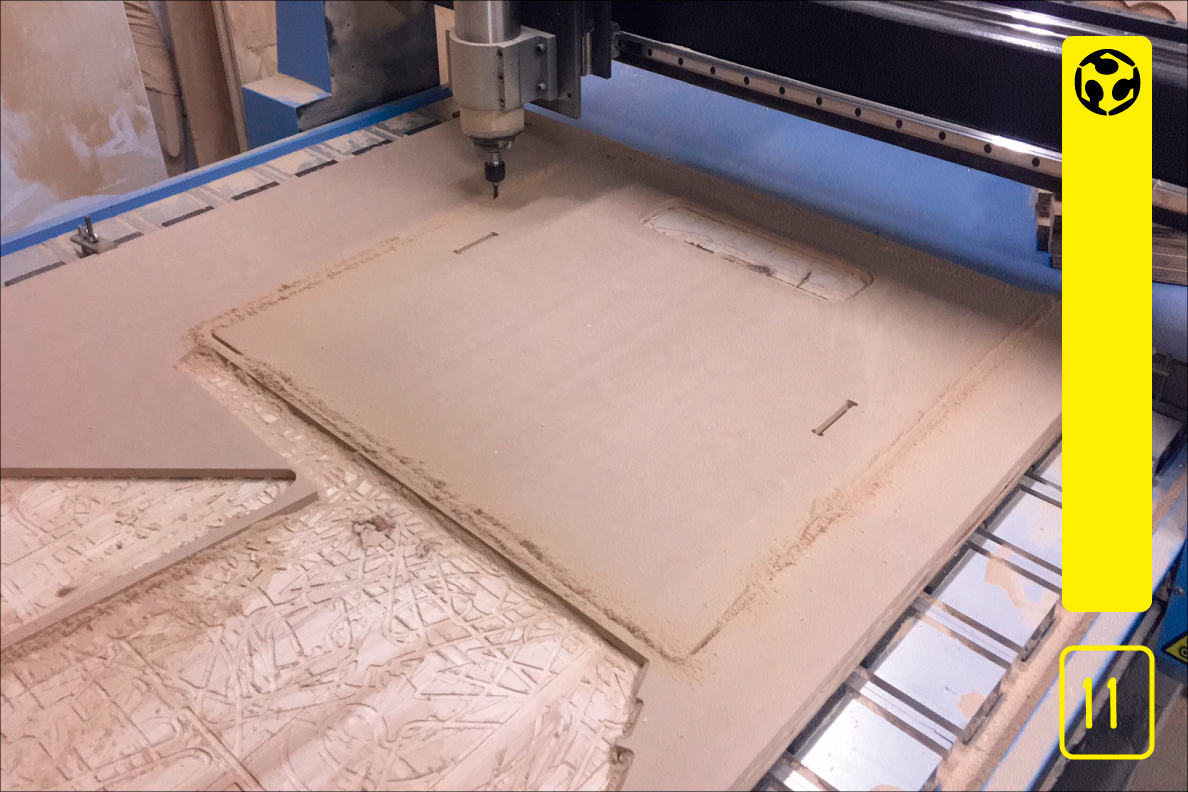

11. This is the top of the desk.
12. These are the table legs.

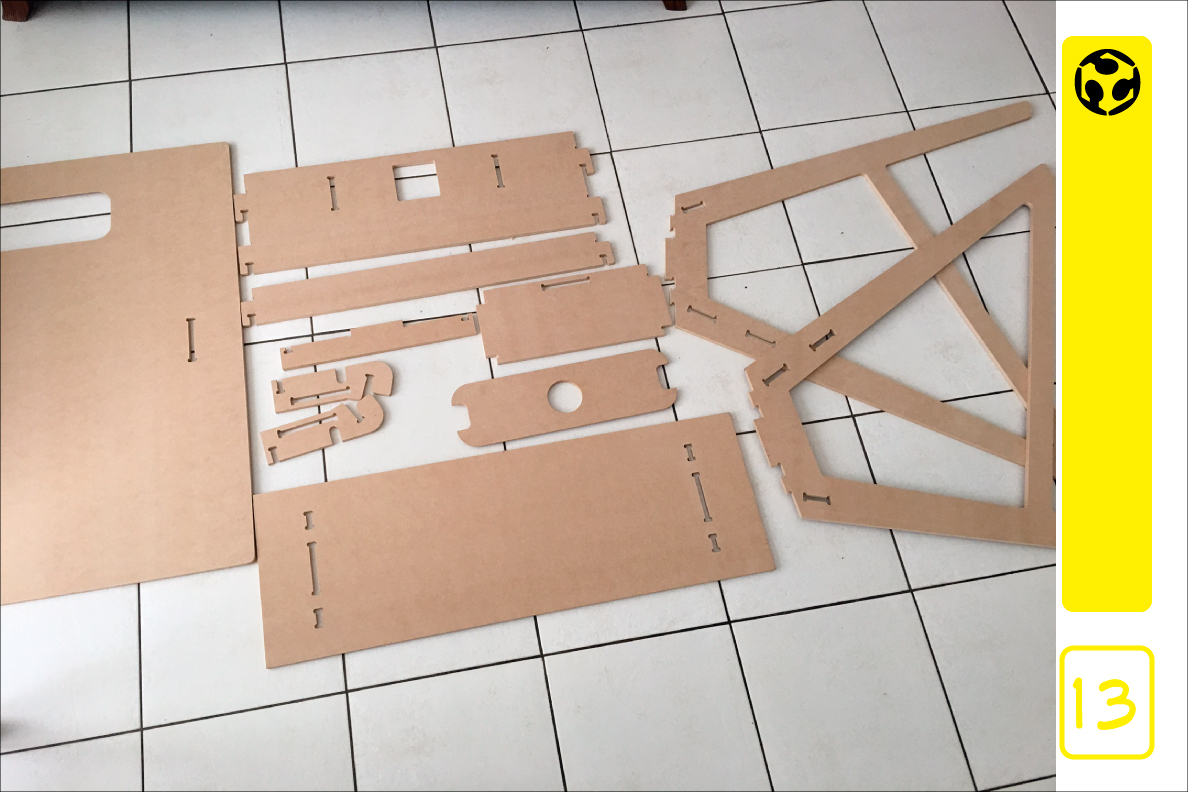

13. All the pieces are ready.

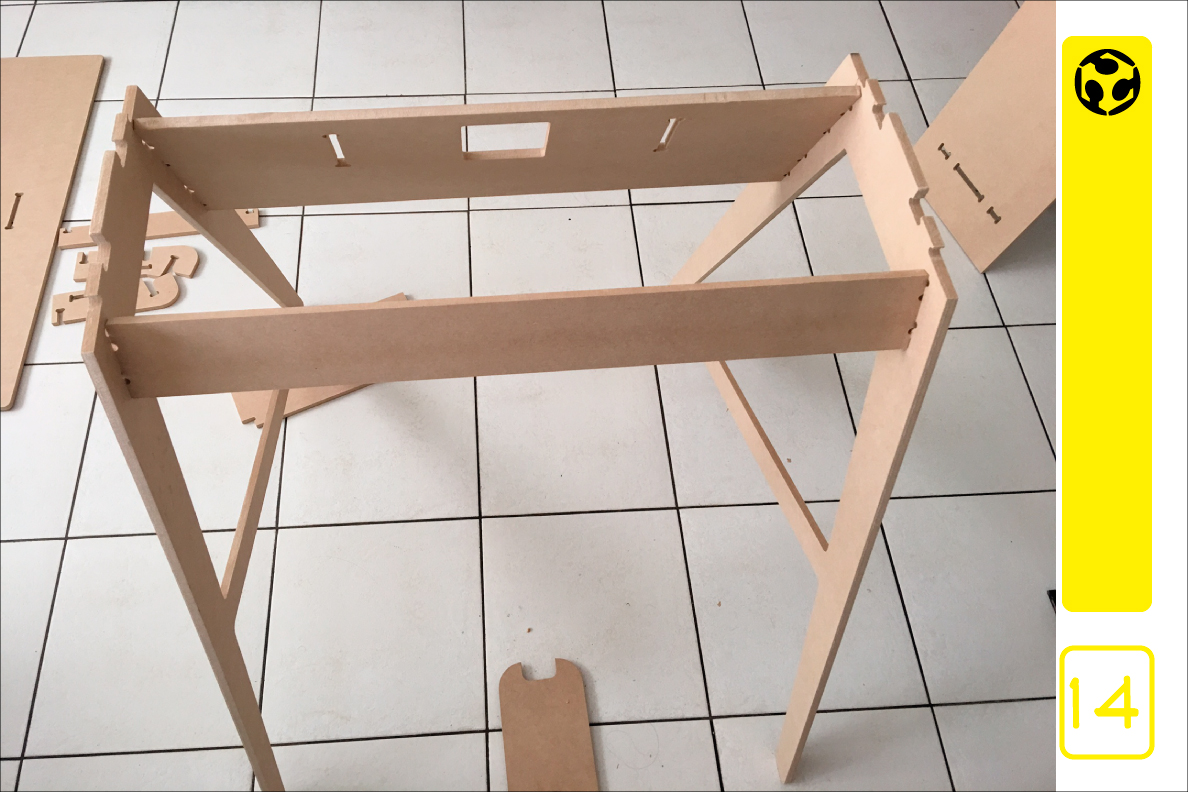

14. Assembly of the legs of the desk.

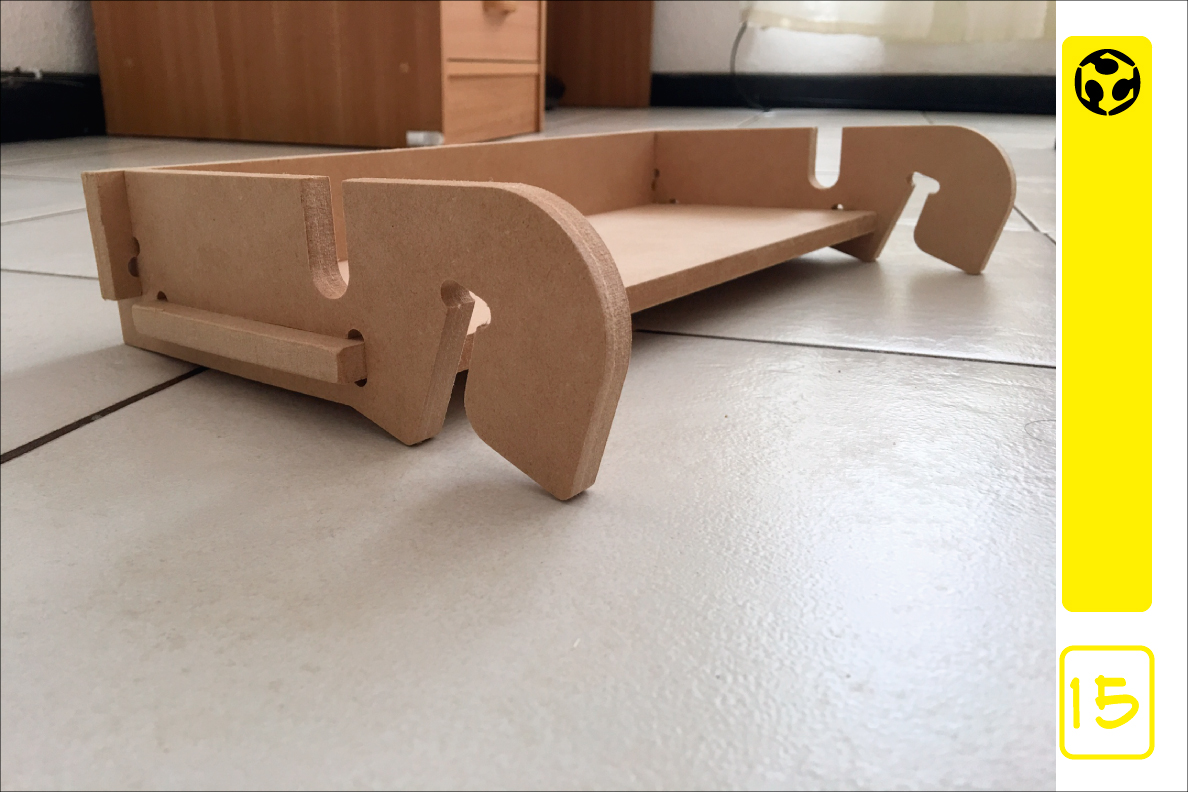

15. Cable Container Assembly.

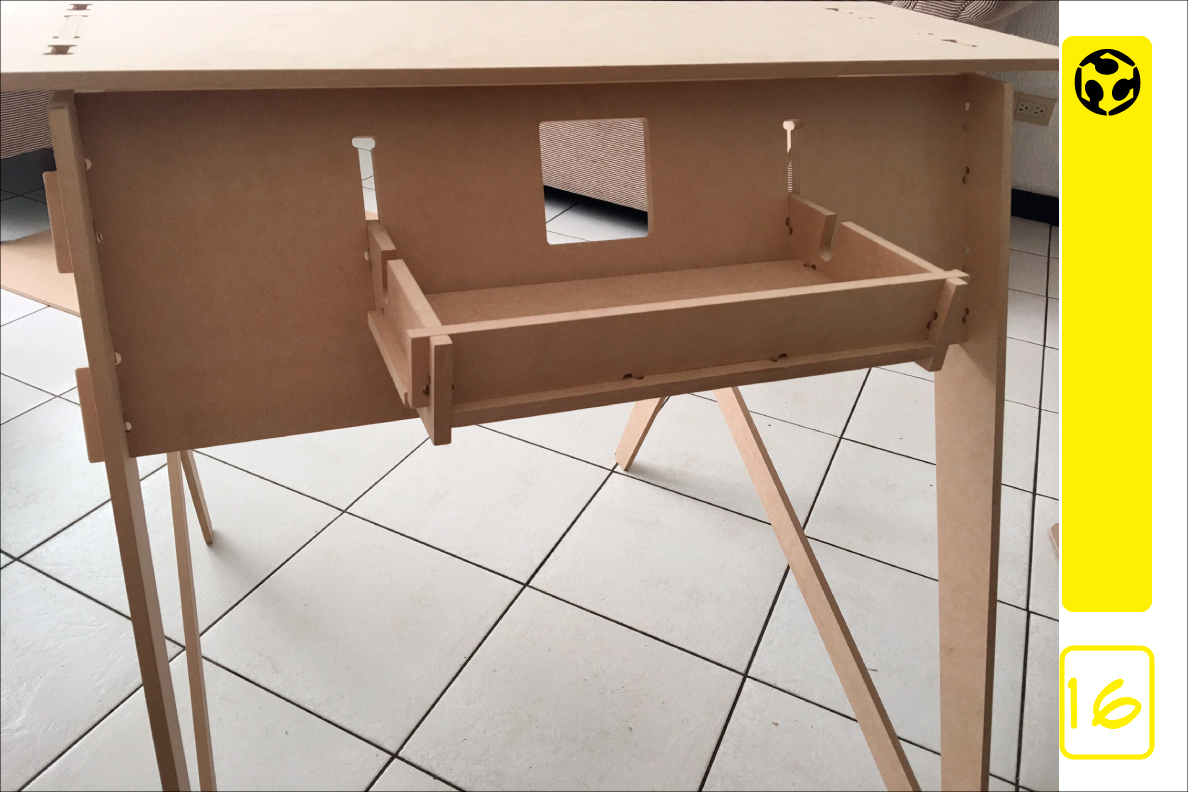

16. I start assembling different parts of the desktop.

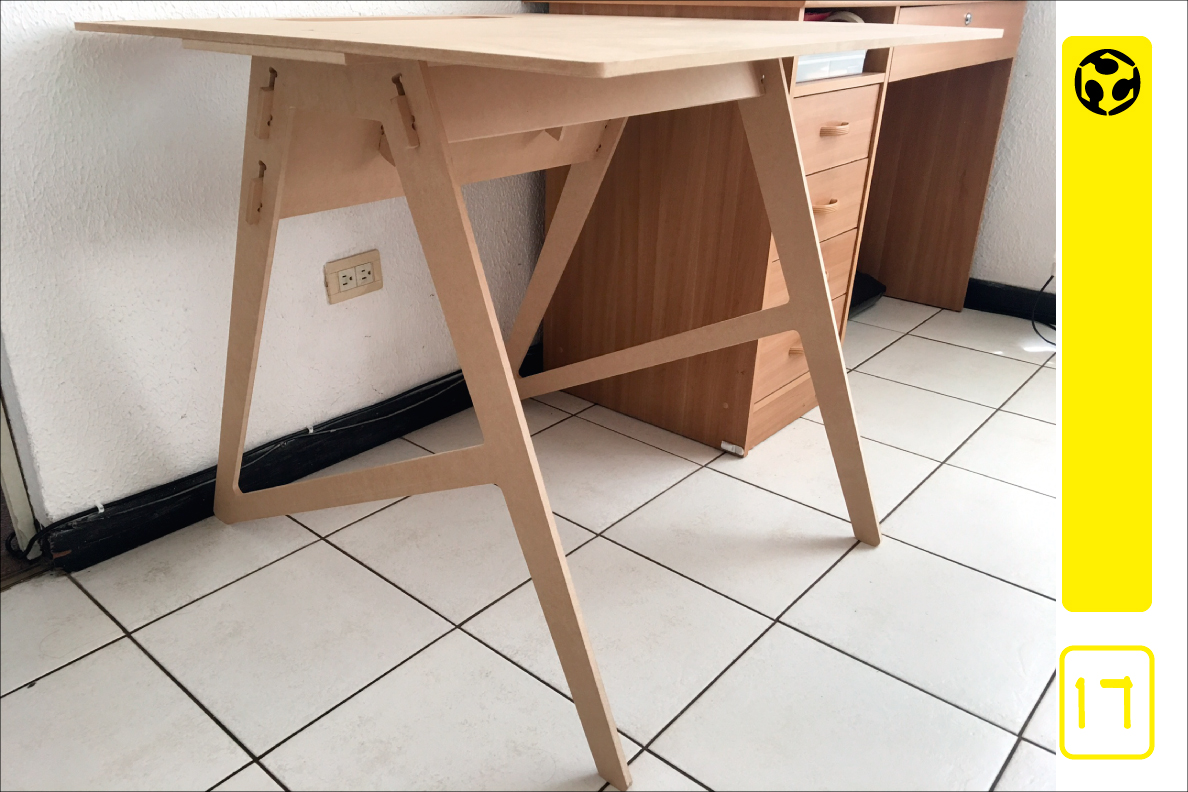

17. Desktop done!

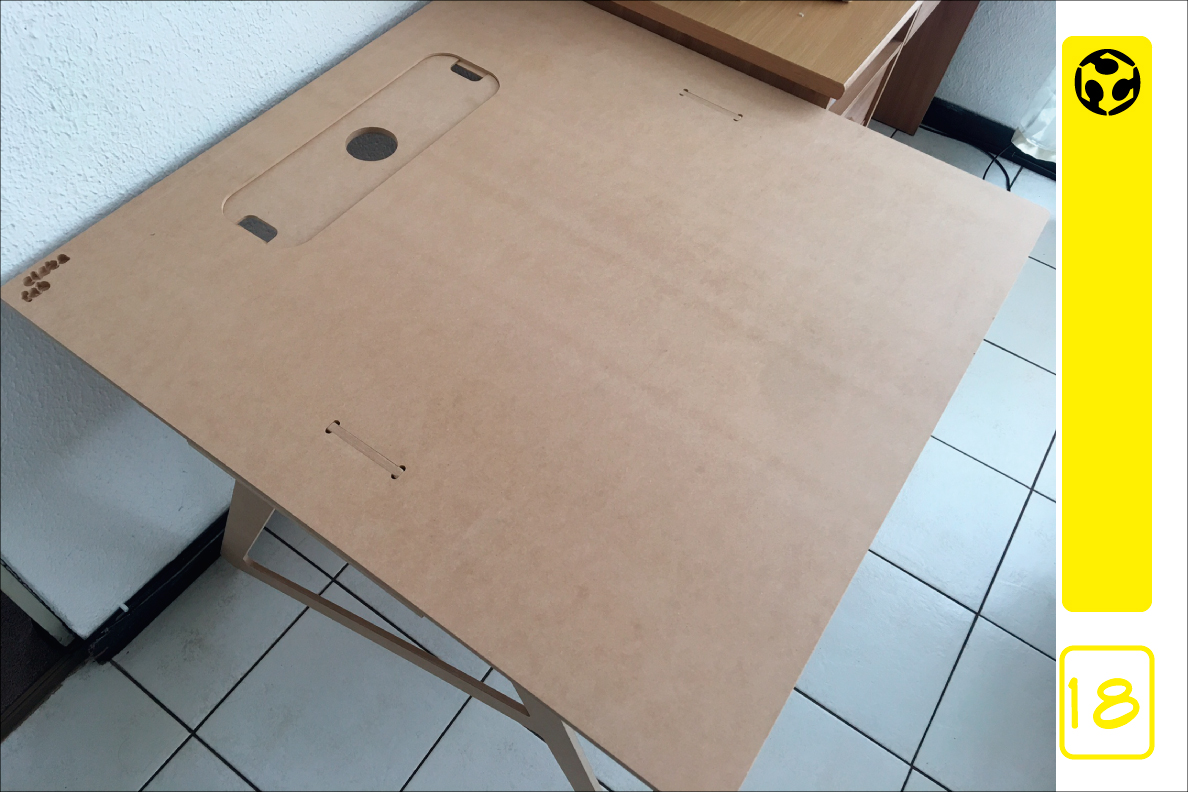

18. Top view.
