Computer Controlled Cutting



For this week's assignment I used two types of machines for computer controlled cutting: a laser cutter and a vinyl plotter


Vinyl cutting

First step was to make a design of what I want to cut using the vinyl cutter. I came up with a very simple Idea of making a sticker of the FabLab Logo to try out the technique.
Mountain View

Design:

-Having the .png file for the logo I imported it to Illustrator to get the outlines that I need for the cut.

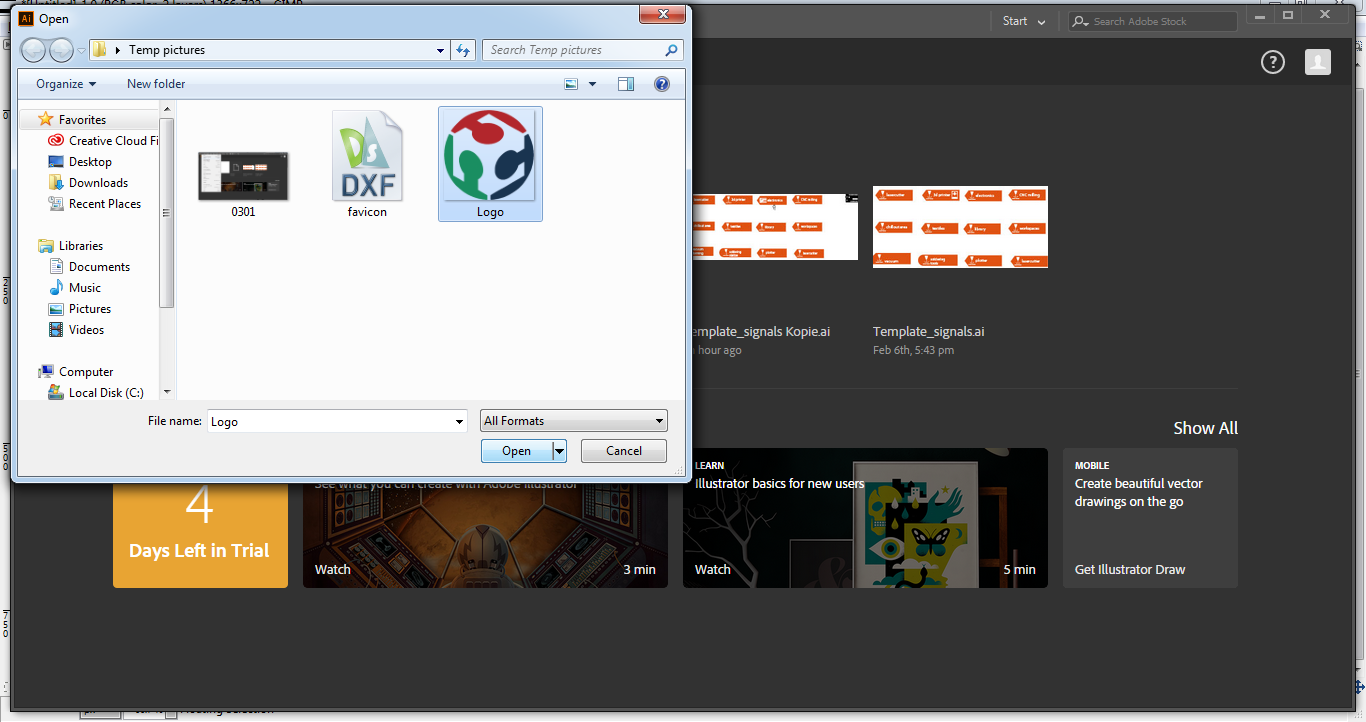

-I did this by going to File open and then choosing my file.

Mountain View
Mountain View

-Next step is to click on Image trace to trace the outlines of the object.

Mountain View

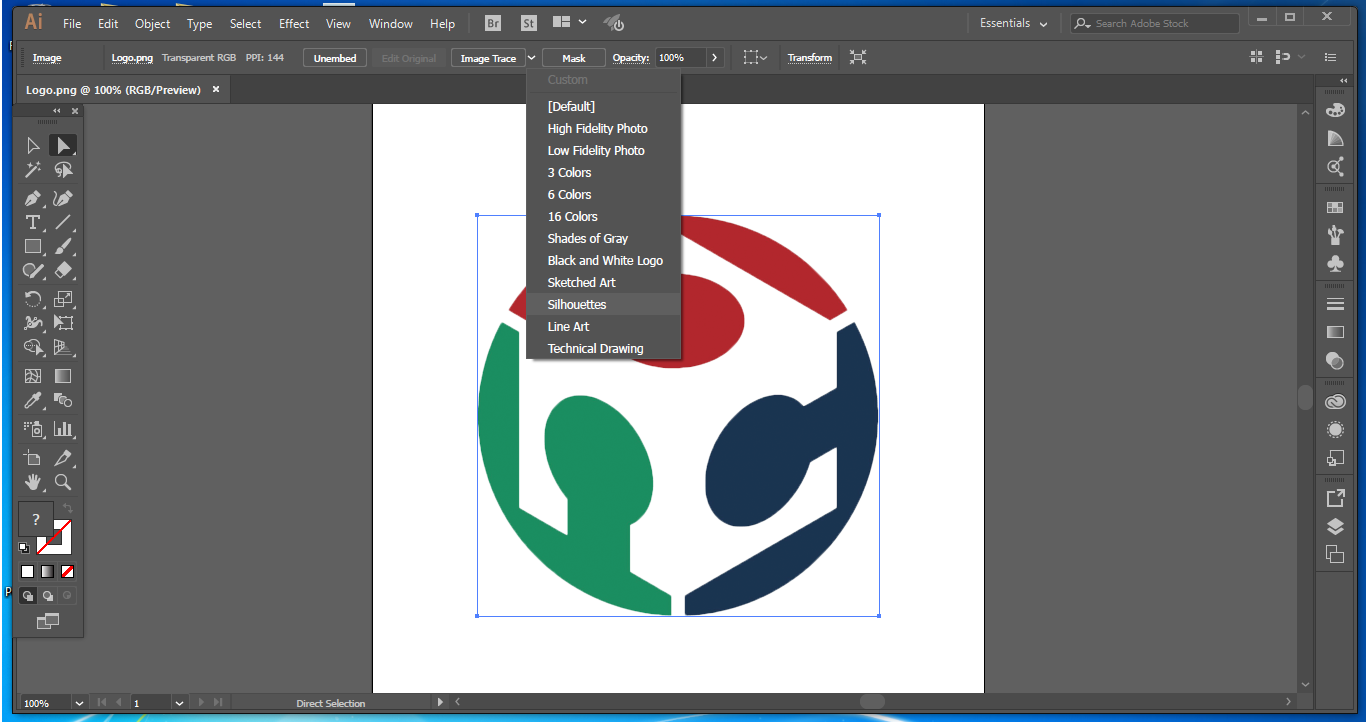

-A drop menu appears and then I chose silhouettes .

Mountain View

-This is how it looks.

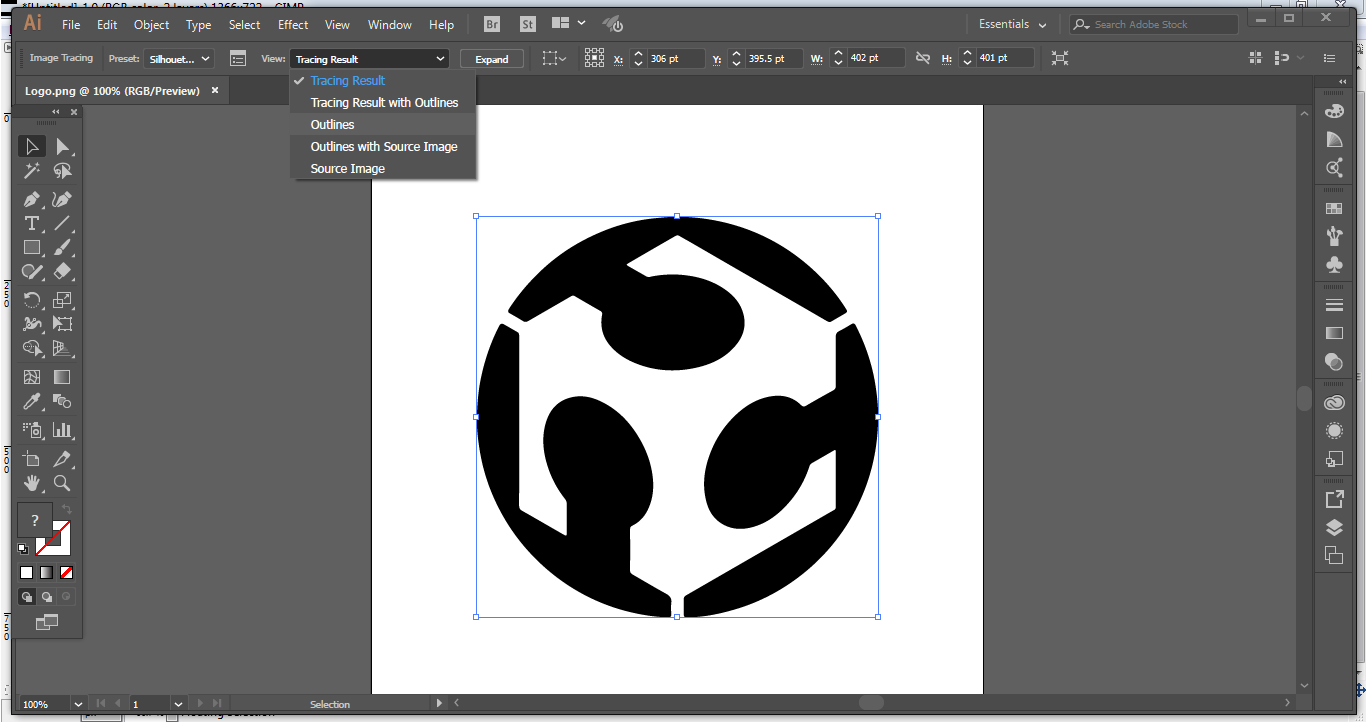

-Next thing to do is to choose the view of the tracing result I chose outlines

Mountain View

-This is how it looks like.

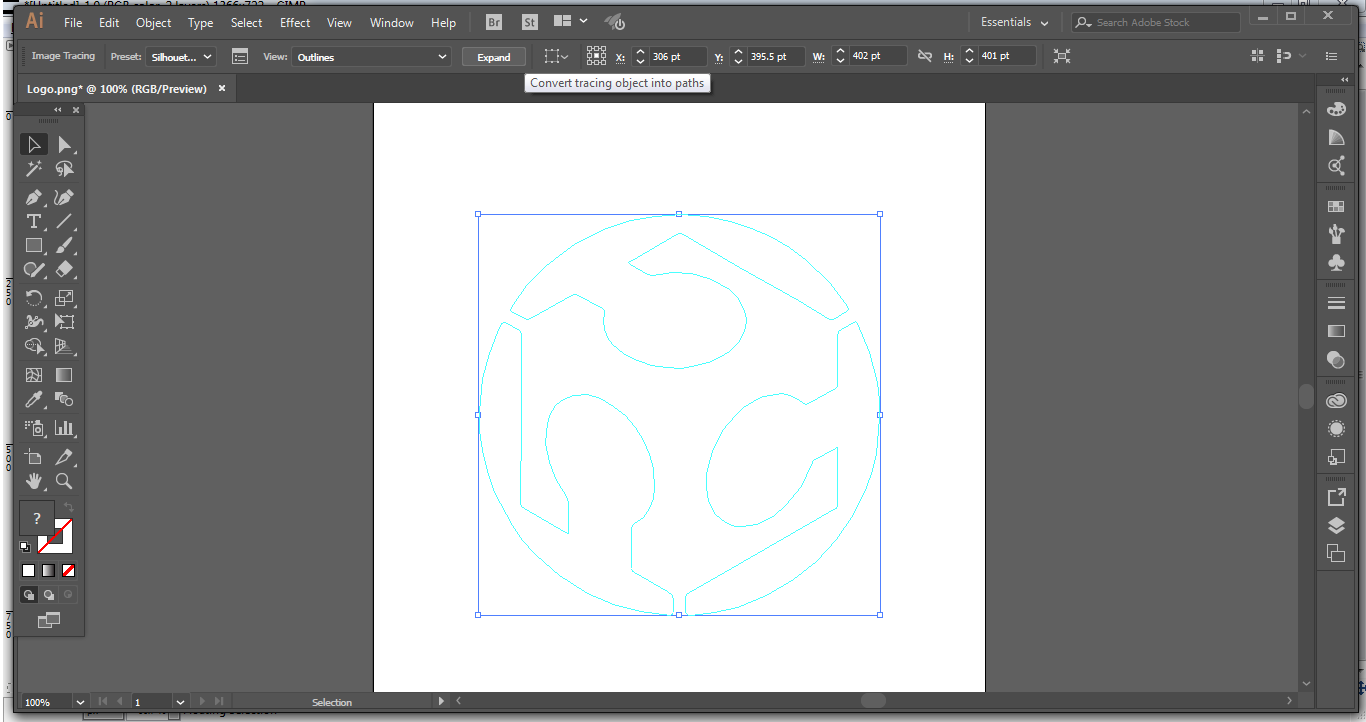

-Next step is to click on Expand as shown.

Mountain View

-This is how it looks like after using expand.

Mountain View

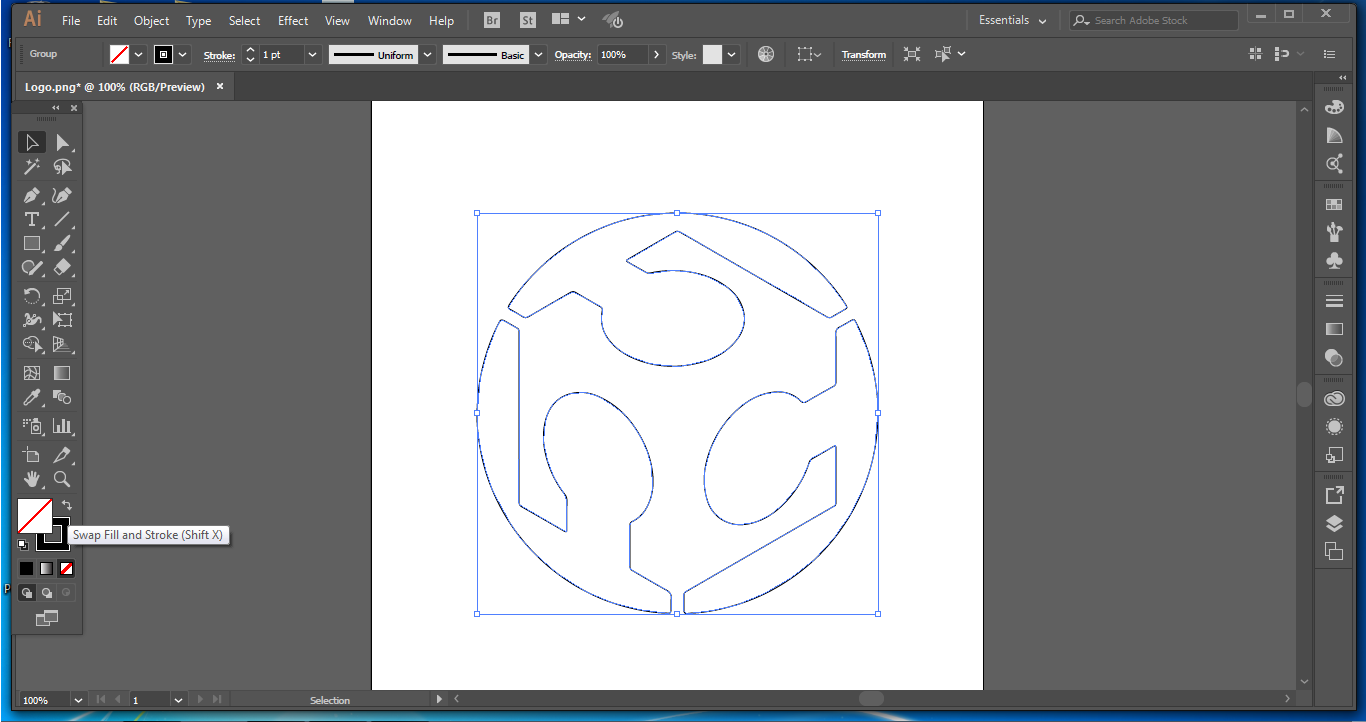

-Final step is to swap fill and stroke as shown bottom left corner or using the shortcut of Shift x .

Mountain View

-Now I have my outlines ready but I wanted to be able to edit the lines for example remove the outer frame so I ungrouped all the objects.

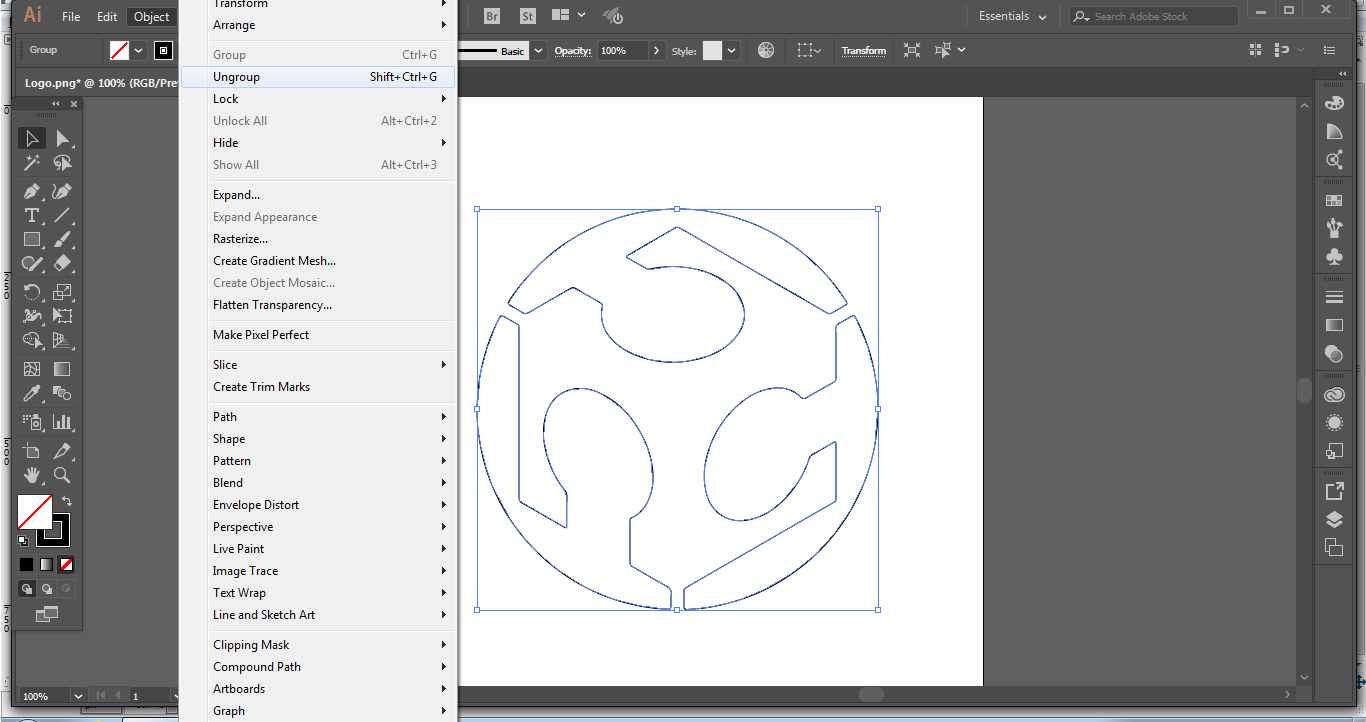

-I selected everything and clicked on object and chose Ungroup.

Mountain View

-Now I have my outlines ready to be exported.
-This can be done by clicking on file, Export and then Export As

Mountain View

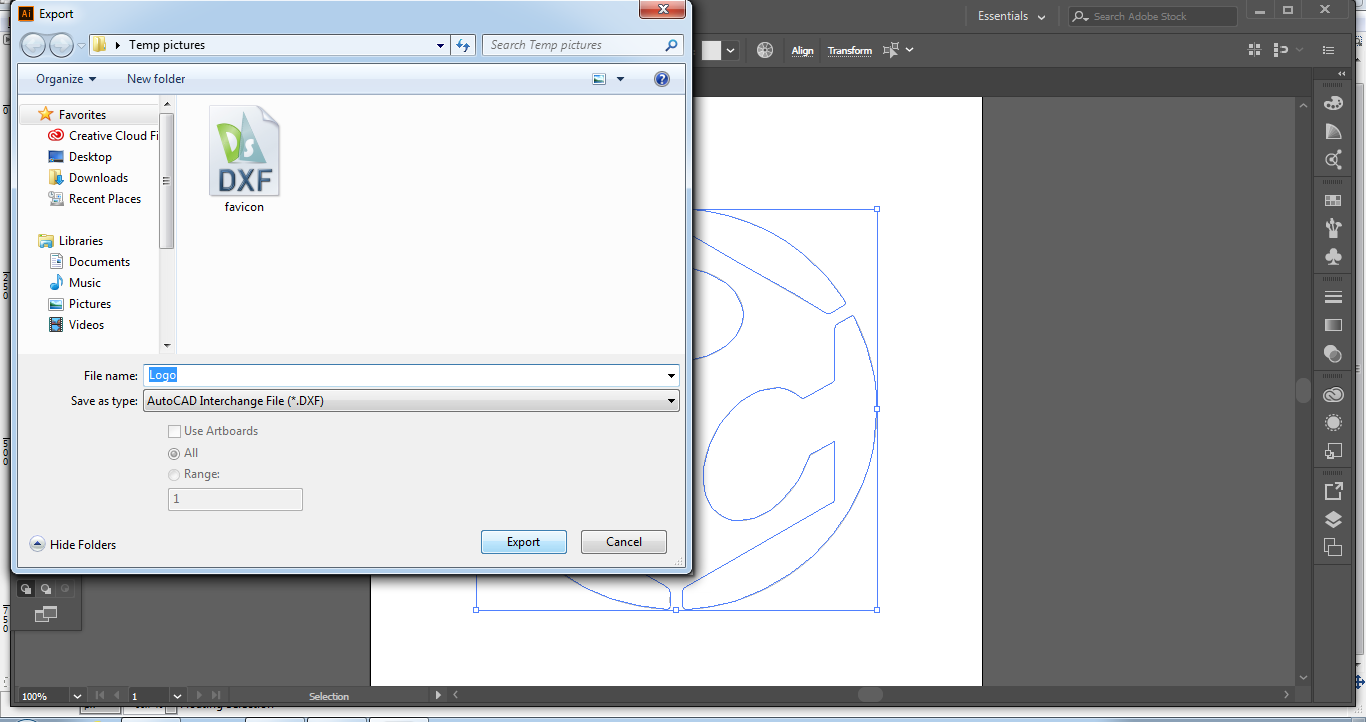

-I chose to export it as .DXF file.

Mountain View

Cutting:

I used Silhouette Portrait Plotter along with SilhouetteStudio software to control with.

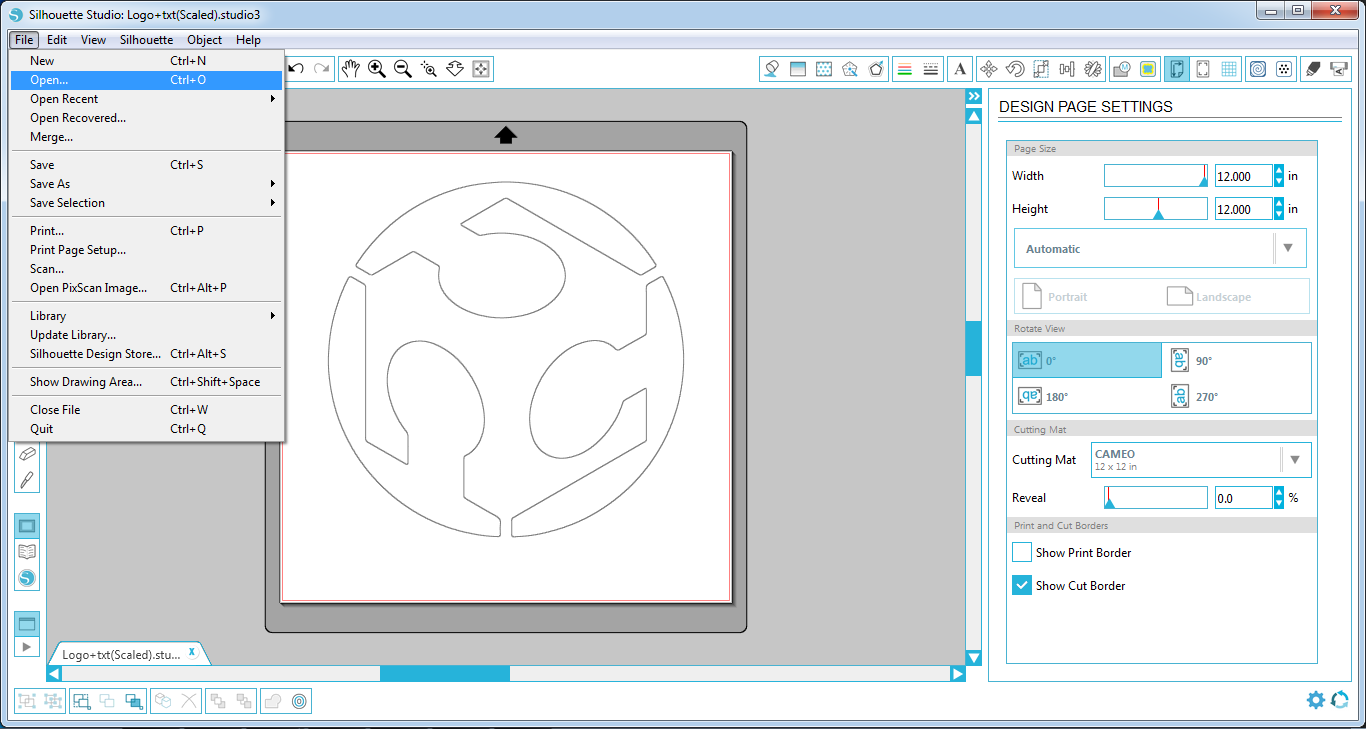

-First of all I imported the design file by clicking File, Open and then I chose the design file.

Mountain View

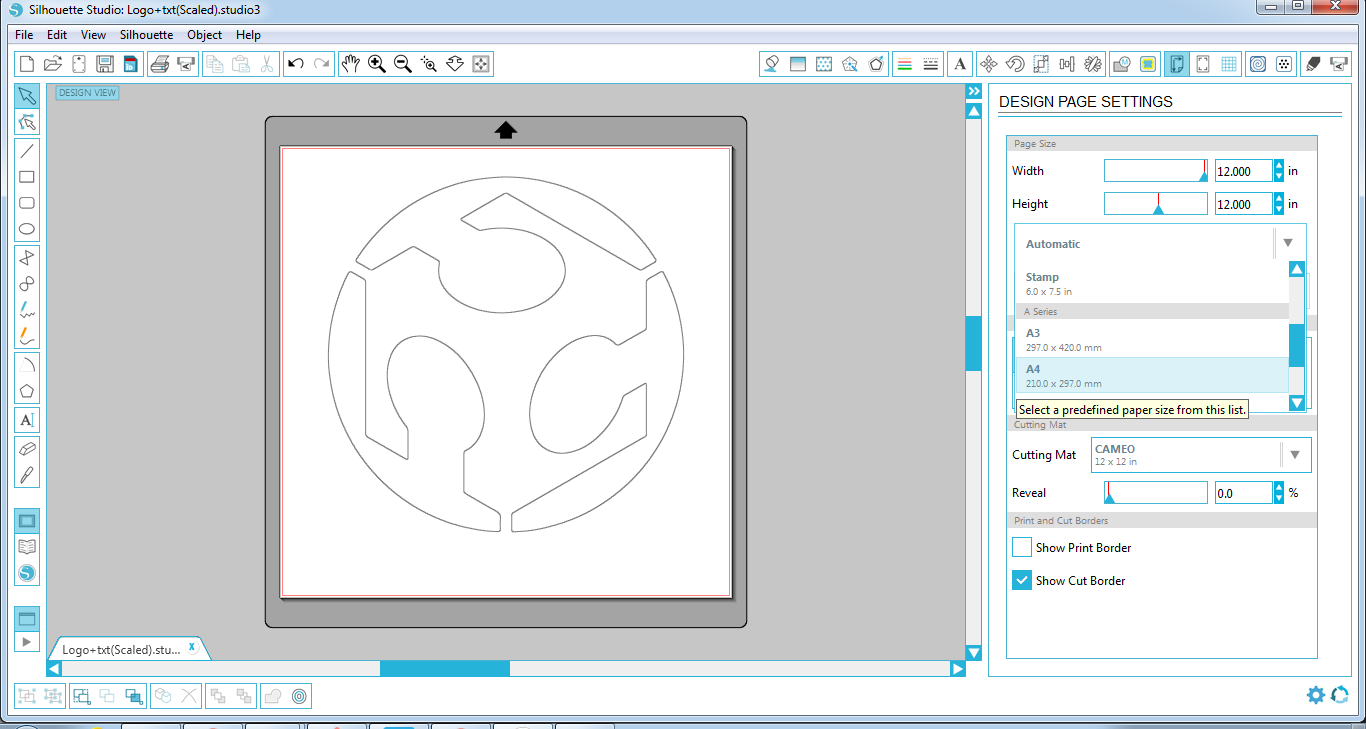

-I chose the A4 paper size from the paper size drop menu.

Mountain View

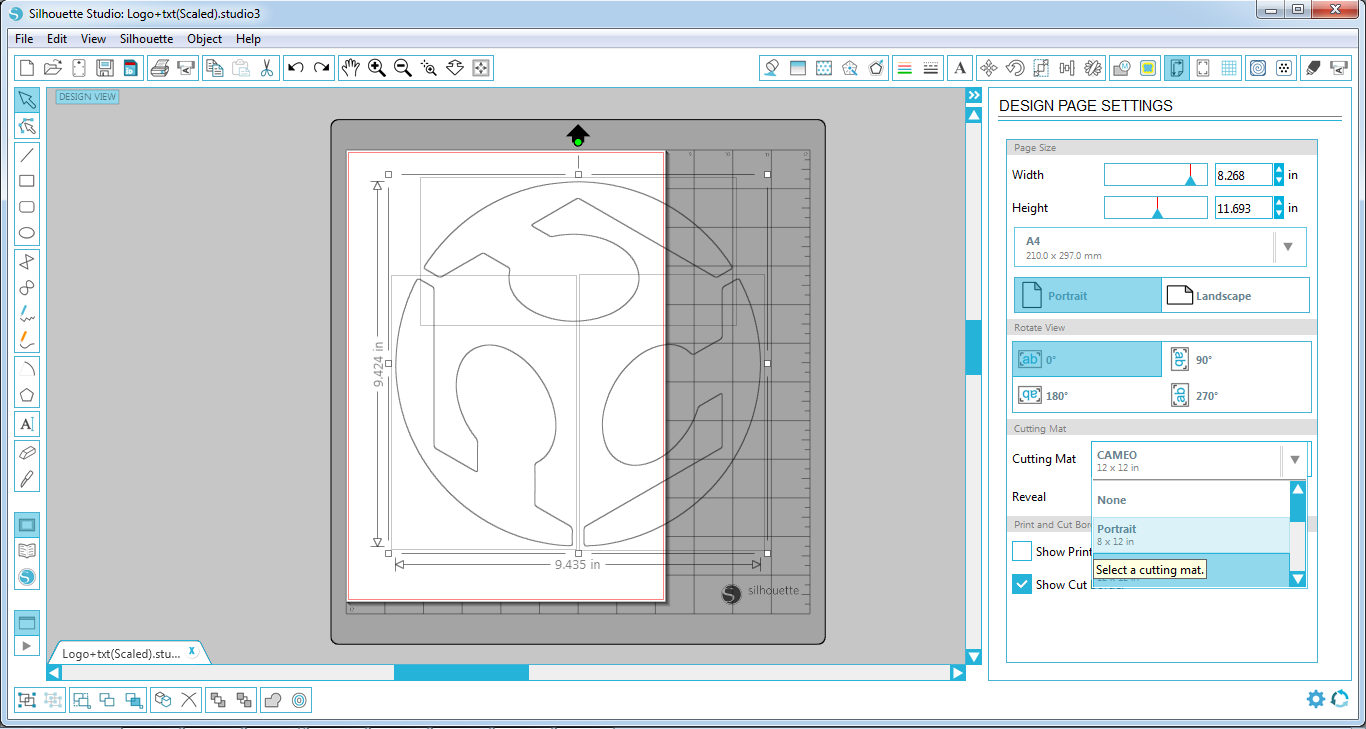

-Then I chose the cutting mat of the Silhouette Portrait plotter i will be using.

Mountain View

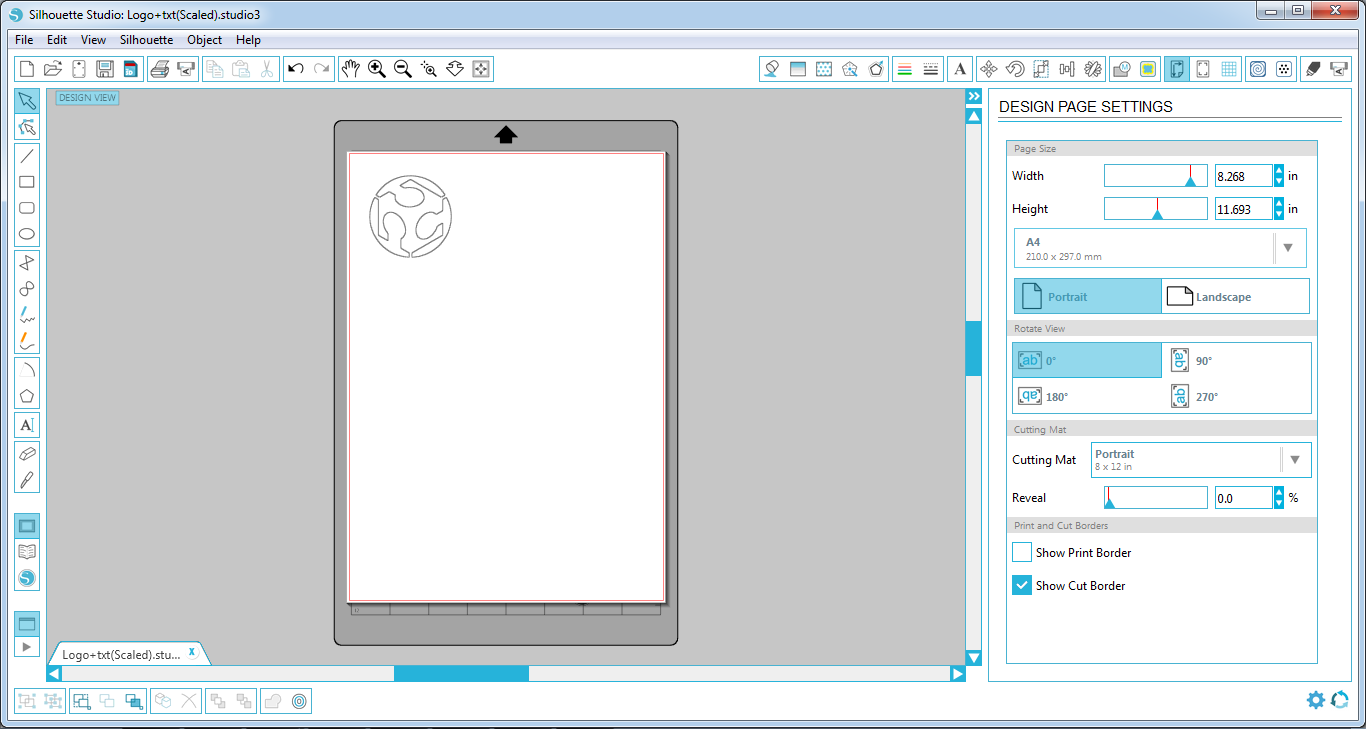

-This is how it looks.

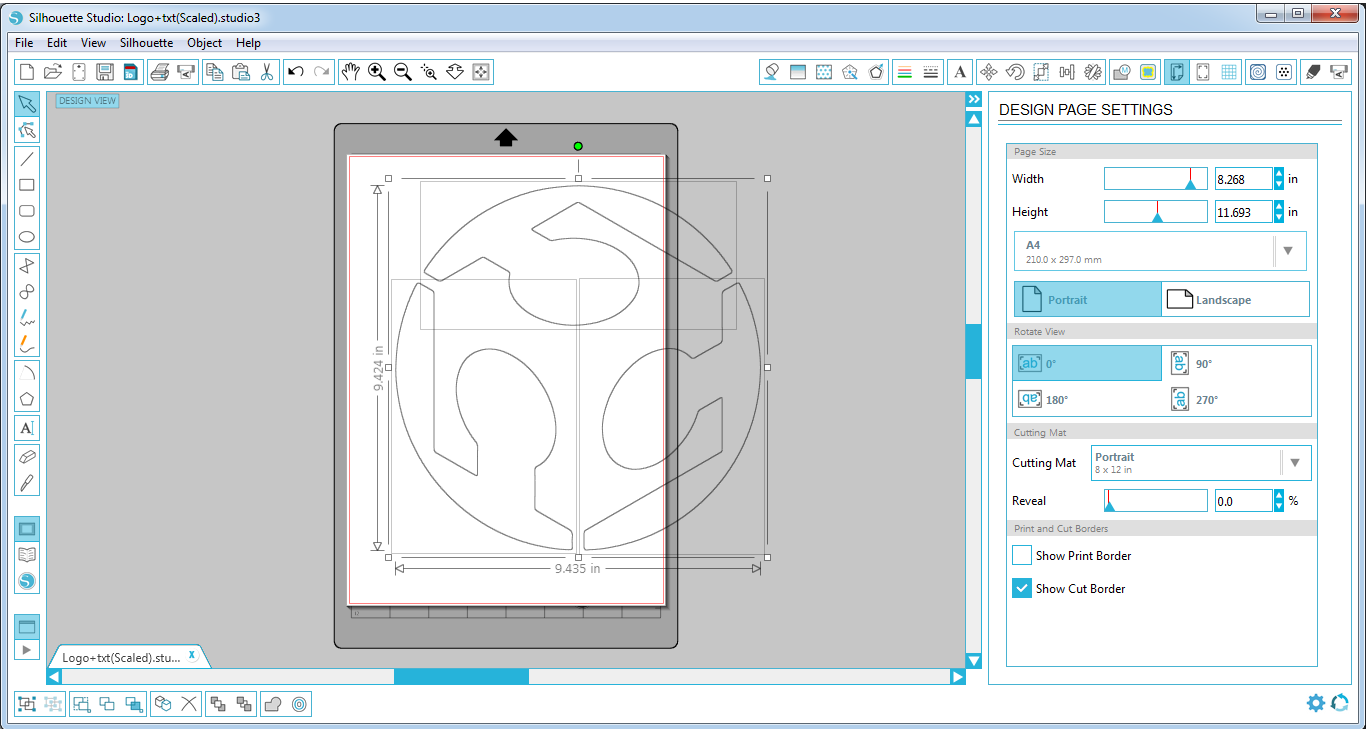

-I then scaled the logo to the size I wanted by selecting everything and dragging the corner arrow.

Mountain View
Mountain View

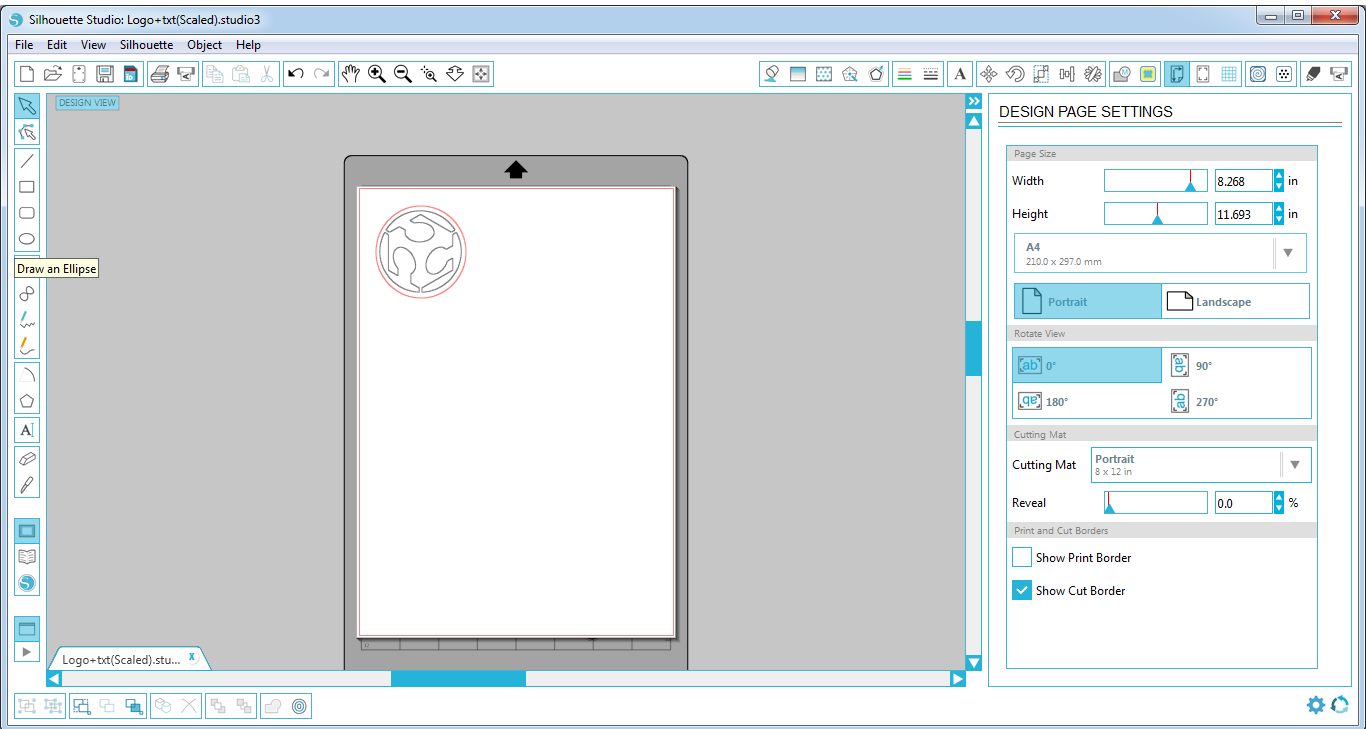

-I added an elipse around my sticker using the elipse tool so I can take follow this cut to cut it out.

Mountain View

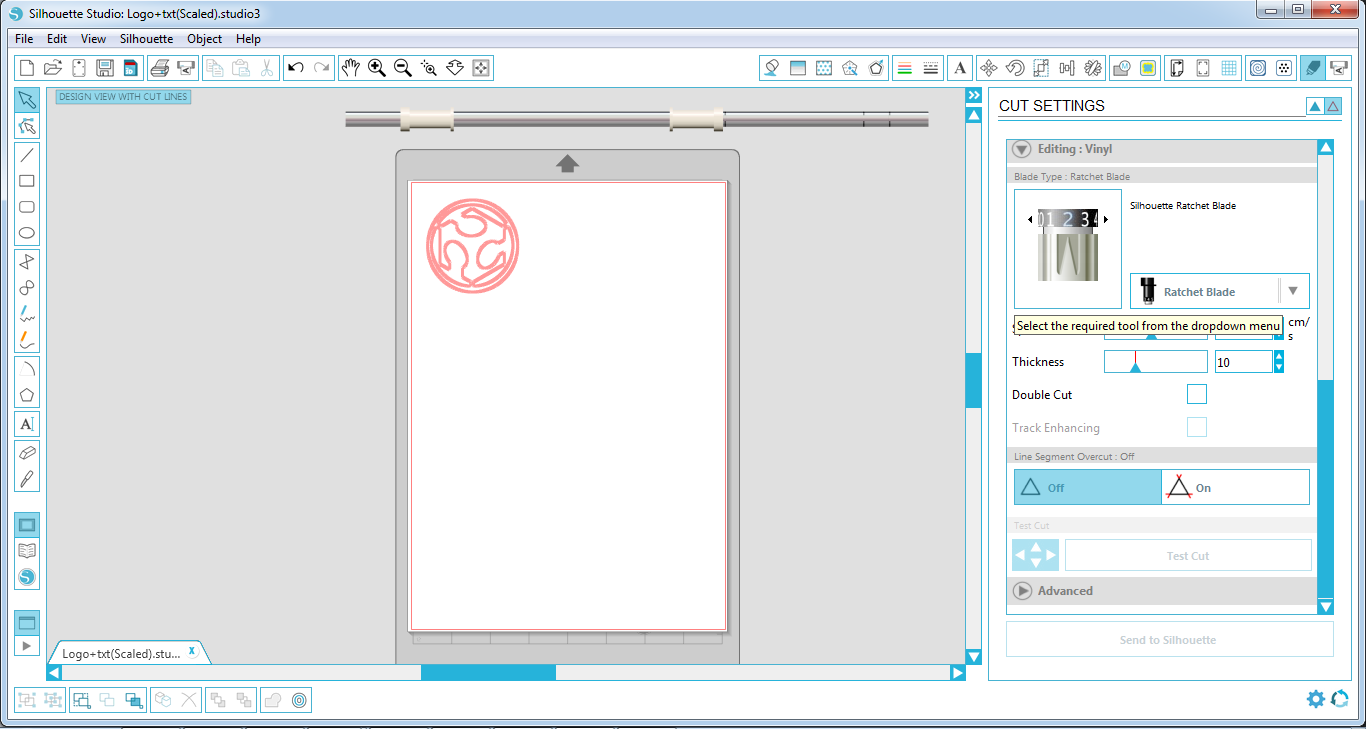

-Next step is to set the cutting setting by clicking on the cut settings icon top right corner.

Mountain View


Here are the settings
-Cut Mode: Standart
-Cut Style: Cut Edge
-Material Type: Vinyl
-Blade Type: Silhouette Ratchet Blade
-Tool blade adjustment: 2



Mountain View
Mountain View

Final product:

Mountain View

Laser cutting

I used Epilog fusion machine and I chose to use MDF wood of thickness 3mm througout this assignment. Before starting the designing process I had to detemine the cutting parameters along with the kerf of the material

Cutting parameters:

I started by looking up the recomended settings by frequent machine user in our lab to get an idea about the ranges of values of those parameters.
-First of all I tried power 100, frequency 20 and speed 10 --> the material was not cut all the way through
-Then I decided to increase the frequency by 5 so I tried power 100, frequency 30 and speed 10 --> It went slightly better the cut was a bit deeper but yet the material was not cut all the way through
-I examined the material and found that it needs less speed because almost one third of the material was not cut. this time I deccreased the speed by 1 so I tried power 100, frequency 30 and speed 9 --> decreasing the speed just by 1 improved the cut but still it needed even less speed
-finally I decreased the speed again and tried power 100, frequency 30 and speed 8 --> It went perfectly fine this time with those settings


Kerf:

After setting the cutting parameters I went straight to calculating the kerf.

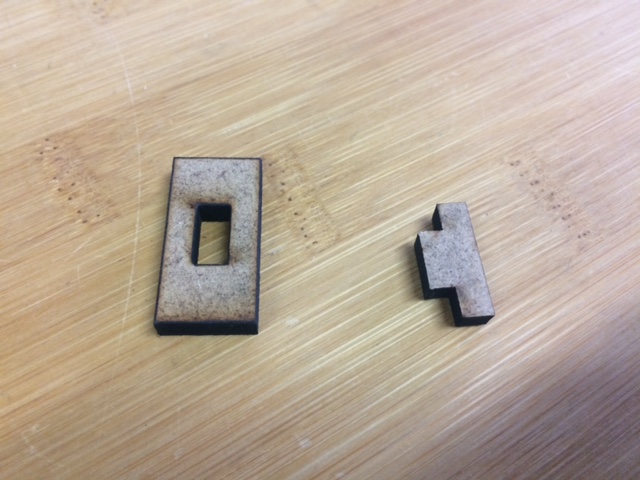

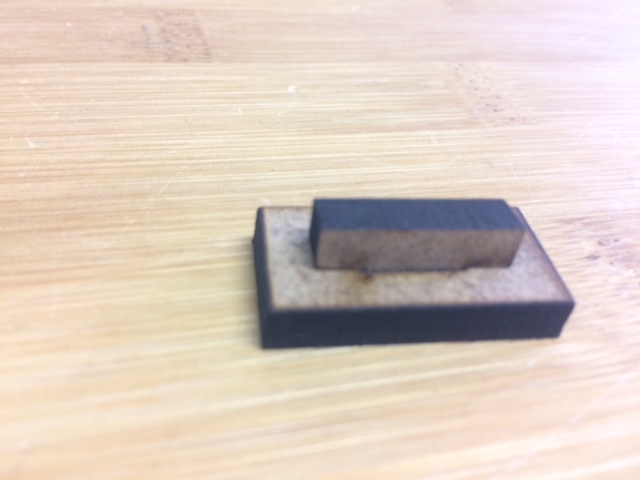

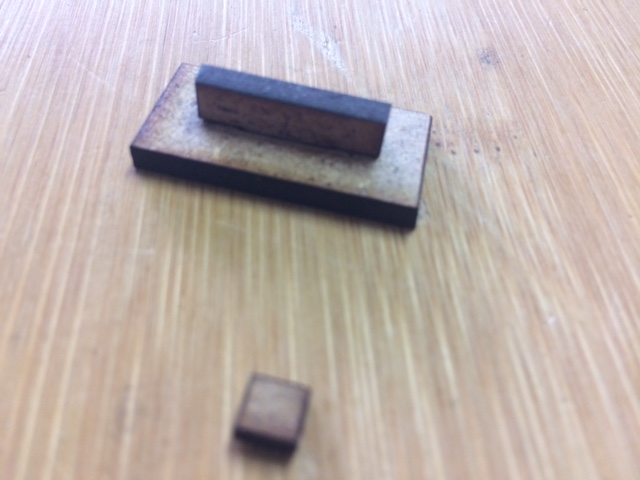

-I did this by cutting multiple separate 1 cm square pieces and then measured their actual dimentions using a calibre. -I Found that the values of the square side are between 0.983 and 0.981 cm and the average value of the kerf is 0.018 cm. -Next step was that I tried to validate this result by doing a smal test of a joint.


Mountain View
Mountain View
Mountain View
Mountain View

I drew the sketches of the kerf using fusion 360. This is how I did it:

-I started by creating a new sketch by clicking on File, New Design

Mountain View

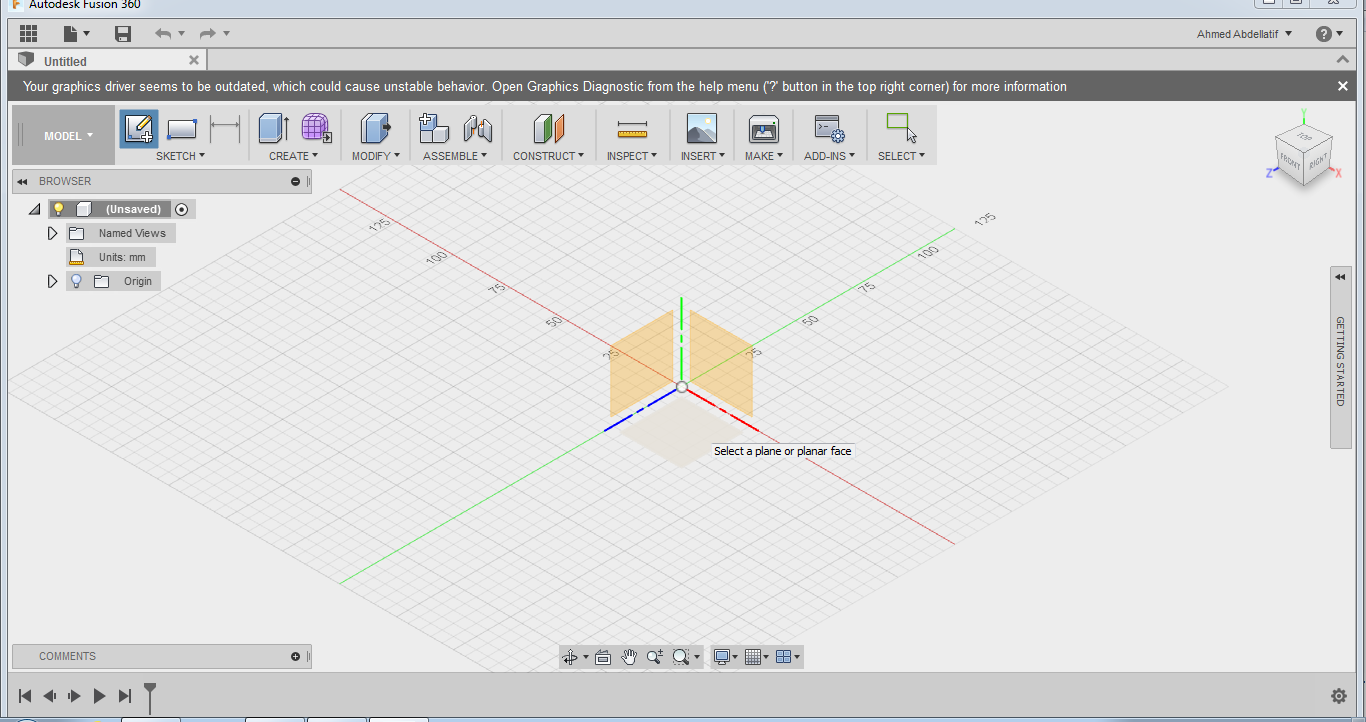

-Then I pressed on create sketch icon

Mountain View

-I chose the top plan as my working plan by clicking on it.

Mountain View

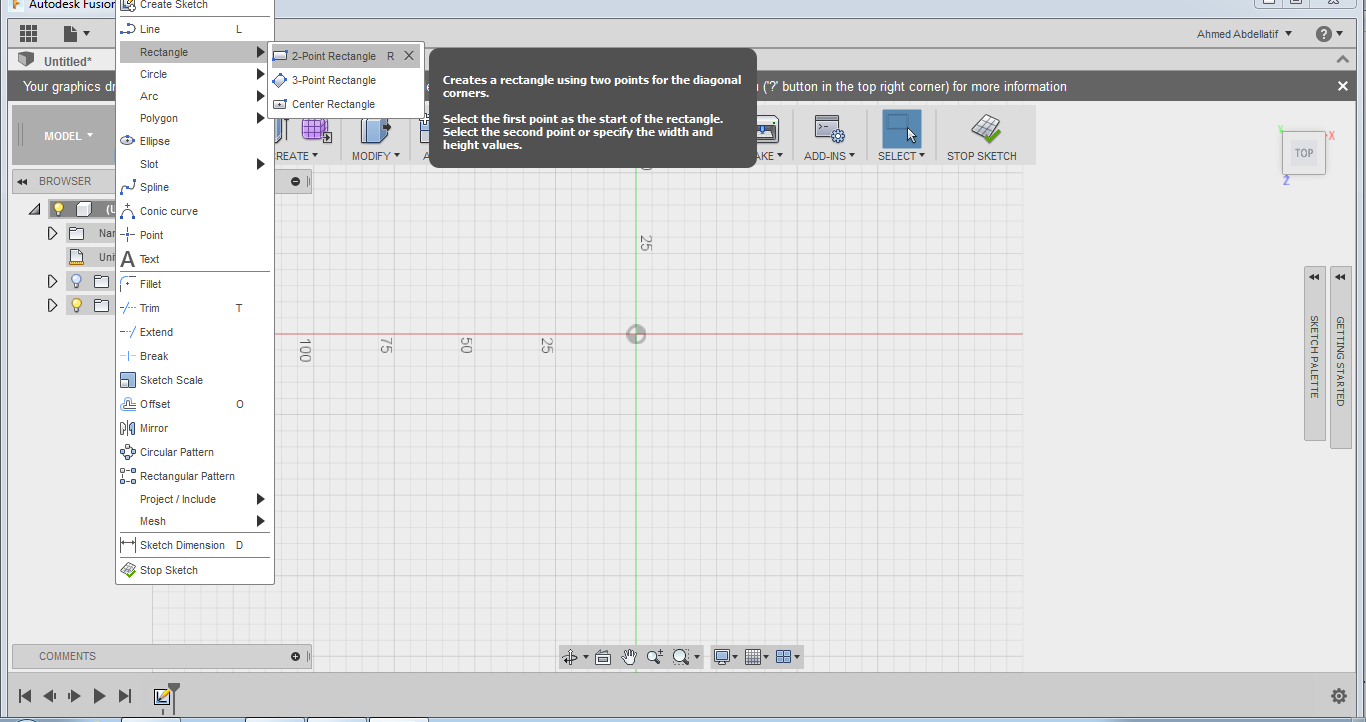

-I slected the 2 point rectange tool from the sketch drop menu.

Mountain View

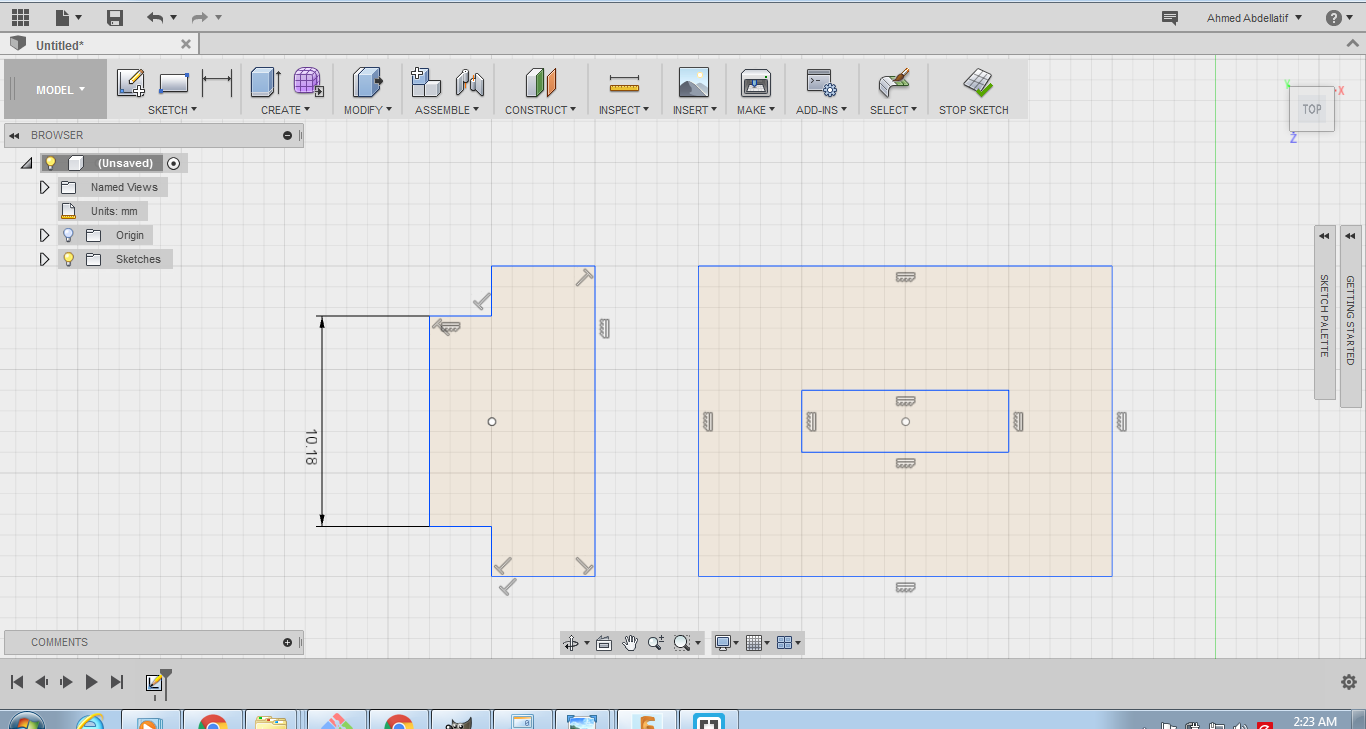

-I drew a 2 * 1.5 cm rectangle

Mountain View

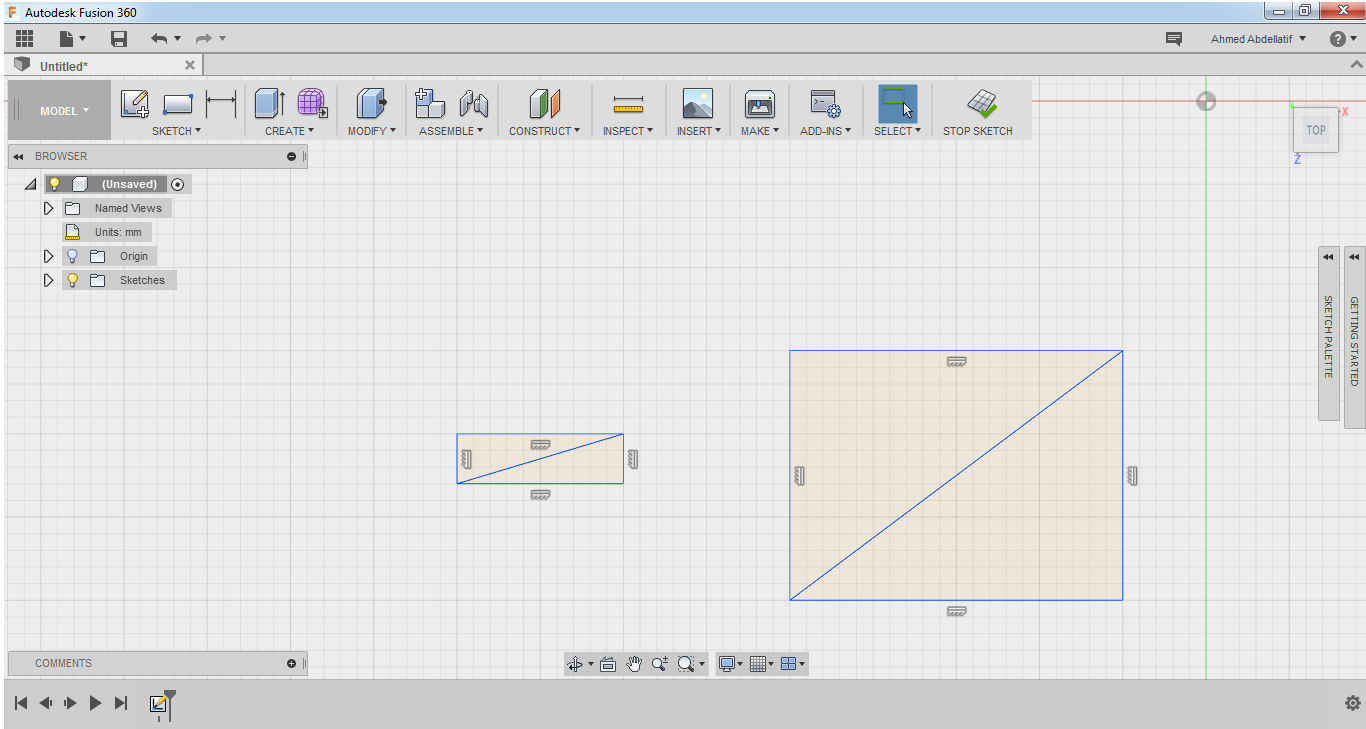

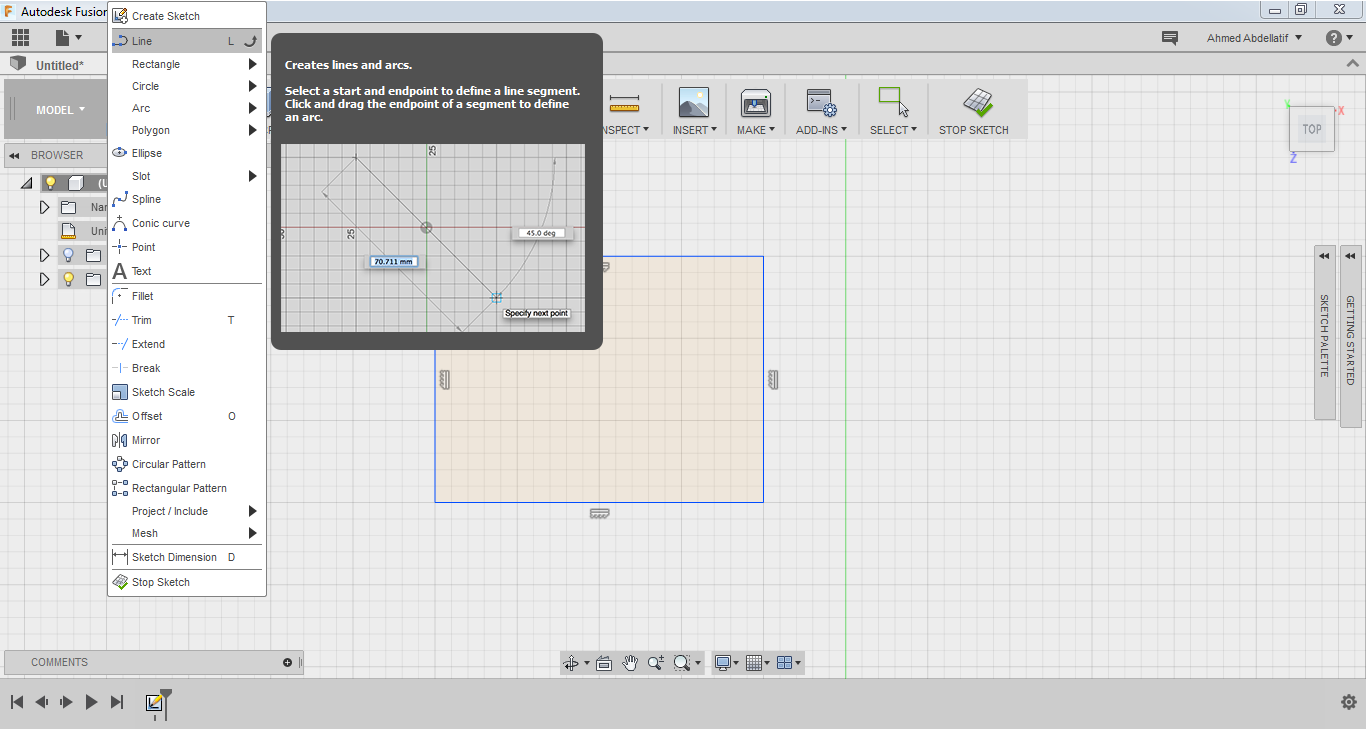

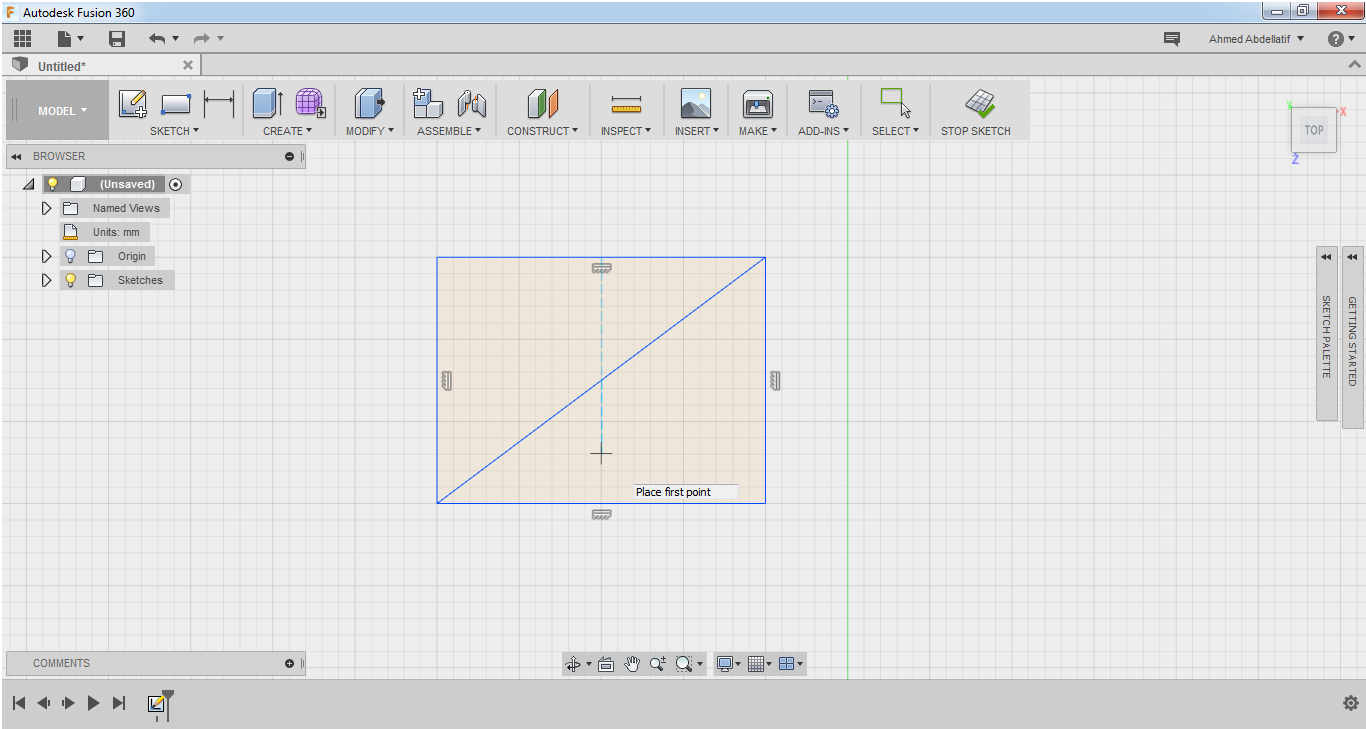

-Then I used the line to draw the diagonal so I can find the center of the rectangle

Mountain View
Mountain View

-I added another rectangle of 1 * 0.3 cmm

Mountain View

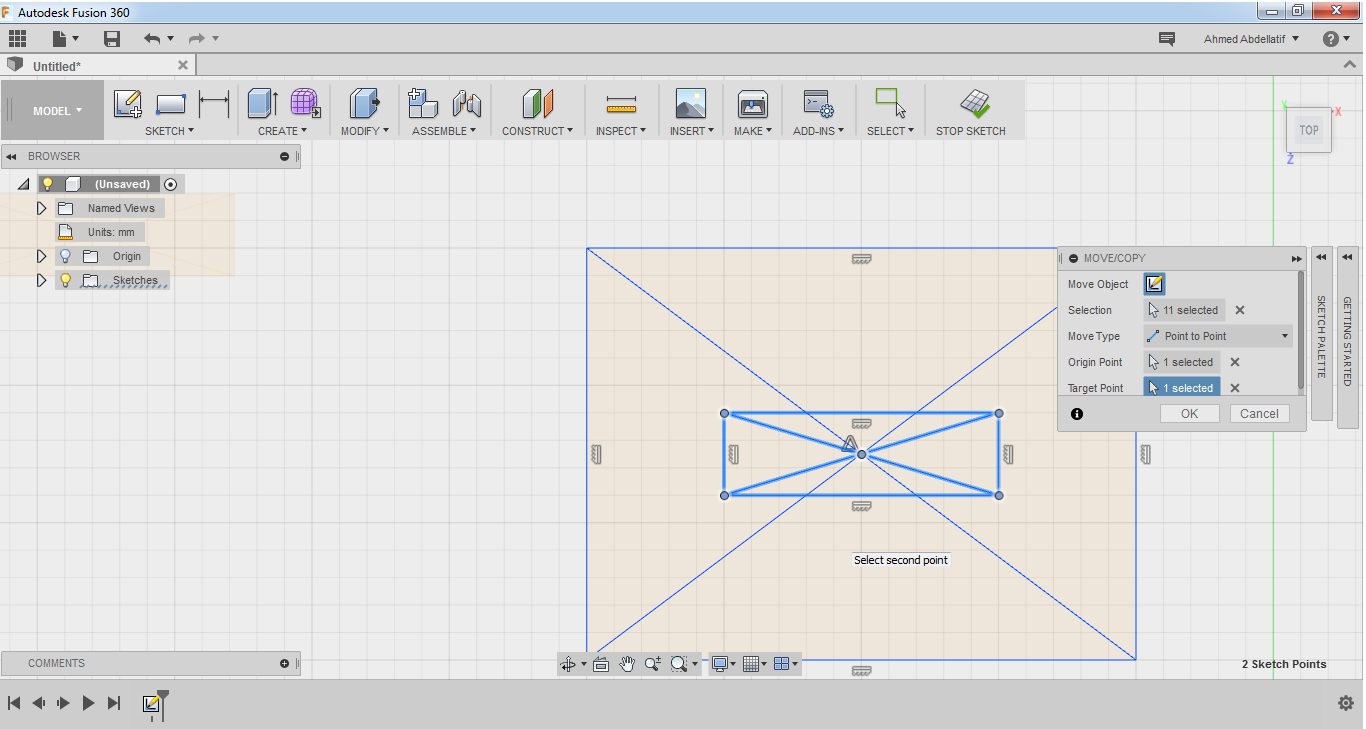

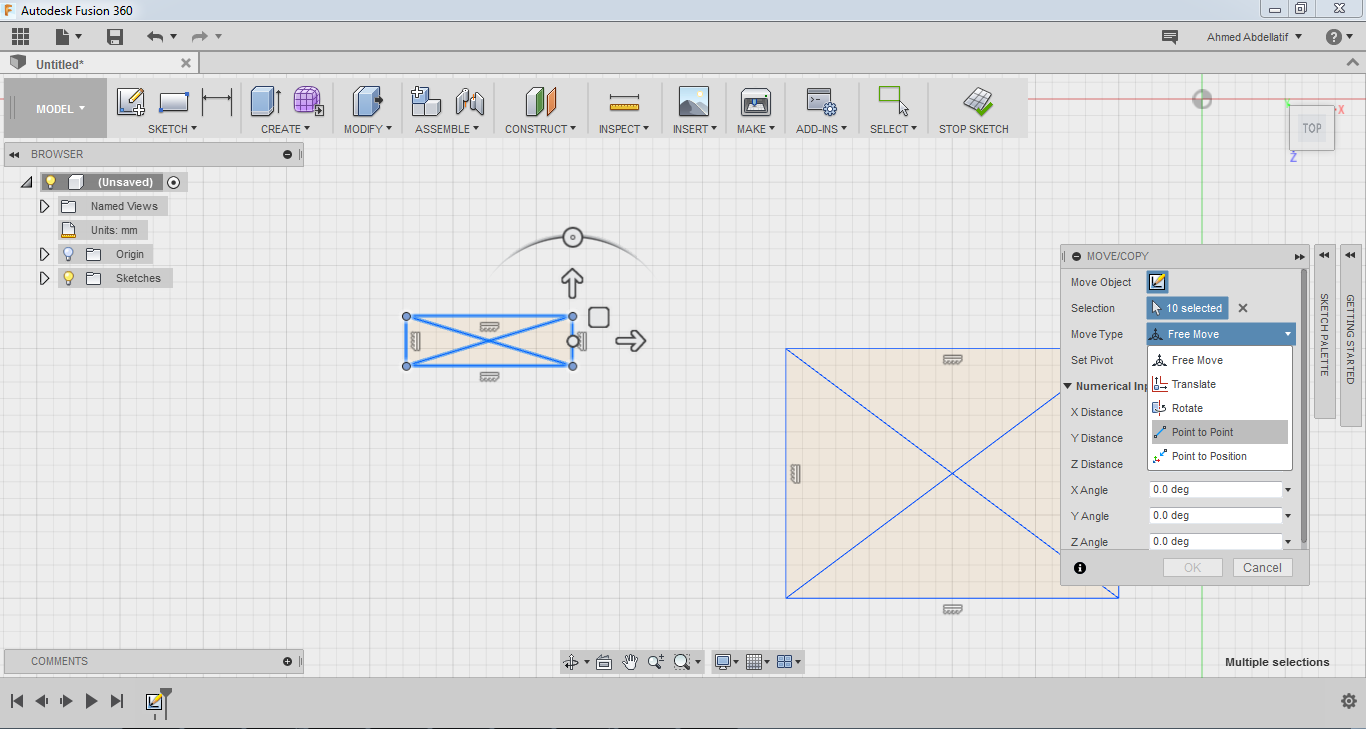

-I drew the other diagonal of each of the rectangles, added a center point using point from sketch drop menu and moved the smaller one to the center of the bigger one by selecting it and then right clicking and choosing move from the options. I chose to move point to point option from the menu in the lower left corner

Mountain View Mountain View Mountain View

-Again using the line tool I drew the other part of the joint taking the kerf into consideration

Mountain View


First Application:

I decided to make something in which I use bending patterns. I starting by drawing the sketch using Fusion 360
Sketch:

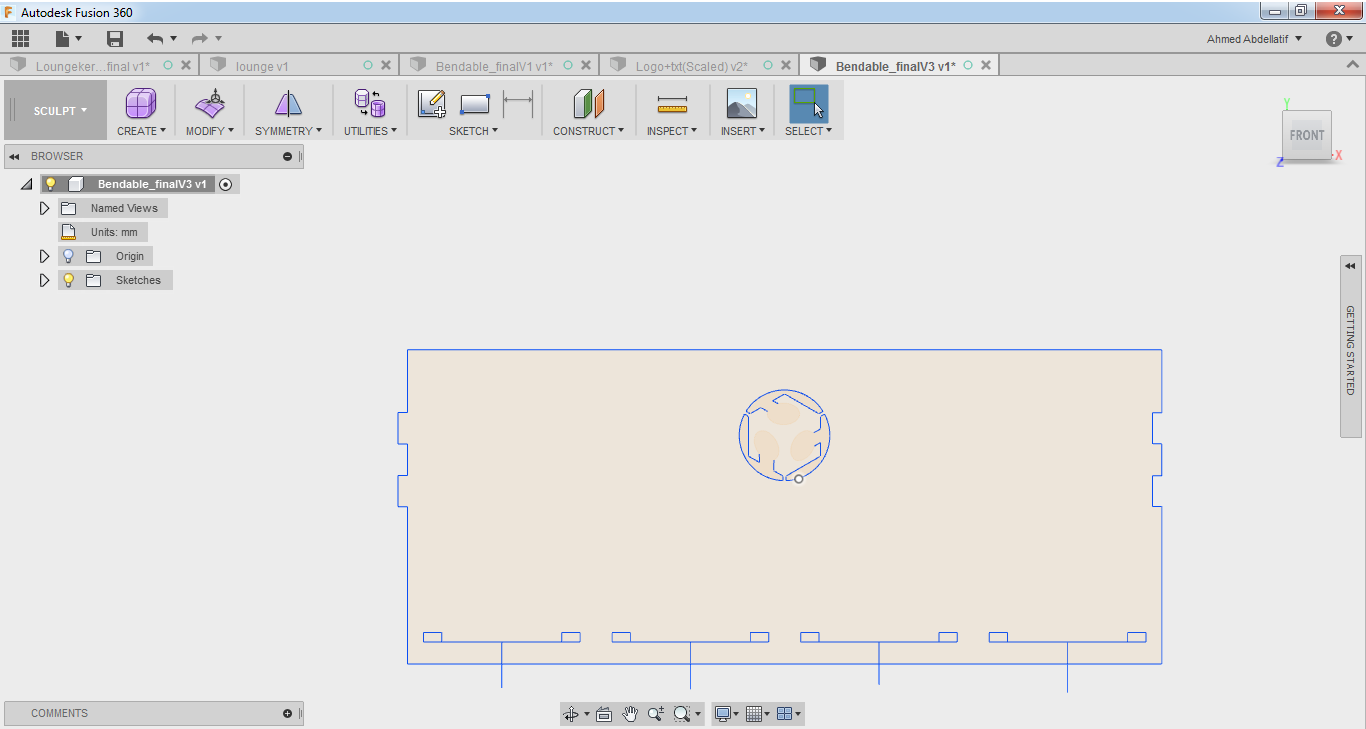

-I Created a sketch same as mentioned above and I used exactly the same tools as before to get to this:

Mountain View

-Next step was that I uploaded the logo outlines that I made before for the vinyl cutting. How to upload is mentioned in week 2 assignment

Mountain View

-I selected everything and copied the logo and then pasted it in my original file.

Mountain View

-I scaled the logo to the right size using Scale under modify drop menu .

Mountain View

-I scaled the logo to the right size using Scale under modify drop menu and then I moved it to the right place.

Mountain View

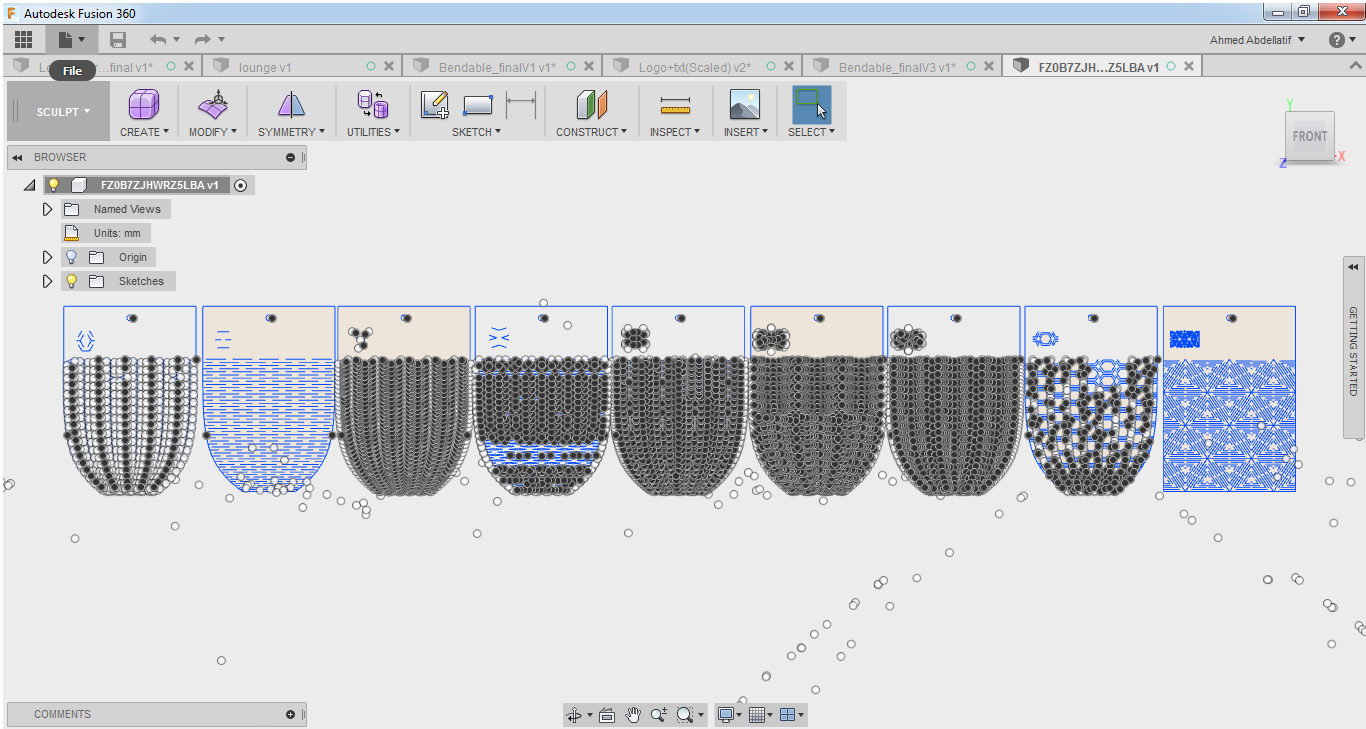

-I dowlnloaded some bending patterns from Instructables and Imported them to Fusion 360.

Mountain View

-I decided to use this pattern

Mountain View

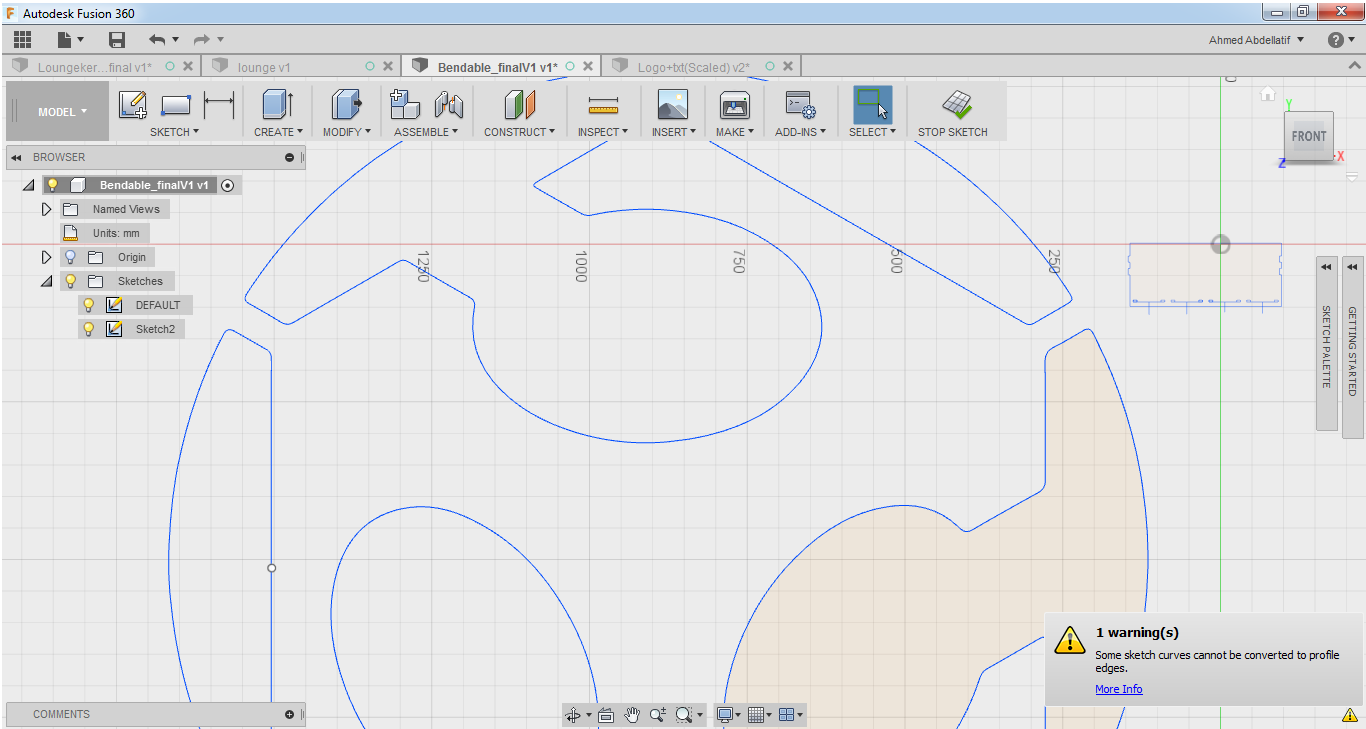

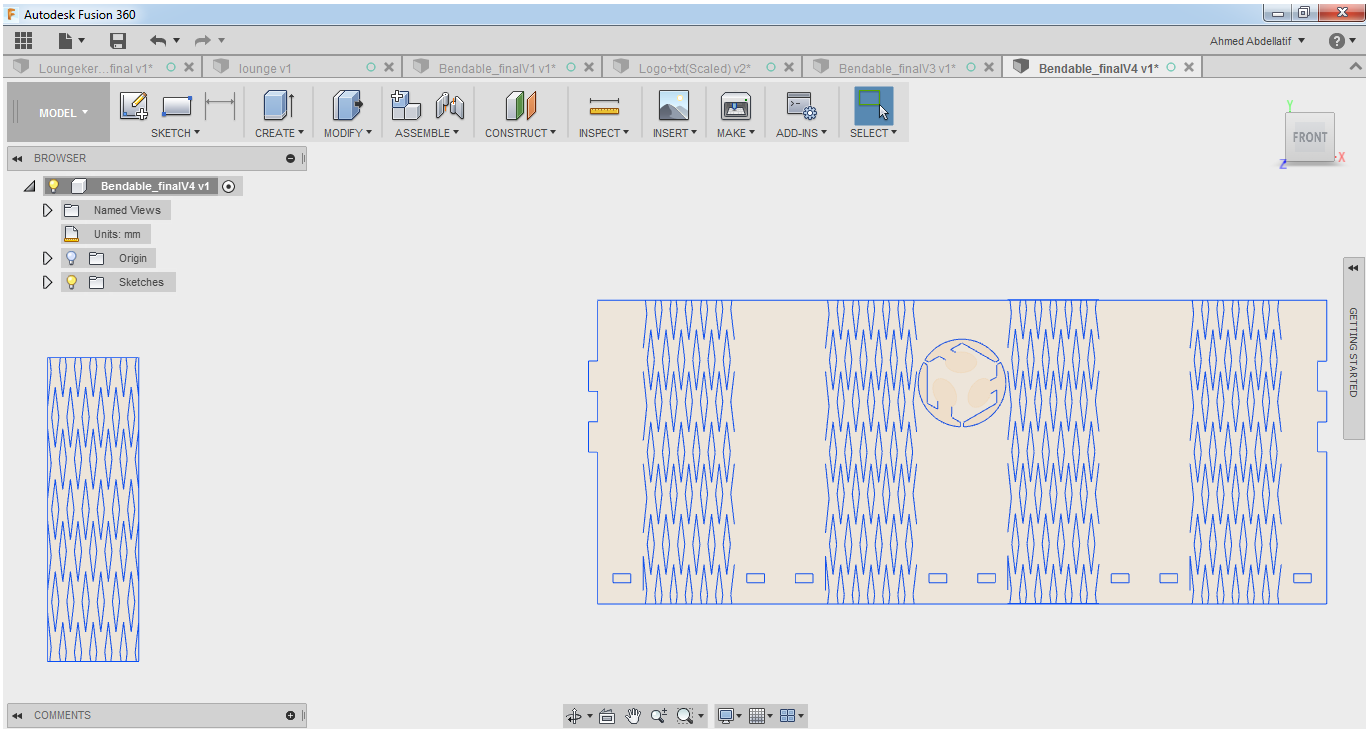

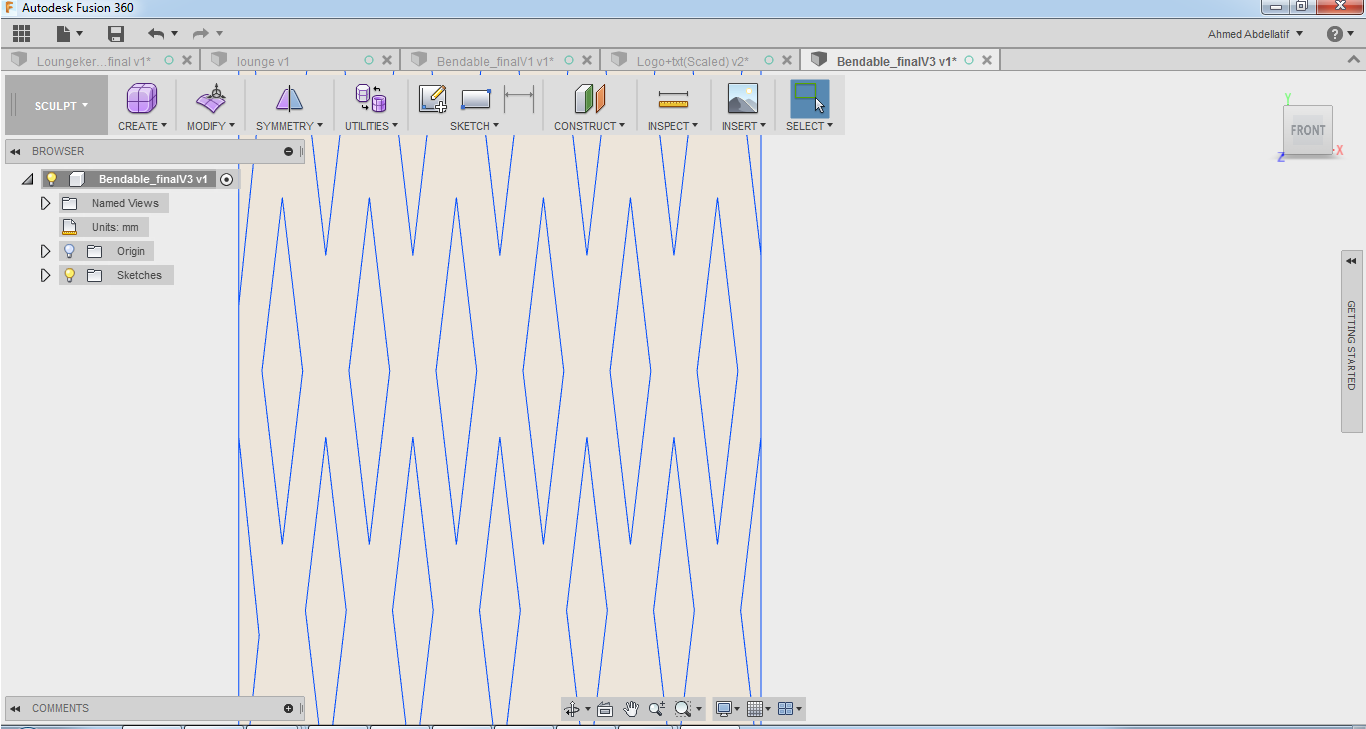

-I made a rectangle with the size I want around the part that I need and trimmed all the rest

Mountain View

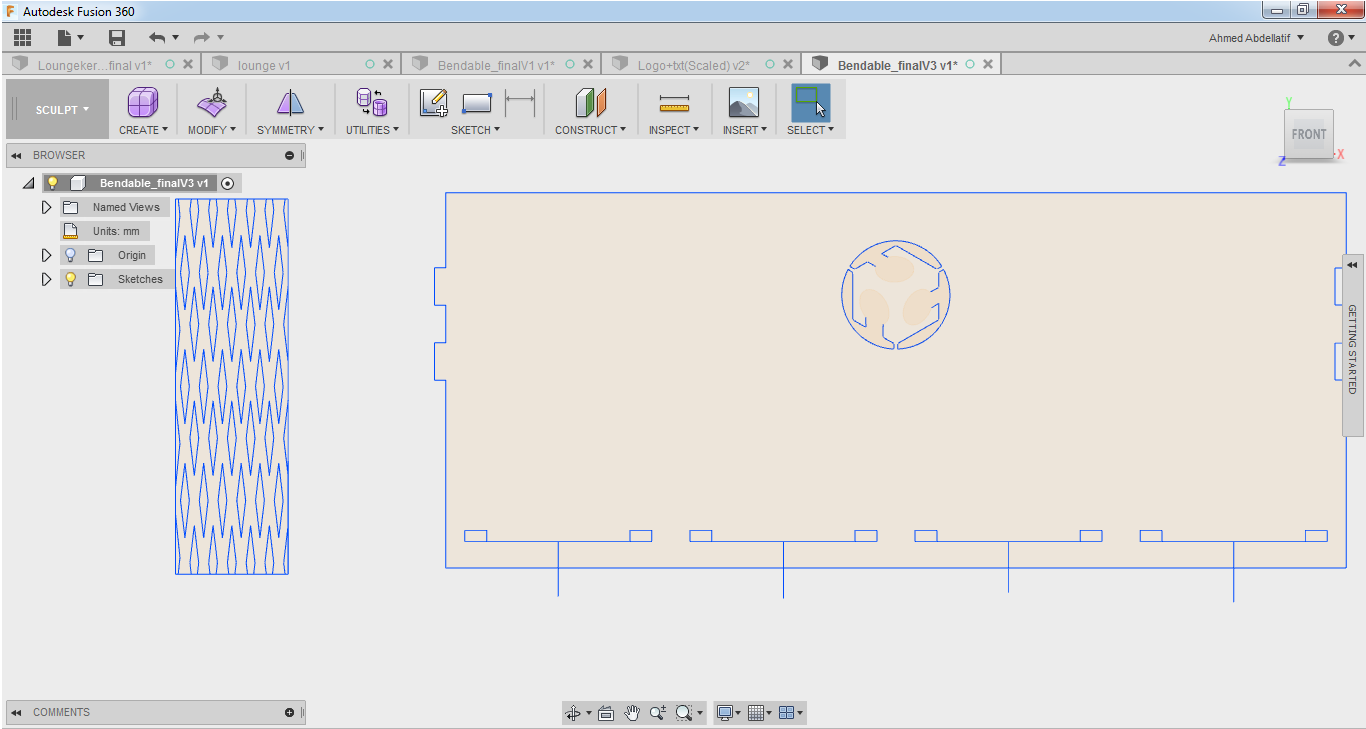

-I made copies of the pattern and moved them to their right places and then I removed the lines I no longer need

Mountain ViewMountain View

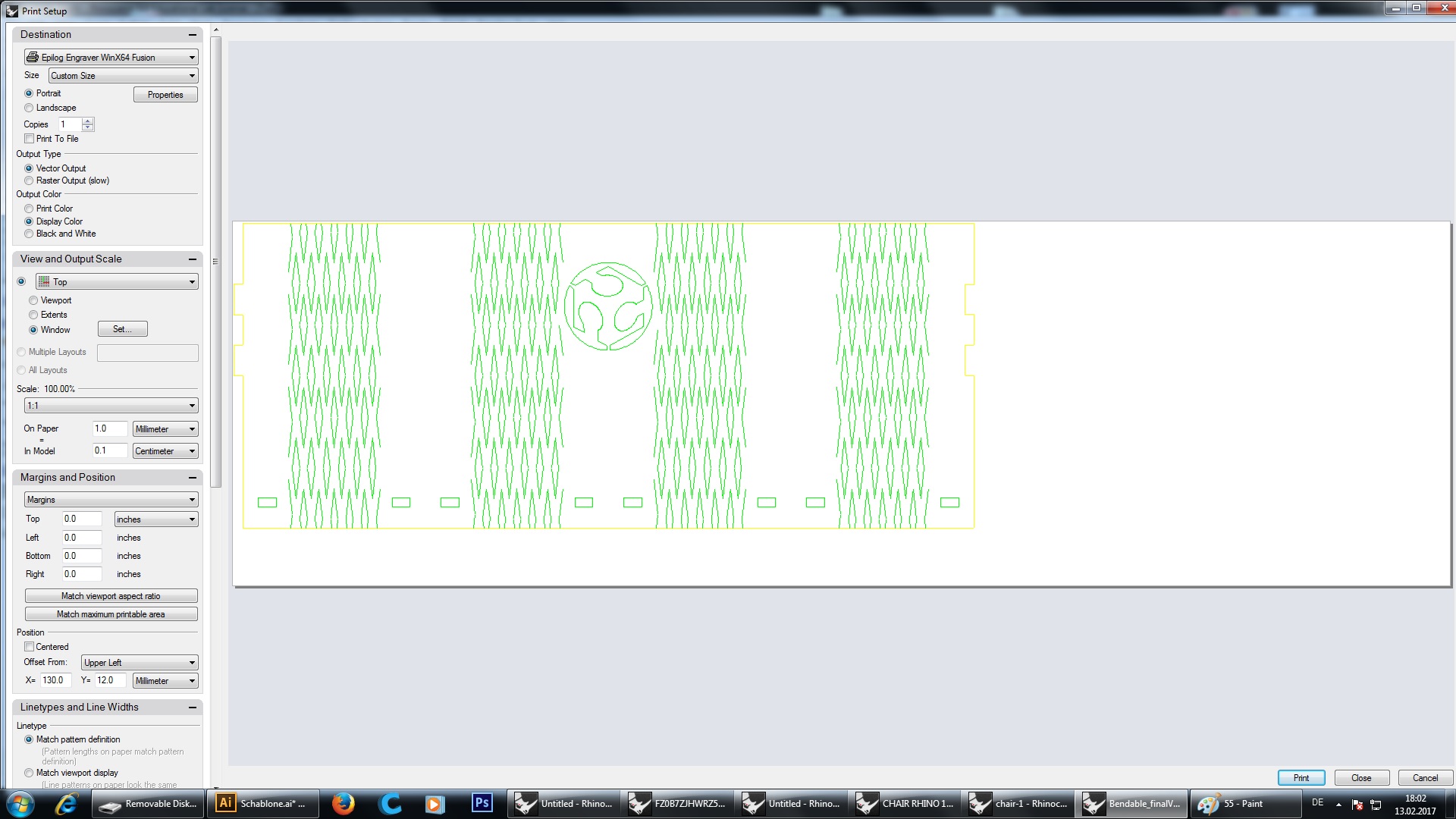

-I Used the same settings I used for the kerf test
Power 100
Frequency 30
Speed 8


Mountain ViewMountain View

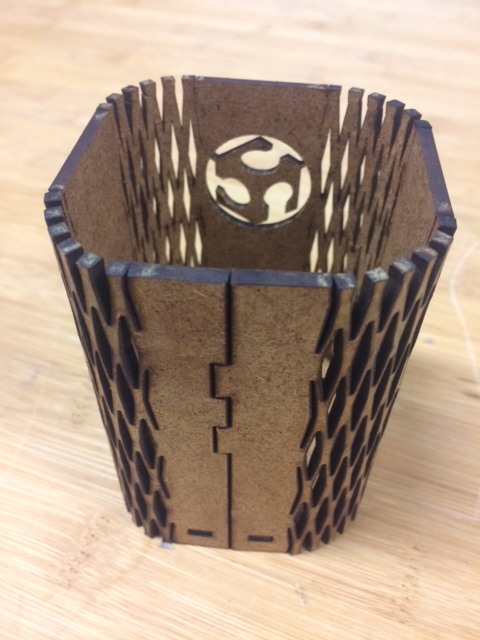

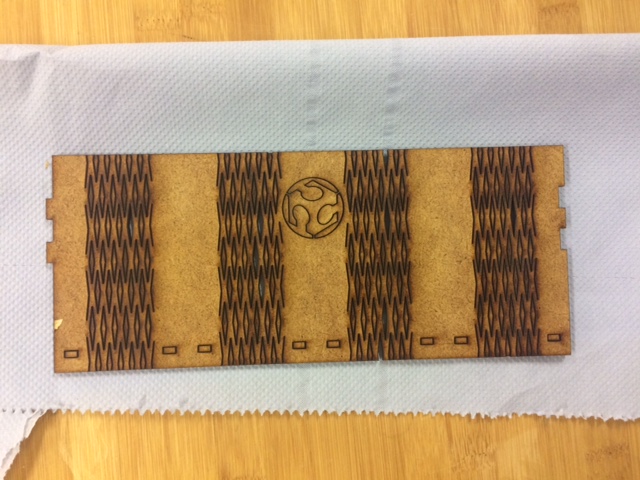

-This is how it looks after cutting, I removed the inner parts and bent it into what it should be

Mountain View

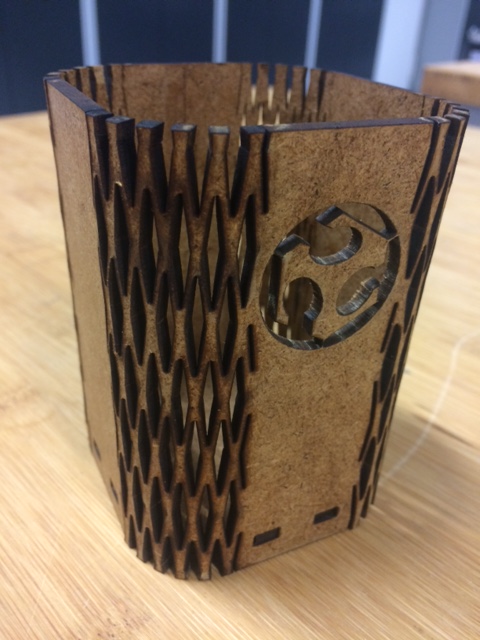

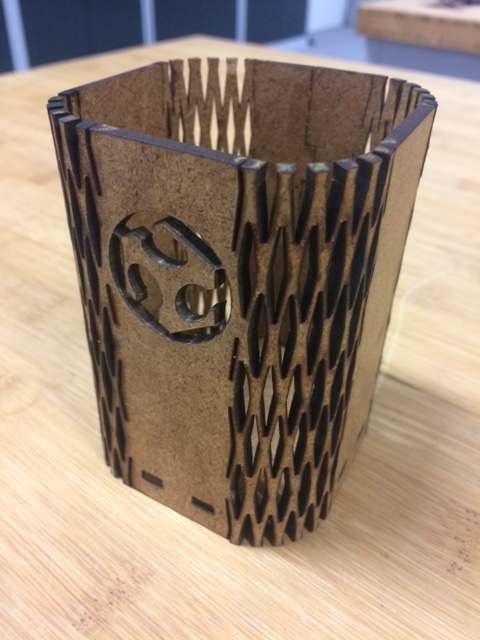

Final product:

Mountain View
Mountain View
Mountain View Mountain View


Second Application:

This application is for the press fit kit. I plan to design a 3D object, slice it using 123D Design, then cut the layers using the laser cutter and finally assemble them together

-I started by drwaing the side view of my object after creating a sketch same as before only difference that I chose side plan this time.

Mountain View

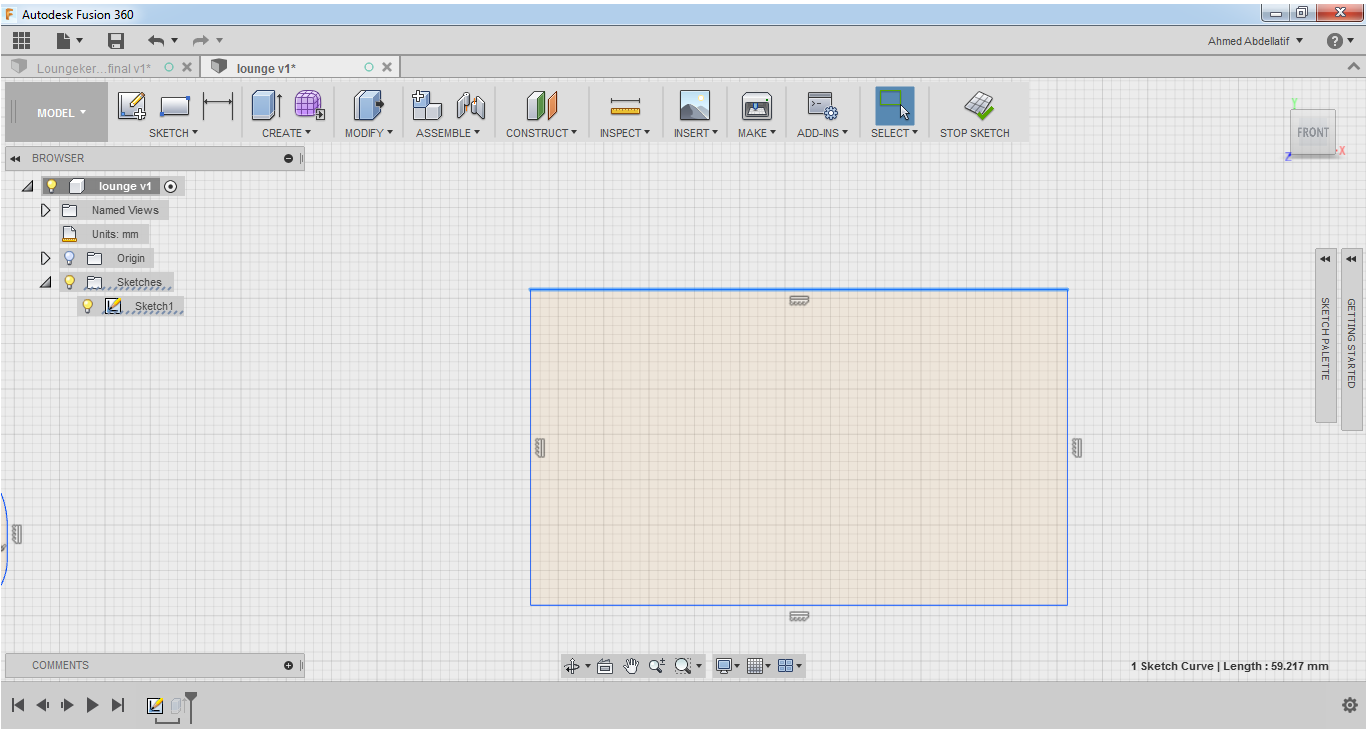

-First thing I did was to draw a rectangle as rough outline

Mountain View

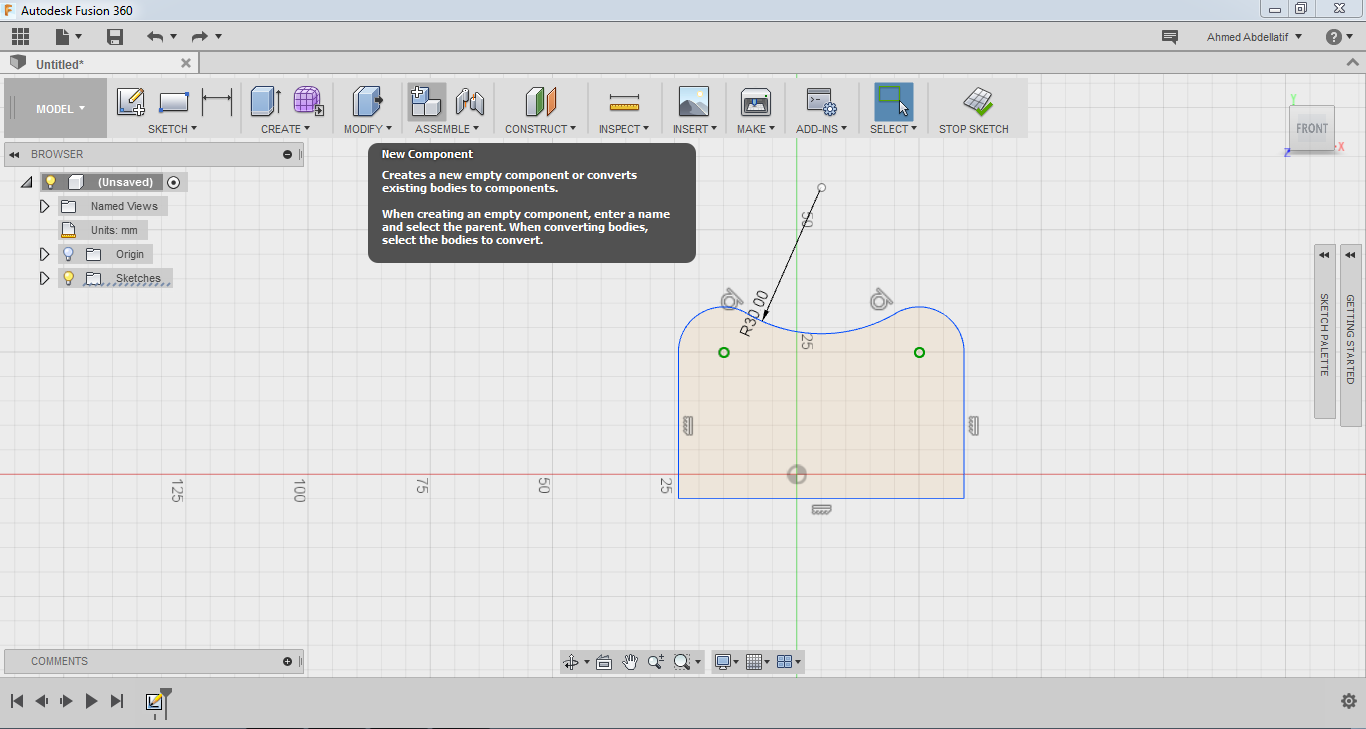

-Then I added some circles to the corners using the circle tool from sketch drop menu I used 2 points circle. Also I trimmed the extra parts using trim tool from the same menu

Mountain View

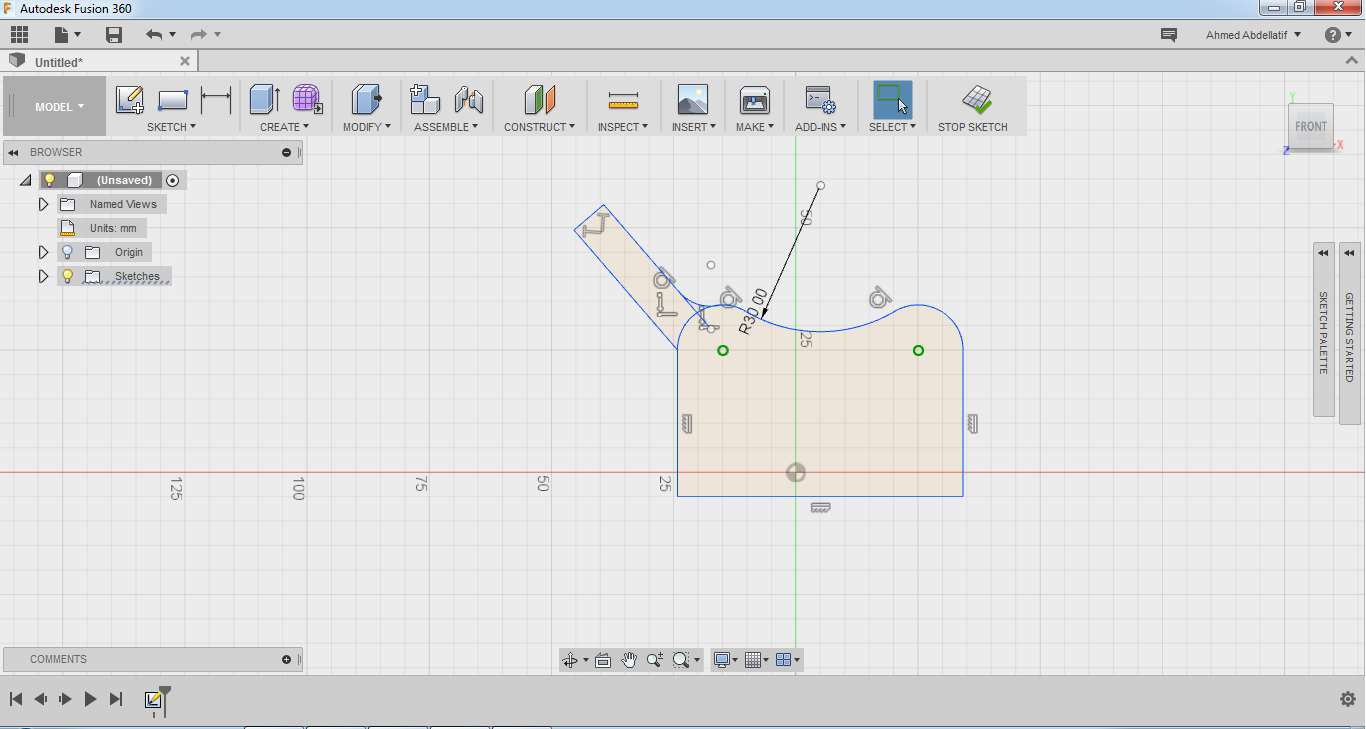

-I added another inclined rectangle and joined one of its sides using the circle and trim tool also I added some constraints to make sure shapes are placed correctly. This can be done by selecting the shapes that are to be constrained and the right clicking then and choosing the wanted constraint

Mountain View

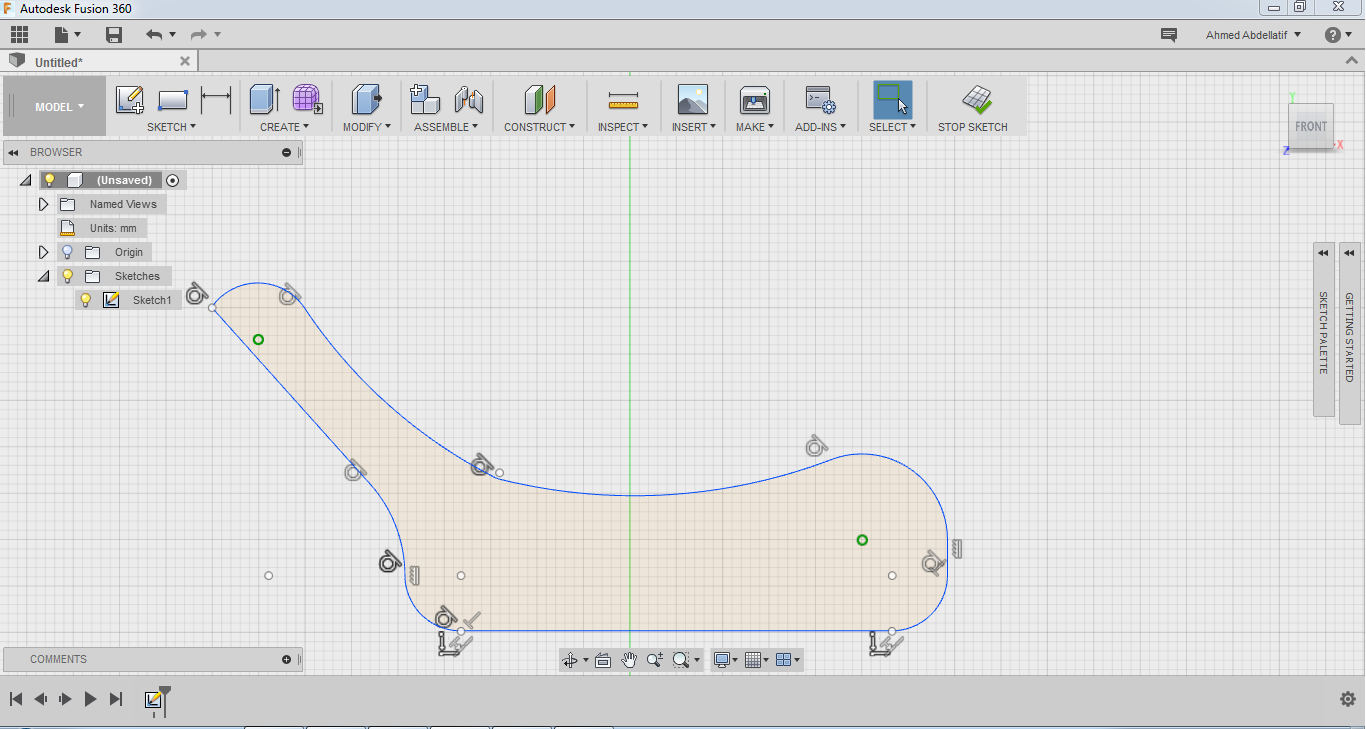

-I followed the same strategy and added more shapes with more contraints finally this is what I reached

Mountain View

-Finally I extruded this shap by selecting and right clicking it and then choosing extrude

Mountain View

-This is how it finally looks

Mountain View

-At this point I more or less reached what I planned but I wanted to add some fillets so I tried doing this in Fusion 360 but for some reason it didn't work. I imported the file to Solidworks. How to import is already mentioned in week 2 assignment

Mountain View

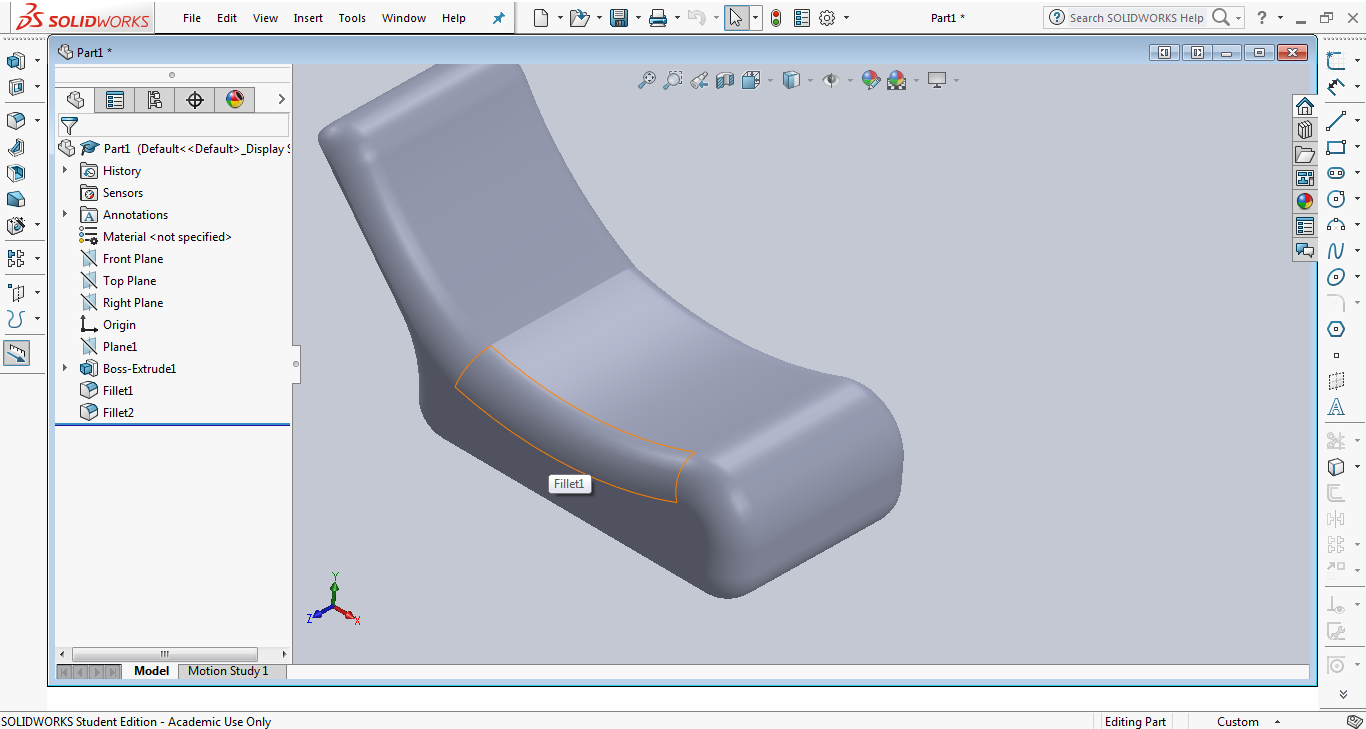

-I selected the edges I want to fillet after clicking on the fillet icon top left corner

Mountain View

-This is how the final version looks like. I exported this as .stl to make it ready for slicing

Mountain View

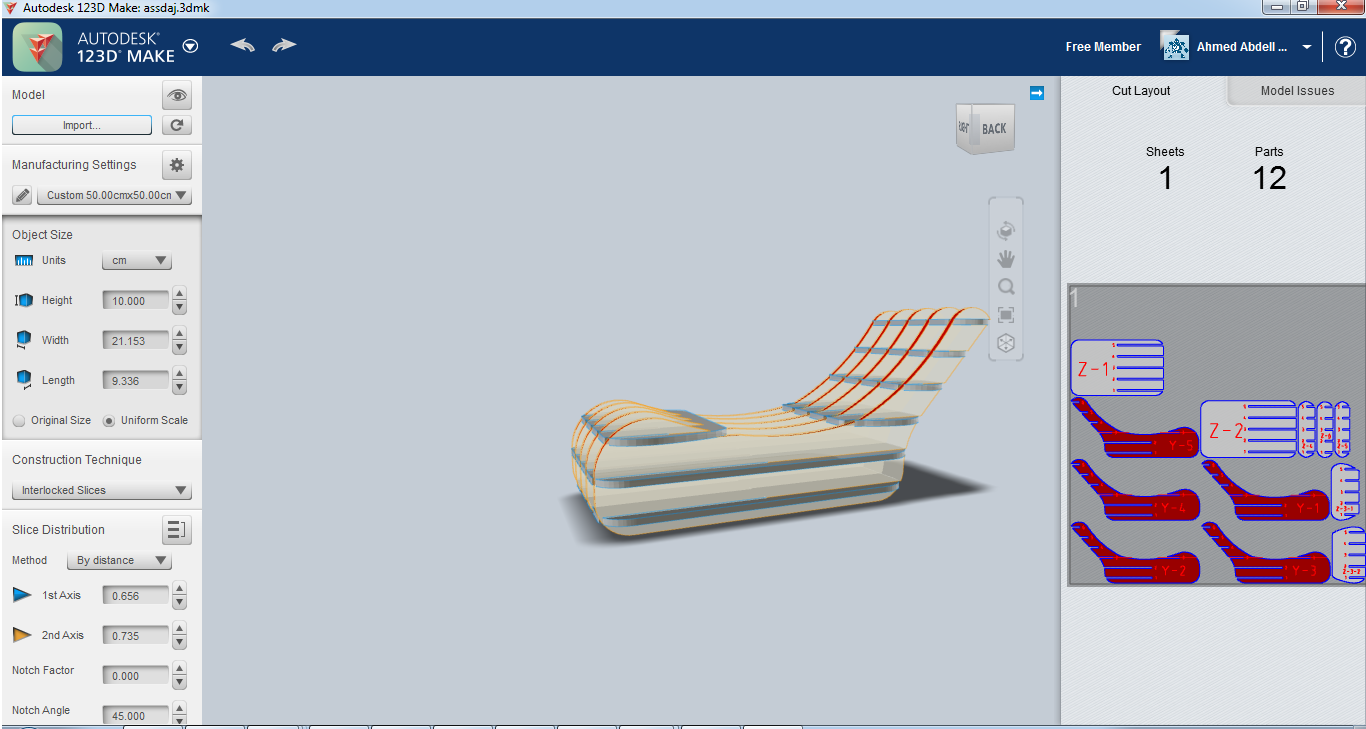

-I imported the file to 123D software to get the layers

Mountain View

-Here are the settings I used
Units cm
Height 10 width and length were set automatically because of the uniform scale selection
Construction technique Interlocked slices
Method By distance
1st Axis 0.656
2nd Axis 0.735


Mountain View

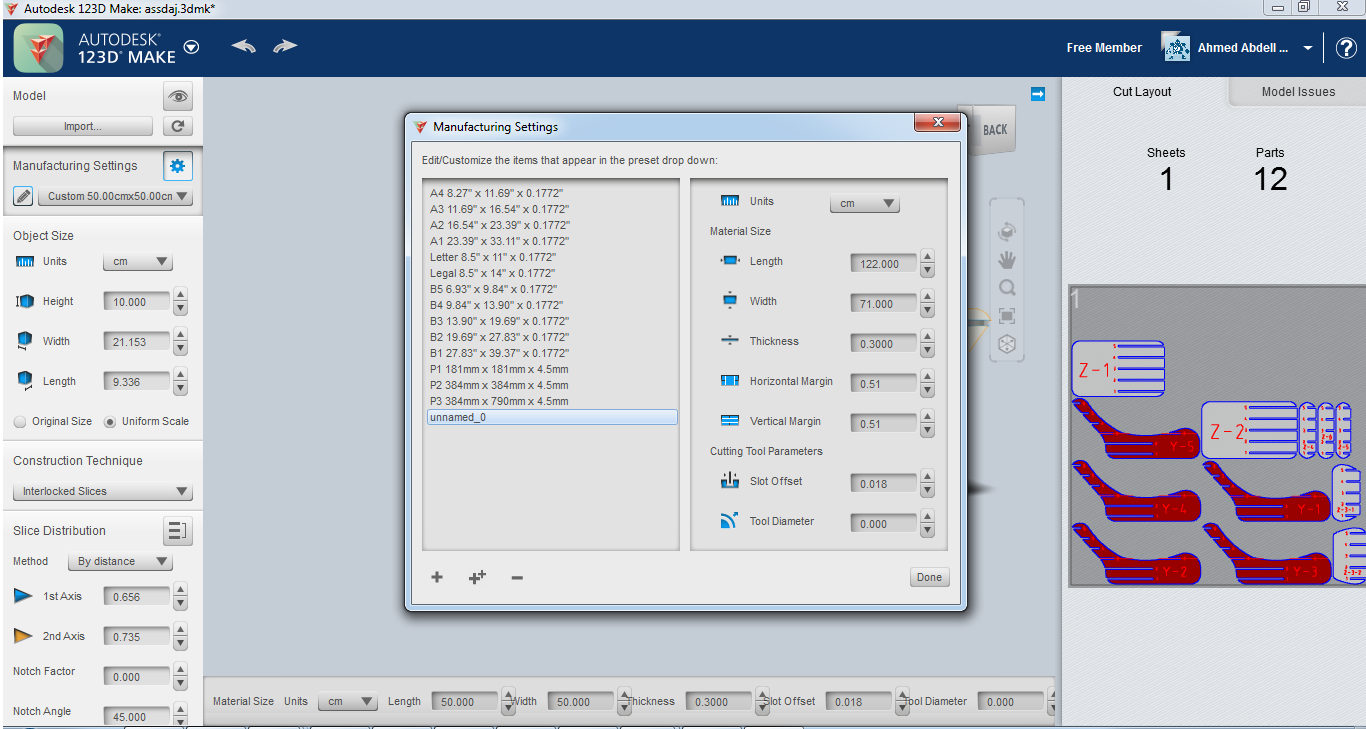

-I also edited the sheet size and the kerf settings by going to manufacturing settings
Length 122
Width 71
Thickness 0.3
Slot offset 0.018
Tool diameter 0.00


Mountain View

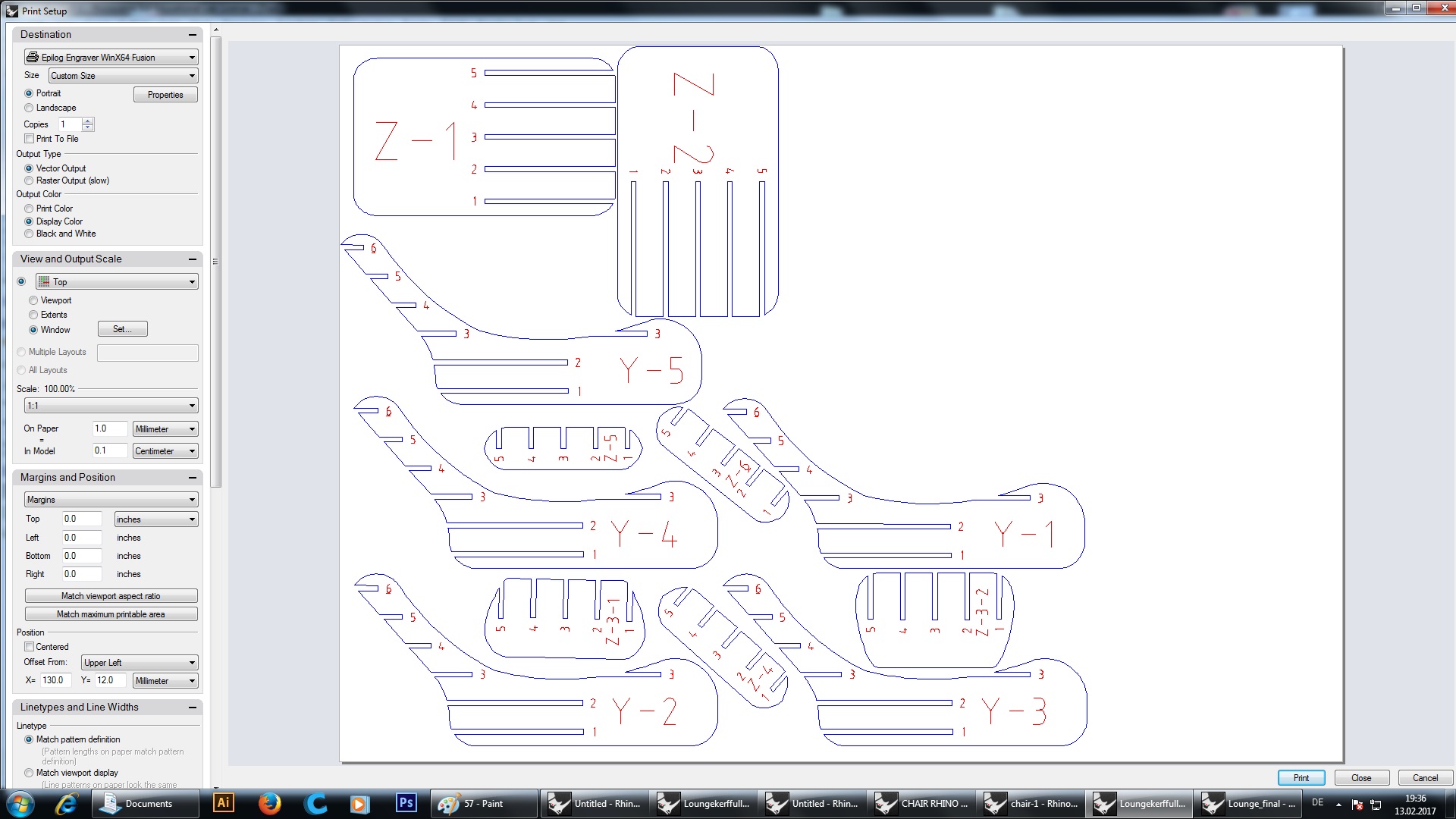

-Finally I clicked on Get Plans to get the .dxf for the Laser cutter

Mountain View

-I rearranged the pieces before cutting them to save some of the material

Mountain View

-I intended to use the same settings as before but some how I mistakenly set the frequency to 20 instead of 30 so the material was not cut all the way through I had to apply some force to get the pieces out. Only one of the pieces break while trying to force it so I had to cut it again I used the correct settings this time and it was perfect.

Mountain View

-Also one mistake is that I didn't join the lines assuming that they would be after exporting the file from 123D it took way more time that it should have if I had joined them.

Mountain View

-Here are how the pieces look like before assembling them

Mountain View

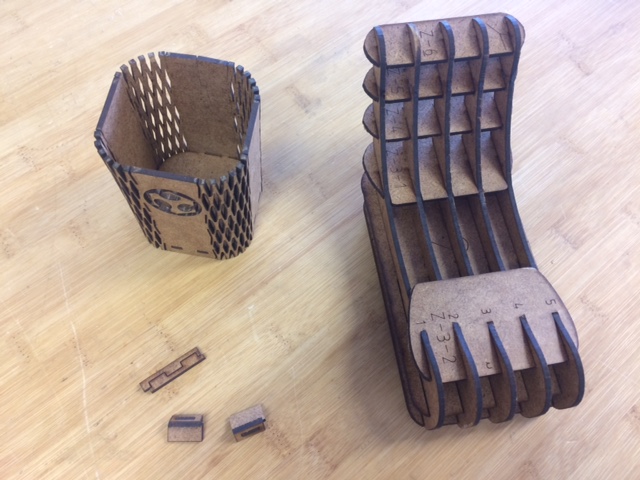

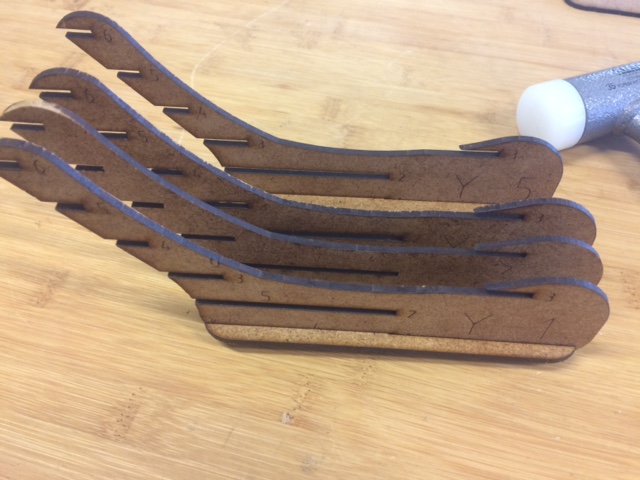

-I assembled the pieces using a hammer with a plastic head

Mountain View
Mountain View

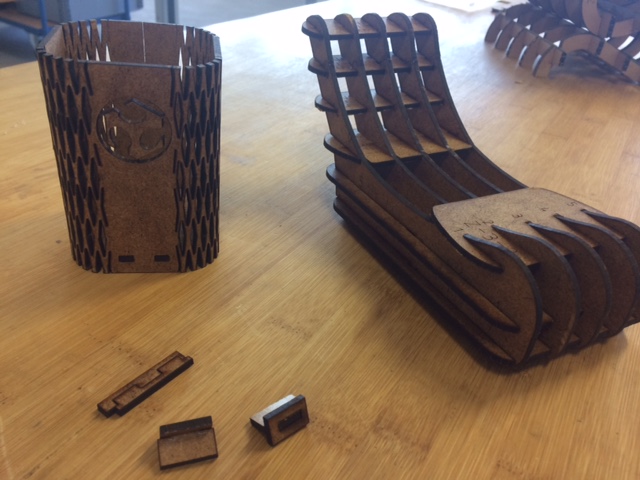

Final product:

Mountain View Mountain View

Downloads

-Drawing of Vinyl cut design
-Kerf test file
-Kerf Fusion 360 file
-First application design file
-First application Fusion 360 file
-Second application design files
