Indoor air is 5 times more polluted than the atmospheric air, and this can bring serious problems for human health.

Plants are a great way to avoid these problems.

The plants inside our homes are natural filters that are cleaning toxic components of the air and producing oxygen

Step1- Design

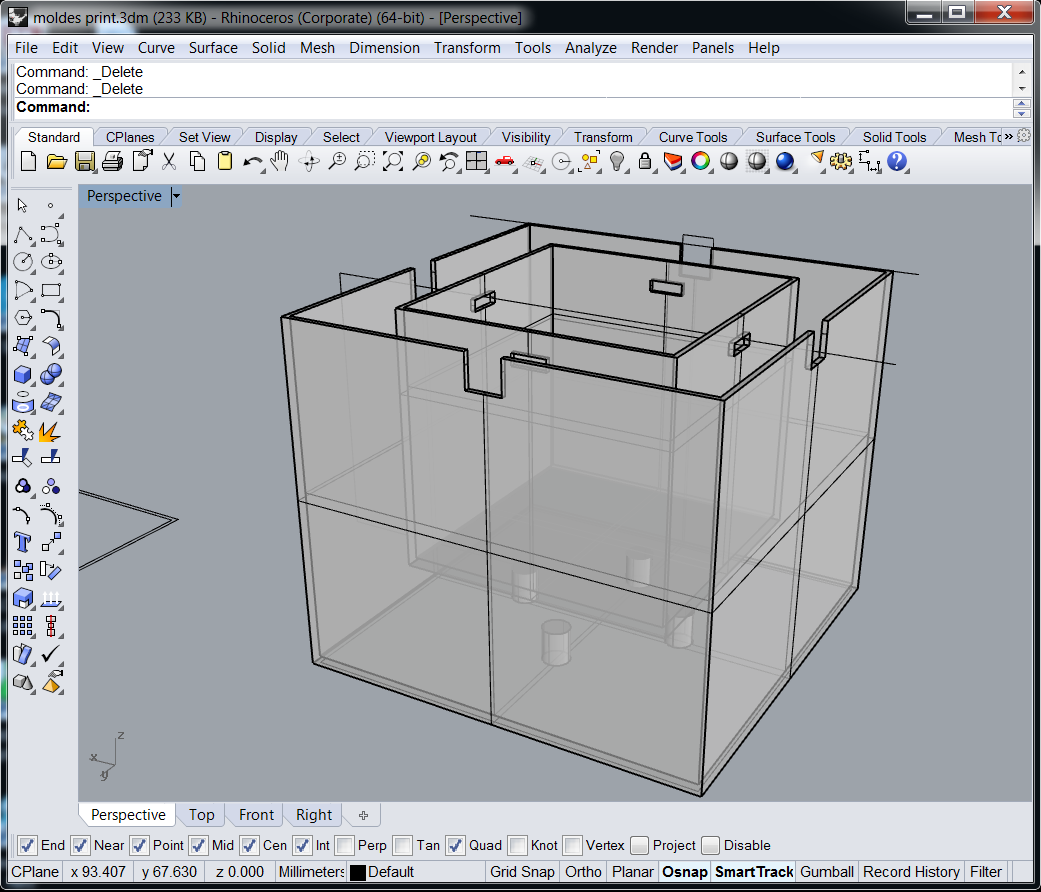

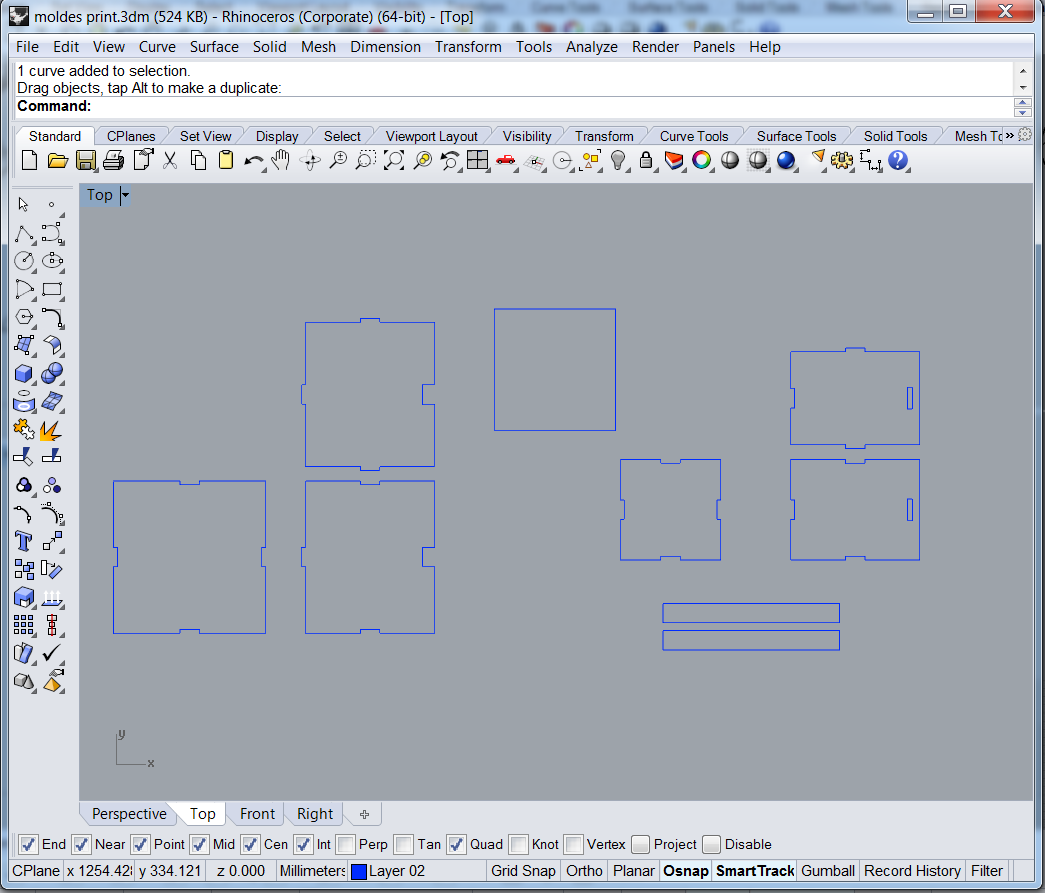

I started by design several types of box, in the program Rhinoceros 3D

After that I planned the laser cutting boxes. So that all sides fit into one another, and are easy to assemble.

Step2- CNC Cut

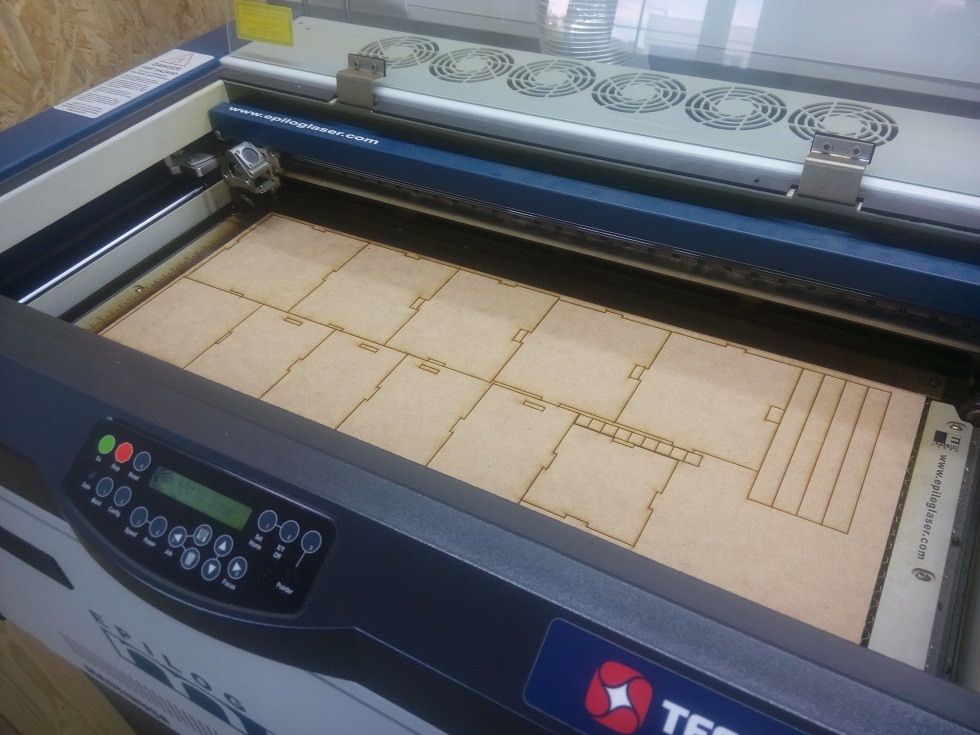

The pieces of the sides of the box were cut in the machine lase, in mdf wood of 3mm. And on some faces of the box to be more consistent I joined two pieces with 3mm.

Step3-Assembly

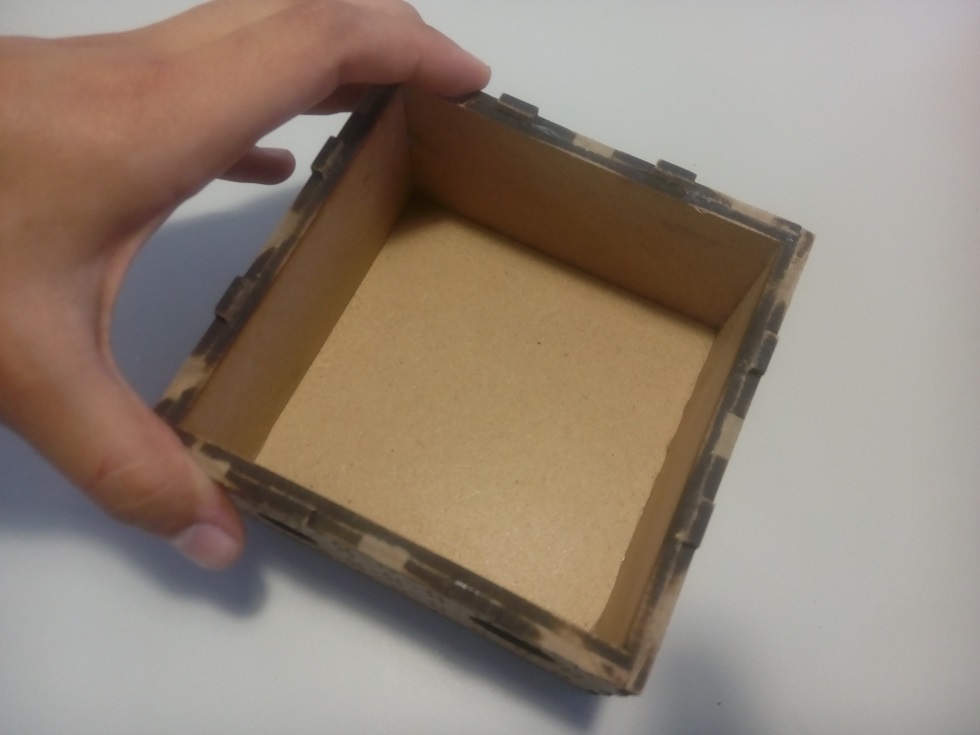

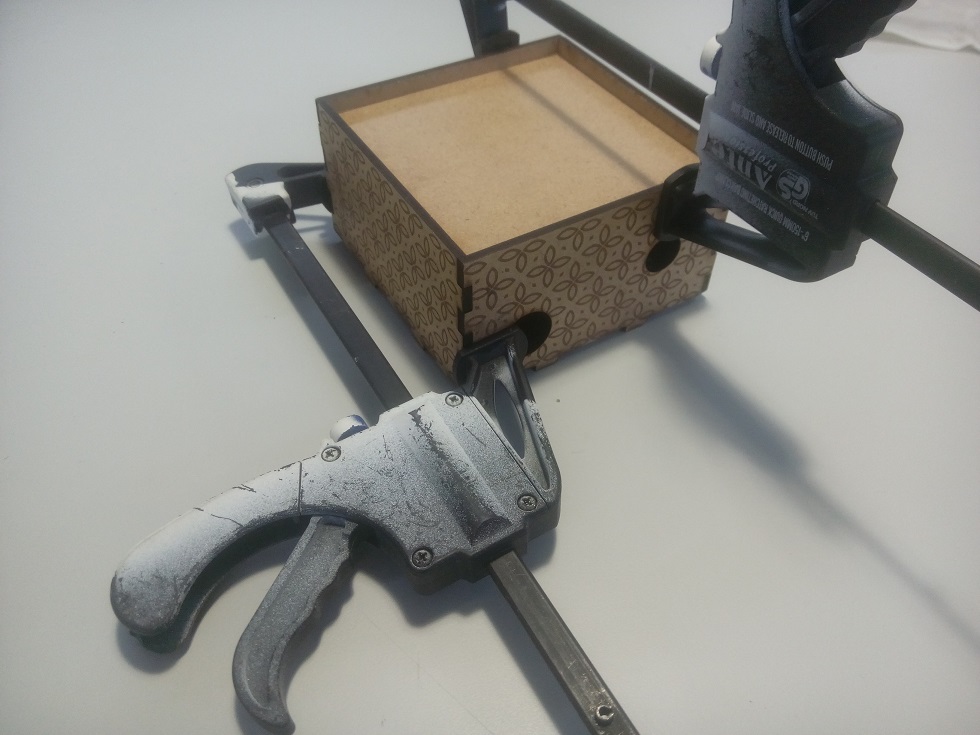

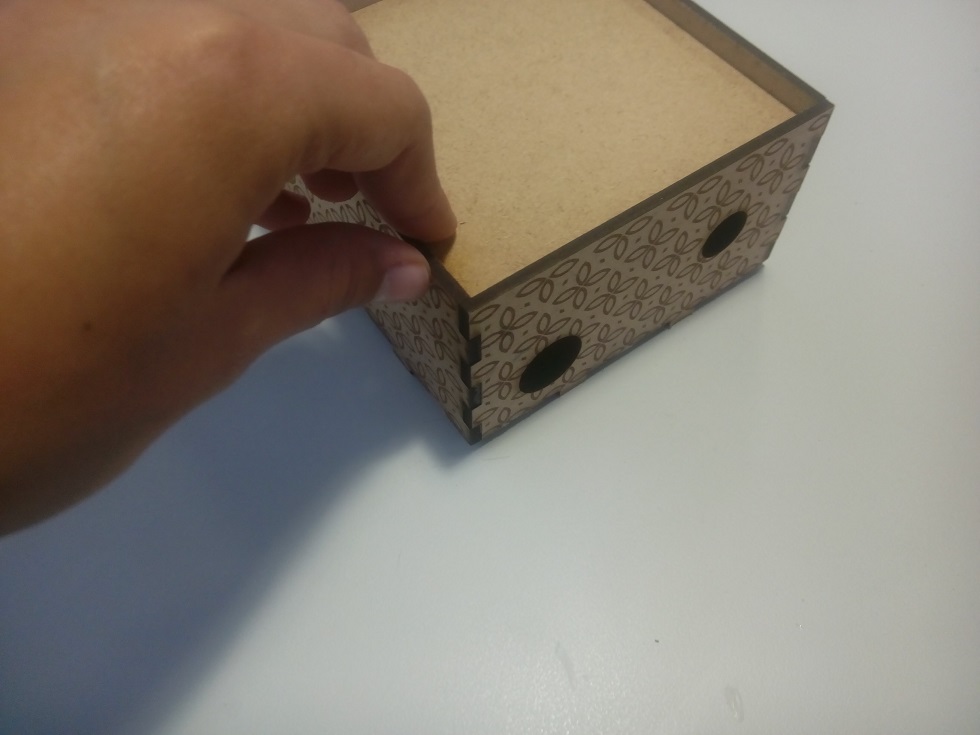

I put the pieces of the box through the grooves and put a bit of glue to make sure they look good together.

The box will have electronic components inside and a plant pot on top that will requires water. It is therefore important that the mdf box is sealed.

Final Project related assignments:

Step1- Design

It is necessary to make a vase to place the plant.

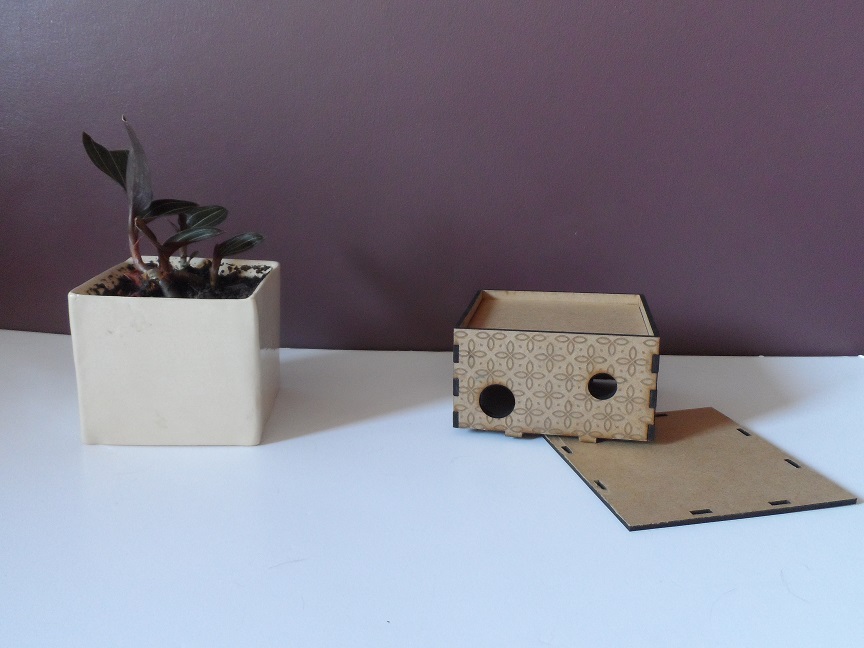

Initially, I made a wooden vase using the same process as the electronics box. But then I decided to build a mold from the previous piece in 3mm mdf and create a plastic vase.

Step2- CNC cut

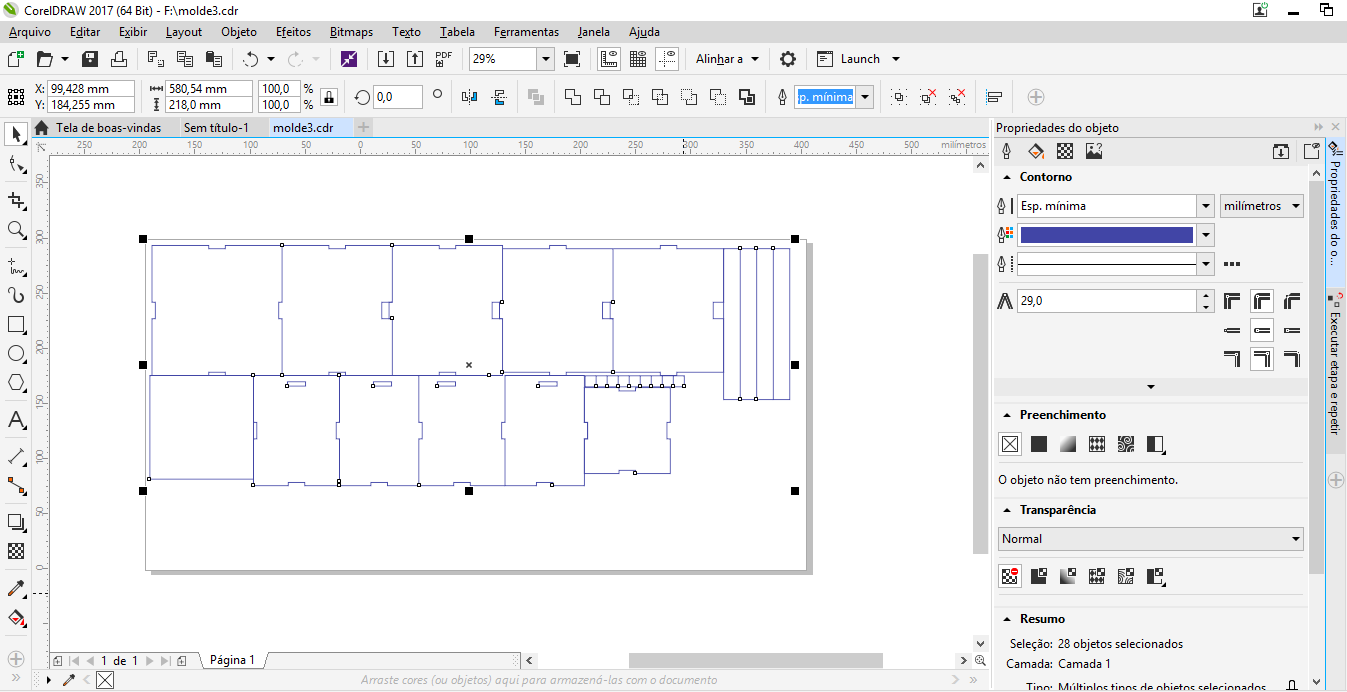

In addition to the model of the vase that was cut in pieces in the laser cutting machine and mounted. I did and cut a larger cube and smaller cube on the laser.

Step3- Assembly

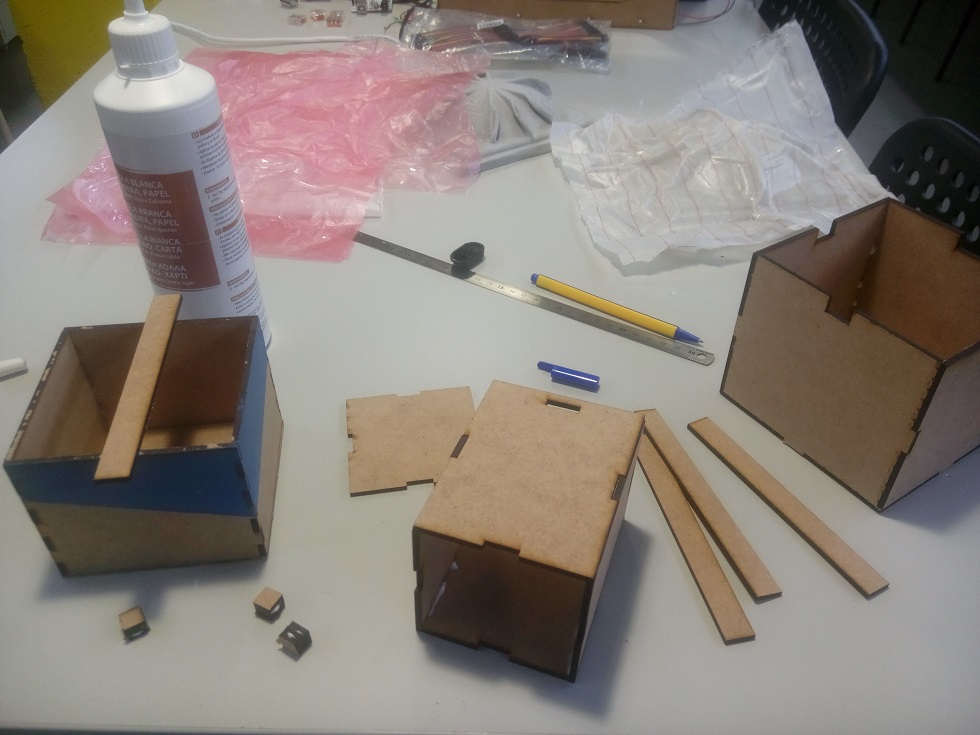

The pieces were joined together by the fittings and with the help of some glue.

Step4- Molding and casting

It is necessary to make the mold of the vessel in silicone and then to pour the plastic material.

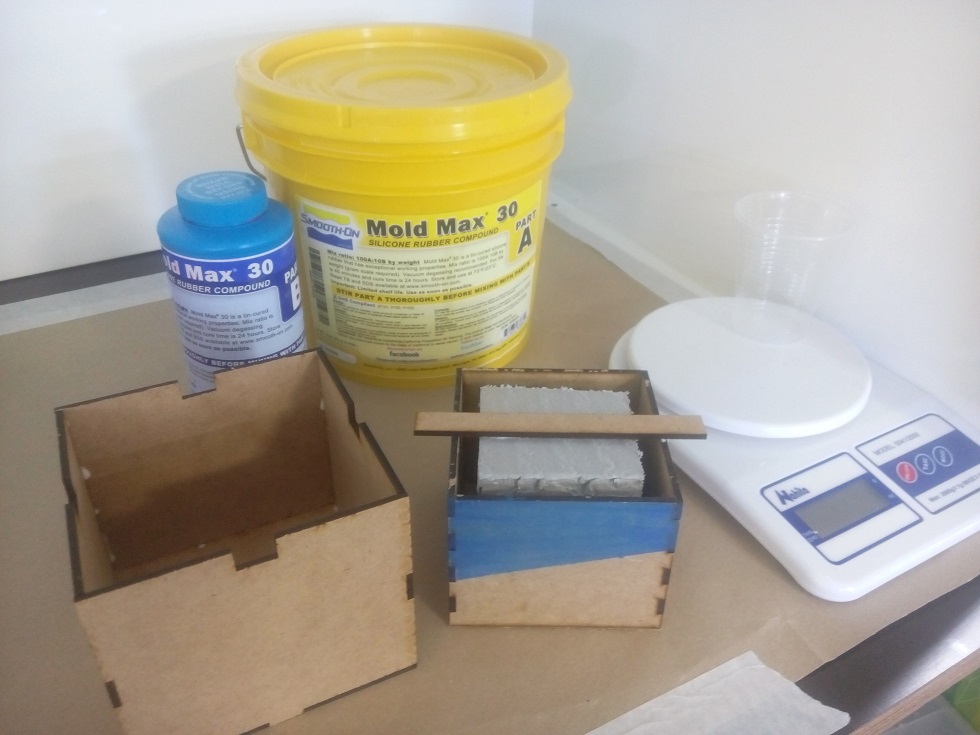

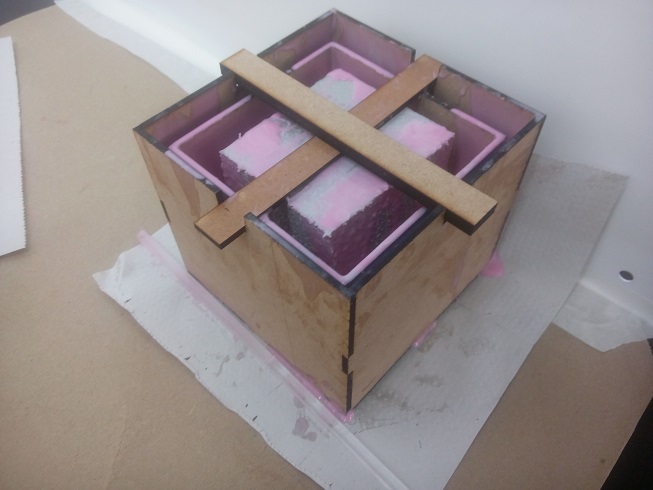

I placed the wooden model of the vase inside the larger box, and the smaller box inside the model of the vase, so as to make the mold and the counter-mold of the vase.

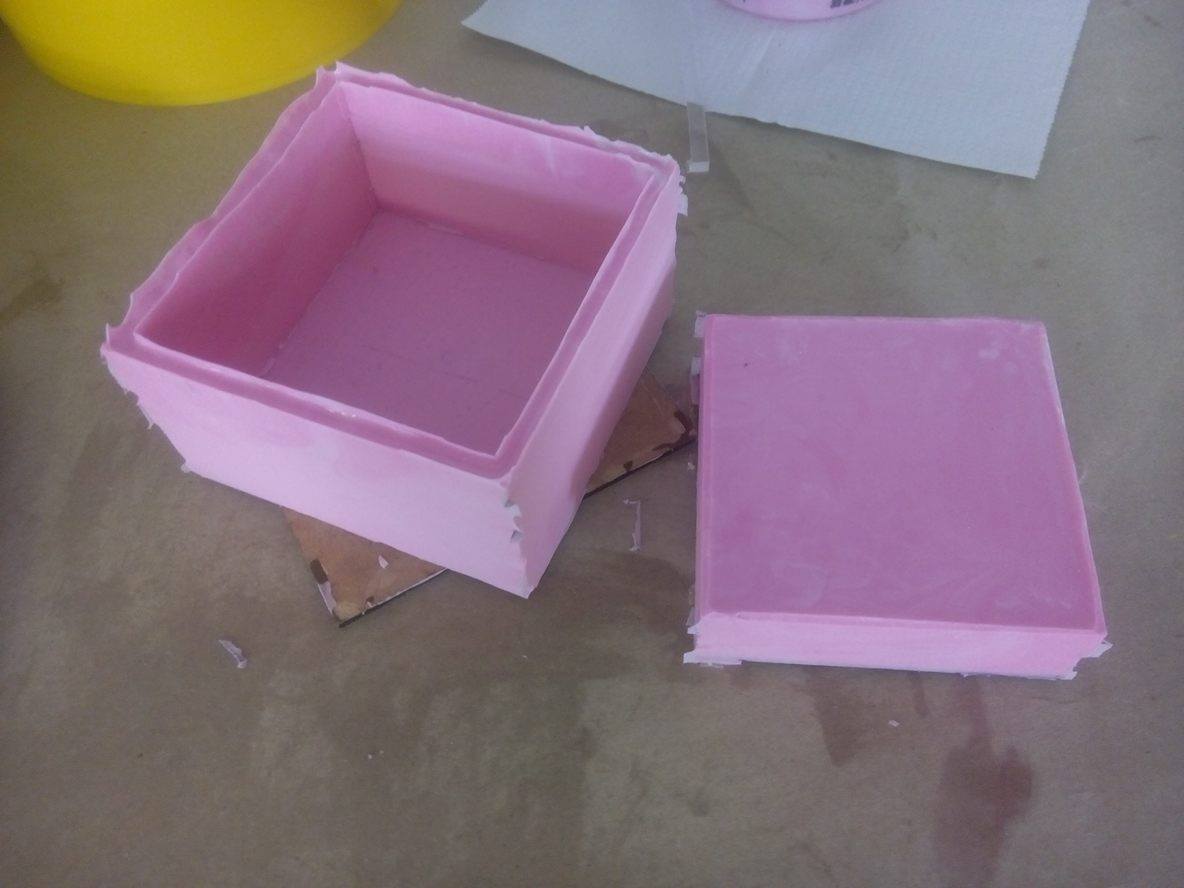

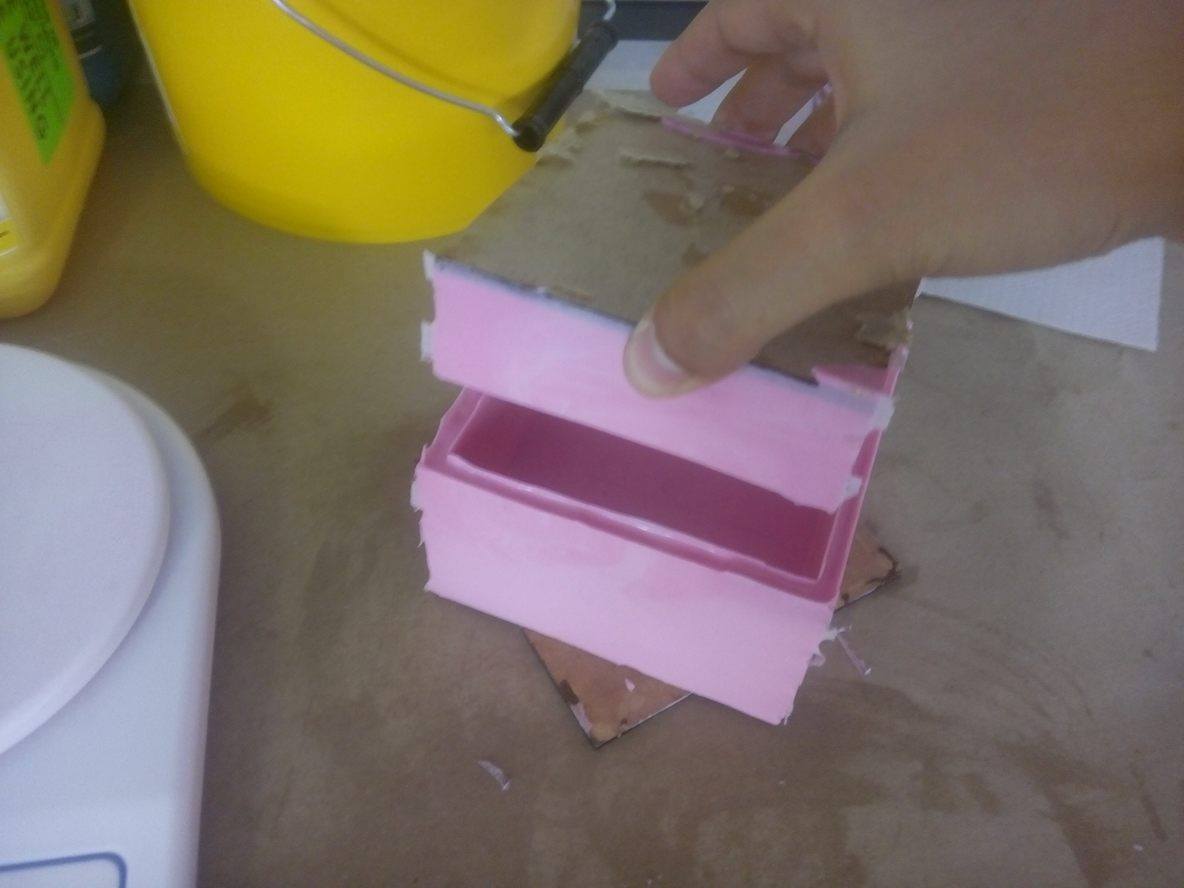

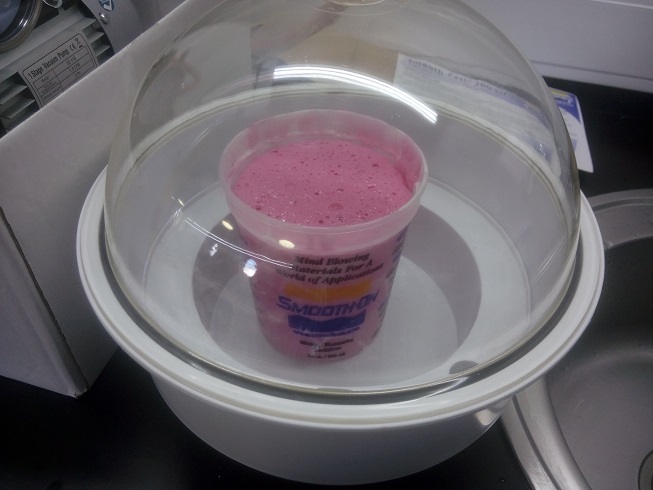

After that I filled the two areas with the silicone and I wait for it to be dry. I dumped the plastic-resin mold and got my plastic vase.

Step5- Grow plant

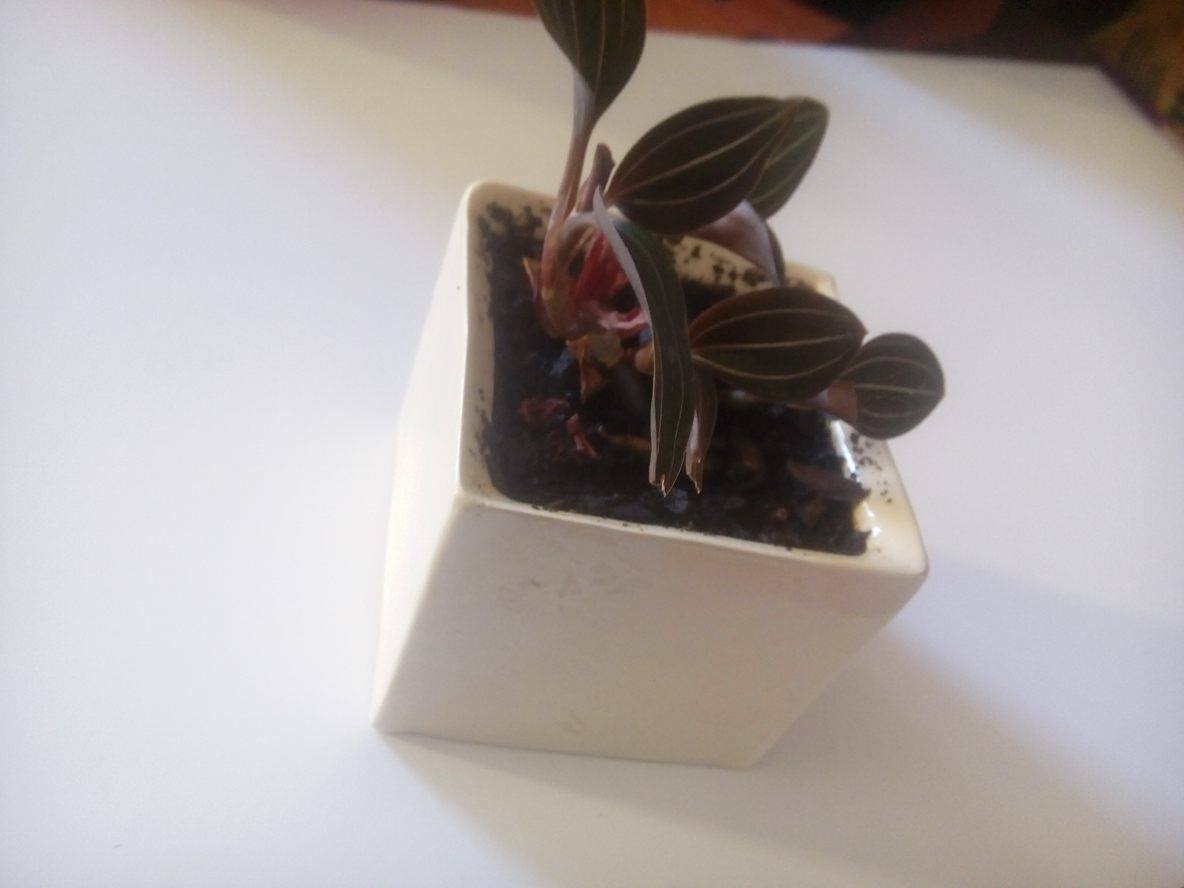

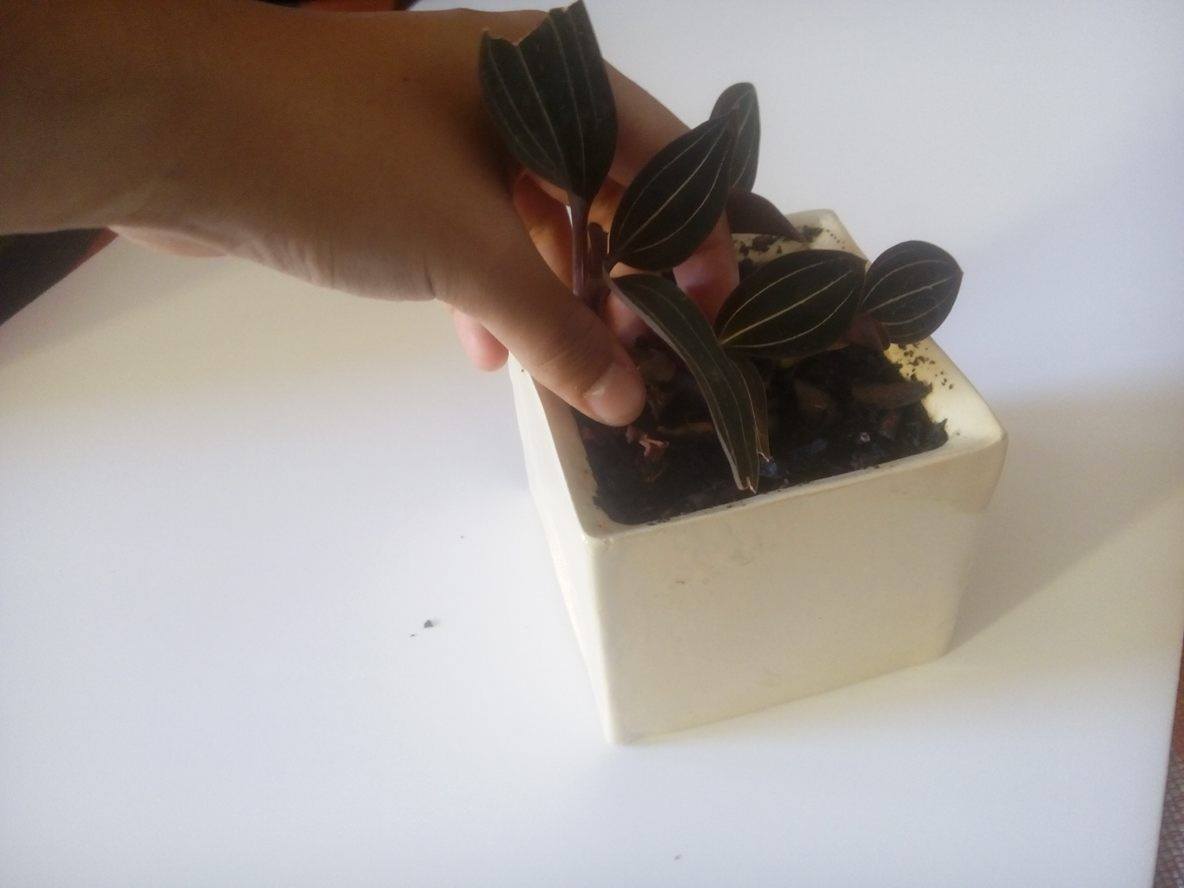

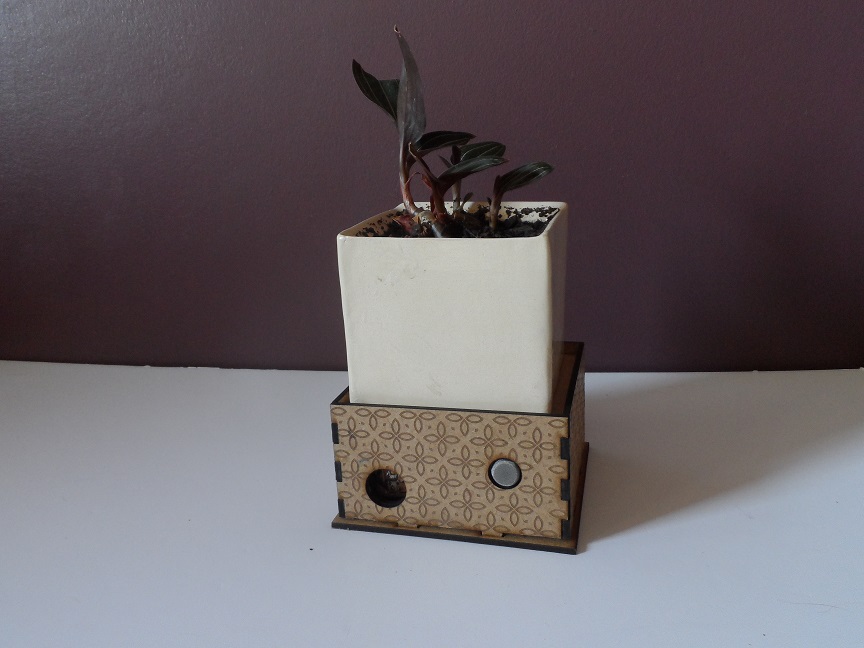

With my planter made I could start growing my plants :)

Find the files used and download here:

Microcontroller

Step1 - Draw

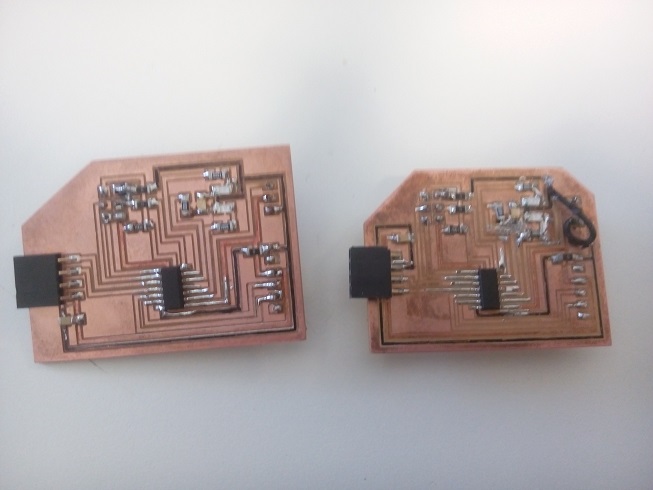

I drew my microcontroller board with an ATtiny 44 because I needed a few output pins.

The board has a digital pin, two analog pins, 3 LEDS RX, TX, FTDI communication, and pins to the ISP programmer.

Step2- Electronic production (milling + solder)

The board was cut into the milling machine, and then cleaned and welded all the components.

Step3 - program the code

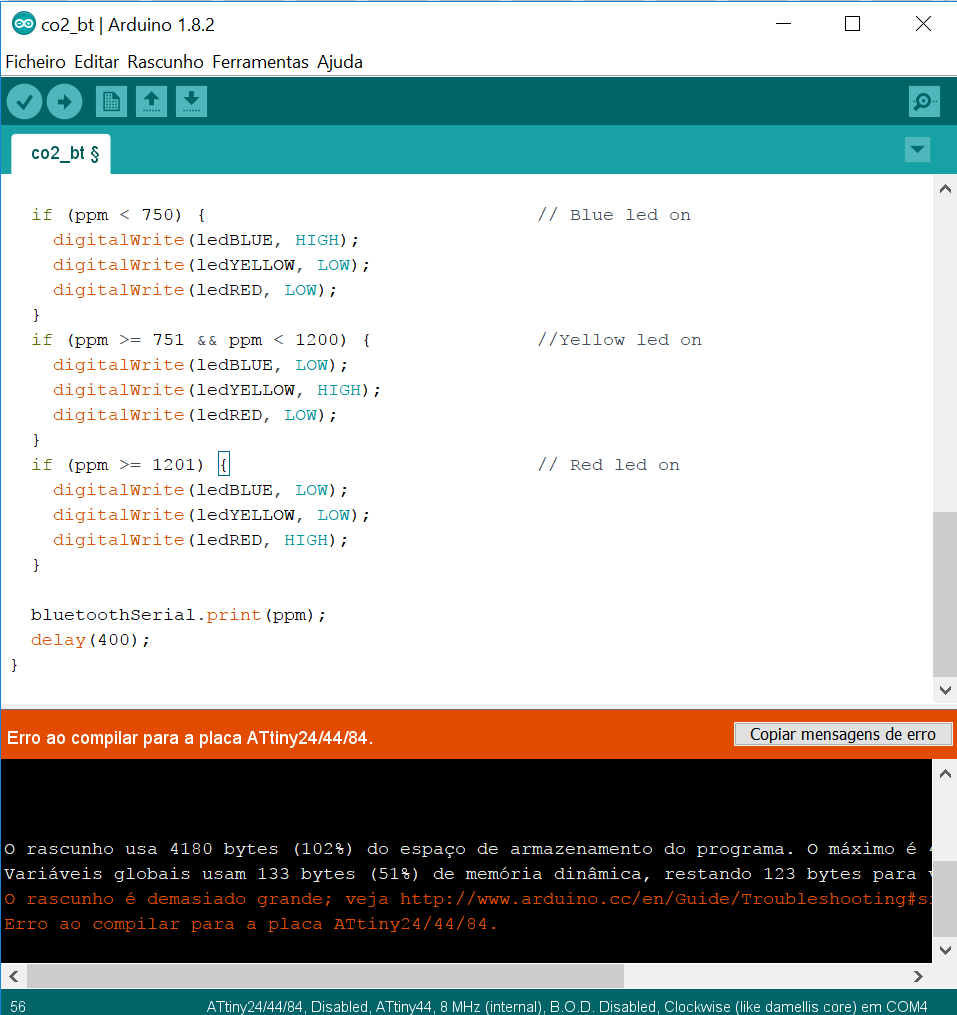

The code was programmed in the arduino IDE.

Download files:

Co2 module

Step1 - Draw

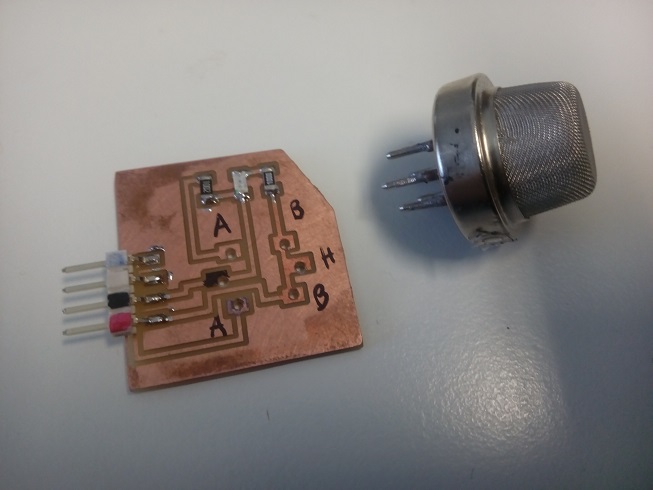

I desgin a co2 sensor for the week of the input devices.

I used as reference the sensor MQ135 that allows to read some gases present in the air, like the carbon dioxide.

The sensor works simply. It just needs energy to heat the resistance it has inside.

The sensor is analog and has 6 pins, 3 connected to the VCC, 2 connected to the GND and a pin A connected to the analog pin with a resistor.

Step2- Electronic production (milling + solder)

The board was cut into the milling machine, and then cleaned and welded all the components.

Step3 - program the code

The code was programmed in the arduino IDE.

Download files:

Bluetooth module

I thought it would be a good and simple option to use bluetooth in my project

Bluetooth module works by TX-RX communication, and both can work with 3.3V or 5V power.

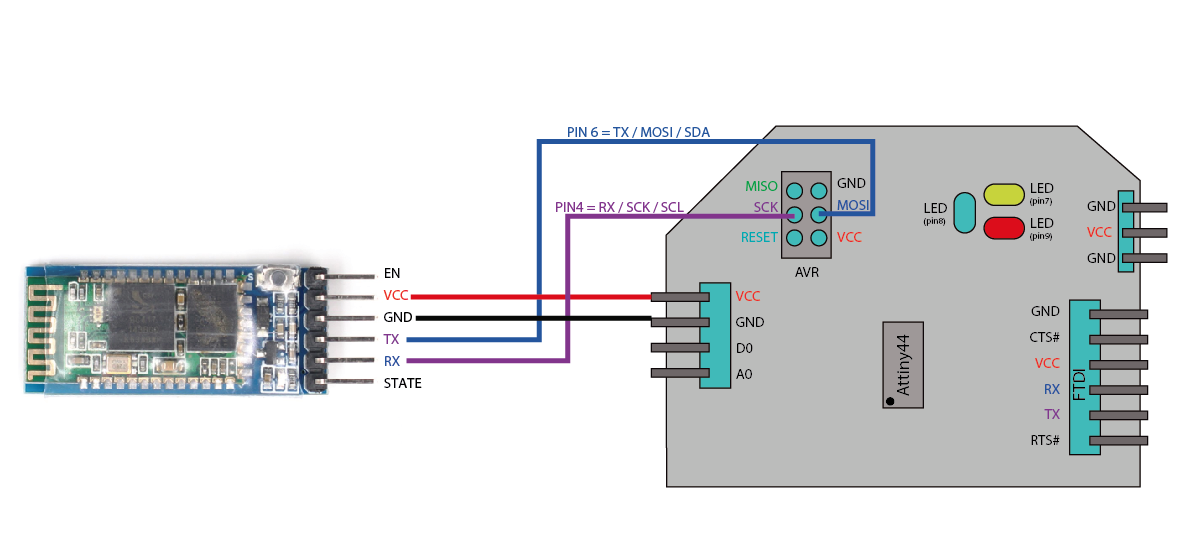

For starting to use bluettoth module wih my microcontroller Attiny44, I conect:

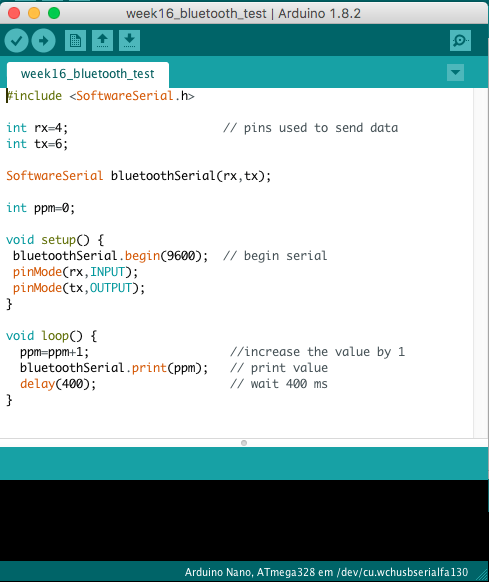

After that I sent a simple code to see if the conection between microcontroller-bluetooth was correct. See the code here

This time the code worked and the data was sent.

The code was programmed in the arduino IDE.

To know more about bluetooth communication visit:

Step 1 - Receive and analyze co2 data

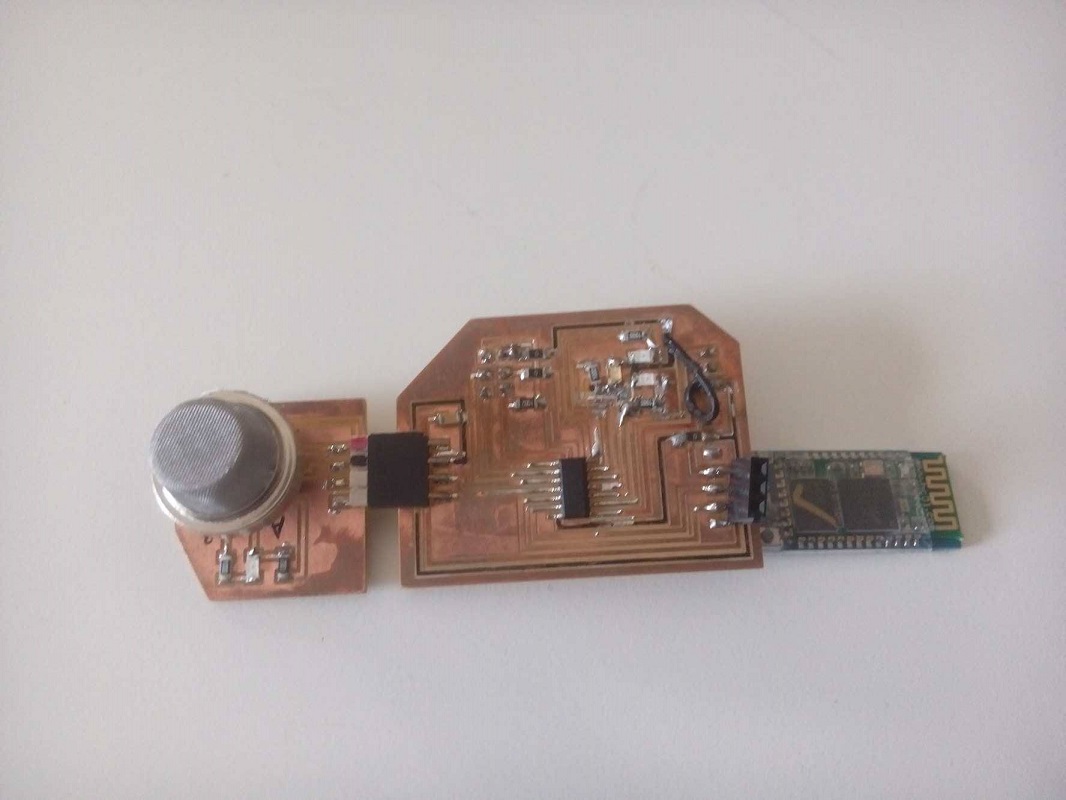

The carbon dioxide concentration data that the MQ135 sensor reads from the air in our homes are received by the microcontroller and are analyzed and calibrated to a correct and reliable value.

Step2 - Send data from bluetooth

Then this data is sent through the bluetooth module to an application on the mobile phone, made in APP Inventor.

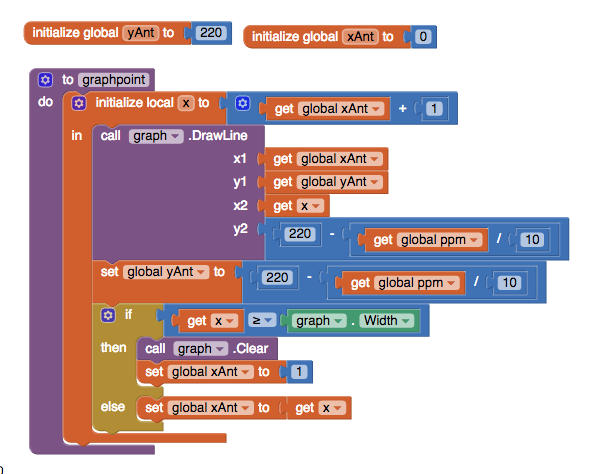

Step 3- design and program an APP

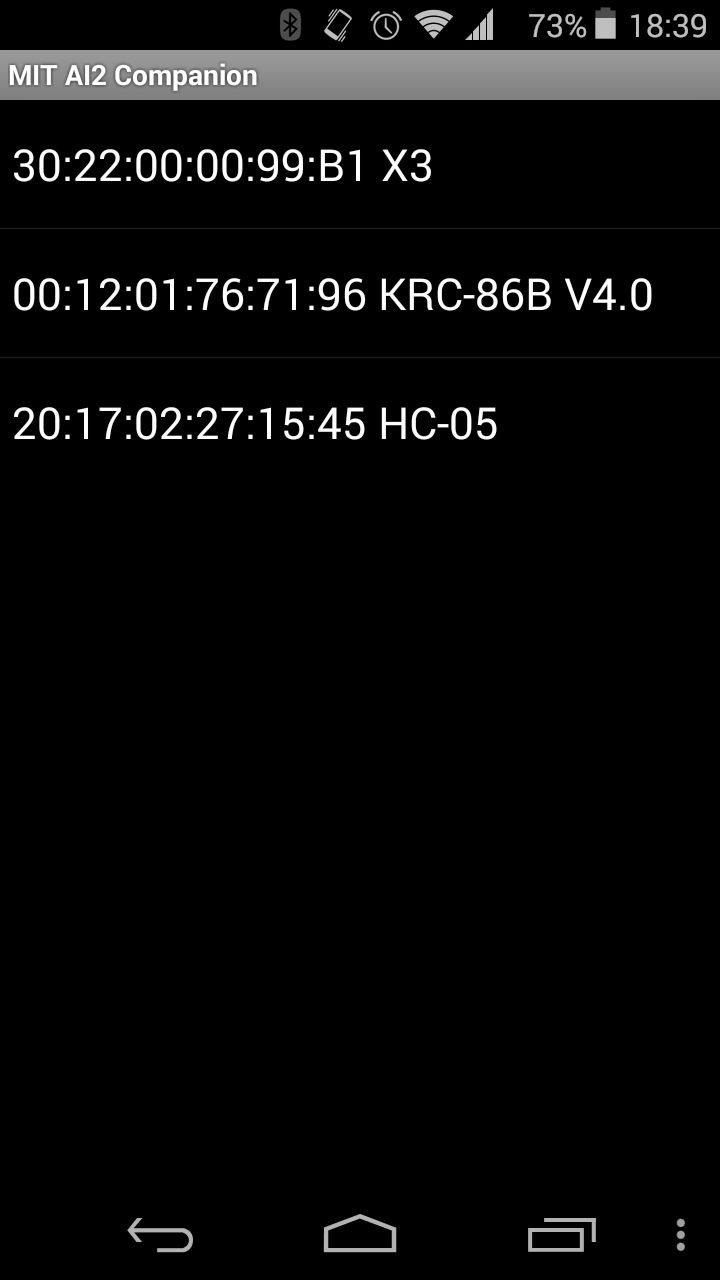

I used as an alternative the APP Inventor that detects the bluettoth module.

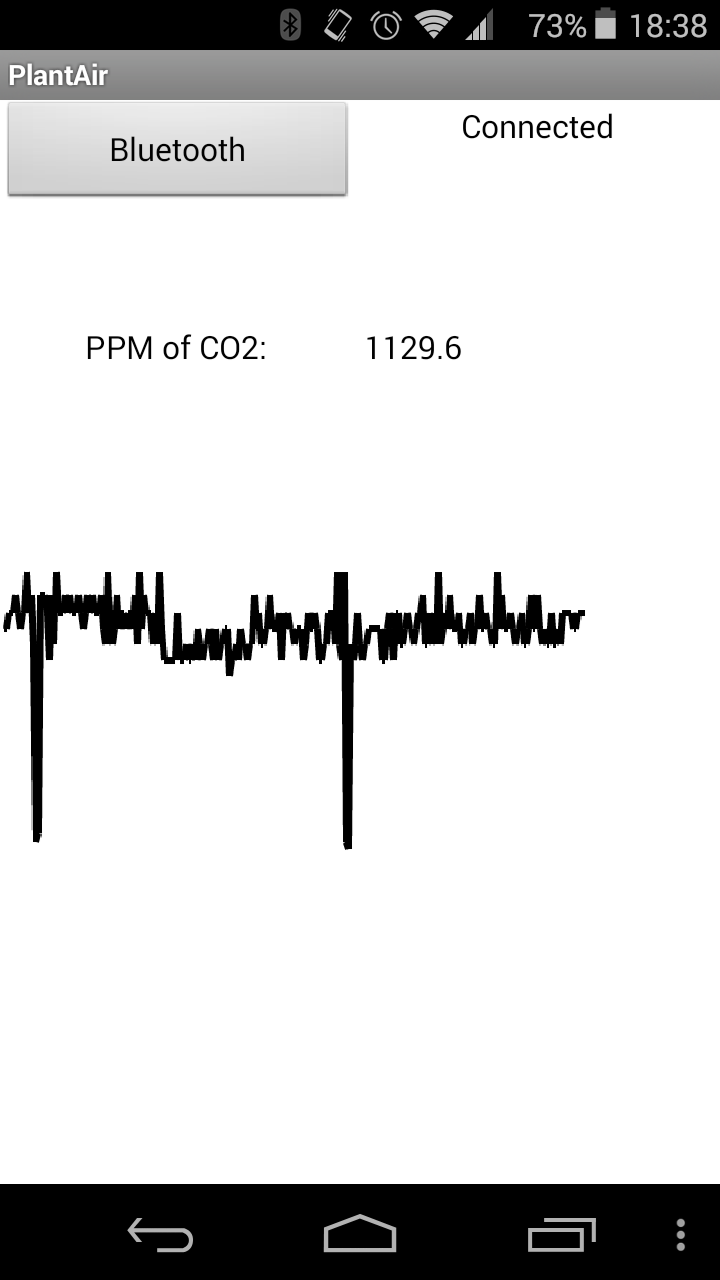

I sent the data in real time the percentage of carbon dioxide.

In addition to reading the CO2 sensor I want the leds that I have implemented in my microcontroller to light showing that the air inside our homes is healthy or harmful to our health, so if you turn on the LEDs means:

The final code I sent was:

It is necessary to have bluetooth in your mobile phone and to pair it with the bluetooth to which the microcontroller is connected, through the menu to connect the bluetooth that we created in the APP. .

The video below shows the connection of my microcontroller, with the sensor and the bluettoh

Our halite contains a large percentage of co2 so when blowing into the sensor, the values increase.
