Final Project
For my final project I built a glasses for the visually impaired your name is Sonar Glasses.
The goal of this project is to create sunglasses thar help blind people as additional tool for their mobility. This device would not replace the blind stick, because people use to feel the ground and calculate the distance to some obstruction.
This device would be a complement in order to safe them and provide free moving by them. The Sumnglsse can detect obstacle at the height of the face and send alert in function to the proximity of the hazard
DESIGN

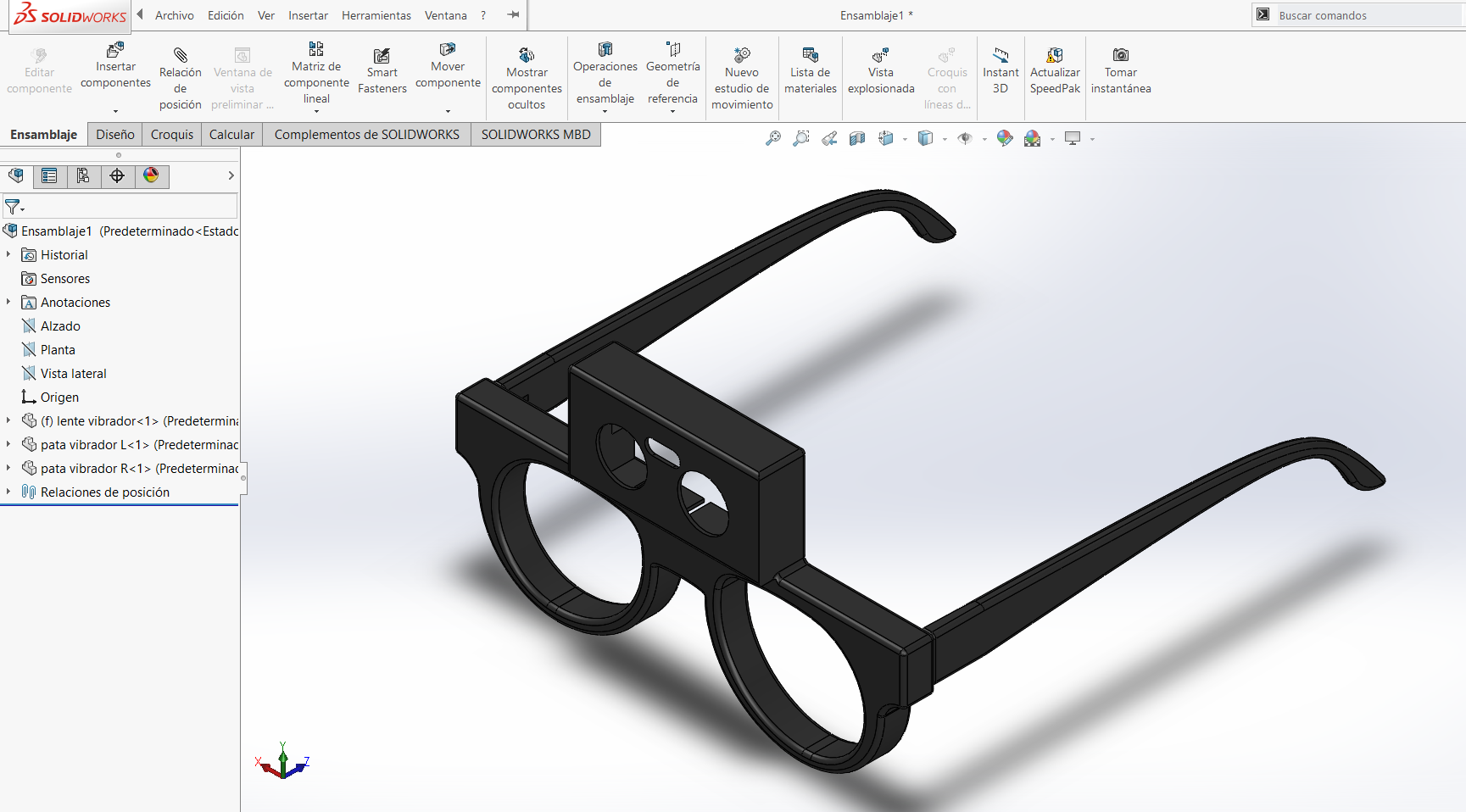

I used to design the SolidWorks program, I designed the first prototype in the first assessment. I designed several prototypes until the current prototype. The prototype is printed in 3d

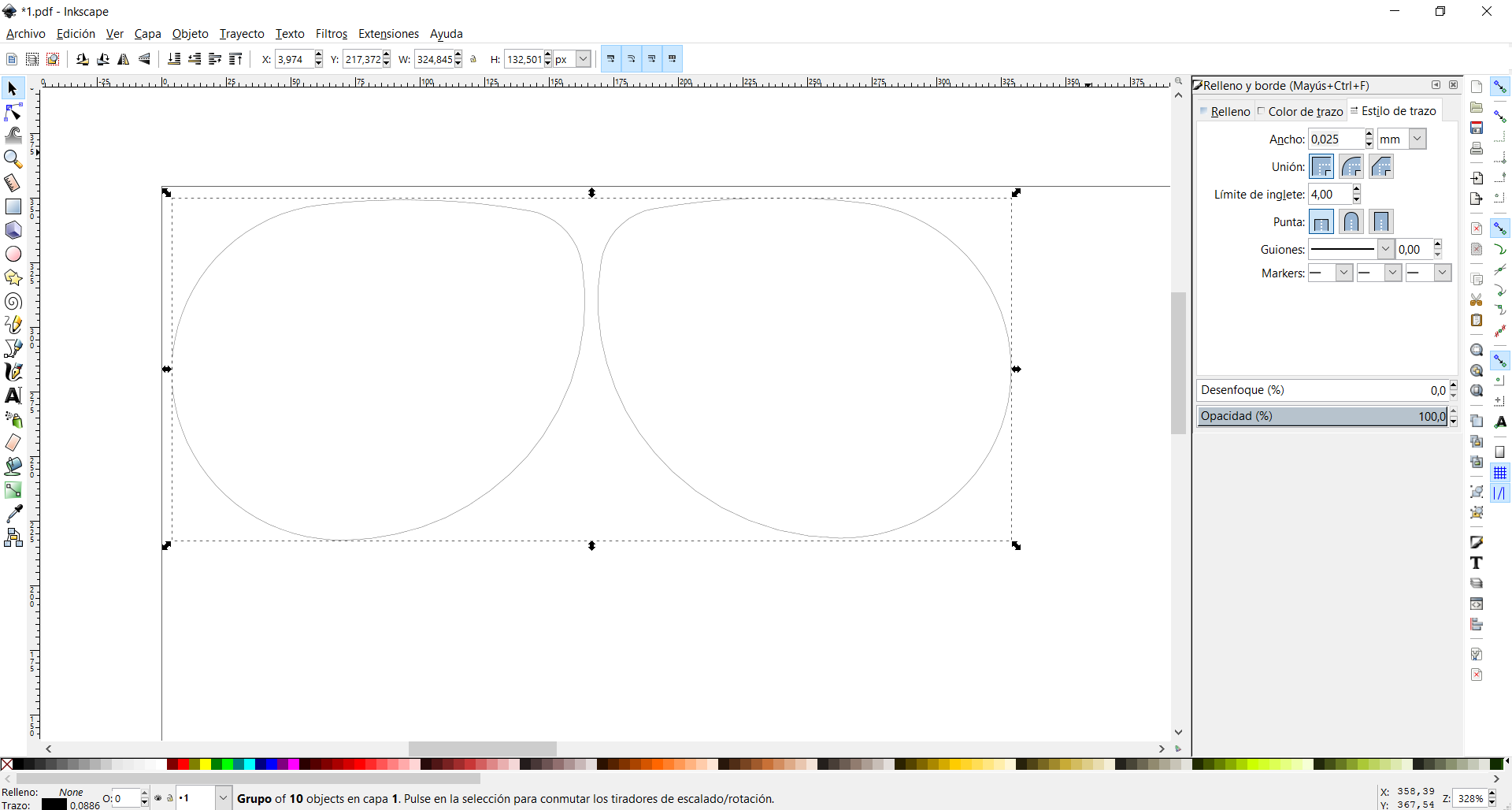

The lenses were dicene in the Inkscape program the lenses were dicene in porgrma Inkscape to make the laser cutter.
ELECTRONIC

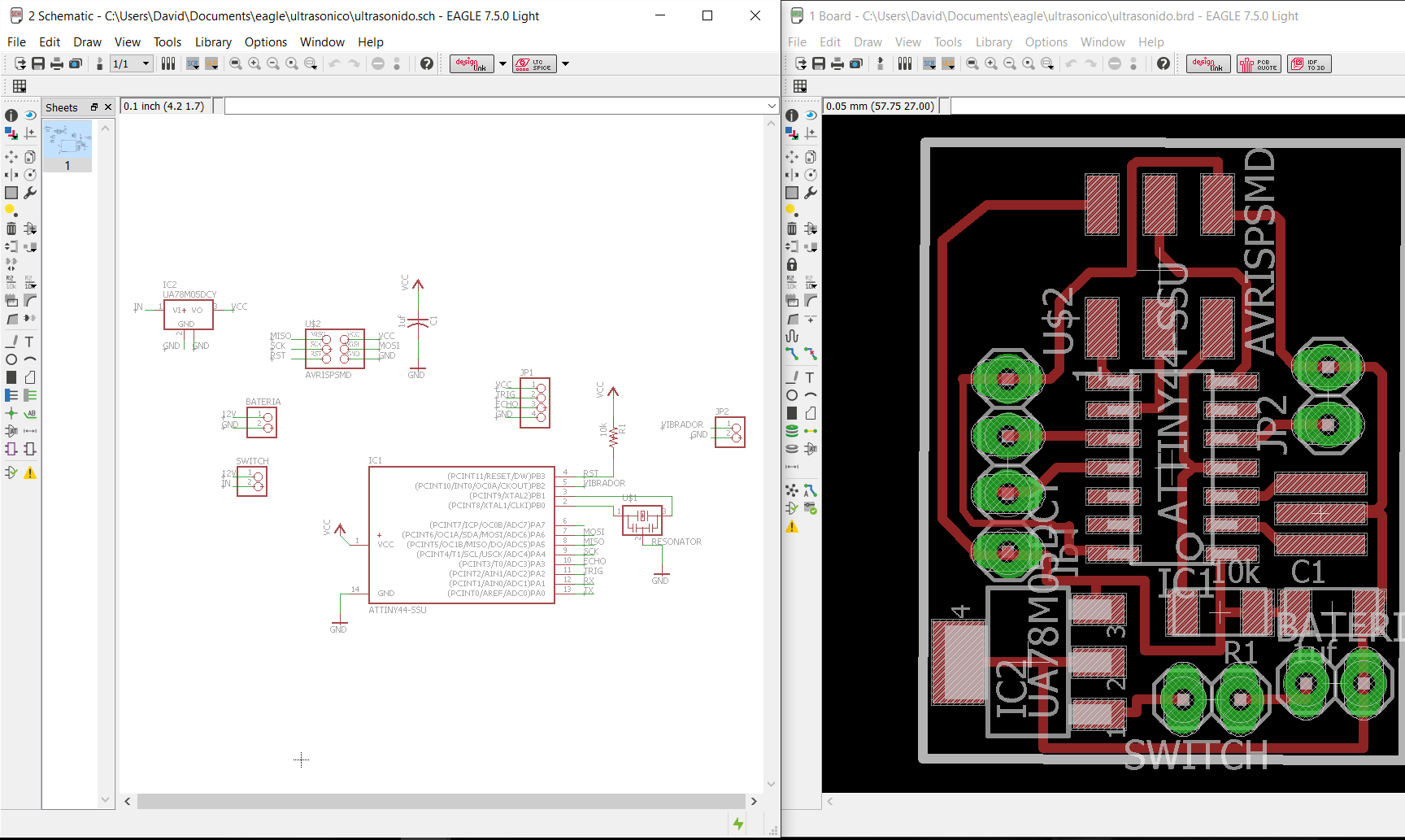

-PCB design to control an ultrasonic sensor and vibratior .

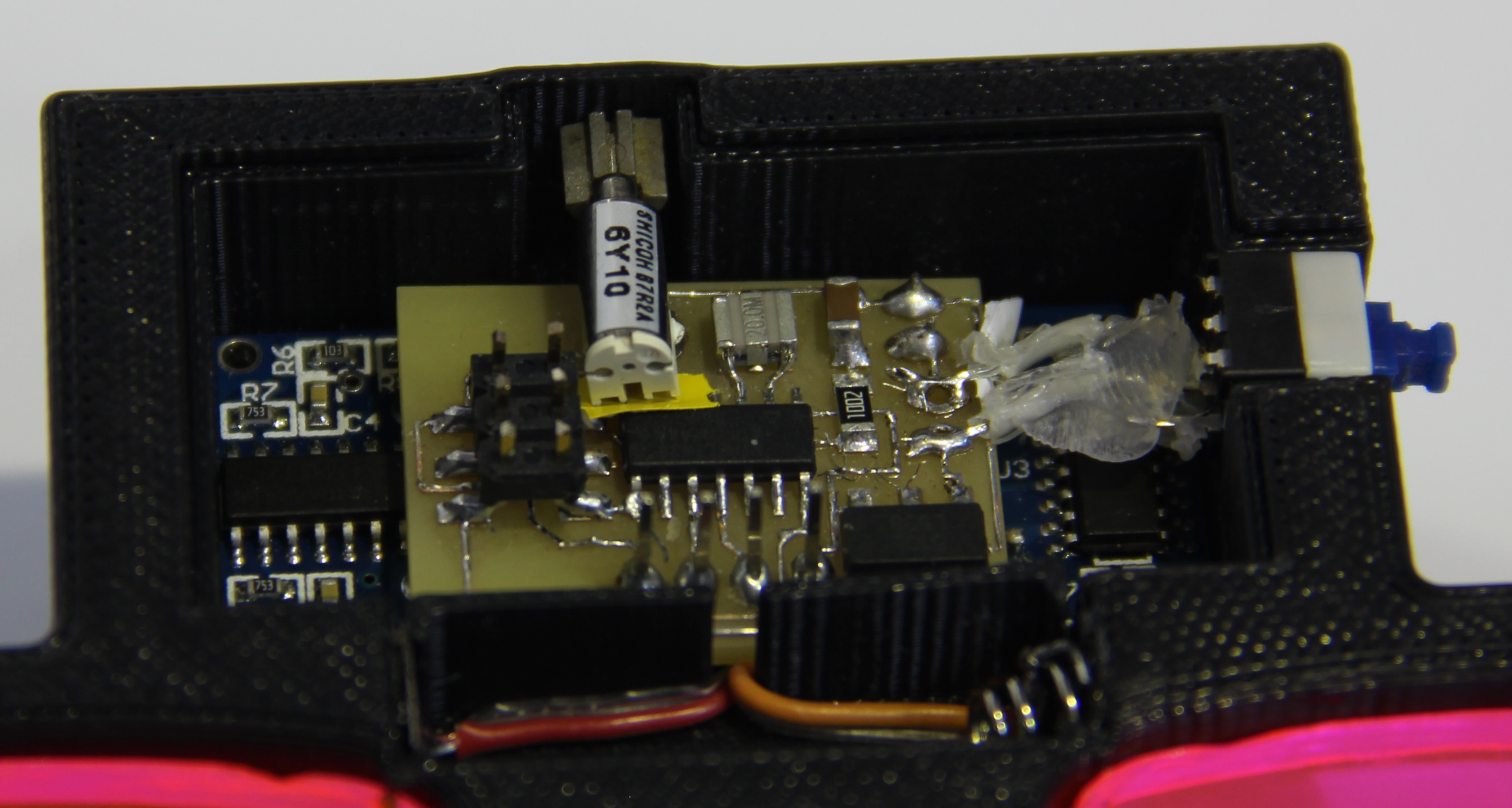

-Weld components.
PROGRAMMING

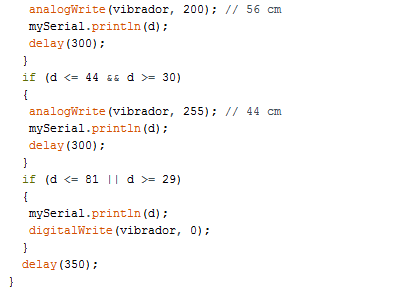

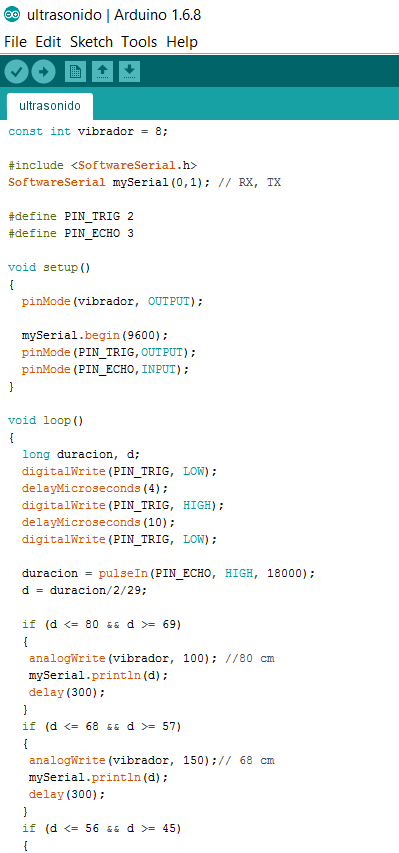

-Program it using arduino.
Assemblage

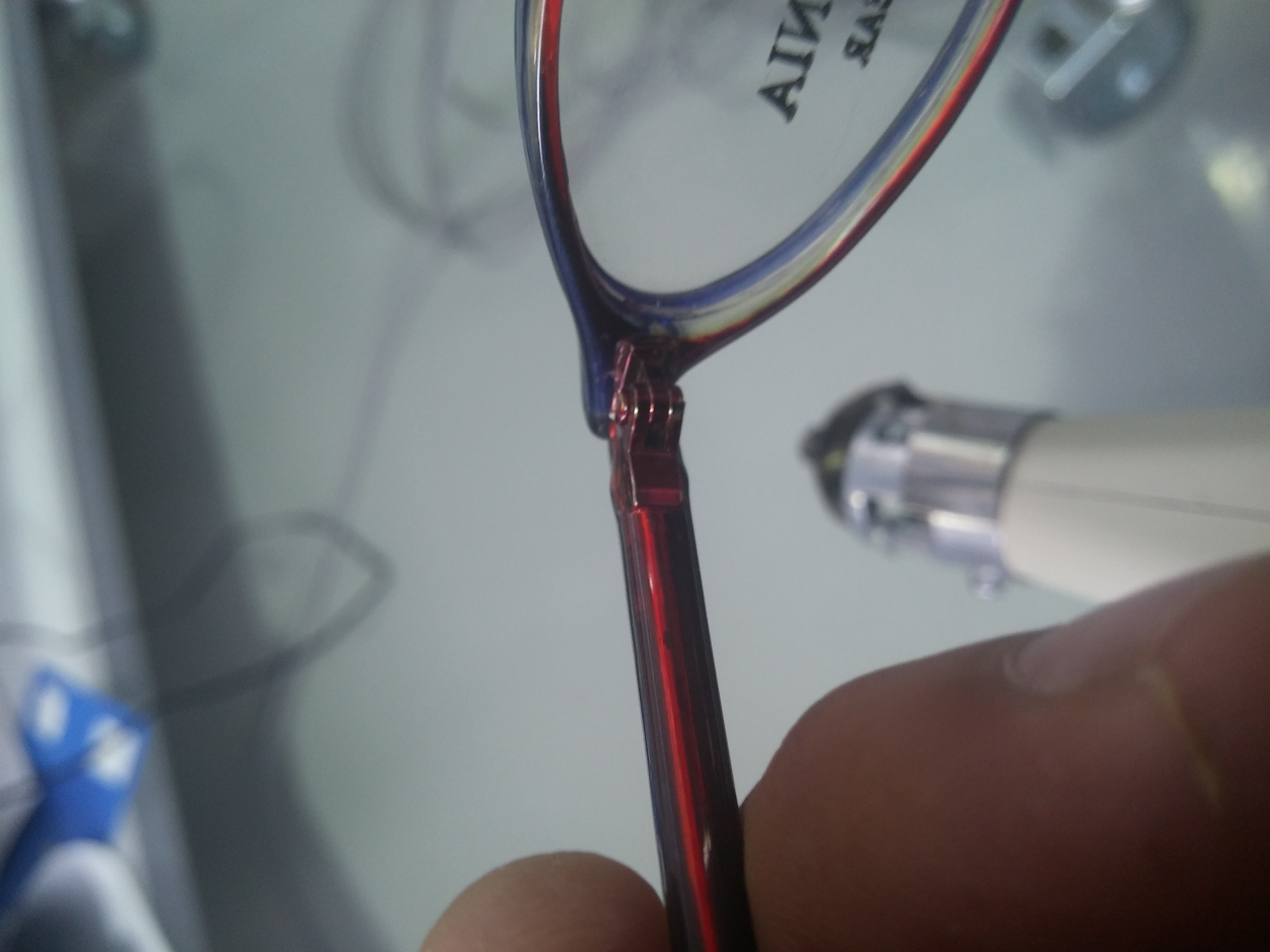

-An old lenses withdraw its hinges

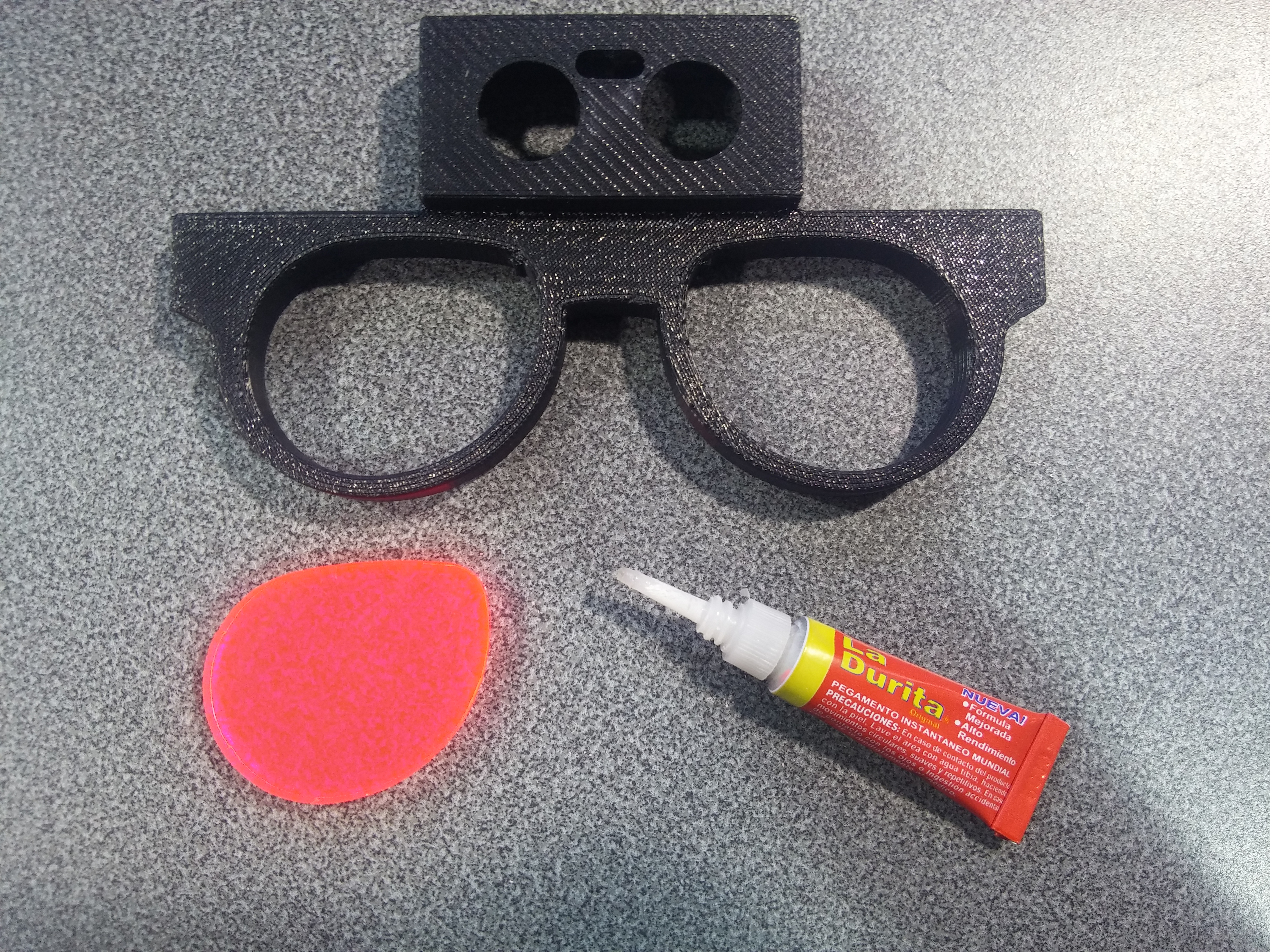

-Using glue to attach lens

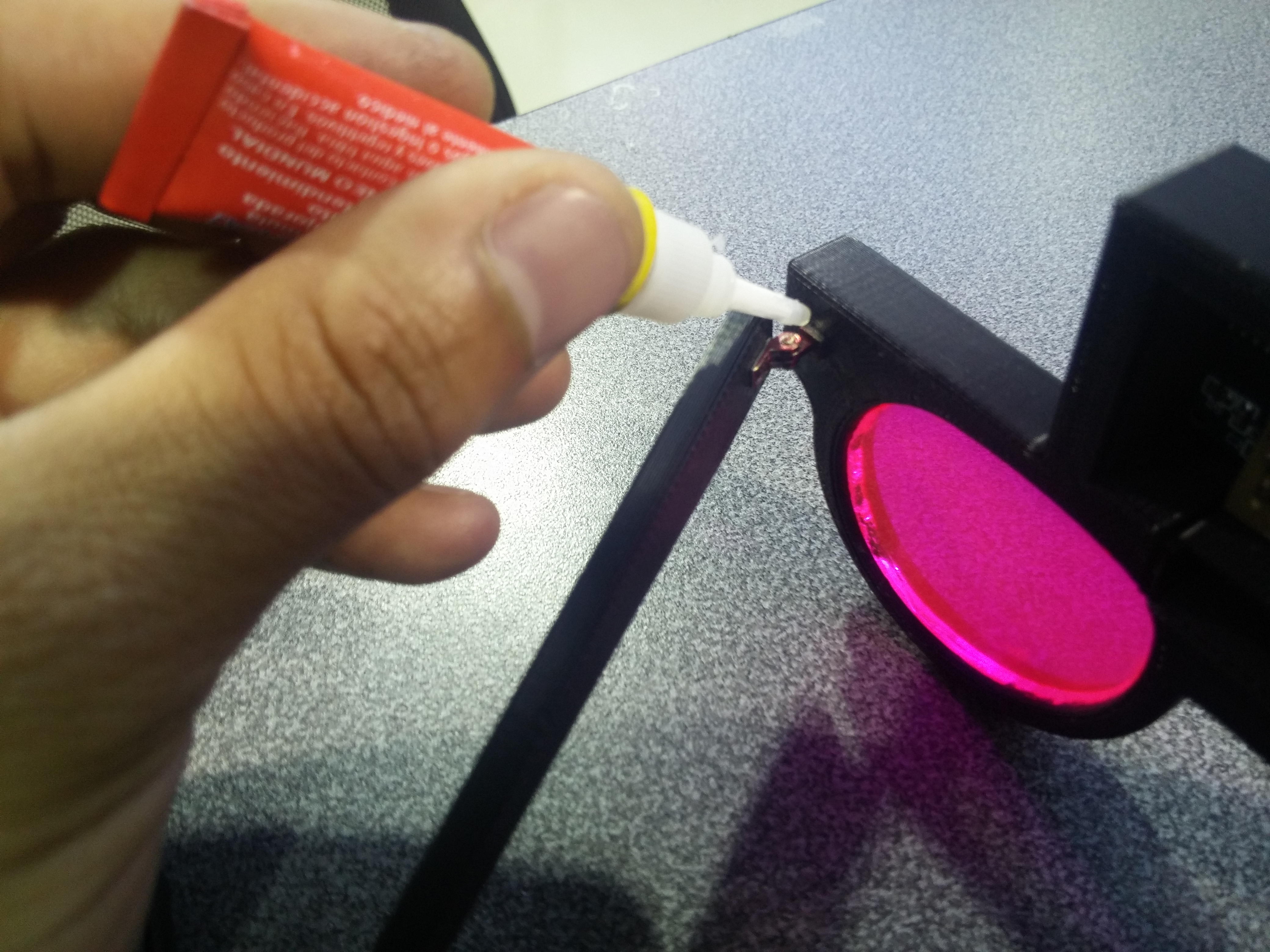

-Using glue to attach hinges against glasses and legs
*ALL OBJECTIVES CUMPLER WERE MET
