Assignment

• Design, make, and document a parametric press-fit construction kit

Learning outcomes

• Demonstrate and describe parametric 2D modelling processes
• Identify and explain processes involved in using the laser cutter
• Develop, evaluate and construct the final prototype

Activity log

I decided to design a customizable Google CardBoard viewer .

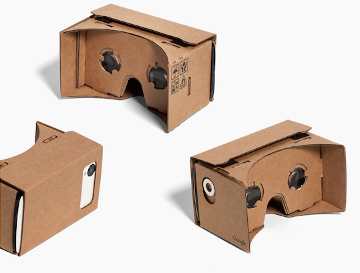

The Google CardBoard project let the people to try virtual reality in an unexpensive way. It includes a mobile App and cardboard made viewer

It's a great project because it can allow people to experience a low cost full immersive virtual reality experience, but the viewer have some limitation:

• The mobile slot fits exactly only the Nexus mobile
• Has been designed to fit an average head dimension

The original Goggle CardBoard is composed of several parts sticked togheter by glue and magnets, due to assignemnts requirements I designed a cardboard which doens't need glue or magnets, so my projects has these features:

• Customizable mobile slot
• Customizable head dimensions
• Only cutted joints

To design it I used Rhino because is the only software which i getting confidence right now. I'm planning to try all the sofware mentioned during next weeks. So for parametric design I started learning Grassopper

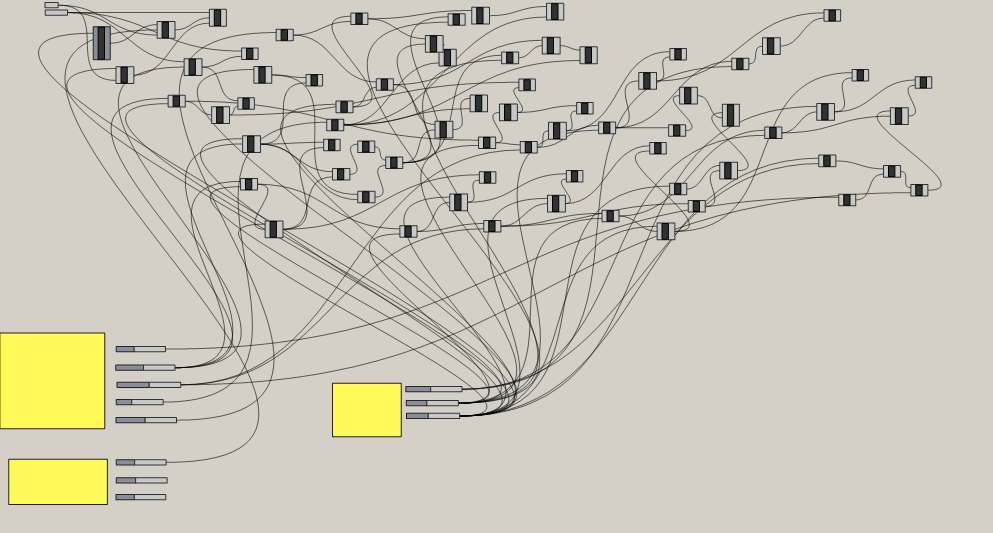

That's the wider grasshopper graph:

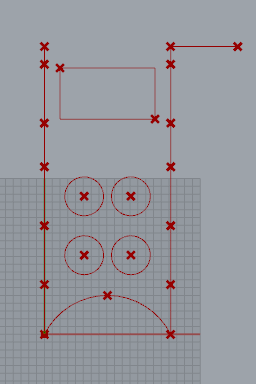

That's the Rhino outcome:

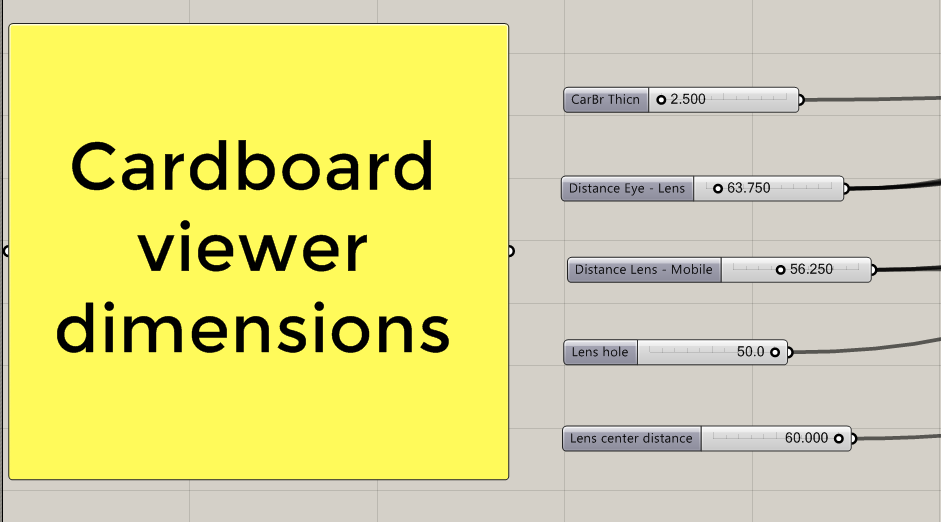

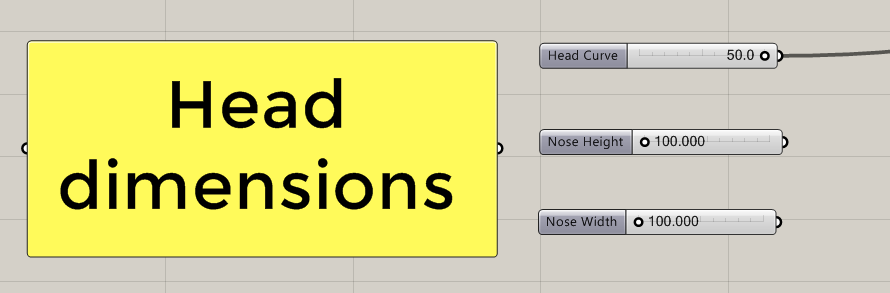

By changing the value slider on grasshoper the outcome change accordingly to the defined rules

It's my first experience with Grassopher so I used very basic commands resulting in a big and confusing chart. Maybe acquiring more confidence with it and other parametric software I will make better charts.

Due the time constraints i made only core functions on Grassopper completing the cutting draw in Rhino. Making this litte assignement better in future it could be spin-off project

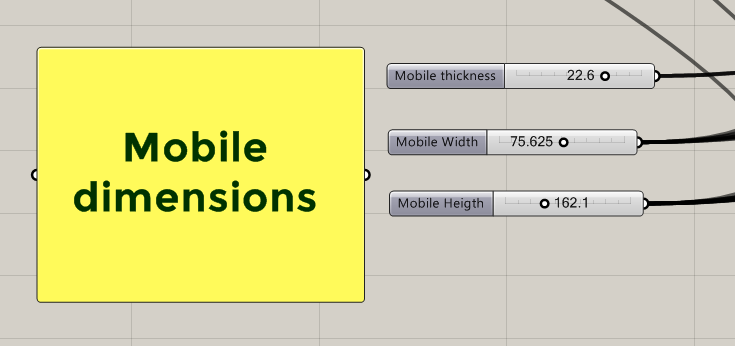

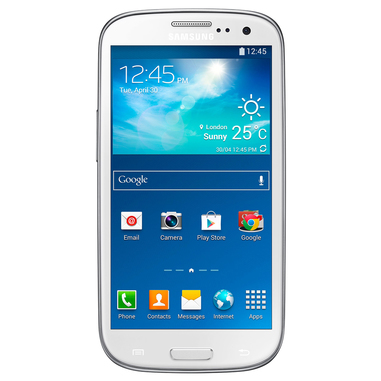

I'm using my mobile Samsung Galaxy Neo 3:

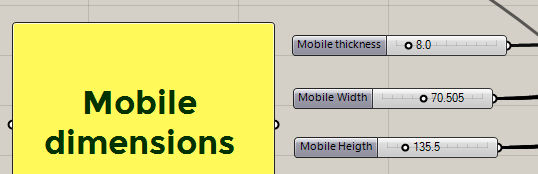

Its dimensions are:

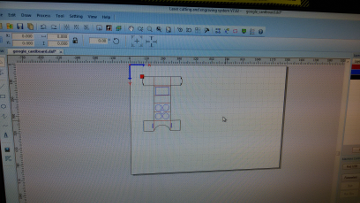

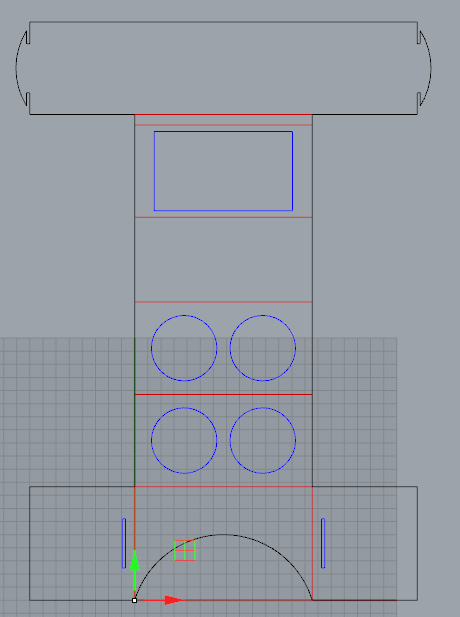

This is the resulting Rhino 2D outcome

The line colors are for internal, external and bending cut:

Laser Cut Settings

In our Lab we are using these:

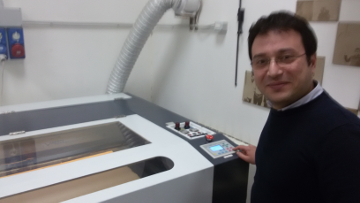

• Laser Cutter Machine: VREL LASER CO2 ME-1300 (130W)
• Material: Cardboard (800 x 1200 x 2.5) mm

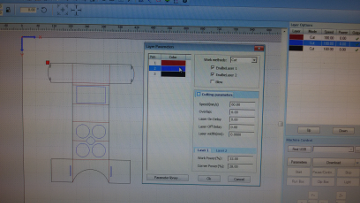

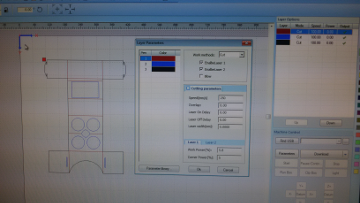

And we need these setting for the best outcome:

• Red layer - Bending - 250(Speed); 5.8(Work Power %); 5(Corner Power %)
• Blue layer - cut - 60(Speed); 32(Work Power %); 28(Corner Power %)
• Black layer - cut - 60(Speed); 32(Work Power %); 28(Corner Power %)

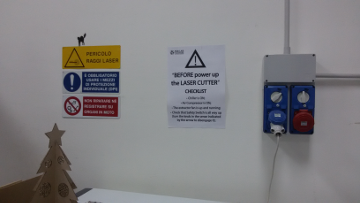

Before start cutting we have to check this security sequence:

• Chiller is ON
• Air Compressor is ON
• The extractor fan is up and running
• Check that Safety Switch is all way up
• NEVER left the machine work unattende

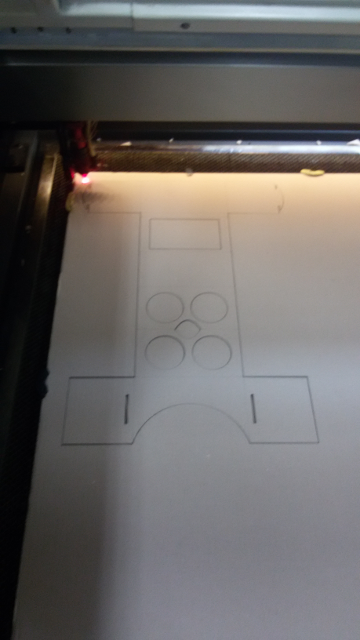

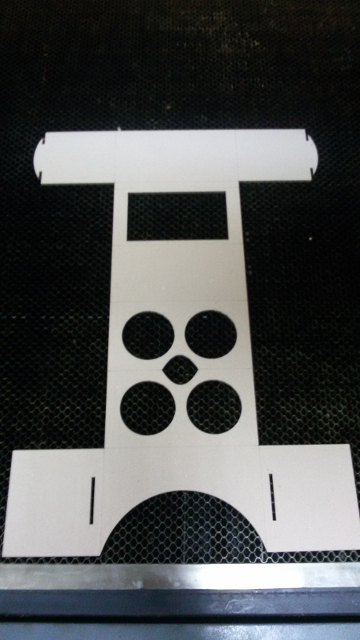

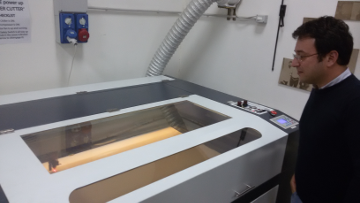

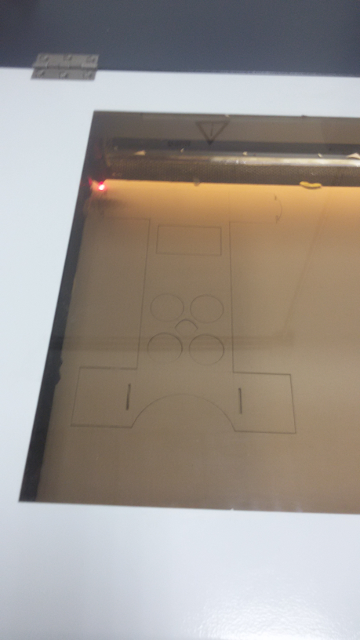

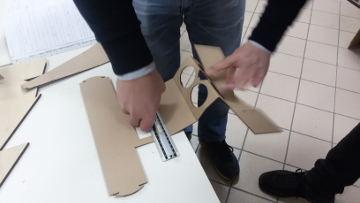

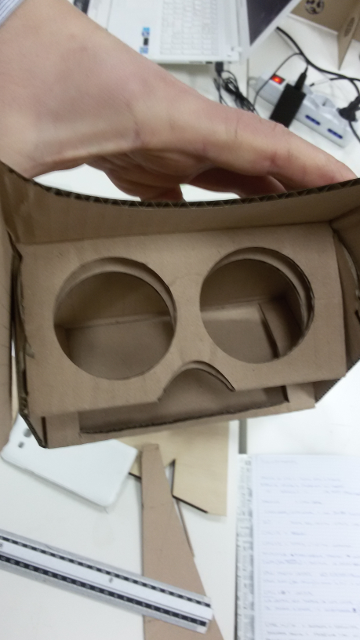

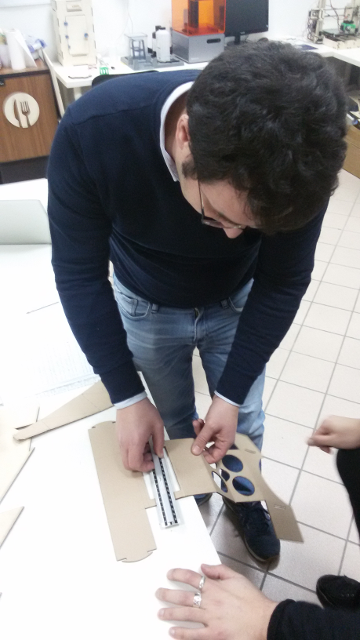

Cutting and operation in progress

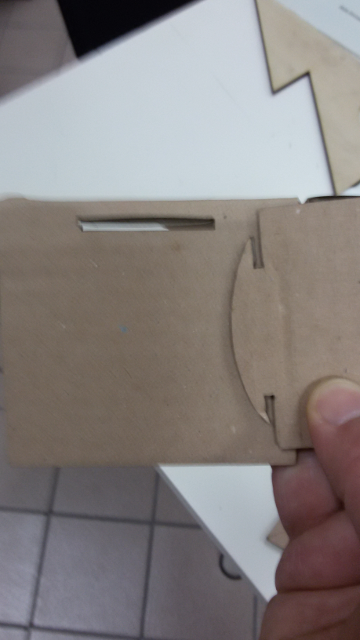

I made a mistake designing the viewer so i need to change the file

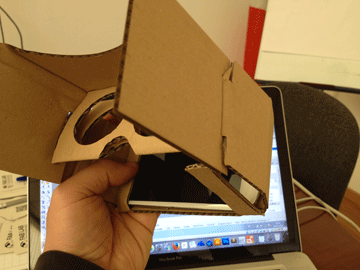

I moved the hole to the right side

VYNIL CUTTER

I drew the logo candidate for my project in illustrator

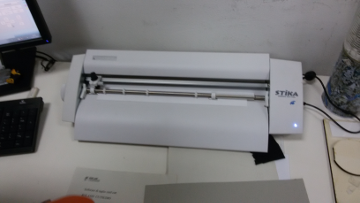

In our lab whe have a Roland SV-8 Stika

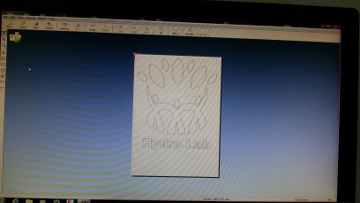

To cut my sticker I used the Roland CutStudio software according these steps:

• Select and Import file in CutStudio
• Set size of the paper and the position & depth of the blade (I did that manually)
• Uncheck the voice Extract the contour lines of the drawing and start to cut

Cutting in progress
