computer-controlled machining



Tools
1.-end mill 1/4'
Meterials
2.-plywood 15mm
SOFTWARE
3.-shopbot 3
4.-Autodesk inventor
5.-vcarve Pro
MACHINES
6.-shopbot

I want to make a suport for my laptop so, First I take the measurements of a laptop

width and length of my laptop

stamation of inclination of the laptop

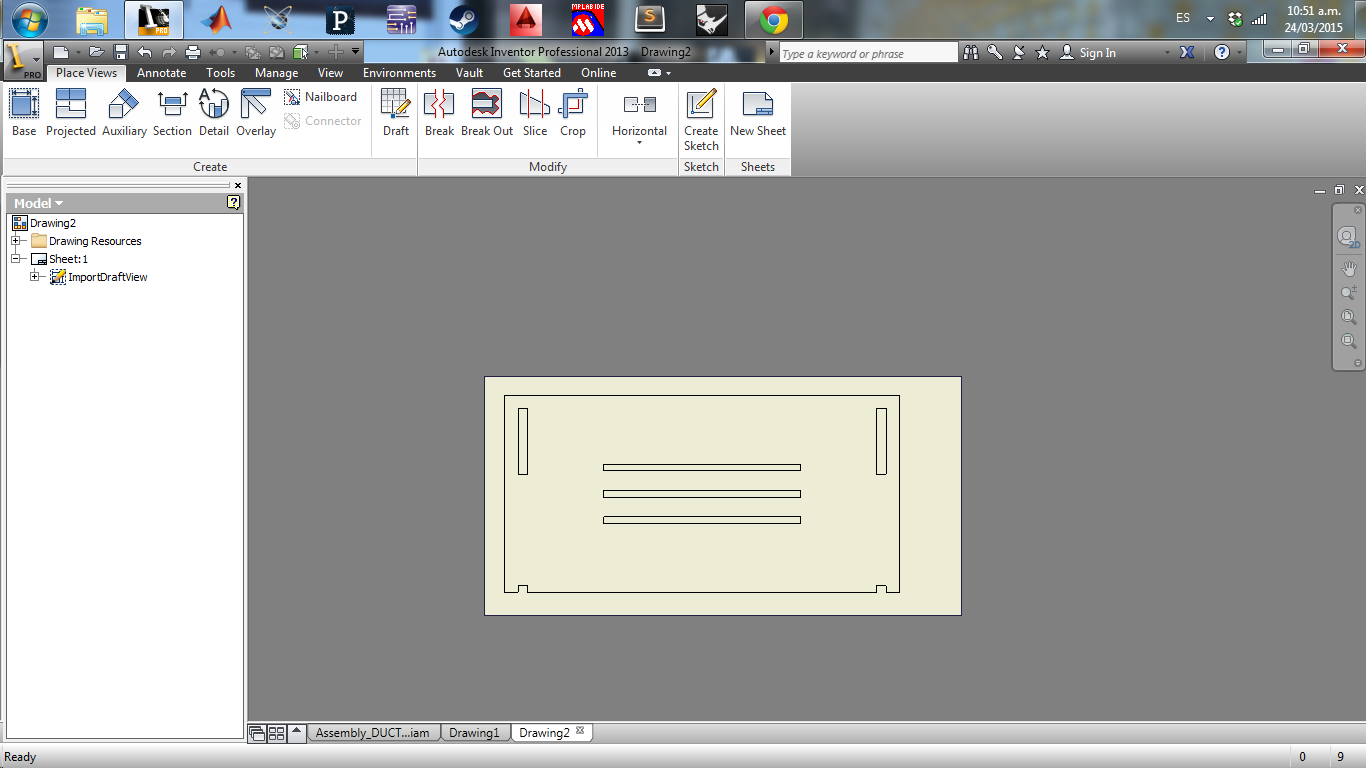

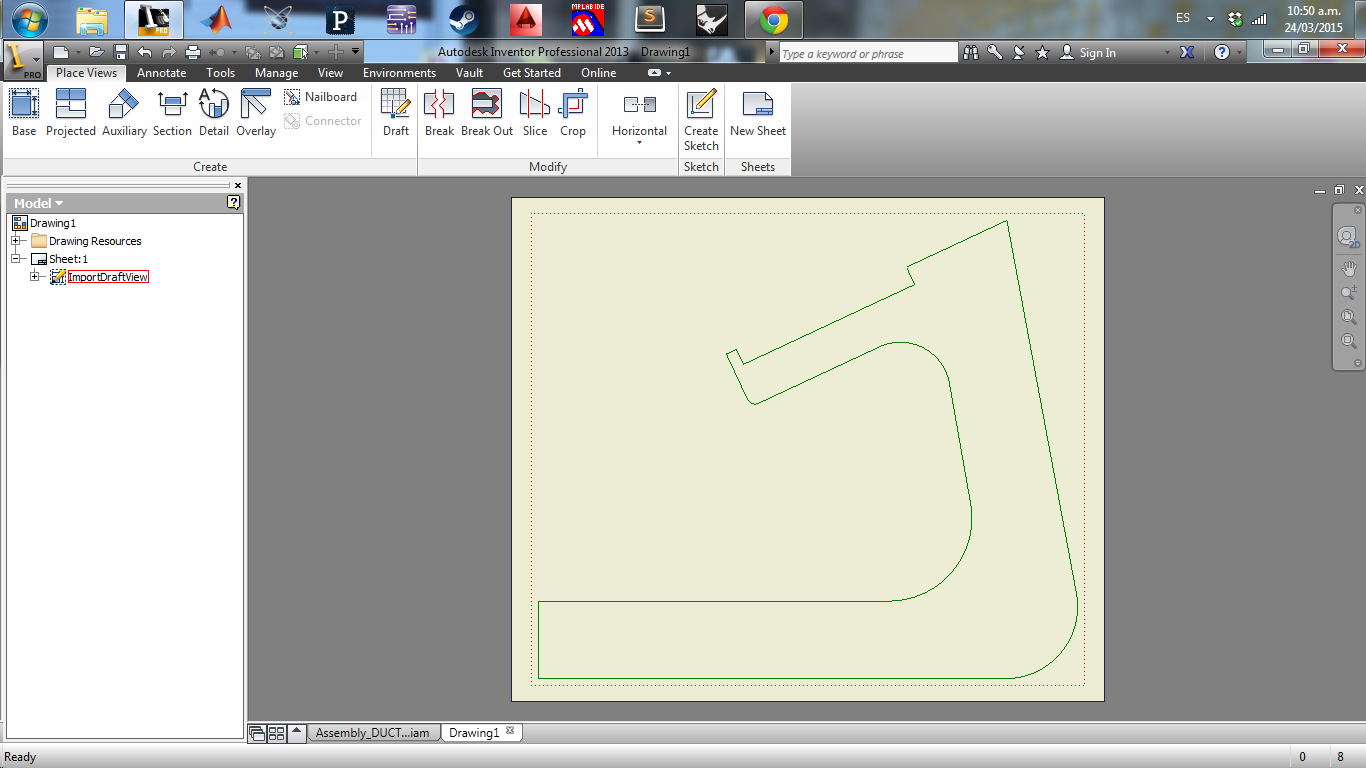

I build the pieces based on the measures for this I use INVENTOR CAD software

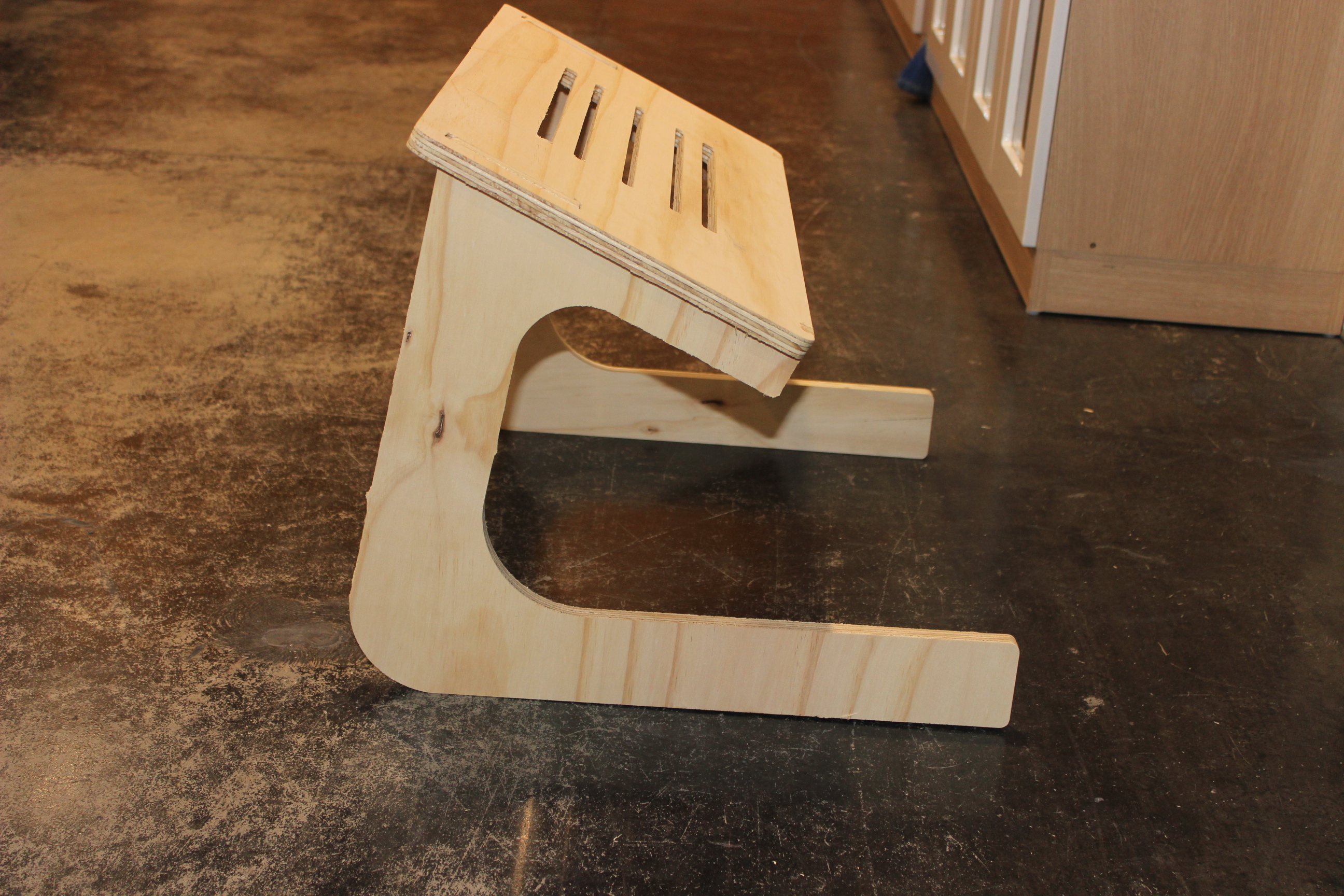

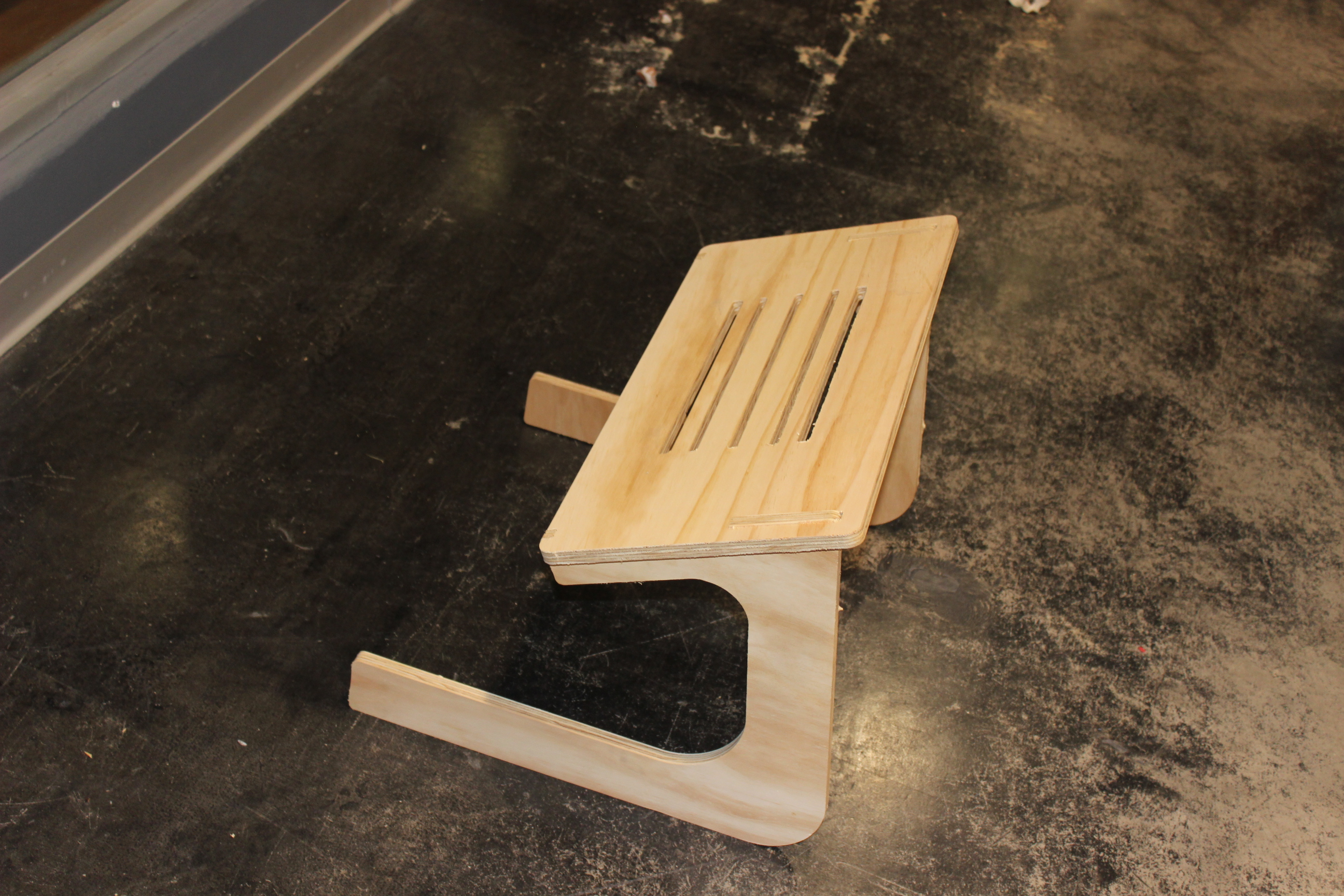

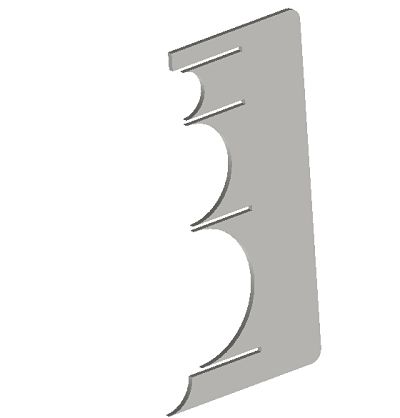

the structure is simple, 3 parts and two equal parts

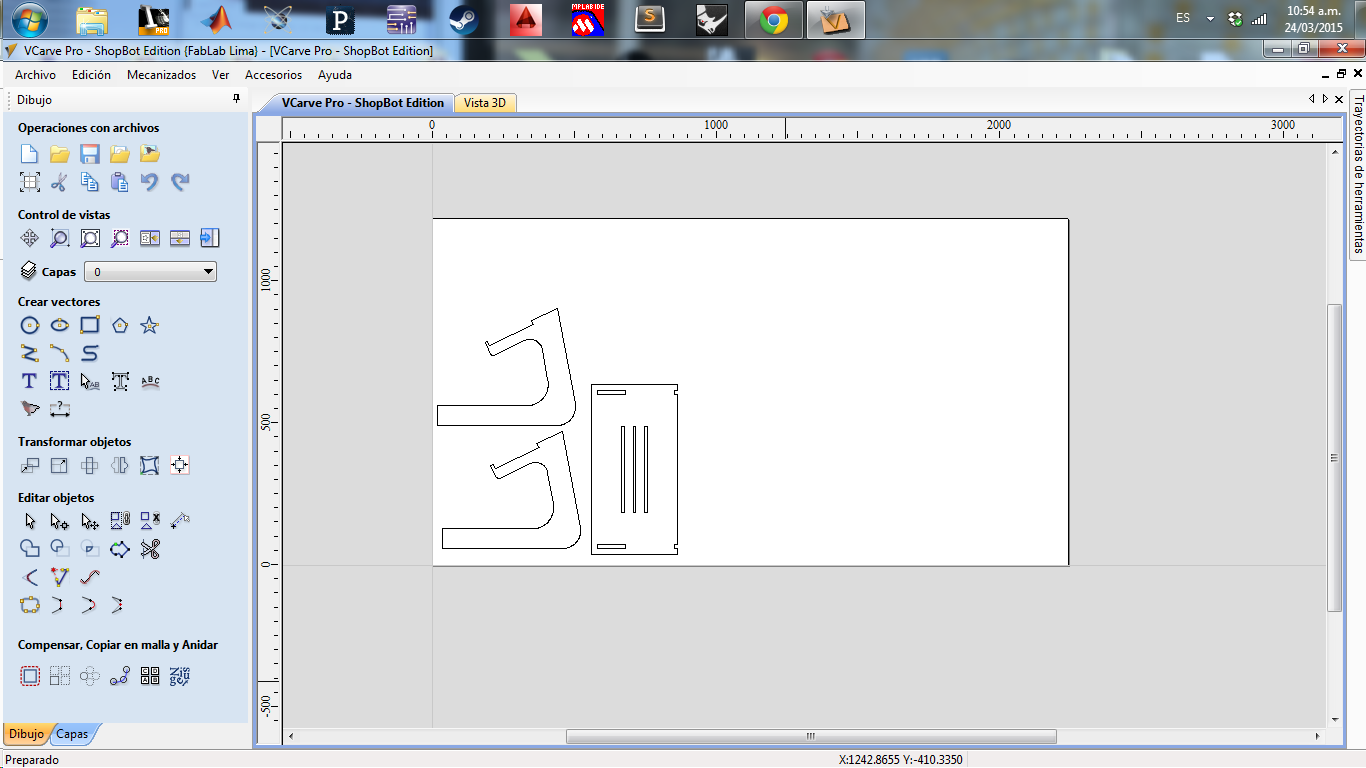

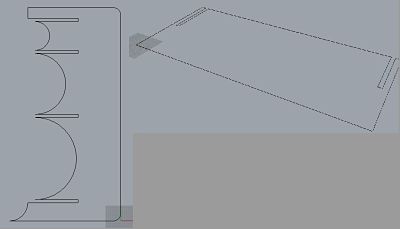

I import DXF files on VCARVE PRO software and I verify that all vectors are closed

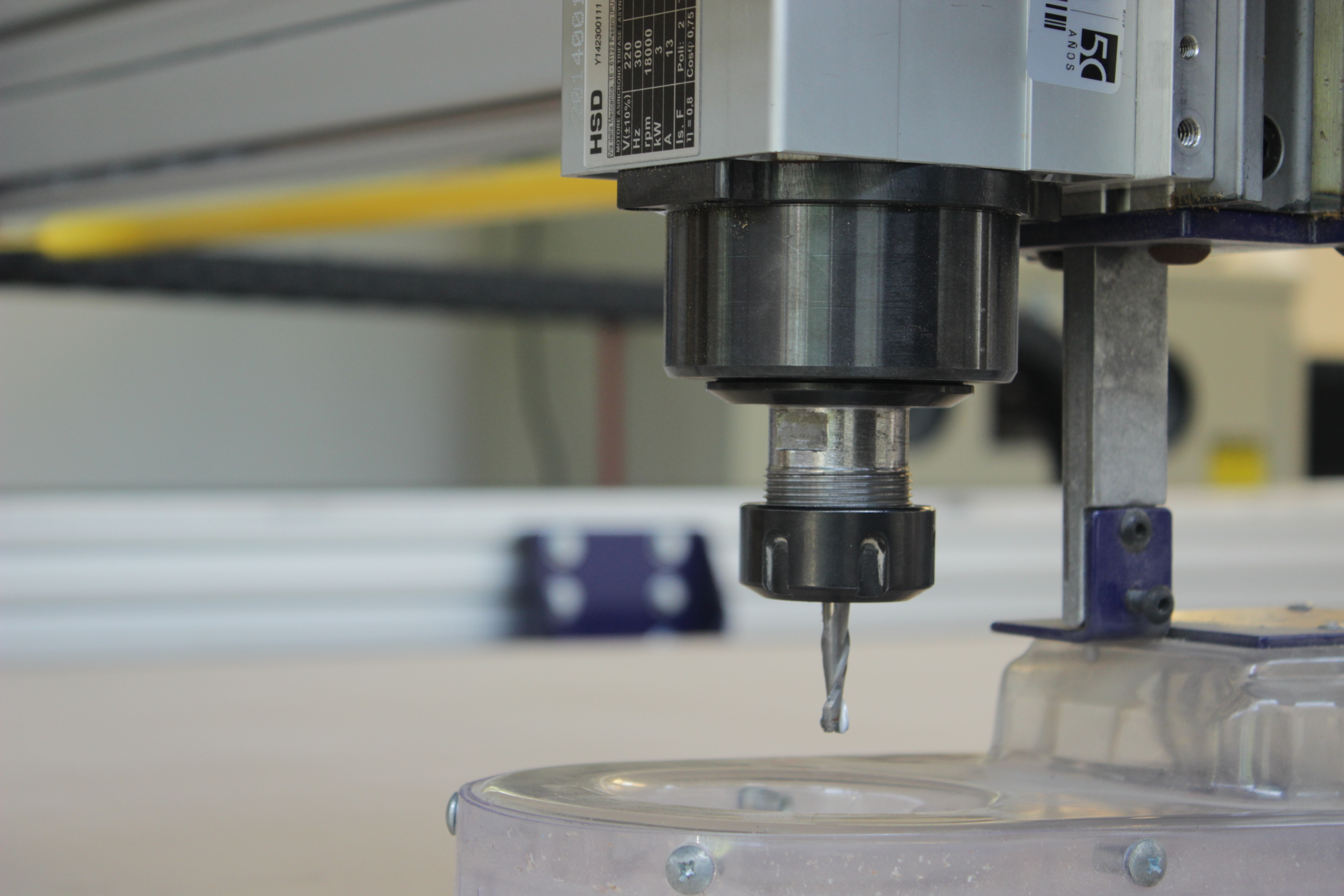

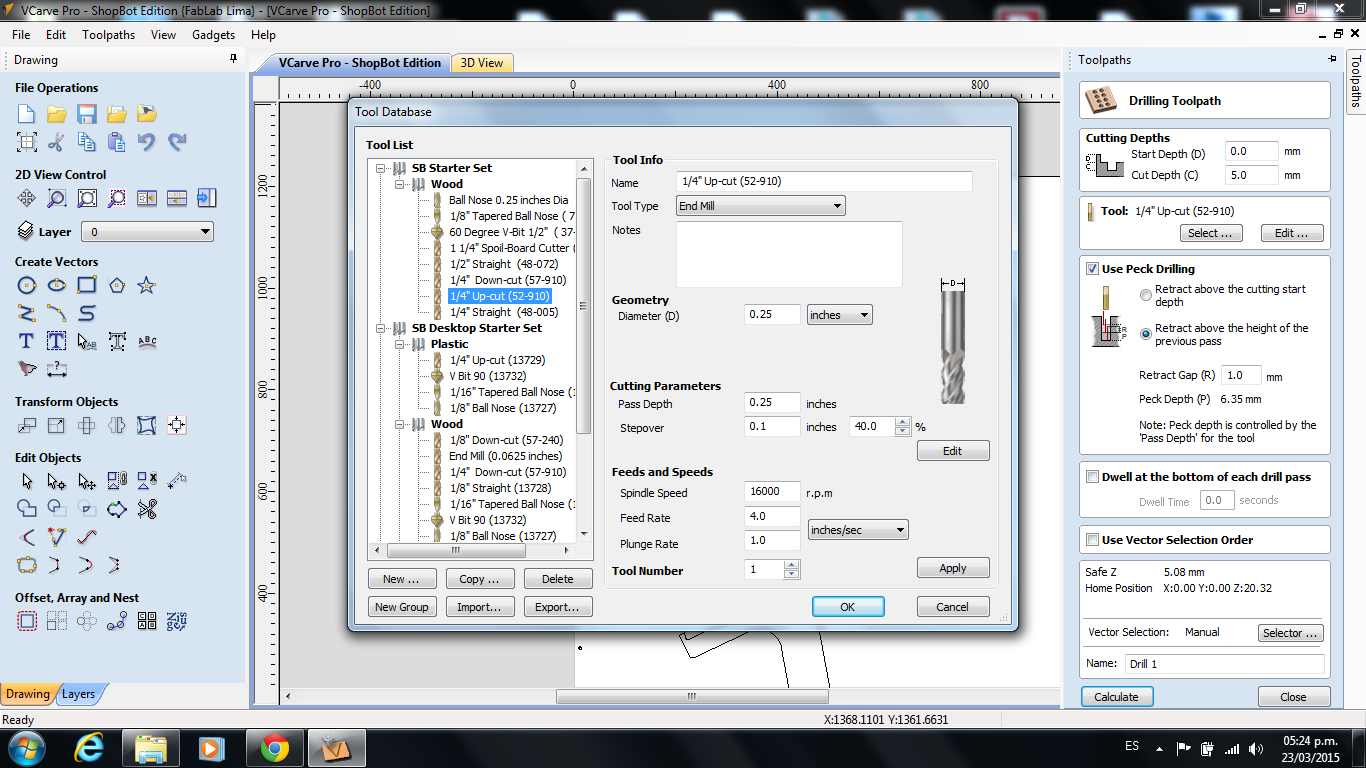

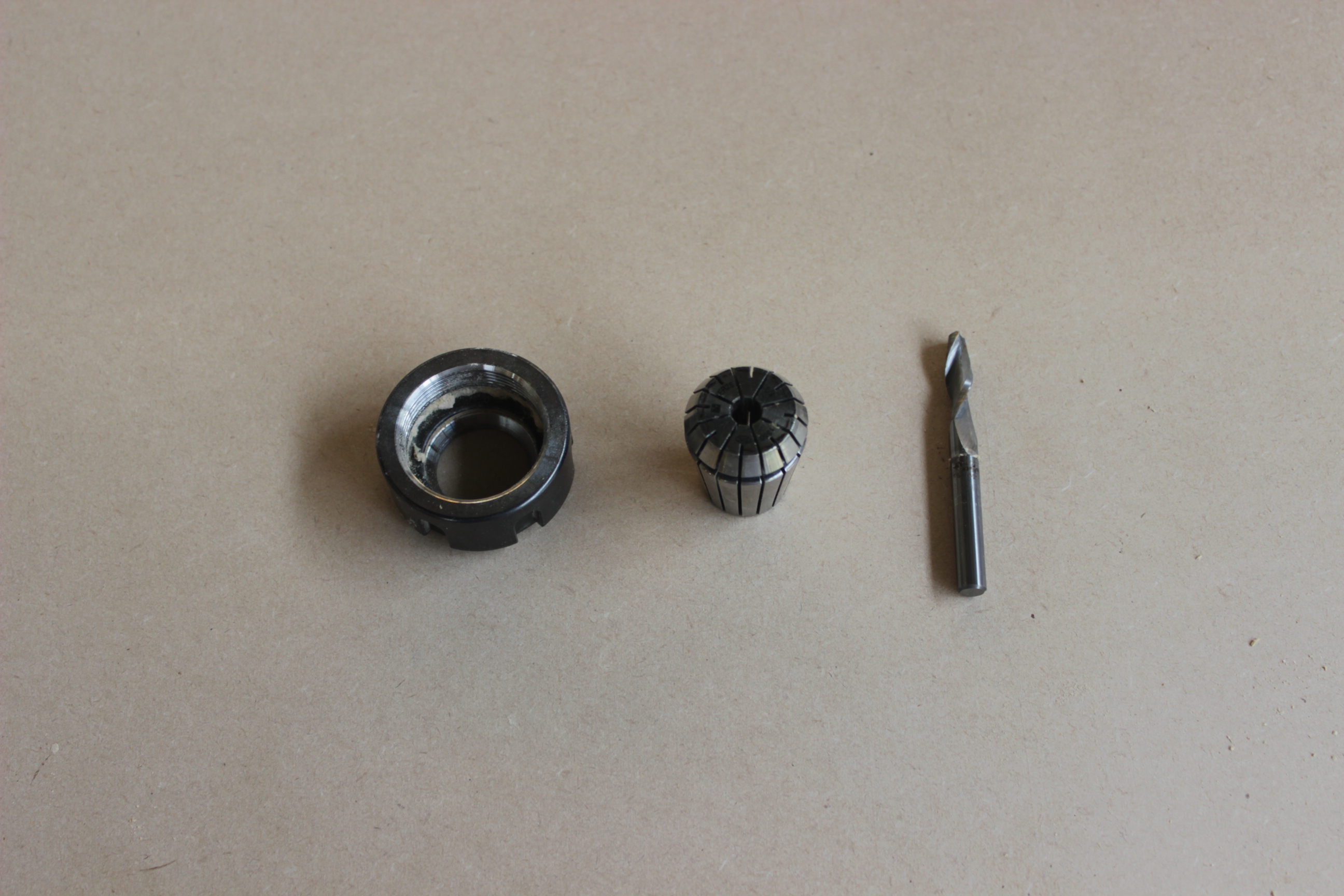

I choose the correct end mill and verify all the correct configurations, I take note of RPM "16000" then I calculate chipload parameter, first I configurate drill then perfil

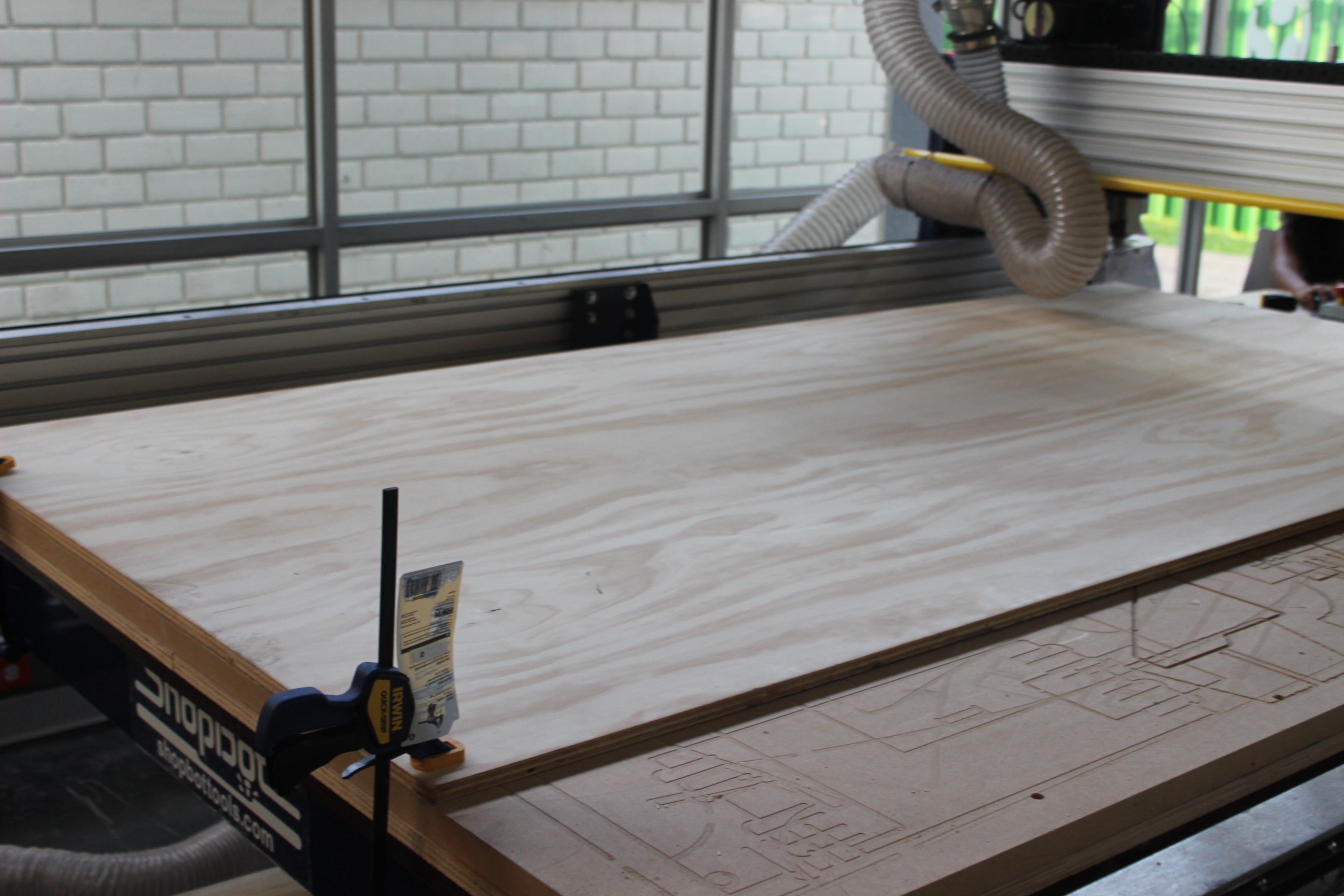

I put plywood on the shopbot, then I prepare the machine

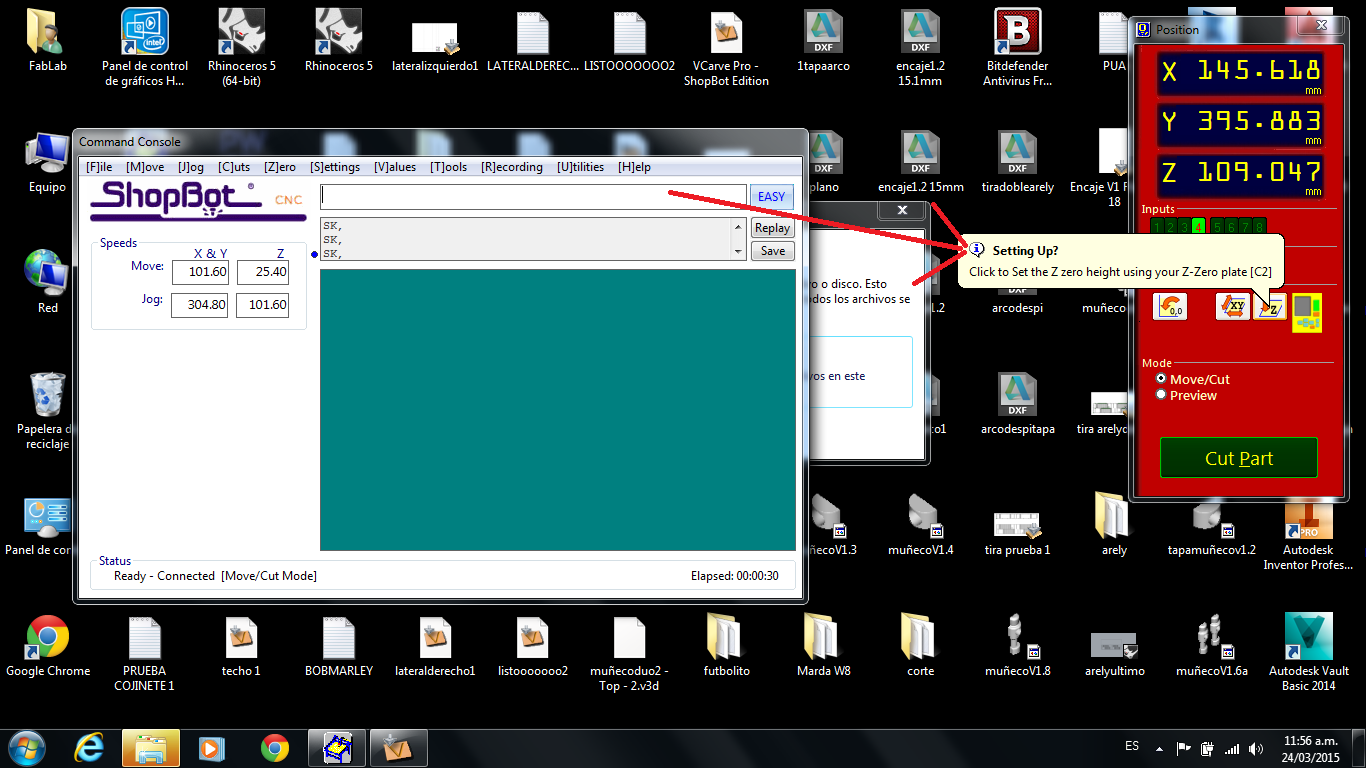

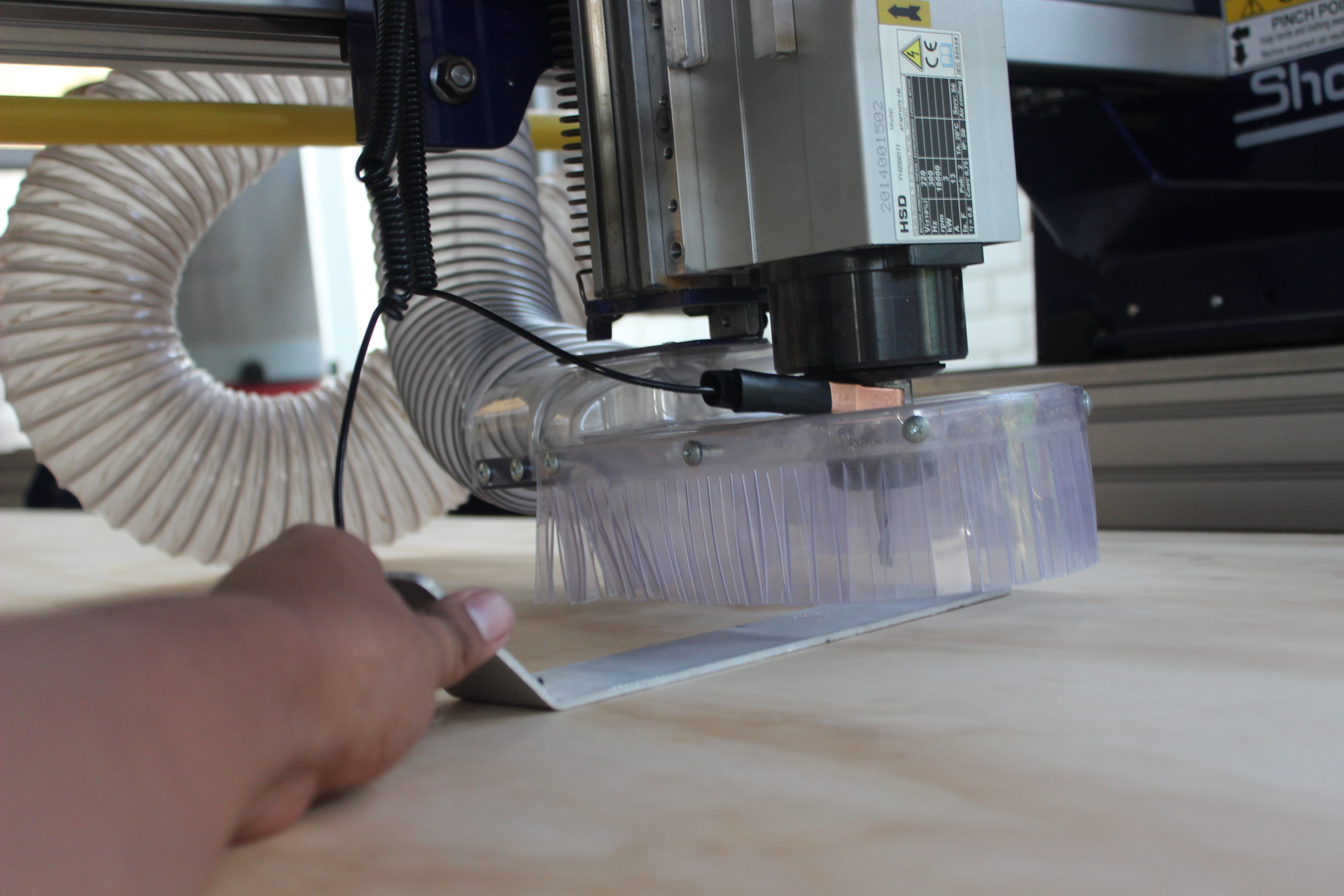

first I calibrate the Z axis

after that I calibrate the X/Y axis

then I can send my curt configuration

FILES

After learning the whole process of manufacture with shopbot, I designed and built a bigger piece of furniture that will serve to save materials and objects within the FabLab

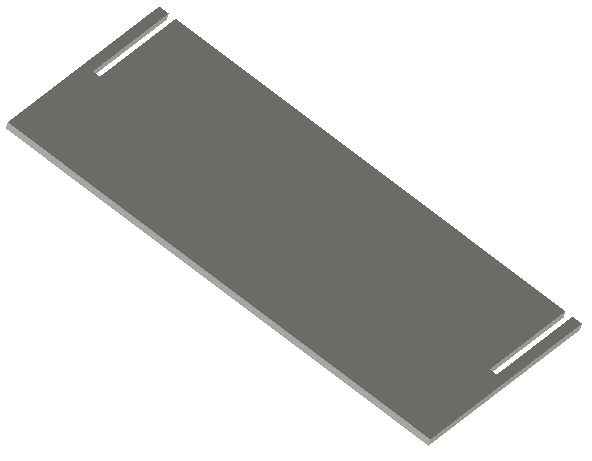

I designed 2 pieces, They will double to build the full furniture.

These pieces were also designed in AutodeskInventor

As in previous case, we export the file in DXF format to carry the machine shopbot

FILES
