JUAN CERRON: FAB LAB 2017

The activity this week has two main activities:

1. Creating personal website.

2. Make a sketch of our project will make posible.

PART 1:

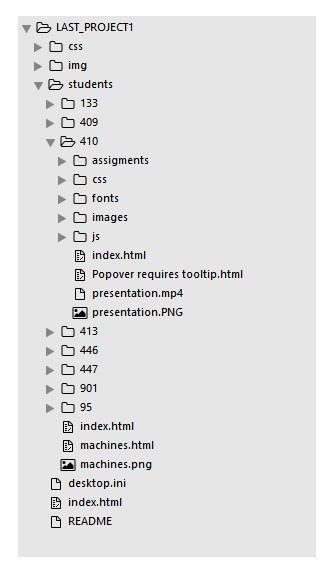

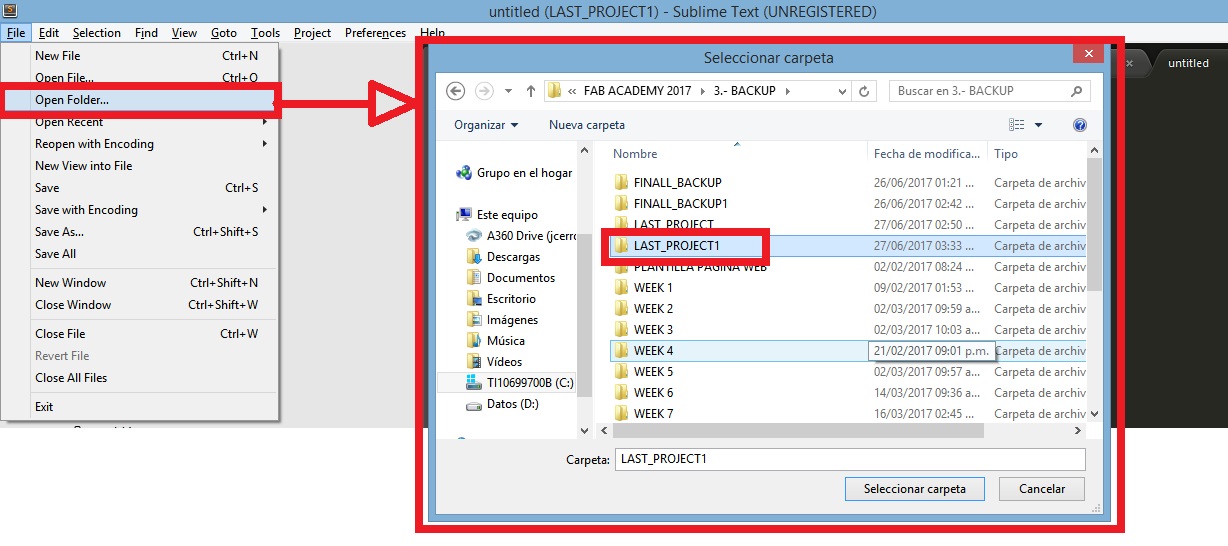

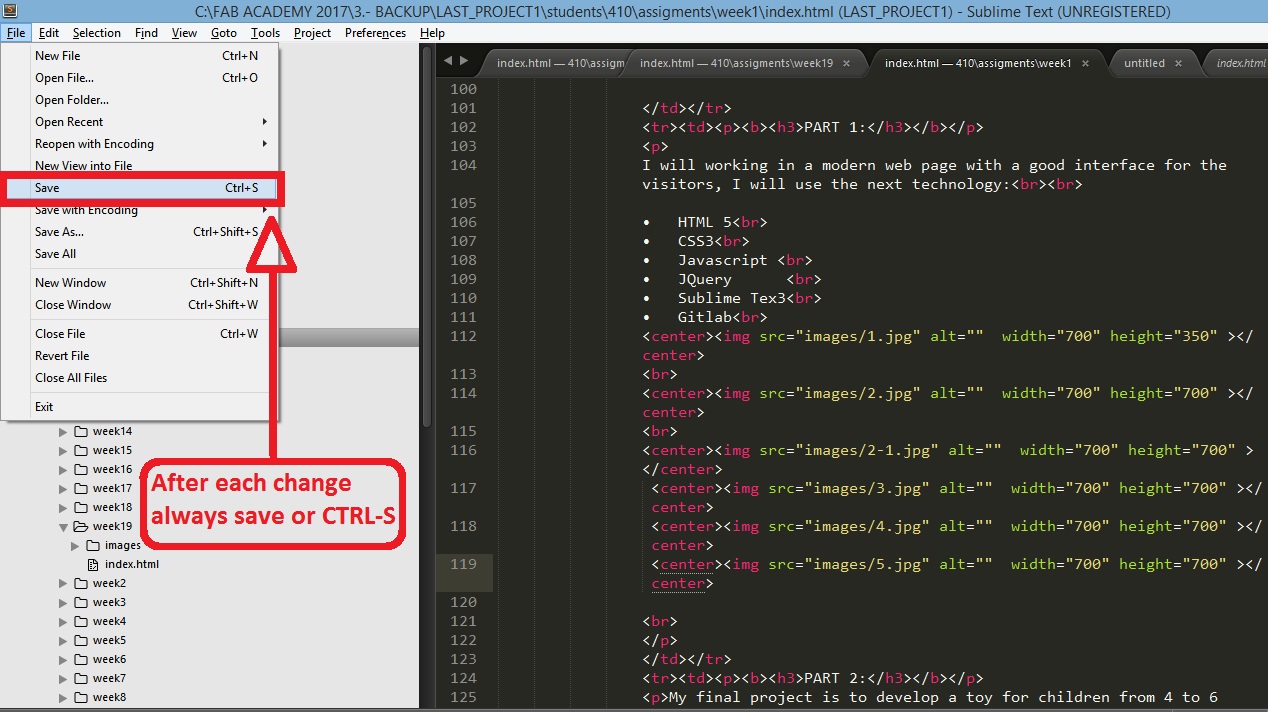

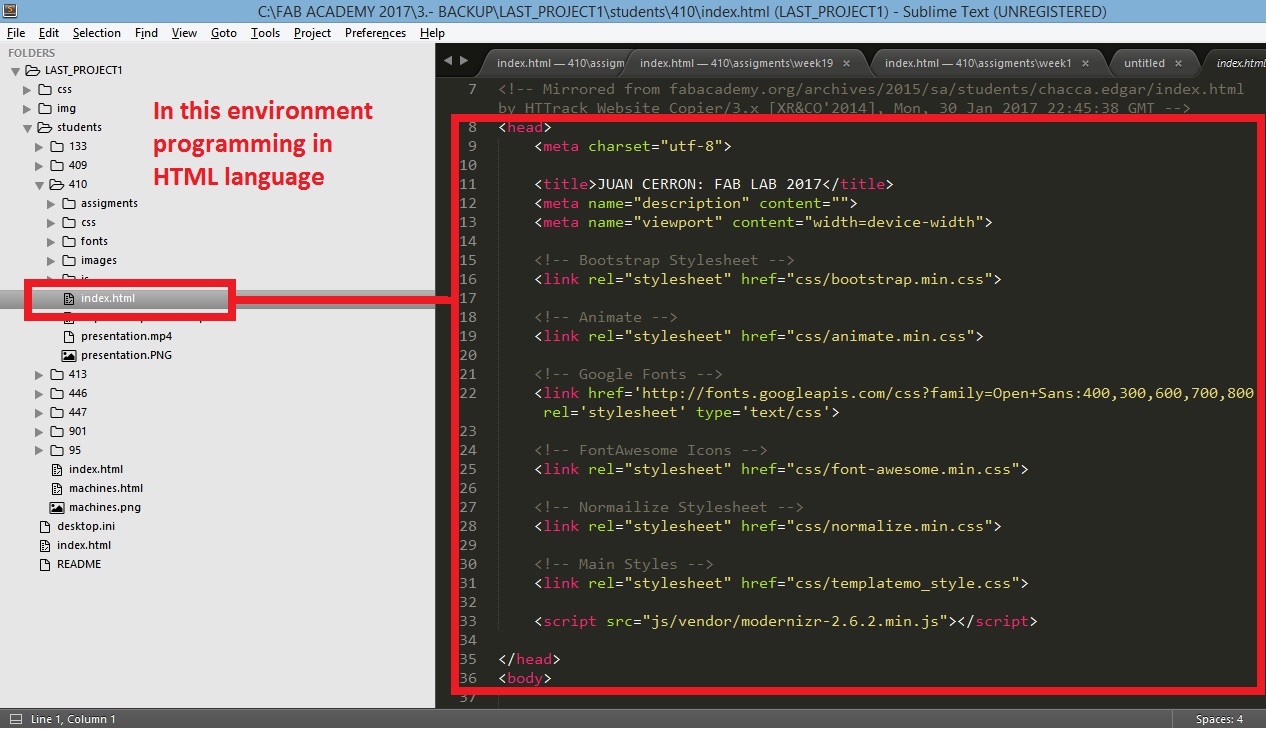

I will working in a modern web page with a good interface for the visitors, I will use the next technology:

• HTML 5
• CSS3
• Javascript
• JQuery
• Sublime Tex3

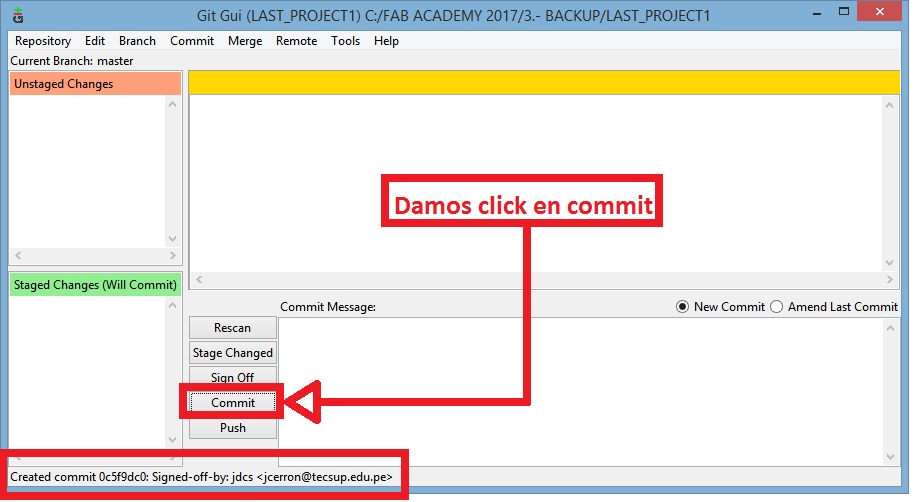

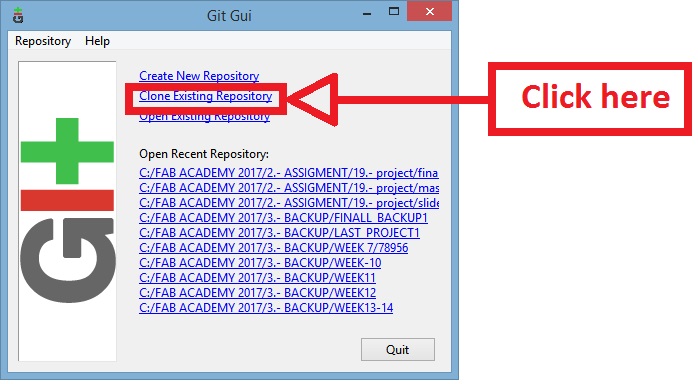

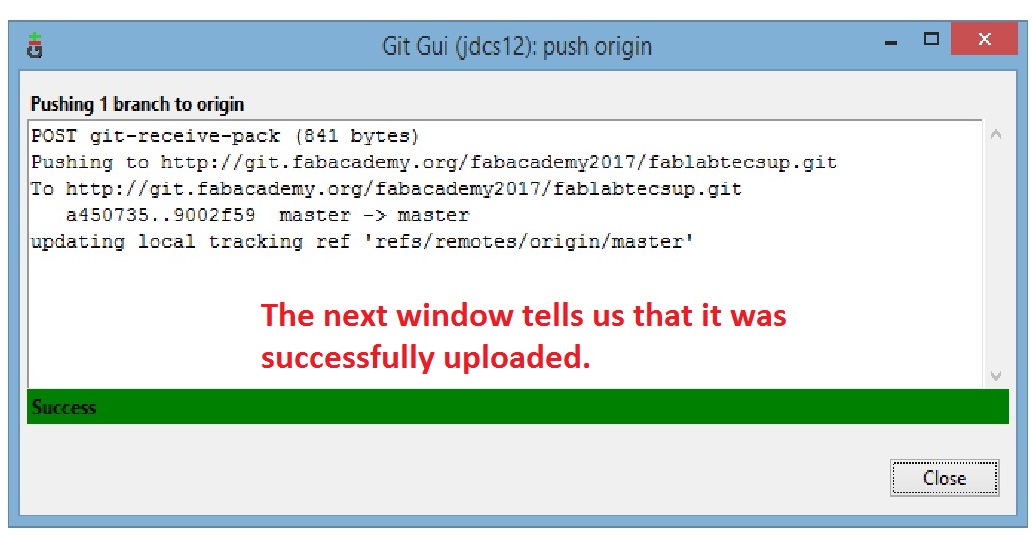

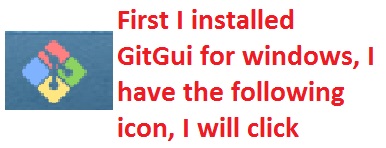

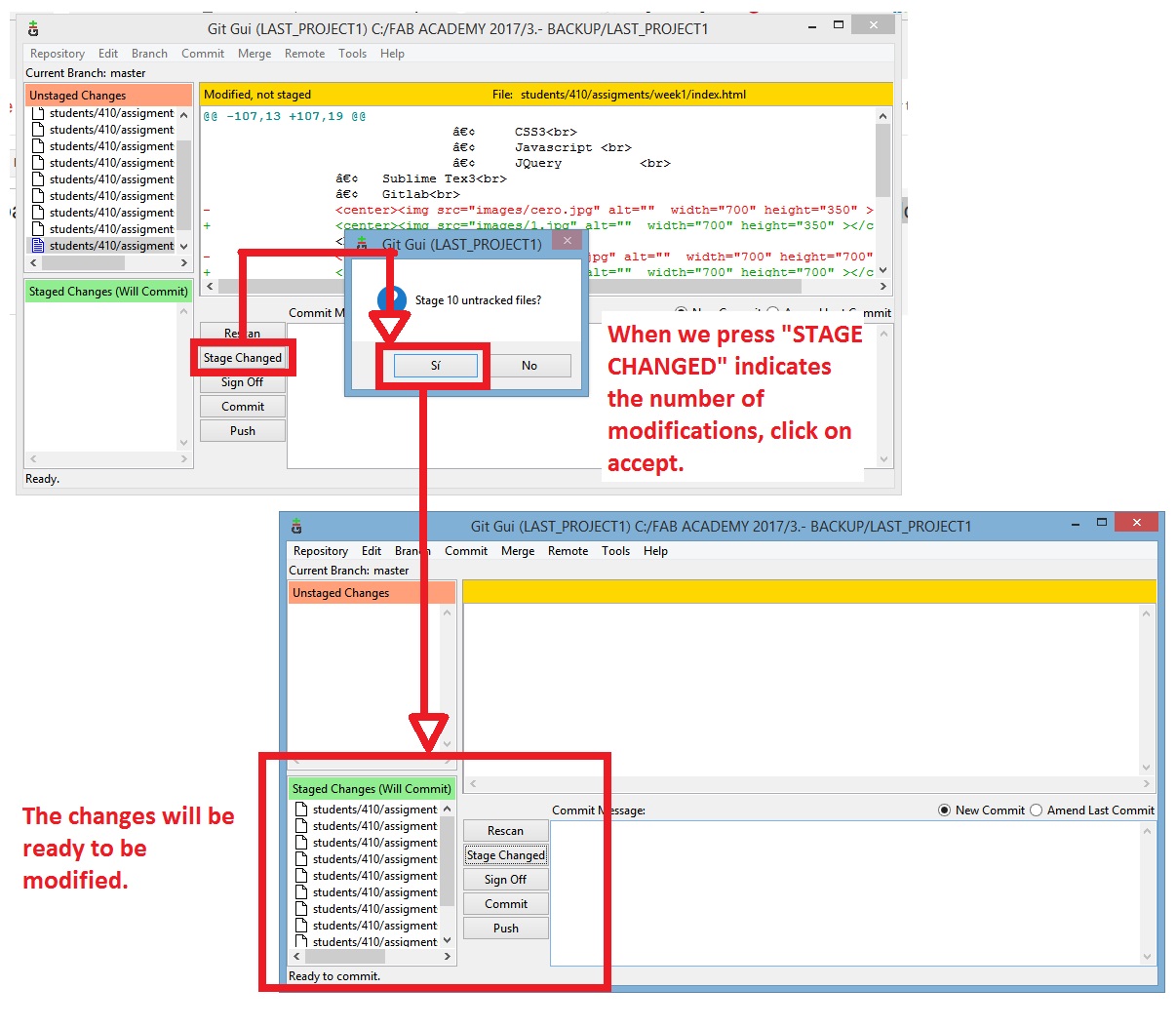

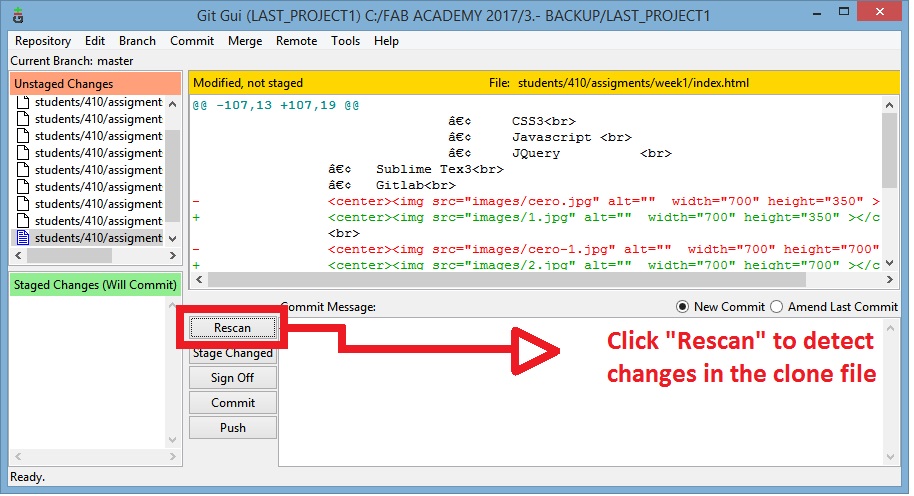

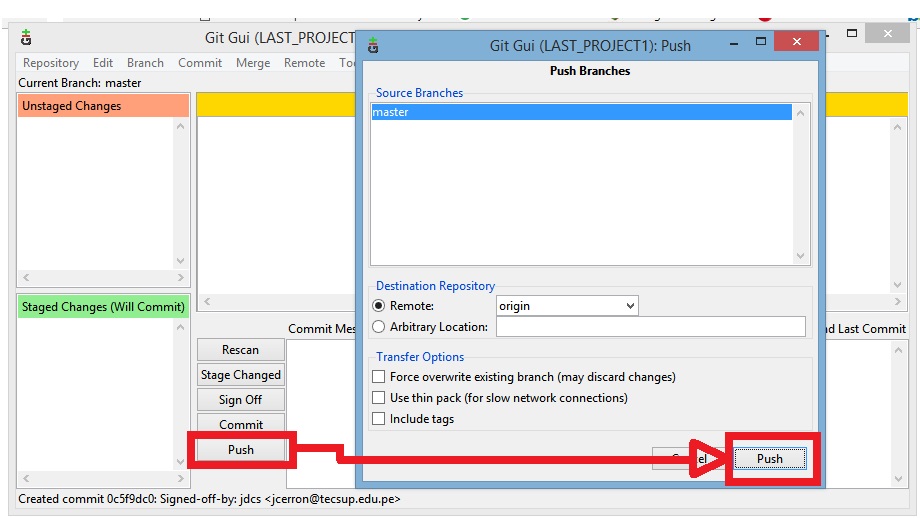

• Gitlab

PART 2:

My final project is to develop a toy for children from 4 to 6 years, to develop their skills through robotics and programming. They can program with sequence sequence of movements, this toy will help to develop the toys programming skills and spatial orientation.

Then I will design a speed control system for stepper motors, determine the movements of the toy for different distances. All movements and movements will be made on a platform that will be divided by quadrants.

The following is detailed the control logic of the toy:
• When you press the forward button, it will advance 30cm..
• When you press the back button, it will go back 30cm
• When you press the right button, it will rotate 90 degrees
• When you press the left button, it will turn -90 degrees
• When you press the start button, the previously programmed sequence will move.

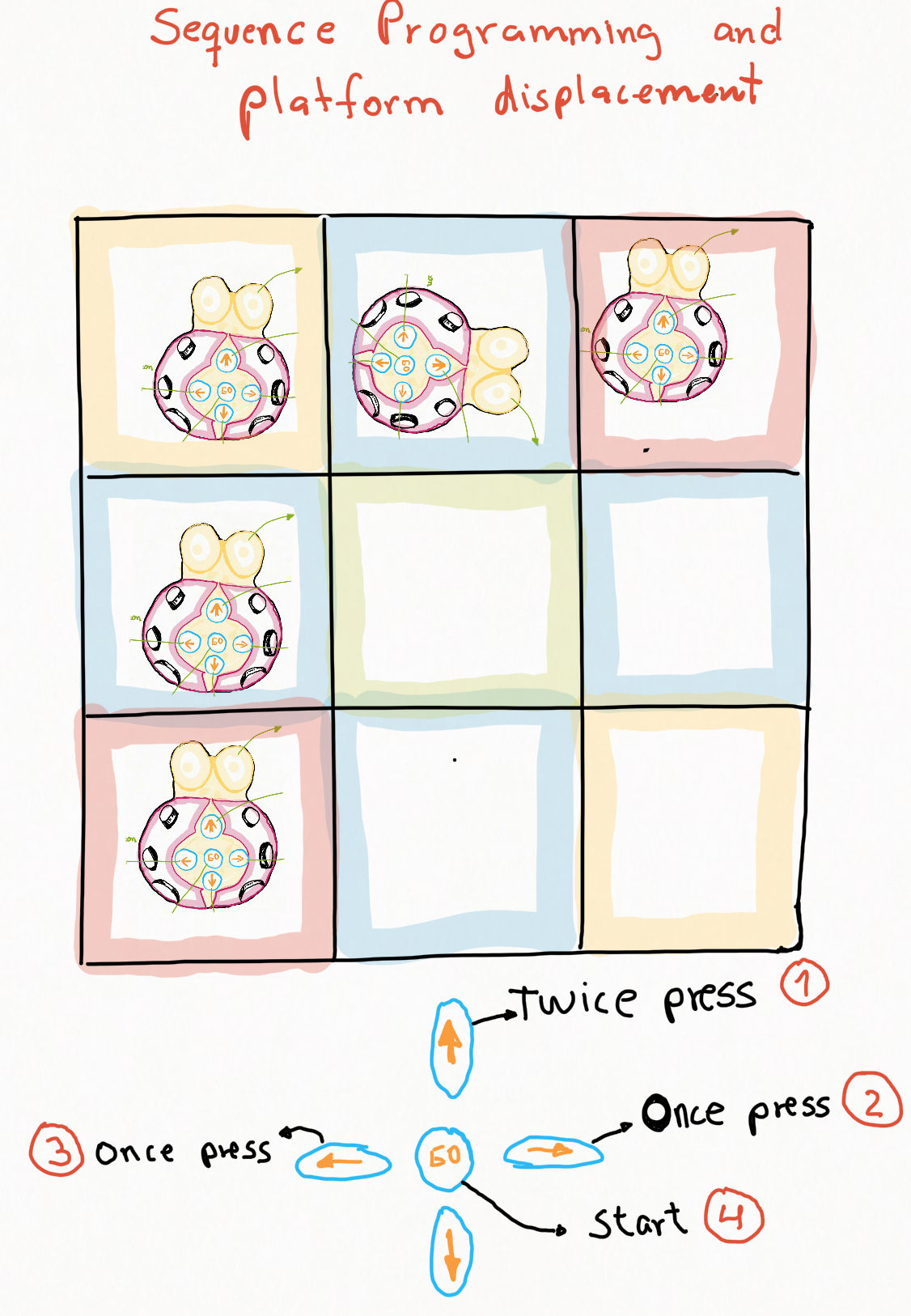

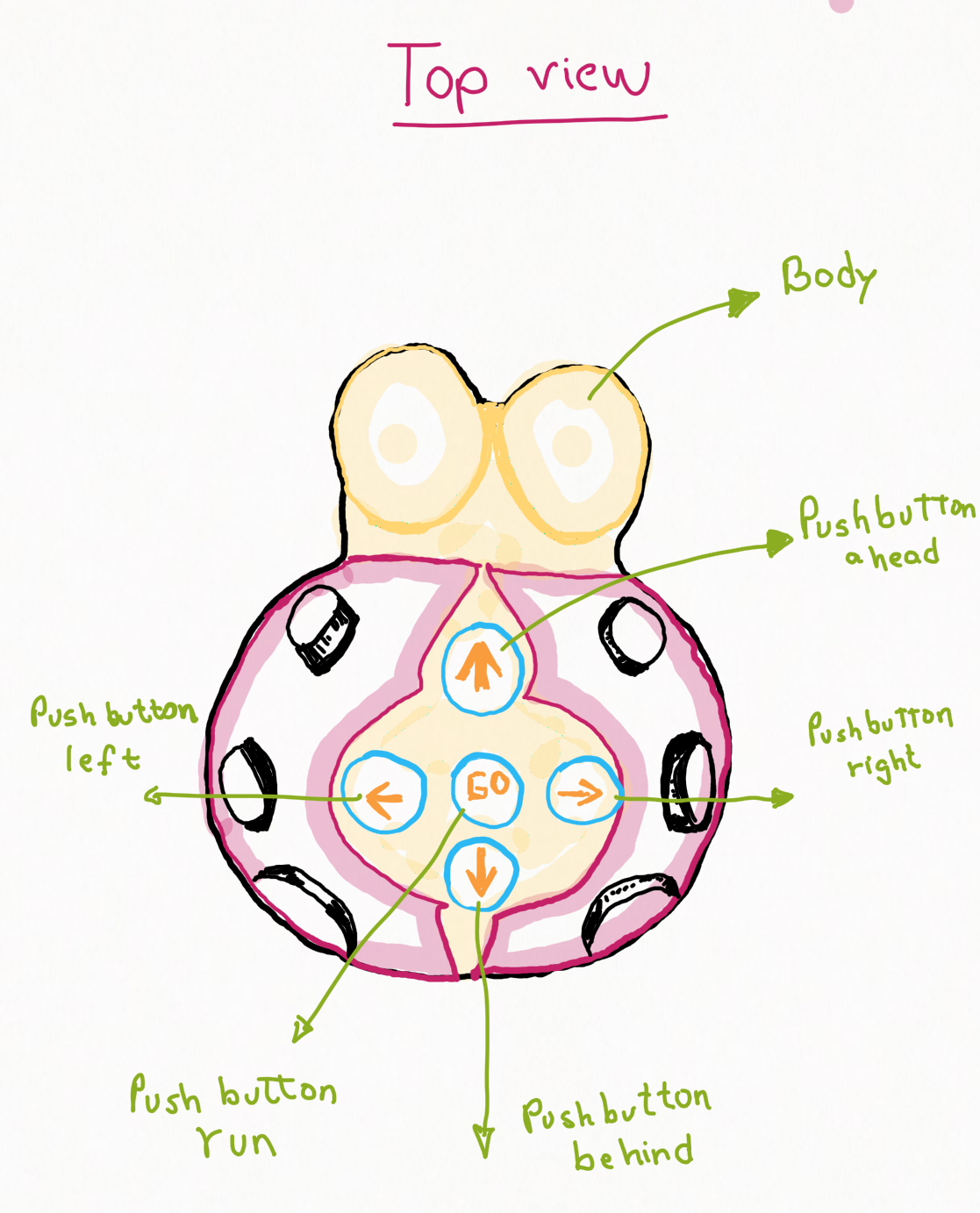

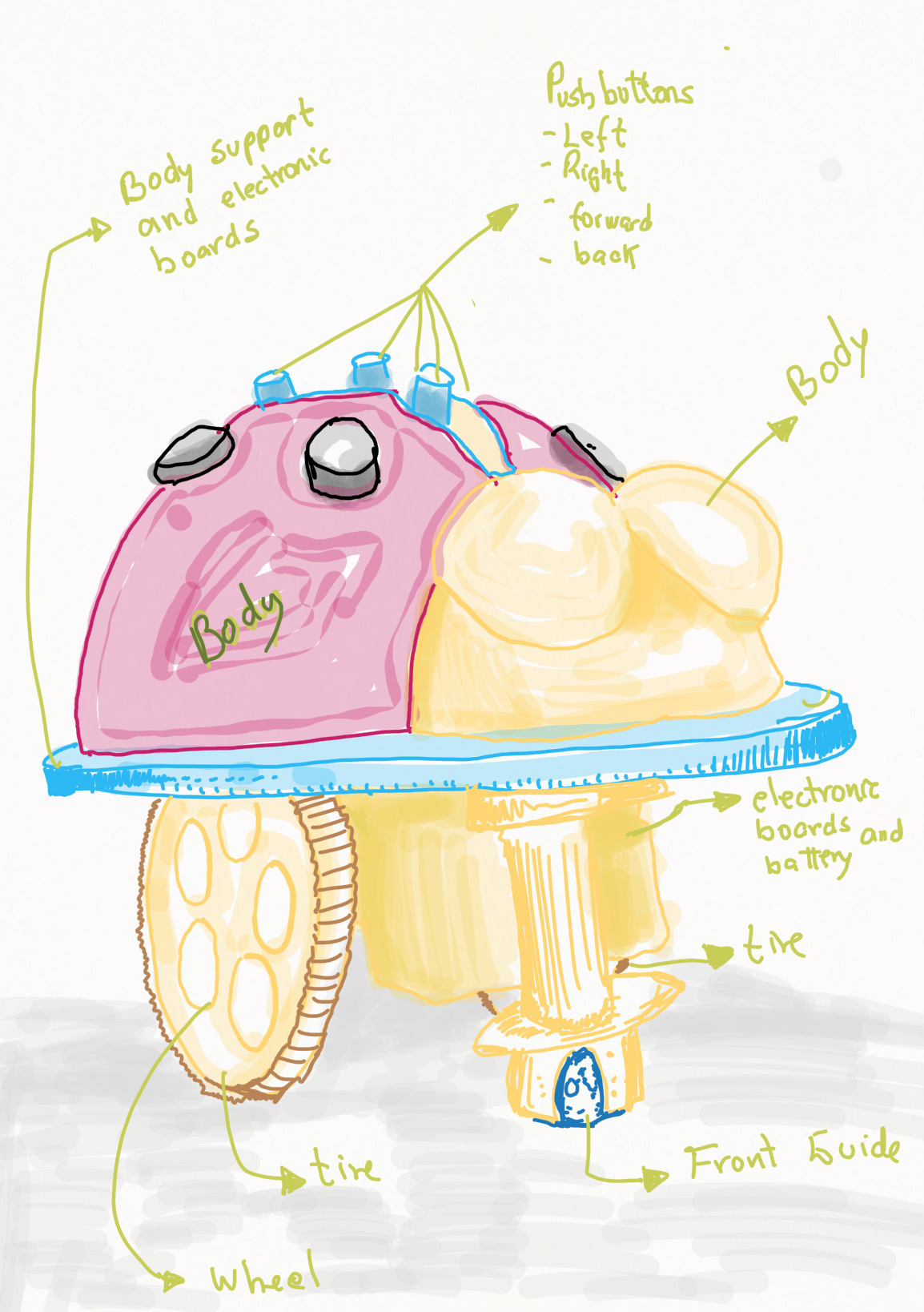

A sketch of the project to develop shown:

This characteristic of the toy,it will be possible for the child to establish his own algorithms to move in any location on the platform dividing by quadrants.
