*NINTH*WEEK: Mechanical Design

Assignment

1. Individual assignment:

• Design a machine (mechanism+automation) with my group.

Individual assignment

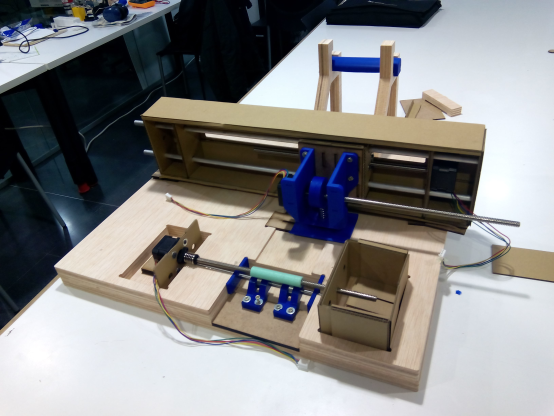

Machine: We design and build a machine that cut the Sheet music box. I helped in the idea, design, building and the other process of our machine. Then I will tell you what parts I have done among others.

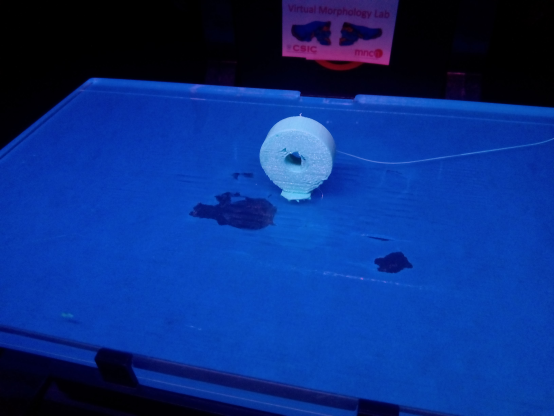

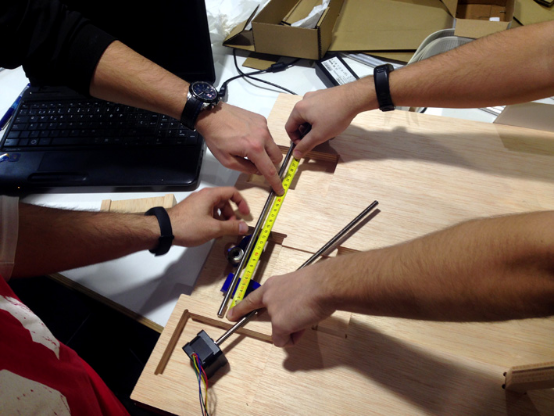

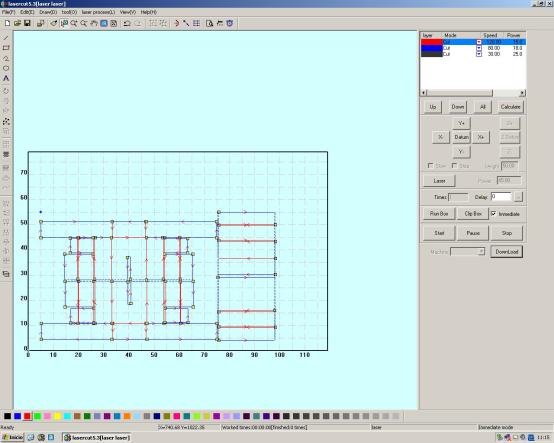

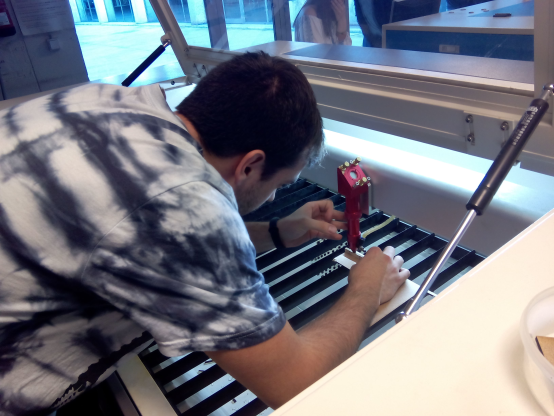

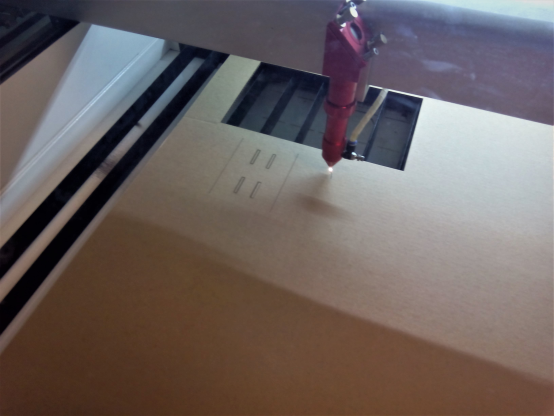

1. Cut of smooth stainless steel rod: We needed a stainless steel rod to put the balls bearings to guide the paper. this element had to be in the anterior part of the machine. We had a problem with the size because it bothered to put the engine in place and we had to cut 21 cm with the longbow. 2. Print of elastic coating: To guide the role of the machine we needed an elastic component to don't damage the paper. We decided to print a cylinder with filaflex. We realized several tests for print in 3D with elastic material. Finally, we get to do a elastic coating that will fit right and the right size. 3. Cut in the laser machine Also I helped to design and cut the files of the stages
