Week 3: Computer Controlled Cutting

Tasks for  the week:

  • Design a product developed along the lines of parametric design using 'press-fit' construction technique
  • Learn to use vinyl cutter and use it for a purpose

Task:01

Design a product developed along the lines of parametric design using 'press-fit' construction technique



This week the assignment was to create a parametric form using 'Press-Fit' joinery. For this, it was required to use a parametric software so I chose Grasshopper for this.



Parametric: Unlike a 3D static model created through primitive geometries, a 'parametric' model can be considered as a dynamic system of relations among different objects.

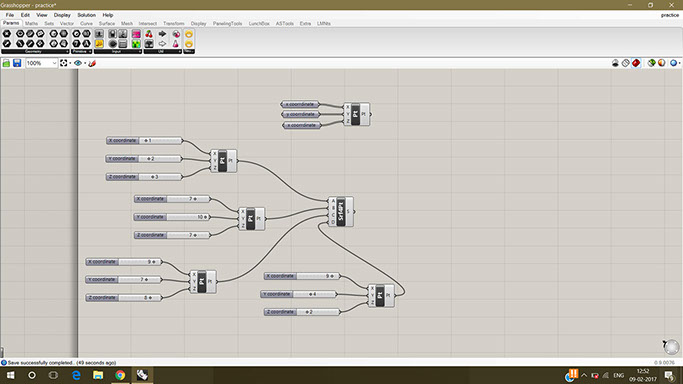

The above images show my explorations of understanding how to construct a line in grasshopper.

The above images show my explorations of understanding how to construct a line in grasshopper.

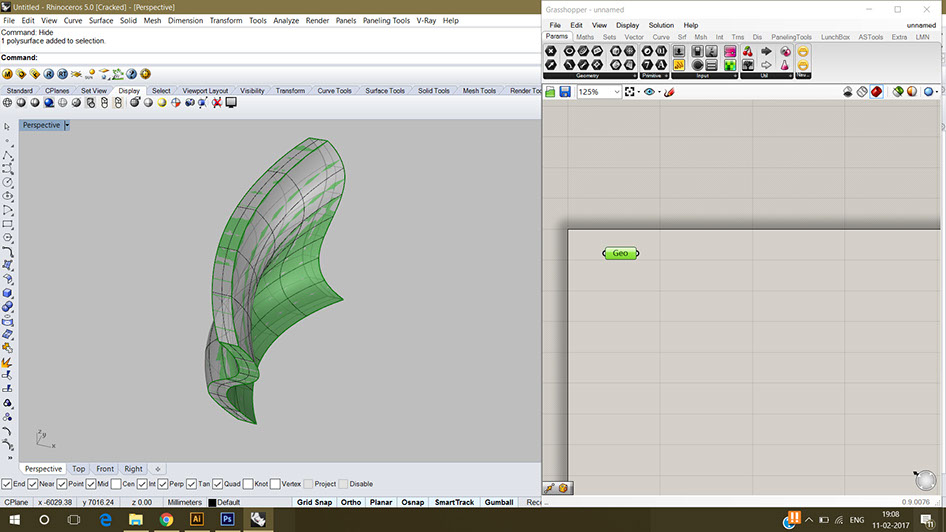

Next, I modelled an object in Rhinoceros and then tried converting it to grasshopper geometry by creating a geometry domain in grasshopper.

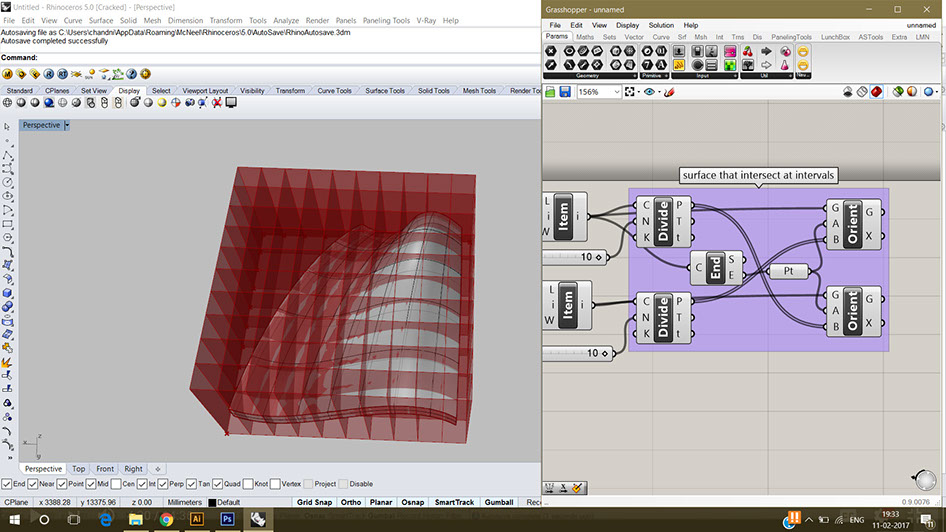

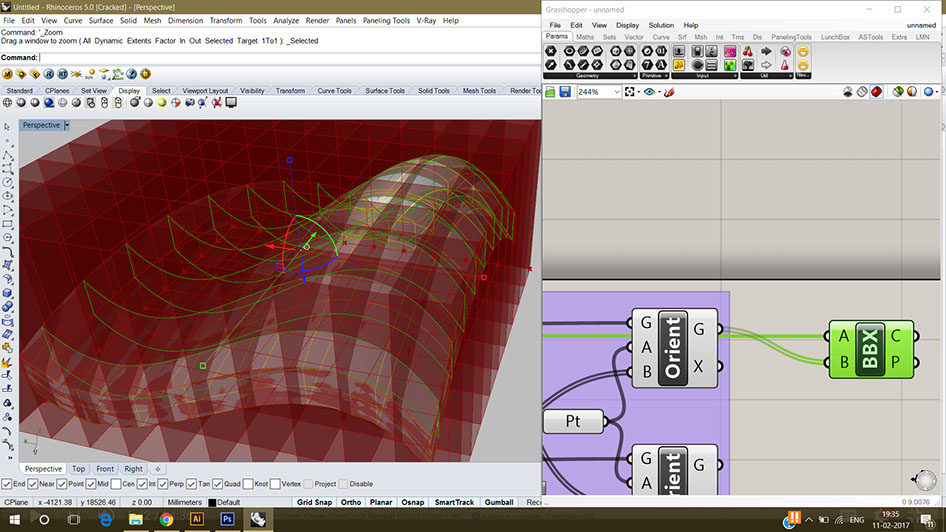

Next to start scripting the waffle, my first step was to create a bounding box around my geometry to generate the x planes and y planes that shall be used for the waffle.

After constructing the x and y planes required for slicing the object into a grid the next step was to add more slicing planes to the object.

After constructing the x and y planes required for slicing the object into a grid the next step was to add more slicing planes to the object.

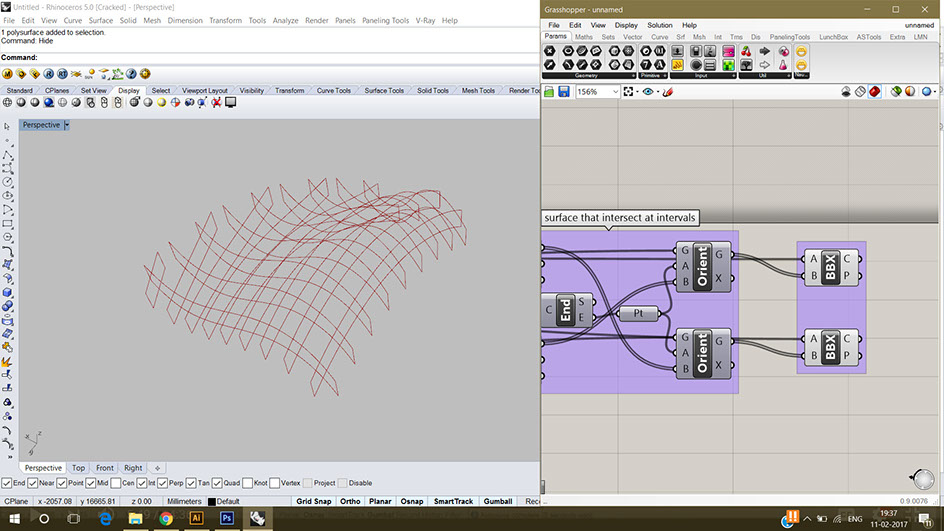

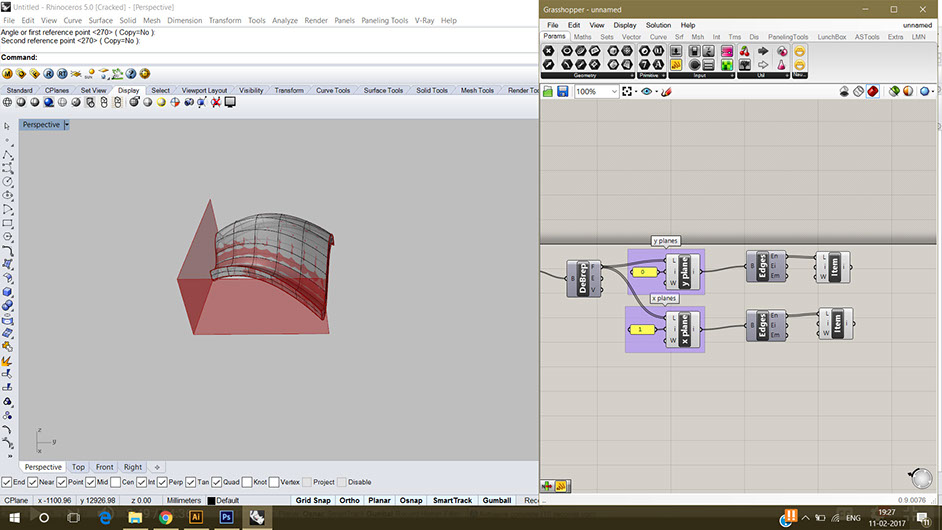

Now since I got the slicing planes in x and y direction to get the form of my geometry, I needed to get the intersection planes of the x-y planes with my geometry. I used Brep intersect command for this.

As a result of my previous step, I got the intersections as shown above. Now these curves needed to be converted to surfaces so I used Boundary surface to convert these lines to surfaces.

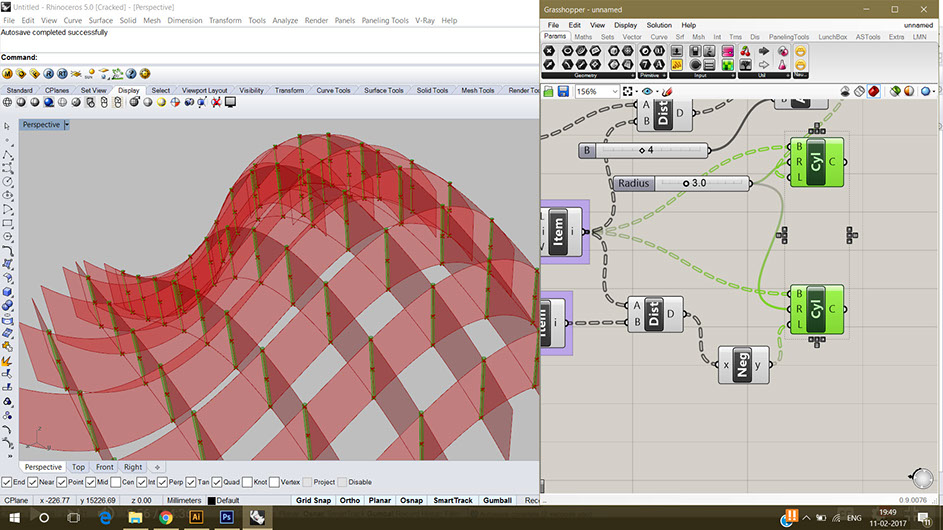

Now, by dividing the lines of intersections in two parts, I created cylinders in upward and downward direction that would act as notches for press-fit.



Final step is to trim the surfaces with the cylinders to get the notches in the slicing planes.





So, this is how I prepared the script for the waffle structure. Now I had to use this script for a parametric surface that would work as a laptop stand for my laptop.





Also, to create the above script, I took help of the below seen tutorial. Super easy to understand!

Step:02

Designing a 'Parametric' Laptop Stand using 2.5 mm thick MDF board



My idea was to create a surface constructed with press-fit joinery with a waffle form that can be used as a laptop stand. So first I took the dimensions of the base of my laptop. It can be seen in the sketch on the right. Then I sketched a probable form.

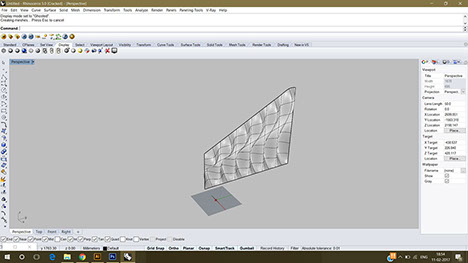

Since I needed a 20 degree angle, I didnt want it to look like a slope. So I started experimenting with the form of the surface using curves and modelled a few options in Rhinoceros as seen in the left image.

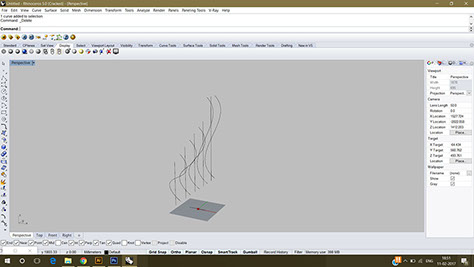

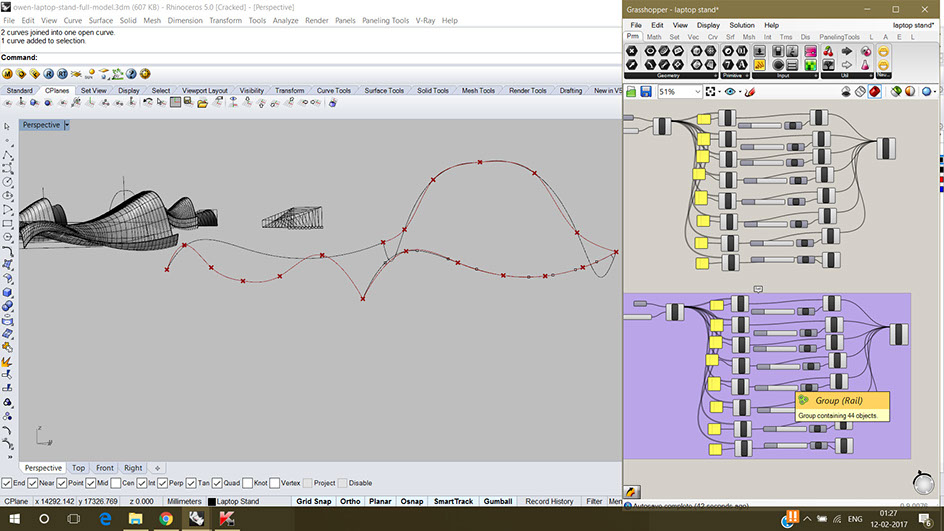

Now, as my next step, I created my curves to parametric curves using grasshopper  by dividing them into several points and each of them can be moved in  Z direction to adjust the height of the curve as required.

Next after generating my surface from curves, I extruded it to get the required thickness of 5 cm and then applied the script that I made for waffle structure over it to get the x and y planes for the geometry.

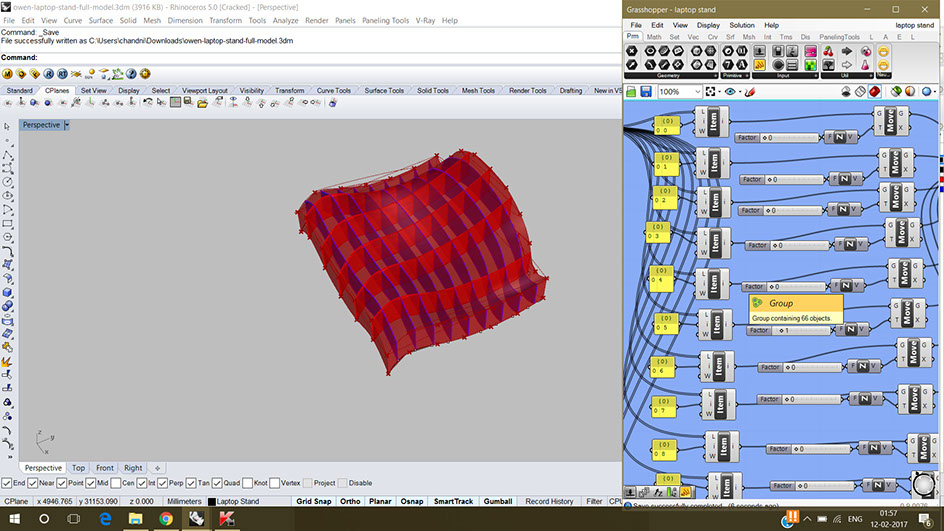

The image shows the surface that can be modulated in Grasshopper.

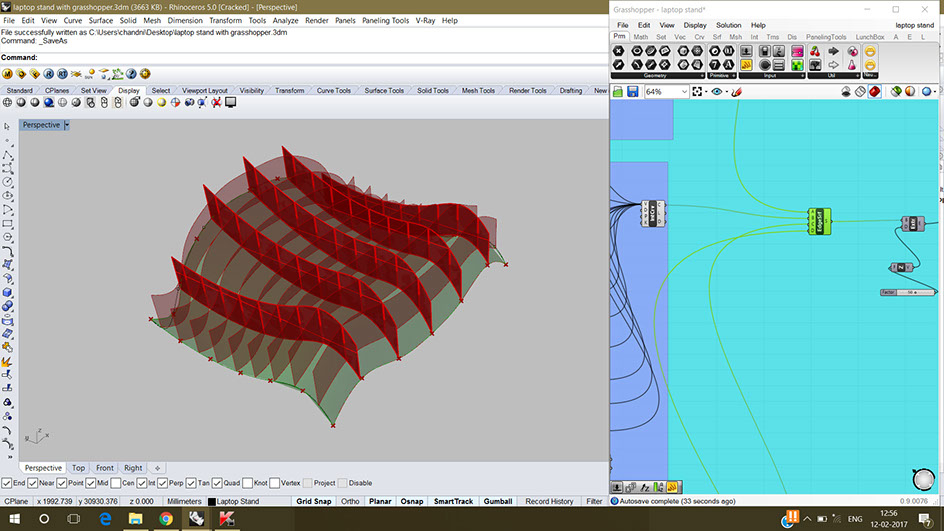

The image shoes the application of the script that I made on the surface. The surface got divided into planes that in X and Y planes that fit together to form the surface.

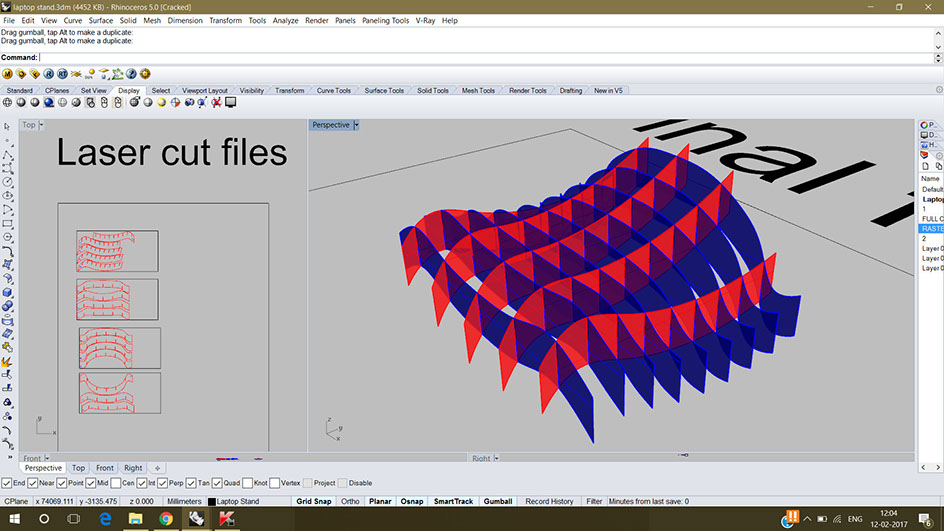

Next, I extracted the line drawings by using the command 'make 2d' for each plane and nested them as per sheet size 600x 300 mm.

I followed this tutorial on youtube to make the script.

Step:02

Laser Cutting and Assembling

 After making the files, my next step was to fabricate it. I chose to fabricate it by laser cutting 2.5 mm thick MDF board.

I divide my file in two layers:

Blue: Engraving

Red: Full cut



Parameters:

Blue:-

 Speed: 75, Power:50, Frequency: 2500



Red:-

 Speed: 4, Power:100, Frequency: 2500

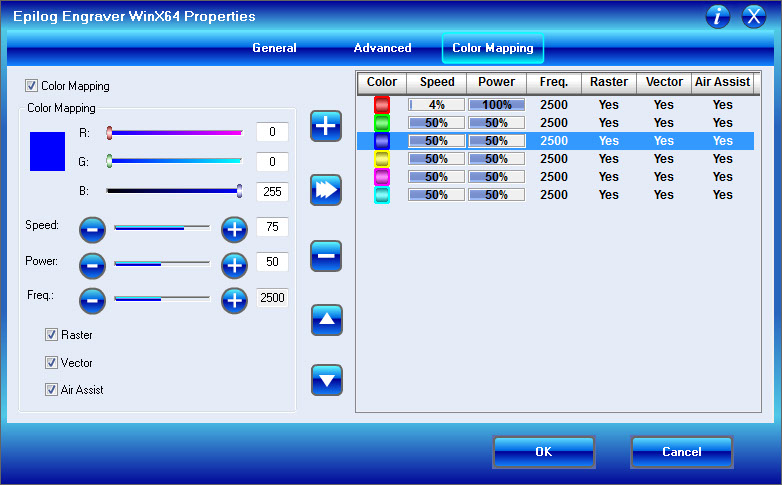

Below image shows the parameters that I chose.













The above image shows the process of laser cutting.

I tried various cut notch sizes like 2.4 mm, 2.5 mm and 2.6 mm to check which one of these gives the best friction between two components. 2.4 worked out to be the perfect one.

Below is a collage of images that describe the process of assembling the laser cut components:

Files for this assignment can be accessed here.

Task:02

Learn to use vinyl cutter and use it for a purpose

This week we  decided to screen print our own T-Shirts at the Lab. So we decided to cut the desired pattern in the vinyl cutter, then use it as a stencil on the screen printing apparatus to print the pattern on the t-shirt.



I decided to make a 'Pacman'  themed print. I had seen a similar print before. So tried replicating it.



Step :01

I started by choosing a suitable image for my graphic. Below are the images that I downloaded from the internet.



Step:02

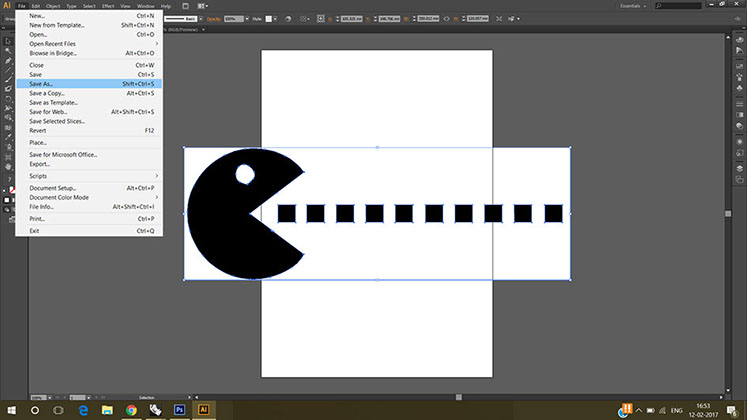

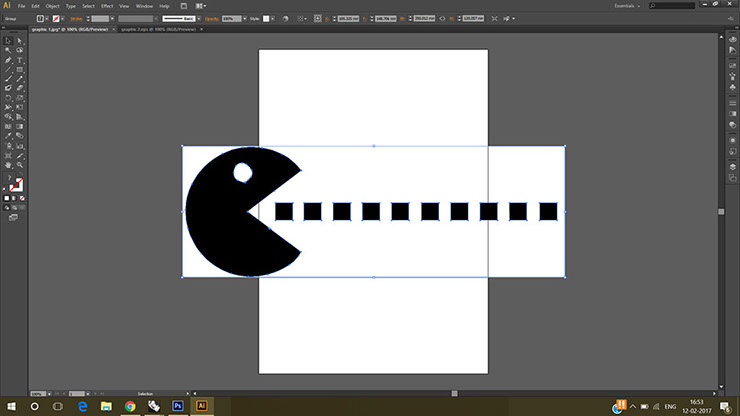

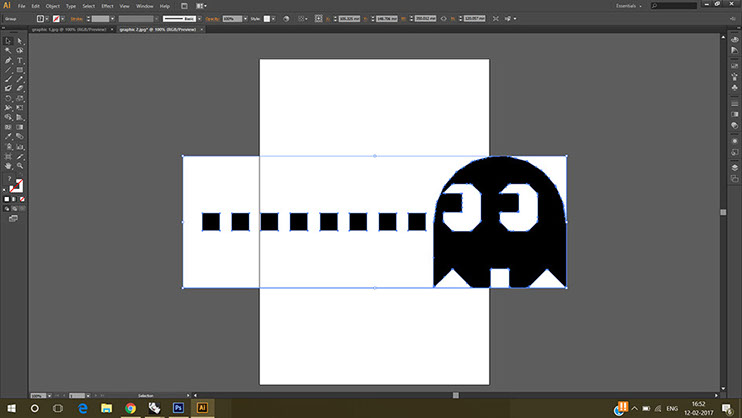

I opened the graphic in Adobe Illustrator cs6. The process is as below:



Adobe Illustrator:

"Adobe Illustrator is a vector graphics editor developed and marketed by Adobe Systems. The latest version, Illustrator CC 2017, is the twenty-first generation in the product line."-Link

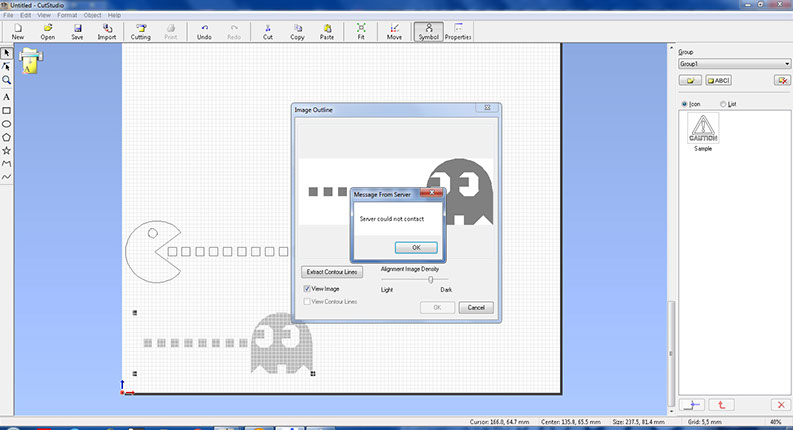

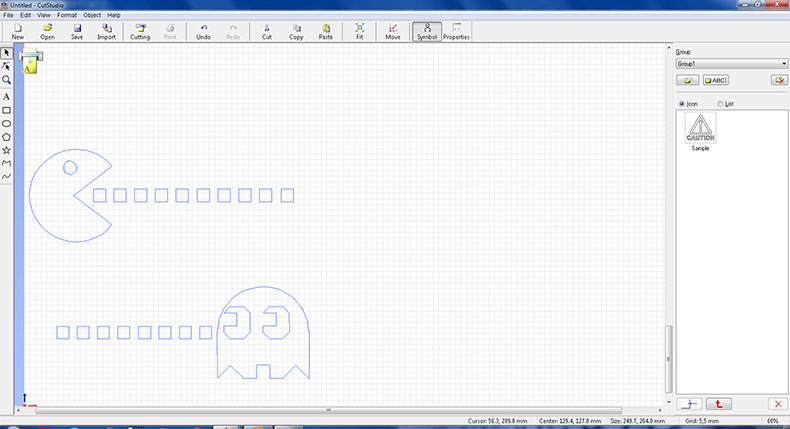

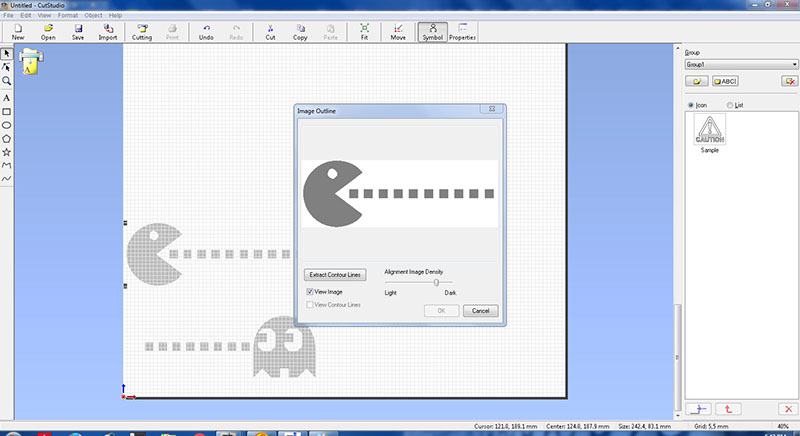

Preparing the cutting file in Cut Studio:



 Points to be kept in mind:

  • The vinyl roll  needs to be placed within the white markers.
  • Set Origin: For this, origin button has to be long pressed to set the origin.
  • Cutting Force: I used  230 as the value for force. Press force button to go to the menu. Next press the right side button to select force. Up-down buttons are used to set force value. At last press Enter to fix the force value.

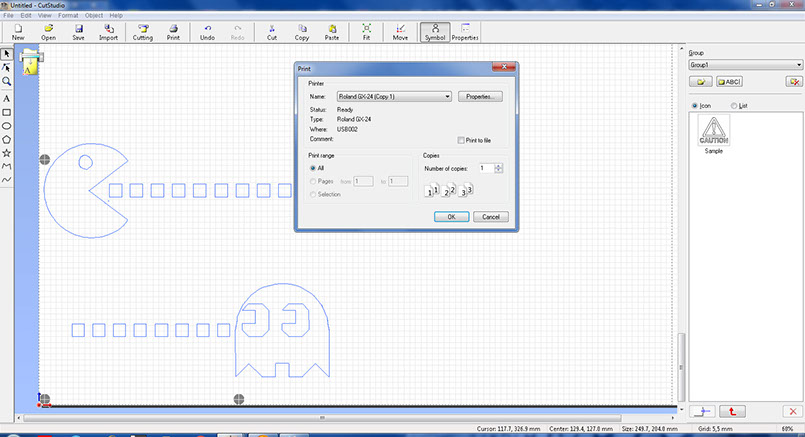

The images are from the process of configuring the values on the machine.

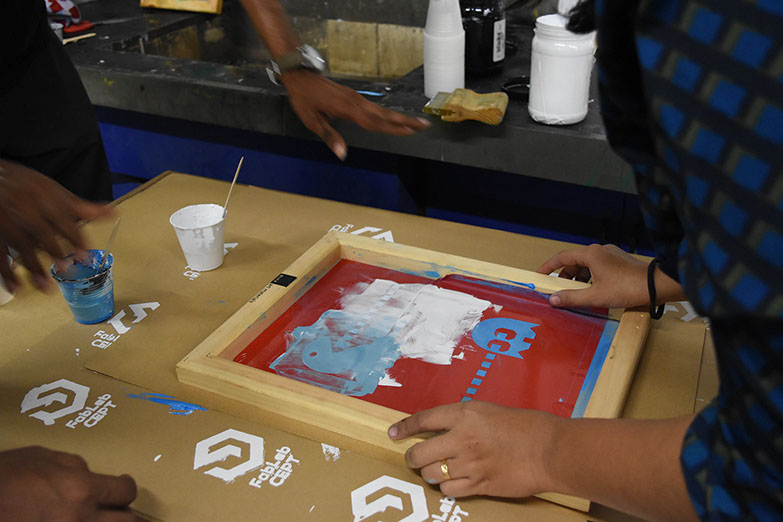

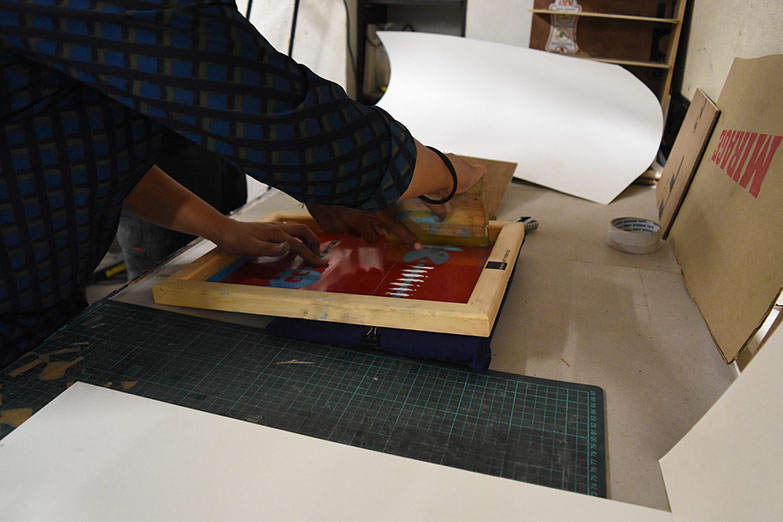

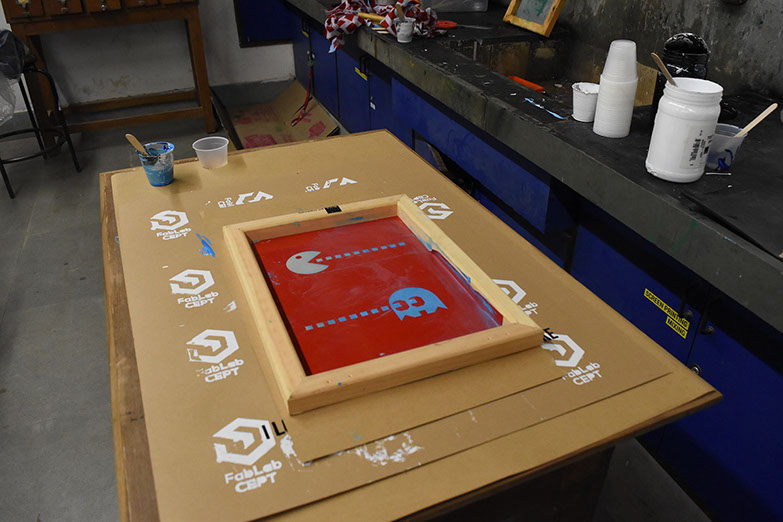

Process of Screen Printing:

I used the negative of the vinyl print as sticker for my laptop.

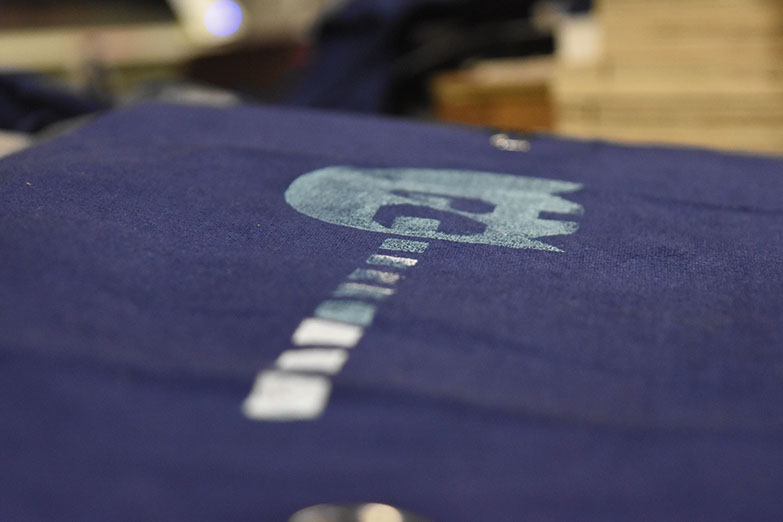

The image shows the final graphic printed on the T-shirts

Files for vinyl cutting can be accessed here.
