Assignment
like every week, Sánti gives us as a tutorial on how to use the tools and how we should be careful with everything. For the assignment of this week we had to cut and program the fabISB ( In-Circuit Programmer ) :
1. clean de machine.
2. we stick the copper board to a wood.
3. try to be as precise as possible.
Then

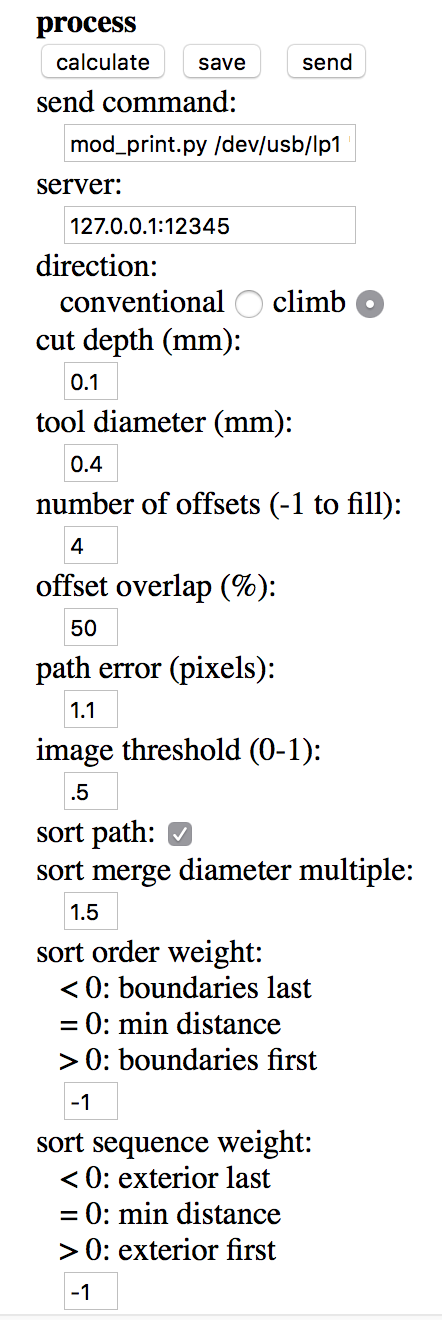

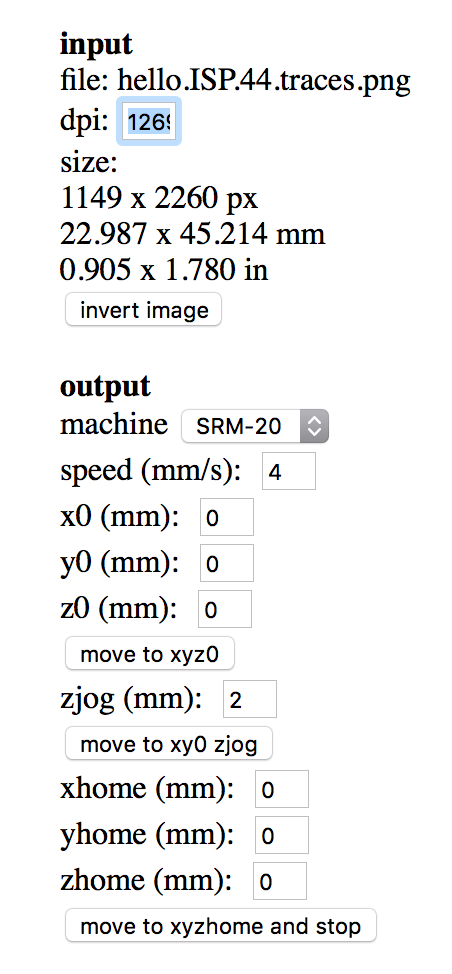

4. load the fabmodules site, from there we used the .png files to create .rml files for milling the board according to the .png file drawings
5. program de machine SMR20, look (0,0,0), and load the files of the images.

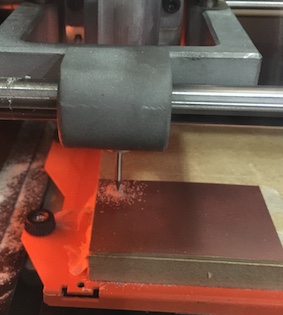

6. lets cut. but always you have to be watching the machine beacuse you dont know in what moment the problems appears, like in my board.
7. After that, wash the board.
1,2,3
4
As you can see, i had problems cutting the board, but i`m going to try with this. Now solder.
1. create the checklist
2. now solder
When i saw the green light, I was the happiest being.
- I began to follow the tutorial.

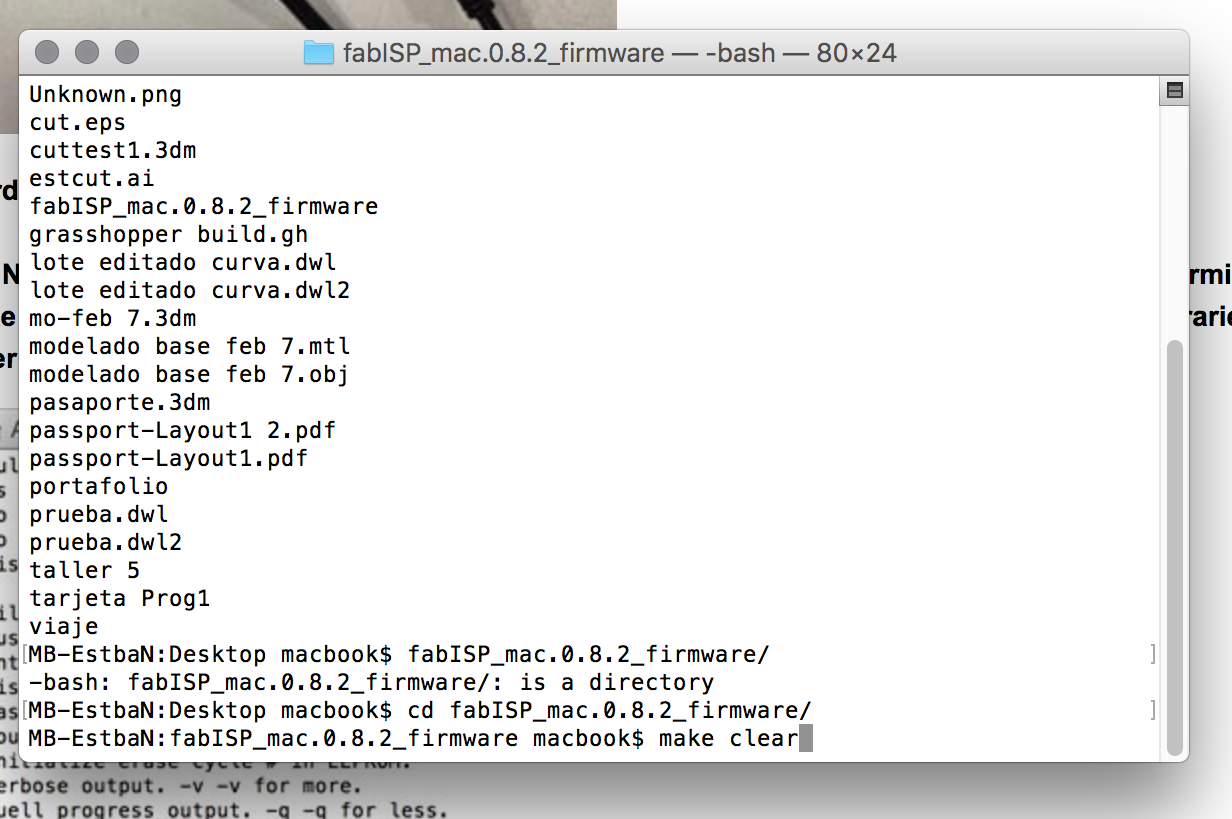

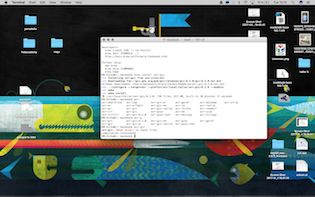

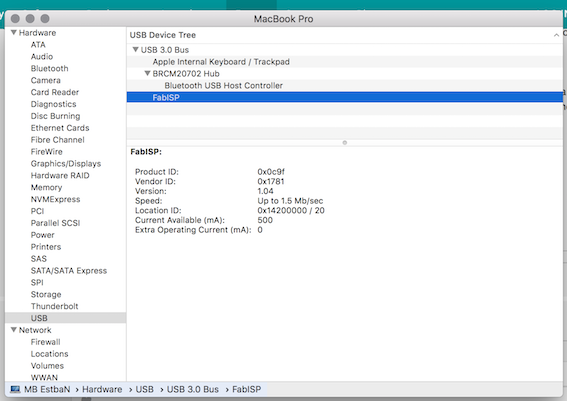

I had a lot of problems with this step. My computer did not recognize the CrossPack for AVR, Then i needed a lot of help from Xavi, Esteban and Arnau. But finally my computer recognized it and my card was programmed. Thank you.
Another very important thing this week is that we went to Valdaura, to get to know the green fabLab bcn. Here I share some photos.
