10. OUTPUT DEVICES

INTRODUCTION

The goal of this assignment is design and program an output device to a microcontroller board.

Students should have:


Described your design and fabrication process using words/images/screenshots

Explained the programming process/es you used and how the microcontroller datasheet helped you

Outlined problems and how you fixed them

Included original design files and code

Electronics design

In this assigment I try desing and program a board conneccted to a LCD screen.

First of all, I read LCD datasheet in order to know: how to communicate with and the LCD pinout, which power(5V) it needs and which are Vin and GND pins.

I designed my board with Eagle taking Neil's board as reference, but I changed the microcontroller, I selecte the Attiny84 because it has more memory and I want it to use in my final project (where I will do networking wire with the different boards), and to prevent a possible problem with the space I use this one.

LCD components Neil

Components list

Name Serial number Quantity Reference
ATTINY84 8K FLASH ATTINY84 1 IC1
REGULATOR 5V REGULATOR 1 REG
CRYSTAL 20MHZ RESONATOR 1 RES
CAPACITOR 1UF CAPACITOR 1 C1
RESISTENCE 10K RESISTENCE 1 R1
RESISTENCE 100K RESISTENCE 1 R2
RESISTENCE 1K RESISTENCE 1 R3
HEADER 2X2 HEADER 2 H4_1 H4_2
HEADER 2X3 HEADER 1 H6
HEADER 2X5 HEADER 1 H102


Schemaric outputs

After the schematic, I did the board.

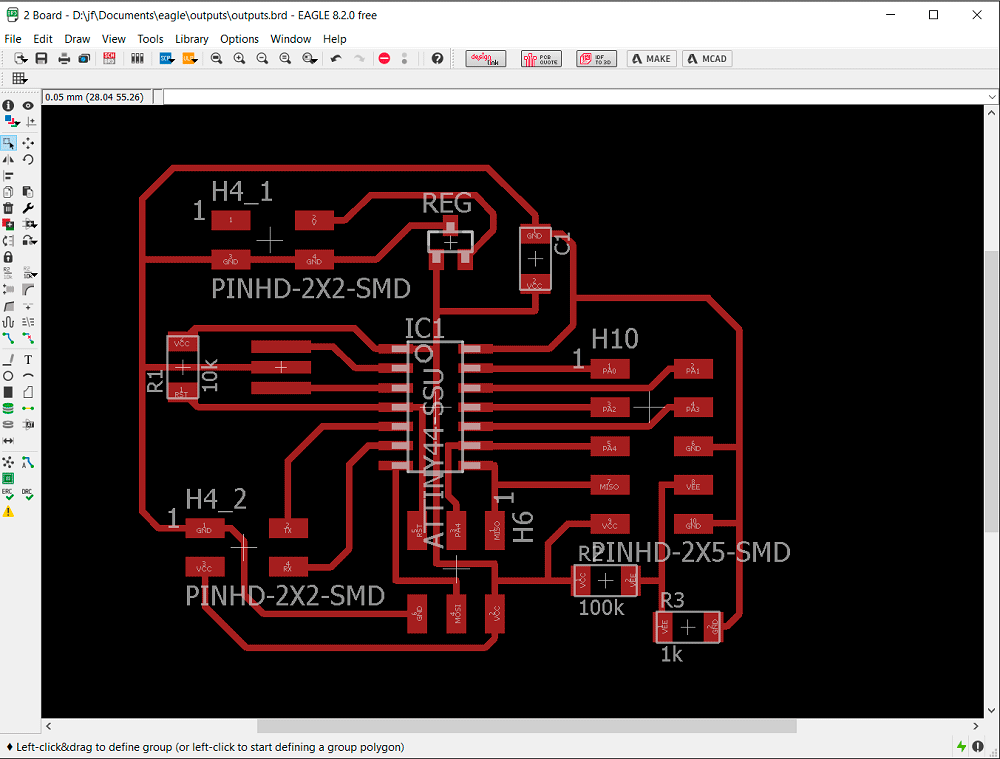

Board outputs

I did the 'CAM Processor...' and I saved the board as a 'eps' (only the 'Top', 'Vias' adn 'Pad'), and with photoshop I generated the 'png' files. With them I generated the two 'rml' files with the FabModules (as the week 04: electroncis production) and I did the board with the milling machine. When it finished, I weld the different components.


LCD pins

Connections

Description pin board Pin LCD Description pin LCD
GND 1 GND
Vcc 2 VDD
Vee 3 VO
RS 4 RS
R/W 5 RW
E 6 E
no connection 7 DB0
no connection 8 DB1
no connection 9 DB2
no connection 10 DB3
DB4 11 DB4
DB5 12 DB5
DB6 13 DB6
DB7 14 DB7
Vcc 15 BL1
GND 16 BL2

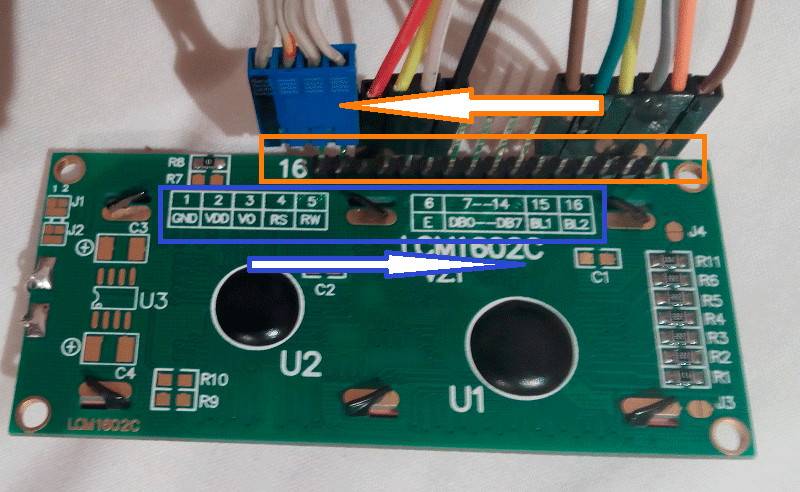

Be careful with the order of the pins, if you take the LCD and read the pins, see that the pins are ordered in the contrary direction, begin with the pin 16 and finish with the pin 1 in the corner. First I connected in the wrong order.

Program

First, I programmed with Arduino and everything was fine. Later I programmed with the Neil's program and finally I did my program.

To upload the program for Attiny I used the FabISP that I made on week 04: electronics production, I connected it with the inputs board, and with Arduino, where I chosen, the Board: Attiny, Processor: Attiny84, Clock: 20 MHz (external) and Programmer: USBtinyISP. As we can see in the picture, I used the library LiquidCrystal.h to program it

Program LCD with attiny85
Tests LCD
DOWNLOAD FILE:
week 10 (RAR)
