This week the task is to experiment with electronic input devices or sensors.

I decided to take this assignment to go testing alternatives that can serve me for my final project, because I'll need a device that measures distances. For this reason I decided to try the HC-SR04 ultrasonic sensor.

- Hello.HC-SR04.

Attiny45.

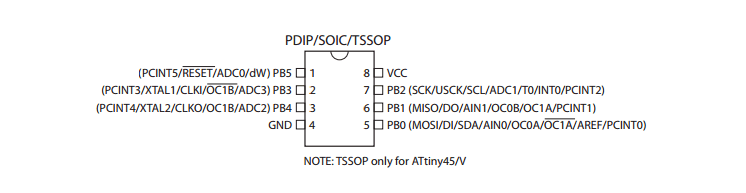

To build the board that would control the HC-SR04, needed to use the ATtiny45 microcontroller, for that reason I have analyzed some datasheet to understand the operation and connections to the microcontroller.

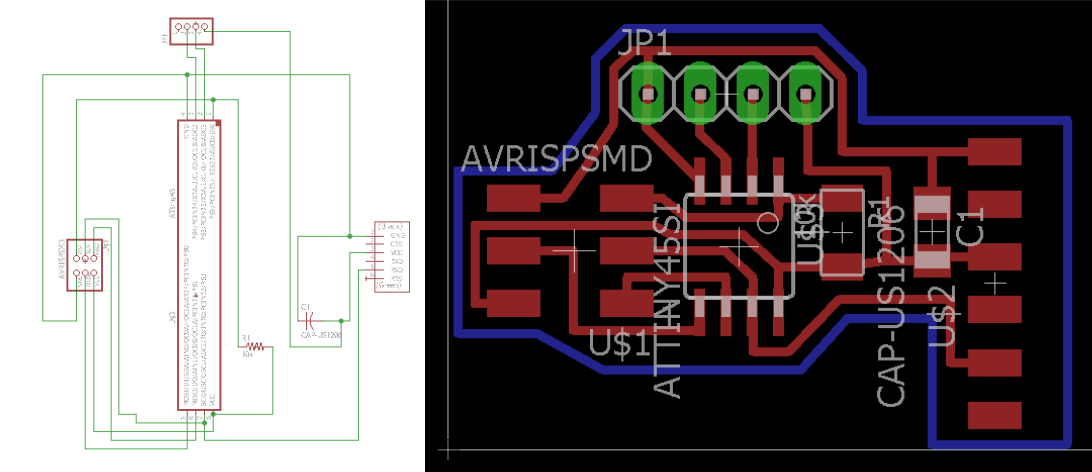

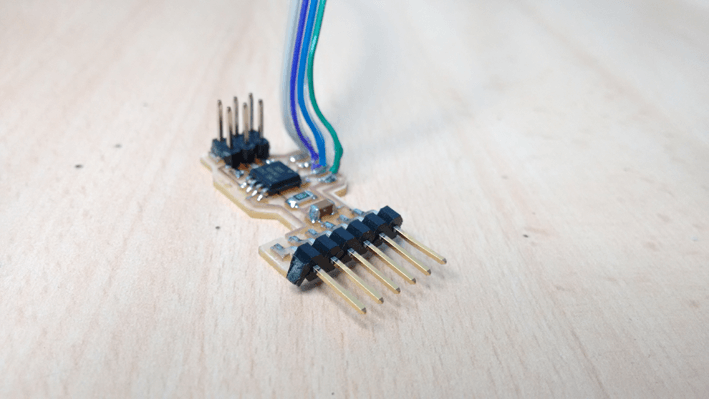

Based on the examples available in the Input Devices schedule, I used the example of the HC-SR04, I analyzed the images of the board and re designed in Eagle, obtaining the following results:

- Burning the microcontroller.

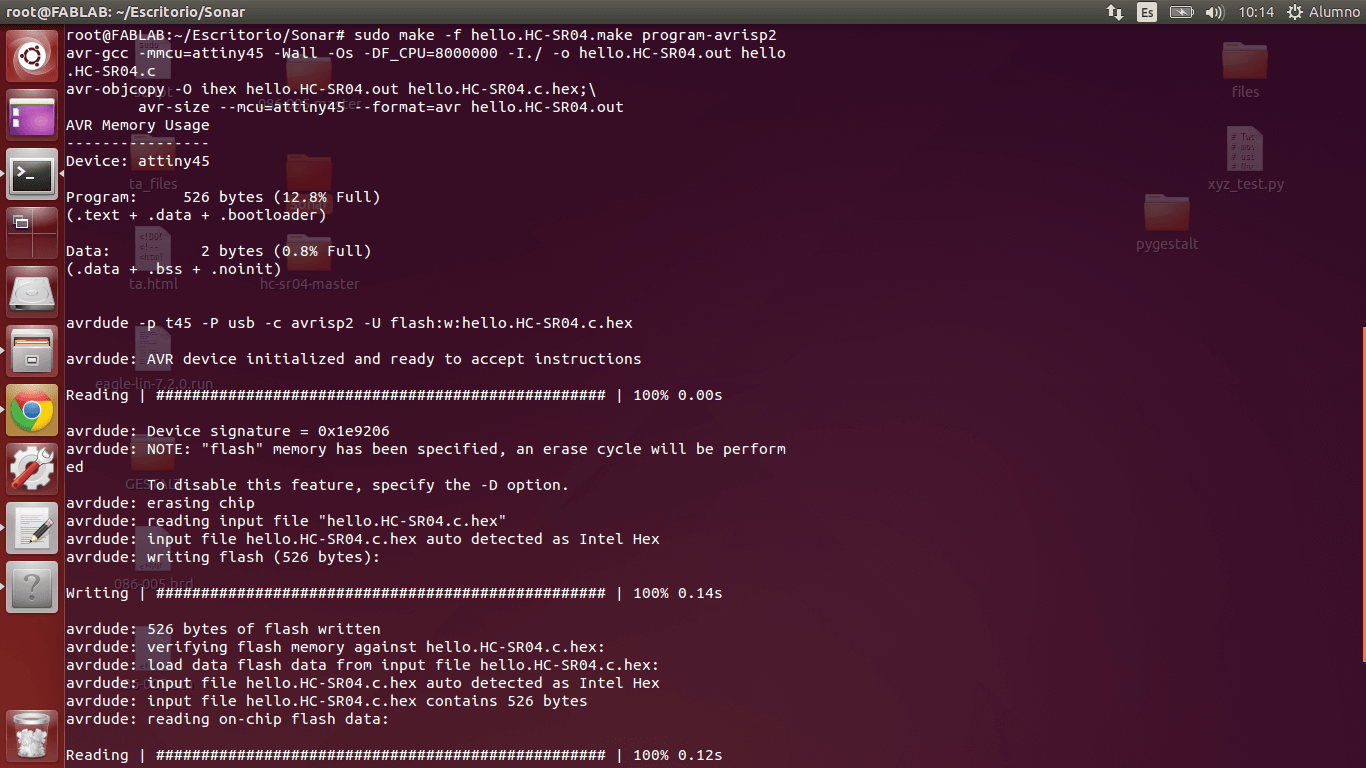

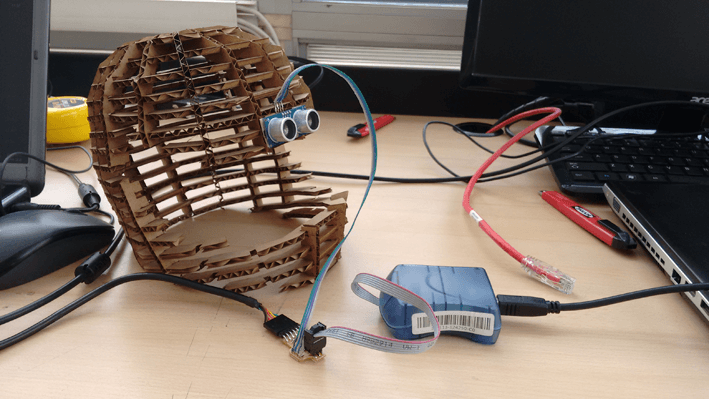

I burned the board using Ubuntu and AVRISP mkII programmer. First I downloaded the sample files found in the schedule of Input Devices:

Hello.HC-SR04.c

Hello.HC-SR04.make

hello.HC-SR501.py

- Makefile.

This website is very useful to make the Makefile on my board.

Click here.

- Testing the Ultrasonic Sensor.

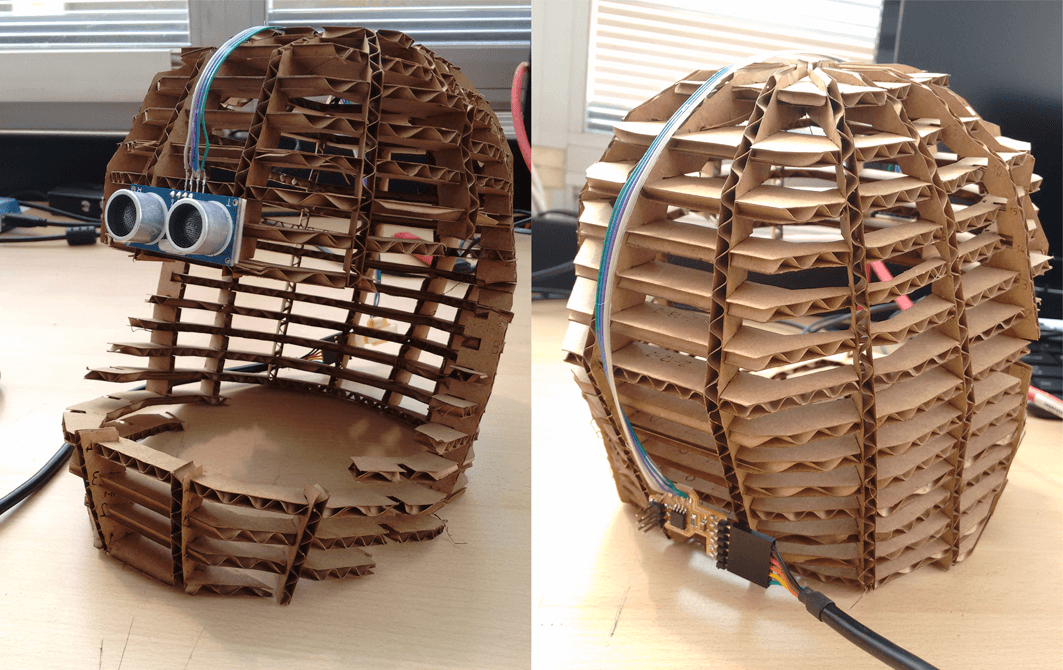

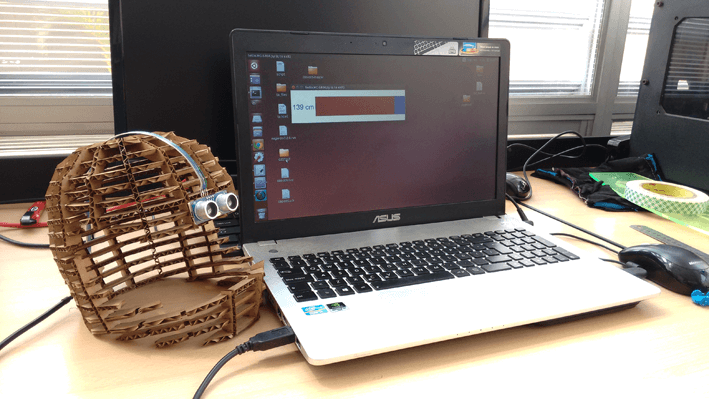

As I mentioned before, possibly I need to use ultrasonic sensors on my helmet. Therefore I have placed the ultrasonic sensor in a cardboard model of my helmet and demonstrate their possible performance.

Eagle file: ultrasonic2.brd

Eagle file: ultrasonic2.sch

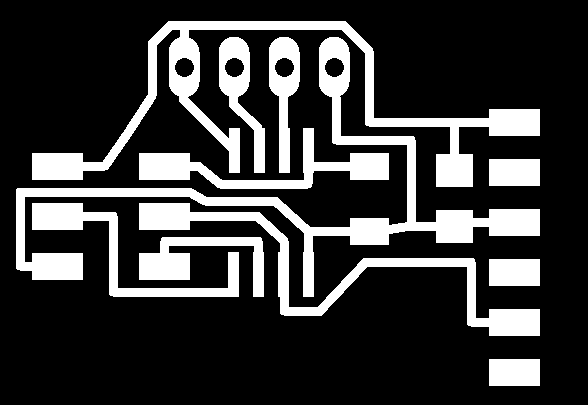

Circuit PNG: board2.png

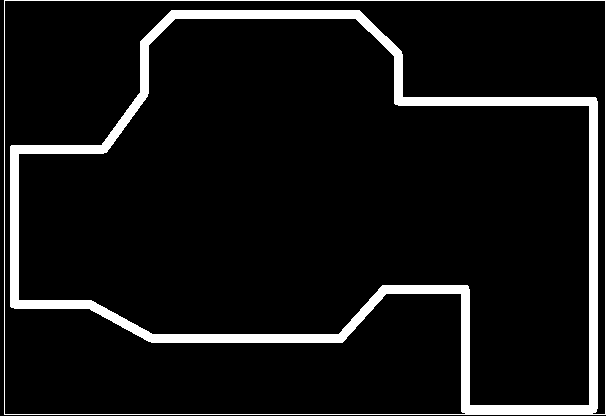

Circuit cut out PNG: cutout2.png

You can download more files here from DROPBOX.
