WEEK 9
WEEK ASSIGNMENT:
MECHANICAL DESIGN
Design
The design of this machine is based on the one of the 3D printer.
We rely on that model to design our machine .

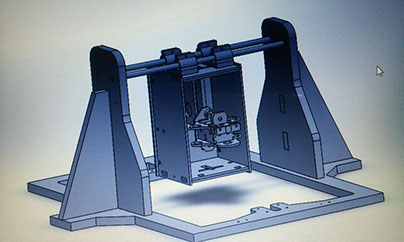

Our design prototype of a mirror

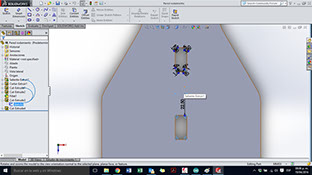

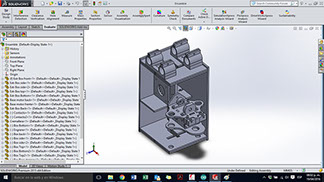

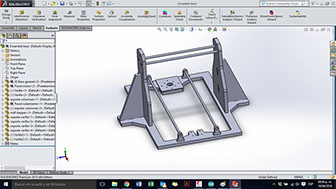

Design of the prototype in Solidworks assembling each piece
Specific material and softwares used during this assignment:
Grafito: graphite is a conductor of energy, useful for recording sheet
Triplay: materials we use to manufacture our machine
MDF: useful for the manufacture of the box, where the engine and graphite anger
Rods: support for travel to the lamin
Aluminum foil: it is the basis for recording
3D parts: small parts used for assembly of the machine
Stepper motor:
Arduino: programming
Circuit: design
Software: Solid works

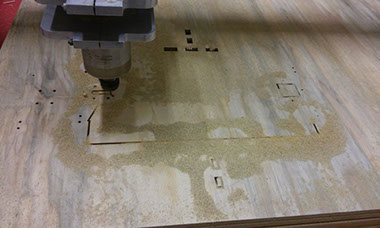

Court CNC Router
