week 04 | 2016/02/24 - 2016/03/02 | 3D scanning and printing
Task 2: Design and print an non subtractive manufacturable object
12

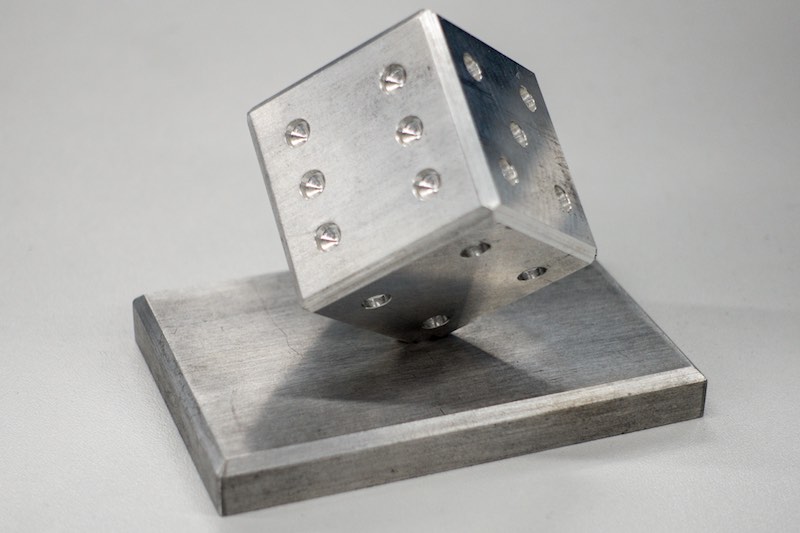

The second task for this assignment was to design a non subtractive manfacturable object. While talking to our supervisor Ferdi, I asked him because I was completely out of ideas. He told things like sponge etc. but I was not satisfied with this ideas. During our talk, we talked about CNC machines and I showed him a piece I manufactured out of aluminium on a normal NC mill as trainee.
13
14

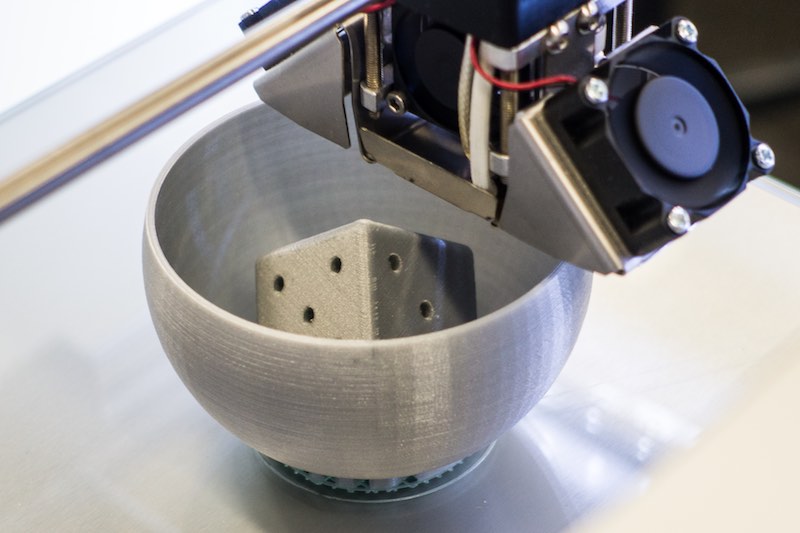

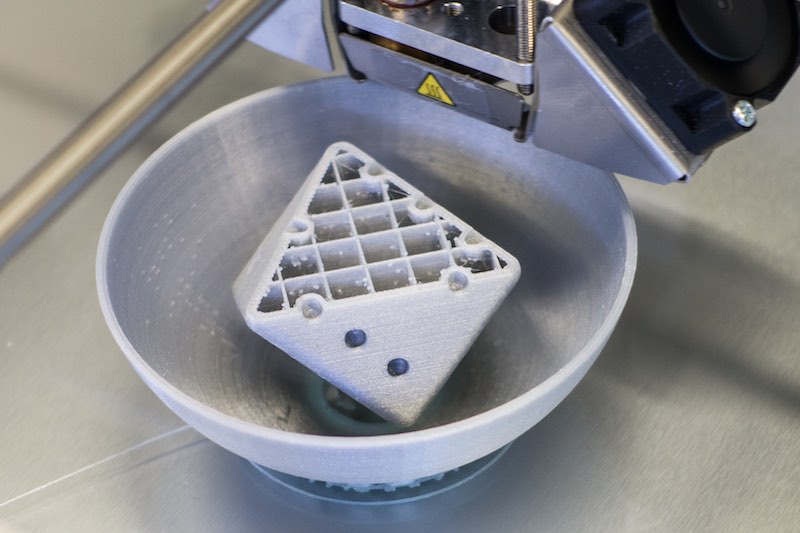

This weekend, while thinking about what I should print for this assignment, I put the milled dice back into my office and got the idea. Print a dice in a hollow ball. There is no real option to manufacture a complete dice and a hollow ball with 1.5mm wall thickness. The dice must be complete with numbers on it, and at least 2 times bigger than the hole in the ball to watch it. I started SolidWorks and designed the two objects and fit them together. The ball has a outer diameter of 80mm, the dice has 30x30x30 and the hole is 15mm wide. Unspectacular, I know. Here are some pictures and my model files.
15
Download the Solidworks model file of my dice
16
Download the Solidworks model file of my ball
17
Download the STL from SketchFab
18
19
20

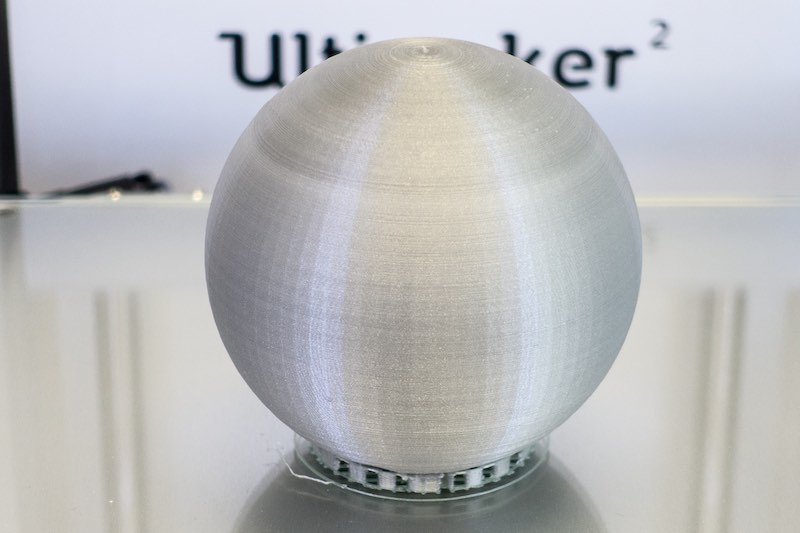

Finished! :)
21
22

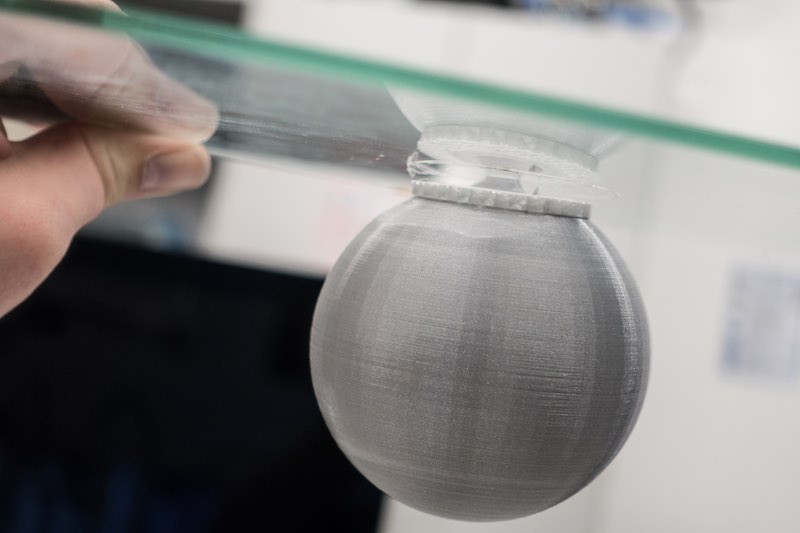

It sticked very well :O
23
24

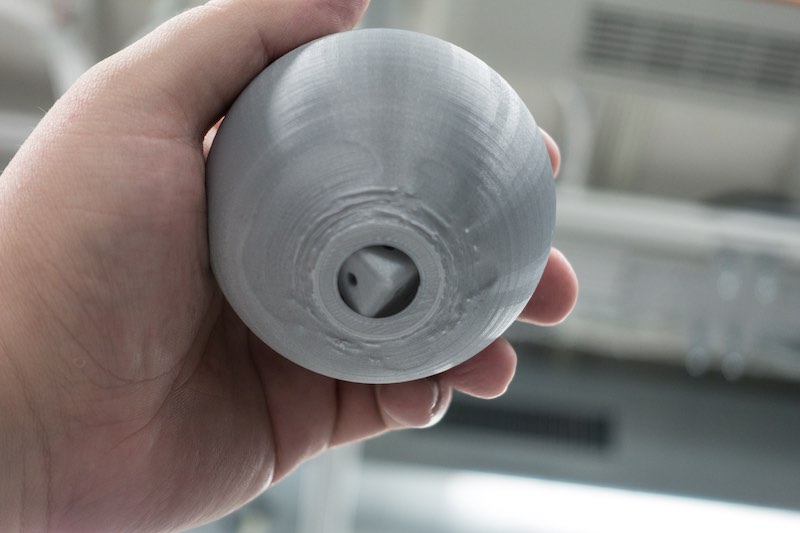

The small hole :)
25
26
I hope this object is acceptable as non subtractive manufacturable part.
