Week 7:

Electronics Design

1. Electronics Basics

Circuits and the Flow of Current


Before beginning drawing or designing my own circuit I need to explain how a circuit works and how the flow of current works in a circuit. I found this tutorial by sparkfun to be the best explanation of what is a circuit and how it works. For Voltage and current, this tutorial, again by sparkfun, was very helpful.

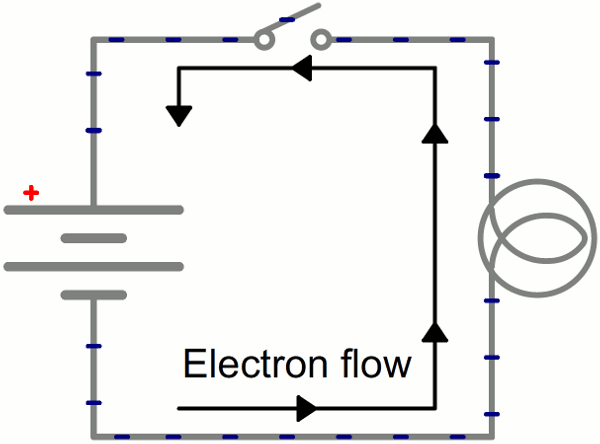

Electron Flow in a circuit- illustration by Sparkfun


Components: Active vs Passive components


To make circuits, we'll need components. All electronics components can be divided into two basic groups.

  • Active Components:
    An active device is any type of circuit component with the ability to electrically control electron flow (electricity controlling electricity). In order for a circuit to be properly called electronic, it must contain at least one active device
  • Passive Components
    Components incapable of controlling current by means of another electrical signal are called passive devices. Resistors, capacitors, inductors, transformers, and even diodes are all considered passive devices

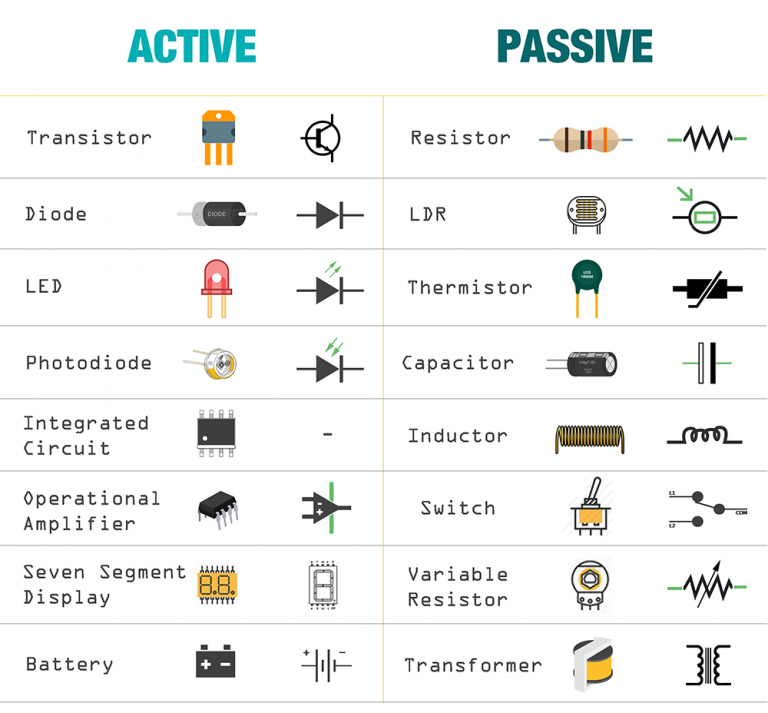

This Infographic by Codrey illustrates Active vs Passive Electronics devices/components.

Learning what each of these components do is a long and tedious process. But to get started, I found this tutorial by Sparkfun Electronics very helpful.

As for my own introduction to electronics back in 2012, I read Robotics By Beginners,by David Cook which was available at my local library.
The Art of Electronics is a really good one, which I wish I had read earlier.



Circuit Design Software


To make life easier for us electronics enthusiasts, there is a myriad of circuit design softwares. Some of them are free, some of them have limited capabilities , while some are industry grade, like Altium, which can cost upto 7,500$ for a one year license.

Workflow:
Despite of having many electronics design softwares, most of them work on the same basic workflow.
  1. First you make a Schematic of your circuit
  2. Then you pick appropriate parts for your schematic
  3. Then you make a PCB for the circuit you designed with your designated parts

Circuit Design Software Jargon

  • Schematic:

    A Schematic is a wire diagram of your circuit. A free-hand drawing like this can also be called a schematic

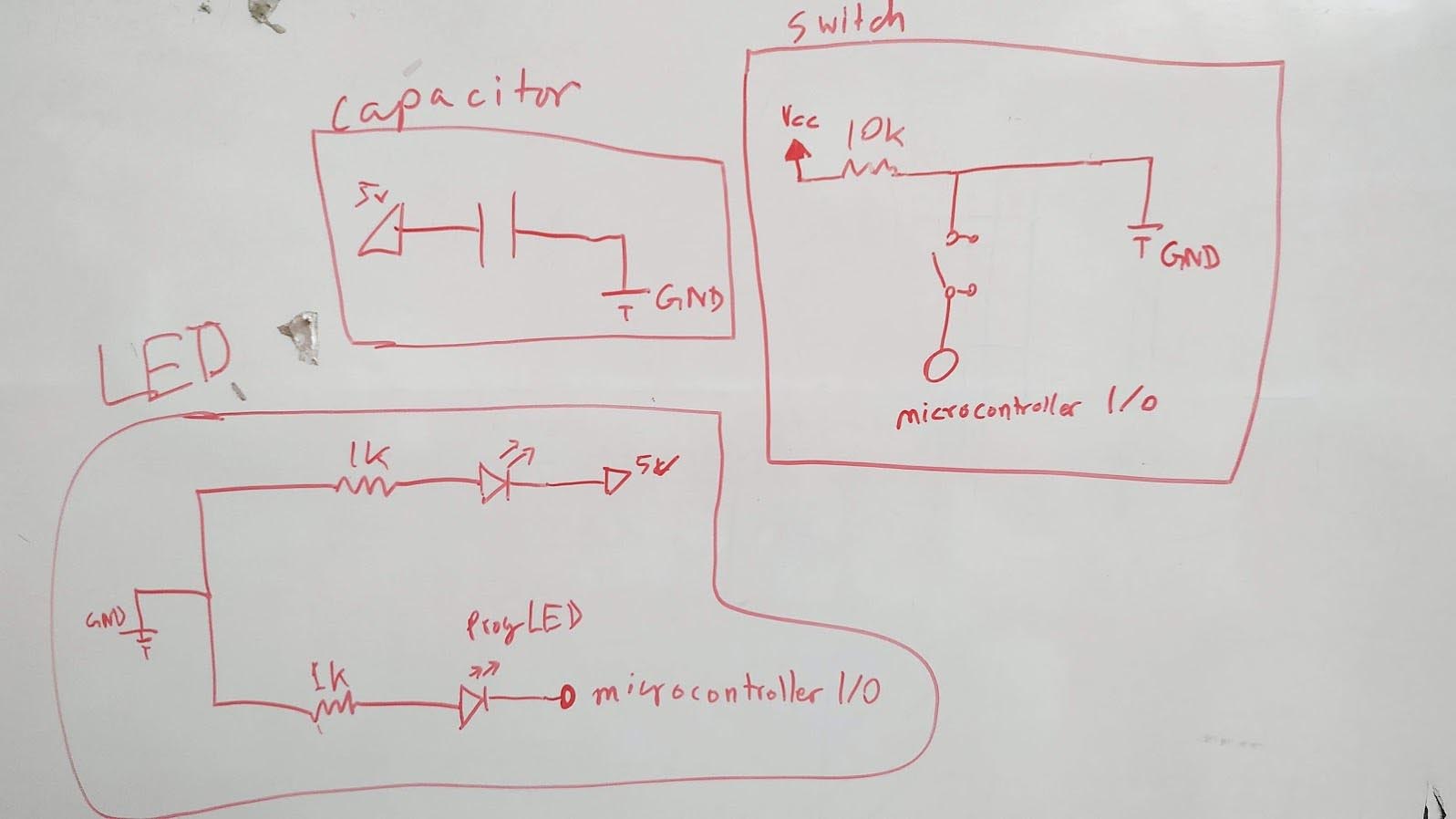

    Freehand schematic of the parts I wanted to add to my hello echo board
  • Component Package & Footprints

    Electronics components come in different sizes and shapes. The integral part inside though, is VERY VERY small. Which means, that the same IC can come in a tiny package, or it might come in a big package with better thermal properties. As for example, the brains of this 8 pin through hole component can be seen in this image, which is not even half of the total package size.
    This method of taking out the externals of an IC to reveal it's inner workings is called 'Decapping'

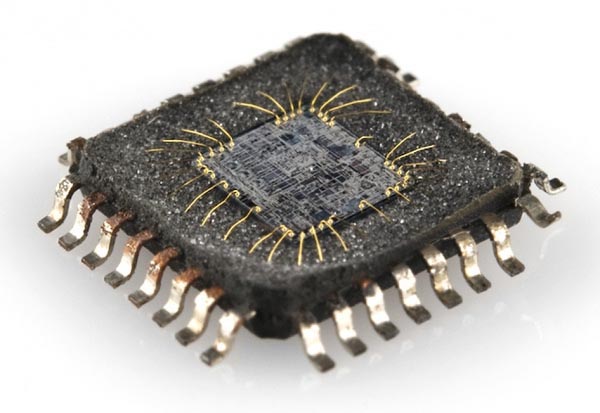

    Decapping an IC- illustration by SparkFun

    For ease of use electronic components usually come in some generalized package dimensions. As for example, the ATTINY44 we work with at our lab comes in the SOIC-14 package. These packages make it very convinient for the components to be used in Electronics Design softwares.

    A component footprint on the other hand is the design/placement of a component on copper on a circuit board. It is the same size as the package of the component and sometimes, for rare components you might have to make your own component footprints.

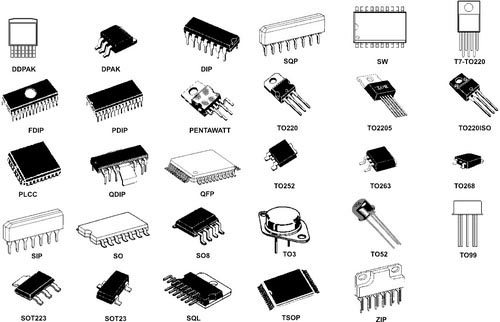

    Various Package Types- Illustration by Sparkfun
  • Component Library

    A component Library is a a collection of the pin mapping and the PCB footprints of an electronic component. This makes designing PCBs an easy process for us all. Component Libraries will vary for different design softwares. A good source of component libraries for KiCAD and Eagle is SnapEDA.

  • Links

  • Wires and Terminals

    As the name suggests, wires are just plain wires. They will connect one point with another in a schematic. A terminal is a junction of wires, where they intersect.

  • Traces

    Traces are the manifestation of the wires in a PCB made on the copper layer of a PCB. Trace width can vary according to the design but they too have certain standard values. Traces are generally calculated in Mils or Thous.

  • Routing

    The process of connecting these traces is called routing. It is done according to the schematic and can be done automatically in some design softwares.

  • Layers

    Layers in a PCB is the biggest factor contributing to the expense and ease of manufacturing. Usually we will be working with Single and Double layered boards. It gets much more complex and expensive in adding more boards. More on PCBs and layers can be found here.

  • Links

2. Disecting Neil's Hello Echo Board

Here is all I could find about Neil's Hello Echo board.

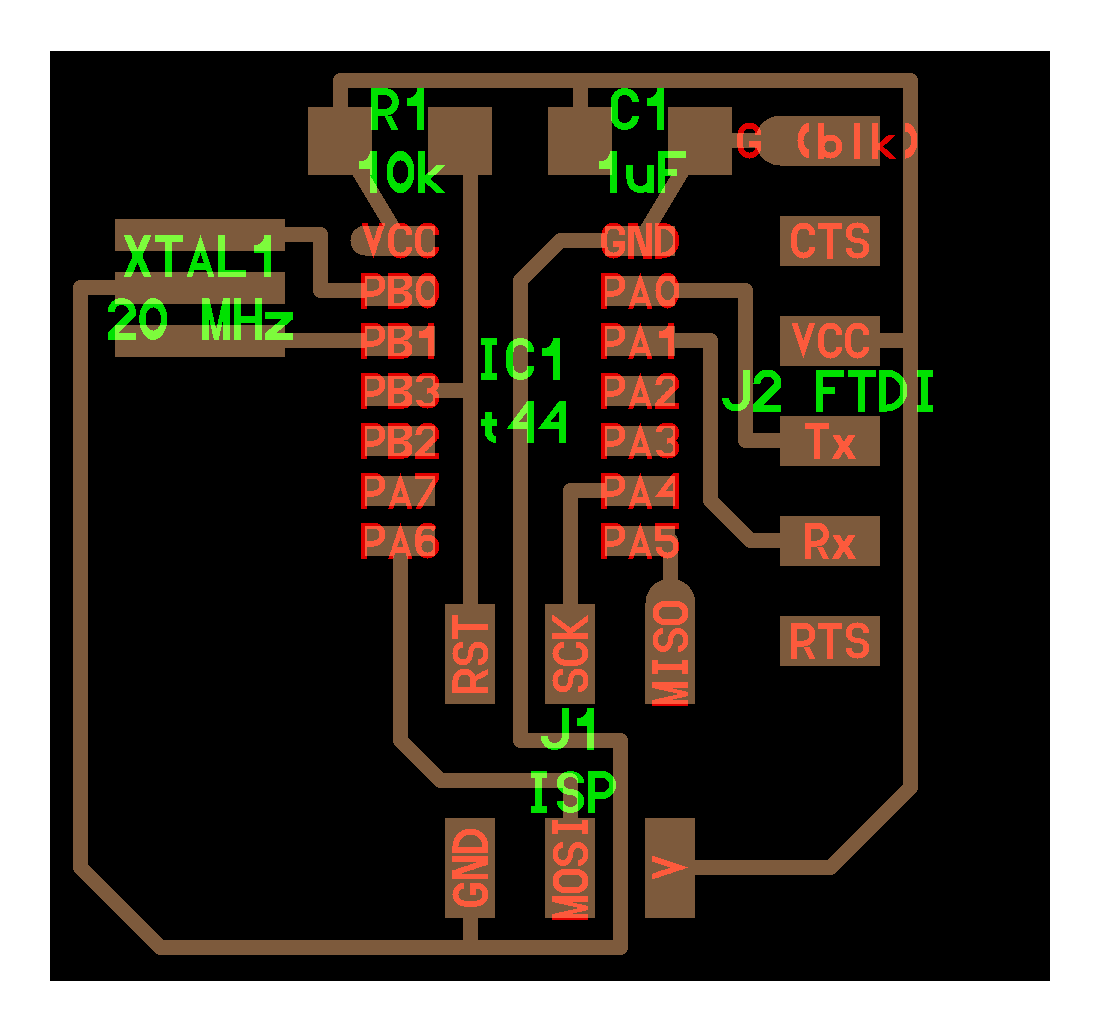

Components

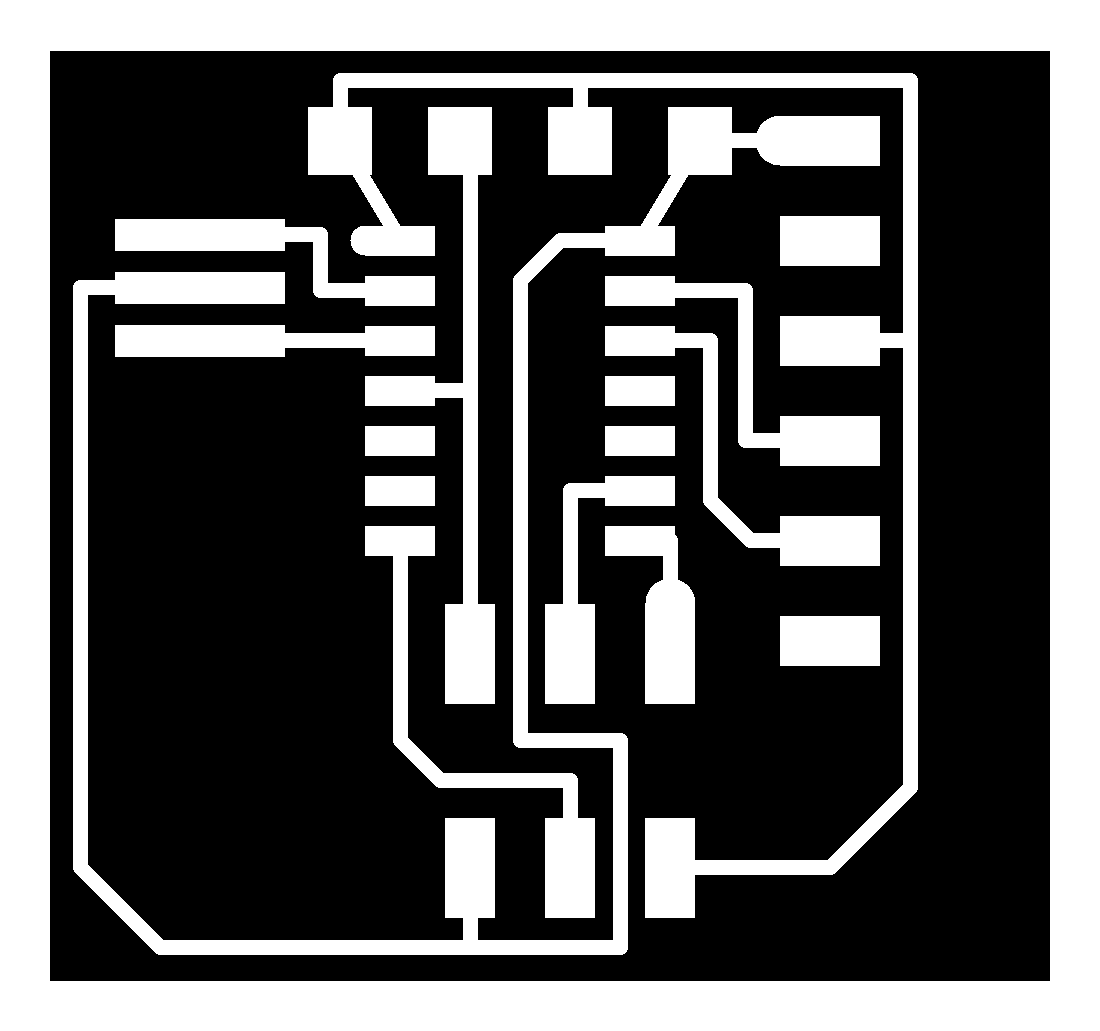

Traces
Soldered Board

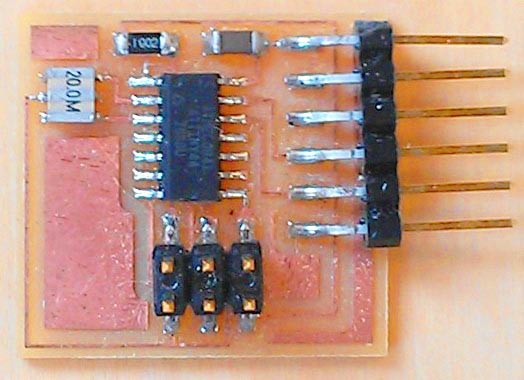

> Components on the original Hello Echo Board

ATTiny44:

The board is centered around a ATTiny44 microcontroller.
The Specs for it can be found on microchip's website.

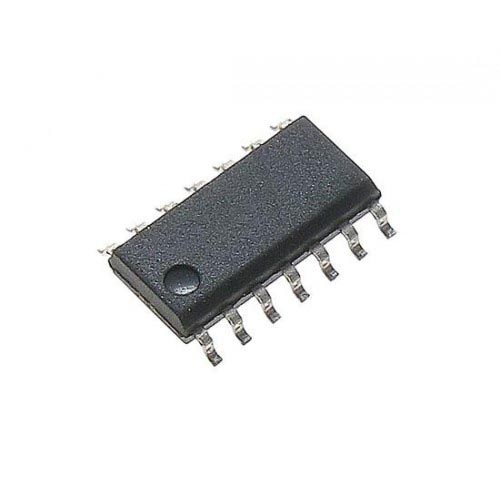

ATTiny44 SOIC-14 Package
Name Value
Program Memory Type Flash
Program Memory Size (KB) 4
CPU Speed (MIPS/DMIPS) 20
SRAM Bytes 256
Data EEPROM/HEF (bytes) 256
Digital Communication Peripherals 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals 1 Input Capture, 1 CCP, 4PWM
Timers 1 x 8-bit, 1 x 16-bit
Number of Comparators 1
Temperature Range (C) -40 to 85
Operating Voltage Range (V) 1.8 to 5.5
Pin Count 14

10k Pullup Resistor

There is a 10k Pullup Resistor for the reset pin. As the name suggests, this resistor pulls the voltage up to 5v. More on Pullup resistors can be found here. We are using standard 1206 package resistors for the Fab Academy.

20Mhz resonator

Resonators function like crystals but stick closer to their specified frequency over a full temperature range. These resonators are +/-0.5% or better from -20C-+80C. These resonators have built-in load capacitors so no external caps are needed.

1uF Power Capacitor

The purpose of this capacitor is to smooth out the power supply for the microcontroller.

6Pin ISP Programmer Connector

The 6pin ISP programmer connector is used to program the ATTINY44. If you look back, the FABISP also has an identical connector.

FTDI Connector

The FTDI connector is for communication with a FTDI USB Serial chip. Luckily I have one, but I assume that we are going to make one in the communications week.

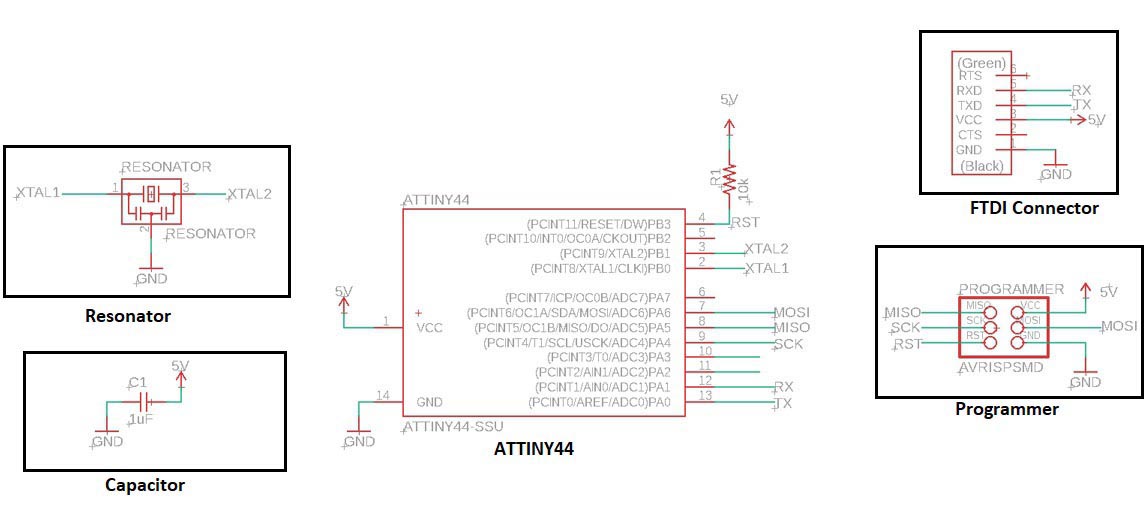

> Schematic of the original hello echo board

After analyzing the circuit, this is the schematic I came up with.
HelloEcho Board Schematic

> Checking the hello echo firmware by Neil

I was not sure about the Tx and Rx pins so I had a look at Neil's firmware code for the hello Echo board. Which can be found here. Download as .ino And I found PA0 was defined the serial pin in
PA1 was defined as serial pin out.

3. Planning out my Circuit

So I decided not to change the basics of the Hello Echo board, because I want my board to be compatible with Neil's firmware to check the Hello Echo. But, I would like to add some components to it and create my own board based on this schematic.
The components that I decided to add were;

  • A pusbutton
  • 2 programmable LEDs
  • One Power LED

>Adding the Pushbutton:


A pushbutton is a tactile switch that connects two of its pins when the button is pressed. We can easily take and input on a microcontroller pin using a pull down resistor and a pushbutton. The logic is that the input pin will be pulled down using a high value resistor, which will always give a LOW on that I/O pin.
But! when the button is pressed, it will get connected to 5V and give a HIGH reading.
This is the easiest way to add a pushbutton to a circuit. But it has a problem. And it is called bouncing.

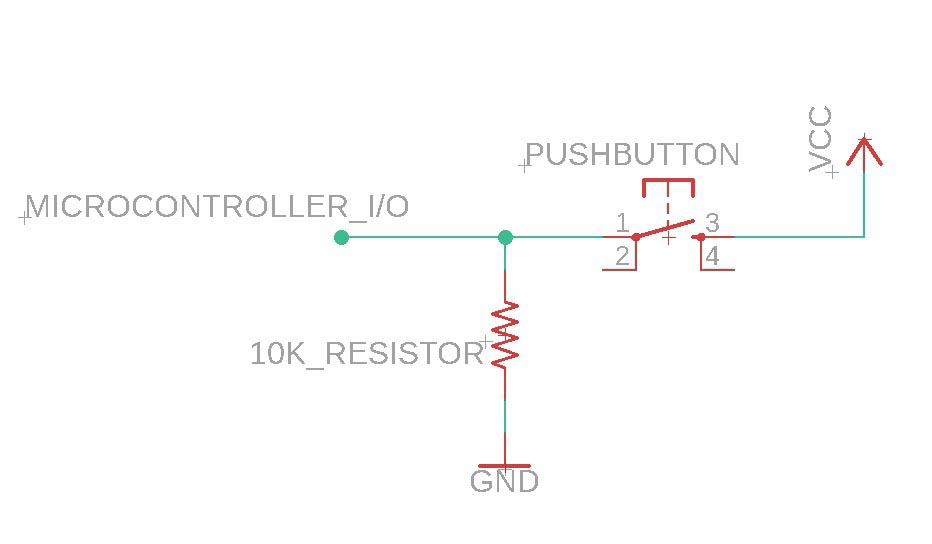

Bare Minimum Push button Circuit

Debounced Pushbutton Circuit

I usually use a debouncing technique that utilizes a capacitor and resistors. More on this topic can be found here.



> Adding a Power LED


I wanted to add a power LED to my board because I wanted to have a visual representation of it if it was getting power or not. I didn't want it to be super bright, so I just added a 1k Resistor in series with it. Here's the Schematic for that.

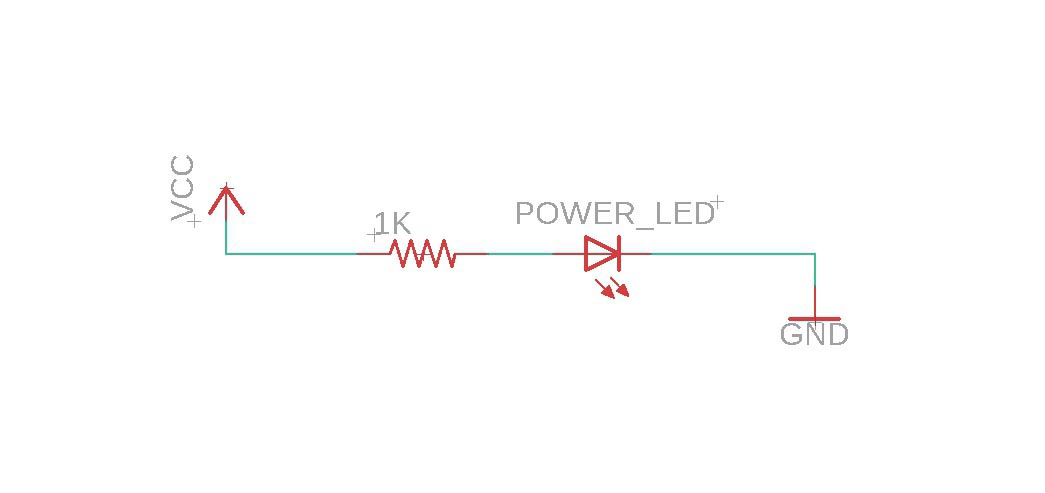

Power LED Circuit

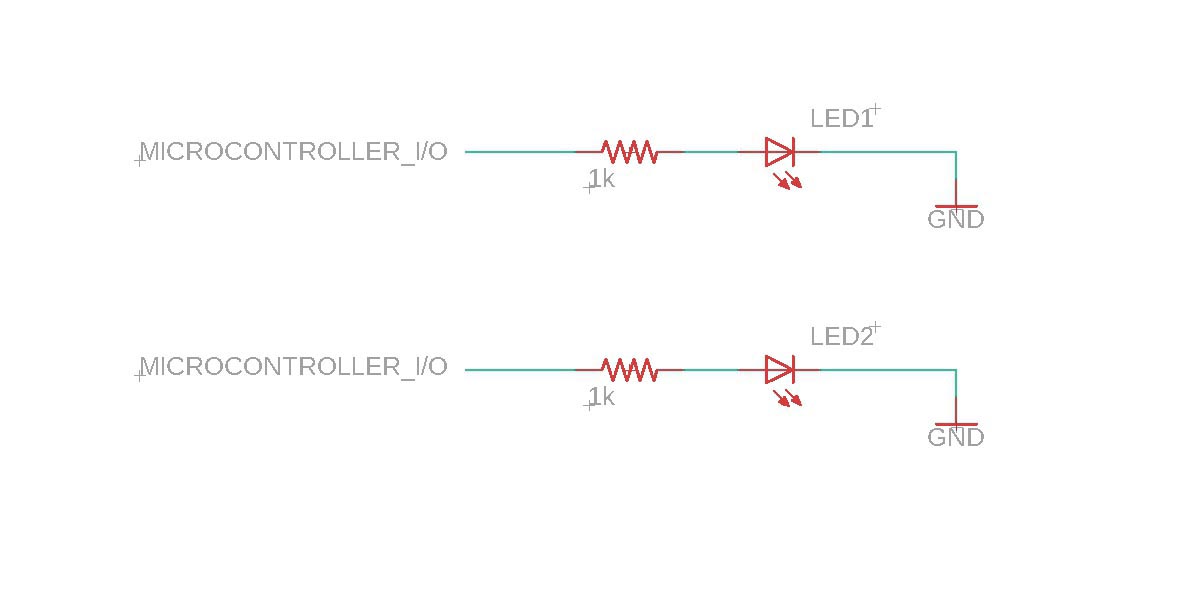

> Adding the Two Programmable LEDs


For the two Programmable LEDs, I connected their ground pin to GND, and the positive terminal went to a Microcontoller input through a 1k resistor.

Power LED Circuit
After Planning out my Circuit, I went on to design everything on a Circuit Design Software.

4. Software Selection

For the Electronics Design software, I had multiple options. I have some experience working with Proteus and Eagle as my previous workplace used them quite extensively. There was KiCAD , EasyEDA , tinkerCAD which all had their own perks.

5. Eagle CAD

EAGLE is a scriptable electronic design automation application with schematic capture, printed circuit board layout, auto-router and computer-aided manufacturing features. EAGLE stands for Easily Applicable Graphical Layout Editor.
It is now a part Autodesk which has added features where I can directly link my circuits with my Fusion360 work. I will be using Eagle 9.31 with an Educational License for the Fab Academy Course.

Why Eagle?

I decided to choose between KiCAD and Eagle and chose Eagle after trying out KiCAD for a bit. I realized that KiCAD had a steeper learning curve and since I was already proficient with eagle, I didn't want to waste any time and get to work.

Here are the main perks for eagle:

  • Cross-platform -- EAGLE can run on anything: Windows, Mac, even Linux. This is a feature not too many other PCB design softwares can boast.
  • Lightweight -- EAGLE is about as svelte as PCB design software gets. It requires anywhere from 50-200MB of disk space (compared to the 10+GB more advanced tools might require). The installer is about 25MB. So you can go from download to install to making a PCB in minutes.
  • Free/Low-Cost -- The freeware version of EAGLE provides enough utility to design almost any PCB in the SparkFun catalog. An upgrade to the next license tier (if you want to make a profit off your design) costs at least two orders of magnitude less than most high-end tools.
  • Community support -- For those reasons, and others, EAGLE has become one of the go-to tools for PCB design in the hobbyist community. Whether you want to study the design of an Arduino board or import a popular sensor into your design, somebody has probably already made it in EAGLE and shared it.

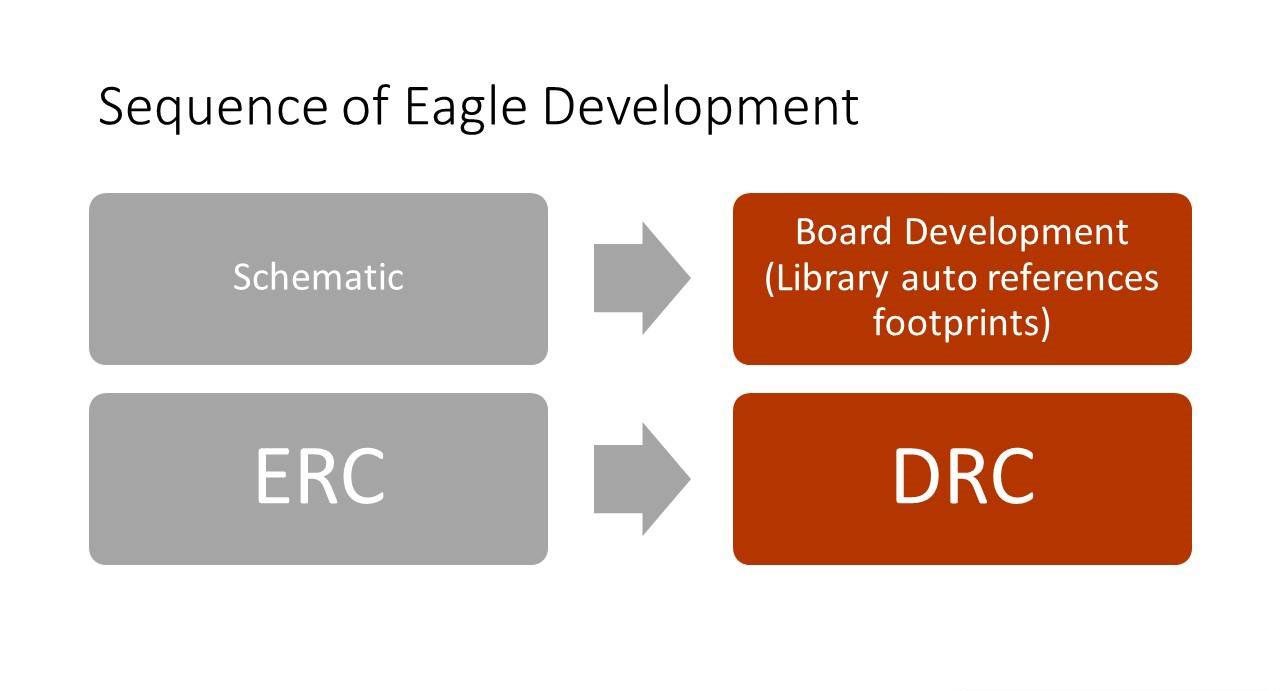

Eagle Workflow

The Eagle workflow consists of two main sections.

  • The Schematic Design, which is governed by the ERC(Electrical Rule Check)
  • The Board Design, which is governed by the DRC(Design Rule Check)

Illustration by Gautam Prakash (Fab Academy2017)

Installing Eagle

Eagle is not a free Circuit Design Software. But there is a free version available for Hobbyists and Students. There is a Standard version which is available for everyday engineering and then there's the premium version which can be used for production level PCB designs. This illustration shows a comparison of all the versions.


I will be using the free version of Eagle as it gets all my work done without any issues. It can be downloaded for multiple platforms from

Different Eagle Versions

Creating a Project

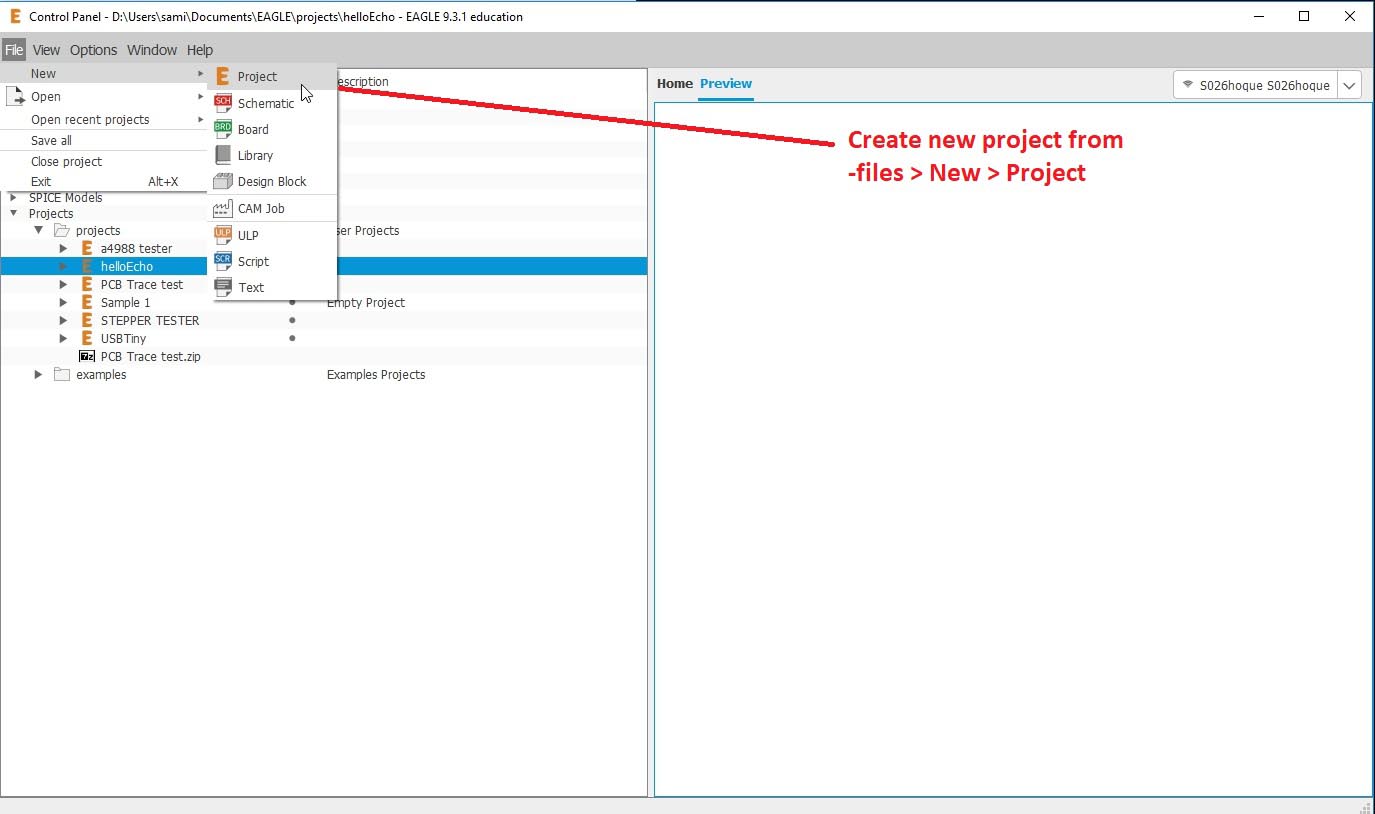

Creating a new project

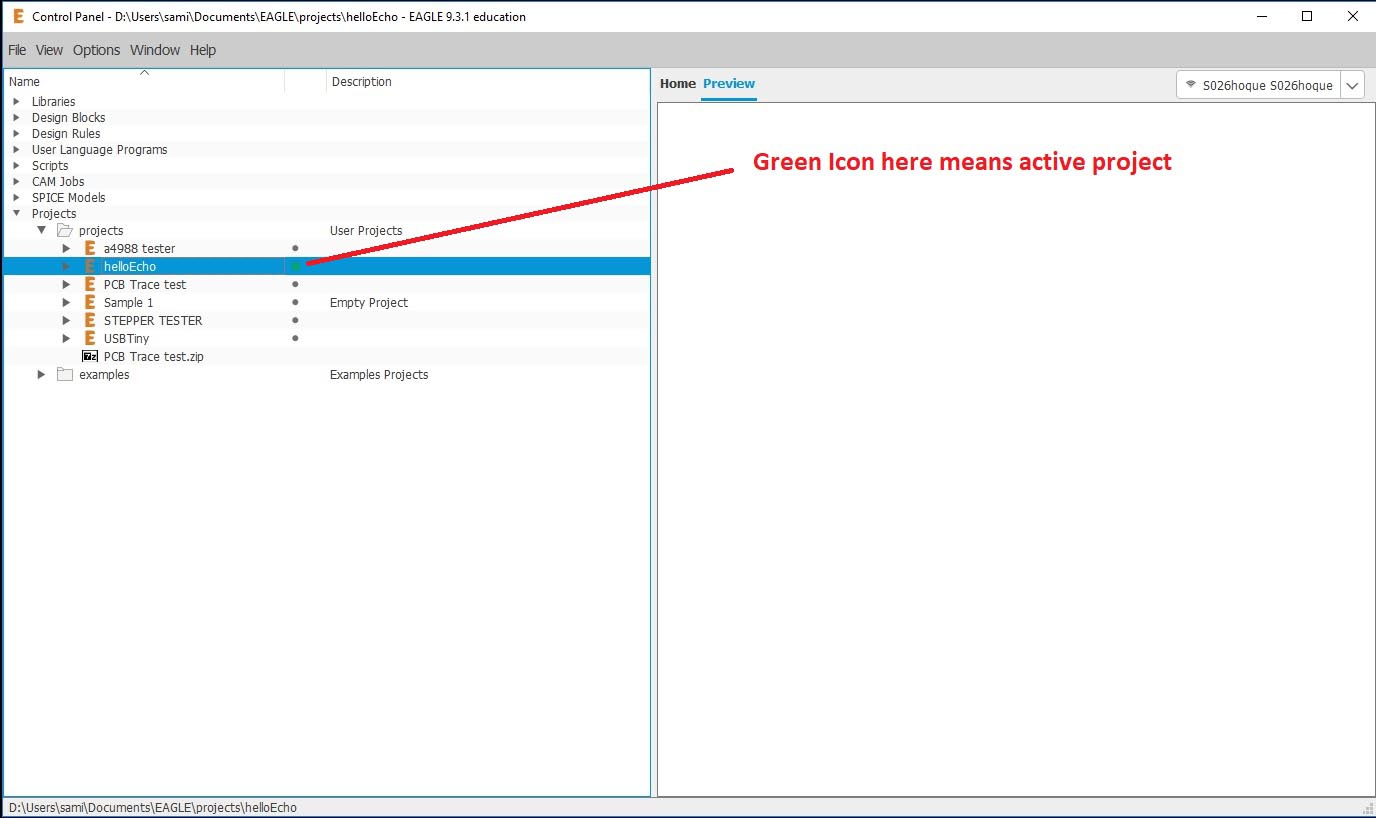

Green Indicates Active Project, double click to activate

Making a Schematic

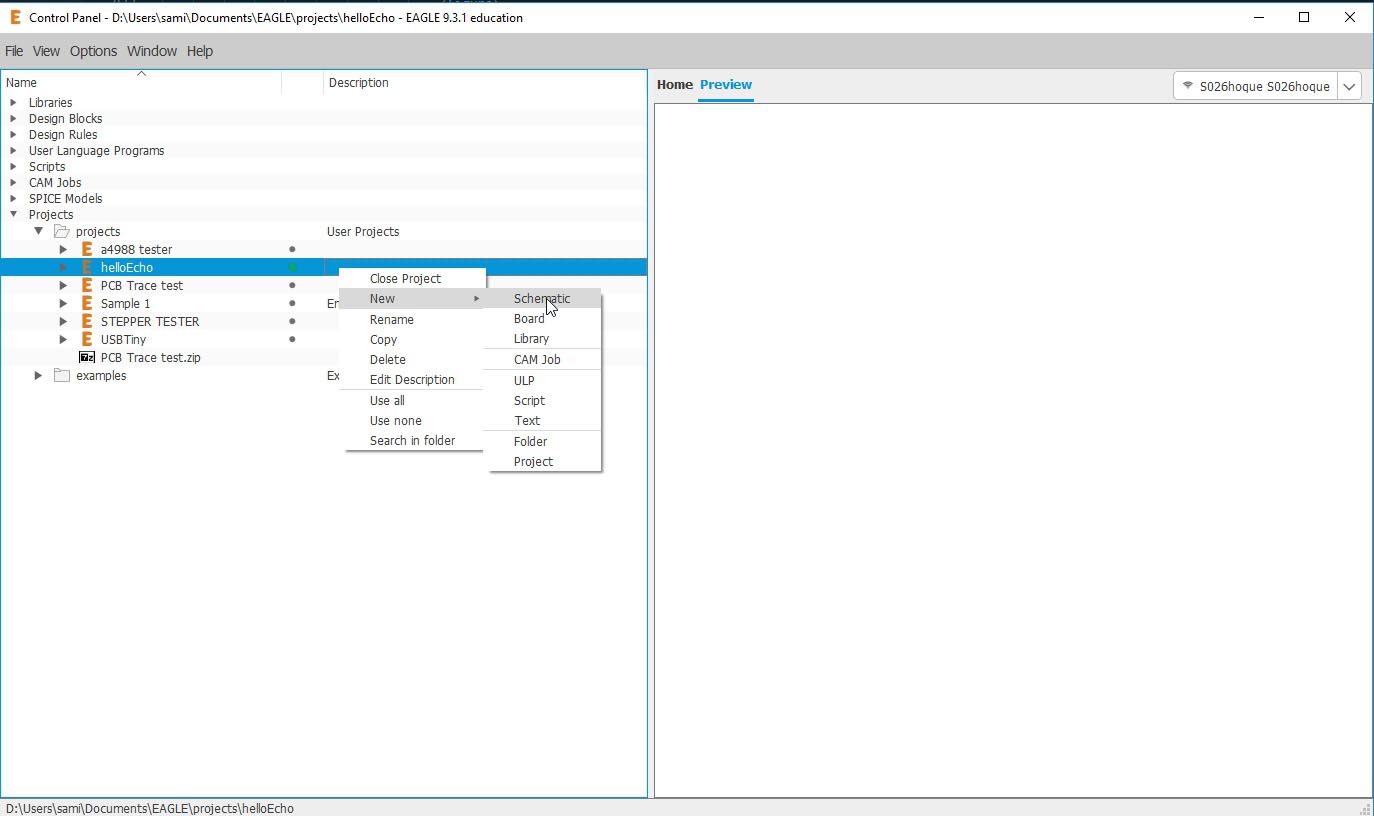

First We have to create a schematic file by right clicking on the active project, and creating a schematic. We can start editing the schematic by double clicking on it.

Creating A schematic

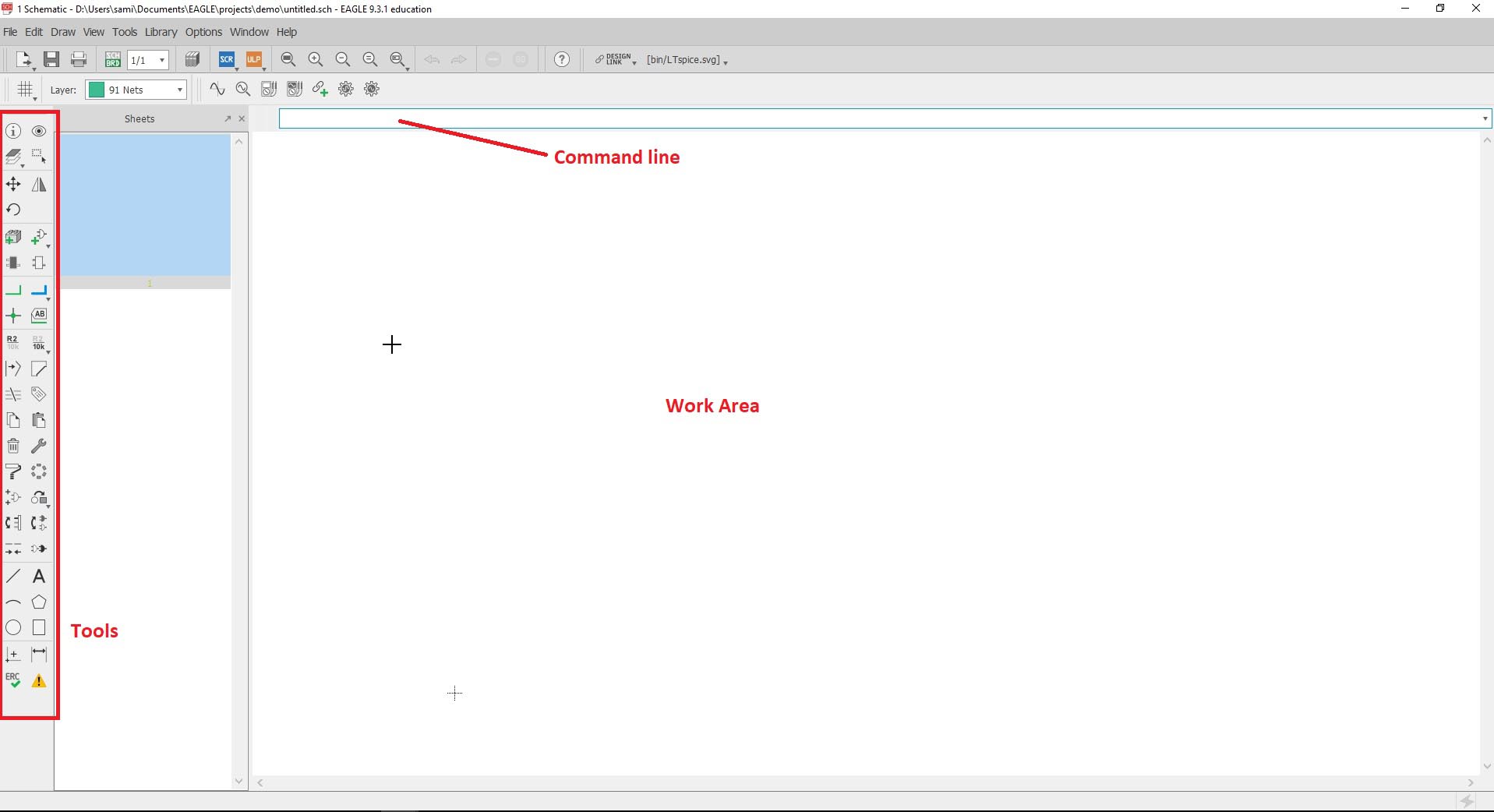

This is how the Schematic Editor Window Looks like

Schematic Editor Interface

Picking Components

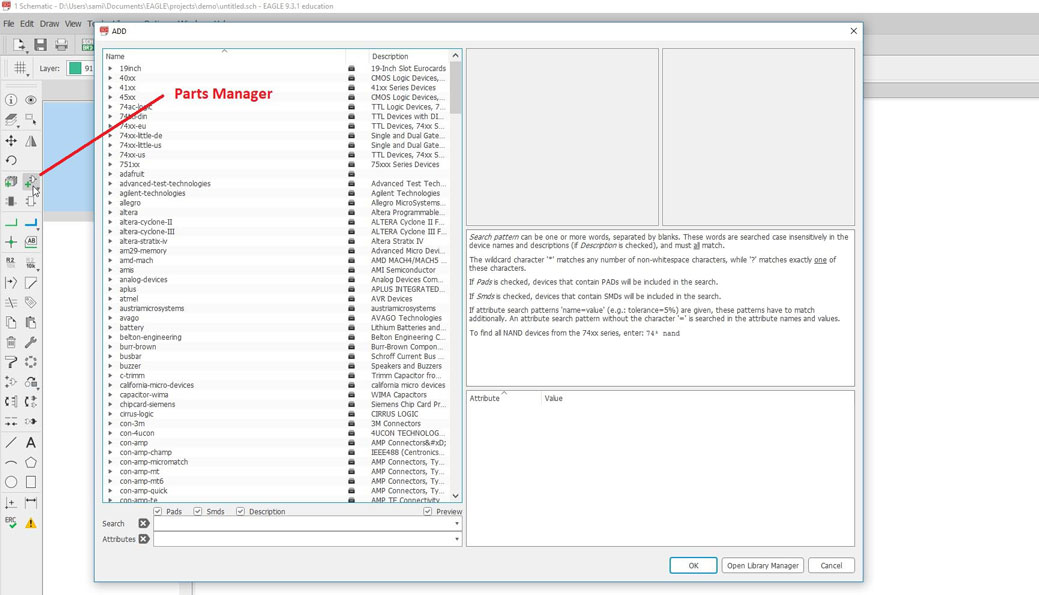

Parts picker

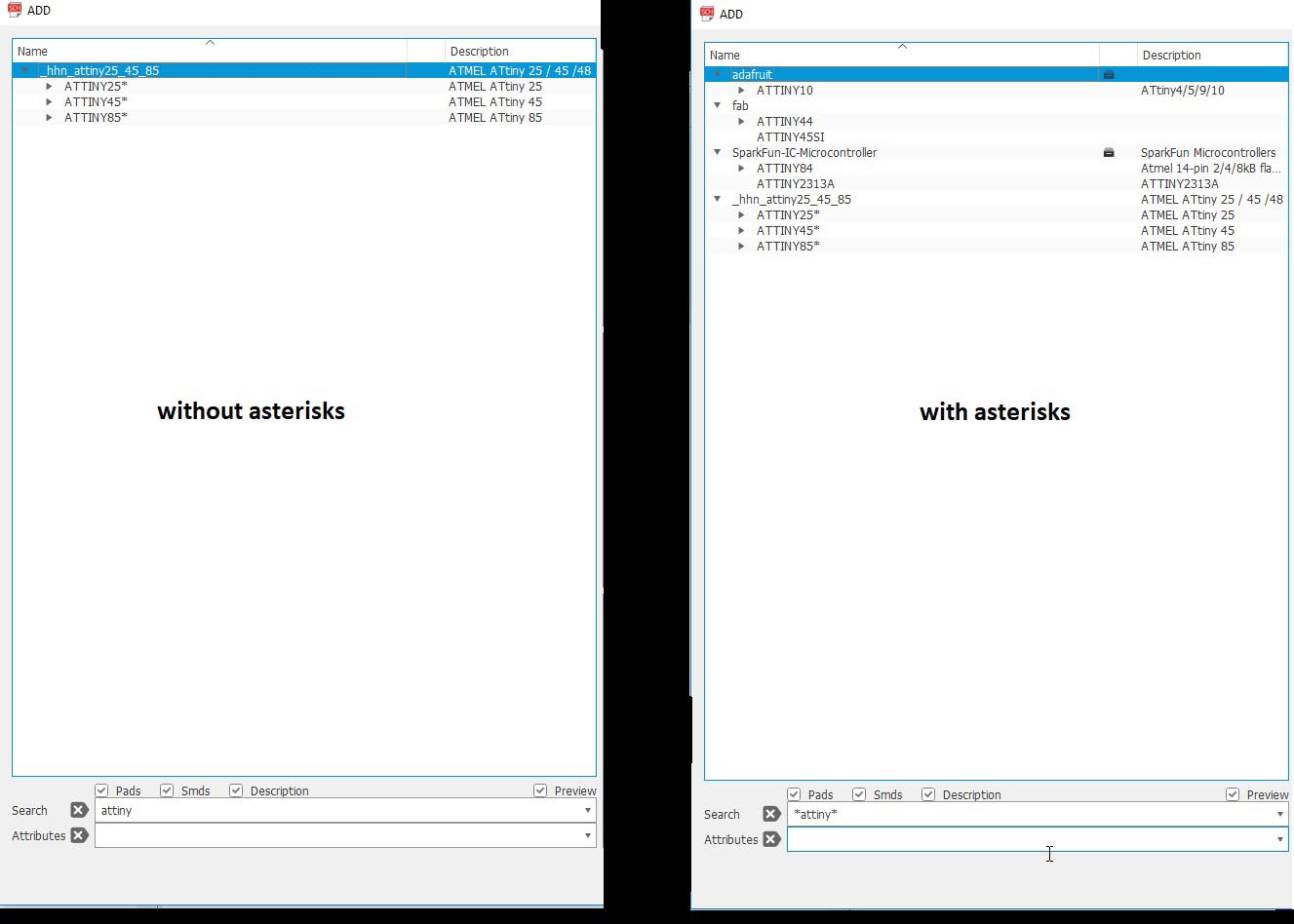

Search with Asterisks to search substrings

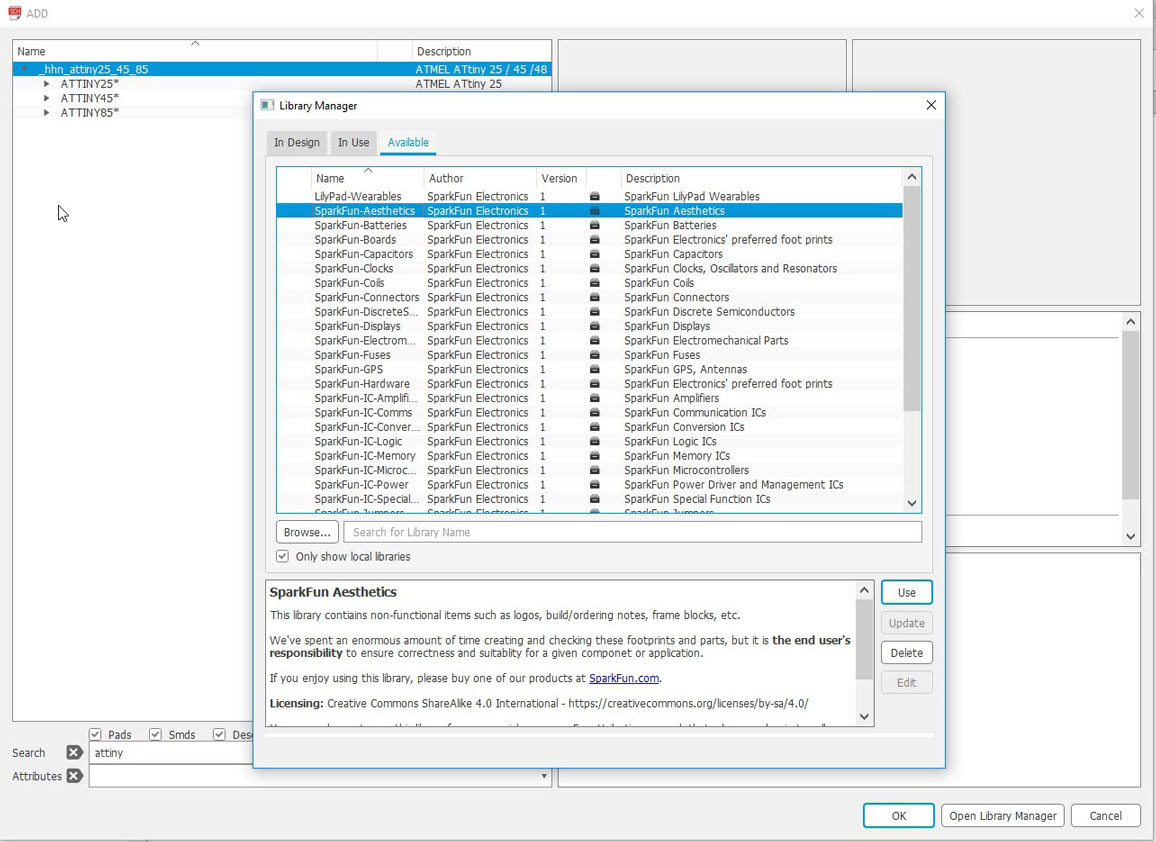

Installing the Fab Library

Library Manager

You can bring up the library manager from the parts manager menu. Eagle 9.3 has the option of adding managed libraries here from the 'available' tab. You can automatically install and keep your libraries updated from here.

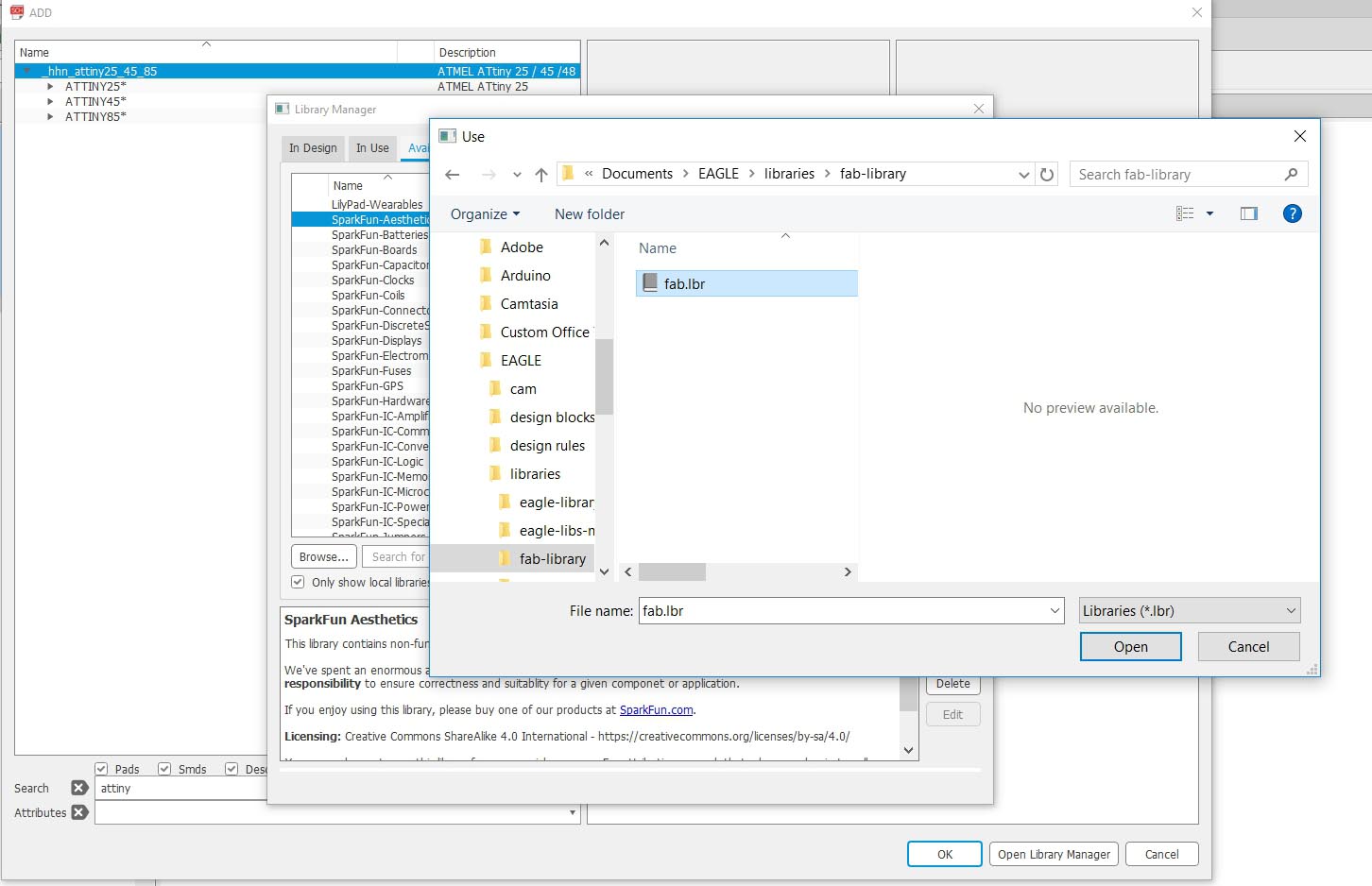

Adding Custom Libraries

For custom library you just have to download the library and use the browse option in the library manager to open it. The Fab Library can be downloaded from here.

Connecting Wires

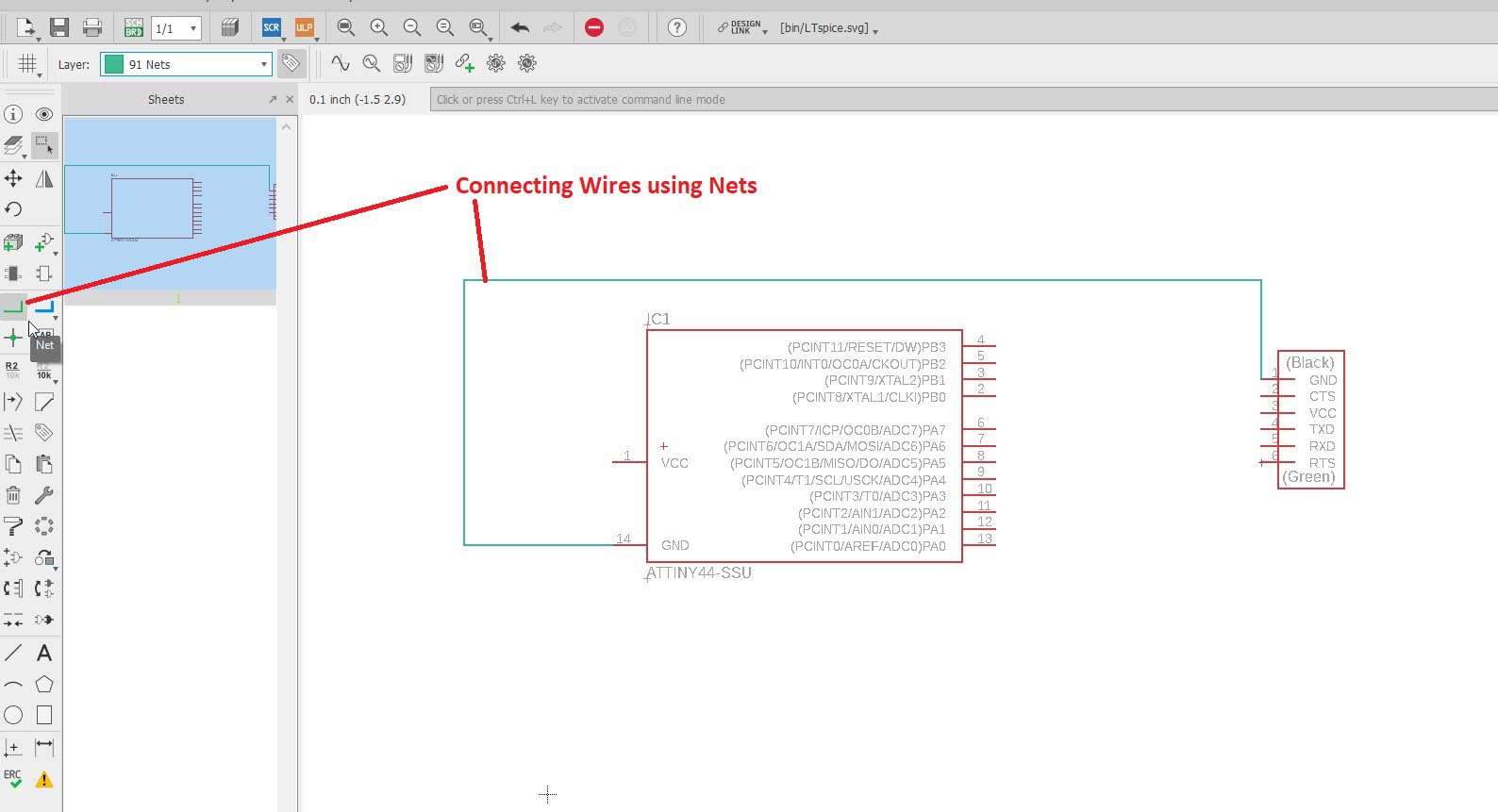

Wires can be connected directly using Nets.

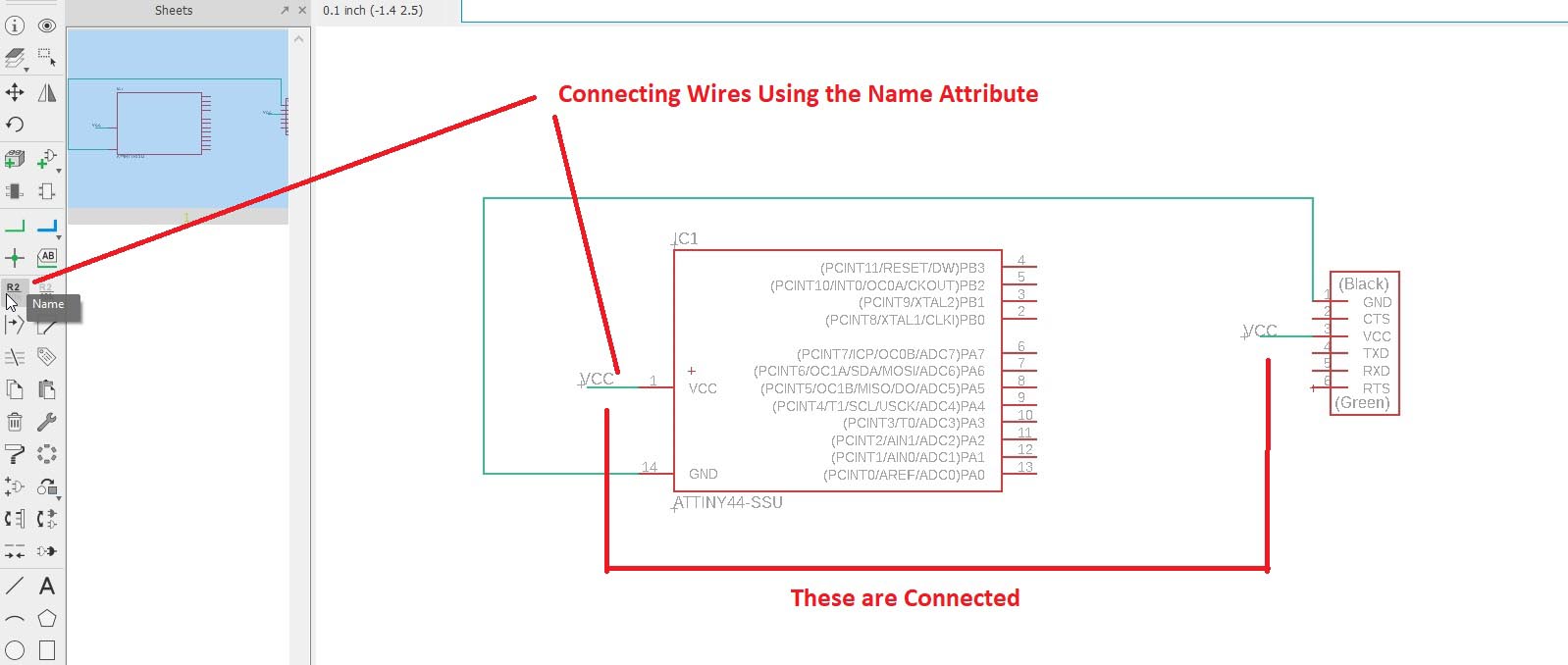

They can also be connected using the name attribute.

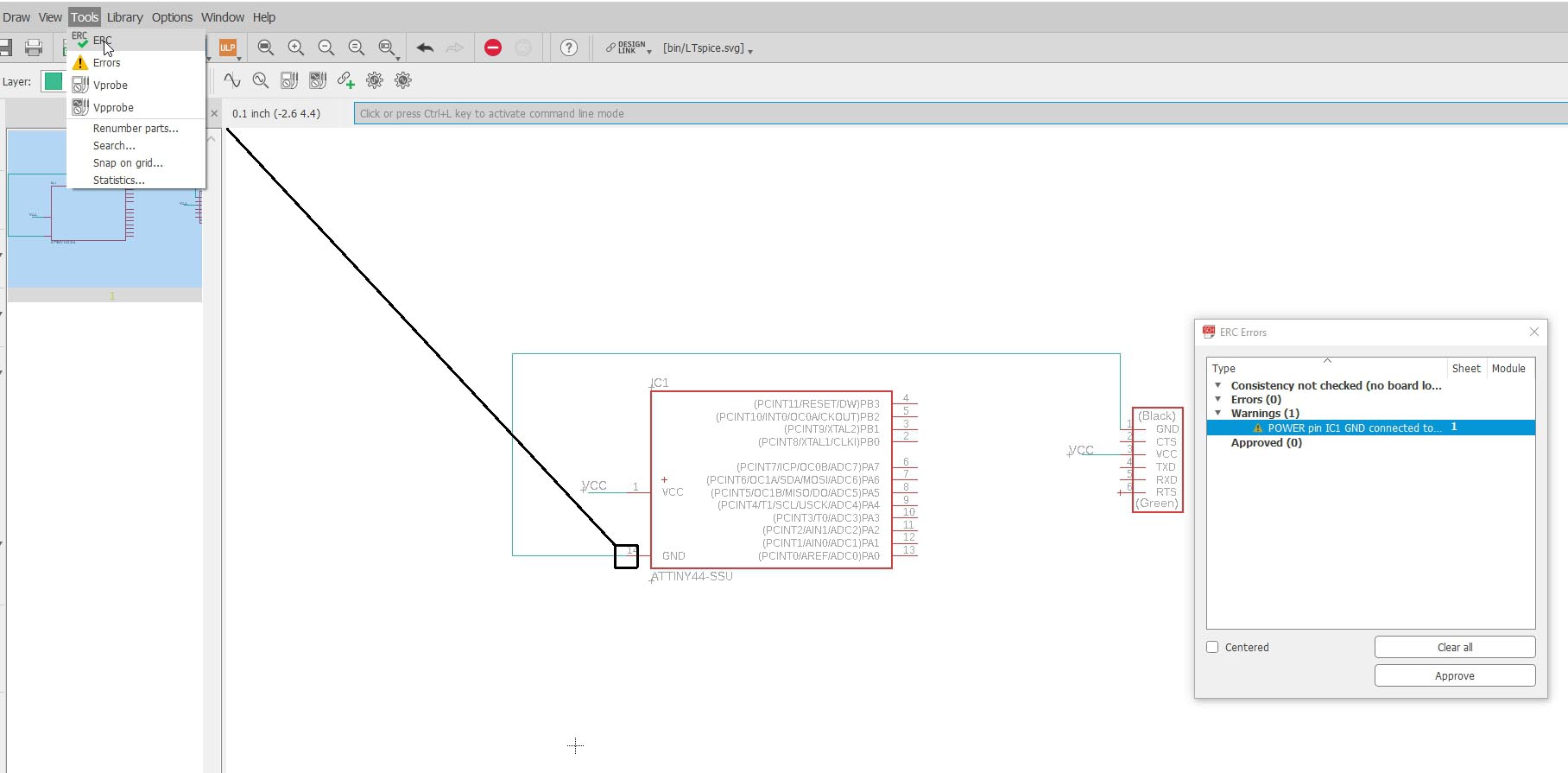

Checking for errors: ERC

The ERC is a tool to check for errors in a schematic. It can be found under the tools menu. As for example here, ERC is warning me that the GND of IC1 is connected to n$1, which is the name for the GND pin of the FTDI connector. It is just a warning to show if I want to approve of this connection or not.

ERC

Creating a board file from a schematic

After placing all the components I required, I was ready with my schematic.

After placing all the components I required, I was ready with my schematic.

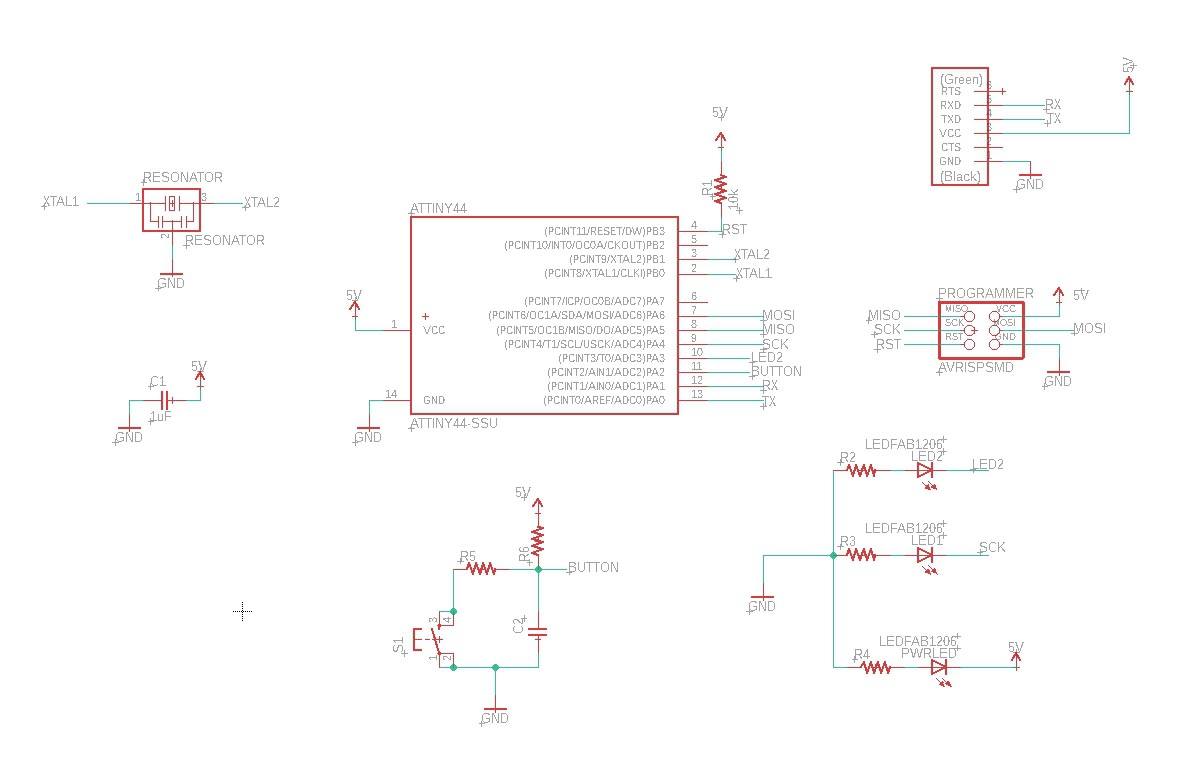

Final Schematic for my HelloEcho Board

To Create the board file, I just clicked on the brd icon on top and Eagle automatically generated it for me.
*Note that You have to keep both your board and schematic window open.

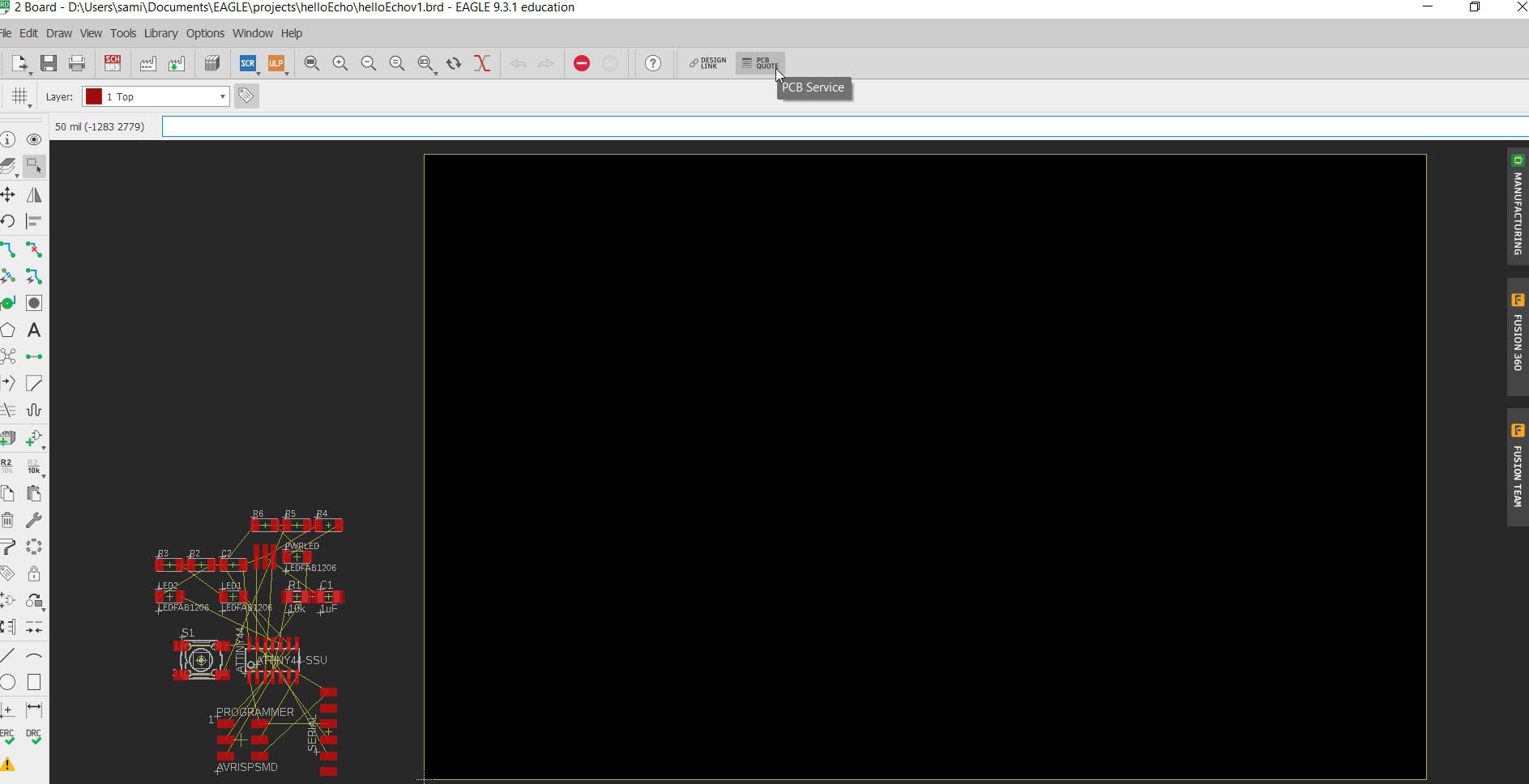

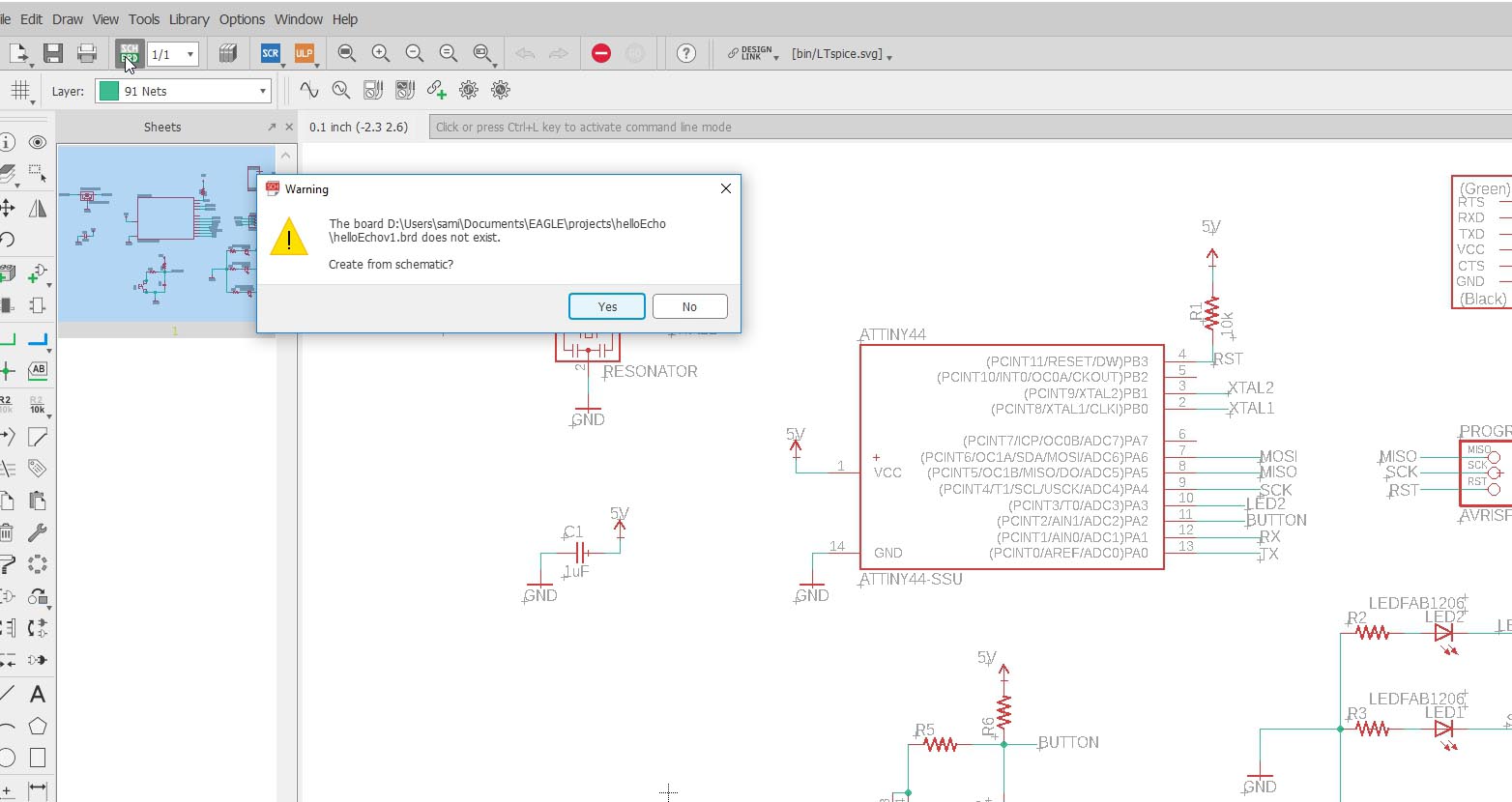

Creating a .brd file from Schematic
the board editor window

Placing Components in a board layout

Now that I had my schematic prepared, and board file generated. I started to place my components in a layout where I could connect all the wires without overlapping any of them. I first started with a general layout, without much detail to the distancing,

DRC, Design Rule Check

The DRC is the tool that governs our PCB design. It can be brought up from tools > DRC. The minimum Trace width, the minimum distances between various components can all be configured here, and if we break any of the rules during the design process, DRC will help us resolve those.

My DRC rules were the following;

    Clearances:
  • 16 mil on everything
Sizes:
  • Minimum Width: 16mil
  • Minimum Drill: 0.8 mm

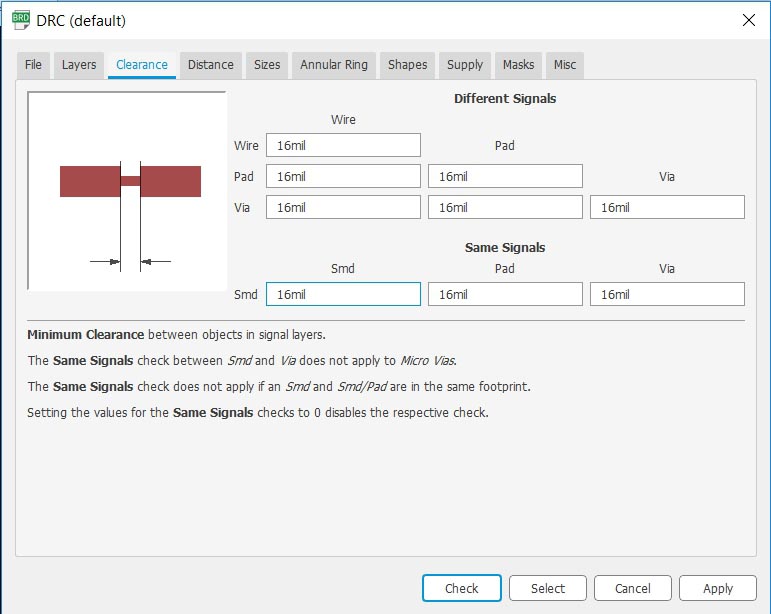

  • DRC- Clearances

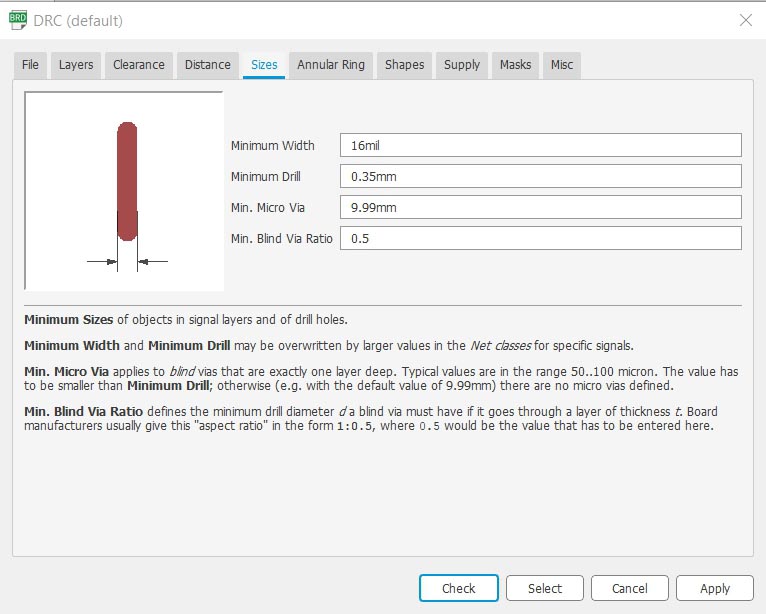

    DRC- Sizes

    Manual Routing

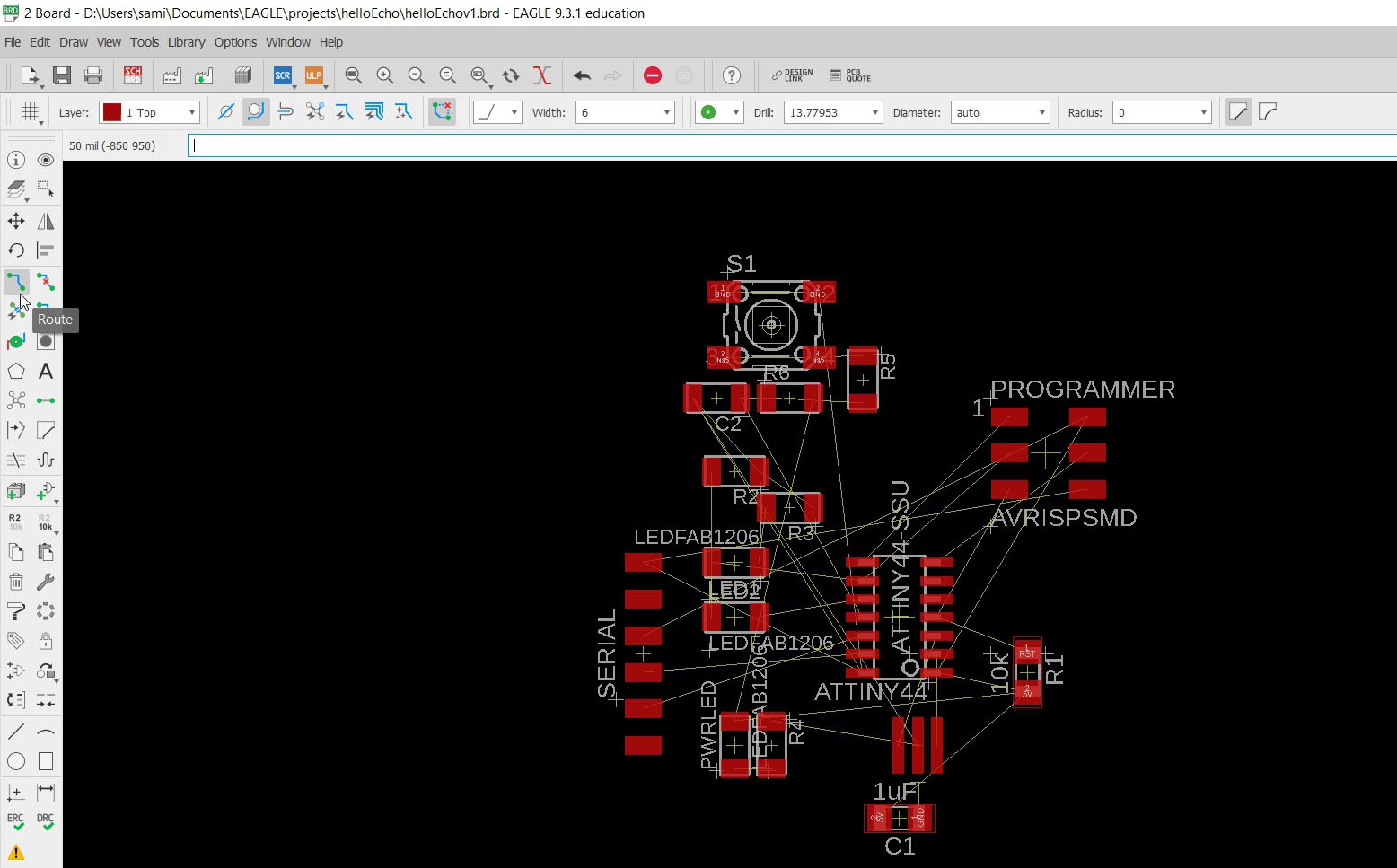

    Routing Can be done by clicking on the route tool, the pads that need to be connected are highlighted in red.

    Routing Tool
    Routing- pads higlighted

    Auto-Router

    The Autorouter is a handy tool which helped me route my PCB. It can be found under the tools menu. Make sure to check the bottom layer as N/A before starting to autoroute. The Autorouter will follow the DRC and try to connect all of your traces. It will help you find closed loops where you need to do manual routing or change the orientation of components to optimize your routing.

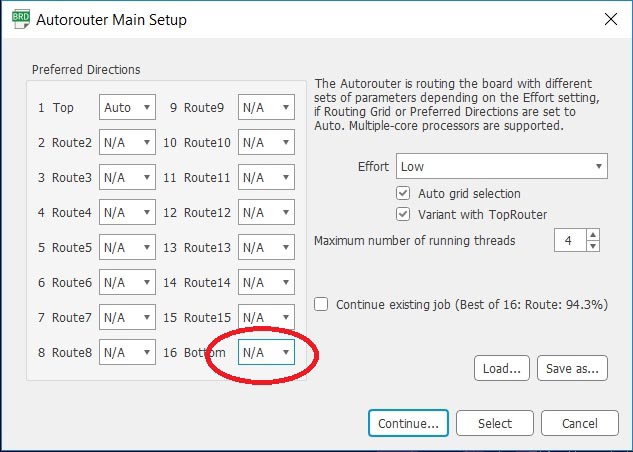

    autorouter- layer settings

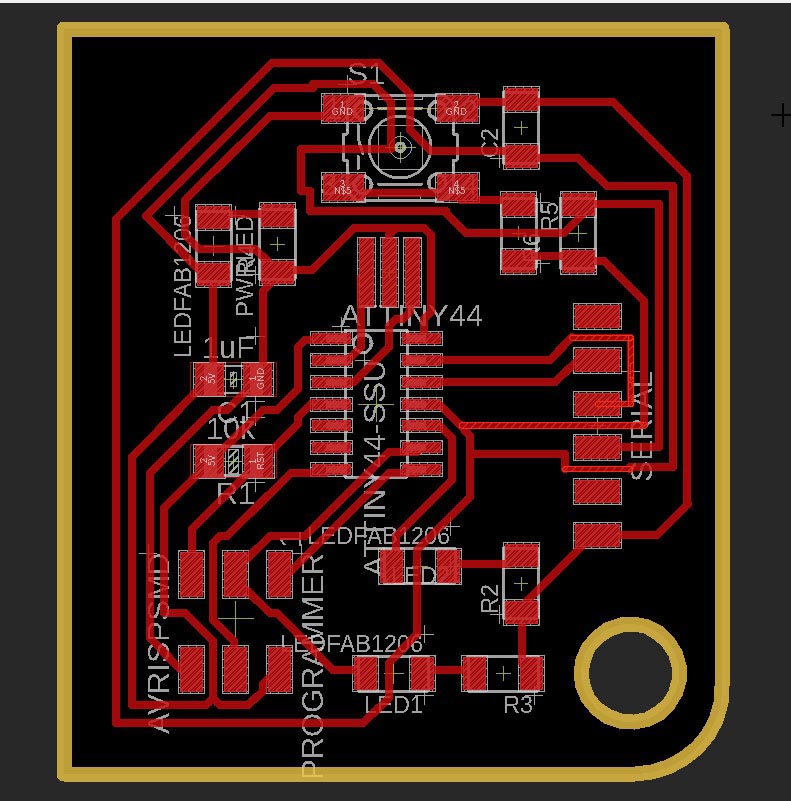

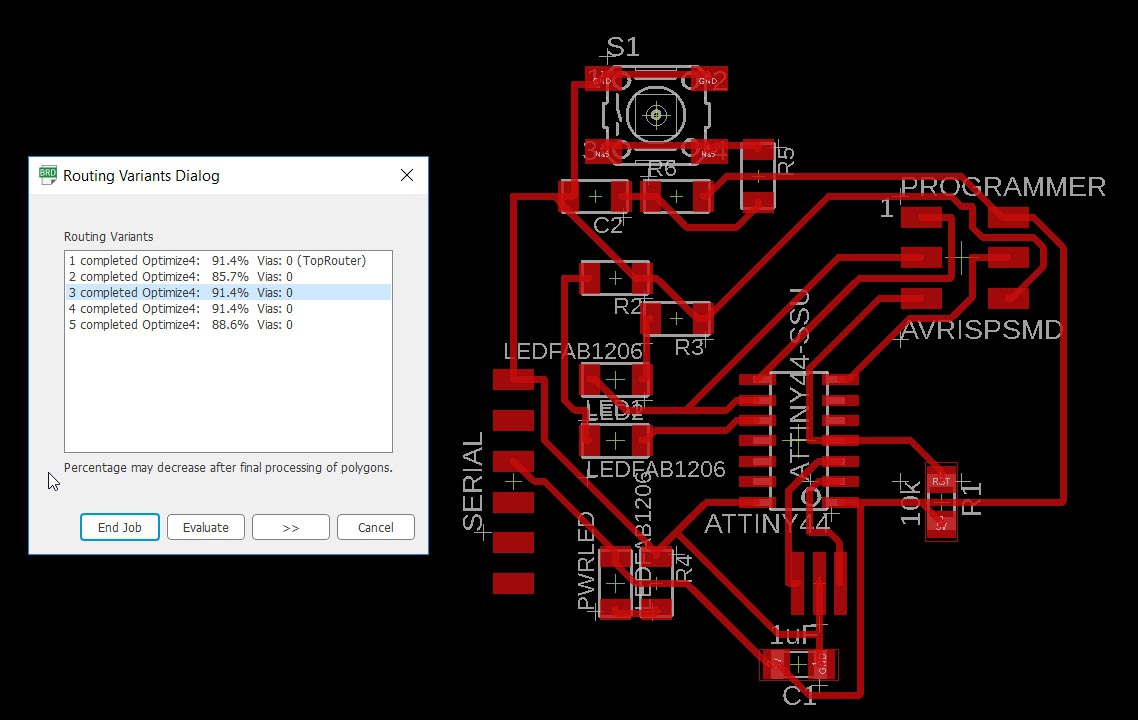

    Autorouting results

    The Meander Tool

    Now if you are not satisfied with your autorouting, or if you want to delete any of your routing, you have to use the meander tool. For removing all traces, the command 'RIPUP;' needs to be used.

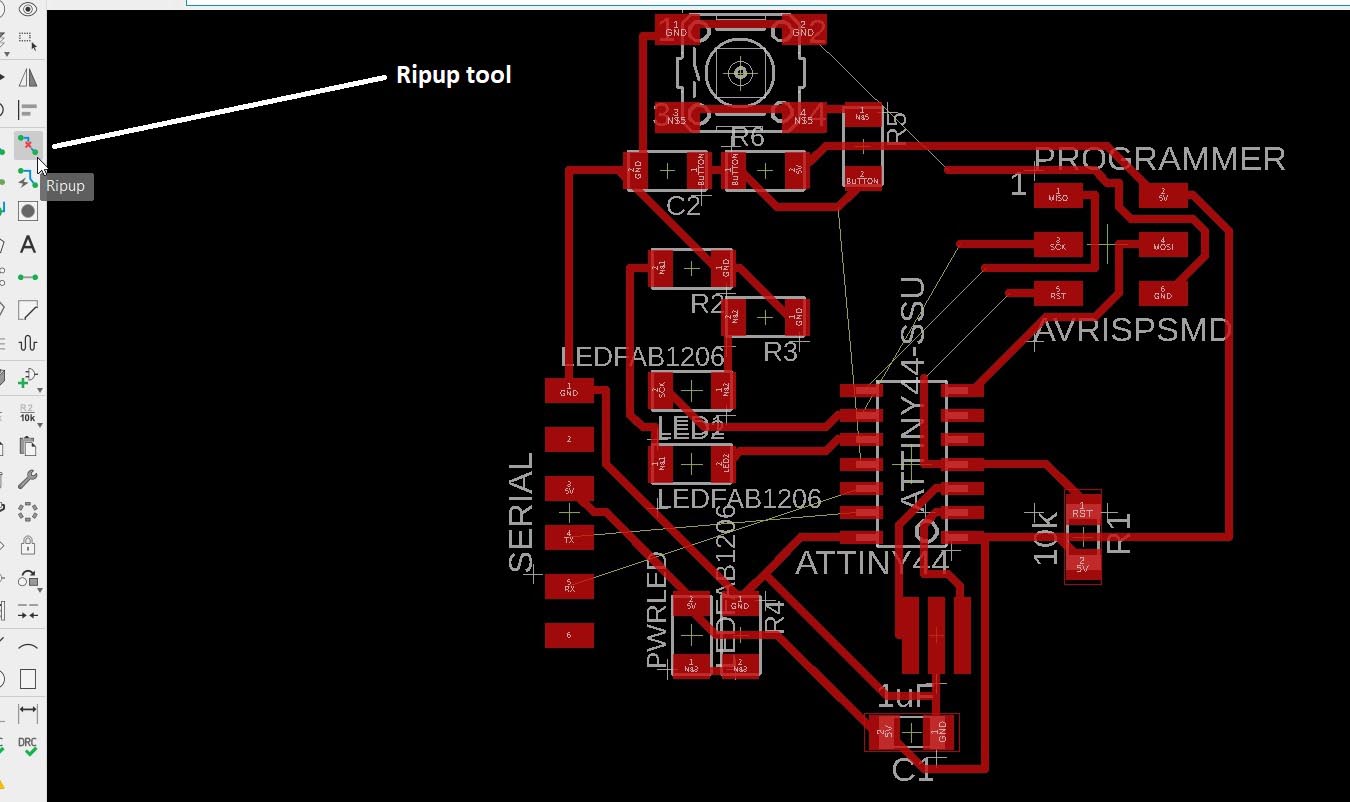

    Using the Ripup tool to delete traces

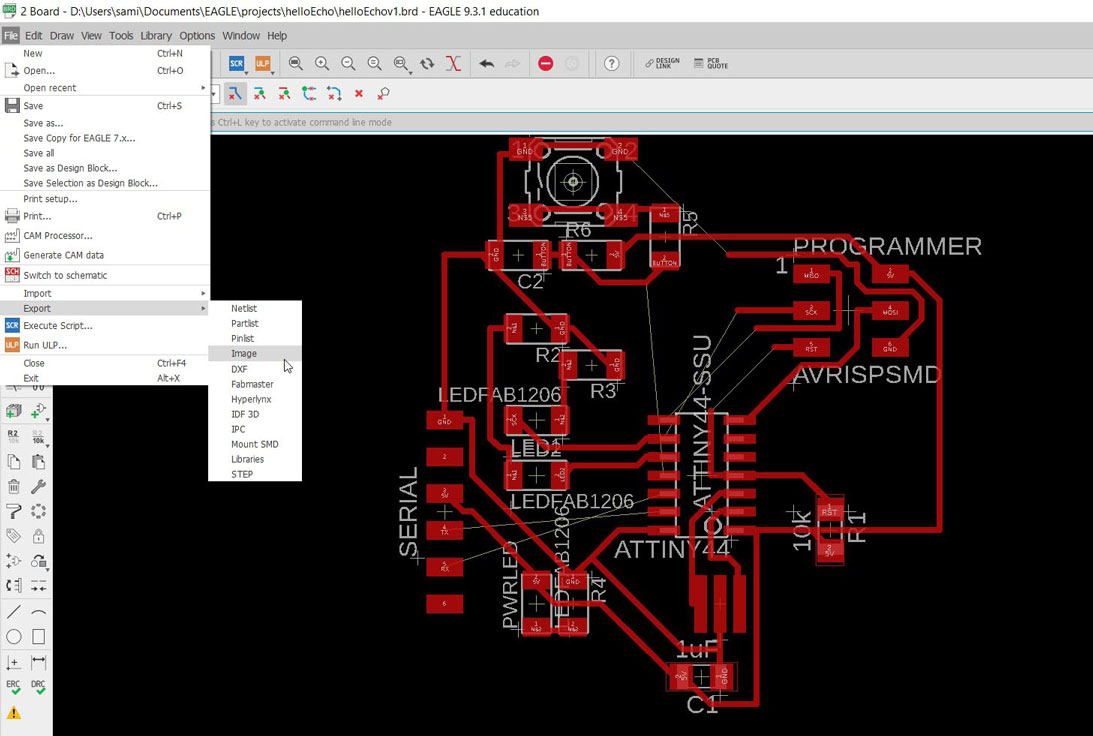

    Exporting your PCB

    Eagle has many Export options, but none of them are quite refined. You have to do manual graphics manipulation to get a workable PNG file from a design. For that I started to explore a bit into Eagle Automation Scripts to find a lazier way to export PCBs

    Eagle export options

    Eagle Automation Script

    Eagle scripts are text files with eagle commands. You can use them for automating tasts such as changing the width of all traces on a board, changing board size or drawing specific pattern.

    How to use Eagle Scripts

    • Simply create a text file and open with your preferred text editor, I am using Visual Studio Code.
    • Write your script and save your file. After you're done, just change the extension to .scr
    • Save this file on your Eagle User directory, for windows users, it is usually at /Documents/Eagle/Scripts
    • Click on File, Execute Script, Browse to your script to run it.

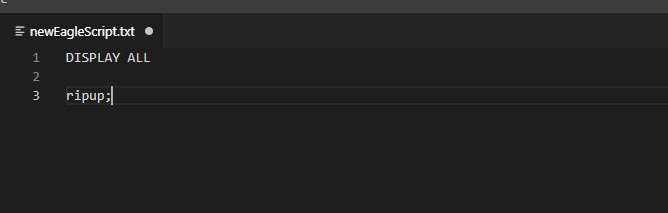

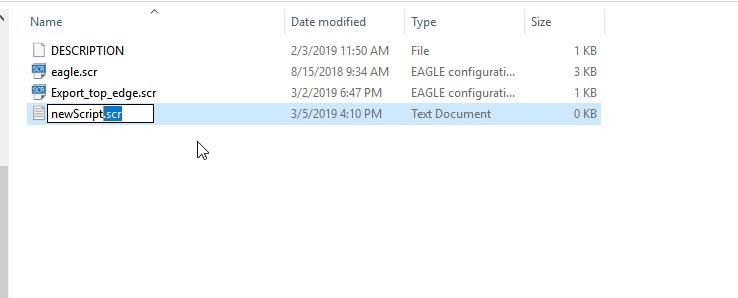

    Creating a new Script
    Example Script that rips up all traces

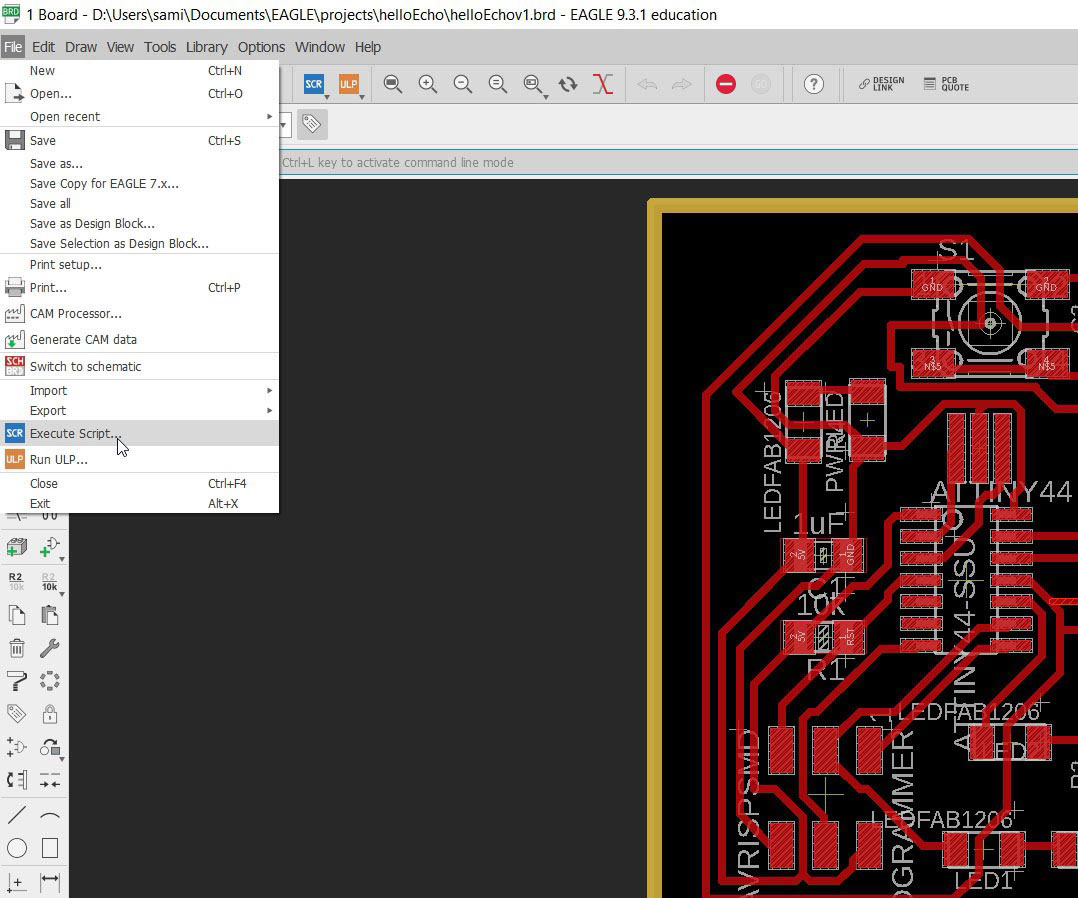

    Executing an Eagle Script

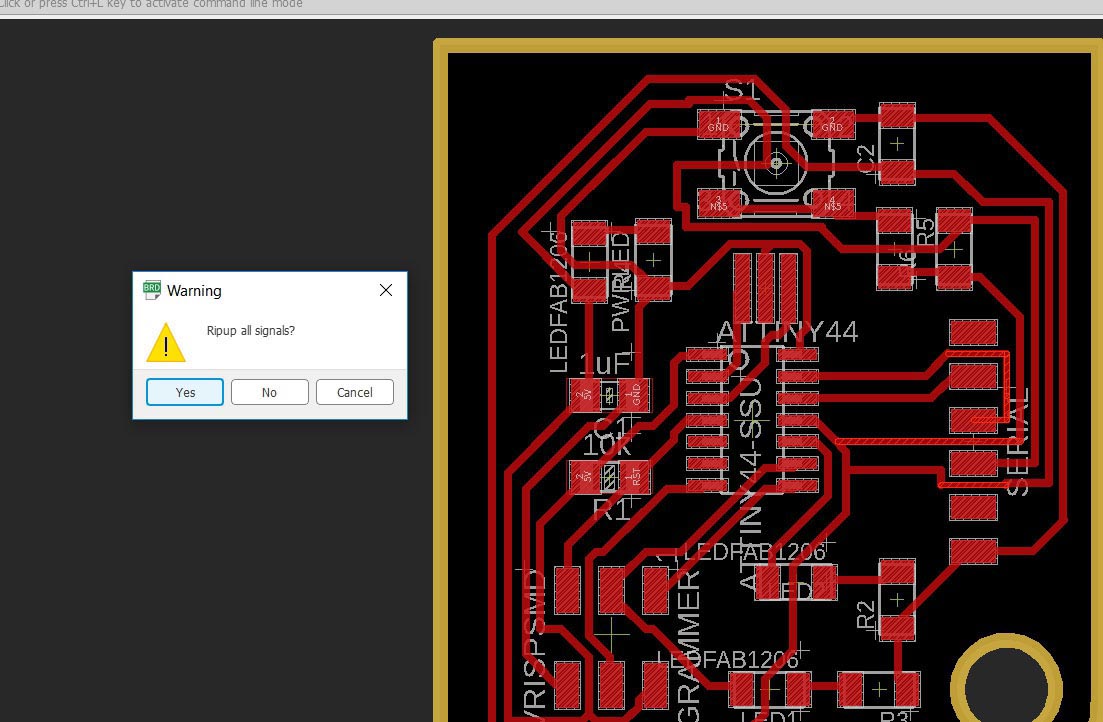

    Ripup Script Output

    More on Eagle Scripts

    More info on Eagle Scripts can be found in Eagle's built in Documentation. Click on Help>General Help> Editor Commands

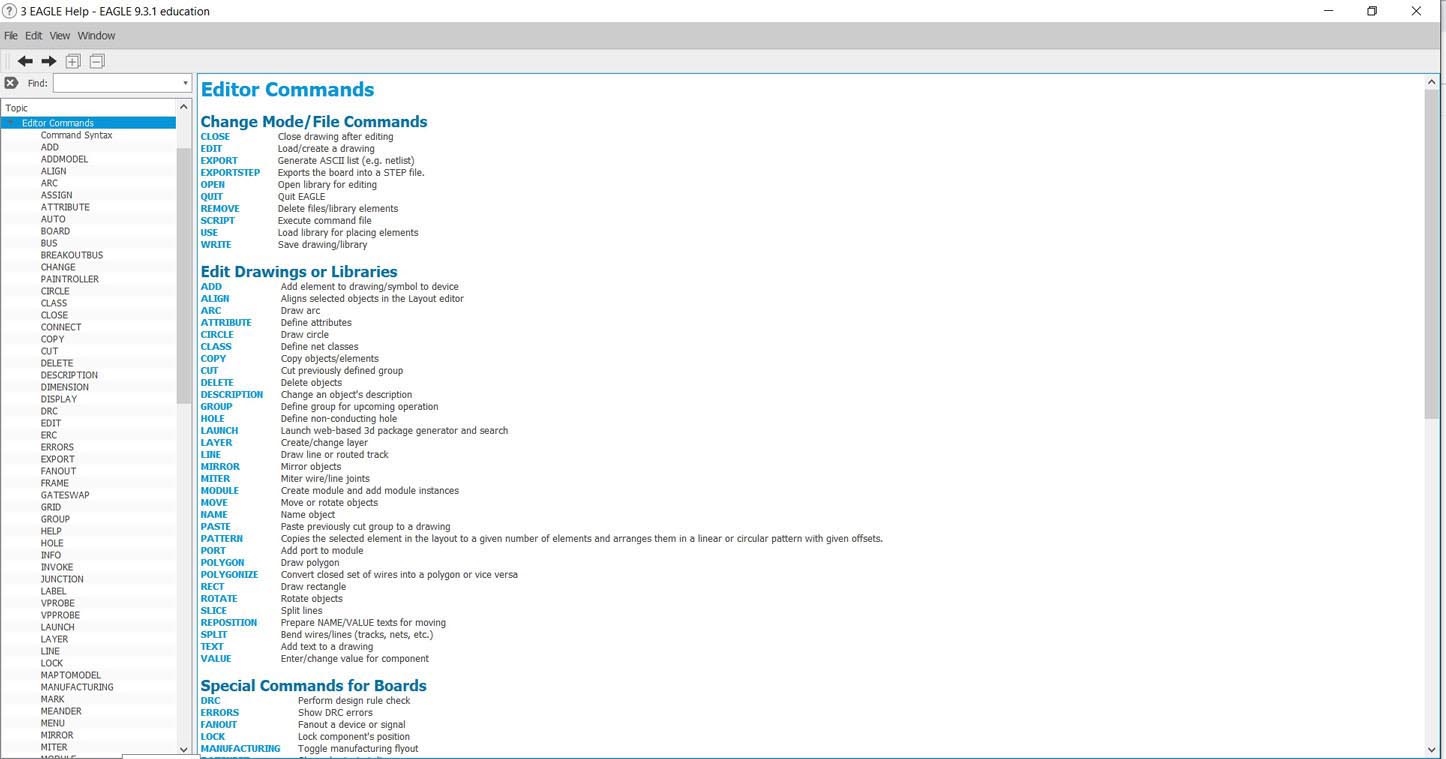

    Eagle Command Lines

    The One Click PCB export Script

    After a bit of experimenting, I wrote a one click method to export PCBs from Eagle. This script works for single layer layer boards with the board border drawn on the Dimension layer. Change the directory of your exports accordingly and it should work.
     DISPLAY ALL
     RATSNEST
     DISPLAY None
     DISPLAY Top Pads
     set palette white;
     EXPORT IMAGE D:\pcb_top.png MONOCHROME 1200;
     DISPLAY None
     DISPLAY Dimension
     EXPORT IMAGE D:\pcb_bottom.png MONOCHROME 800;
     DISPLAY ALL
     set palette black;

    Download script

    Script Output

    Board file

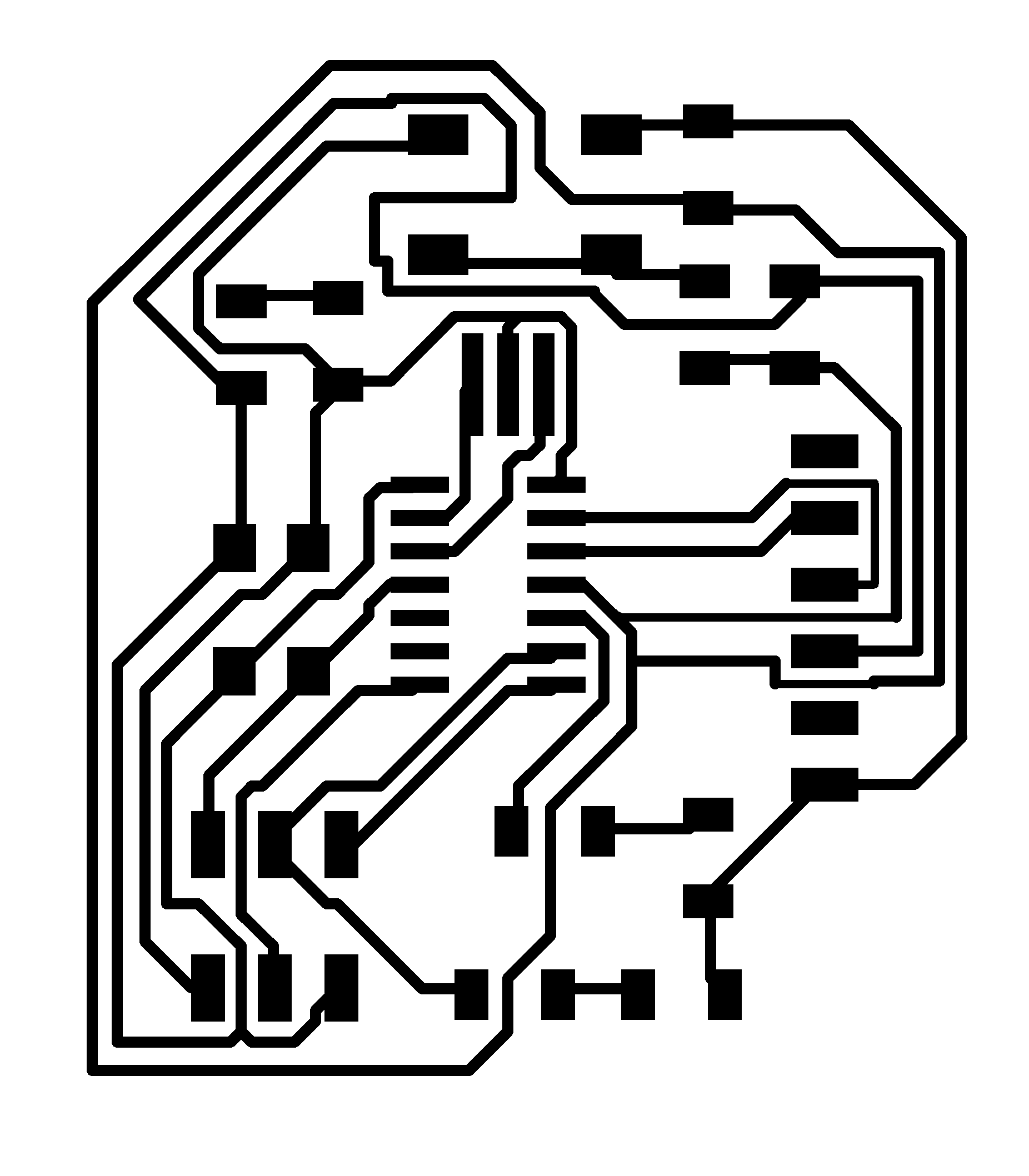

    Exported Top Traces

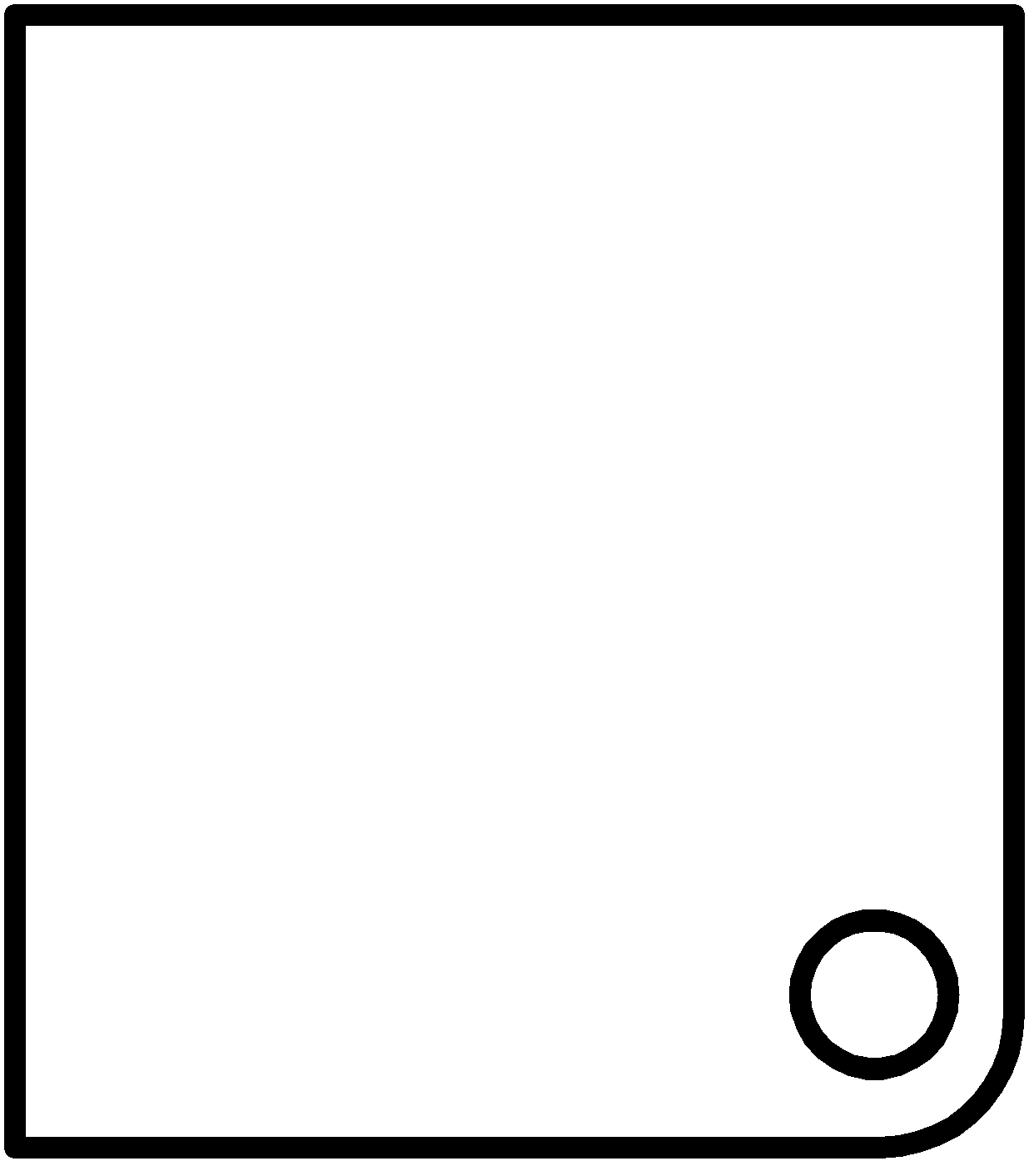

    Exported Board Outline
    My eagle project folder can be downloaded from here. HelloEcho.zip

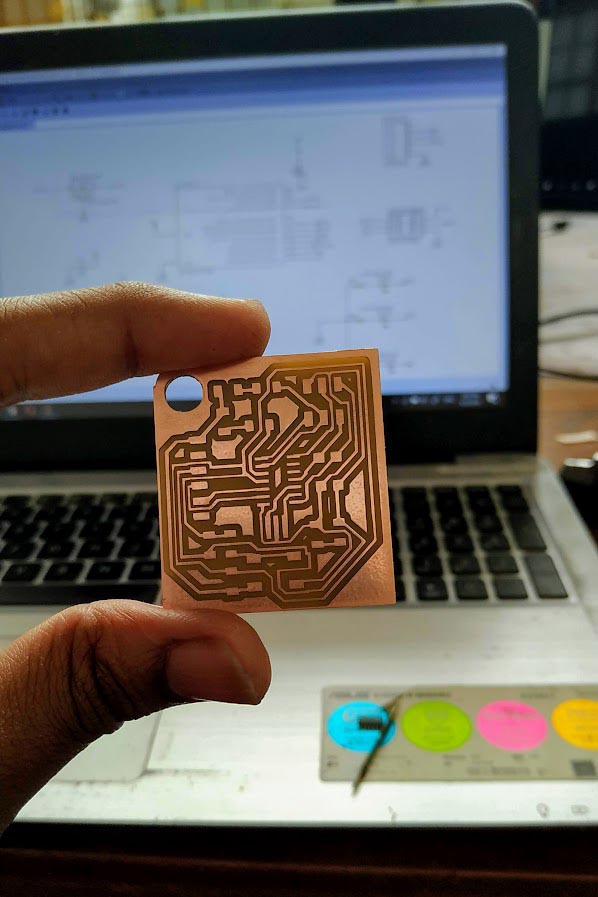

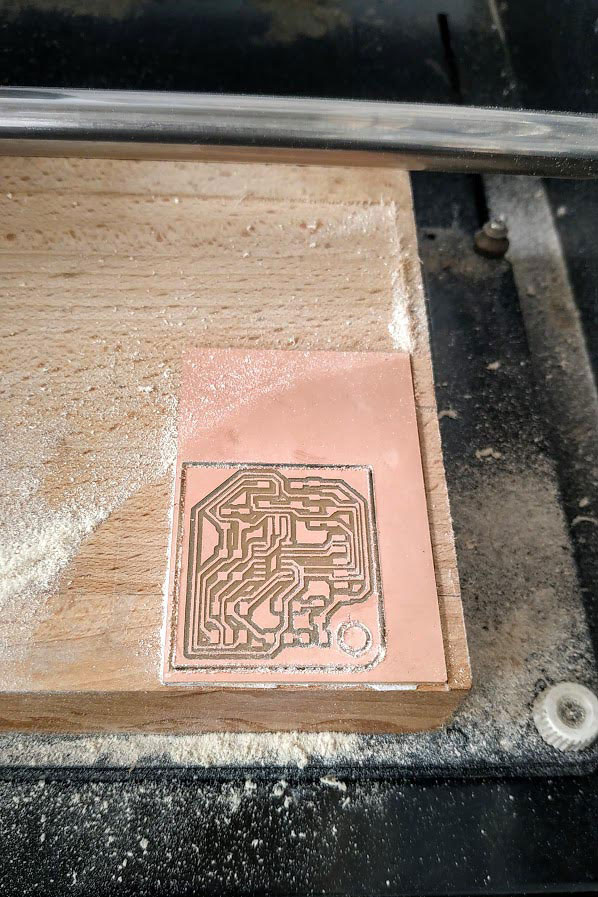

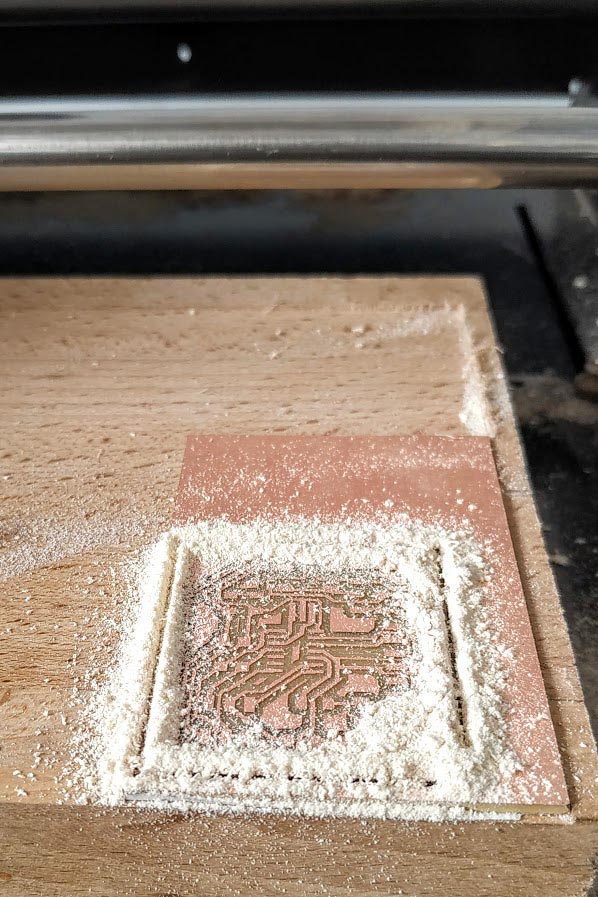

    6. Milling

    I used our trusty old MDX-20 to mill out our board. I used Fab modules to generate the toolpath and to send it to the machine. More documentation found on milling can be found on my Electronics production week, specifically here .

    The settings I used to mill this board were as follows:

    Traces (1/64)

    • cut speed: 4
    • cut depth(mm): 0.1
    • tool diameter(mm): 0.4
    • number of offsets: 4
    • [This is the number of offset cuts there will be outside the copper trace, increase this to remove more excess copper. -1 will remove copper from the board completely except the traces.]
    • offset overlap(%): 50
    • path error(pixels): 1.1

    Outlines (1/32)

    And these are the Settings for PCB outlines,
    • cut speed: 4
    • cut depth(mm): 0.6
    • Stock Thickness(mm): 1.7
    • tool diameter(mm): 0.4
    • number of offsets: 1
    • offset overlap(%): 50
    • path error(pixels): 1.1
    • image threshhold: .5

    7. Component Collection

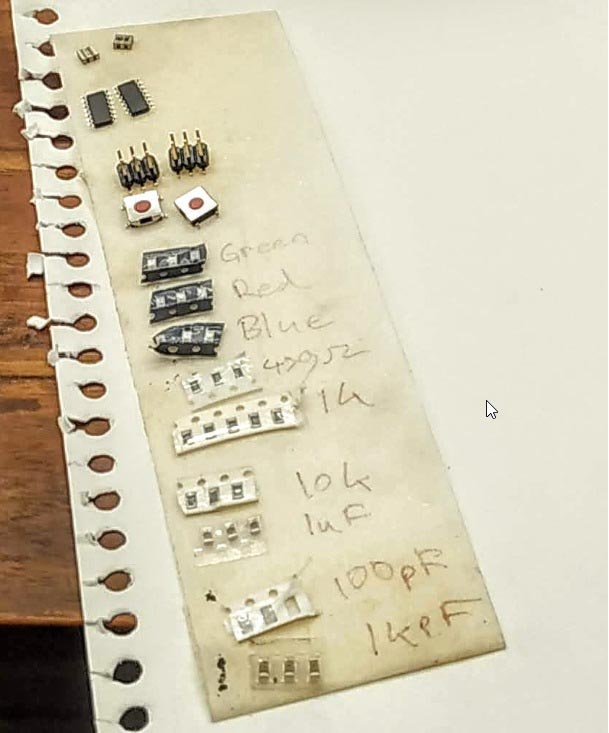

    I like to collect my SMD components in masking tape. It makes it easier to collect and document as well. For this board, I made my parts list and went on to collecting the components.





    Name Quantity
    ATTINY44 x1
    Resonator 20Mhz x1
    1uF ceramic capacitor x1
    0.1uF ceramic capacitor x1
    10k Resistor x2
    1k Resistor x4
    Red 1206 LED x1
    Green 1206 LED x1
    Blue 1206 LED x1
    6Pin Double headers for ISP x1
    6Pin FTDI Connector x1

    8. Soldering

    With my component collection done, I was ready to solder. I prepared with all the necessary tools and it took about 30 minutes to solder the whole board.

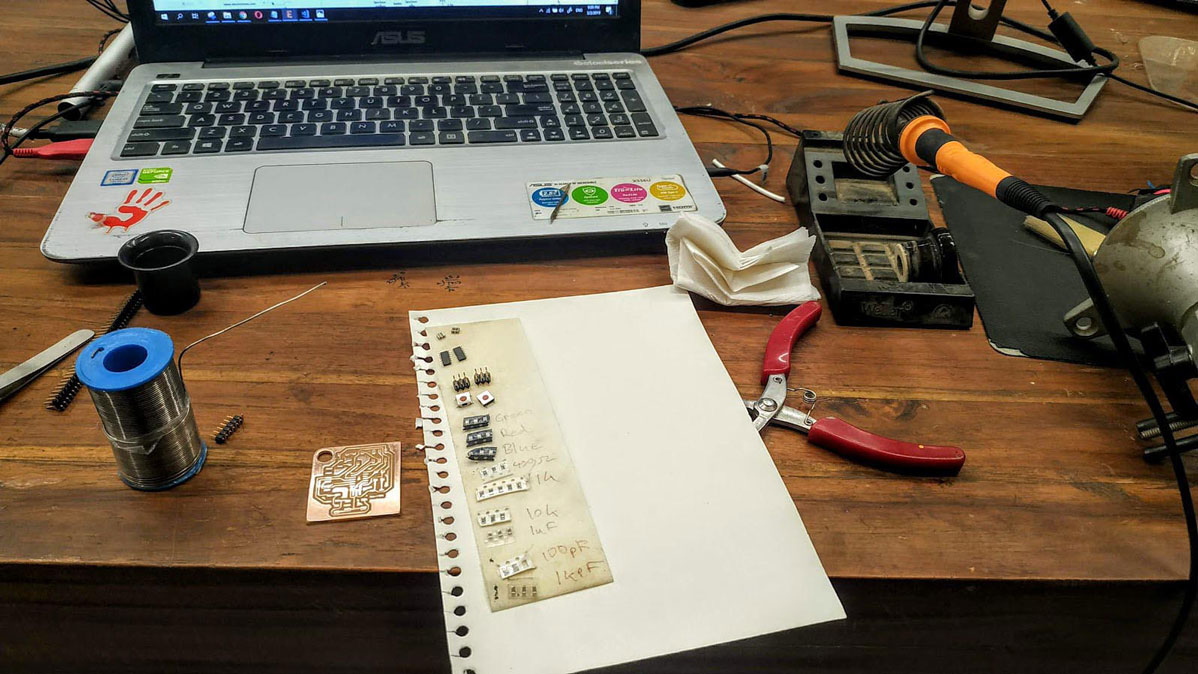

    Soldering Preperation

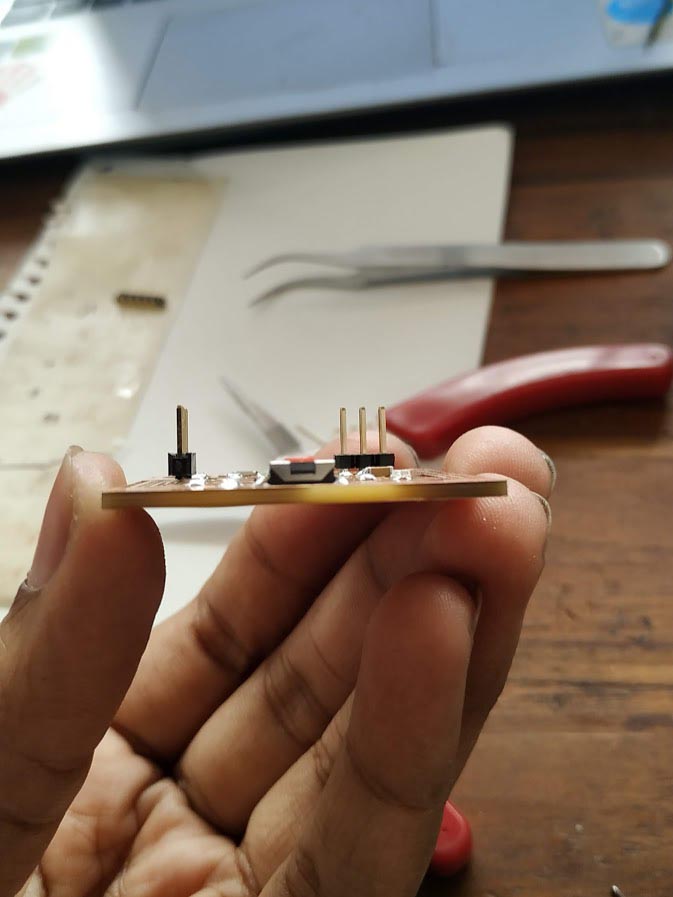

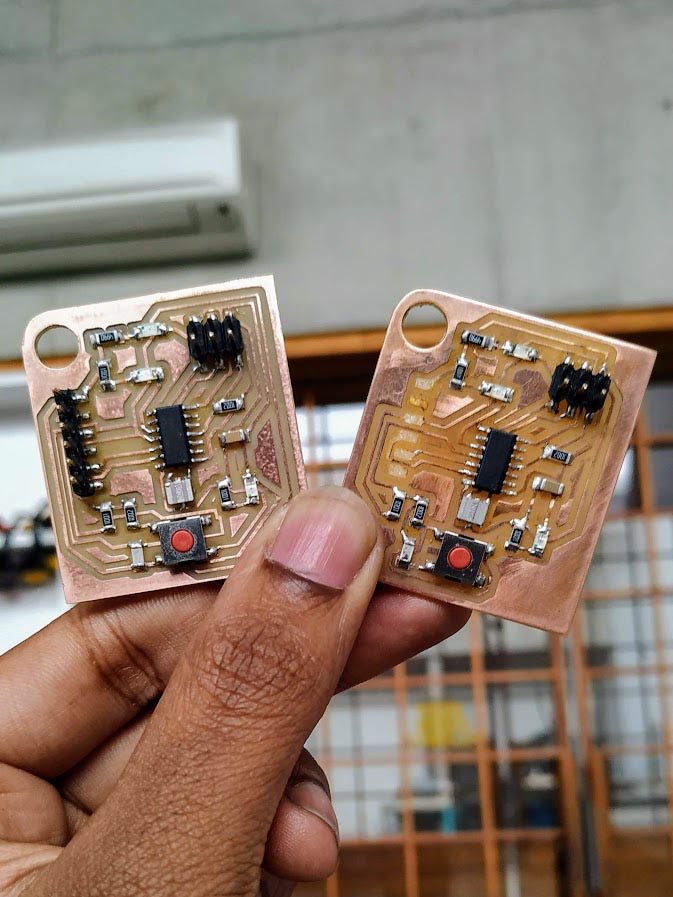

    Soldered Board
    Soldered Board
    Two of my boards, because I ripped off the FTDI connector from one

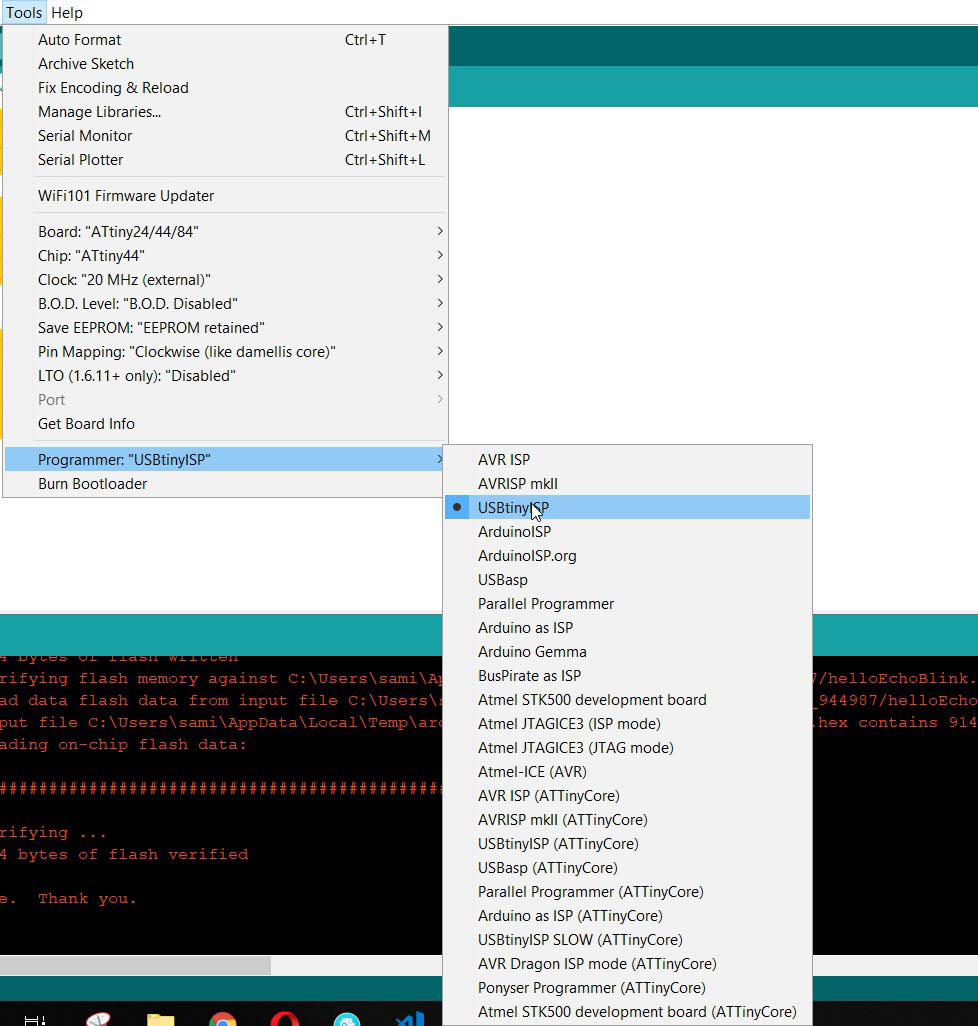

    9. Programming

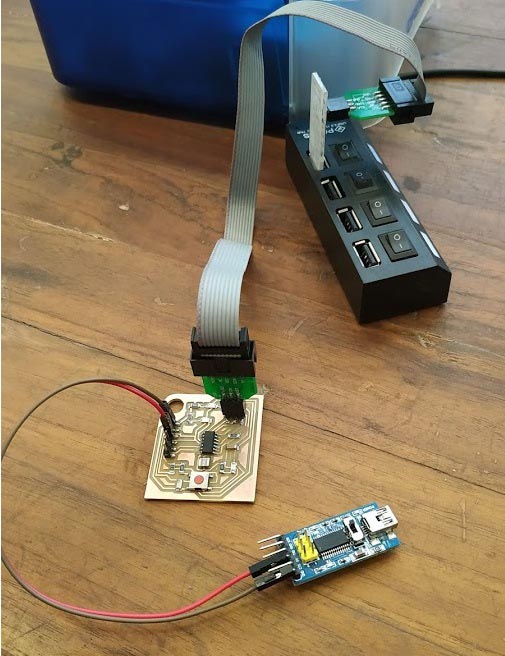

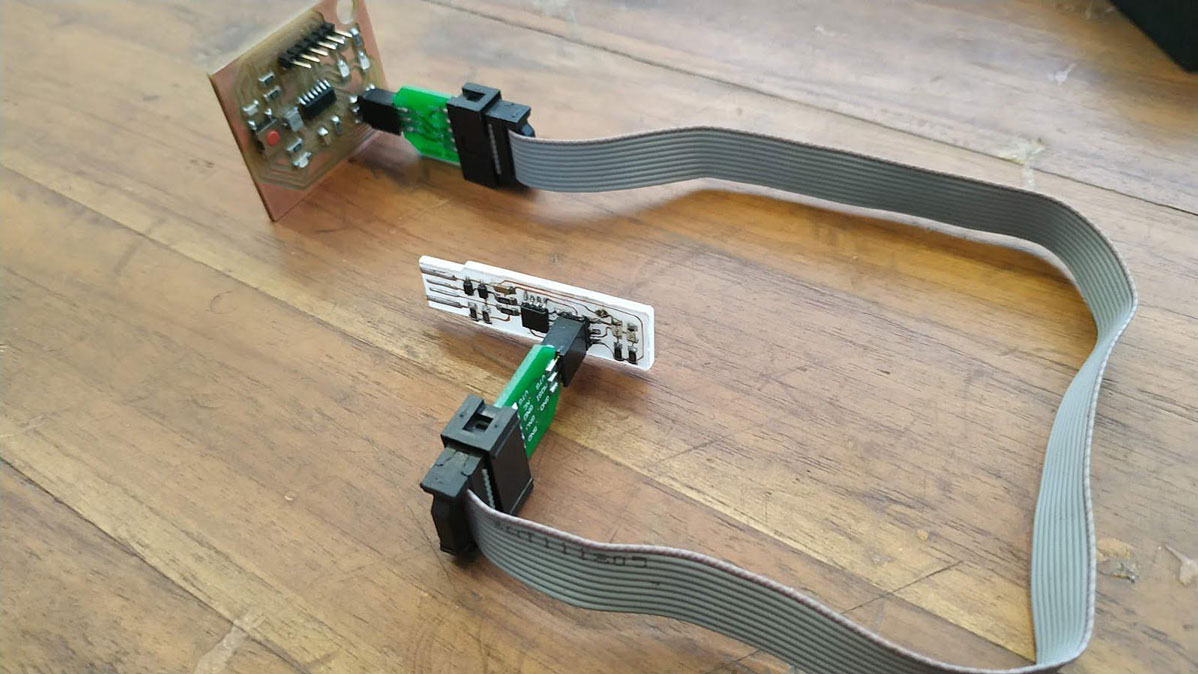

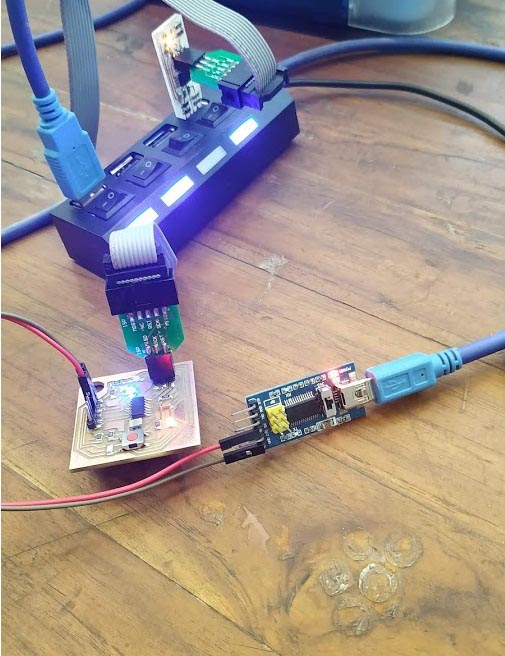

    To program the board I will be using the Arduino IDE and my FABISP to upload it. I will be powering my circuit using an FTDI Module as a power source.

    Installing Arduino

    Arduino can be downloaded free from the official website here. Installing it is very straight forward.

    Adding TinyCore (support for ATTiny MCU Series to Arduino)

    To program the ATTINY microcontroller family using Arduino, I will be using ATTinyCore, which is an Arduino core for ATtiny 1634, 828, x313, x4, x41, x5, x61, x7 and x8 series of microntrollers. The installation instructions are given on the github page and I just followed the Instructions for the Boards Manager Installation Method.

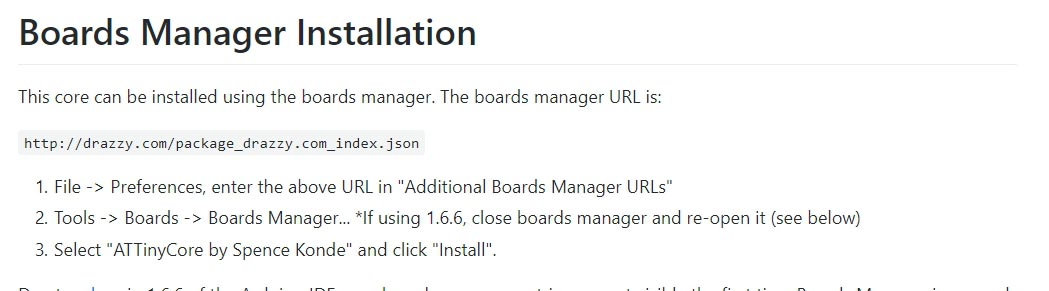

    TinyCore Installation

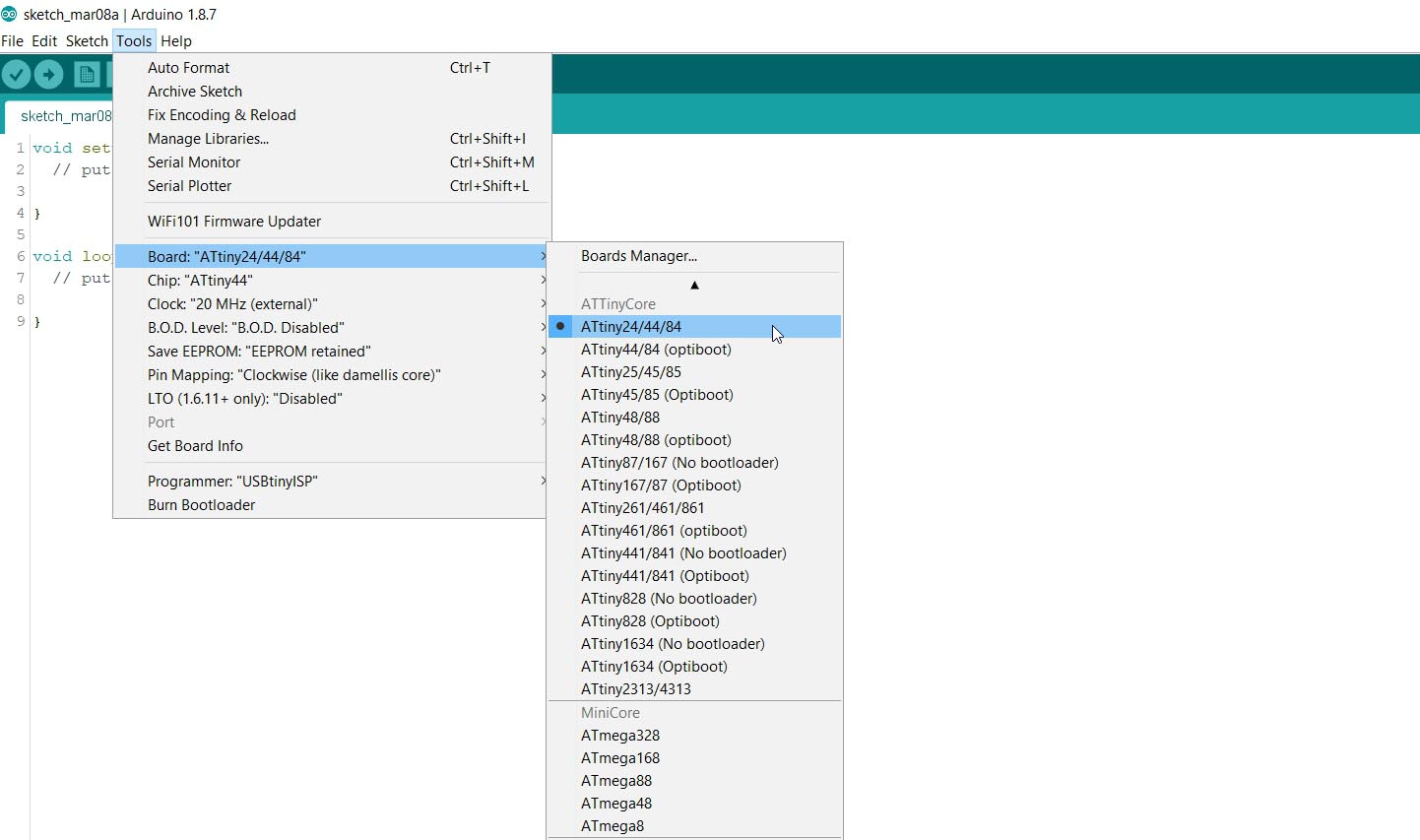

    If all went right, your arduino should have the ATTiny Core listed on your boards list.

    Adding more LEDs to the mix

    Then I tried blinking the other LED as well. But with a different delay.

    Output:

    Pushbutton Code

    On this code, I added the a pushbutton input as a logic to blink different LEDs.

    Output:

    10. Diffuclties Faced

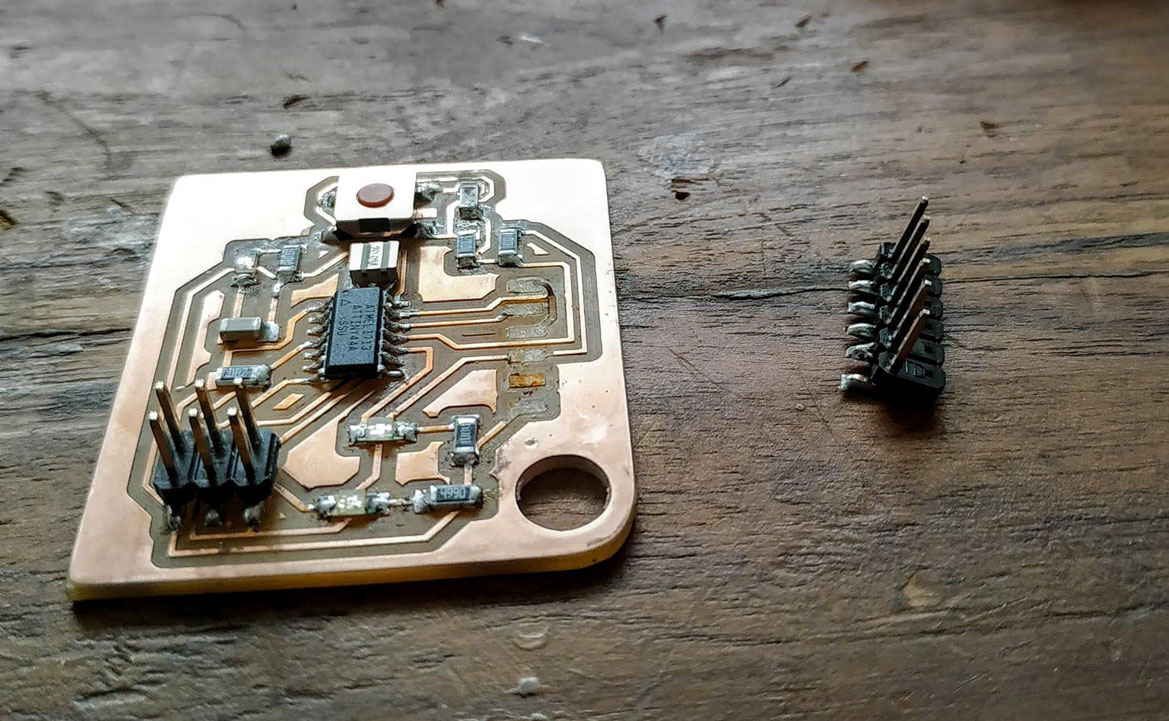

    Ripped out FTDI Connector

    I ripped off my FTDI connector on my first board during plugging out the FTDI connector. I used a different FTDI module later to upload my code from which I only took the 5v and GND.

    FTDI connector ripped off

    11. Learning Outcomes

    Since I already had some experience with electronics, I got the chance to explore much further into Eagle.

    • I learnt about Eagle automation Scripts and ULP and made a one click script to export PCBs as PNG files.
    • I learnt why Brian's FabISP had a power isolation on the programming pins, and I used an FTDI cable to supply power to my whole circuit.
    • I learnt how to make modular Eagle Schematics, which came in handy later during my board design.

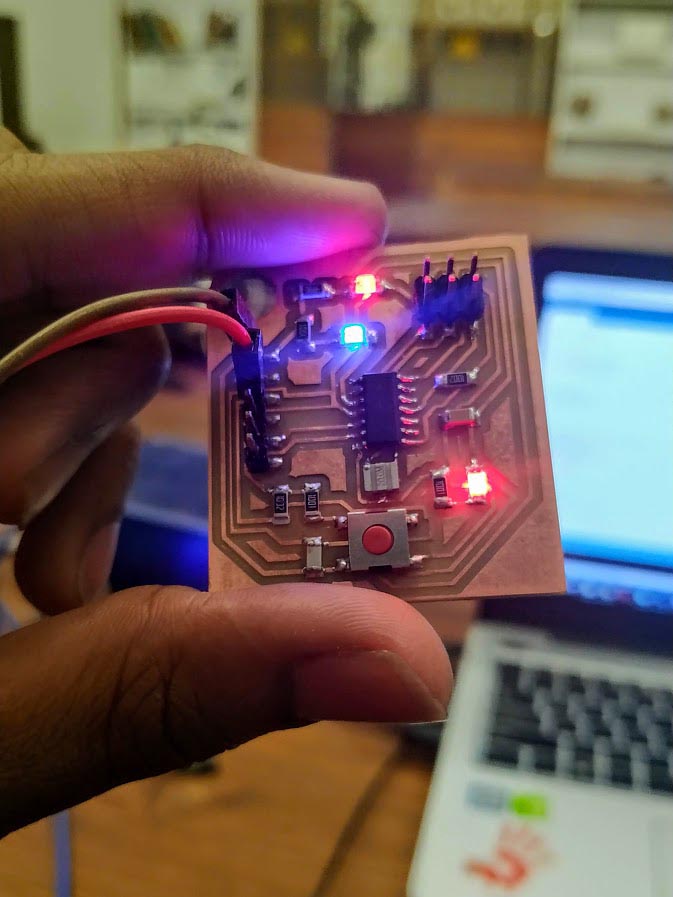

    12. Hero Shots

    Downloads:

    Neil's Hello Echo Firmware

    .ino

    My One Click Image Export Script

    .scr

    My eagle Project:

    .zip

    Test Code 1: Blinking 1 LED

    .ino

    Test Code 2: Blinking 2 LEDs

    .ino

    Test Code 3: Pushbutton+LEDs blinking

    .ino

    Learning Outcomes

    • I explored how Neil Wrote his hello echo firmware in C
    • I already knew how to use eagle, I just explored a bit into the new library manager of Eagle.
    • I used my Fab ISP to program my helloEcho boards, both of them worked on the first go.

    What I need to explore:

    • I need to learn kiCAD. I didn't have much time this week, so I couldn't explore much of it.
