1. Individual assignment:
Machine:

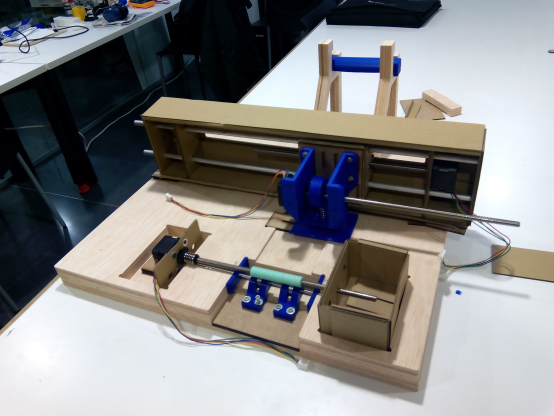

We design and build a machine that cut the Sheet music box.
I helped in the idea, design, building and the other process of our machine.
Then I will tell you what parts I have done among others.

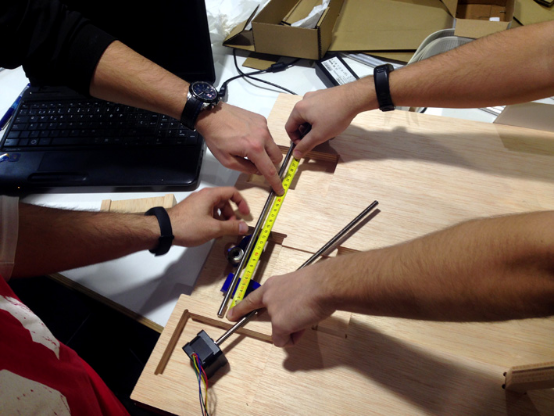

1. Cut of smooth stainless steel rod:
We needed a stainless steel rod to put the balls bearings to guide the paper. this element had to be in the anterior part of the machine. We had a problem with the size because it bothered to put the engine in place and we had to cut 21 cm with the longbow.

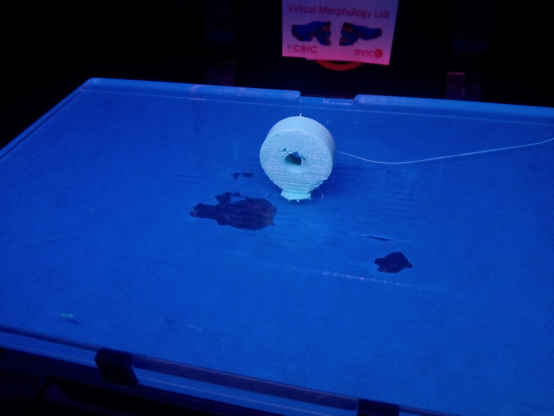

2. Print of elastic coating:
To guide the role of the machine we needed an elastic component to don't damage the paper. We decided to print a cylinder with filaflex. We realized several tests for print in 3D with elastic material. Finally, we get to do a elastic coating that will fit right and the right size.

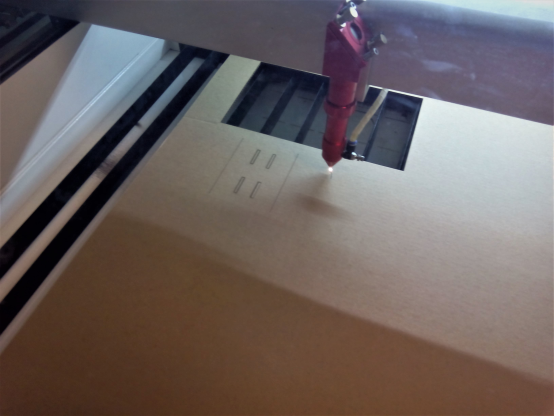

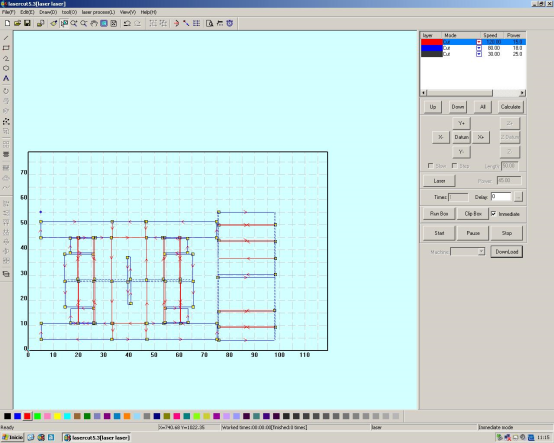

3. Cut in the laser machine
Also I helped to design and cut the files of the stages
