Portable and Efficient
Small PCBs ~ Big Solutions
Great for fast prototyping and workshops. Aligned with Fab Academy prototyping paradigm and to avoid "breadboarding"!


Design Ideas / Premises

  1. Just for PCB's;
  2. XY precision;
  3. Zcut with calibrated through hand-controlled bolt;
  4. safe Z activated with solenoid;

Machine Design and Building Process

  1. Tasks:

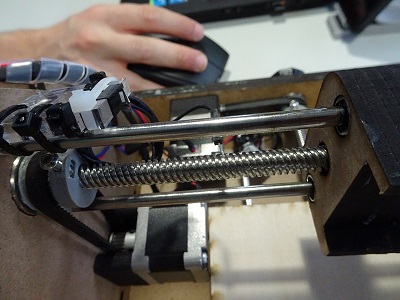

    1. Machine Body and XY actuators - Filipe Silvestre
    2. Spindle with Integrated Z actuator (through Solenoid) - André Rocha

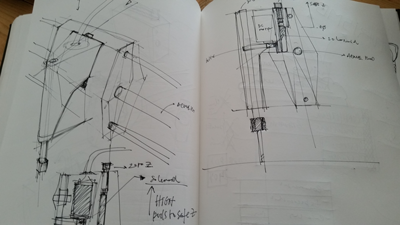

  2. Sketches
  3. dev album
  4. 3D design

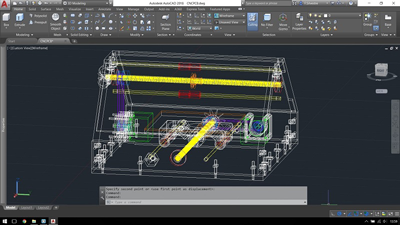

    1. CAD
    2. DOWNLOAD CAD

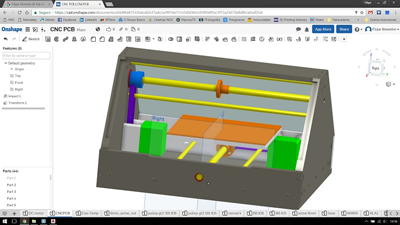

    3. OnShape
    4. ONSHAPE MODELS

  5. Achievements:
    1. Great Skecth for machine design, very practical and easy to assemble

    2. fast production with laser cutter by João Ribeiro

  6. Not Achieved....... yet:
    1. Great Skecth for machine design, very practical and easy to assemble
    2. fast production with laser cutter

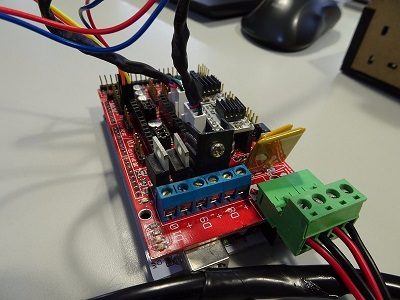

Electronics

  1. under dev;

  2. First GERBALINO try went to deep on the pcb.... We pretty are sure our machine will do a better job!!!;
  3. GERBALINO DOCUMENTATION
