Understanding output devices

A machine which can be programmed to provide some or the other form of output which consist of different trypes of outputs like display, mechanical motion, thermal output (Heating), Sound output (Speaker)

As a mechanical engineer I alwasy wanted to know how these stepper motors works. A stepper motor which can be programmed to control accurate and precise motion. I saw stepper motor being used in some of the robots kept at the exibhition. So I have decided to run stepper motor.

Steppr motor

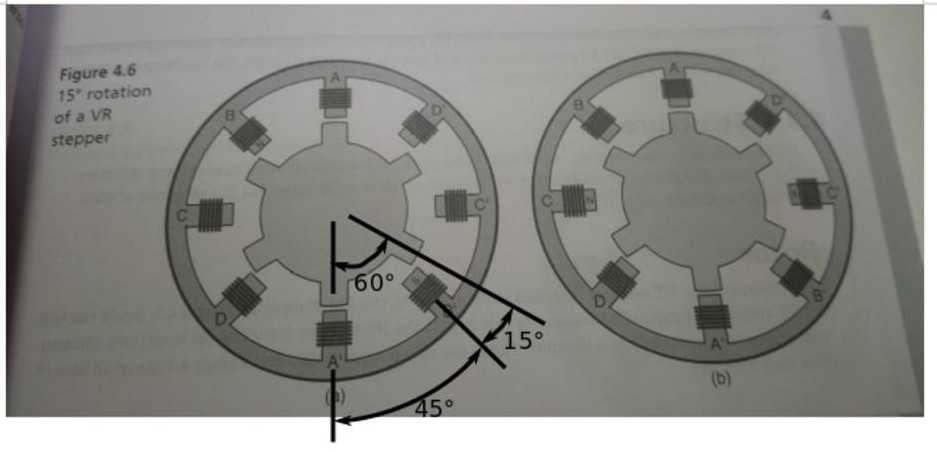

Image shows basic principle of stepper motor. If we programmatically make on A-A', B-B' and C-C' in sequence then stator will rotate by 15 degree after each sequence

This is a basic working of stepper motor. Currently available motor differs in a way where step angle is 1.8 degree

Recipe

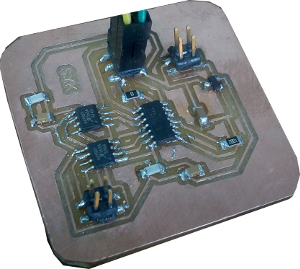

Steppr Board

Stepper Motor : TRINAMIC QSH4218-51-10-049

Step angle : 1.8°

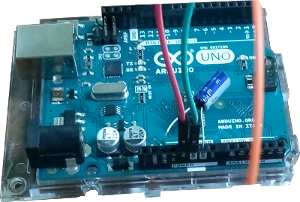

Arduino UNO

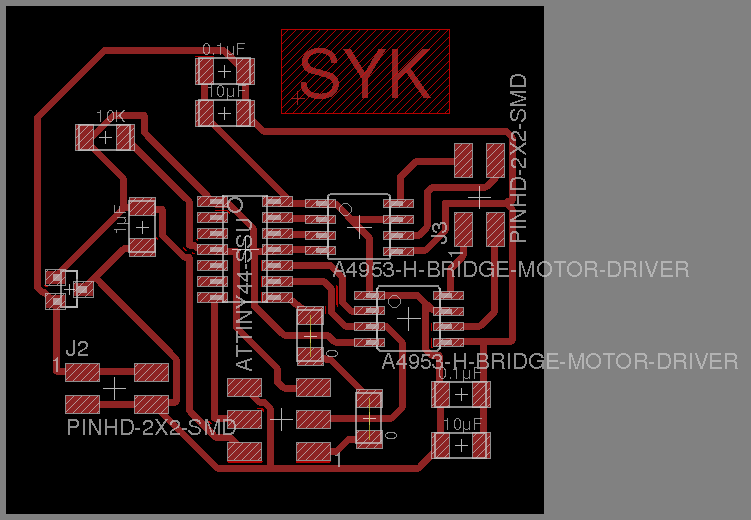

Board Layout

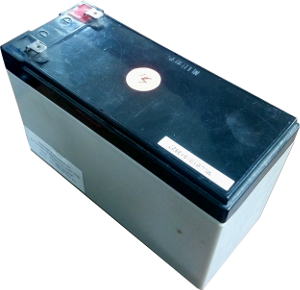

12 V Battery

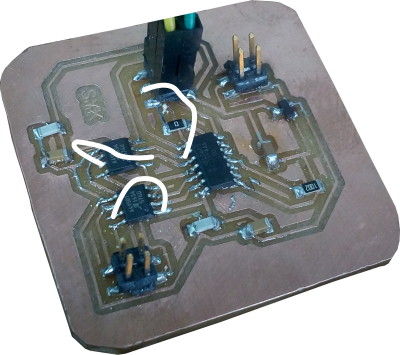

Board modified to connect missing connections

Connecting things

After making my board ready I tried several hours to program it using Arduino and finally figured out the cause of problem. I have checked board layout and found that

Ground was not connected to LSS pin of A4953

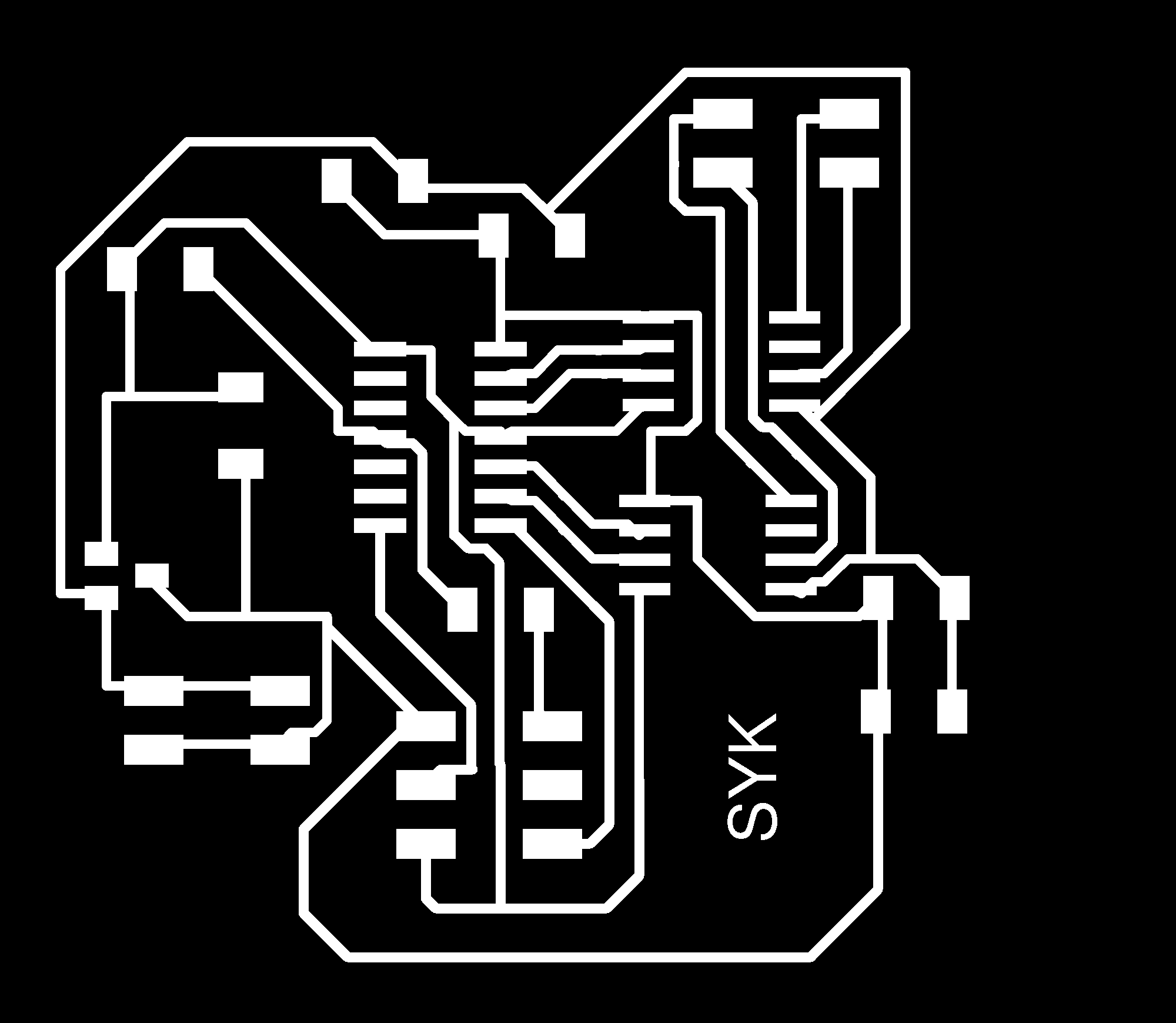

Files for download

StepperBoard.brd StepperBoard.sch

These designed are modified designs. All missing connections are connected

Final Board

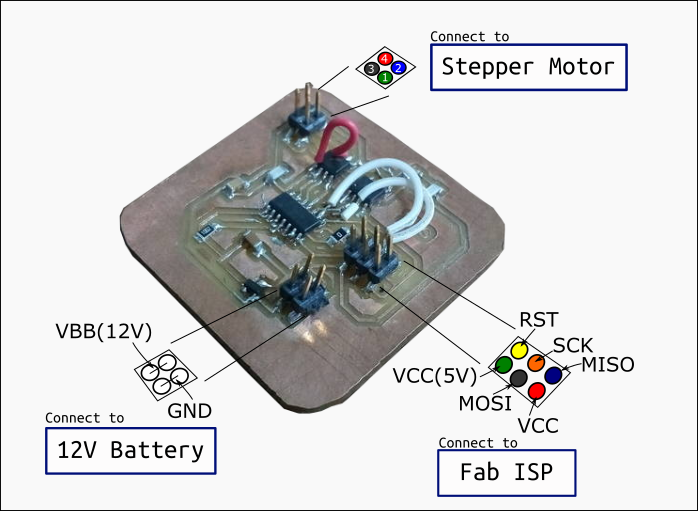

How its connected

Everything is connected as shown in below sketch

How its programmed?

Below are c and make files which I had successfully written on attiny 44

Program Files

hello.stepper.bipolar.44.full.c hello.stepper.bipolar.44.full.make

Steps

make -f hello.stepper.bipolar.44.full.c

make -f hello.stepper.bipolar.44.full.make

for detailed steps check Week 8 | Embeded programming | March 15

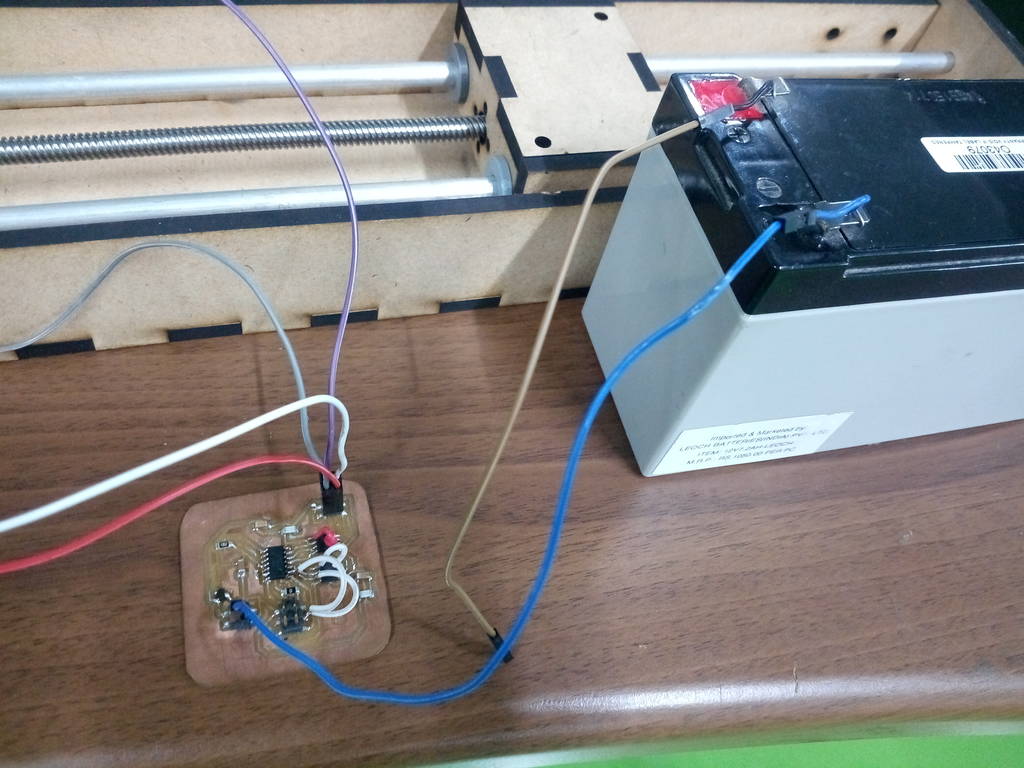

Connected to MTM as a trial

After I had done with programming. I had powered this board using 12 v battery and connected to MTM which we were making.

This what is the result

Stepper motor wasnt working as expected. Instead it was jerking heavily. There was something wrong

This noise is coming from lead screw. When lead screw rotates back and forth with jerks it creates hammering effect on box nut which creates this noise

Learnings

After everything was connected. I had burned a program. But still there was something which is causing motor to contineously vibrate and it was not providing correct output as expected.

This was due to the fact that I have connected wires incorrectly.

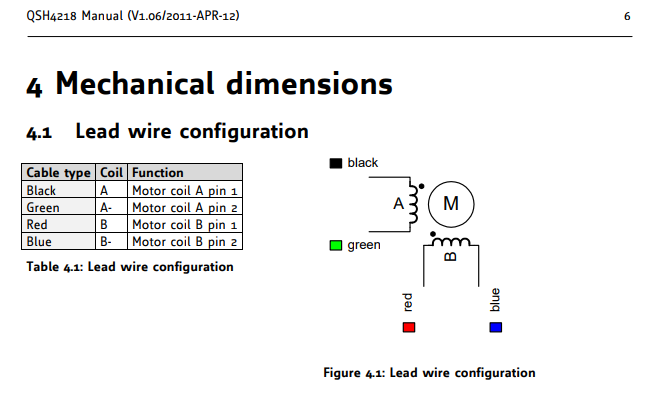

Black, Green, Red and Blue wires of stepper motors are required to be connected correctly. To understand this I have referred to datasheet of Motor
