Cooler-Freezer bodies

Freezer design Freezer internal compartment - Composites - link to weekly assignment Cooler design - making frames and insulation blocks

Freezer design

The freezer design takes in consideration the volume specification and the thermal group size. I made the design according to the first thermal group hypothesys (see Mold and cast assignement) and kept this solution even though the thermal group layout changed.

Freezer internal compartment - Composites - link to weekly assignment

Making of the freezer becomes the assignment of lecture 14.
Here's the link.

Cooler design - making frames and insulation blocks

The result.

The freezer from composites

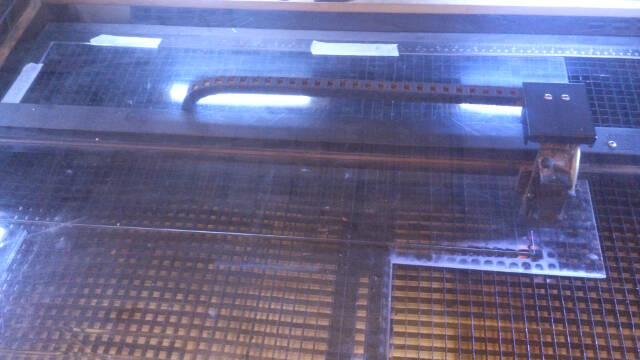

Internal partitions in plexiglass

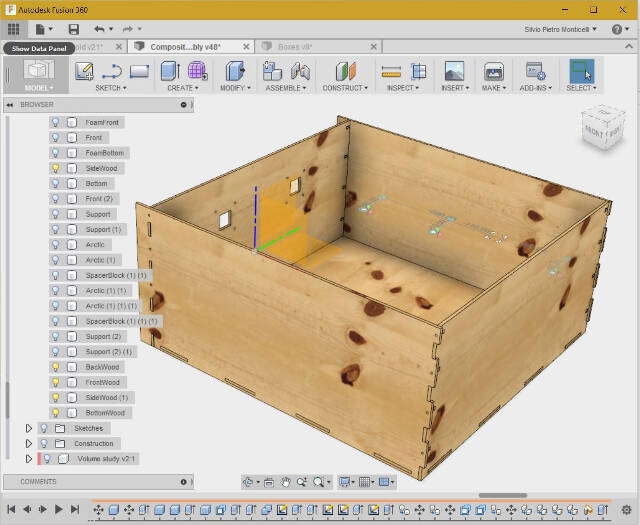

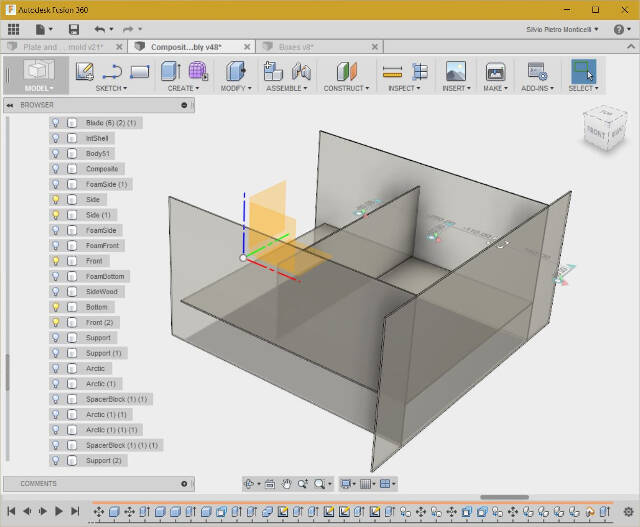

Overview and CAM

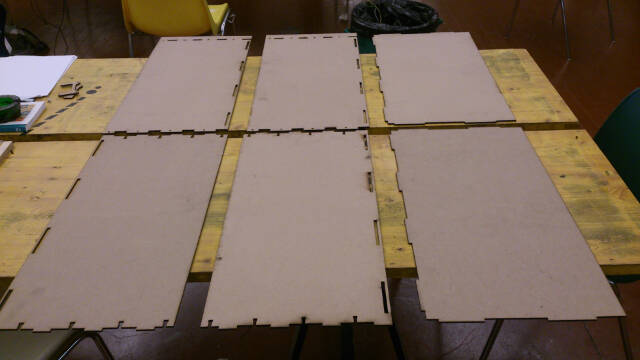

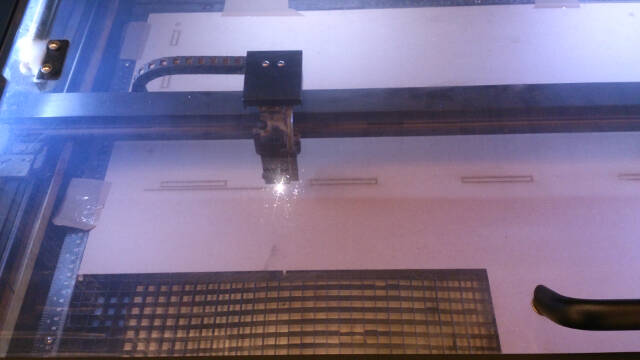

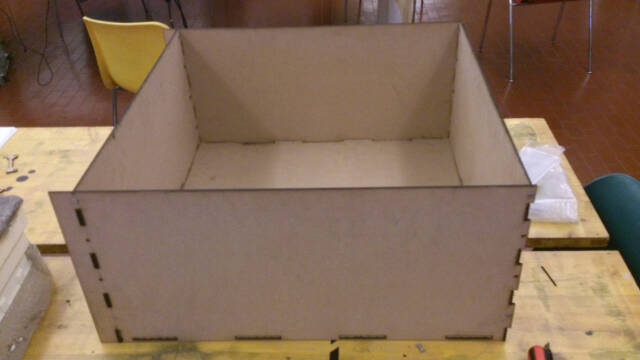

External casing in plywood

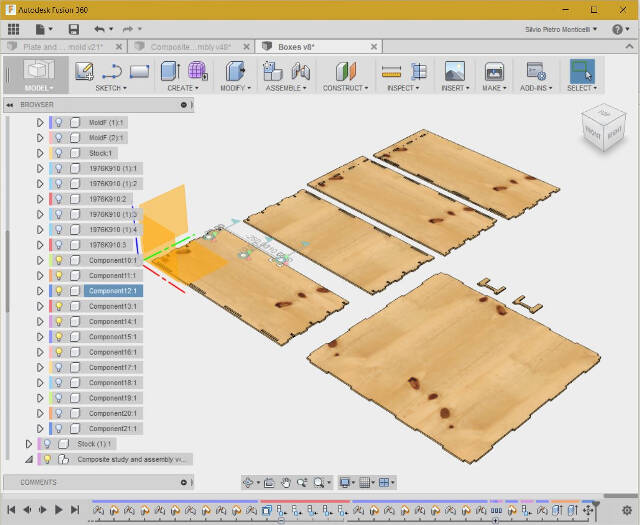

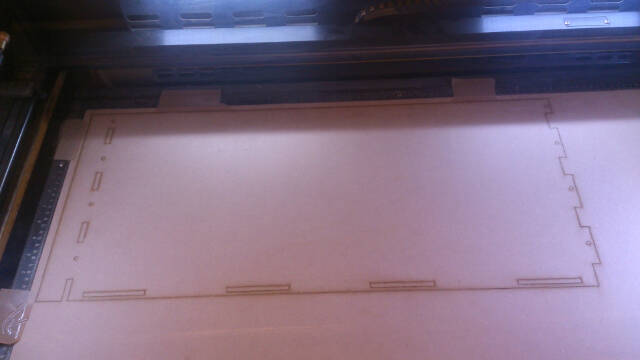

Overview and CAM

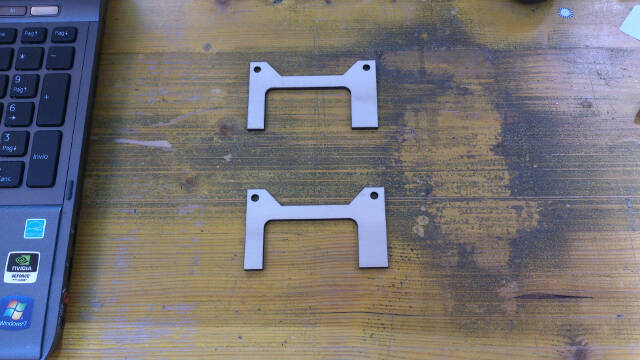

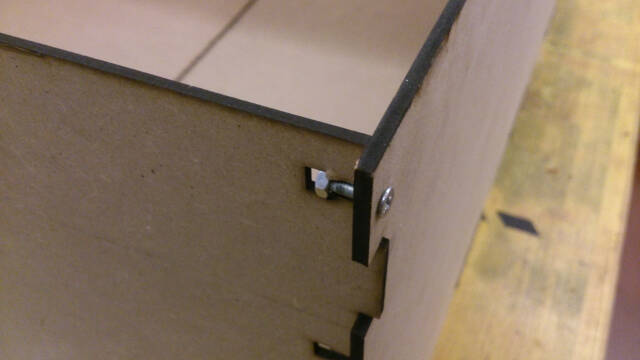

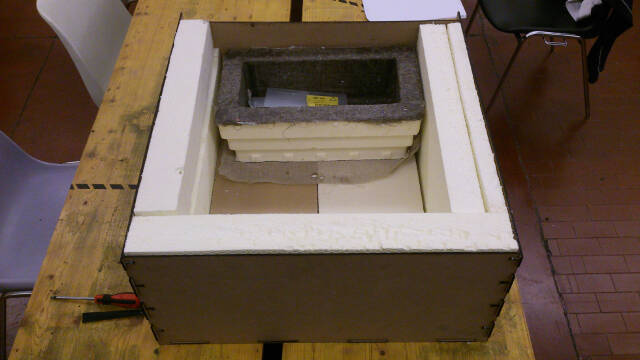

Coller box assembly and cooler fan supports

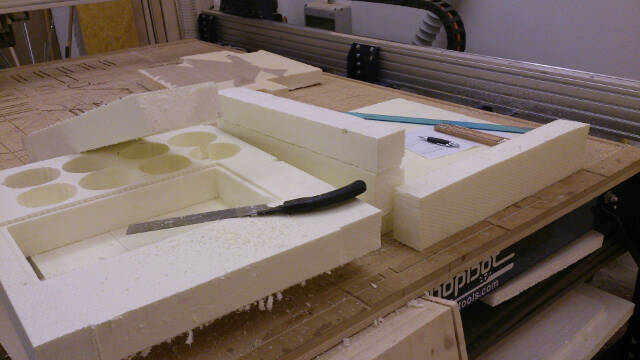

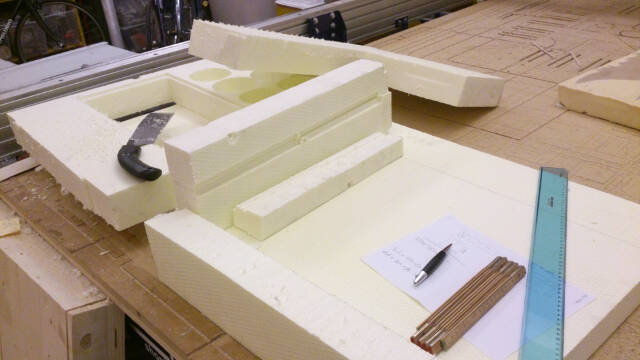

Insulation in rigid polyurethane foam

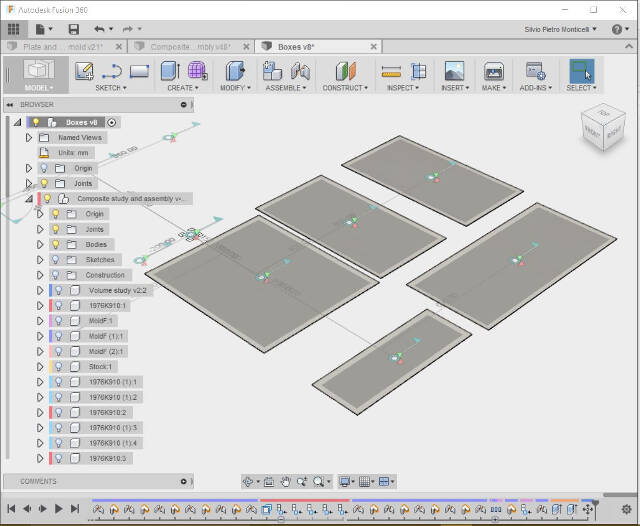

Overview and CAM design
