14. Composites

CAM

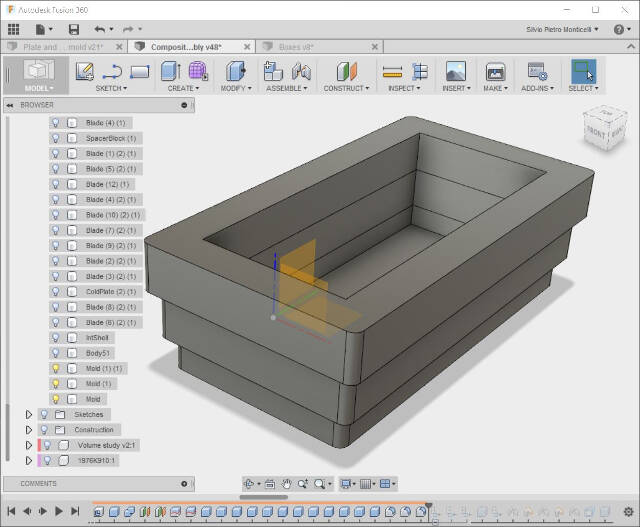

Getting parts ready for CAM process.

Milling simulation

Like alaready shown in assignement 12 we can visulaize in Fusion 360 the milling process and the relevant ste of steps

Part facing to prepare the raw stock for further machining

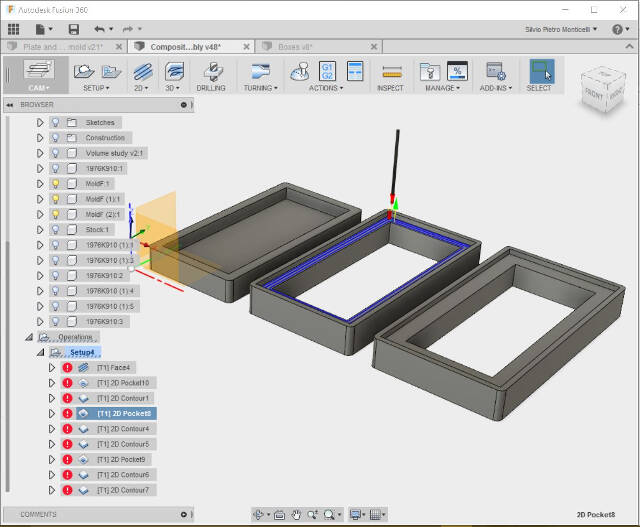

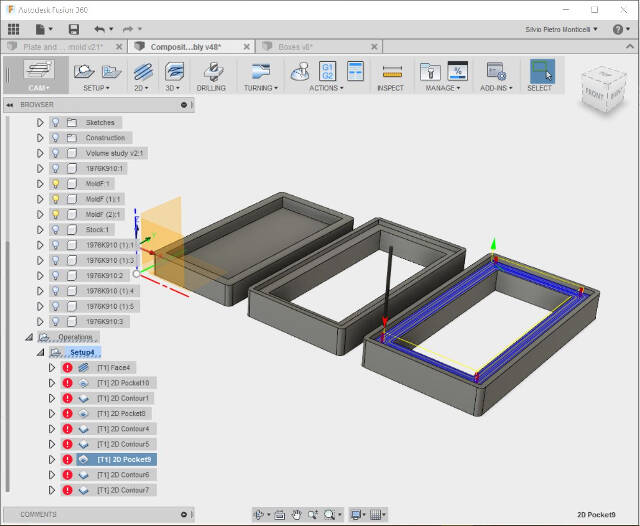

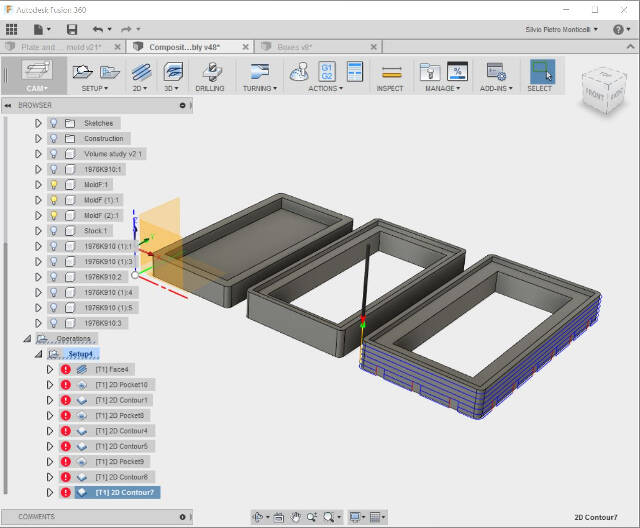

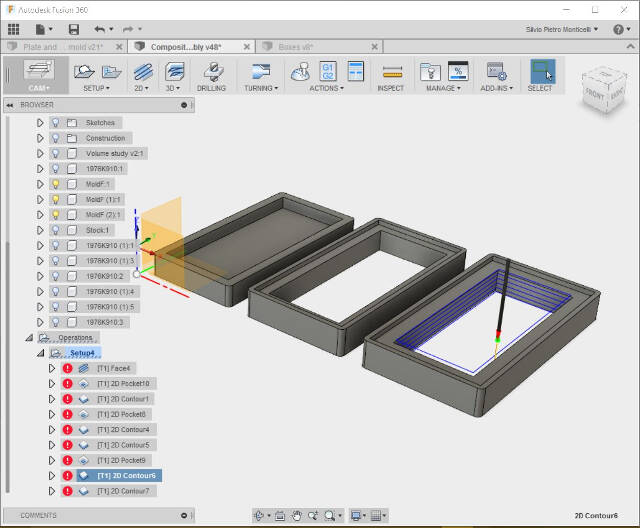

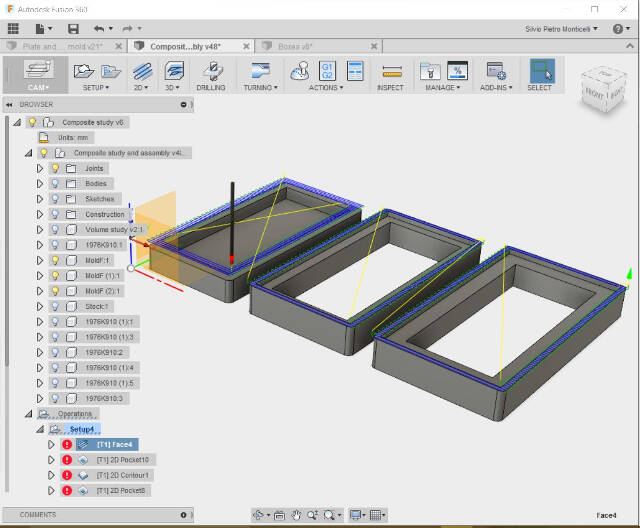

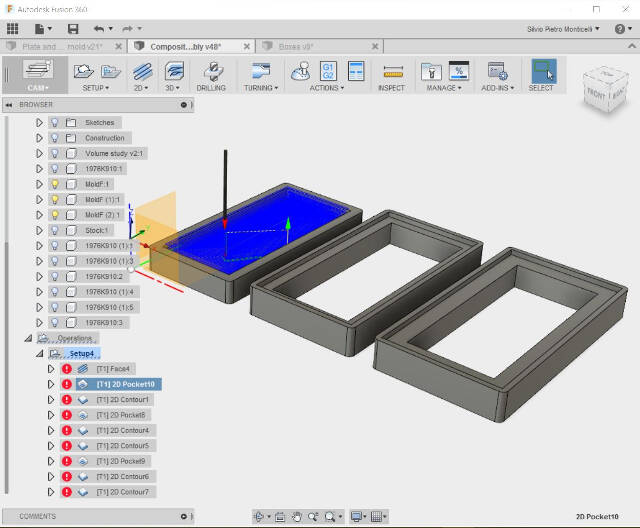

The set simulation alternates Pocket toolpath (machining closed curves) and Contouring (leaving tabs that keep the parts attached to the stock) for each box section.

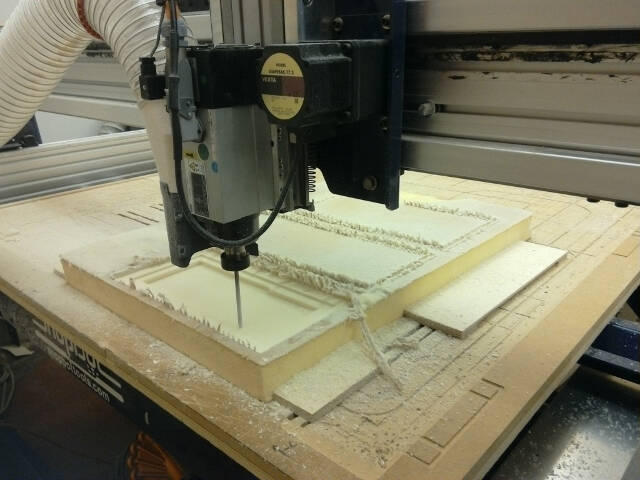

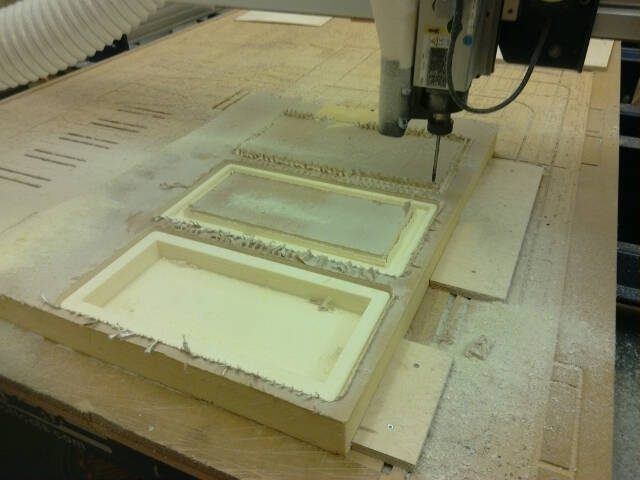

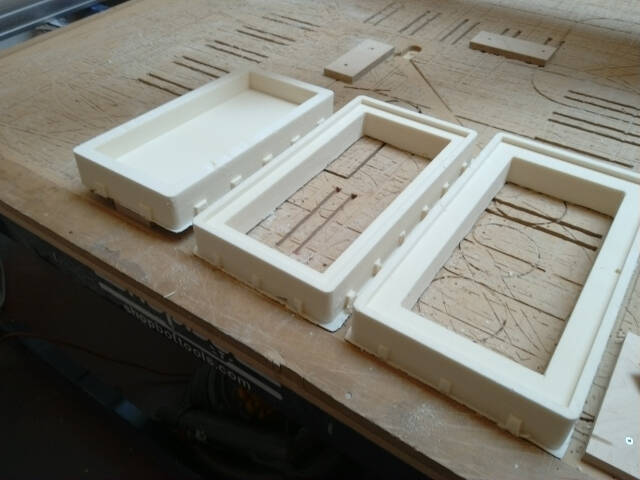

Milling

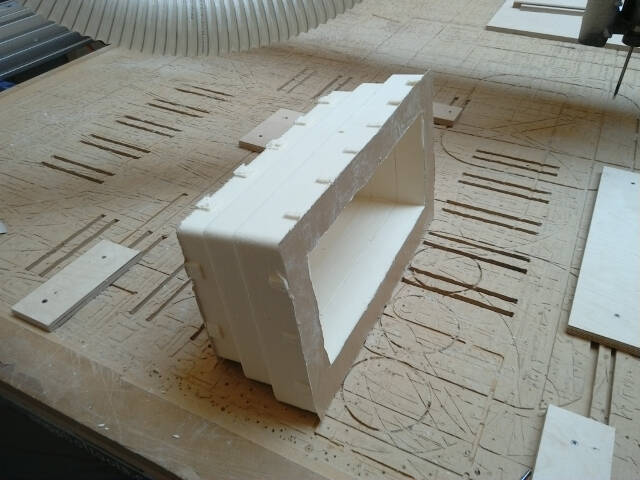

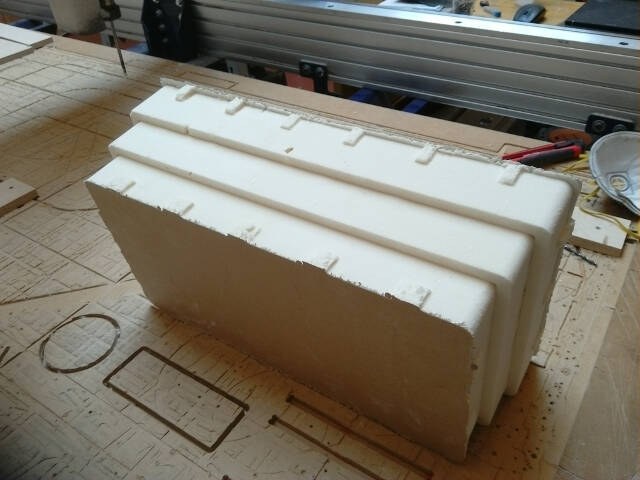

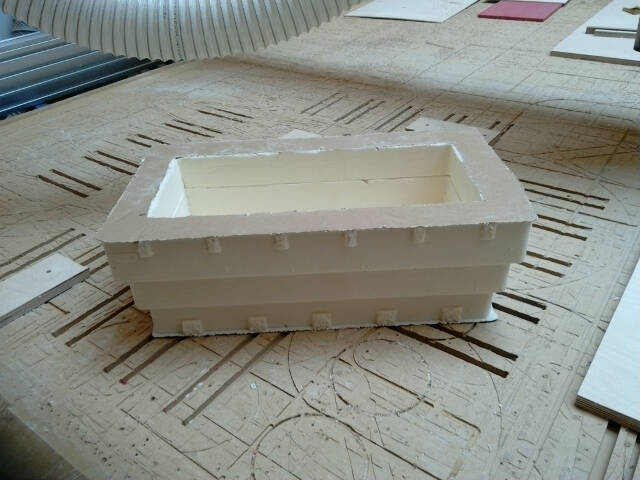

Fitting the three boxes together

Wrapping

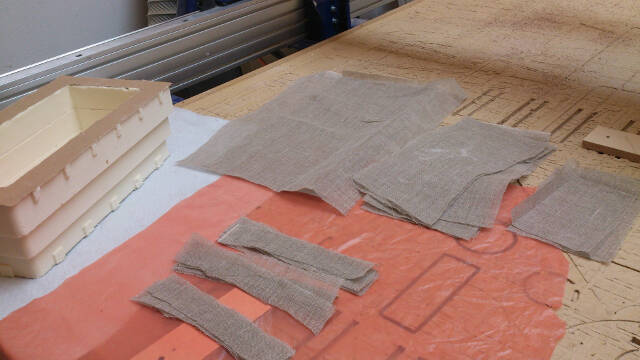

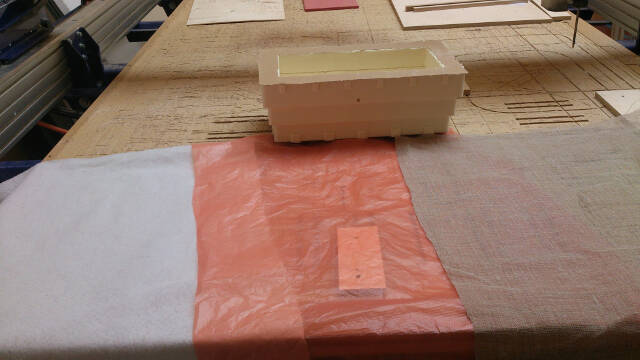

Preparing the resin and the wrapping materials

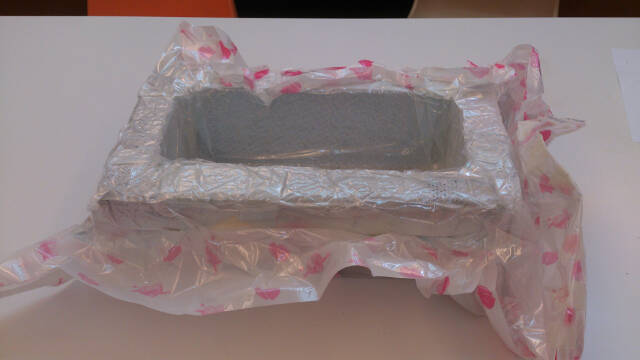

Testing the vaccum bag for compression.

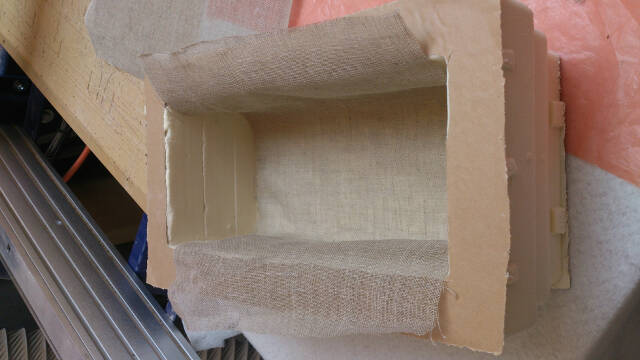

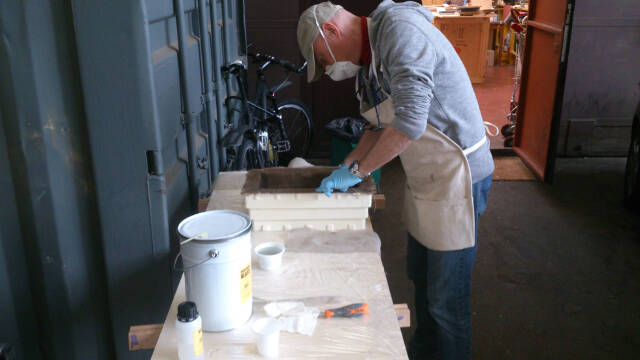

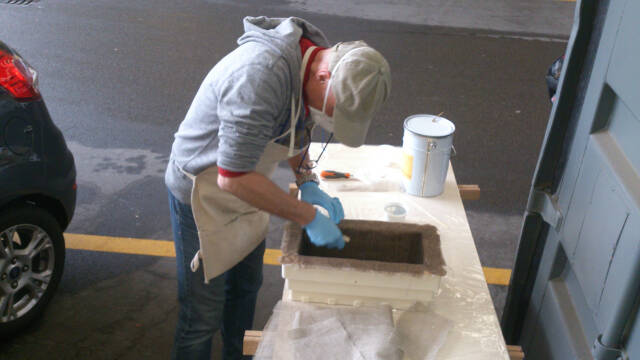

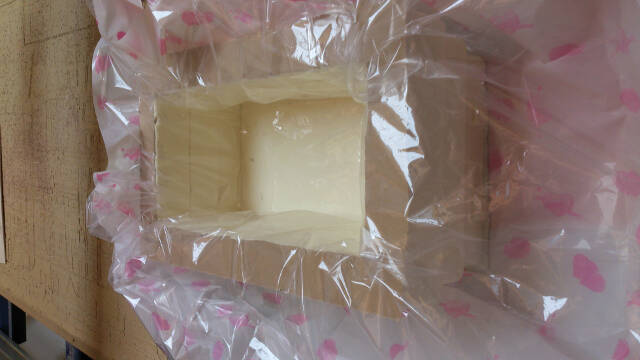

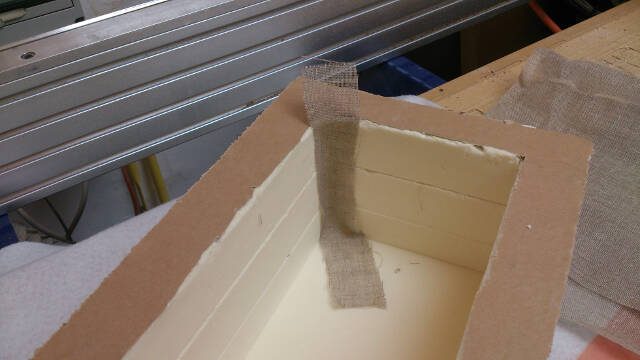

Wrapping the box with materials and resin

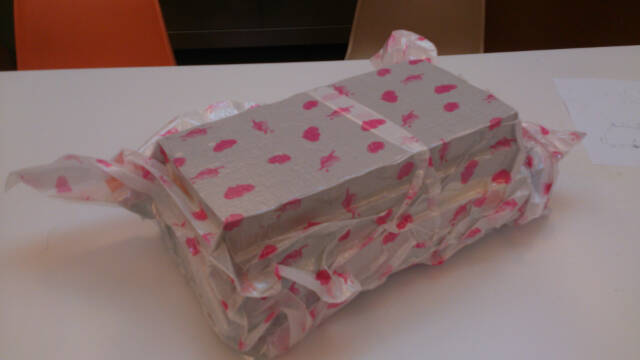

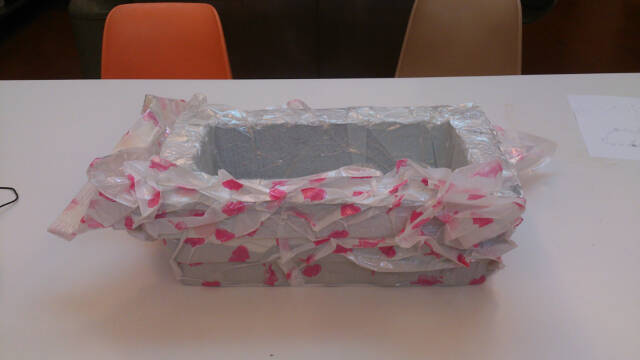

The box is ready to cure

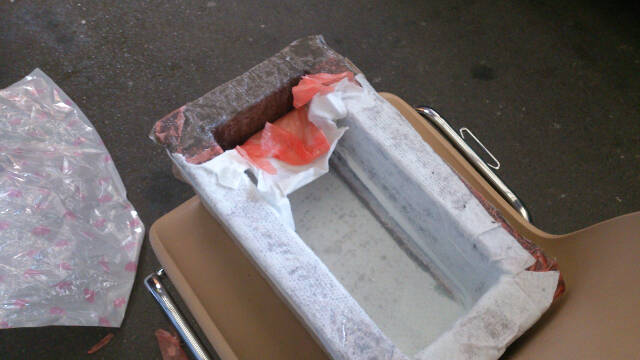

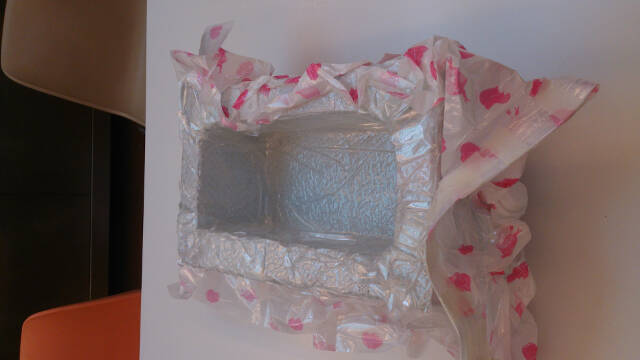

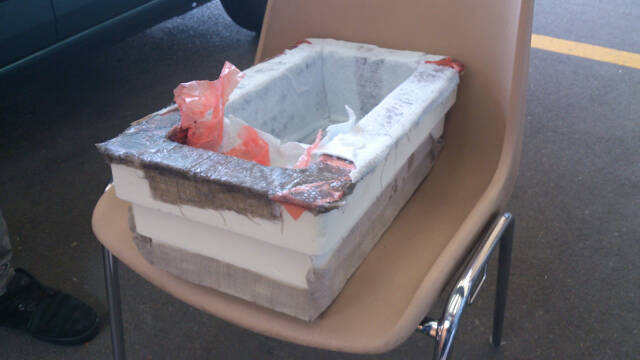

Unwrapping

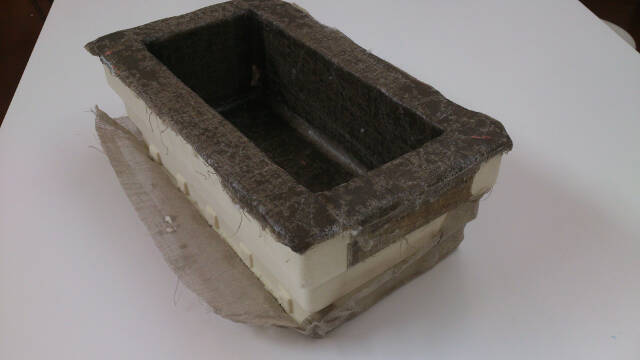

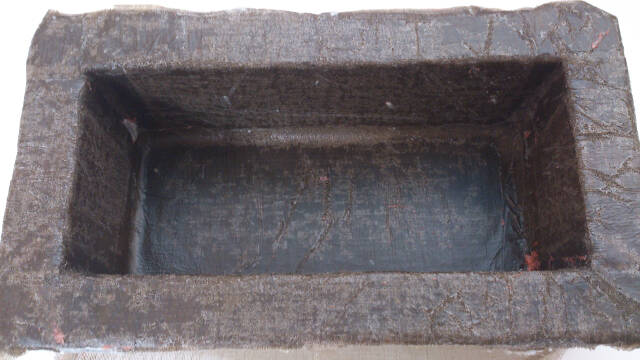

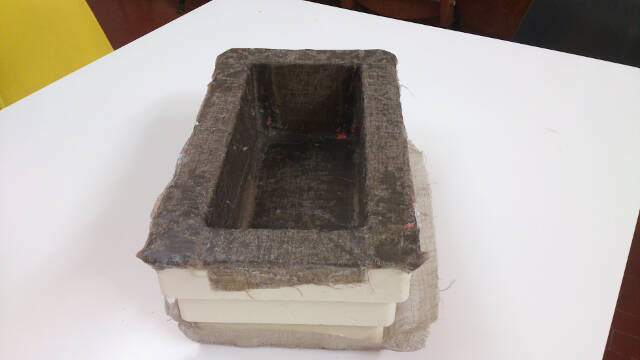

The freezer box turned out beautifully and really strurdy with the expected glassy, waterproof finish

.
