Final Project Electronics Design


Project Proposal Project Planning Project Documentation Mechanical Design Electronics Design Final Project Presentation


Choosing the Right Stepper Motor

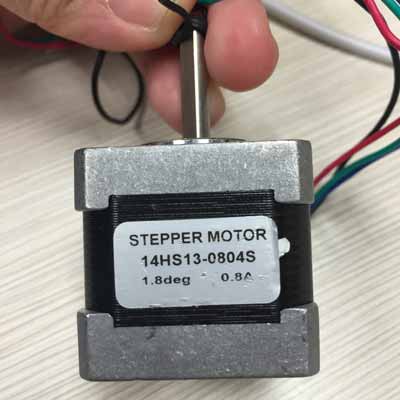

Selecting the right motor for the project was a challenge. During the Output Devices week, I thought a servo motor would be sufficient for my project. Therefore during that week, I have chosen to study on servo motors. Then I found out I might need to use a stepper motor which has more torque. My instructor has a 28BYJ-48 which I thought would do the trick. I quickly realise that being only unipolar, the pull-in torque of a mere 300 gf/cm is not sufficient. I actually would need a more powerful bipolar stepper motor in order to perform the action of flipping a page. My instructor lent me his Nema 14HS13-0804S for this project.

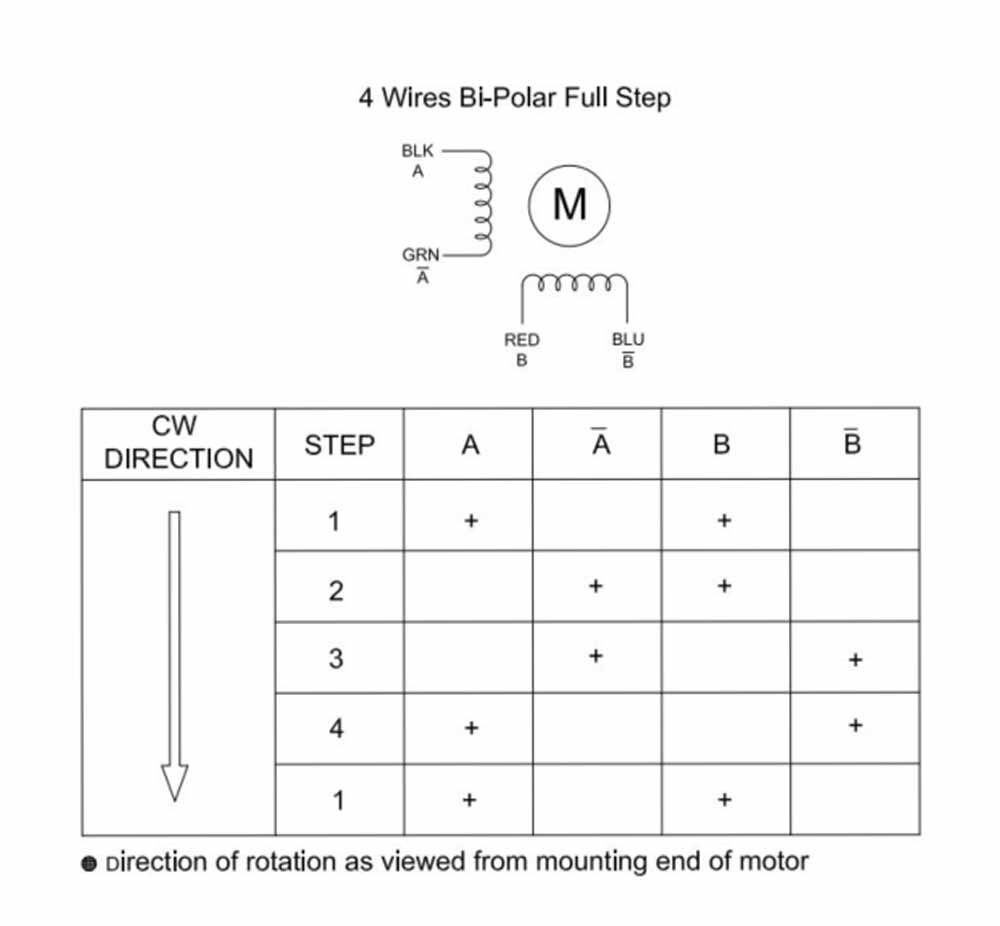

5V unipolar and 12V bipolar stepper motors

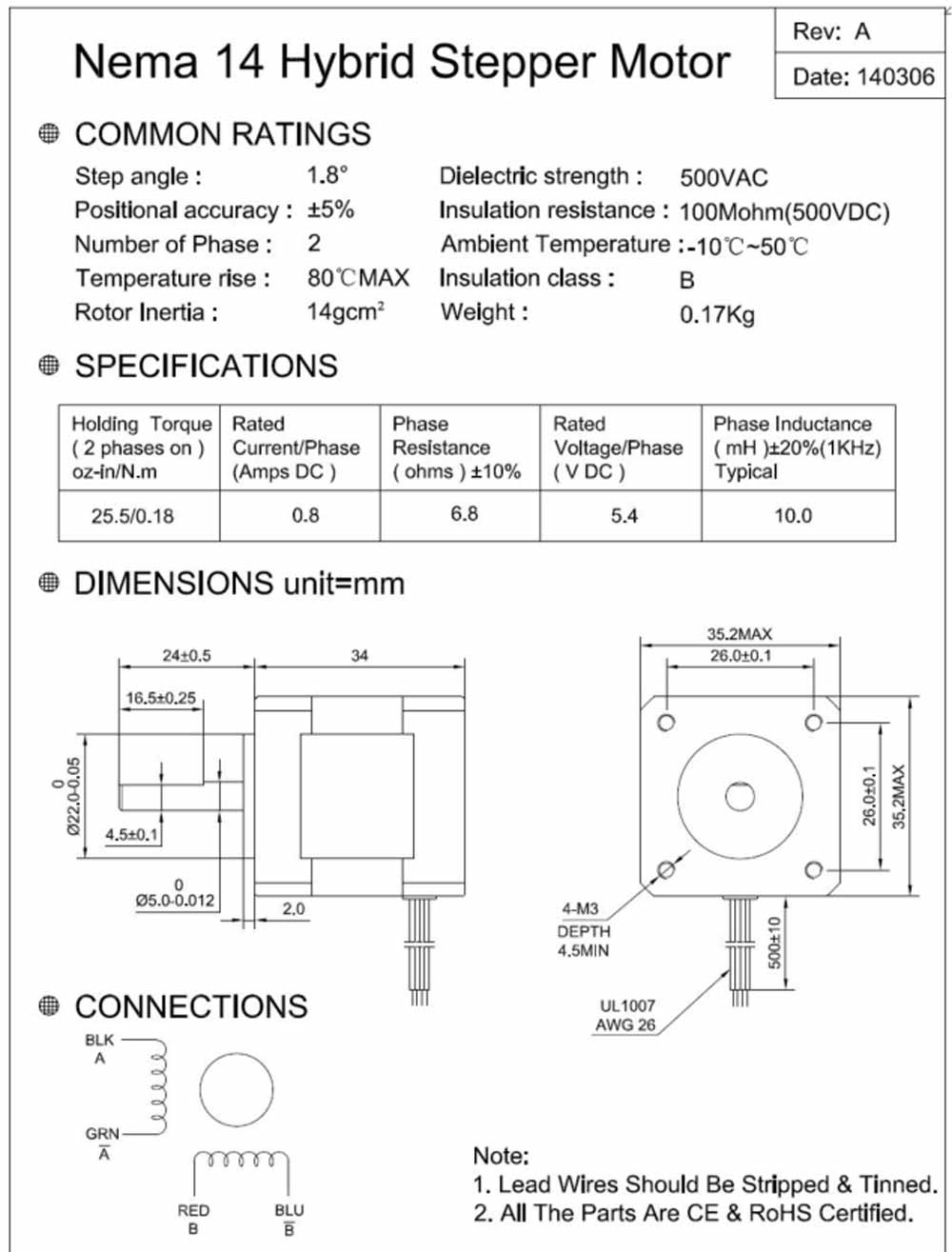

Specifications of Nema 14HS13-0804S


Circuitry Design

I made close reference to Neil's board on output week when designing my circuitry. I could have done this component earlier at the Output Devices week if I have known that I needed a stepper motor for my project.

Neil's bipolar stepper motor circuitry

Component List


The stepper motor needs at least 5.4 volts to run. A normal USB port will not supply enough power to run it. I will need either a 12Vin or a DC supply to supply the power for this project. The 5V voltage regulator is a important component here as the operating voltage of the ATtiny 44 microcontroller cannot exceed 5 volts. The regulator drops the 12Vin to a 5Vout so that the microcontroller does not burn. The datasheet of the LM2940 indicates that a 22uf capacitor is required to maintain regulator stability. However, I did not use a 22uf capacitor, but was using a 1uf capacitor. And that seemed to work alright.

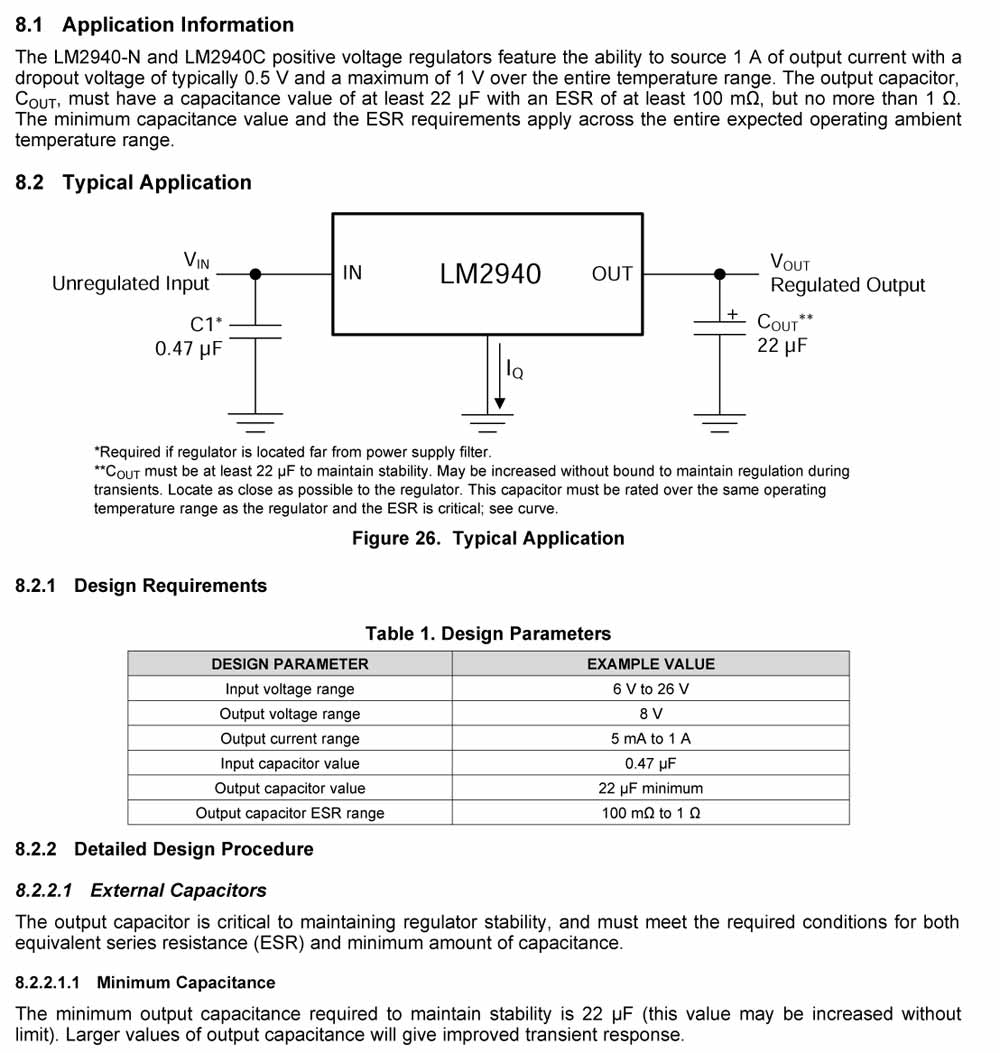

LM2940 5V Regulator Datasheet Page 15


As my input device is an external foot switch, I would have to design a connecting header that will receive the input signal from the switch. I also designed a LED indicator to test if my programming is working. In my schematic, I have used a 2x2 header for the switch and 12V power supply.

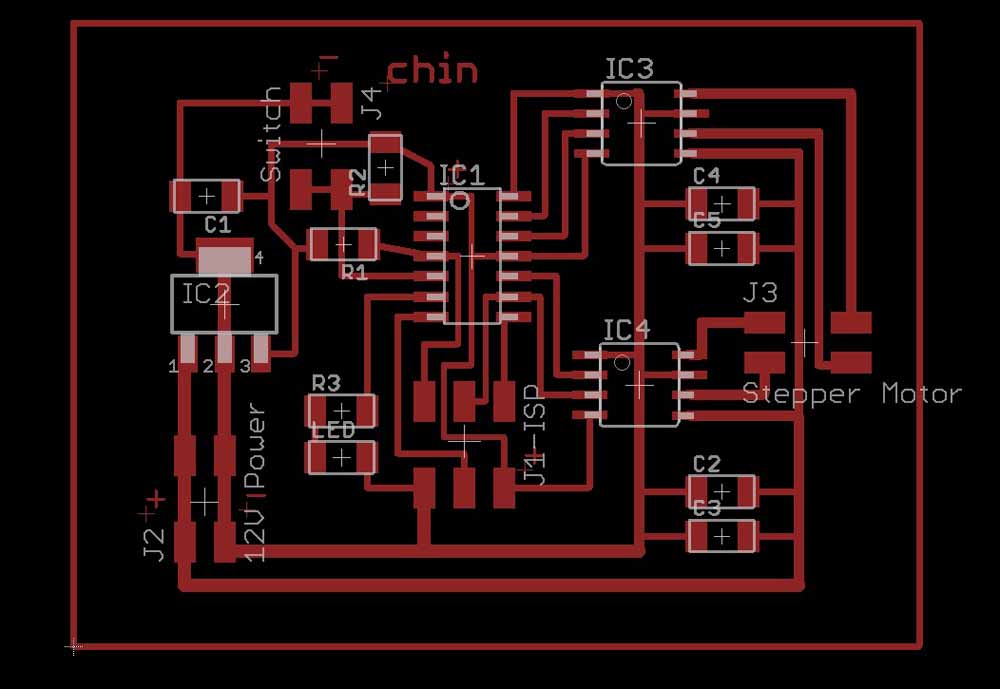

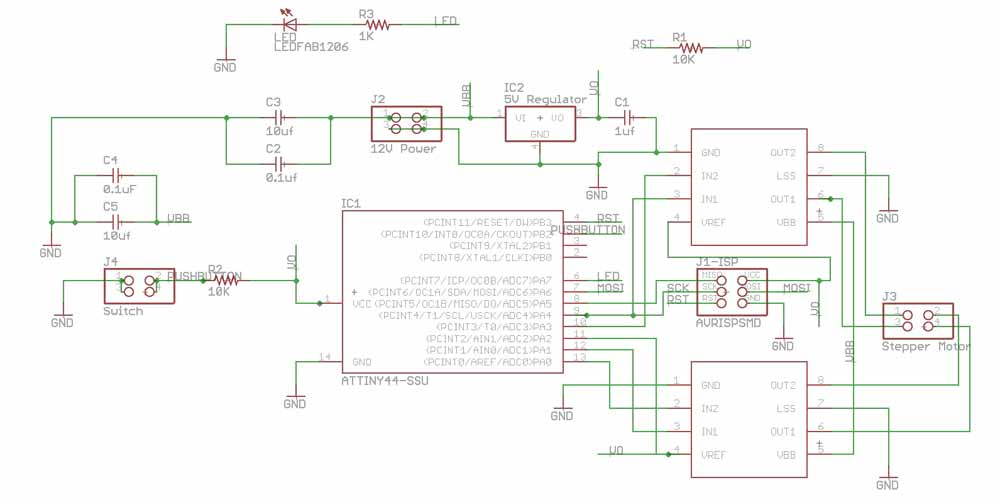

Design of electronic circuitry


Electronics Production

Procedures on how to mill the circuit board have been documented in the Electronics Design week.

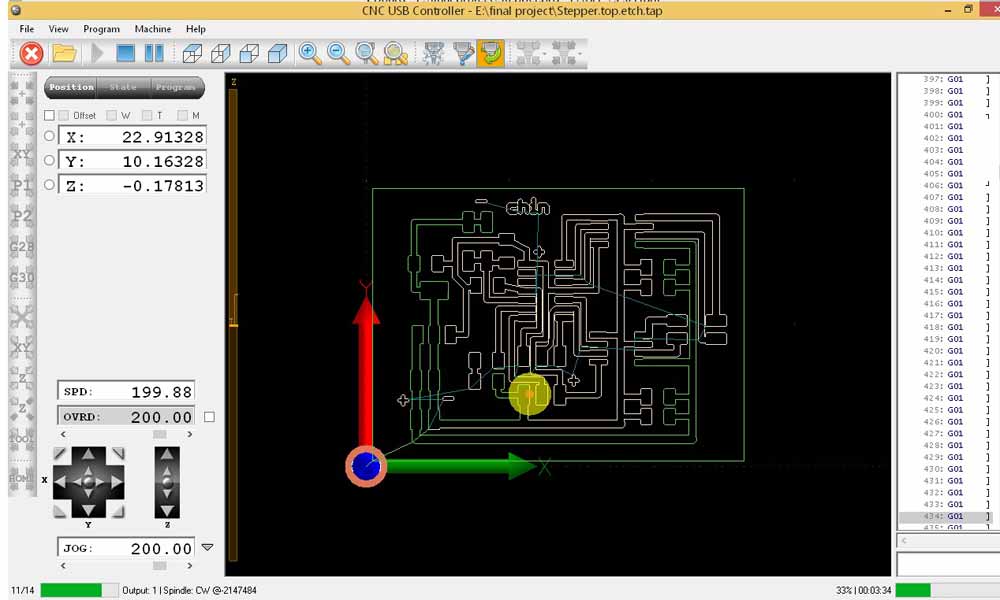

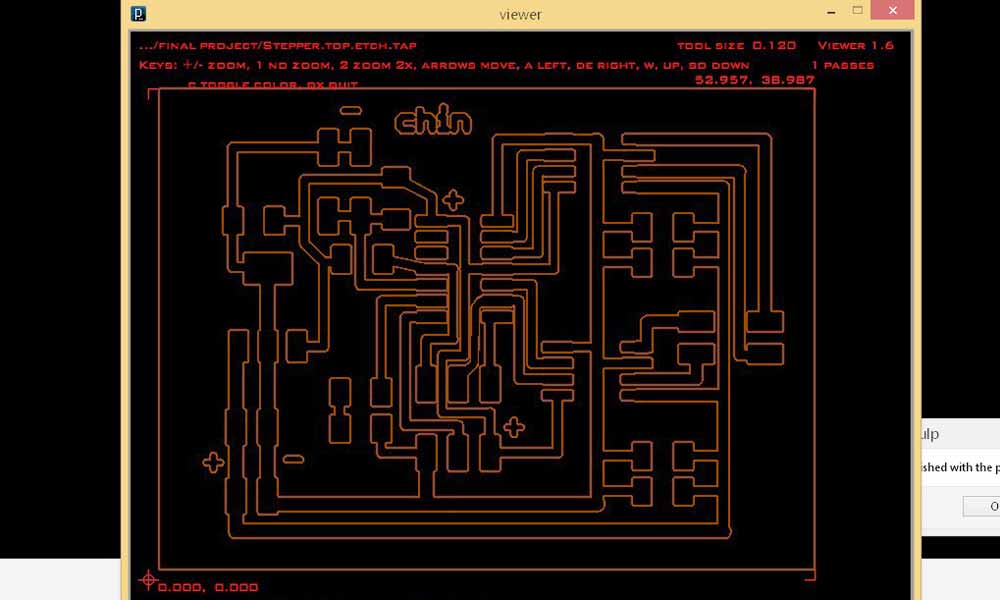

Generating toolpath and checking for shorts in the paths

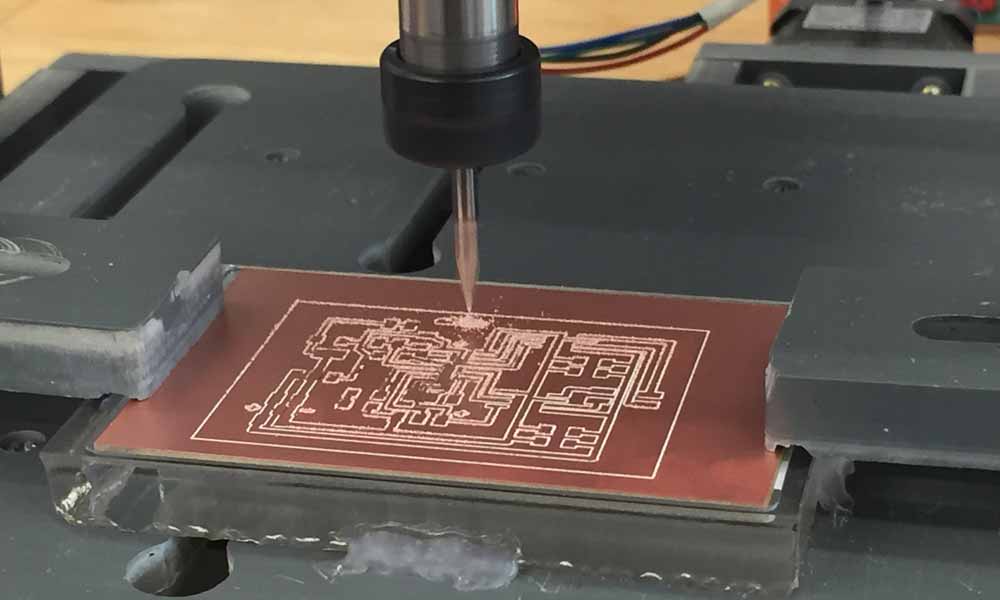

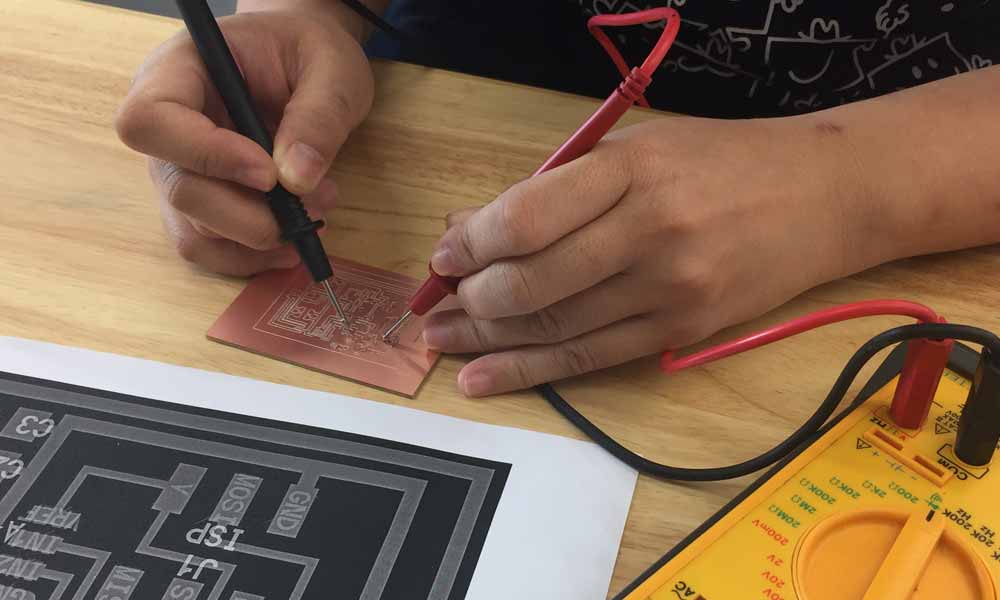

Milling and testing connectivity of the circuitry board

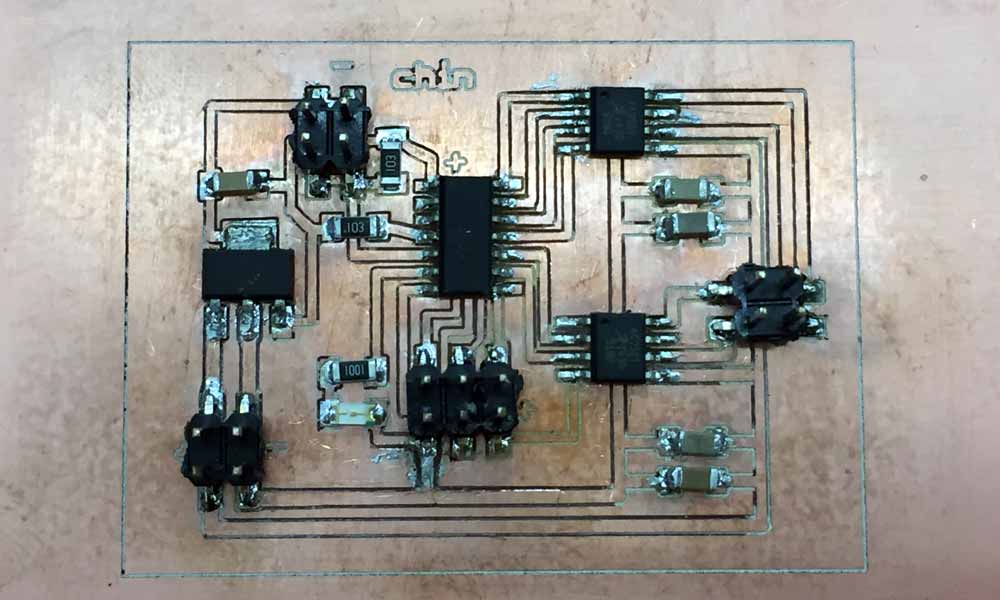

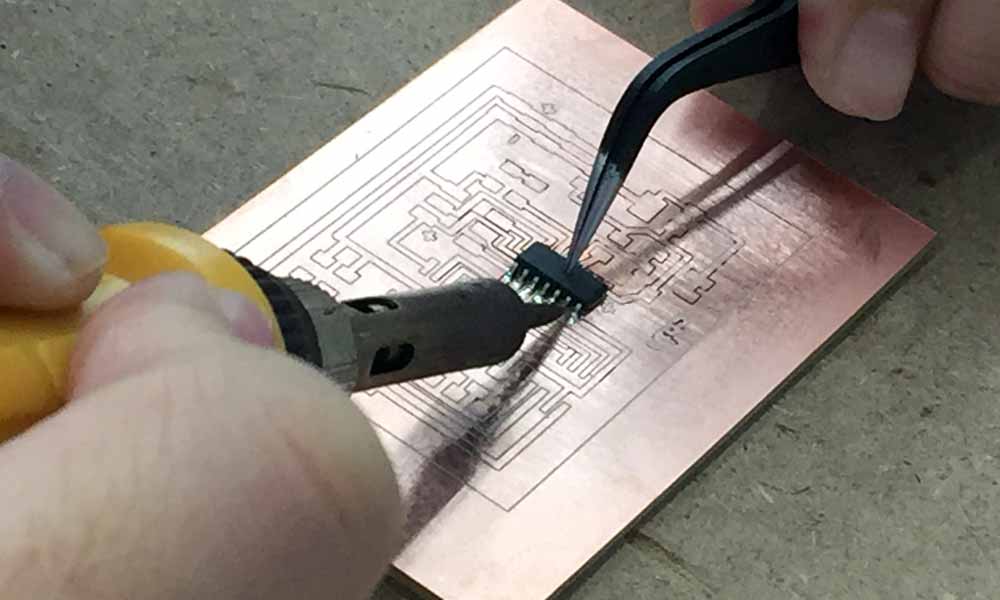

Stuffing the circuitry board


AVR Programming


The programming phase has been a real challenge to me. I have used flashed c coded into microcontroller in previous assignments, but all of those programming codes are pre-written and all I need to do is the make sure the pins tally and flash the chip, and microcontroller will perform as expected. This is different. I will need to understand the coding and be able to modify it to perform what I wanted to it to do. Basically, I need to put together the stuff I learned about hello.button.45.c from Input Devices class and hello.stepper.bipolar.44.full.c from Output devices class into one programme. I spent about a week just to read up on AVR programming using C to learn the syntax and the logic. Two resources have been extremely helpful in my study. One is Make: AVR Programming: Learning to Write Software for Hardware by Elliot Williams. This books deals with the fundamentals about how to literally think in binary terms. Now I understand what this means:

Bit Twiddling
  #define BV(bit) (1 << bit)
  #define setBit(byte, bit) (byte |= BV(bit))     // set a bit to true
  #define clearBit(byte, bit) (byte &= ~BV(bit))  // clearing a bit to false
  #define toggleBit(byte, bit) (byte ^= BV(bit))  // toggling a bit to either true or false depending on its previous state


The other resource is a youtube series: NewbieHack - Microcontroller Tutorial - A Beginners Guide which gives step-by-step tutorials on how to install winavr, how to flash microcontrollers using AVRDUDE and how to write C programmes. The author's website is NewbieHack.com. This has been most helpful to my learning of AVR programming.


Command used to flash the microchip in Command Prompt:
  cd "C:\Users\yoruichin\Dropbox\FAB\Final Project Page turner\Stepper motor\"

  cp hello.stepper.bipolar.44.full.make makefile

  make

  avrdude -P com4 -c stk500v1 -b 19200 -p t44 -U flash:w:hello.stepper.bipolar.44.full.c.hex


Embedded Programming for Automatic Score Turner

The steps I took:


Troubleshooting the programme

So I added a if condition to execute the stepper motor only when button is pressed. So it turned out that because I was following the book by Elliot Williams, I used the library function "bit_is_clear" without fully understanding what the arguments were. That was the reason I had a hard time trying to make the if condition work. With the help of my instructor, we finally figured out that one of the 2 arguments I used there was not a valid one. I had used "if (bit_is_clear(PORTB, PB2))" instead of "if (bit_is_clear(PINB, PB2))" which is the correct one. No wonder it did nothing. Thanks, Rodney for sitting with me for an hour to help troubleshoot my codes!

Embedded programming of the Automatic Score Turner - Sucessful!

The full code for my stepper.bipolar.44.full.c
   //
   //
   // hello.stepper.bipolar.44.full.c
   //
   // bipolar full stepping hello-world
   //
   // Neil Gershenfeld
   // 11/21/12
   //
   // (c) Massachusetts Institute of Technology 2012
   // This work may be reproduced, modified, distributed,
   // performed, and displayed for any purpose. Copyright is
   // retained and must be preserved. The work is provided
   // as is; no warranty is provided, and users accept all
   // liability.
   //
   // Documentation
   // =============
   // Modified by Yue Siew Chin, Fablab Singapore, 2016
   //
   // This program causes a stepper motor to turn a page at the press of a pushbutton.
   // Microcontroller = ATtiny44
   // Pushbutton = PB2
   // LED = PA7
   // Stepper motor pins = PA0, PA1, PA3, PA4 (A2, A1, B2, B1)
   // Bipolar stepper motor 14HS13-0804S
   // H-bridge PWM Motor Driver Allegro A4950
   // 5V Regulator LM2940


   #include avr/io.h          //<> required to enclose the library name
   #include util/delay.h      //<> required to enclose the library name
   #include avr/interrupt.h   //<> required to enclose the library name

   #define output(directions,pin) (directions |= pin) // set port direction for output
   #define input(directions,pin) (directions &= (~pin)) // set port direction for input
   #define set(port,pin) (port |= pin) // set port pin
   #define clear(port,pin) (port &= (~pin)) // clear port pin
   #define toggle(port,pin) (port ^= pin)
   #define pin_test(pins,pin) (pins & pin) // test for port pin
   #define bit_test(byte,bit) (byte & (1 << bit)) // test for bit set

   #define bridge_port PORTA // H-bridge port
   #define bridge_direction DDRA // H-bridge direction
   #define A2 (1 << PA0) // H-bridge output pins
   #define A1 (1 << PA1) // "
   #define B2 (1 << PA3) // "
   #define B1 (1 << PA4) // "
   #define on_delay() _delay_us(35) // PWM on time
   #define off_delay() _delay_us(15) // PWM off time
   #define PWM_count 100 // number of PWM cycles
   #define step_count 53 // number of steps


   #define button_port PORTB
   #define button_direction DDRB
   #define button (1 << PB2) // set button input pin

   #define led_port PORTA
   #define led_direction DDRA
   #define led (1 << PA7) // set LED output pin

   static uint8_t count;
   //
   // A+ B+ PWM pulse
   //
   void pulse_ApBp() {
     clear(bridge_port, A2);
     clear(bridge_port, B2);
     set(bridge_port, A1);
     set(bridge_port, B1);
      for (count = 0; count < PWM_count; ++count) {
         set(bridge_port, A1);
         set(bridge_port, B1);
         on_delay();
         clear(bridge_port, A1);
         clear(bridge_port, B1);
         off_delay();
       }
     }
   //
   // A+ B- PWM pulse
   //
   void pulse_ApBm() {
     clear(bridge_port, A2);
     clear(bridge_port, B1);
     set(bridge_port, A1);
     set(bridge_port, B2);
      for (count = 0; count < PWM_count; ++count) {
         set(bridge_port, A1);
         set(bridge_port, B2);
         on_delay();
         clear(bridge_port, A1);
         clear(bridge_port, B2);
         off_delay();
       }
     }
   //
   // A- B+ PWM pulse
   //
   void pulse_AmBp() {
     clear(bridge_port, A1);
     clear(bridge_port, B2);
     set(bridge_port, A2);
     set(bridge_port, B1);
      for (count = 0; count < PWM_count; ++count) {
         set(bridge_port, A2);
         set(bridge_port, B1);
         on_delay();
         clear(bridge_port, A2);
         clear(bridge_port, B1);
         off_delay();
       }
     }
   //
   // A- B- PWM pulse
   //
   void pulse_AmBm() {
     clear(bridge_port, A1);
     clear(bridge_port, B1);
     set(bridge_port, A2);
     set(bridge_port, B2);
      for (count = 0; count < PWM_count; ++count) {
         set(bridge_port, A2);
         set(bridge_port, B2);
         on_delay();
         clear(bridge_port, A2);
         clear(bridge_port, B2);
         off_delay();
       }
     }
   //
   // clockwise step
   //
   void step_cw() {
      pulse_ApBp();
      pulse_AmBp();
      pulse_AmBm();
      pulse_ApBm();
   }
   //
   // counter-clockwise step
   //
   void step_ccw() {
      pulse_ApBm();
      pulse_AmBm();
      pulse_AmBp();
      pulse_ApBp();
   }
   // Was intending to use a debounce function for the pushbutton but decided to comment out so as not to complicate things.
   uint8_t debounce(void) {                      // check for button bounce
     if (bit_is_clear(button_port, button)) {     // button is pressed
       _delay_us(1000);                          // debounce timeout in microseconds
       if (bit_is_clear(button_port, button)) {   // button is still pressed after a short delay
         return (1);       // return true
       }
     }
     return (0);           // otherwise return false
   }
   int main(void) {
      //
      // main
      //
      static uint8_t i,j;
      //
      // set clock divider to /1
      //
      CLKPR = (1 << CLKPCE);
      CLKPR = (0 << CLKPS3) | (0 << CLKPS2) | (0 << CLKPS1) | (0 << CLKPS0);
      //
      // initialize bridge pins
      //
      clear(bridge_port, A1);
      output(bridge_direction, A1);
      clear(bridge_port, A2);
      output(bridge_direction, A2);
      clear(bridge_port, B1);
      output(bridge_direction, B1);
      clear(bridge_port, B2);
      output(bridge_direction, B2);

      input(button_direction, button);  // clear bit
      output(led_direction, led);   // set bit of LED for output
      set(led_port, led);
      //
      // main loop
      //
     while (1) {

       if (bit_is_clear(PINB, PB2)) {   // look for button press; equivalent to if ((PINB & (1 << PB2)) == 0 )
         clear(led_port, led);
         for (i = 0; i < step_count; ++i) {
   //          for (j = 0; j < i; ++j)
             step_cw();
           _delay_ms(10);
   //  stop stepper motor rotation
              clear(bridge_port, A1);
              clear(bridge_port, A2);
              clear(bridge_port, B1);
              clear(bridge_port, B2);
         }
       }
       else {
         set(led_port, led);  // indicates ready to receive input
       }
     }
   }
