week 11 | 2016/04/13 - 2016/04/20 | input devices
16

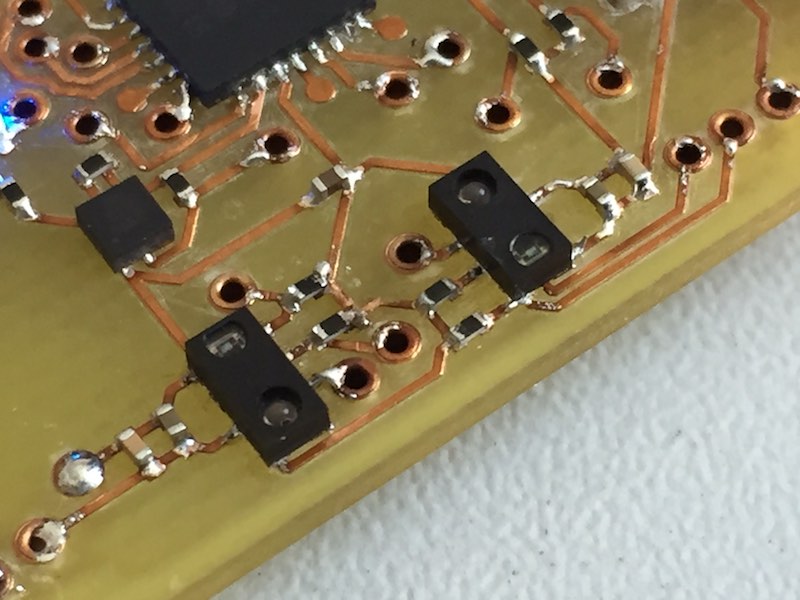

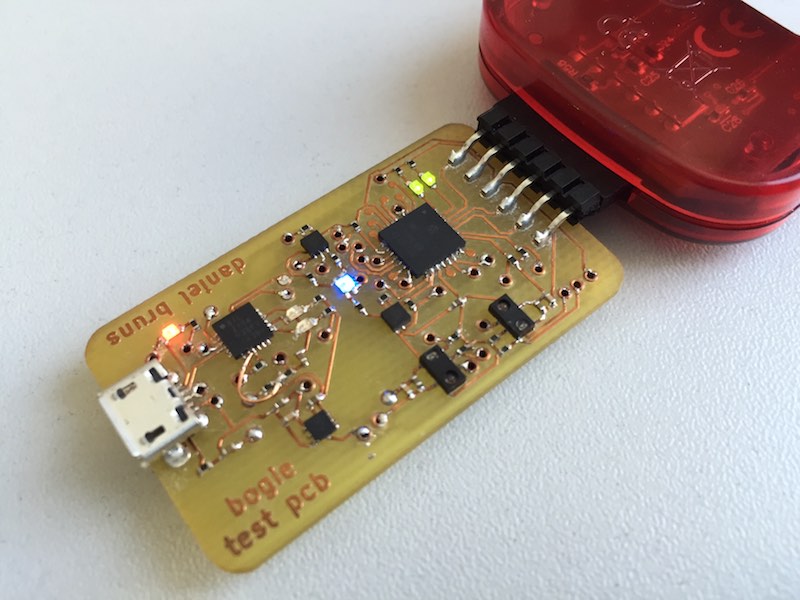

For this week, I made a simple PCB with two VCNL4040 distance sensors, which are connected through I2C with the PIC. This PCB (with another outline and mounted on all 3 bogies!) is even a part for my final project, as it prevents my skaterdolly to fall down. The PCB works, the software has some bugs in the I2C communication and the PCB has some connection problems with the rivets at this point which I have to fix or mill a new PCB. I'll update this page until it works.
17
18
19
