Milling board

first i mill the RGB board in modela machine in that i use 1/64" bit for mill the traces and for cutting the board i used the 1/32"bit

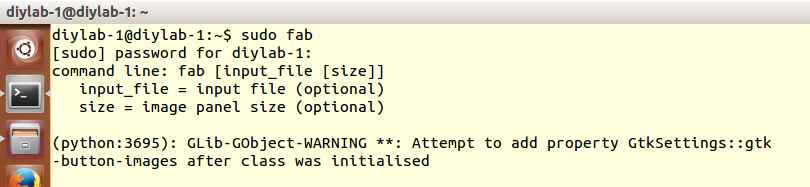

In our lab we are using the offline version of fab module because of some internet problem then IN this i open the terminal then write sudo fabchoose the png file formate the machine modela and click on rml.

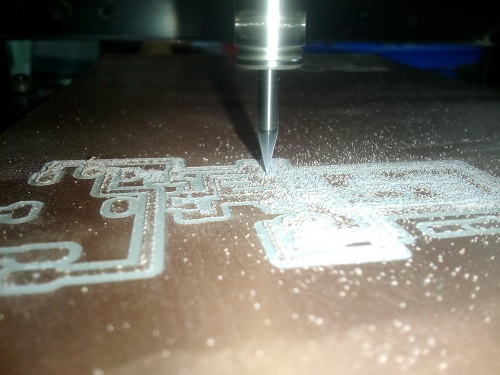

then i import the RGB file and set the coordinates ,fix the drill bit and start milling.

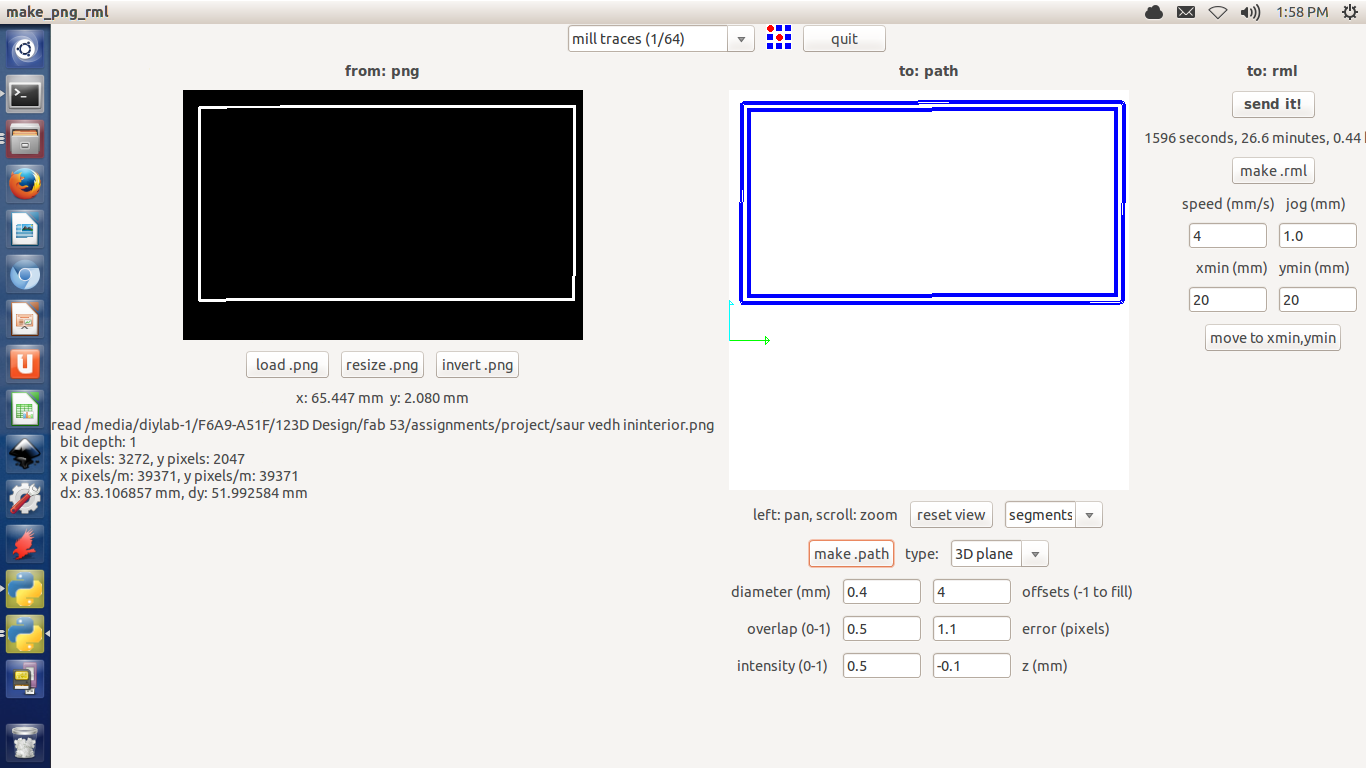

now i change the drill bit for cutting and i load the border file

now my rgb board looks like this

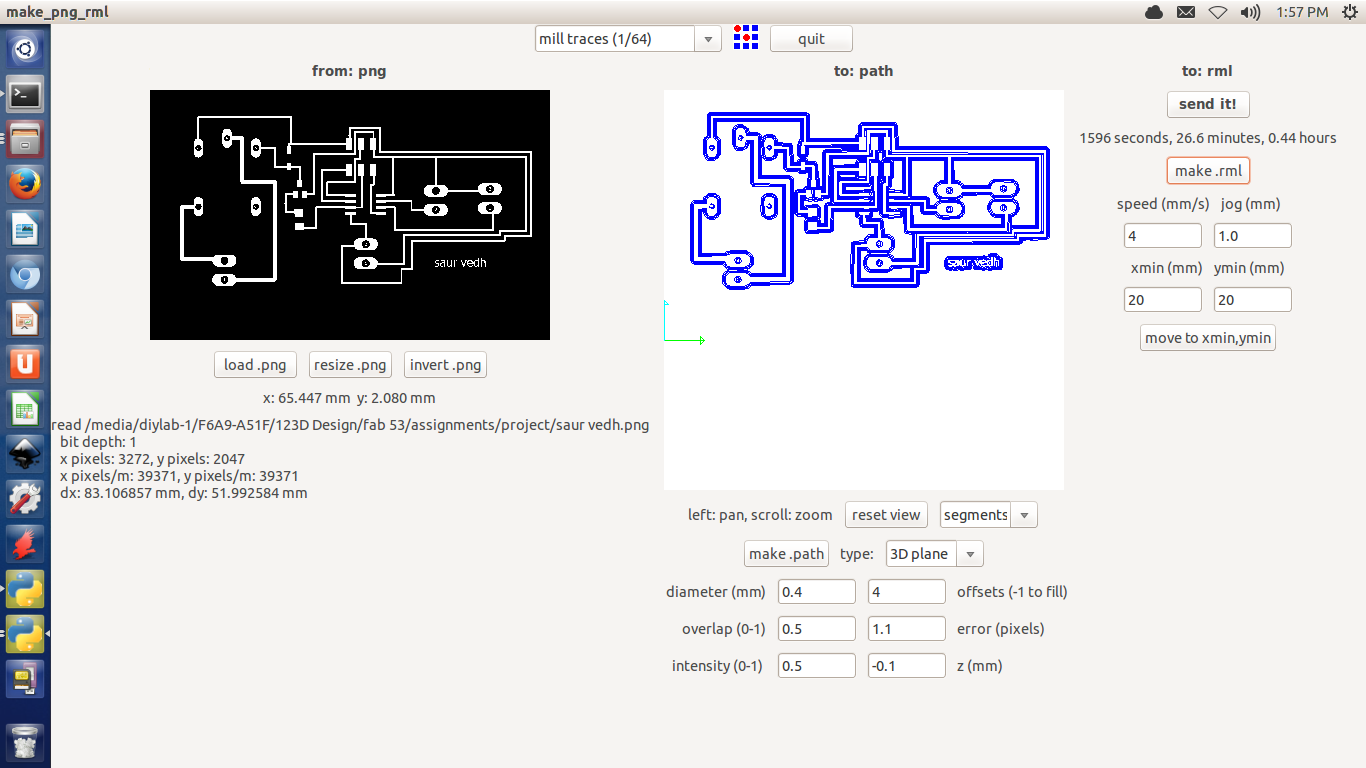

Now I mill my final project board I repeat the same process here



cut the board with 1/32"bit

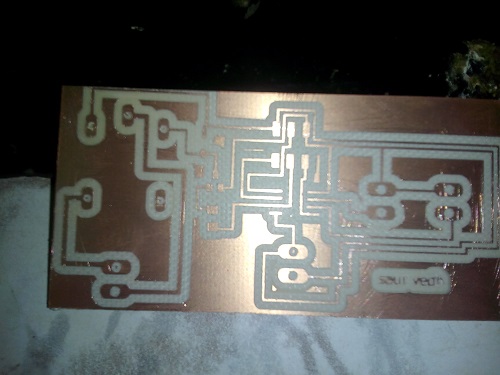

this is my final board


now moving towords the soldring
