Measure something: add a sensor to a microcontroller board that you have designed and read it
This week I re-designed the board I did in output devices (i.e. week10) with a new board based on both, the Satshakit and Gianluca Pugliese's board.
further details can be found in my final project electronic design page.
Board has ftdi and ICSP connections, 16 MHz crystal, reset button, extra SDA/SCL pins, 4 VCC and 4 GND pins and two A4988 carriers.
Burning the bootloader:Use the following steps to burn the bootloader using an arduino as ISP.
1 - connect the arduino uno to the pc 2 - select the right port and the arduino uno board under tools 3 - under file->examples find and open the arduino as isp sketch 4 - upload the sketch to the arduino 5 - disconnect the arduino from the pc 6 - connect the board with the arduino by matching pins: mosi-mosi, miso-miso, sck-sck, reset-reset, vcc-vcc, gnd-gnd. 7 - triple check the connections 8 - connect the arduino to the pc 9 - select the right board/processor/frequency -> In this case Arduino Genuino/UNO 10 - under tools select the arduino as isp programmer 11 - double check all the paramters 12 - click to tools-> burn bootloader
The board is connected to the arduino using the following schematic:
As this board is also recognised as an arduino uno, it can now be programmed using an FTDI cable through the rx/tx pins.
/home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/bin/avrdude -C/home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/etc/avrdude.conf -v -patmega328p -cstk500v1 -P/dev/ttyACM3 -b19200 -e -Ulock:w:0x3F:m -Uefuse:w:0x05:m -Uhfuse:w:0xDE:m -Ulfuse:w:0xFF:m avrdude: Version 6.3, compiled on Sep 12 2016 at 15:21:49 Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/ Copyright (c) 2007-2014 Joerg Wunsch System wide configuration file is "/home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/etc/avrdude.conf" User configuration file is "/home/jc/.avrduderc" User configuration file does not exist or is not a regular file, skipping Using Port : /dev/ttyACM3 Using Programmer : stk500v1 Overriding Baud Rate : 19200 AVR Part : ATmega328P Chip Erase delay : 9000 us PAGEL : PD7 BS2 : PC2 RESET disposition : dedicated RETRY pulse : SCK serial program mode : yes parallel program mode : yes Timeout : 200 StabDelay : 100 CmdexeDelay : 25 SyncLoops : 32 ByteDelay : 0 PollIndex : 3 PollValue : 0x53 Memory Detail : Block Poll Page Polled Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack ----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- --------- eeprom 65 20 4 0 no 1024 4 0 3600 3600 0xff 0xff flash 65 6 128 0 yes 32768 128 256 4500 4500 0xff 0xff lfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 hfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 efuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 lock 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00 signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00 Programmer Type : STK500 Description : Atmel STK500 Version 1.x firmware Hardware Version: 2 Firmware Version: 1.18 Topcard : Unknown Vtarget : 0.0 V Varef : 0.0 V Oscillator : Off SCK period : 0.1 us avrdude: AVR device initialized and ready to accept instructions Reading | ################################################## | 100% 0.02s avrdude: Device signature = 0x1e950f (probably m328p) avrdude: erasing chip avrdude: reading input file "0x3F" avrdude: writing lock (1 bytes): Writing | ################################################## | 100% 0.01s avrdude: 1 bytes of lock written avrdude: verifying lock memory against 0x3F: avrdude: load data lock data from input file 0x3F: avrdude: input file 0x3F contains 1 bytes avrdude: reading on-chip lock data: Reading | ################################################## | 100% 0.01s avrdude: verifying ... avrdude: 1 bytes of lock verified avrdude: reading input file "0x05" avrdude: writing efuse (1 bytes): Writing | ***failed; ################################################## | 100% 0.07s avrdude: 1 bytes of efuse written avrdude: verifying efuse memory against 0x05: avrdude: load data efuse data from input file 0x05: avrdude: input file 0x05 contains 1 bytes avrdude: reading on-chip efuse data: /home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/bin/avrdude -C/home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/etc/avrdude.conf -v -patmega328p -cstk500v1 -P/dev/ttyACM3 -b19200 -Uflash:w:/home/jc/Program Files/arduino-1.6.13/hardware/arduino/avr/bootloaders/optiboot/optiboot_atmega328.hex:i -Ulock:w:0x0F:m avrdude: Version 6.3, compiled on Sep 12 2016 at 15:21:49 Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/ Copyright (c) 2007-2014 Joerg Wunsch System wide configuration file is "/home/jc/Program Files/arduino-1.6.13/hardware/tools/avr/etc/avrdude.conf" Reading | ################################################## | 100% 0.01s avrdude: verifying ... avrdude: WARNING: invalid value for unused bits in fuse "efuse", should be set to 1 according to datasheet This behaviour is deprecated and will result in an error in future version You probably want to use 0xfd instead of 0x05 (double check with your datasheet first). avrdude: 1 bytes of efuse verified avrdude: reading input file "0xDE" avrdude: writing hfuse (1 bytes): Writing | ################################################## | 100% 0.02s avrdude: 1 bytes of hfuse written avrdude: verifying hfuse memory against 0xDE: avrdude: load data hfuse data from input file 0xDE: avrdude: input file 0xDE contains 1 bytes avrdude: reading on-chip hfuse data: Reading | ################################################## | 100% 0.01s avrdude: verifying ... avrdude: 1 bytes of hfuse verified avrdude: reading input file "0xFF" avrdude: writing lfuse (1 bytes): Writing | ################################################## | 100% 0.02s avrdude: 1 bytes of lfuse written avrdude: verifying lfuse memory against 0xFF: avrdude: load data lfuse data from input file 0xFF: avrdude: input file 0xFF contains 1 bytes avrdude: reading on-chip lfuse data: Reading | ################################################## | 100% 0.01s avrdude: verifying ... avrdude: 1 bytes of lfuse verified avrdude done. Thank you. User configuration file is "/home/jc/.avrduderc" User configuration file does not exist or is not a regular file, skipping Using Port : /dev/ttyACM3 Using Programmer : stk500v1 Overriding Baud Rate : 19200 AVR Part : ATmega328P Chip Erase delay : 9000 us PAGEL : PD7 BS2 : PC2 RESET disposition : dedicated RETRY pulse : SCK serial program mode : yes parallel program mode : yes Timeout : 200 StabDelay : 100 CmdexeDelay : 25 SyncLoops : 32 ByteDelay : 0 PollIndex : 3 PollValue : 0x53 Memory Detail : Block Poll Page Polled Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack ----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- --------- eeprom 65 20 4 0 no 1024 4 0 3600 3600 0xff 0xff flash 65 6 128 0 yes 32768 128 256 4500 4500 0xff 0xff lfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 hfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 efuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 lock 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00 signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00 Programmer Type : STK500 Description : Atmel STK500 Version 1.x firmware Hardware Version: 2 Firmware Version: 1.18 Topcard : Unknown Vtarget : 0.0 V Varef : 0.0 V Oscillator : Off SCK period : 0.1 us avrdude: AVR device initialized and ready to accept instructions Reading | ################################################## | 100% 0.02s avrdude: Device signature = 0x1e950f (probably m328p) avrdude: NOTE: "flash" memory has been specified, an erase cycle will be performed To disable this feature, specify the -D option. avrdude: erasing chip avrdude: reading input file "/home/jc/Program Files/arduino-1.6.13/hardware/arduino/avr/bootloaders/optiboot/optiboot_atmega328.hex" avrdude: writing flash (32768 bytes): Writing | ################################################## | 100% 0.00s avrdude: 32768 bytes of flash written avrdude: verifying flash memory against /home/jc/Program Files/arduino-1.6.13/hardware/arduino/avr/bootloaders/optiboot/optiboot_atmega328.hex: avrdude: load data flash data from input file /home/jc/Program Files/arduino-1.6.13/hardware/arduino/avr/bootloaders/optiboot/optiboot_atmega328.hex: avrdude: input file /home/jc/Program Files/arduino-1.6.13/hardware/arduino/avr/bootloaders/optiboot/optiboot_atmega328.hex contains 32768 bytes avrdude: reading on-chip flash data: Reading | ################################################## | 100% 0.00s avrdude: verifying ... avrdude: 32768 bytes of flash verified avrdude: reading input file "0x0F" avrdude: writing lock (1 bytes): Writing | ################################################## | 100% 0.02s avrdude: 1 bytes of lock written avrdude: verifying lock memory against 0x0F: avrdude: load data lock data from input file 0x0F: avrdude: input file 0x0F contains 1 bytes avrdude: reading on-chip lock data: Reading | ################################################## | 100% 0.01s avrdude: verifying ... avrdude: 1 bytes of lock verified avrdude done. Thank you.
Now that my board is ready, I tested several input devices.
The datasheet of the device is available here.
The adxl335 is a 3-axis accelerometer with signal-conditioned voltage outputs. The range of measurement is of +-3g.
Bandwidths of the accelerometer can be selected with a range of 0.5Hz to 1600Hz for XY axes and 0.5Hz to 550Hz for Z axis.
Output signals are analog voltages proportional to the static acceleration of gravity.
As signals are analog, analog pins must be used.
Pin connections:
|---------------+---------------------------------------+---------| | accelerometer | board | arduino | |---------------+---------------------------------------+---------| | vcc | step-down voltage regulator (3v)->vcc | vcc 3V | | gnd | gnd | gnd | | x-out | pc0 | a0 | | y-out | pc1 | a1 | | z-out | pc2 | a2 | |---------------+---------------------------------------+---------|
Each axis of the accelerometer can only differentiate 180 degrees of movement.
A simple code is written to read the value of the accelerometer:
const int xpin = PC0; // x-axis of the accelerometer const int ypin = PC1; // y-axis const int zpin = PC2; // z-axis (only on 3-axis models) void setup() { // initialize the serial communications: Serial.begin(9600); } void loop() { int x = analogRead(xpin); //read from xpin delay(1); // int y = analogRead(ypin); //read from ypin delay(1); int z = analogRead(zpin); //read from zpin Serial.print(x); Serial.print("\t"); Serial.print(y); Serial.print("\t"); Serial.print(z); Serial.print("\n"); delay(1000); }
I obtained the following output from GtkTerm:
339 329 273
These values can be used as a base to detect movement, with the exception of Yaw rotation, which will require a gyro too.
Datasheet is available . The BMP180 is an I2C interface pressure sensor supporting a pressure range between 300hPa to 1100hPa (or 9000m to -500m, above or below the sea level, respectively).
The BMP180 is based on piezo resistive technology with a resolution of 0.01hPa and 0.1 C.
Sampling accuracy can be set via software with the variable oversampling_setting, modes available are:
BMP180 can be easily interfaced with a microcontroller through sda/scl pins.
Pin connections:
|------------------+-------+-------------| | barometer sensor | board | arduino uno | |------------------+-------+-------------| | vin | vcc | vcc | | gnd | gnd | gnd | | sda | PC4 | a4 | | scl | PC5 | a5 | |------------------+-------+-------------|
Altitude in meters can be calculated using the international barometric formula:
$$ \text{Altitude} = 44330 * \Bigg(1 - (\frac{p}{p_0})^\frac{1}{5.255}\Bigg) $$
A small program was written using the following library:
Program prints in serial the pressure, temperature and estimated altitude.
For the altitude measurements; as recommended by the library documentation, it is necessary to include the location's mean sea level pressure. In my case for Kleve, it is 1011hPa.
#include <Wire.h> #include <Adafruit_Sensor.h> #include <Adafruit_BMP085_U.h> /* Kleve mean sea level pressure in hPa*/ #define KLEVE_SLP 1011 Adafruit_BMP085_Unified bmp = Adafruit_BMP085_Unified(10085); void setup(void) { Serial.begin(9600); Serial.println("Pressure Sensor Test"); Serial.println(""); /* Initialise the sensor */ if(!bmp.begin()) { Serial.print("no BMP085 detected"); while(1); } } /**************************************************************************/ /* Loop function */ /**************************************************************************/ void loop(void) { /* Get a new sensor event */ sensors_event_t event; bmp.getEvent(&event); /* barometric pressure in hPa) */ if (event.pressure) { /* Display atmospheric pressue in hPa */ Serial.print("Pressure: "); Serial.print(event.pressure); Serial.println(" hPa"); float temperature; bmp.getTemperature(\&temperature); Serial.print("Temperature: "); Serial.print(temperature); Serial.println(" C"); /* Then convert the atmospheric pressure, and SLP to altitude */ float seaLevelPressure = KLEVE_SLP; Serial.print("Estimated Altitude: "); Serial.print(bmp.pressureToAltitude(seaLevelPressure, event.pressure)); Serial.println(" m"); Serial.println(""); delay(2000); } else { Serial.println("Sensor error"); } delay(1000); }
Configure GtkTerm with the right port and baud rate:

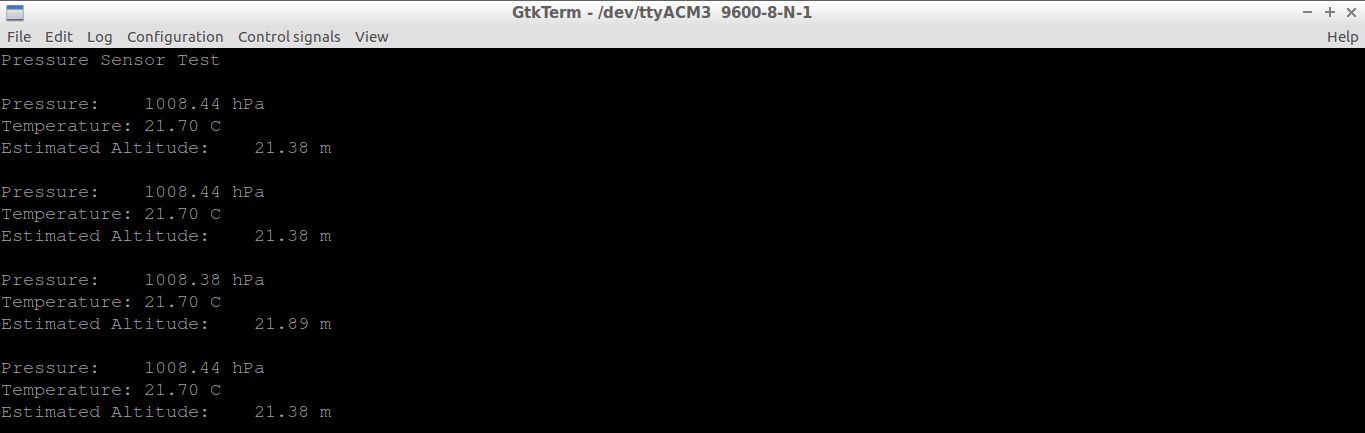

The output on the screen will be updated every 2 seconds:
Datasheet can be found here.
The following library is used:
Similarly to the pressure sensor, data can be received via serial.
Pin connections:
|-----------------+-------+-------------| | humidity sensor | board | arduino uno | |-----------------+-------+-------------| | sig | pd7 | d7 | | vcc | vcc | vcc | | gnc | gnd | gnd | |-----------------+-------+-------------|
Program sends to serial measurements at 2sec intervals. DHT11 and pin must be defined before taking measurements.
#include <DHT.h> #include <DHT_U.h> #define DHTPIN PD7 #define DHTTYPE DHT11 DHT_Unified dht(DHTPIN, DHTTYPE); uint32_t delayMS; void setup() { Serial.begin(9600); // Initialize device. dht.begin(); Serial.println("DHT11 test"); // Print temperature sensor details. sensor_t sensor; dht.temperature().getSensor(&sensor); } void loop() { // Delay between measurements. delay(2000); // Get temperature event and print its value. sensors_event_t event; dht.temperature().getEvent(&event); if (isnan(event.temperature)) { Serial.println("Error reading temperature!"); } else { Serial.print("Temperature: "); Serial.print(event.temperature); Serial.println(" C"); } // Get humidity event and print its value. dht.humidity().getEvent(&event); if (isnan(event.relative_humidity)) { Serial.println("Error reading humidity!"); } else { Serial.print("Humidity: "); Serial.print(event.relative_humidity); Serial.println("%"); } }
Output of the program is:
