SUMMARY
MOTOR CONTROL
MOTOR CONTROL V0.1 - MASTER/SLAVE WITH TWO JC-WATCHOBOT-V2.0 BOARDS
Note: It was discovered later that the jc-watchobot-v2.0 board needs two vmots and two grounds so the power supply of the pololu drivers can operate two motors at the same time.

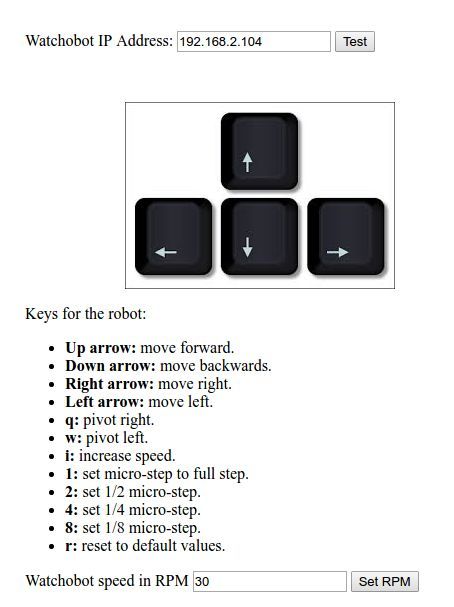

Web motor control experimented in week 17 is improved to control two motors.
Wiring diagram is as follows:
The ESP8266 is connected directly to hardware serial in the jc-watchobotv2.0 board, a pololu A4988 stepper motor driver to the carrier and the motor coils to their respective pins 1A, 1B, 2A, 2B respectively. In the image below, 1A, 2A are in magenta and 1B and 2B are in brown.
After 2 all-nighters troubleshooting and head-scratching, my board's second pololu driver was showing strange behaviour on both of my boards; perhaps due to a faulty pololu driver or soldered joint. After trying to drive two motors from the same board, I decided to control the two motors using two boards, each controlling one stepper and instructions done with I2C communication protocol from master to slave.
Code below shows the first attempt to improve the code; also with a I2C instruction for the slave board
The master code:
/*
* ****************************
* Copyright (c) J. C. Mariscal
* MIT License
* *****************************
*/
/*
* *****************************
* Program: motor control master v0.1
* ****************************
*/
#include <Arduino.h>
#include "BasicStepperDriver.h"
#include <SoftwareSerial.h>
#include <Wire.h>
/*
* /////////////////
* MASTER STEPPER
* /////////////////
*/
#define DIR PD5
#define STEP PD6
// using a 200-step motor.
#define STEPMOTOR 200
BasicStepperDriver masterStepper(STEPMOTOR, DIR, STEP);
int state =5; //non-movement state
int i = 0;
/*
* ////////////
* ESP8266
* ////////////
*/
#define DEBUG true
String ssid = "WLANID";
String pass = "pass";
SoftwareSerial debugSerial(PD3,PD4); //for debugging serial
//SoftwareSerial espSerial(PD3, PD4);
// functions init
String sendData(String command, const int timeout, boolean debug);
void startServer();
void MasterStepperInit(unsigned int rpm, unsigned int microstep);
void moveMotor();
// SETUP
void setup() {
//init stepper
MasterStepperInit(1, 1);
//init serial
Serial.begin(115200);
debugSerial.begin(9600);
debugSerial.println("serial starting");
// Start esp8266 server
startServer();
// Start master
Wire.begin(); // join i2c bus (address optional for master)
}
// MAIN LOOP
void loop() {
if ( Serial.available() ) {
if (Serial.find("+IPD,") ) {
String msg;
Serial.find("?");
msg = Serial.readStringUntil(' '); //read the whole text
String command = msg.substring(0, 2);
String valueStr = msg.substring(4);
if (DEBUG){
debugSerial.println(command);
debugSerial.println(valueStr);
}
//move forward
if (command == "01"){
i = 0;
state = 1;
}
// move backwards
if (command == "02"){
i = 0;
state = 2;
}
// stop
if (command == "03"){
i = 0;
state = 3;
}
}
}
moveMotor();
}
/*
* //////////////
* MOTOR FUNCTIONS
* //////////////
*/
/*
* ***********************
* Init for master stepper
* ***********************
*/
void MasterStepperInit(unsigned int rpm, unsigned int microstep){
DDRB &= ~(1 << PB0);
PORTB &= ~(1 << PB0);
masterStepper.setRPM(rpm);
// 1 full microstep, 2 half, etc...
masterStepper.setMicrostep(microstep);
//test rotation
masterStepper.rotate(60);
masterStepper.rotate(-60);
masterStepper.rotate(60);
}
/*
* ****************
* Motor movement: uses global variable state
* ****************
*/
void moveMotor(){
// move motor forward
if (state ==1) {
Wire.beginTransmission(2); //begin transmission to device 2 (i.e. slave board)
Wire.write(1);
Wire.endTransmission();
masterStepper.move(1);
masterStepper.setRPM(i);
/*
stepper2.move(1);
stepper2.setRPM(i);
*/
// set acceleration
if (i < 50){
i++;
}
}
// move motor backward
if (state == 2) {
Wire.beginTransmission(2); //begin transmission to device 2 (i.e. slave board)
Wire.write(2);
Wire.endTransmission();
masterStepper.move(-1);
masterStepper.setRPM(i);
// set acceleration
if (i < 50){
i++;
}
}
// stop
if (state == 3){
Wire.beginTransmission(2); //begin transmission to device 2 (i.e. slave board)
Wire.write(3);
Wire.endTransmission();
masterStepper.move(0);
}
}
/*
* ///////////////////
* ESP8266 FUNCTIONS
* ///////////////////
*/
/*
/*
* ***************
* sendData function: Sends command to the ESP8266 and returns response.
* *****************
*/
String sendData(String command, const int timeout, boolean debug)
{
debugSerial.println("sending data");
String response = "";
Serial.print(command); // send the read character to the mySerial
long int time = millis();
while( (time+timeout) > millis())
{
while(Serial.available())
{
// The esp has data so display its output to the serial window
char c = Serial.read(); // read the next character.
response+=c;
}
}
if(debug)
{
debugSerial.print(response);
}
return response;
}
/* ****************
* esp8266 server: uses global variable ssid, pass.
* ****************
*/
void startServer(){
debugSerial.println("starting server");
// reset module
sendData("AT+RST\r\n",2000,DEBUG);
// configure as access point
sendData("AT+CWMODE=1\r\n",1000,DEBUG);
// connect to wifi
sendData("AT+CWJAP=\"" + ssid +"\",\"" + pass + "\"", 1000, DEBUG);
// get ip address
sendData("AT+CIFSR\r\n",1000,DEBUG);
// configure multiple connections
sendData("AT+CIPMUX=1\r\n",1000,DEBUG);
// use port 80 and turn on the server
sendData("AT+CIPSERVER=1,80\r\n",1000,DEBUG);
}
/*
* ****************************
* Read web request as string after character ? and change state of motor
* ****************************
*/
String changeMotorState(){
}
The slave code:
/*
* ***********************
* Copyright (c) J. C. Mariscal
* MIT License
* ***********************
*/
/*
* *****************************
* Program: motor control slave v0.1
* ****************************
*/
#include <Arduino.h>
#include "BasicStepperDriver.h"
#include <SoftwareSerial.h>
#include <Wire.h>
/*
* /////////////////
* SLAVE STEPPER
* /////////////////
*/
#define DIR PD5
#define STEP PD6
// using a 200-step motor.
#define STEPMOTOR 200
BasicStepperDriver slaveStepper(STEPMOTOR, DIR, STEP);
int x = 0; // i2c byte sent from master
int i = 0;
void setup() {
//init stepper
slaveStepperInit(10, 1);
// Start slave
Wire.begin(2); // join i2c bus address 2
Wire.onReceive(receiveEvent);
}
void loop () {
if (x == '1'){
slaveStepper.move(1);
slaveStepper.setRPM(i);
// set acceleration
if (i < 50) {
i++;
}
}
if (x == '2'){
slaveStepper.move(-1);
slaveStepper.setRPM(i);
// set acceleration
if (i < 50) {
i++;
}
}
if (x == '3'){
slaveStepper.move(0);
}
}
void receiveEvent(int bytes) {
x = Wire.read();
slaveStepper.rotate(360);
}
void slaveStepperInit(unsigned int rpm, unsigned int microstep){
DDRB &= ~(1 << PB0);
PORTB &= ~(1 << PB0);
slaveStepper.setRPM(rpm);
// 1 full microstep, 2 half, etc...
slaveStepper.setMicrostep(microstep);
//test rotation
slaveStepper.rotate(60);
slaveStepper.rotate(-60);
slaveStepper.rotate(60);
}
MOTOR CONTROL V0.2 - MOTOR CONTROL WITH JC-WATCHOBOT V3.0
jc-watchobotv2.0 board was improved to handle 2 stepper motors, hence, jc-watchobot v3.0 board is used.
Wiring diagram is as follows:
Code is improved to drive two stepper motors from one board at the same time.
/*
* ----------------------------------
* Copyright (c) J. C. Mariscal
* MIT License
* ----------------------------------
*/
/*
* ----------------------------------
* Program: watchobot motor control
* ---------------------------------
*/
#include <Arduino.h>
#include "BasicStepperDriver.h"
#include <SoftwareSerial.h>
/** ******************
* STEPPERS
* *******************/
#define DIR 5 // PD5
#define STEP 6 // PD6
#define DIR2 9 // PB1
#define STEP2 10 // PB2
// using a 200-step motor.
#define STEPMOTOR 200
int g_RPM = 30;
int g_microstep = 16;
BasicStepperDriver masterStepper(STEPMOTOR, DIR, STEP);
BasicStepperDriver stepper2(STEPMOTOR, DIR2, STEP2);
int g_motorState =3; //non-movement state
int i = 0;
int g_j = 0;
/* *************
* ESP8266
* *************/
#define DEBUG true
String ssid = "WLANID";
String pass = "pass";
SoftwareSerial debugSerial(PD3,PD4); //for debugging serial
/********************
* FUNCTIONS INITS
*********************/
String sendData(String command, const int timeout, boolean debug);
void startServer();
void stepperInit(unsigned int rpm, unsigned int microstep);
void moveMotor();
void checkUserCommand(String command);
/***************************************************************************/
// SETUP
void setup() {
//init stepper
stepperInit(g_RPM, g_microstep);
//init serial
Serial.begin(115200);
debugSerial.begin(9600);
debugSerial.println("serial starting");
// Start esp8266 server
startServer();
}
/***************************************************************************/
// MAIN LOOP
void loop() {
if ( Serial.available() ) {
if (Serial.find("+IPD,") ) {
String msg;
Serial.find("?");
msg = Serial.readStringUntil(' '); //read the whole text
String commandReceived = msg.substring(0, 2);
String valueStr = msg.substring(4);
if (DEBUG){
debugSerial.println(commandReceived);
debugSerial.println(valueStr);
}
/*
String newRPM = msg.substring(0, 3);
if (newRPM.charAt(0) == "a"){
newRPM = newRPM.substring(1,3);
g_RPM = newRPM.toInt();
stepper2.setRPM(g_RPM);
masterStepper.setRPM(g_RPM);
}
*/
checkUserCommand(commandReceived);
}
}
moveMotor(g_motorState);
}
/****************************************************************************/
/*
* //////////////
* MOTOR FUNCTIONS
* //////////////
*/
/*
* ***********************
* Init for master stepper
* ***********************
*/
void stepperInit(unsigned int rpm, unsigned int microstep){
DDRB &= ~(1 << PB0);
PORTB &= ~(1 << PB0);
DDRB &= ~(1 << PD7);
PORTB &= ~(1 << PD7);
masterStepper.setRPM(rpm);
// 1 full microstep, 2 half, etc...
masterStepper.setMicrostep(microstep);
//test rotation
stepper2.setRPM(rpm);
stepper2.setMicrostep(microstep);
masterStepper.rotate(10);
masterStepper.rotate(-10);
stepper2.rotate(10);
stepper2.rotate(-10);
}
/*
* ****************
* Motor movement: uses global variable state
* ****************
*/
void moveMotor(int motorState){
// move motor forward
if (motorState ==1) {
masterStepper.move(1);
masterStepper.setRPM(i);
//stepper2 -1 is forward
stepper2.move(-1);
stepper2.setRPM(i);
++g_j;
// set acceleration
if (i < g_RPM && (g_j % 100 == 0)){
i++;
}
}
// move motor backward
if (motorState == 2) {
masterStepper.move(-1);
masterStepper.setRPM(i);
// stepper2, move 1 is backwards
stepper2.move(1);
stepper2.setRPM(i);
++g_j;
// set acceleration
if (i < g_RPM && (g_j % 100 == 0)){
i++;
}
}
// stop
if (motorState == 3){
masterStepper.move(0);
}
// move right
if (motorState == 4){
masterStepper.move(1);
masterStepper.setRPM(2);
stepper2.move(-1);
stepper2.setRPM(i);
// set acceleration
if (i < g_RPM){
i++;
}
}
// move left
if (motorState == 5){
masterStepper.move(1);
masterStepper.setRPM(i);
stepper2.move(-1);
stepper2.setRPM(2);
// set acceleration
if (i < g_RPM){
i++;
}
}
// pivot right
if (motorState == 6){
masterStepper.move(-1);
masterStepper.setRPM(1);
stepper2.move(-1);
stepper2.setRPM(i);
// set acceleration
if (i < g_RPM){
i++;
}
}
// pivot left
if (motorState == 7){
masterStepper.move(1);
masterStepper.setRPM(i);
stepper2.move(1);
stepper2.setRPM(1);
// set acceleration
if (i < g_RPM){
i++;
}
}
}
/*
* ///////////////////
* ESP8266 FUNCTIONS
* ///////////////////
*/
/*
/*
* *****************
* sendData function: Sends command to the ESP8266 and returns response.
* *****************
*/
String sendData(String command, const int timeout, boolean debug)
{
debugSerial.println("sending data");
String response = "";
Serial.print(command); // send the read character to the mySerial
long int time = millis();
while( (time+timeout) > millis())
{
while(Serial.available())
{
// The esp has data so display its output to the serial window
char c = Serial.read(); // read the next character.
response+=c;
}
}
if(debug)
{
debugSerial.print(response);
}
return response;
}
/* ****************
* esp8266 server: uses global variable ssid, pass.
* ****************
*/
void startServer(){
debugSerial.println("starting server");
// reset module
sendData("AT+RST\r\n",2000,DEBUG);
// configure as access point
sendData("AT+CWMODE=1\r\n",1000,DEBUG);
// connect to wifi
sendData("AT+CWJAP=\"" + ssid +"\",\"" + pass + "\"", 1000, DEBUG);
// get ip address
sendData("AT+CIFSR\r\n",1000,DEBUG);
// configure multiple connections
sendData("AT+CIPMUX=1\r\n",1000,DEBUG);
// use port 80 and turn on the server
sendData("AT+CIPSERVER=1,80\r\n",1000,DEBUG);
}
/*
* ****************************
* WATCHOBOT COMMANDS FUNCTION: set event according to string command.
* ****************************
*/
void checkUserCommand(String command){
//move forward
if (command == "01"){
i = 1;
g_motorState = 1;
g_j = 0;
}
// move backwards
if (command == "02"){
i = 1;
g_motorState = 2;
g_j = 0;
}
// stop
if (command == "03"){
i = 1;
g_motorState = 3;
}
// move right
if (command == "04"){
i = 1;
g_motorState = 4;
}
// move left
if (command == "05"){
i = 1;
g_motorState = 5;
}
// increase RPM
if (command == "06"){
++g_RPM;
if (g_RPM == 4000){
g_RPM = 3;
}
}
// decrease RPM
if (command == "07"){
--g_RPM;
if (g_RPM == 1){
g_RPM = 1;
}
}
// reset RPM default
if (command == "08"){
g_RPM = 3;
masterStepper.setMicrostep(16);
stepper2.setMicrostep(16);
}
// full step mode
if (command == "09"){
masterStepper.setMicrostep(1);
stepper2.setMicrostep(1);
}
// 1/2 microstep
if (command == "10"){
masterStepper.setMicrostep(2);
stepper2.setMicrostep(2);
}
// 1/4 microstep
if (command == "11"){
masterStepper.setMicrostep(4);
stepper2.setMicrostep(4);
}
// 1/8 microstep
if (command == "12"){
masterStepper.setMicrostep(8);
stepper2.setMicrostep(8);
}
if (command == "13"){
g_motorState = 6;
i = 0;
}
if (command == "14"){
g_motorState = 7;
i = 0;
}
}
The board is connected similarly as with the jc-watchobot-v2.0.
Board communicates over serial with the ESP8266 board; which is also initialised with AT commands and connected to a local wifi.
CAMERA CONTROL
PIXY CAMERA TEST CODE
Pixy CMUcam5 module is used for this project.
Before using, camera must be set to communicate through ICSP by using the PixyMon software. Instructions on how to install in a linux system can be found here.
The following code is uploaded to test the functionality of the camera; two servos are attached to the 3D printed pan and tilt mechanism (more info here).
The two servos are connected straight to the Pixy board.
As the pixy board uses ICSP to interface with the microcontroller, the connections to the jc-watchobot-v3.0 are as follows:
The following test code moves the servo motors and it worked as expected.
#include <SPI.h>
#include <Pixy.h>
Pixy pixy;
void setup()
{
Serial.begin(9600);
Serial.print("Starting...\n");
pixy.init();
}
void loop()
{
pixy.setServos(PIXY_RCS_MAX_POS, PIXY_RCS_MAX_POS);
delay(1000);
pixy.setServos(PIXY_RCS_MIN_POS, PIXY_RCS_MIN_POS);
delay(1000);
}
PIXY PAN AND TILT CODE
Next code uses same libraries as previously, available here.
The code is connected to another board and run.
Camera follows the object and pans and tilts accordingly.
Code is partially modified from the example file in charmedlabs's github to function with my pan and tilt mechanism.
//
// begin license header
//
// This file is part of Pixy CMUcam5 or "Pixy" for short
//
// All Pixy source code is provided under the terms of the
// GNU General Public License v2 (http://www.gnu.org/licenses/gpl-2.0.html).
// Those wishing to use Pixy source code, software and/or
// technologies under different licensing terms should contact us at
// cmucam@cs.cmu.edu. Such licensing terms are available for
// all portions of the Pixy codebase presented here.
//
// end license header
//
// This sketch is a simple tracking demo that uses the pan/tilt unit. For
// more information, go here:
//
// http://cmucam.org/projects/cmucam5/wiki/Run_the_Pantilt_Demo
//
#include <SPI.h>
#include <Pixy.h>
Pixy pixy;
#define X_CENTER ((PIXY_MAX_X-PIXY_MIN_X)/2)
#define Y_CENTER ((PIXY_MAX_Y-PIXY_MIN_Y)/2)
bool g_setHomePosition = false;
class ServoLoop
{
public:
ServoLoop(int32_t pgain, int32_t dgain);
void update(int32_t error);
int32_t m_pos;
int32_t m_prevError;
int32_t m_pgain;
int32_t m_dgain;
};
ServoLoop panLoop(300, 500);
ServoLoop tiltLoop(-500, -700);
ServoLoop::ServoLoop(int32_t pgain, int32_t dgain)
{
m_pos = PIXY_RCS_CENTER_POS;
m_pgain = pgain;
m_dgain = dgain;
m_prevError = 0x80000000L;
}
void ServoLoop::update(int32_t error)
{
long int vel;
char buf[32];
if (m_prevError!=0x80000000)
{
vel = (error*m_pgain + (error - m_prevError)*m_dgain)>>10;
//sprintf(buf, "%ld\n", vel);
//Serial.print(buf);
m_pos += vel;
if (m_pos>PIXY_RCS_MAX_POS)
m_pos = PIXY_RCS_MAX_POS;
else if (m_pos<PIXY_RCS_MIN_POS)
m_pos = PIXY_RCS_MIN_POS;
}
m_prevError = error;
}
void setup()
{
Serial.begin(9600);
Serial.print("Starting...\n");
pixy.init();
delay(1000);
}
void loop()
{
if (g_setHomePosition == false){
pixy.setServos(0, PIXY_RCS_MAX_POS);
g_setHomePosition = true;
}
static int i = 0;
int j;
uint16_t blocks;
char buf[32];
int32_t panError, tiltError;
blocks = pixy.getBlocks();
if (blocks)
{
panError = X_CENTER-pixy.blocks[0].x;
tiltError = pixy.blocks[0].y-Y_CENTER;
panLoop.update(panError);
tiltLoop.update(tiltError);
pixy.setServos(panLoop.m_pos, tiltLoop.m_pos);
i++;
// do this (print) every 50 frames because printing every
// frame would bog down the Arduino
if (i%50==0)
{
sprintf(buf, "Detected %d:\n", blocks);
Serial.print(buf);
for (j=0; j<blocks; j++)
{
sprintf(buf, " block %d: ", j);
Serial.print(buf);
pixy.blocks[j].print();
}
}
}
}
WEB CONTROL
jsquery is used to create a set of functions to control the robot movement over the web.
There is a input form, where the IP address of the ESP8266 needs to be filled.
Function uses get method to send data over to the ESP8266, which in turn sets the appropriate command of movement for the steppers.
$.ajaxSetup({timeout:100});
var latch = false;
function readUrlAV (form) {
TextVar = form.inputbox.value;
VideoVar = "http://"+TextVar+":8080/video";
AudioVar = "http://"+TextVar+":8080/audio.opus";
document.getElementById("video").setAttribute('data', VideoVar);
document.getElementById("audio").setAttribute('data', AudioVar);
}
function testarArduino (form) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "cm3": 7000 }) ;
{Connection: close};
}
function setRPM (form) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
formRpmVar = formRPM.inputbox.value;
rpmSet = "a" + formRpmVar;
$.get( ArduinoVar, {number: rpmSet});
{Connection: close};
}
document.onkeydown = checkKeyDown;
document.onkeyup = checkKeyUp;
function checkKeyDown(e) {
e = e || window.event;
if (e.keyCode == '38') {
// up arrow
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "01": 1000 }) ;
{Connection: close};
latch = true;
}
}
else if (e.keyCode == '40') {
// down arrow
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "02": 1000 }) ;
{Connection: close};
latch = true;
}
}
else if (e.keyCode == '37') {
// left arrow
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "05": 1000 }) ;
{Connection: close};
latch = true;
}
}
else if (e.keyCode == '39') {
// right arrow
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "04": 1000 }) ;
{Connection: close};
latch = true;
}
}
// q: pivot right
else if (e.keyCode == '81') {
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "13": 1000 }) ;
{Connection: close};
latch = true;
}
}
// w: pivot left
else if (e.keyCode == '87') {
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "14": 1000 }) ;
{Connection: close};
latch = true;
}
}
// i: increase speed
else if (e.keyCode == '73') {
// i character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "06": 1000 }) ;
{Connection: close};
latch = true;
}
}
// d: decrease speed
else if (e.keyCode == '68') {
// d character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "07": 1000 }) ;
{Connection: close};
latch = true;
}
}
// r: reset speed/microstep
else if (e.keyCode == '82') {
// r character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "08": 1000 }) ;
{Connection: close};
latch = true;
}
}
// 1: full speed/microstep
else if (e.keyCode == '49') {
// 1 character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "09": 1000 }) ;
{Connection: close};
latch = true;
}
} // 2: 1/2 speed/microstep
else if (e.keyCode == '50') {
// 2 character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "10": 1000 }) ;
{Connection: close};
latch = true;
}
} // 4: 1/4 speed/microstep
else if (e.keyCode == '52') {
// r character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "11": 1000 }) ;
{Connection: close};
latch = true;
}
} // 8: 1/8 speed/microstep
else if (e.keyCode == '56') {
// r character
if (latch == false) {
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "12": 1000 }) ;
{Connection: close};
latch = true;
}
}
}
function checkKeyUp(e) {
e = e || window.event;
if ((e.keyCode == '38')||(e.keyCode == '40')||(e.keyCode == '37')||(e.keyCode == '39') || (e.keyCode == '56') || (e.keyCode == '52')
|| (e.keyCode == '50') || (e.keyCode == '49') || (e.keyCode == '82') || (e.keyCode == '68') || (e.keyCode =='73') || (e.keyCode =='87') || (e.keyCode == '81') ){
setTimeout(doNothing, 200);
}
}
function doNothing(){
TextVar = myform2.inputbox.value;
ArduinoVar = "http://" + TextVar + ":80";
$.get( ArduinoVar, { "03": 1000 }) ;
{Connection: close};
latch = false;
}
Having the functions ready, an html file is created to host the interface program for the watchobot. Code is as follows:
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
<title>WATCHOBOT CONTROL</title>
<script src="jquery.js"></script>
<script src="myscript.js"></script>
</head>
<body>
<div id="main">
<div id="commands" style="position: absolute; top: 50px; left:35%; width:65%">
<form name="myform2" action="" method="GET">
Watchobot IP Address:
<input type="text" name="inputbox" Value="192.168.2.106">
<input type="button" name="button3" Value="Test" onClick="testarArduino(this.form)">
</form>
<img src="images/keyboard.png" style="margin-left:100px; margin-top:50px;">
<p>Keys for the robot:</p>
<ul>
<li><b>Up arrow:</b> move forward.</li>
<li><b>Down arrow:</b> move backwards.</li>
<li><b>Right arrow:</b> move right.</li>
<li><b>Left arrow:</b> move left.</li>
<li><b>q:</b> pivot right.</li>
<li><b>w:</b> pivot left.</li>
<li><b>i:</b> increase speed.</li>
<li><b>1:</b> set micro-step to full step.</li>
<li><b>2:</b> set 1/2 micro-step.</li>
<li><b>4:</b> set 1/4 micro-step.</li>
<li><b>8:</b> set 1/8 micro-step.</li>
<li><b>r:</b> reset to default values.</li>
</ul>
<form name="formRPM" action="" method="GET">
Watchobot speed in RPM
<input type="text" name="inputbox" Value="30">
<input type="button" name="button4" Value="Set RPM" onClick="setRPM(this.form)">
</div>
</body>
</html>
Final look of the interface is:
FILES
Motor control v0.1 code for master and slave
