Computer-Controlled Cutting

Assignments

Design, make, and document a parametric press-fit construction kit

Cut something on the vinylcutter

In the third week of Fab Academy, the plan was to design a press fit construction kit, using parametric drawing programs.

I was really interested in making a mini press fit chair

I thought that it would be a nice preparation for the computer-controlled machining week to make a mini press fit chair made of paper this week

My plan was to make a few different variations of a chair

I decided to stick with the program inkscape and draw my designs there

Inkscape

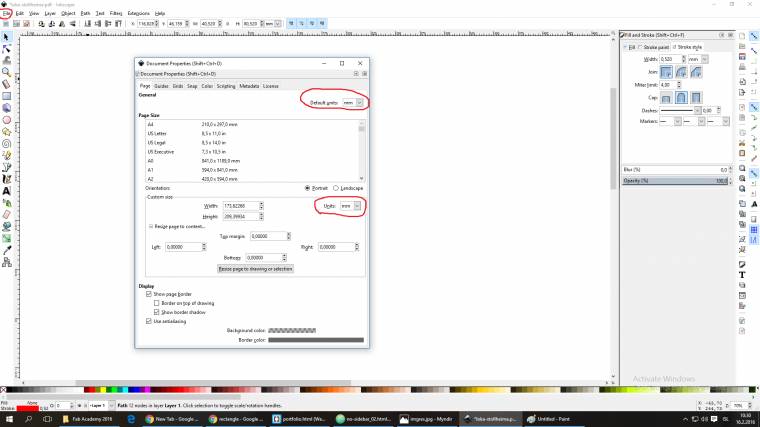

I started off by changing the default units in Inkscape from pixels to millimeters

To do that you click on file and the document properties window should appear

My next step was to make a simple rectangle with the width of 80mm and height of 40mm

And after that step i drew another smaller one with the dimensions of 20mm x 5mm. Then i changed the colours of them

The next step was an important one. I used the clone feature on the small rectangle

The clone feature makes the design parametric

To do so you have to click in your item, go to the edit toolbar, click clone and then create clone. Or simply use the shortcut Alt+D

A clone looks like a copy of the original object, but it’s more than that: a clone is a linked copy that changes whenever the original changes

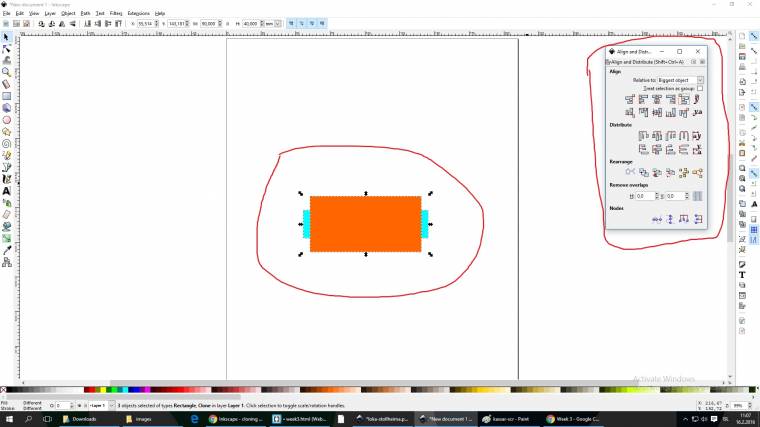

My next step was to align the small rectangle, and it´s clone to the big rectangle, using the Align and distribute tool

To do so you click on the object toolbar and you will find the Align and distribute tool there. The shortcut is Shift+Ctrl+A

Next i wanted to draw the feet for my chair

I drew a another rectangle, now with rounded edges. The dimensions were 60x50mm

Next i stretched the rectangle to 55x85mm

Now i duplicated this shape, made it smaller and centered it to the bigger shape

Next i used the difference tool(Ctrl + -), selected both items and then my foot design looked like this

My next step was to cut this item in half by using the difference tool again

After that i created a small rectangle that would fit onto my first design

If you can do all the things above, i think the rest of my design should be very easy to do

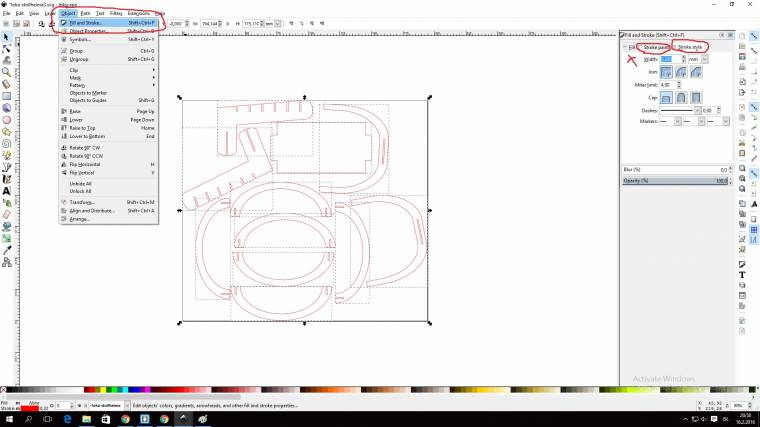

When all my items were finished, i turned off the fill of them and turned on the stroke

To do so you have to select the items, go to the object toolbar and click the fill and stroke option, or simply use the shortcut Ctrl+Shift+F

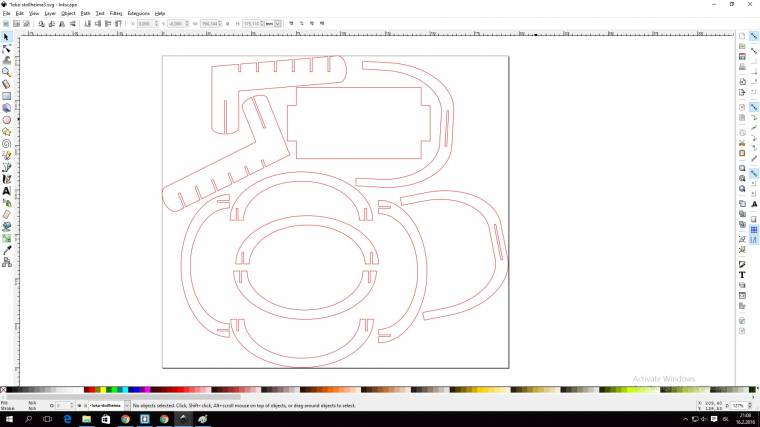

On the image below are the parts for the chair

It´s very important to save your file as a pdf file for the laser cutter and make the page fit around the items you want to cut

The laser

The laser we have in our lab is an Epilog Mini

The material i used was a cheap cardboard

There is a nice tutorial on the Fab Lab wiki which i found very helpful

Laser Tutorial

Good laser cut instructions

It´s necessary to switch on the ventilation and the air pressurizer, otherwise the printer won´t turn on

I turned on the machine

Next i took my material and placed it in the machine

On the machine, i pressed the X/Y OFF button followed by the green GO button for confirmation

Now i proceeded to move the laser by hand to where i wanted it to start cutting. The POINTER button helps you aim as you get a red dot on the lasers position

My next step was to manually calibrate the height and i clicked on the FOCUS button to do so

I used the arrow buttons on the machine (up) and (down) to lower the bed

The machine starts at the top left corner of design files. When i was satisfied with the position i pressed an SET HOME and that was the starting point for the cut

Next i opened my document in Adobe PDF reader on the computer and pressed the print button

After that i clicked on the PROPERTIES tab to set the laser cutter's options. Here i determined the settings that correspond with the material i am using

In the properties window i selected the vector setting. Vector means cutting only.My next step was to set the piece size

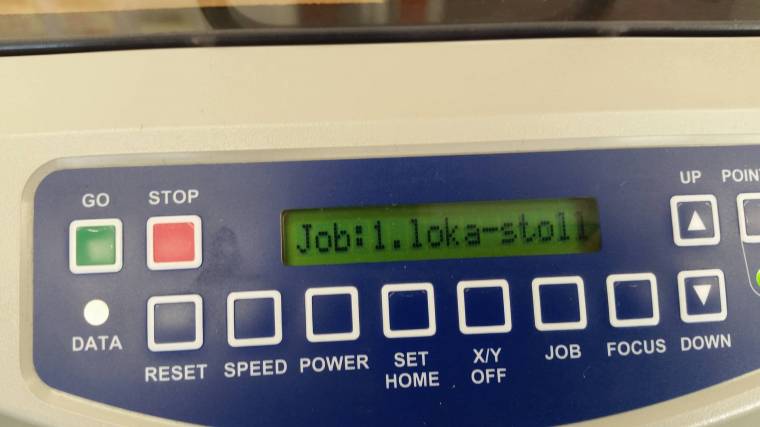

After my properties settings were complete i hit the print button and the job name appeared in the lasercutter

And then i hit the green GO button on the machine and the job started

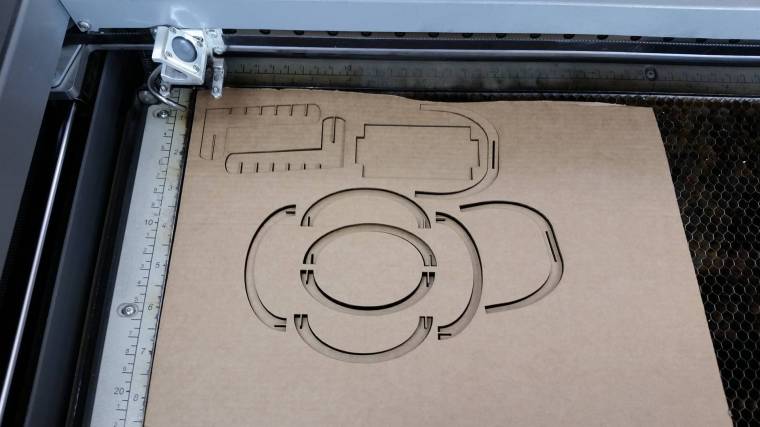

And here are my parts ready after the laser cut

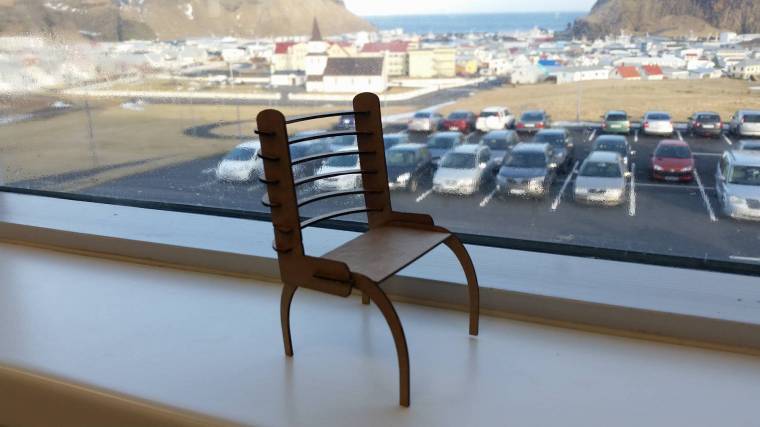

And here are two chair designs i made from the parts(i cut out on more kit)

The first one is a regular, majestic chair and the second one is a more funky, rocking chair

Vinyl Cutter

Neil also gave the students the task to make something in the vinyl cutter

I decided to make a sticker for the back of my phone, and decided to make a sticker out of the Fab Lab logo

I found thisimage on the internet and decided to use it

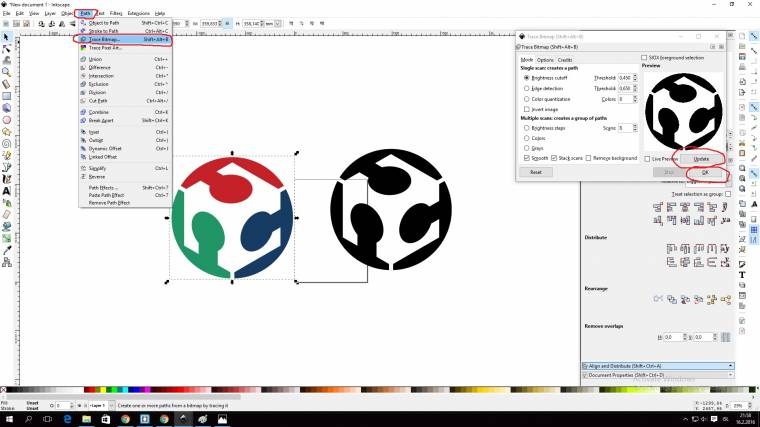

I copied the image to inkscape and there i used the trace bitmap option

The size of my phone is 14x7cm so i created a rectangle in inkscape to align the logo with it

I decided to have the logo 50x50mm

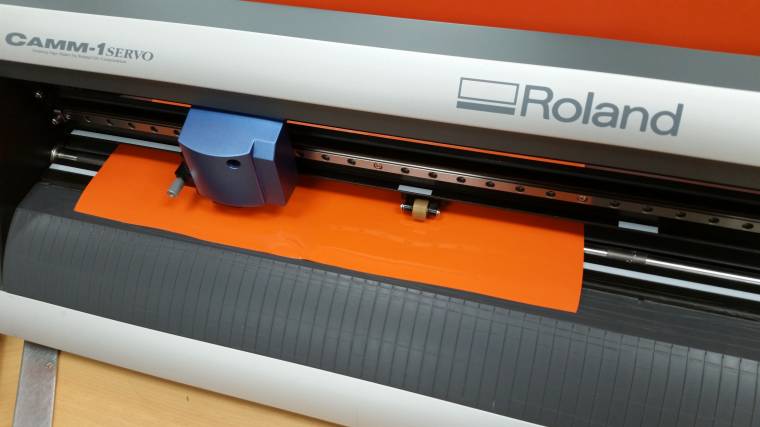

The vinyl cutter is a very simple tool. The one we have at our lab is a Roland GX-24

I decided to use orange material

The settings for the vinyl cutter are fairly easy. There are is a very useful tutorial for the vinylcutter on the fab wiki page

This is the tutorial i used long time ago

It´s on Icelandic but i hope people from other nations also find it helpful

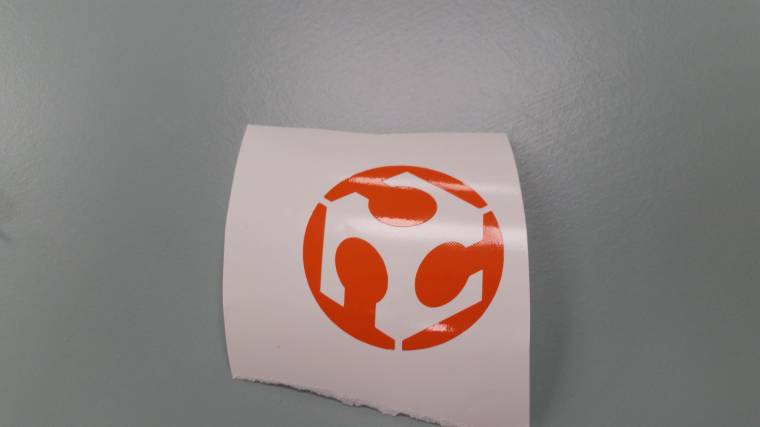

This is what the design looked like after being put through the vinylcutter

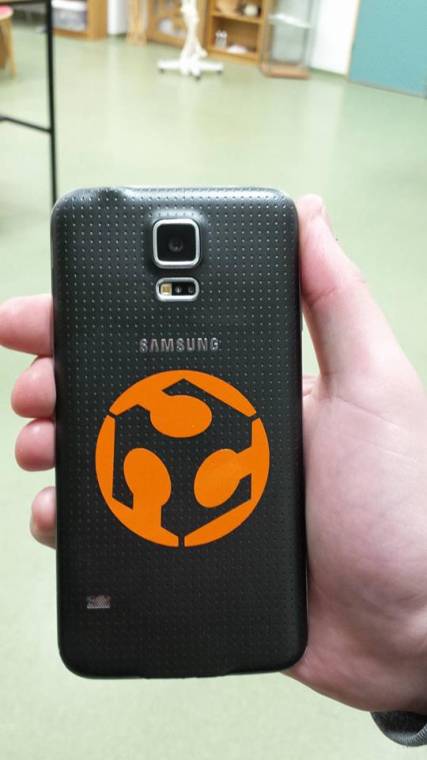

I am fairly pleased with this sticker and i think it looks good on my phone

Design files from this week

Chair
Vinyl
