I made cicuit board with milling machine and manual soldering.
I made PCB boards for FabISP with milling machine and fiber laser cutter. FabISP is a programmer for AVR microcontrollers designed by various makers. So I tried to make them of different versions on each machine.
|Fiber Laser cutter||hello.ISP.44.res|

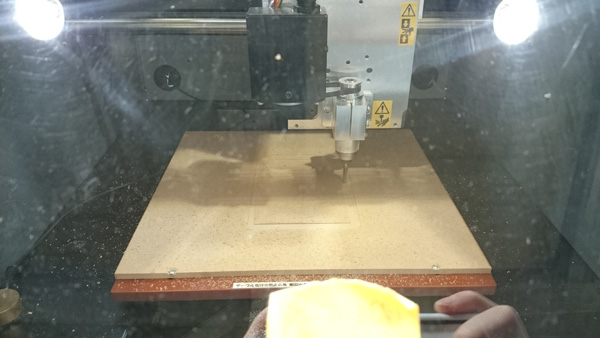

The machine that I used was Roland MDX-40.
At first, I shaped the surface of a follow board to level the platform. And then, I set the PCB material "FR1" upon it.

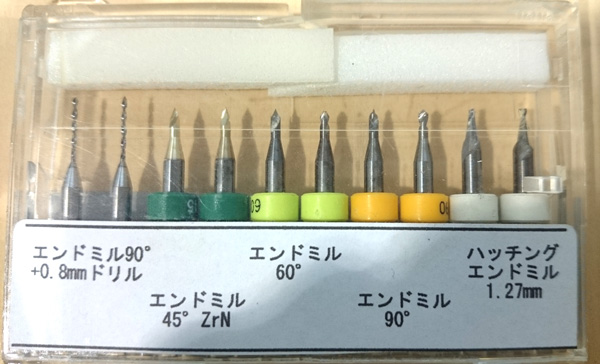

I used the following endmills.

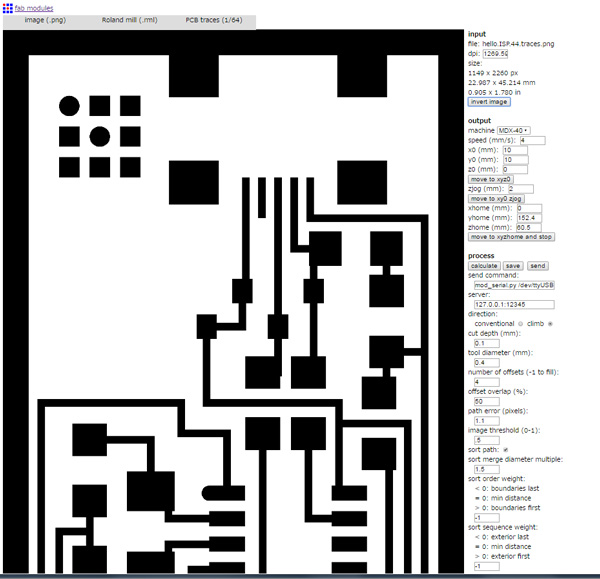

I created NC code file with Fab Module.
|input format||file name||output format||process|
|image(.png)||hello.ISP.44.traces.png||Roland mill(.rml)||PCB traces(1/64)|
|image(.png)||hello.ISP.44.interior.png||Roland mill(.rml)||PCB outline(1/32)|

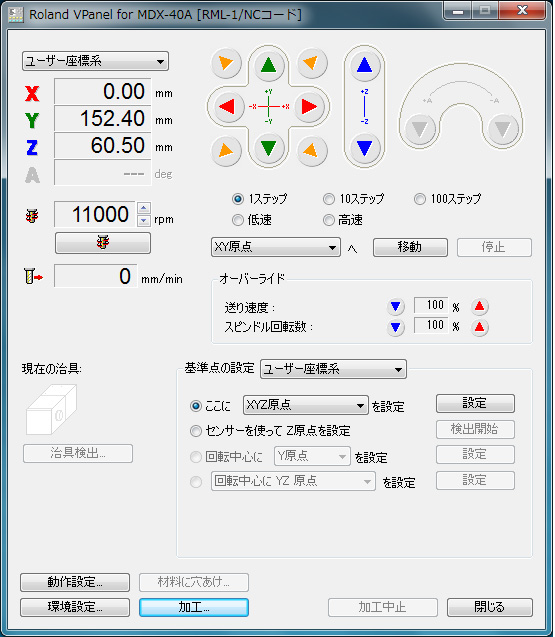

The origin and the number of rotation ware set on Roland Vpanel for MDX-40.

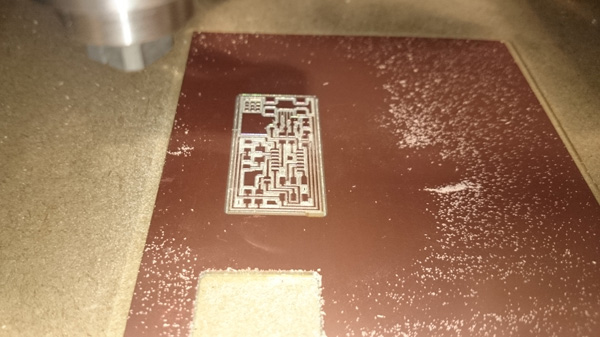

I milled the trace. And then I cutout the outline after changing the mills .

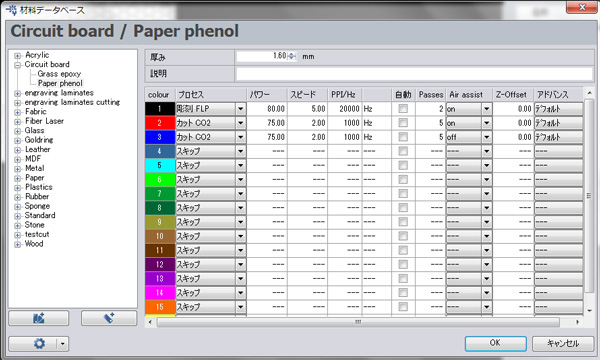

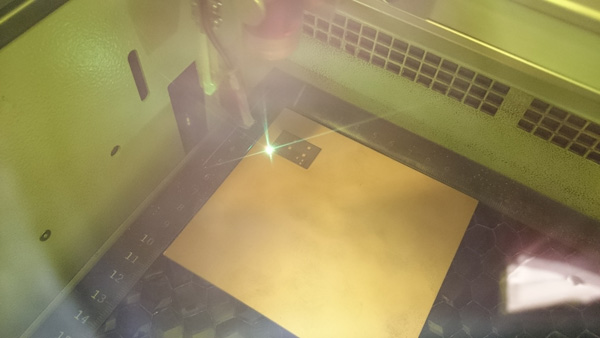

I tried to make PCB board of another design with another way.The laser cutter I used was trotec speedy 100 flexx. This model can switch between CO2 lazer and fiber laser. So I milled the trace with fiber lazer mode and cutout the outline with CO2 lazer mode. At first, I modeled 2D data for lazercutting based on "hello.ISP.44.res.traces.png" with Illustrator. The settings was as below.

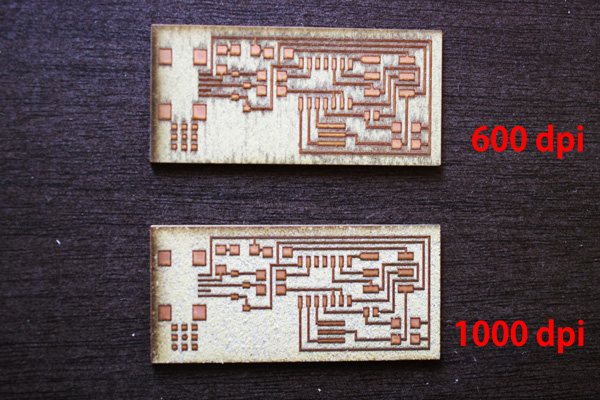

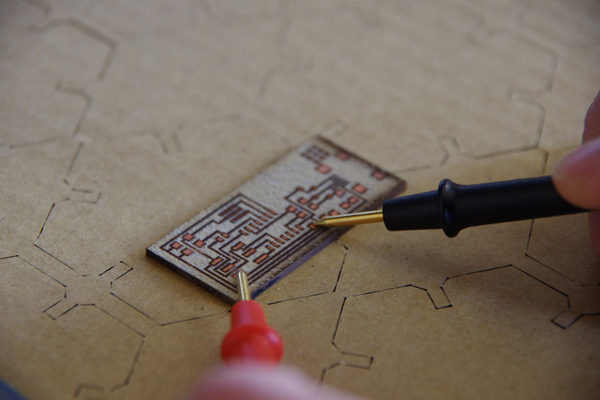

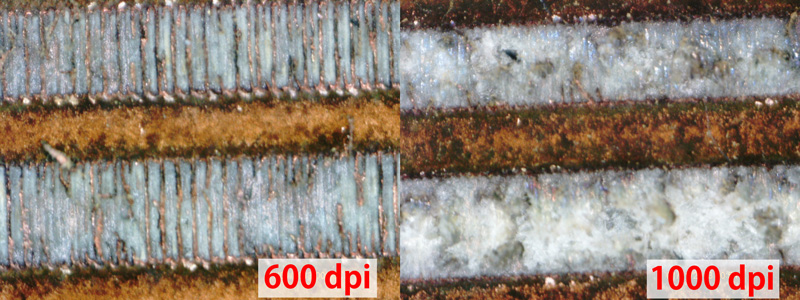

I set the resolution of the raster data for 600dpi and engraved the board. But, some areas were short-circuit. So I changed it to 1000dpi and retried. The next one was successful.I checked wheather there was any short circuit and any lines were connected using digital multimeter.

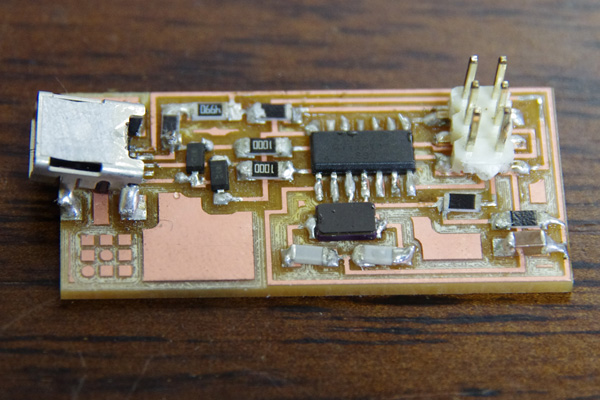

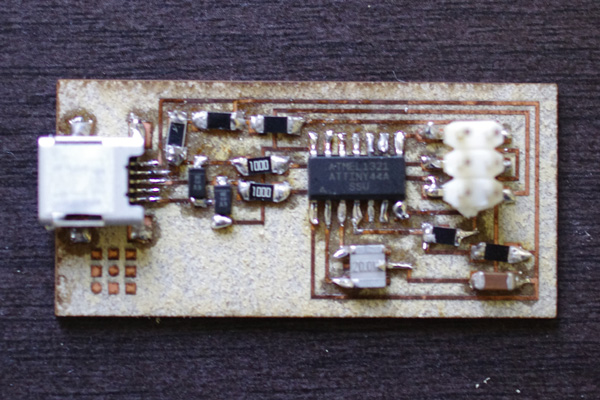

I soldered the following components to the PCB board using a soldering iron. It was the first time soldering surface mount parts. So I desoldered with desolder brade many times. Though the circuit had been completed, the soldered part was not shine and smooth. I need to practice more.
|ATTiny 44 microcontroller||1|
|Capacitor 10 pF||2|
|Resistor 100 ohm||2|
|1 Resistor 499 ohm||1|
|Resistor 1K ohm||1|
|6 pin header||1|
|mini USB connector||1|
|0 ohm resistors||2|
|Zener Diode 3.3 V||2|
I tried to program to the circuit above to make it FabISP. I used Mac on this process. At first, I Downloaded and Installed the following software.
cd ~/Desktop/Unzip the firmware.zip directory on my desktop.

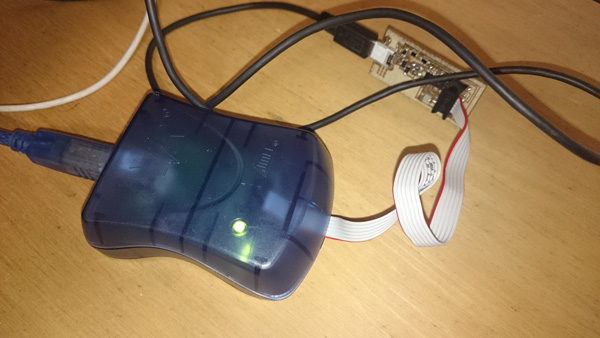

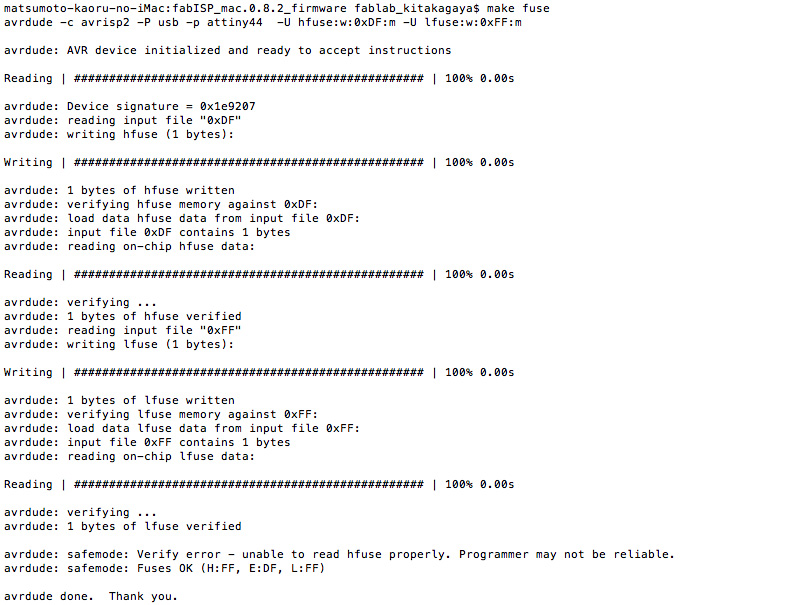

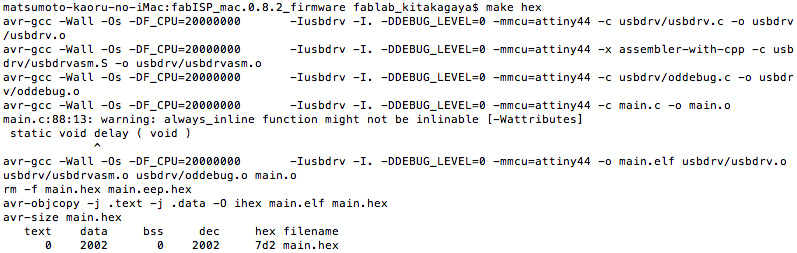

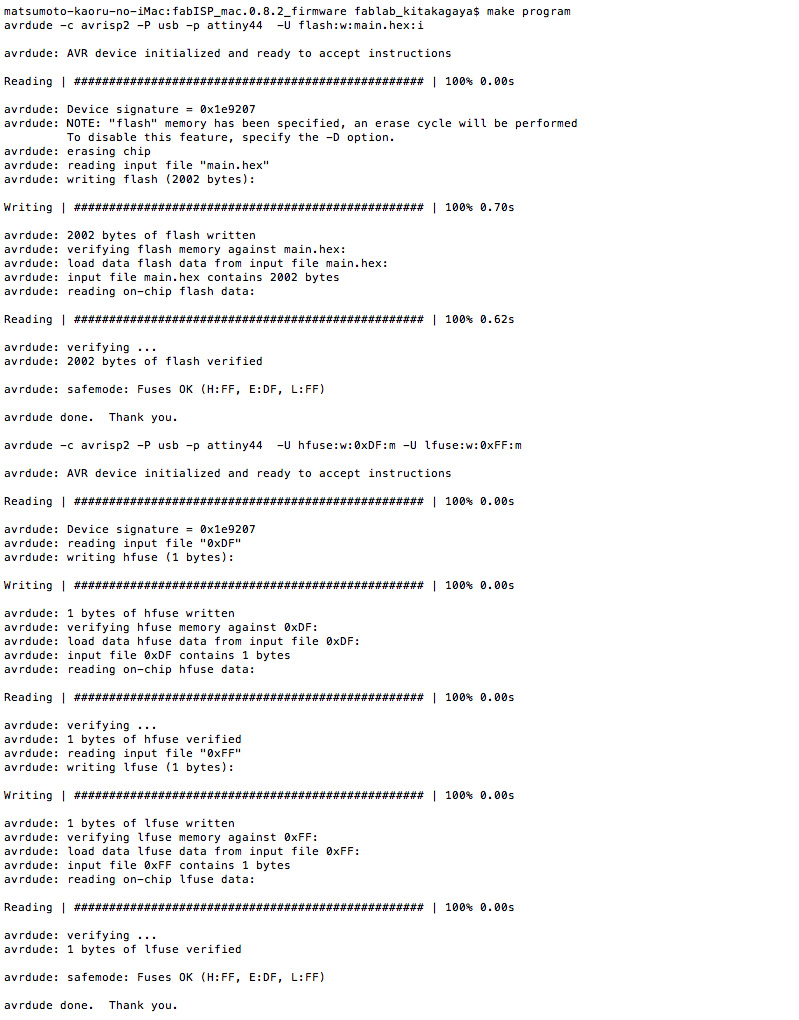

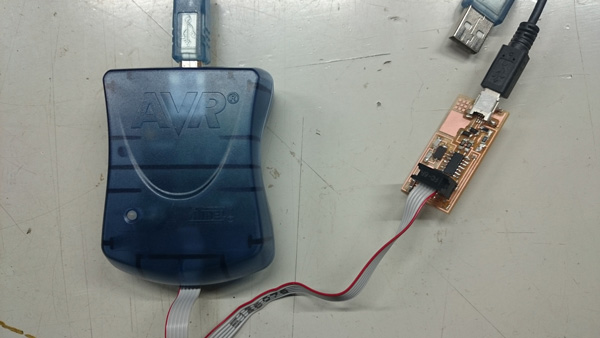

unzip fabISP_mac.0.8.2_firmware.zipI plugged the mini USB connector for the FabISP into my computer and the AVRISPmk2 into the 6-pin programming header. And I made sure that the green light was lighten. Then I programmed the board in accordance with the instruction.

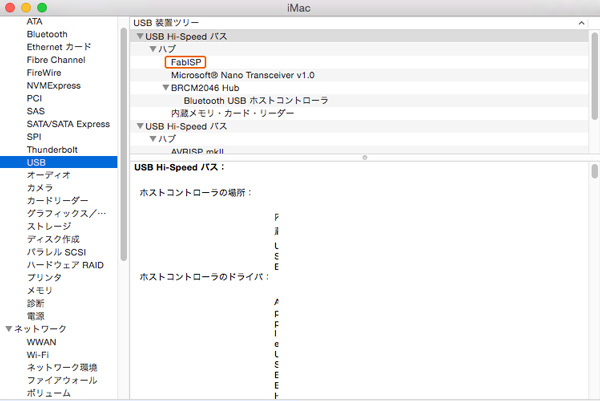

It seemed to be successful. So I checked the System Profiler and verifed my FabISP was working correctly.

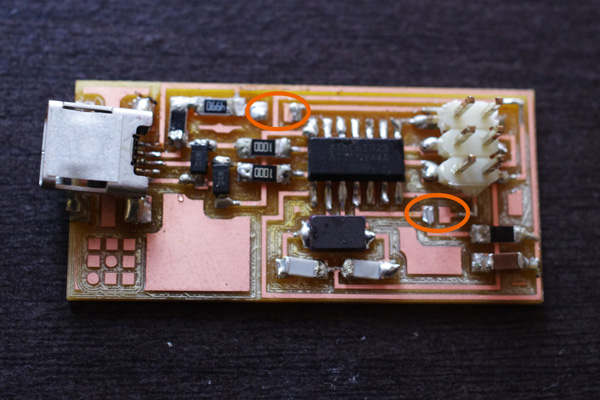

At last, I removed two 0ohm resisters to use this board as a programmer.
I tried to program another board using my FabISP.
I assemled the board made with a fiber laser cutter (20MHz resonator version)

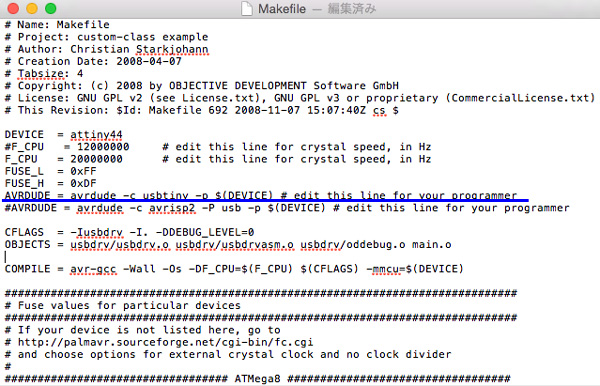

I editted the makefile because I was going to use FabISP as a programmer. - Remove the "#" in front of the line with "usbtiny" in it - Add a "#" to beginning the line with the "avrisp2" in it to comment it out.

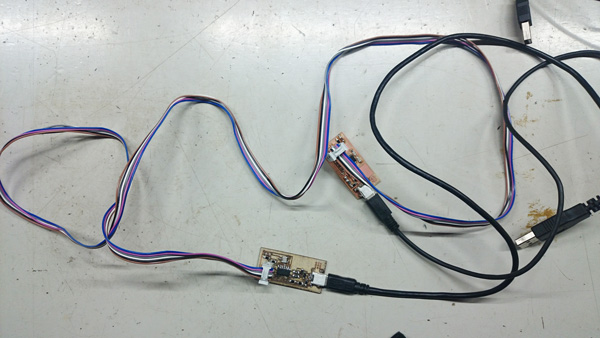

I connect my FabISP to the 6-pin programming header on the board.Each board connect to my computer with mini USB cable.
I programmed it in the same way as the previous. The same message displayed, so I thought it was sucessful. But "FabISP" wasn't listed in the system profiler. The computer doesn't recognize it as a FabISP or even any other devices.
At first, I checked that there was no short circuit with digital multimeter. There seemed to be no problem. And I tried to program the board using AVRISP. When I connected them to the computer, the yellow light was lighten.
So I think there is a defect somewhere. Certainly, many solder joints doesn't look shiny and smooth.But I still can't identify where the problem is. It is a remaining task.
