Files for the Final Project
All files
File |
Linked |
Use |
Process |
FlowMeter+Pin4 | Yes | Understand realtime water use at the point where sensor is installed | Coding |
Distance Sensor+Pin4 | Yes | Understand the amount of water left in the tank | Coding |
Relay+Pin4 | Yes | Understand realtime water use at the point where sensor is installed | Coding |

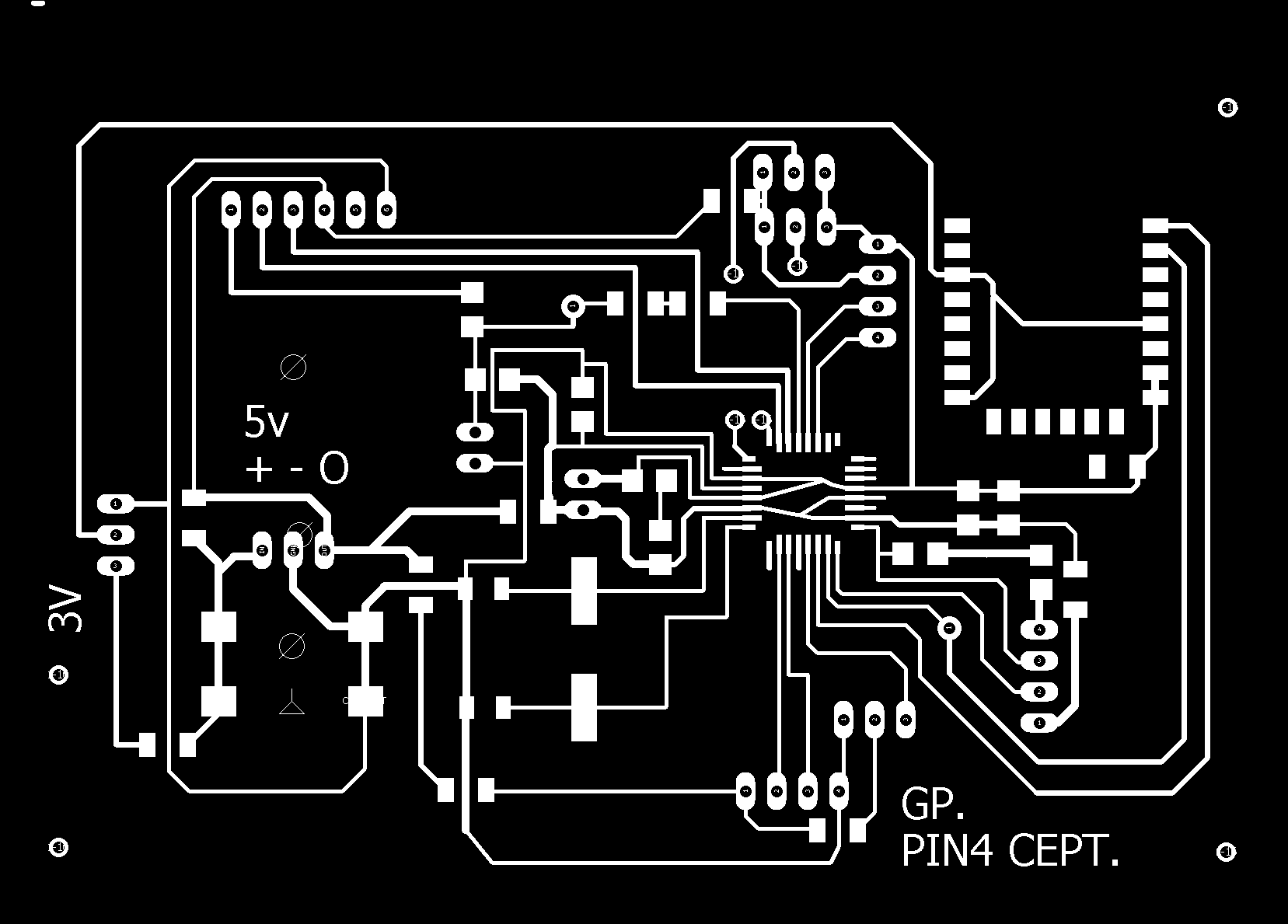

Board Design Files | Yes | Board design files | Milling |
Casing Design Files | Yes | Casign design files | Laser Cutting, 3mm acrylic |
Server Files | Yes | Backend Server code - Python MQTT recieve, Relay message and logic code | Coding |
printed case | Yes | 3D printed case for the tank level monitor | Coding |
