ASSIGNMENT

  • Describe the process of making 'echo hello-world' board with additional LED, buttons & current limiting resistor.
  • Explaining the possible problems and their solution.
  • Inclusion of original design files.

DESIGNING THE PCB

For Designing I used Eagle CAD Software



Download And Install Eagle

The Student Version is Free to use.

http://www.autodesk.com/products/eagle/free-download

I particularly have used the older version of eagle before its acquired by Autodesk.

I Referred Following links for Getting Started With Eagle



Now  We need to add library files to the eagle

Downloaded Following Assorted libraries by our global Instructor Ohadino Meyuhas

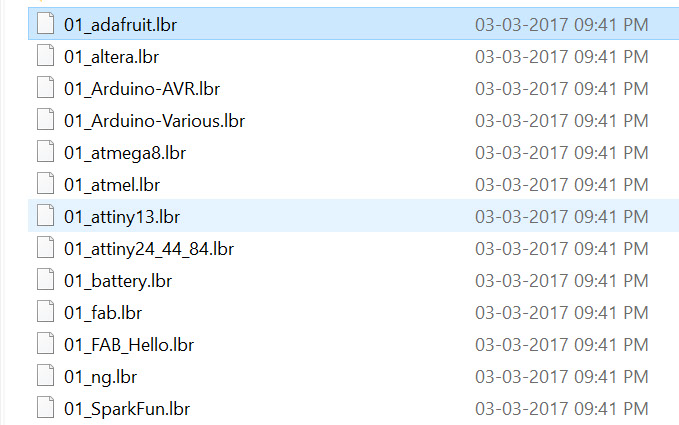

Extract The folder and copy all .lbr files.

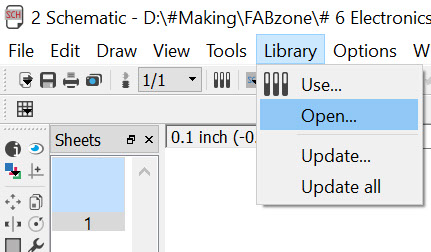

Now to To Library Menu Item in Eagle and open it.

Now Past all the files we downloaded earlier in the folder which opens up.

Now We are all set to start designing the PCB.



Open a blank eagle file.

Now go to the command panel and type : add   and press enter

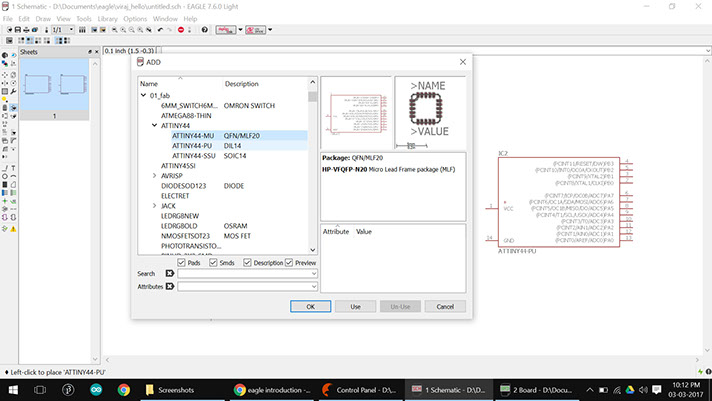

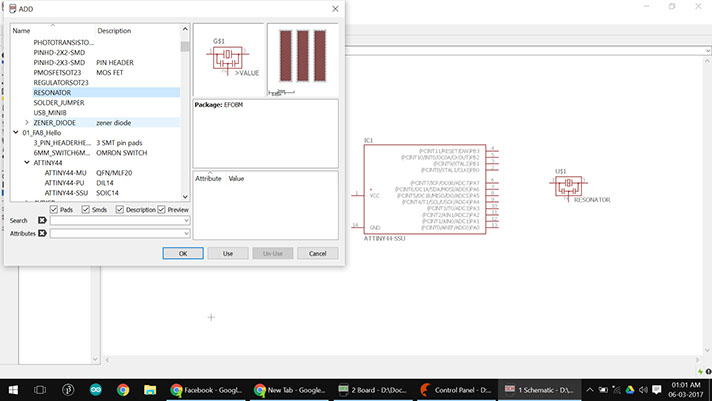

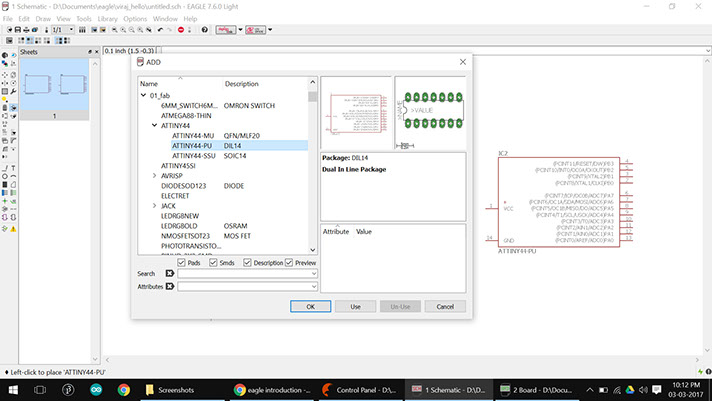

This will open the component selection windows that looks like this.

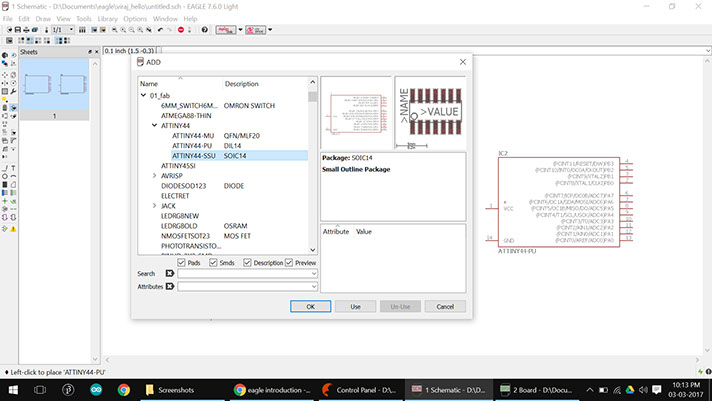

Note we have 3 form factor for ATtiny44  IC select the last one above for the one we have in fablab's inventory.

The basic components of the the hello echo board are listed below:

  • ATTiny 44 as MCU x1
  • 6 Pin AVR ISP Header x1
  • FTDI Header x1
  • 20 MHz Resonator x1
  • 1 uF Capacitor x1
  • 10K Ohm Resistor x1

In addition to that I am supposed to add few more components:

  • Switch
  • LED x2
  • 499 Ohm Resistor x2

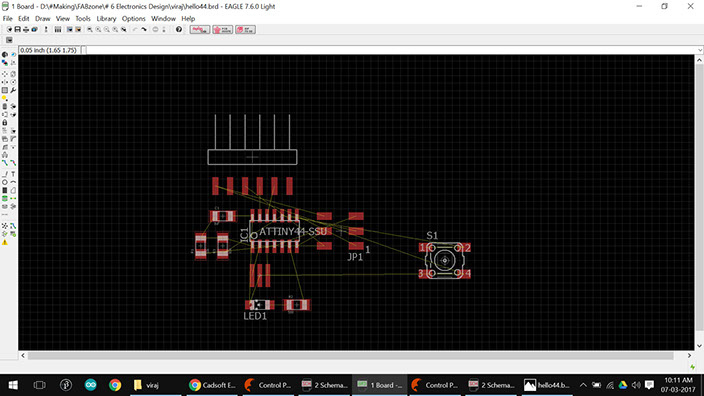

Now once all components are arranged

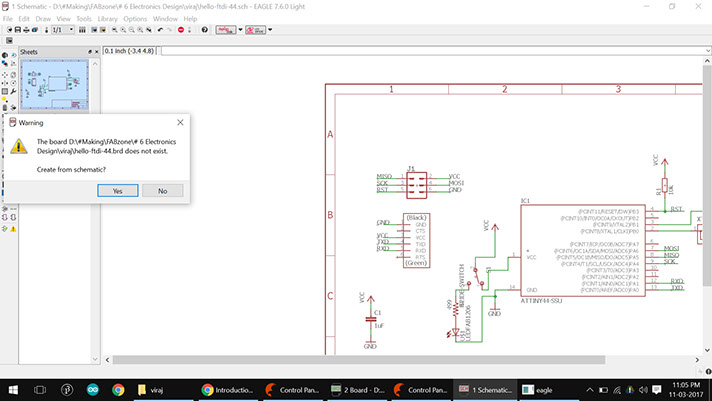

Go ahead and type : board  and press enter or optionally select the board icon on the left panel



This will popup below dialog box. press yes

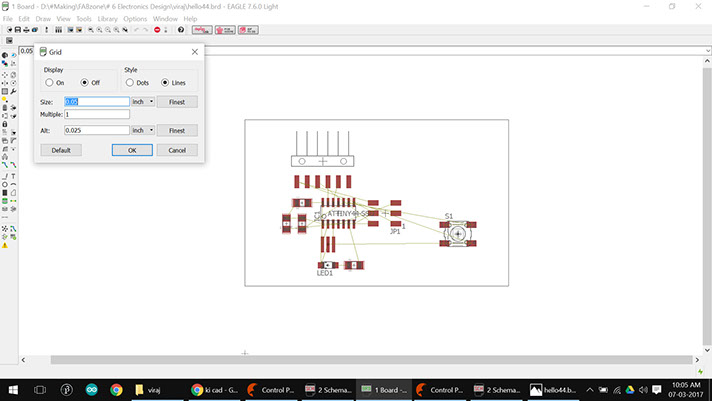

enable the grid to enable us to draw paths in distance of 0.25 inch

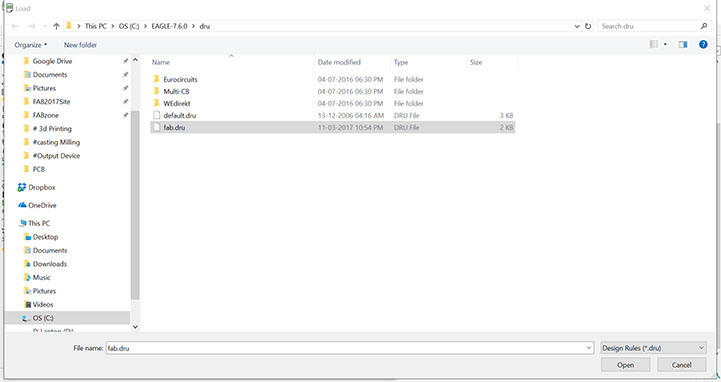

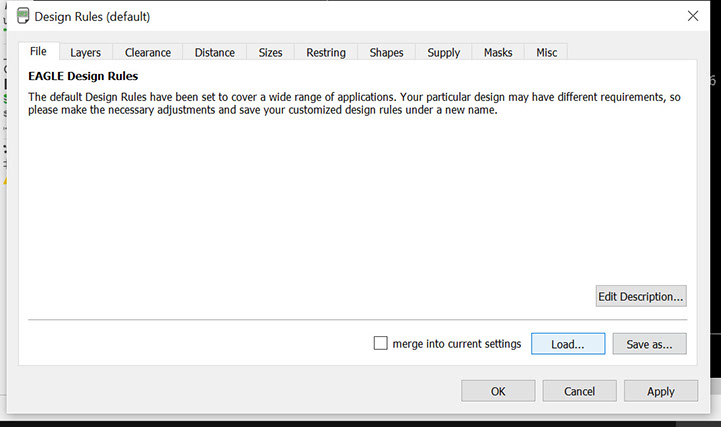

Add the DRC rule file from the Folder we have Downloaded earlier.

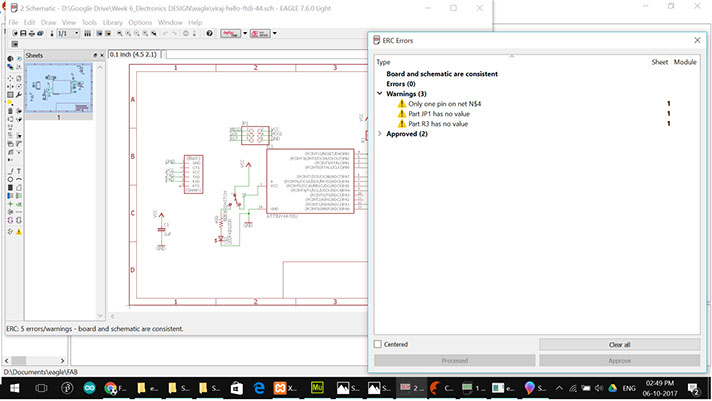

Next I ran DRC : Design Rule Check and it shows above errors all are warning and can be ignored.

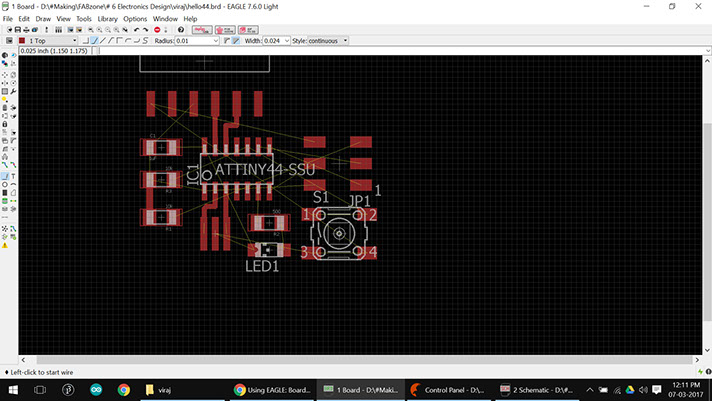

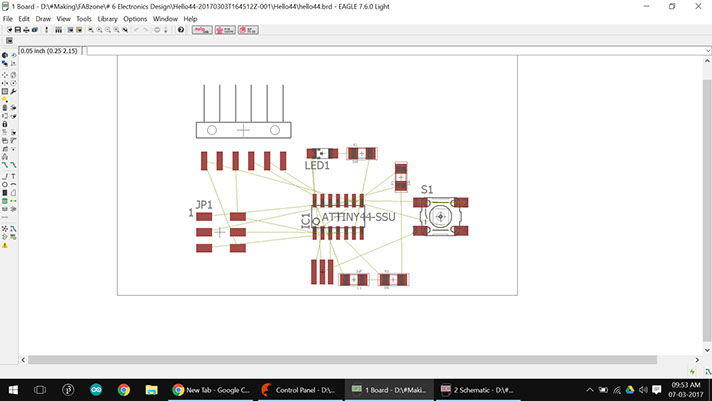

Now once its all arranged we are all set to create path.

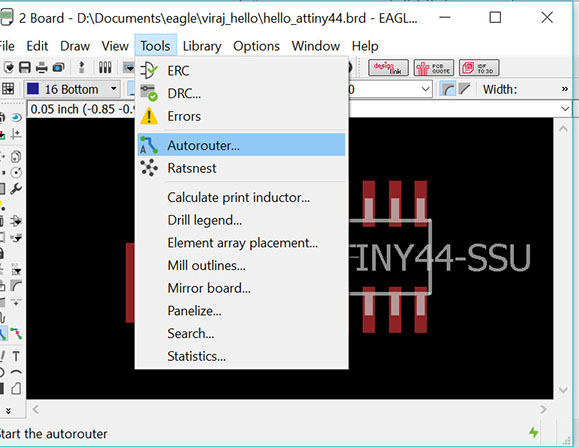

Go to Tools and Select Autorouter. option and press enter

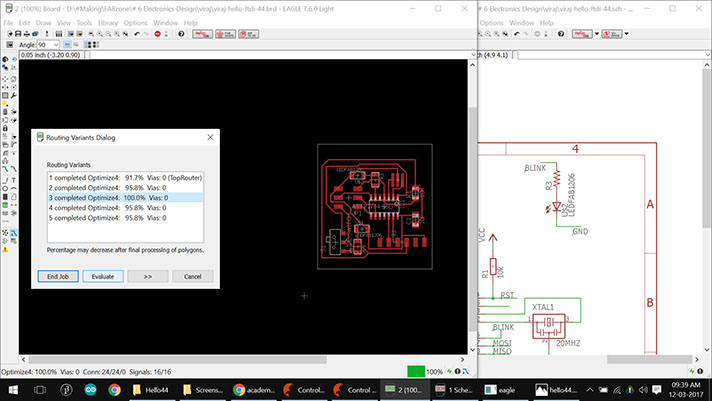

Select any one option with 100% auto routing done.

I got only one with 100% Routing complete else we might had to add it manually.

Lucky !!



Autorouter option is like magic to me. it calculates all possible path patterns and suggest few best of them.

Select any one option with 100% auto routing done.

I got only one with 100% Routing complete else we might had to add it manually.

Lucky !!



Autorouter option is like magic to me. it calculates all possible path patterns and suggest few best of them.

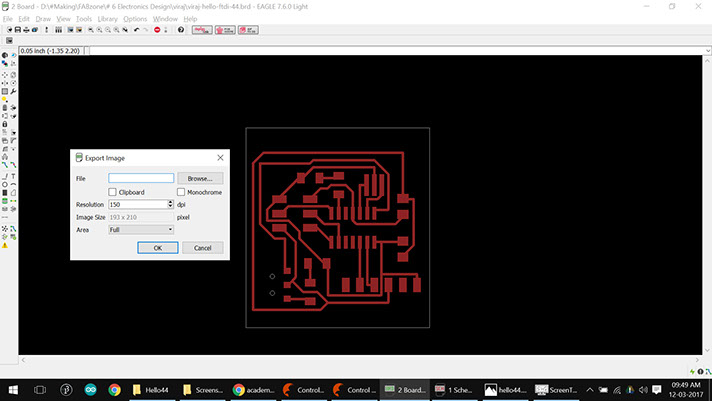

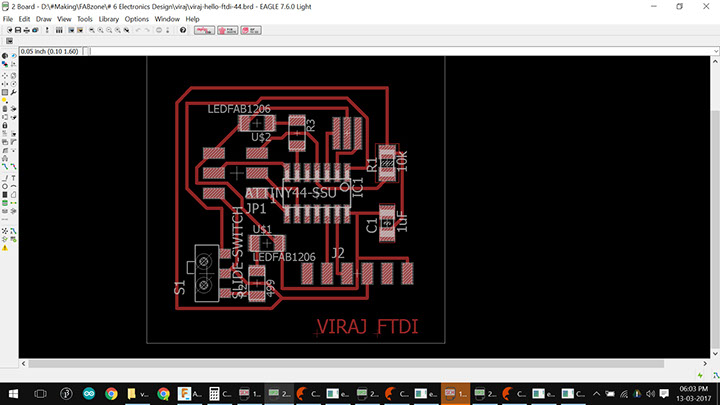

Note: I have Mistakenly Named it Viraj FTDI

its not and ftdi chip. I dont know what was the confusion then to me.

Please Just ignore the name.

Its the hellp Echo Board with an LED :)



FILES ATTACHED

Attached is the Board File for The PCB

GET FILE

Attached is the Schematic File for The PCB from eagle software

GET FILE

LEARNINGS OF THE ASSIGNMENT

  • How to Design With Eagle CAD
  • Learned how to use Autorouter Option
  • Learned About Deisgn Rule Check.
  • Got more control over eagle PCB designing skills.
