Assignment goals



Project description and predecessors

What will it do?


What was done before?

Materials/components and their costing

what materials and components will be required?

Part Materials/components
Bin Jute Fabric
-- Resin
-- XPS insulation foam
Frame MDF 7mm
-- Bearing
-- Acrylic
Motion Motor
-- Coupler
Motor-Driver-PCB FR-1 board
-- 12v battery
-- 2-pin headers
-- attiny44
-- resistor
-- cap
-- resonator
-- 6-pin ISP header
-- FTDI header
Sensor-board-PCB FR-1 board
-- attiny45
-- Temperature sensor
-- resistor
-- cap
-- resonator
-- 6-pin ISP header

where will they come from?

Part Materials/components Source
Bin Jute Fabric Local vendor
-- Resin Local vendor
-- XPS insulation foam Local vendor
Frame MDF 7mm Local vendor
-- Bearing Local vendor
-- Acrylic Local vendor
Motion Motor Local vendor
-- Coupler 3d-printed at FabLab
Motor-Driver-PCB FR-1 board FabLab inventory
-- 12v battery Local vendor
-- 2-pin headers FabLab inventory
-- attiny44 FabLab inventory
-- resistor 10kohms FabLab inventory
-- cap 1uF 1206 FabLab inventory
-- resonator FabLab inventory
-- 6-pin ISP header FabLab inventory
-- FTDI header FabLab inventory
Sensor-board-PCB FR-1 board FabLab inventory
-- attiny45 FabLab inventory
-- Temperature sensor local vendor
-- resistor FabLab inventory
-- cap FabLab inventory
-- resonator FabLab inventory
-- 6-pin ISP header FabLab inventory

how much will it cost?

Part Materials/components Source Cost in INR Cost in USD(if 1 USD = 65 INR)
Bin Jute Fabric Local vendor 300 INR 4.62 USD
-- Resin Local vendor 800 INR 12.31 USD
-- XPS insulation foam Local vendor 440 INR 6.77 USD
Frame MDF 7mm Local vendor 400 INR 6.15 USD
-- Bearing Local vendor 30 INR 0.4 USD
-- Acrylic Local vendor 200 INR 3.08 USD
Motion Motor Local vendor 650 INR 10 USD
-- Coupler 3d-printed at FabLab 120 INR 1.8 USD
Motor-Driver-PCB FR-1 board FabLab inventory 50 INR 0.8 USD
-- 12v battery Local vendor 550 INR 8.4 USD
-- 2-pin headers FabLab inventory 6.5 INR 0.1 USD
-- attiny44 FabLab inventory 40 INR 0.65 USD
-- resistor 10kohms FabLab inventory 1 INR 0.002 USD
-- cap 1uF 1206 FabLab inventory 1 INR 0.002 USD
-- resonator FabLab inventory 20 INR 0.3 USD
-- 6-pin ISP header FabLab inventory 5 INR 0.1 USD
-- FTDI header FabLab inventory 5 INR 0.1 USD
Sensor-board-PCB FR-1 board FabLab inventory 50 INR 0.8 USD
-- attiny45 FabLab inventory 40 INR 0.6 USD
-- Temperature sensor local vendor 50 INR 0.8 USD
-- resistor FabLab inventory 1 INR 0.002 USD
-- cap FabLab inventory 1 INR 0.002 USD
-- resonator FabLab inventory 20 INR 0.3 USD
-- 6-pin ISP header FabLab inventory 5 INR 0.1 USD

Total Cost in INR ~ 3785
Total Cost in USD ~ 58


what parts and systems will be made?


what processes will be used?


what tasks need to be completed?


what questions need to be answered?



What is your schedule?

Schedule as of week17

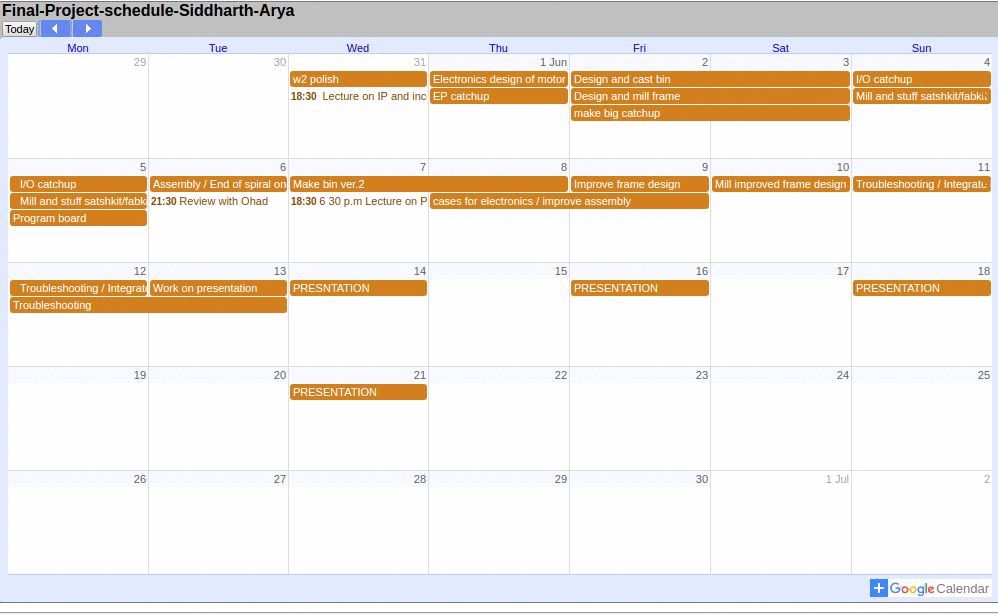

UPdated schedule hosted on Google calendar - scroll left to see relevant info

S

how will it be evaluated? Self-imposed criateria for success/failure




~ ~ ~
