3d Printing group assignment @FabLab CEPT

Exploring the limits of the Ultimaker 2+

For this week's group assignment, we downloaded a test file from https://www.thingiverse.com/thing:704409 to test the limits of our 3d printer Ultimaker 2+.

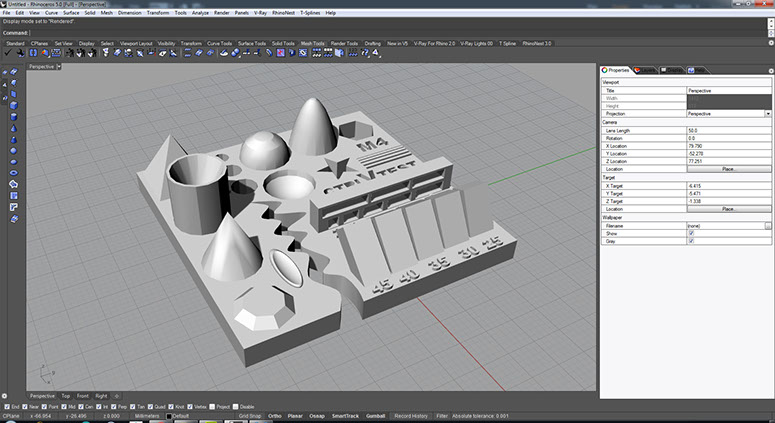

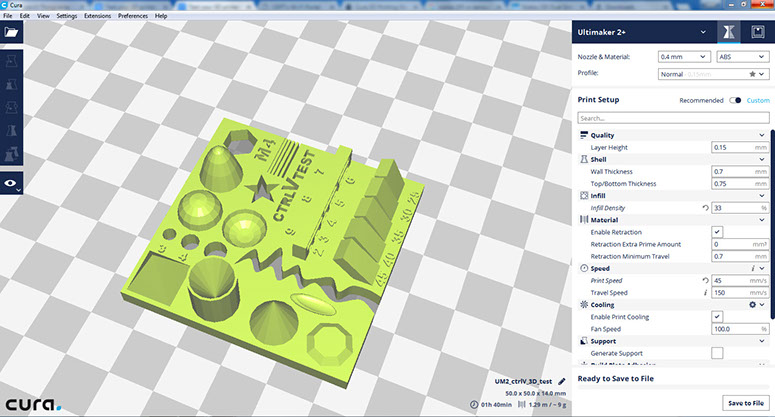

The first step was to export the files as .stl and import it into Cura

We included the following settings :



Layer height = 0.15 mm

Wall thickness = 0.7mm

Infill density = 33 %

Print Speed = 45 mm/s

Travel speed = 150 mm/s

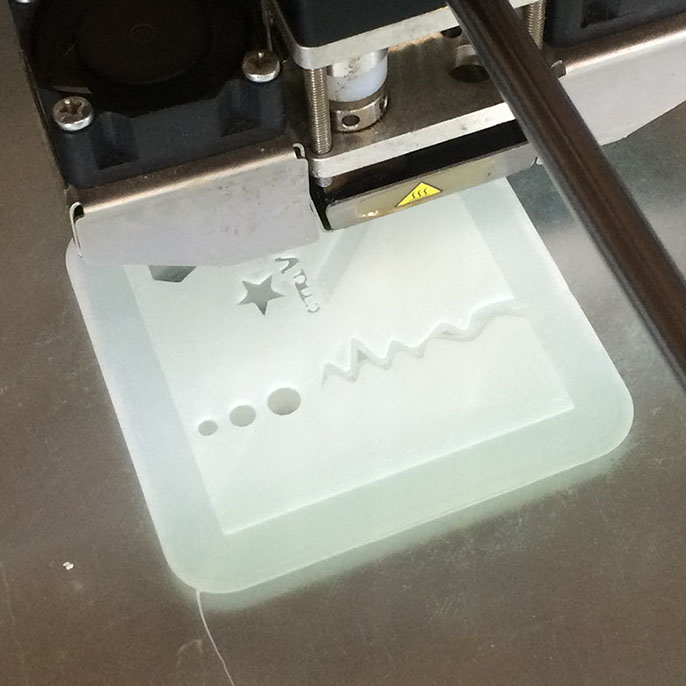

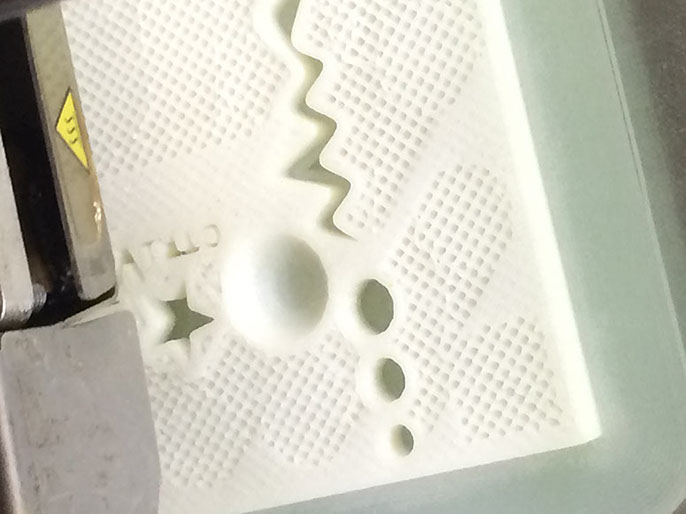

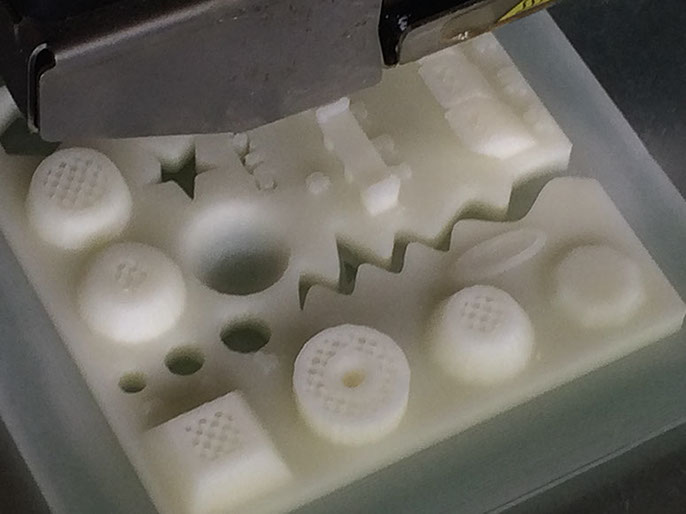

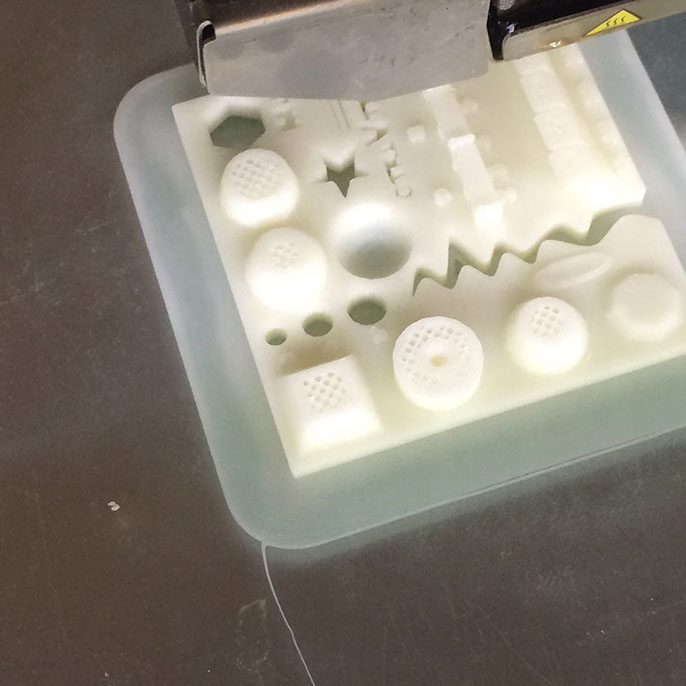

After the settings were done, we loaded the file on Ultimaker 2+ and started the printing process. Following are some images of the same.

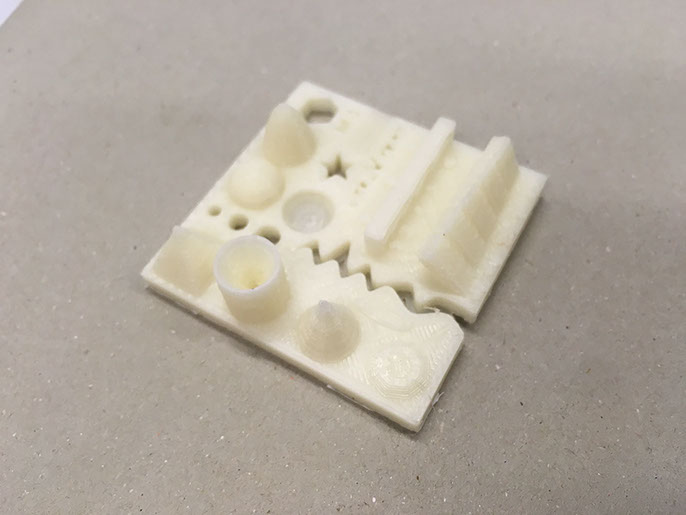

Once the print was ready, we measured the dimensions of the printed object and made the following observations :

Object



1. base dimension =



2. M4 hexagon diameter =



3. Height of cylinder =



4. Hole 1 =



5. Hole 2 =



6. Hole 3 =



7. Slit 1 =



8. Slit 2 =



9. Sllit 3 =



10. Slit 4 =



11. Slit 5 =

3d model



50mm*50mm



8.1 mm



14mm



3 mm



4mm



5mm



0.1 mm



0.2 mm



0.3 mm



0.4 mm



0.5 mm

3d print



 50.1mm* 49.9mm



7.2mm



14.1mm



2.6 mm



3.45 mm



4.5 mm



fused



fused



fused



maintained



maintained
