Week4 electronics production (Feb 17)

Assignment: The Electronics Production assignment is how to make FabISP in-circuit programmer. For this , Including mill a board, solder the component and program it.

  • Mill the board
  • Download the traces png and outline png.

    01

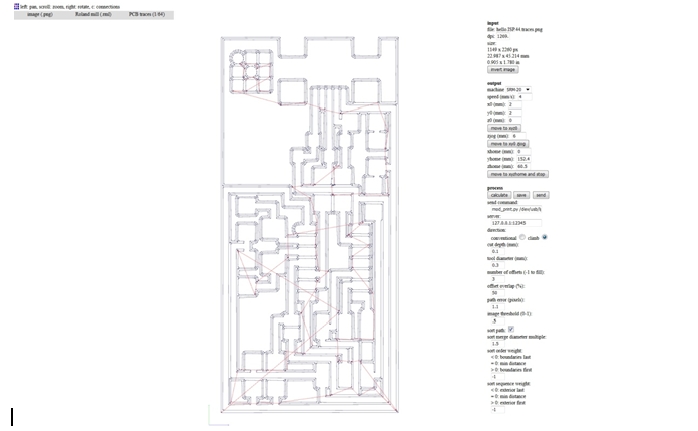

    Trace: Import to the fab modules and set the output format(Roland mill)-> process->PCB traces(1/64) and other parameters.

    02

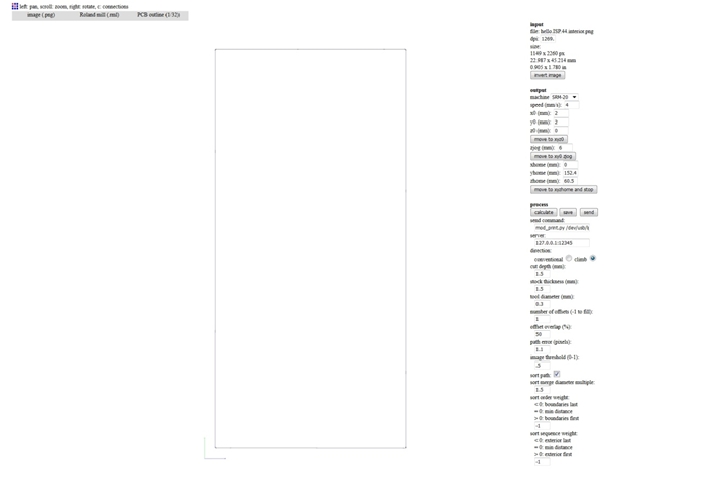

    Outline: Import to the fab modules and set the output format(Roland mill)-> process->PCB outline(1/32) and other parameters.

    03
  • FabISP board
  • 04

    I try to mill board more than 20 times and the results of my milling.

    05
  • Solder components
  • 06

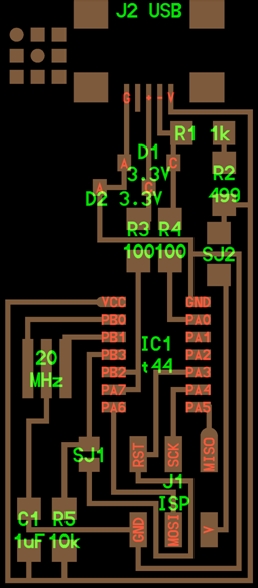

    Download the FabISP Tag diagram and Solder the components.

    07 07 07

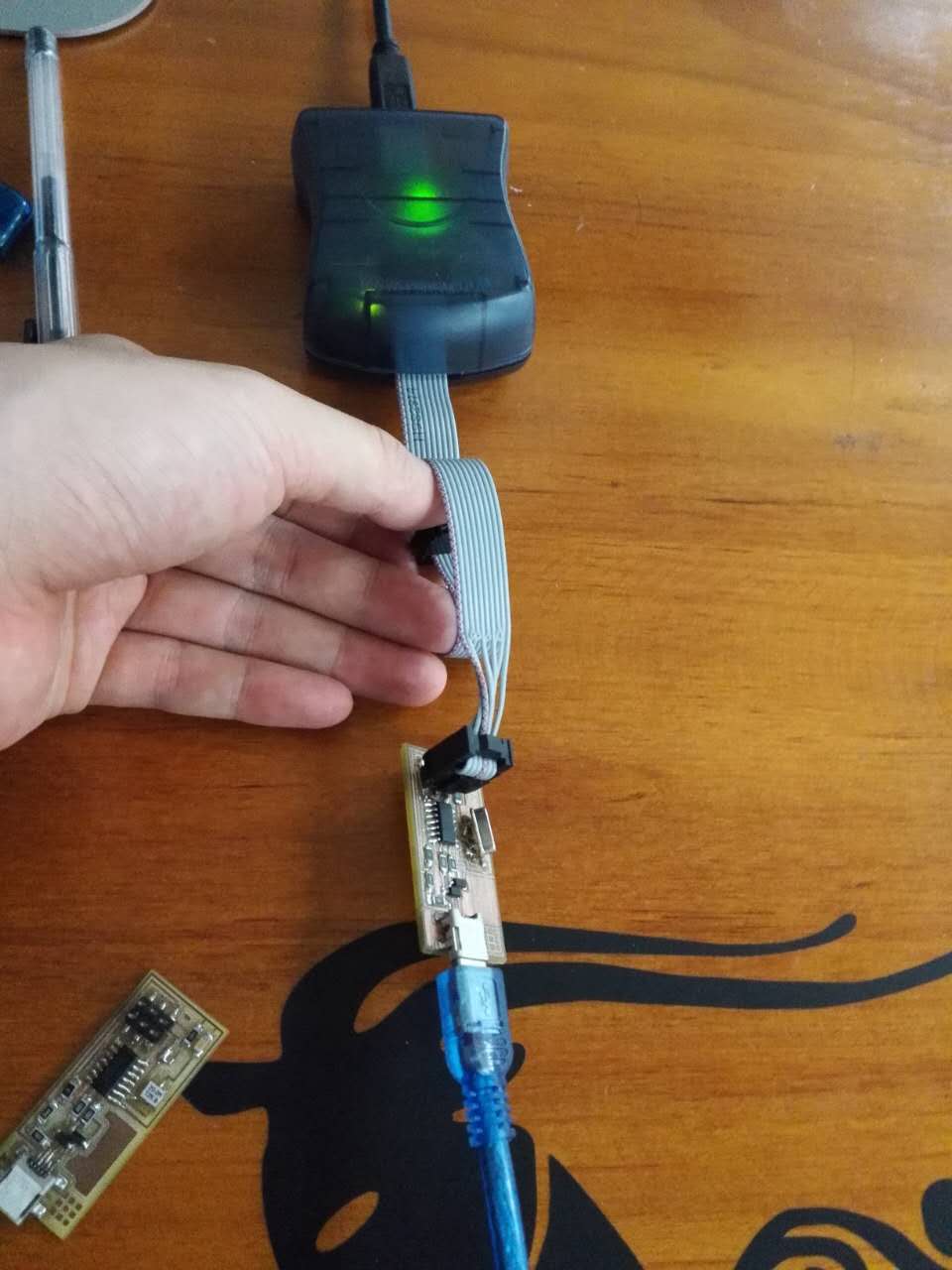

    The led is Shining brown and my board have some problem. 10

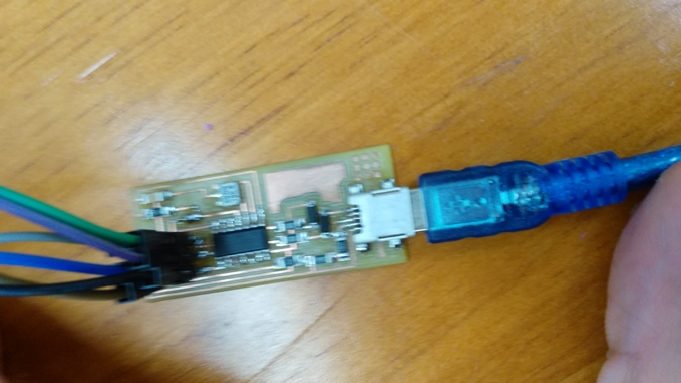

    The led is green and my board is worked normally.

    10

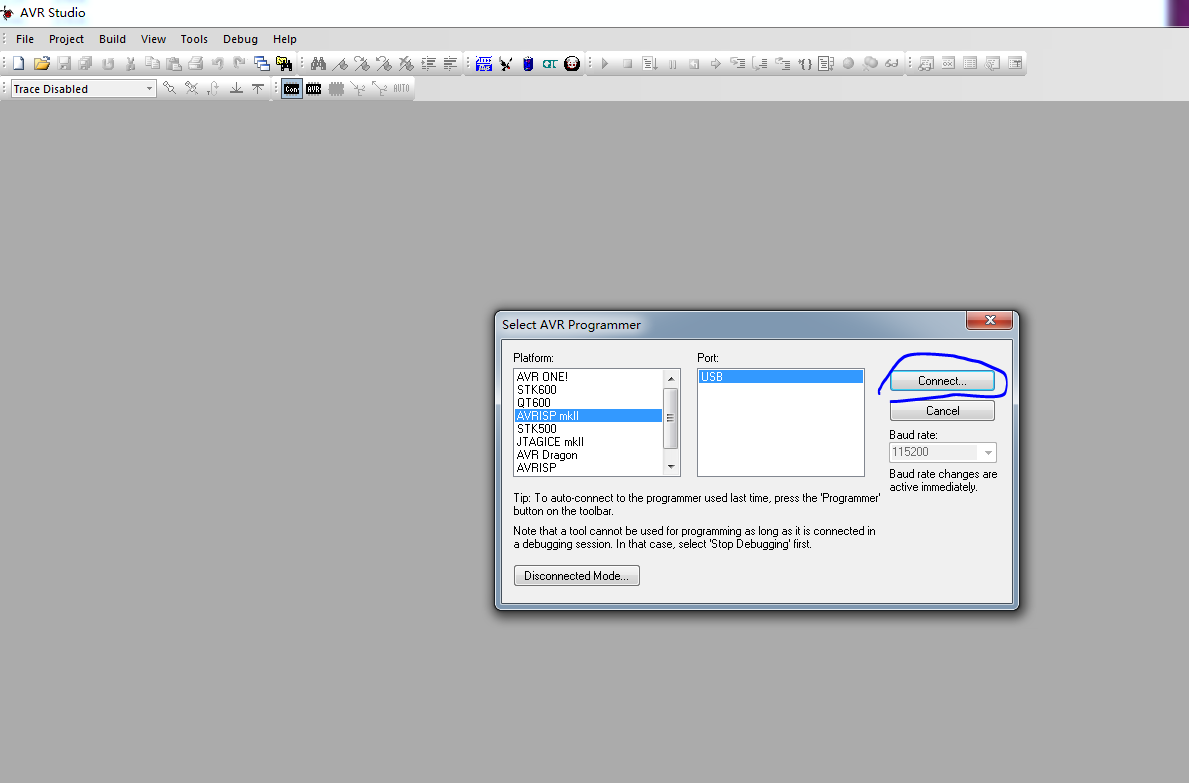

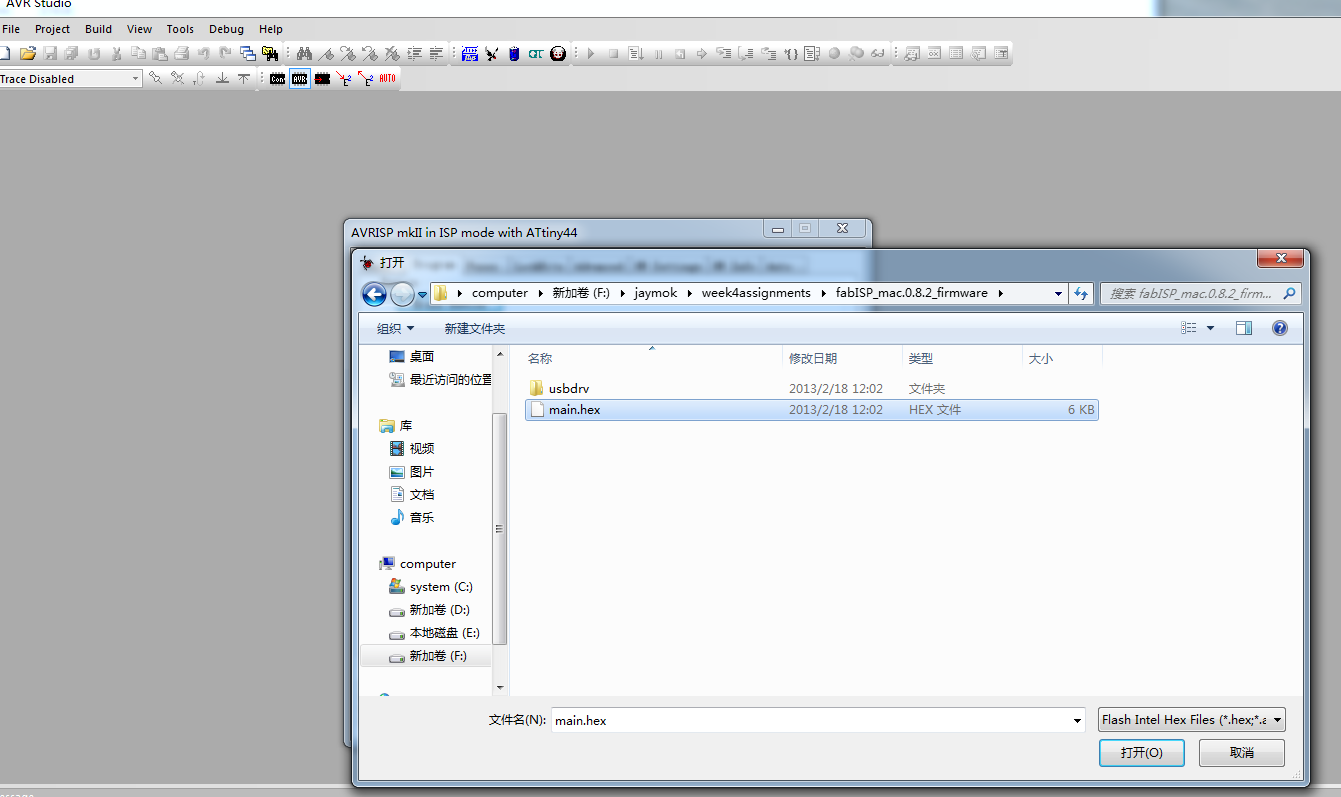

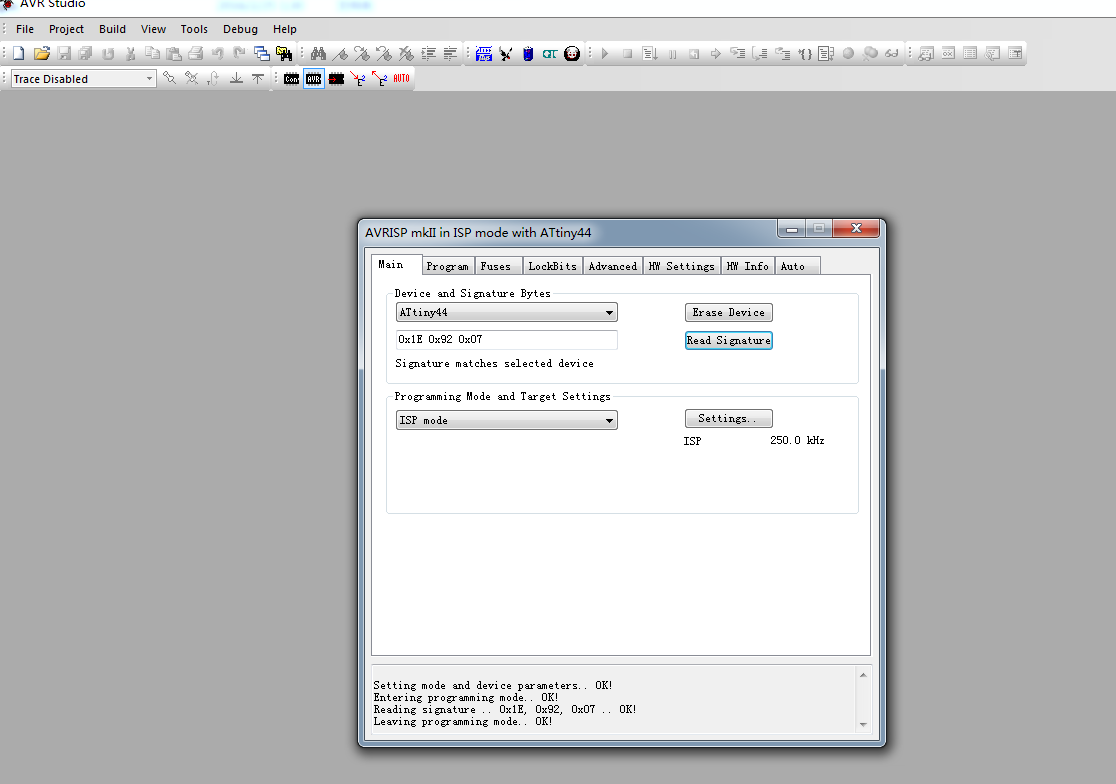

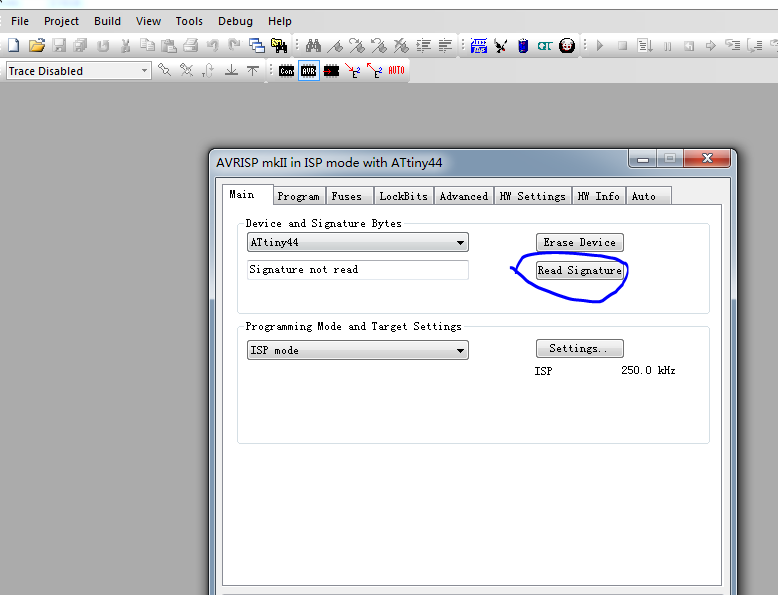

    I program the board via AVRStudio 4.

    10 10 10 10

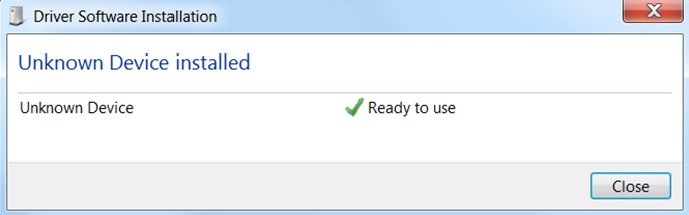

    Fabisp Driver Software Installation is successful and the board worked normal.

  • Troubleshooting
  • 1. Adjust the level of platform or you can't mill the board.

    2. Connect the usb2.0 and the FabISP board is not work, check up the components' connection basic on the FabISP tag diagram and found out the Diode's director is wrong.

    3. Select the 3 pin or 2 pin crystal according to the FabISP board.

    4. Test the components whether they worked normal.

  • Files:
  • firmware
