Last updated: 12/04/2016

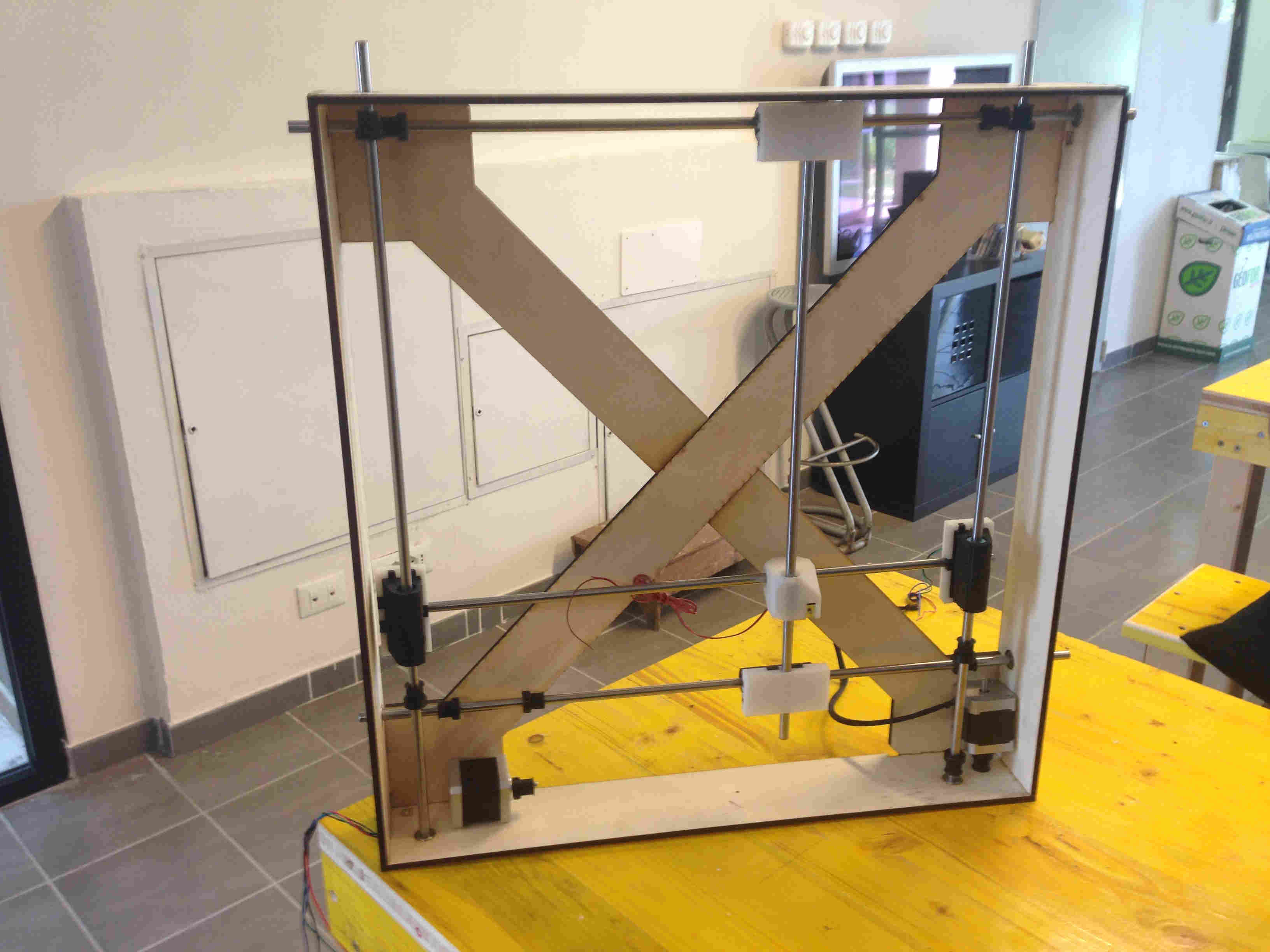

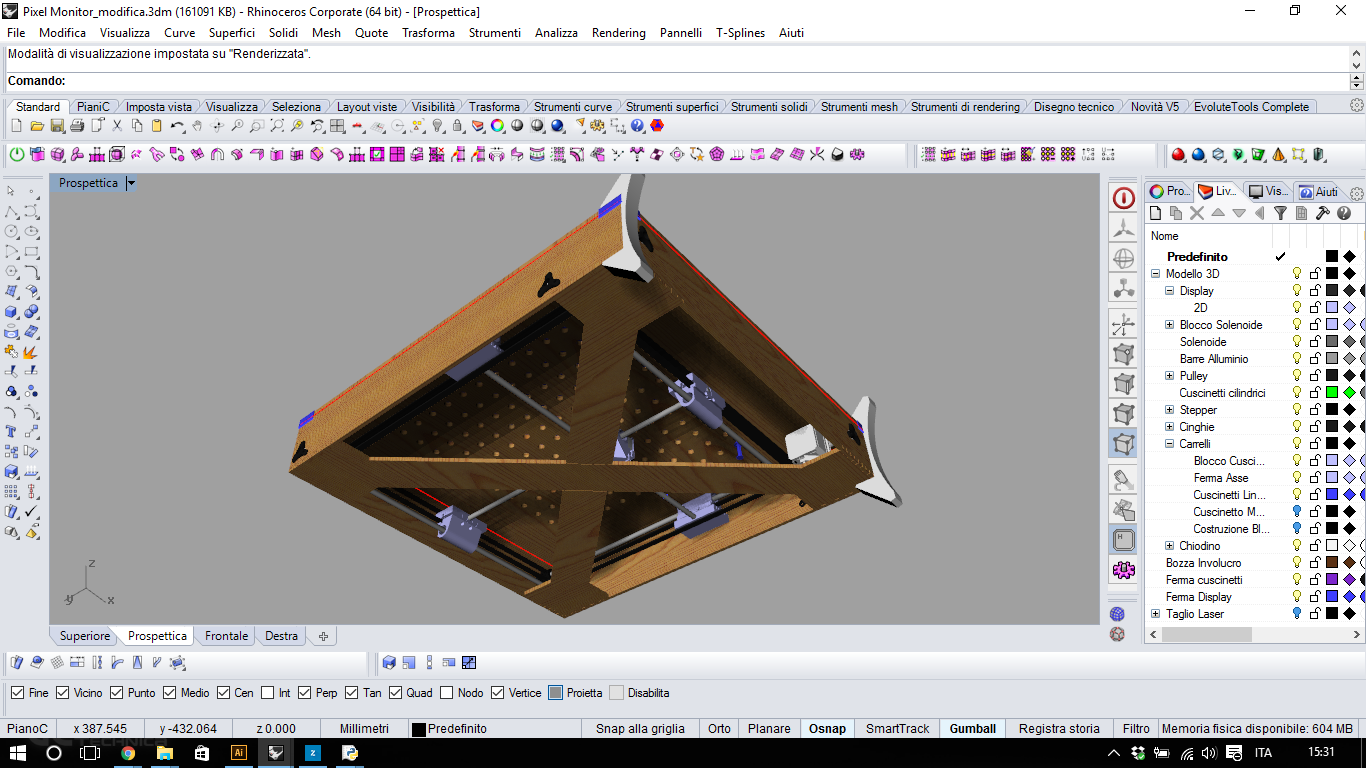

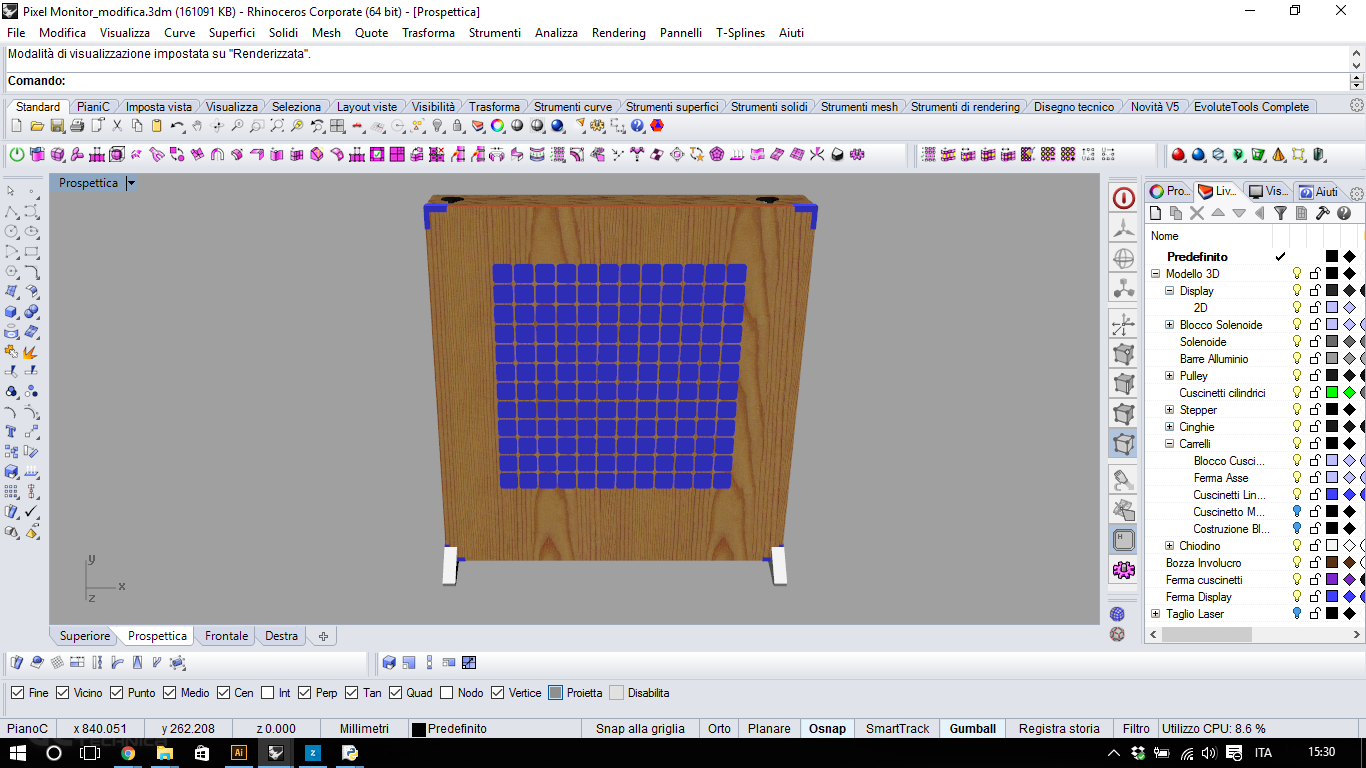

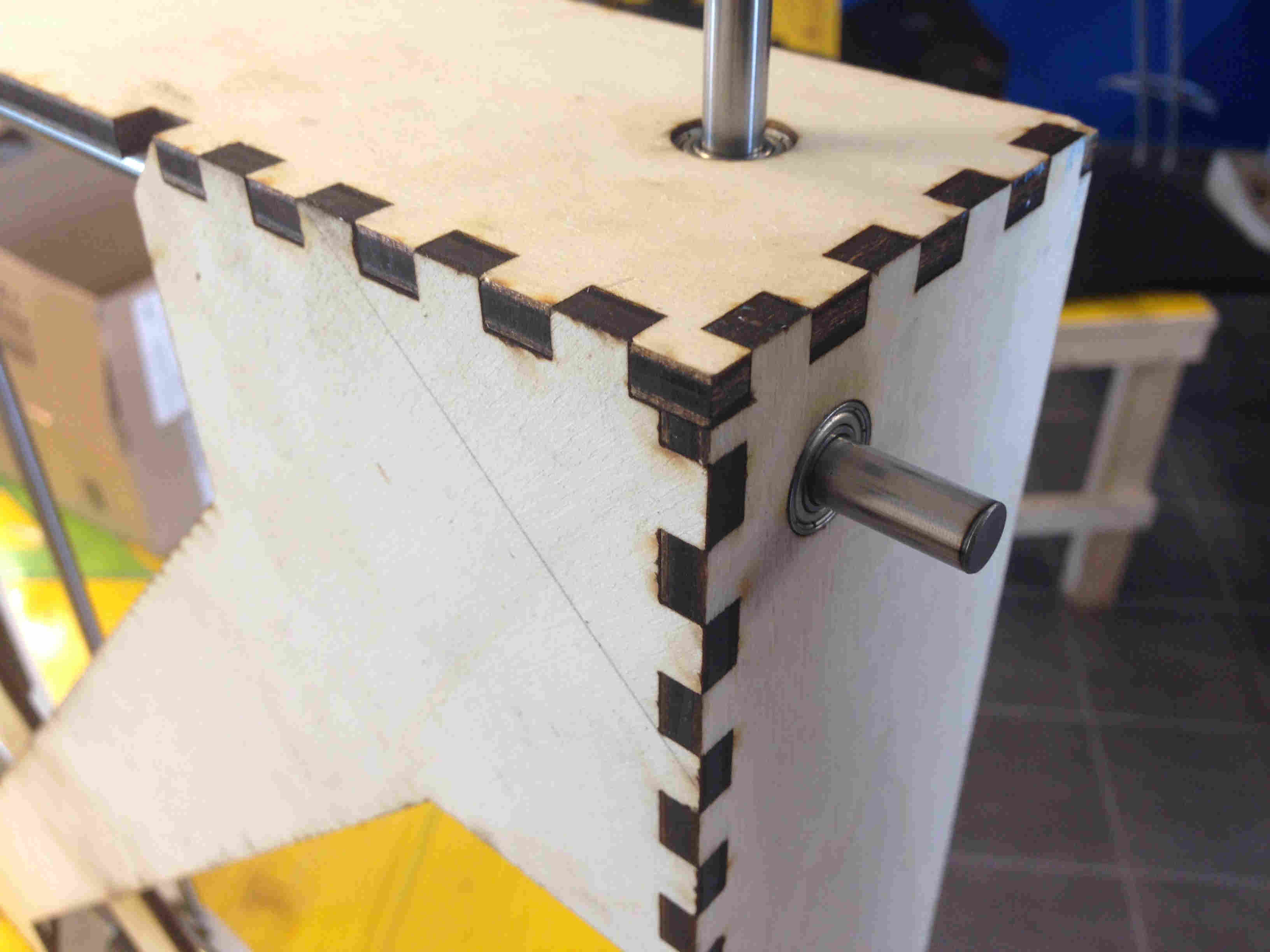

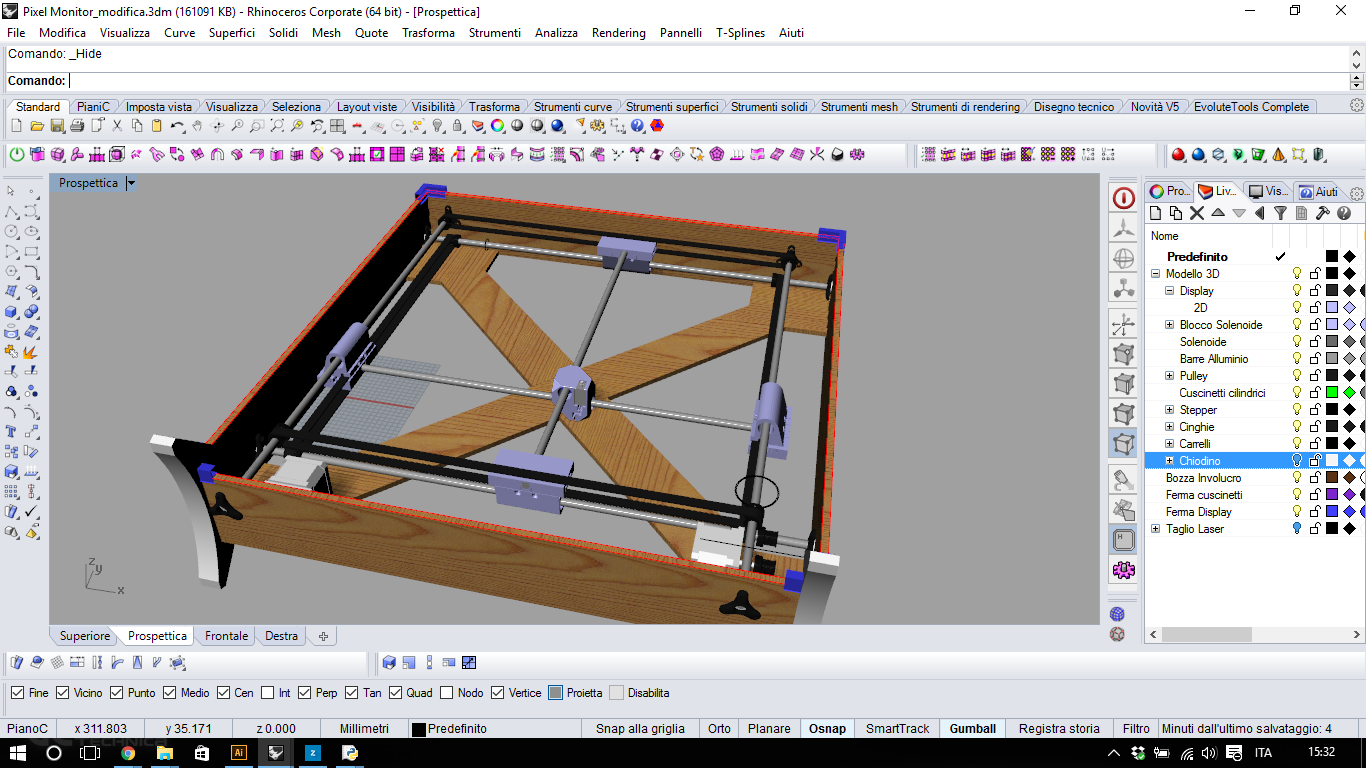

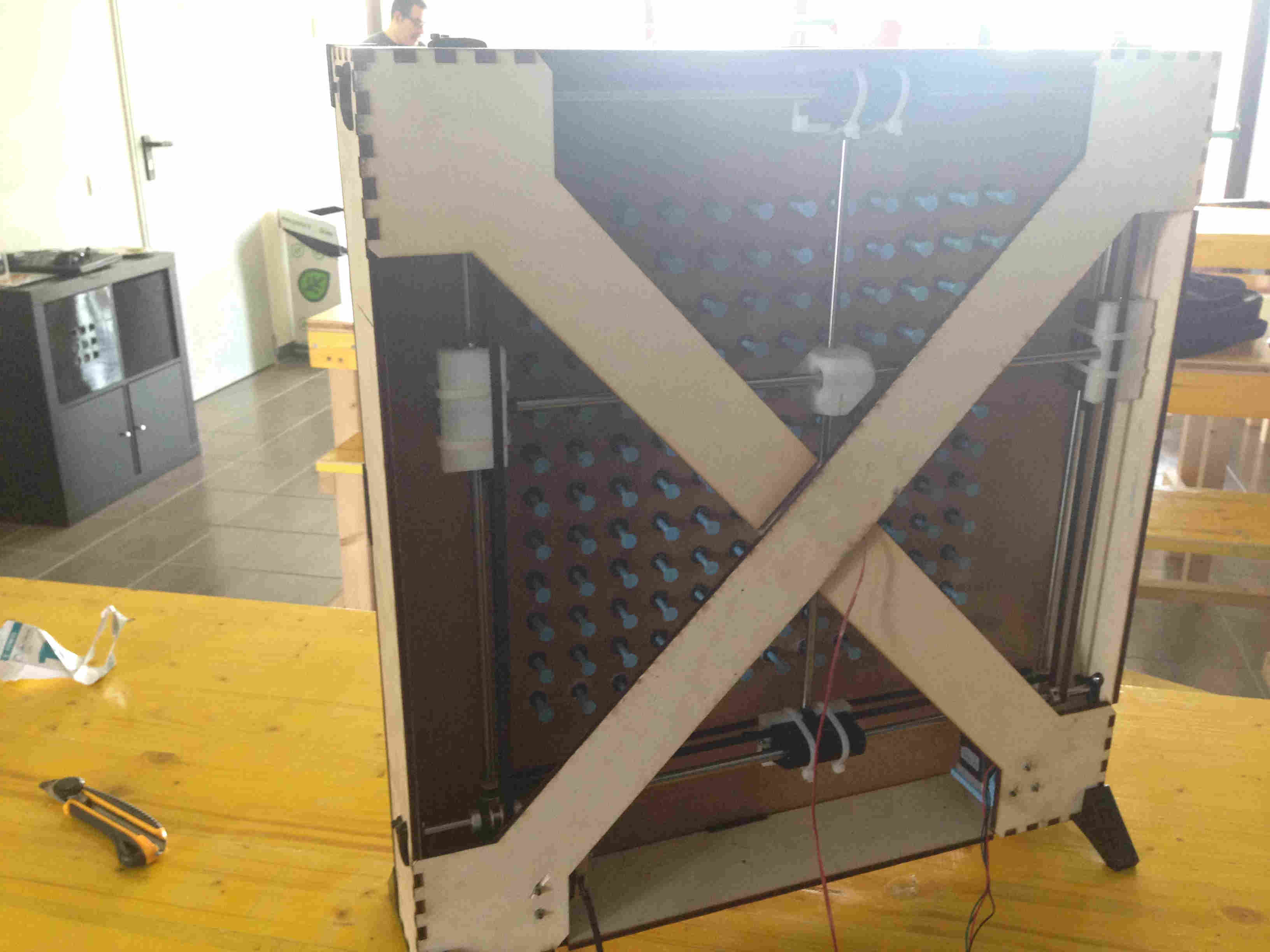

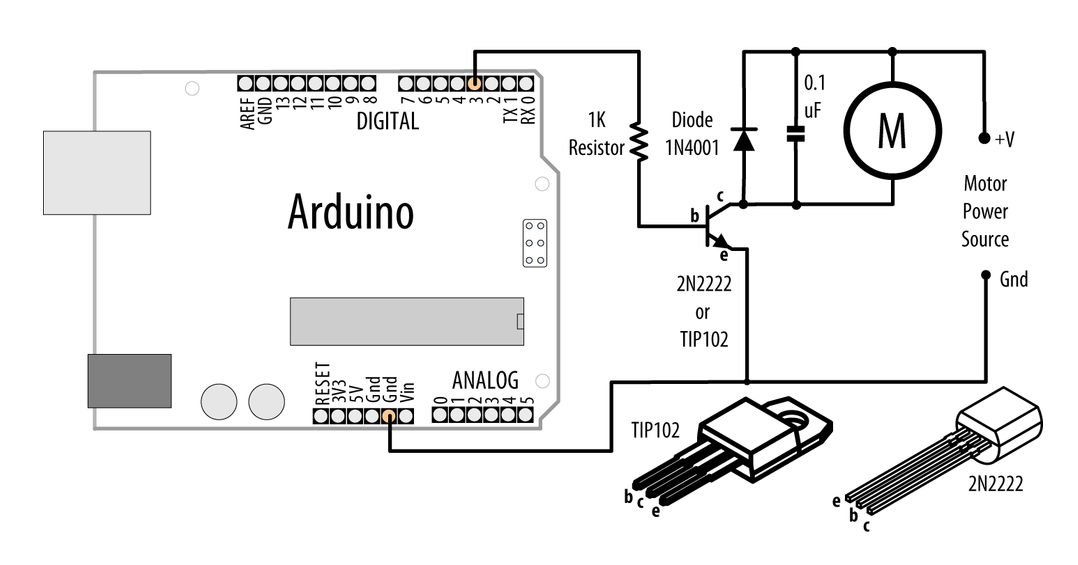

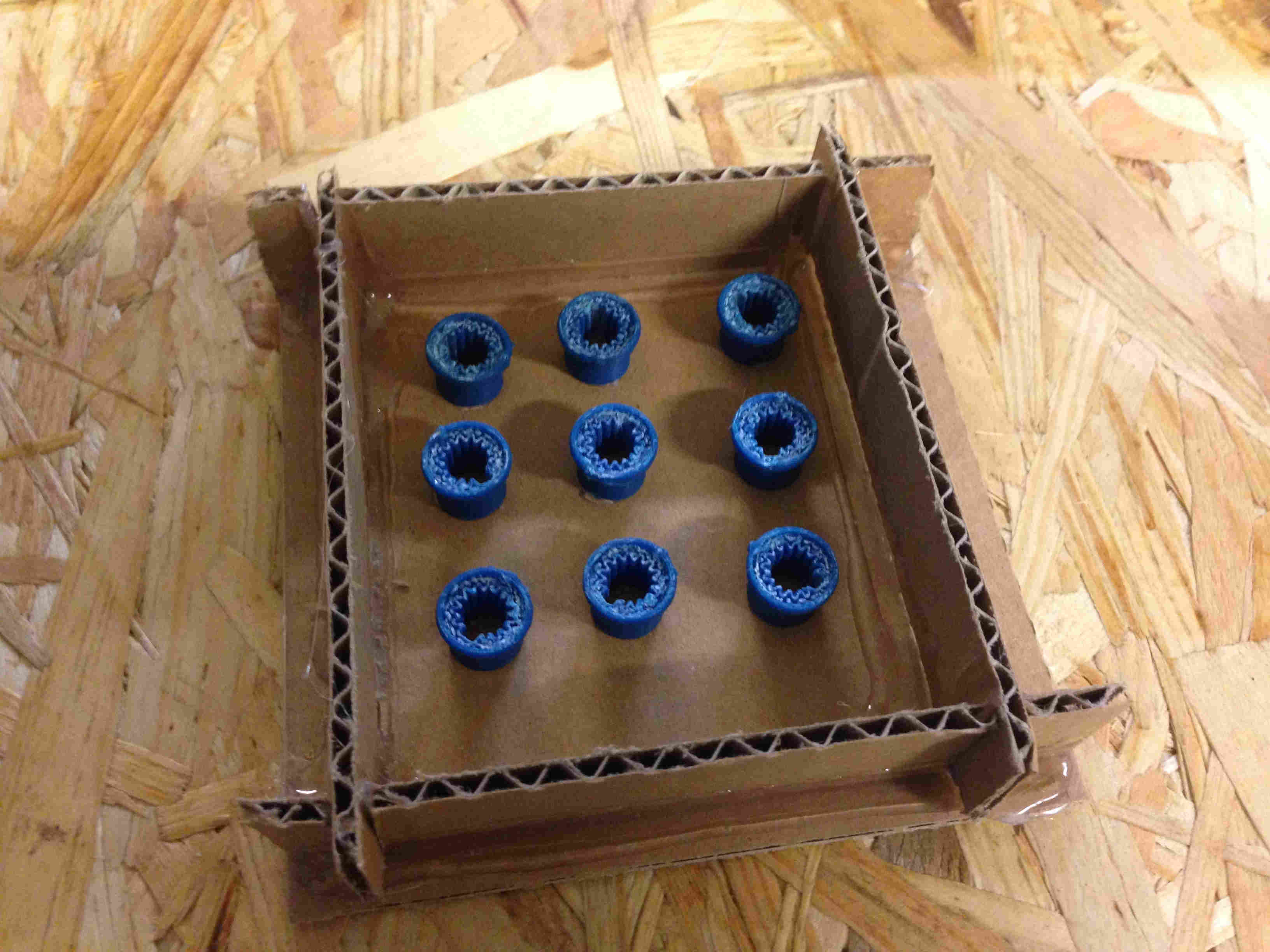

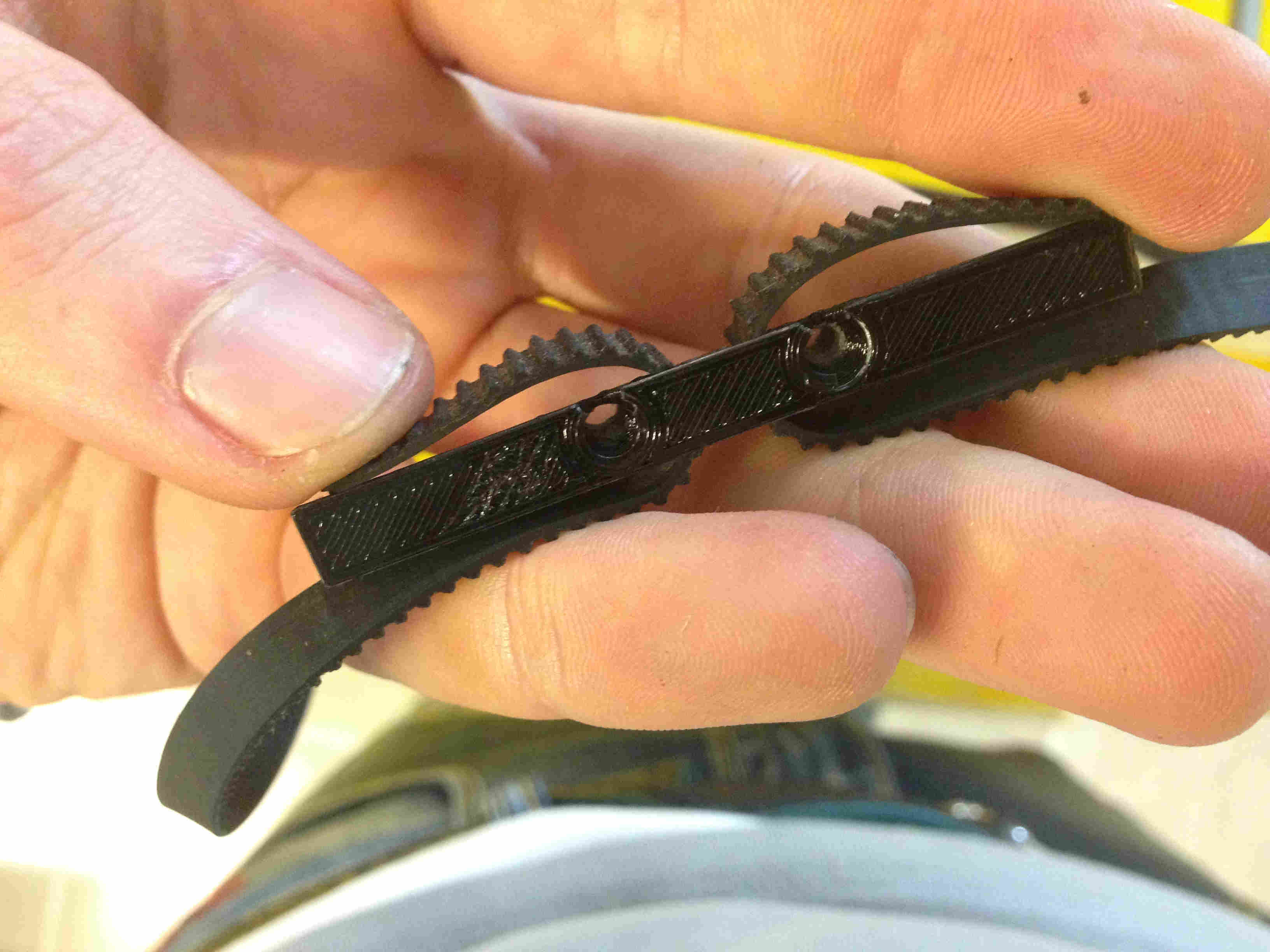

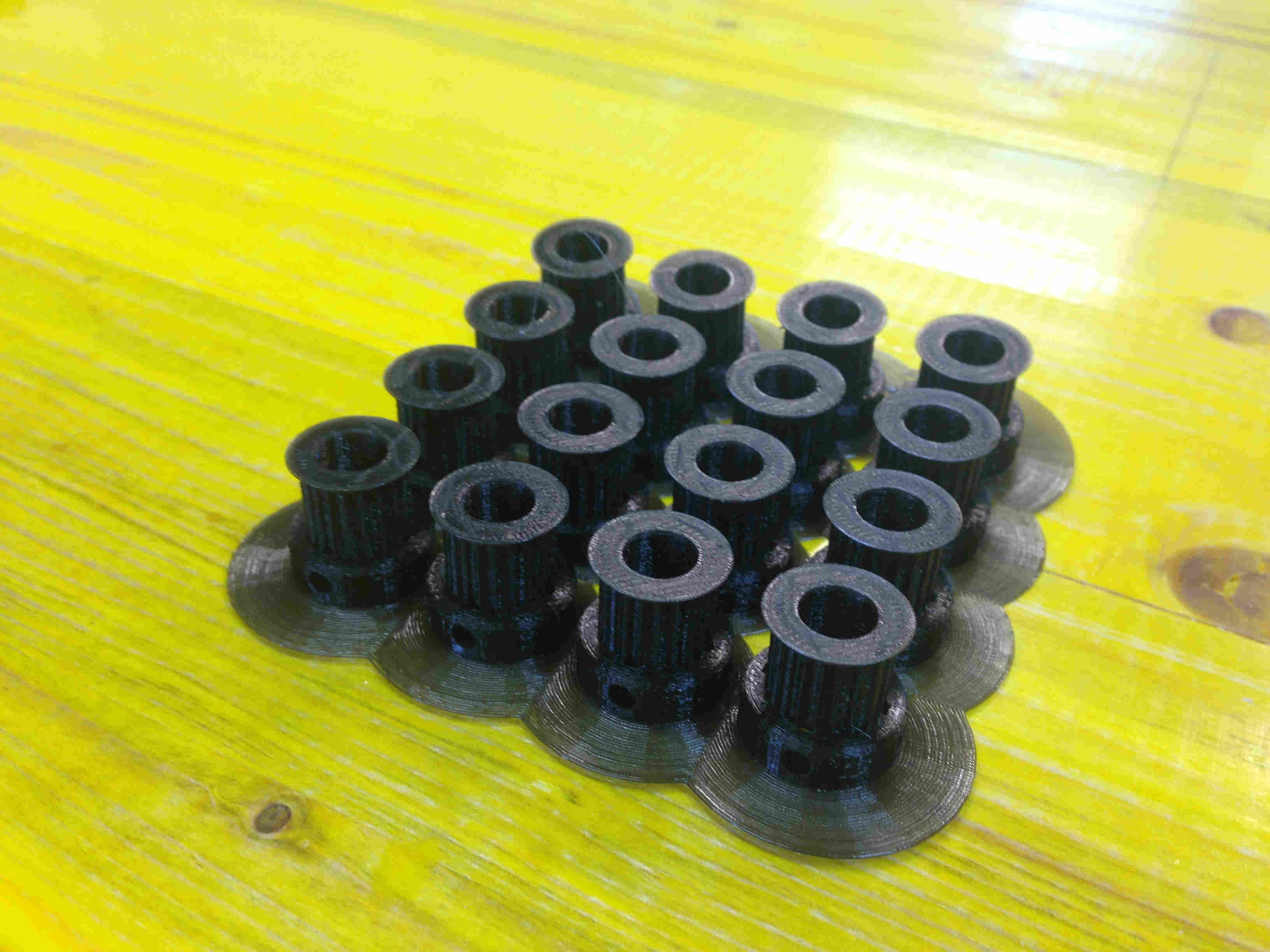

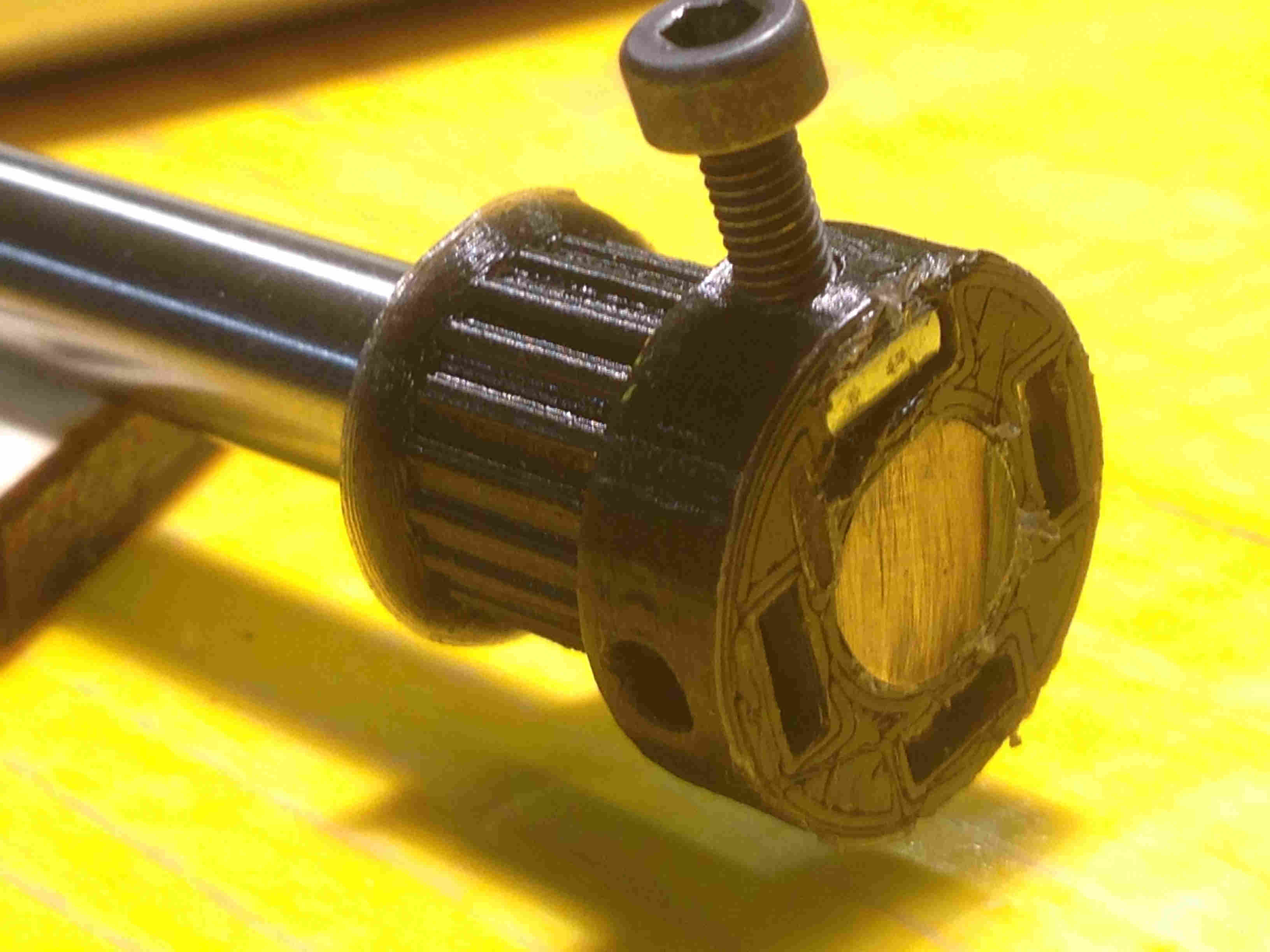

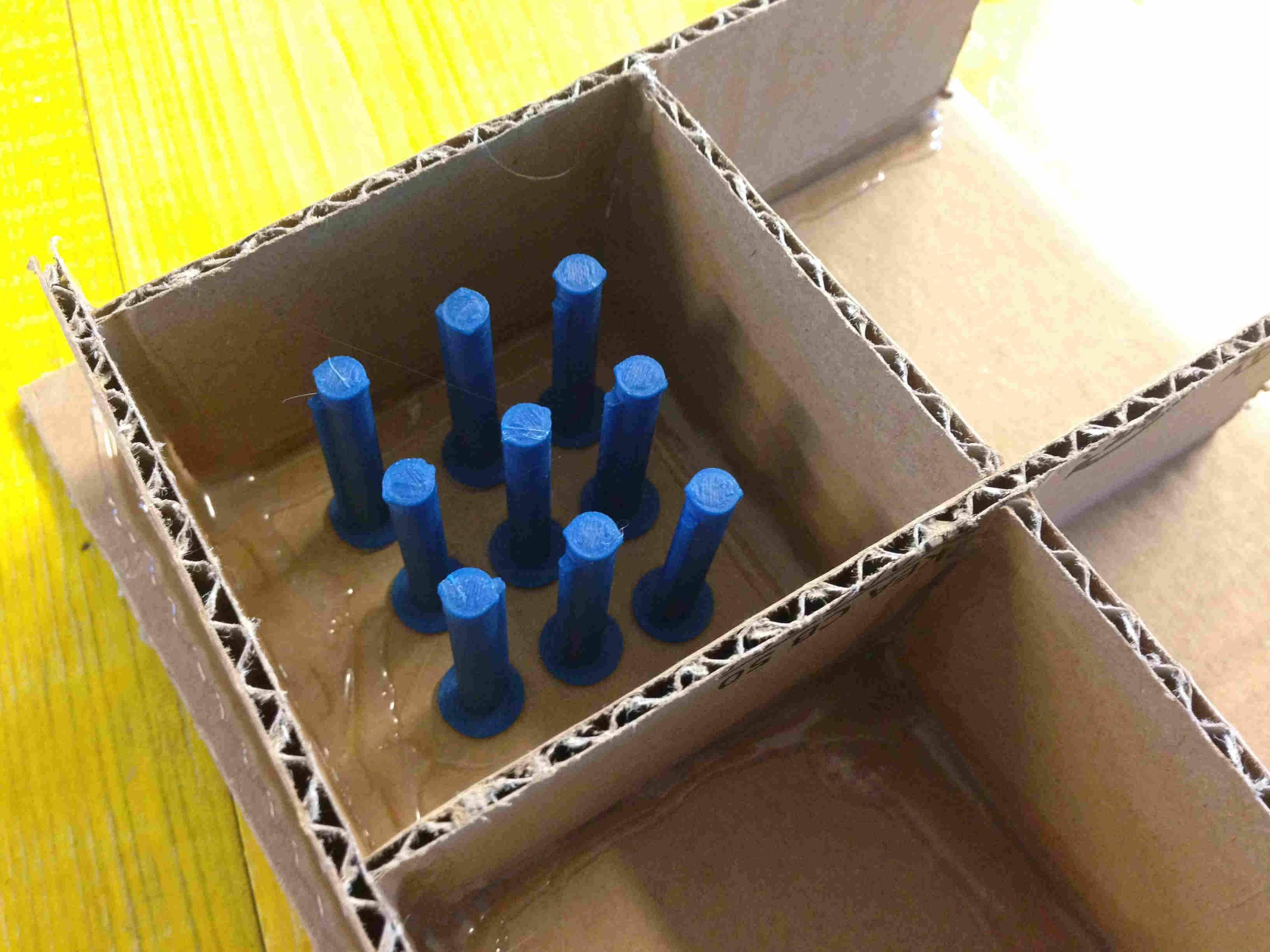

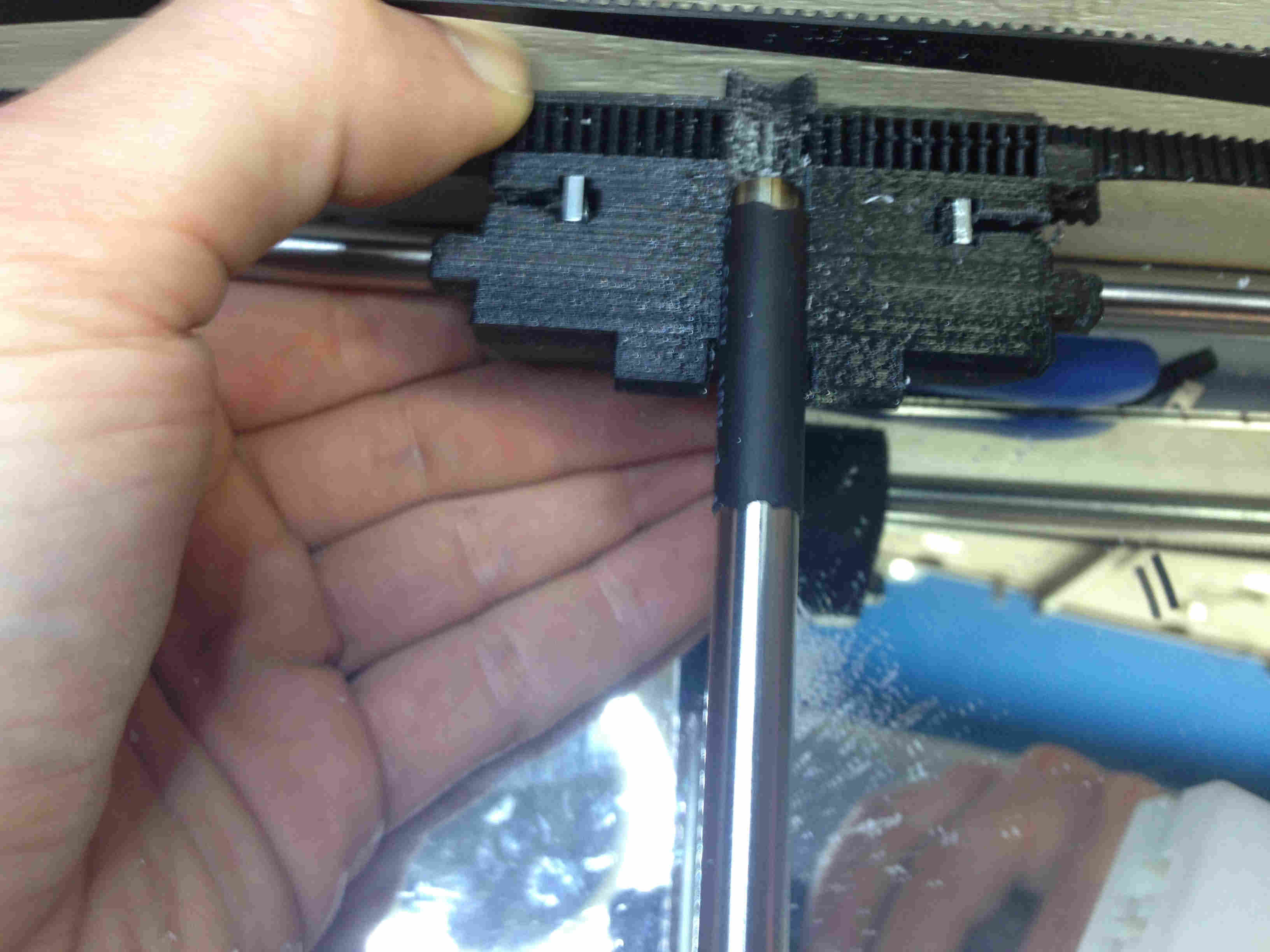

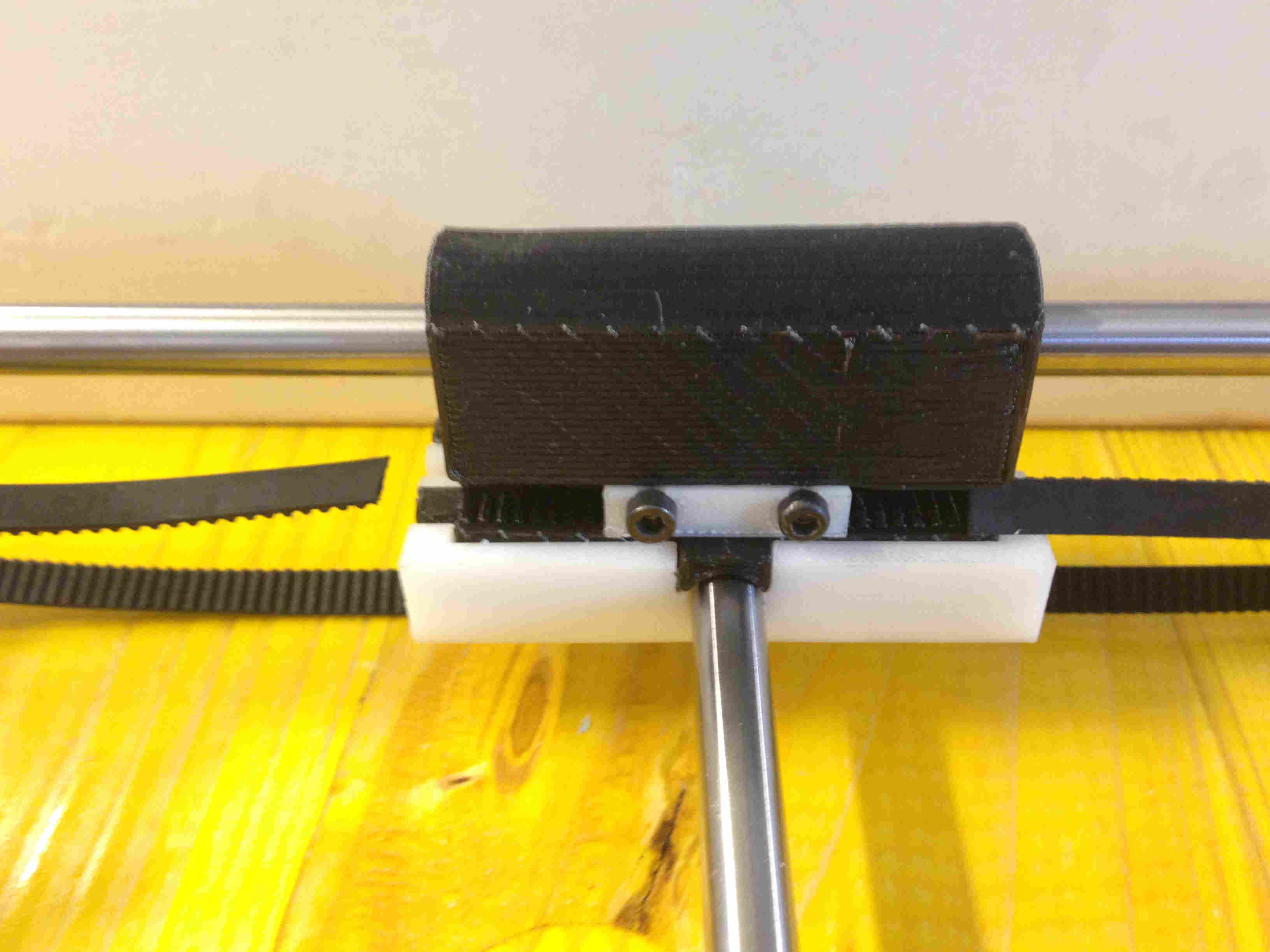

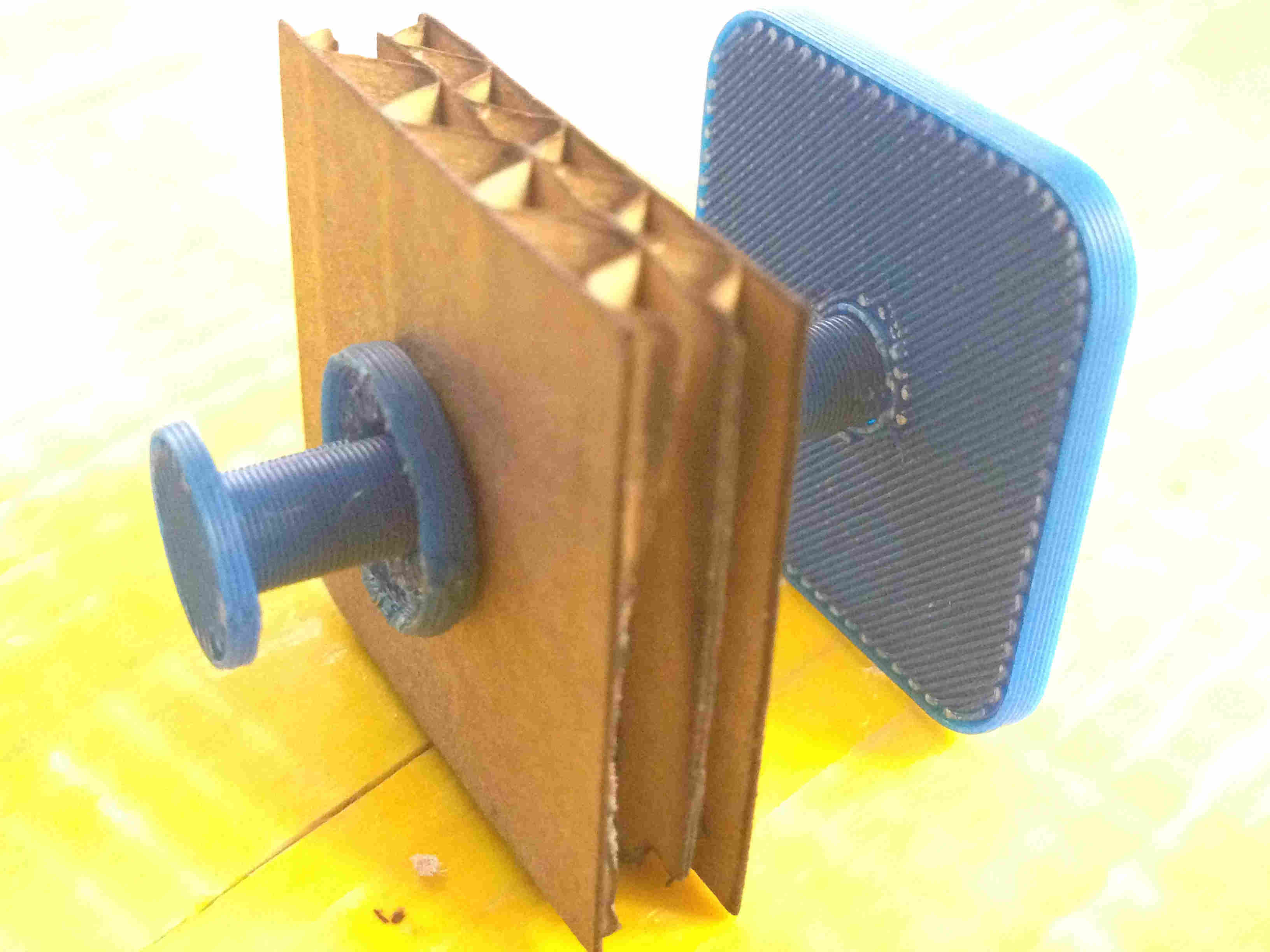

Objectives 1.Build a 2 axis machine

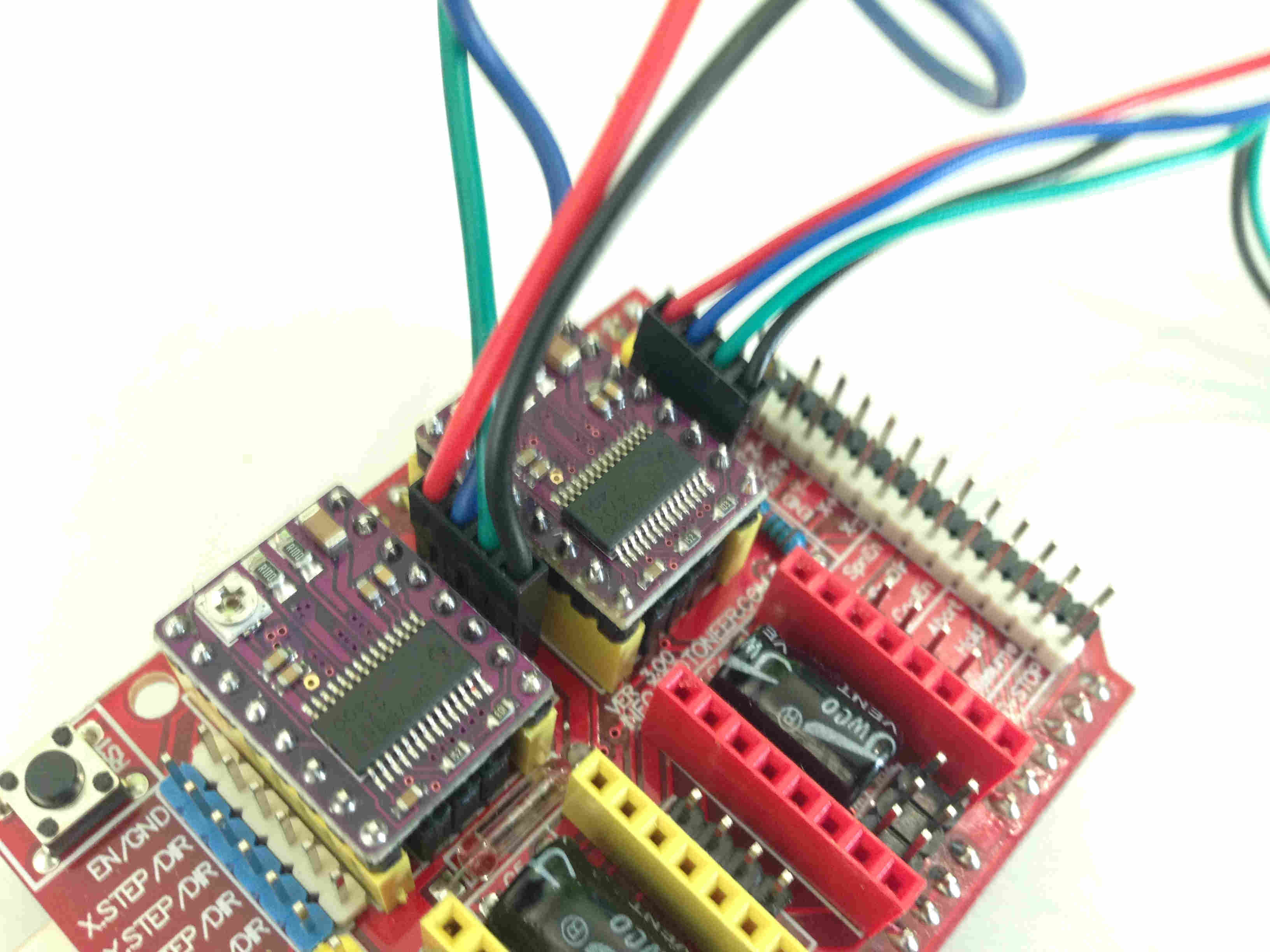

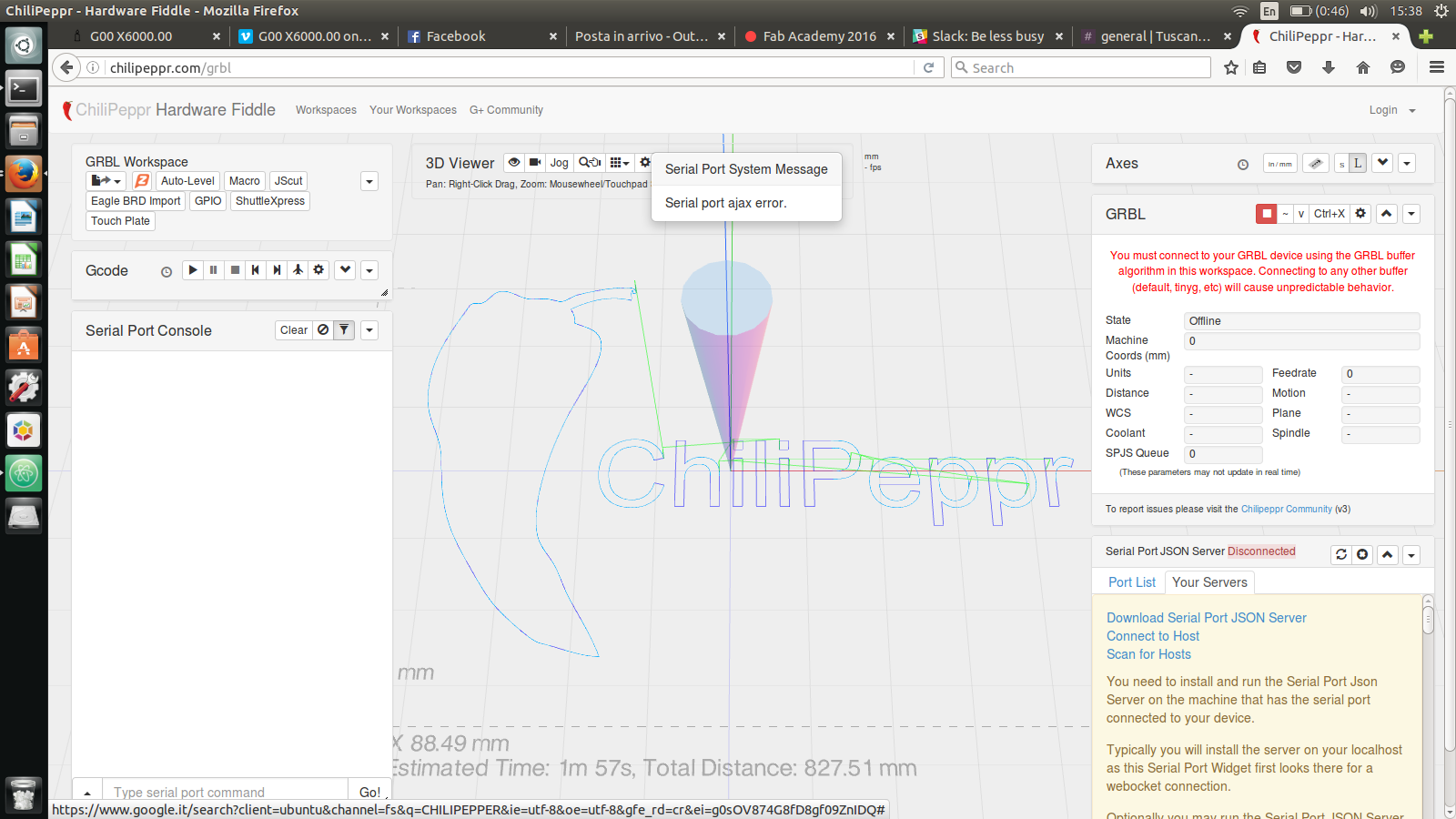

#!/usr/bin/env python
"""\
Simple g-code streaming script for grbl
"""
import serial
import time
# Open grbl serial port
s = serial.Serial('COM10',115200) #change this accordingly to comport
# Open g-code file
f = open('somefile.gcode','r');
# Wake up grbl
s.write("\r\n\r\n")
time.sleep(2) # Wait for grbl to initialize
s.flushInput() # Flush startup text in serial input
# Stream g-code to grbl
for line in f:
l = line.strip() # Strip all EOL characters for streaming
print 'Sending: ' + l,
s.write(l + '\n') # Send g-code block to grbl
grbl_out = s.readline() # Wait for grbl response with carriage return
print ' : ' + grbl_out.strip()
# Wait here until grbl is finished to close serial port and file.
raw_input(" Press Enter to exit and disable grbl.")
# Close file and serial port
f.close()
s.close()
import serial
import serial.tools.list_ports
import time
import cmd
class Controller:
def __init__(self, com, speed):
self.comport = com
self.comspeed = speed
def open(self):
self.serial = serial.Serial(port=self.comport,baudrate=self.comspeed,timeout=5)
def readline(self):
return self.serial.readline()
def write(self, str):
self.serial.write(str)
def send(self, buffer):
send_data = ''.join(buffer)
self.serial.write(send_data)
def sendAndWait(self, buffer):
self.send(buffer)
ch = self.serial.readline()
while ch:
if ch.strip() == 'ok':
return True
ch = self.serial.readline()
raise Exception("Command Failed")
def close(self):
self.serial.close()
class Axis:
def __init__(self, name, var, controller):
self.name = name
self.var = var
self.position = 0 # in mm
self.targetPosition = 0 # in mm`
self.controller= controller
self.ratio = 250 #(step / mm )
self.headPosition = 0
def setup(self):
buffer = []
buffer.append('%s=%d' % (self.var, self.ratio))
self.controller.send(buffer)
def move(self, destination):
self.targetPosition = destination
self.sync()
def sync(self):
buffer = []
if self.position != self.targetPosition:
if self.headPosition > 0:
buffer.append('G1 %s%d\n' % (self.name, self.targetPosition )) ## absolute
else:
buffer.append('G0 %s%d\n' % (self.name, self.targetPosition )) ## absolute
try:
print buffer
self.controller.sendAndWait(buffer)
self.position = self.targetPosition
except Exception,s:
print s
class Console(cmd.Cmd):
def __init__(self):
cmd.Cmd.__init__(self)
self.controller = None
self.x_axis = None
self.y_axis = None
def do_open(self,line):
""" Opens a serial connection to the controller"""
c = Controller("COM8", 115200)
c.open()
c.write('?')
time.sleep(1)
ch = c.readline()
while ch:
print ch
ch = c.readline()
print ch
self.controller = c
self.x_axis = Axis('X', '$100', c)
self.x_axis.setup()
self.y_axis = Axis('Y', '$101', c)
self.y_axis.setup()
def do_moveX(self, line):
""" Moves the X axis"""
print line
self.x_axis.move(int(line.strip()))
def do_moveY(self, line):
""" Moves the Y axis"""
print line
self.y_axis.move(int(line.strip()))
def do_close(self, line):
""" Closes the serial connection """
self.controller.close()
self.controller = None
def do_EOF(self, line):
self.do_close()
return True
if __name__ == '__main__':
#x_axis = Axis('X','$100', c)
#x_axis.setup()
Console().cmdloop("Enter option")
c.close()
import serial
import time
import pygame
import re
import sys
def text_objects(text, font):
textSurface = font.render(text, True, WHITE)
return textSurface, textSurface.get_rect()
class Controller:
def __init__(self, com, speed):
self.comport = com
self.comspeed= speed
def opencom(self):
self.serial = serial.Serial(port=self.comport,baudrate=self.comspeed,timeout=5)
def write(self, str):
self.serial.write(str)
print('scrivo : {}'.format(str))
def readline(self):
return self.serial.readline()
def grbl_init(self):
print "init grbl"
self.serial.write("\r\n\r\n")
time.sleep(2)
self.serial.flushInput()
print "grbl READY!"
def closecom(self):
self.serial.close()
print "chiusura..."
def send_wait(self, str):
l_block = str.strip()
c.write(l_block + '\n')
grbl_out = c.readline().strip()
print (grbl_out)
class Axis:
def __init__(self, name, var, var2, var3, controller):
self.name = name
self.var = var
self.var2 = var2
self.var3 = var3
self.position = 0
self.targetPosition= 0
self.step_mm = 160 # (step/mm)
self.max_rate = 14000 # (max speed mm/min)
self.accel = 1000 # acceleration
self.headPosition = 0
self.controller = controller
def setup(self):
line = ('{}={}{}'.format(self.var,self.step_mm, "\n"))
c.send_wait(line)
line2 = ('{}={}{}'.format(self.var2,self.max_rate, "\n"))
c.send_wait(line2)
line3 = ('{}={}{}'.format(self.var3,self.accel, "\n"))
c.send_wait(line3)
print "Axis Initialized"
line4 = ('{}{}'.format("G21", "\n"))
c.send_wait(line4)
print "using mm as unit"
line5 = ('{}{}'.format("G90", "\n"))
c.send_wait(line5)
print "using absolute coordinates"
class Commands:
def __init__(self):
pass
def move_X(self,vel,posX,feed):
line = ('{}{}{}{}{}{}'.format(vel,"X",posX,"F",feed,"\n"))
c.send_wait(line)
def move_both(self, vel, posX, posY, feed):
line = ('{}{}{}{}{}{}{}{}'.format(vel,"X",posX,"Y",posY,"F",feed,"\n"))
c.send_wait(line)

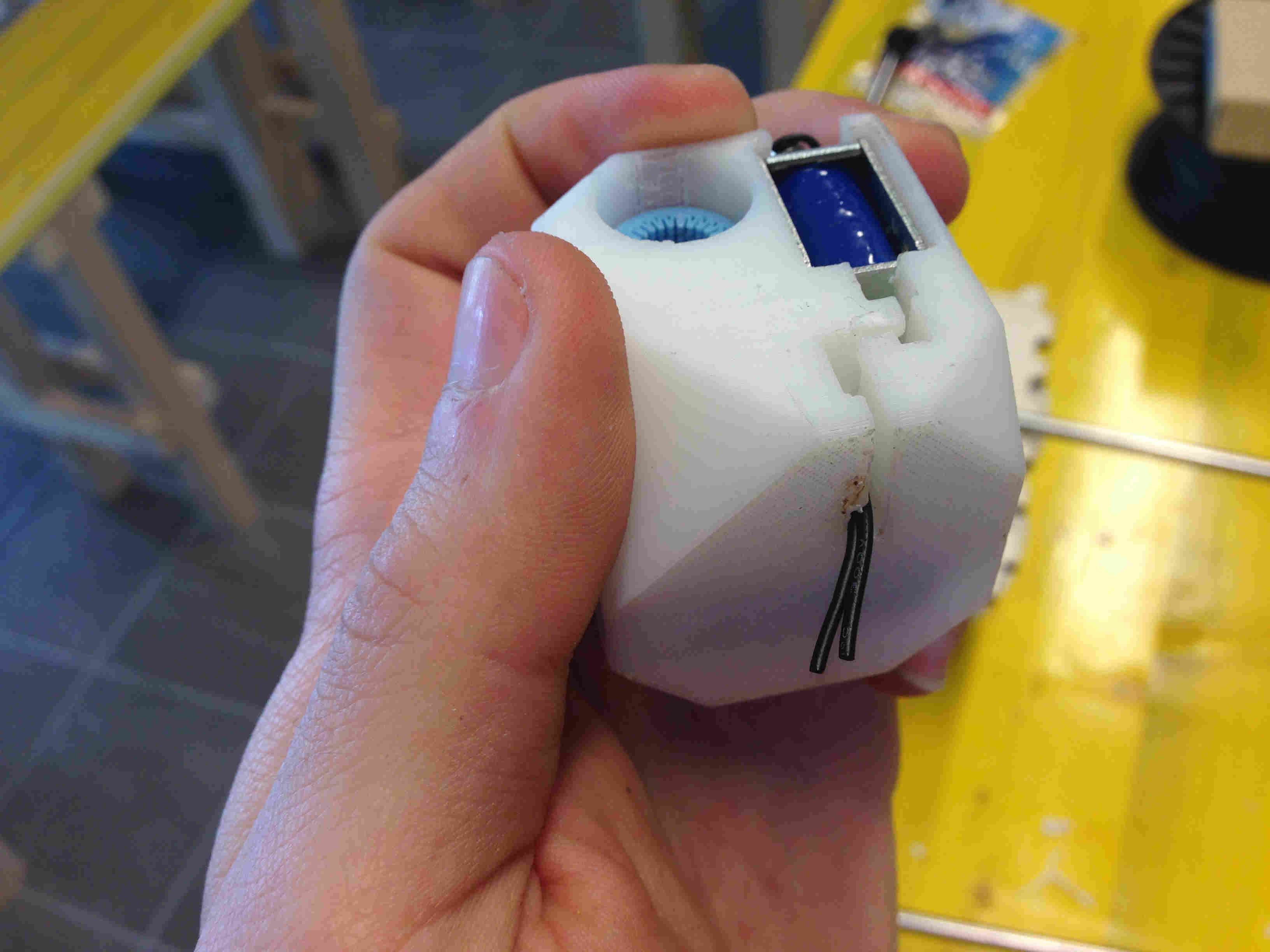

def sol_on(self):
line = ('{}{}'.format("M8", "\n"))
time.sleep(0.5)
c.send_wait(line)
def sol_off(self):
line = ('{}{}'.format("M9", "\n"))
c.send_wait(line)
# Define some colors
BLACK = (0, 0, 0)
WHITE = (255, 255, 255)
GREEN = (0, 255, 0)
RED = (255, 0, 0)
# Define offset
OFFSET = 30
# This sets the WIDTH and HEIGHT of each grid location
WIDTH = 20
HEIGHT = 20
# This sets the margin between each cell
MARGIN = 5
# Create a 2 dimensional array. A two dimensional
# array is simply a list of lists.
grid = []
for row in range(12):
# Add an empty array that will hold each cell
# in this row
grid.append([])
for column in range(12):
grid[row].append(0) # Append a cell
# Initialize pygame
pygame.init()
# Set the HEIGHT and WIDTH of the screen

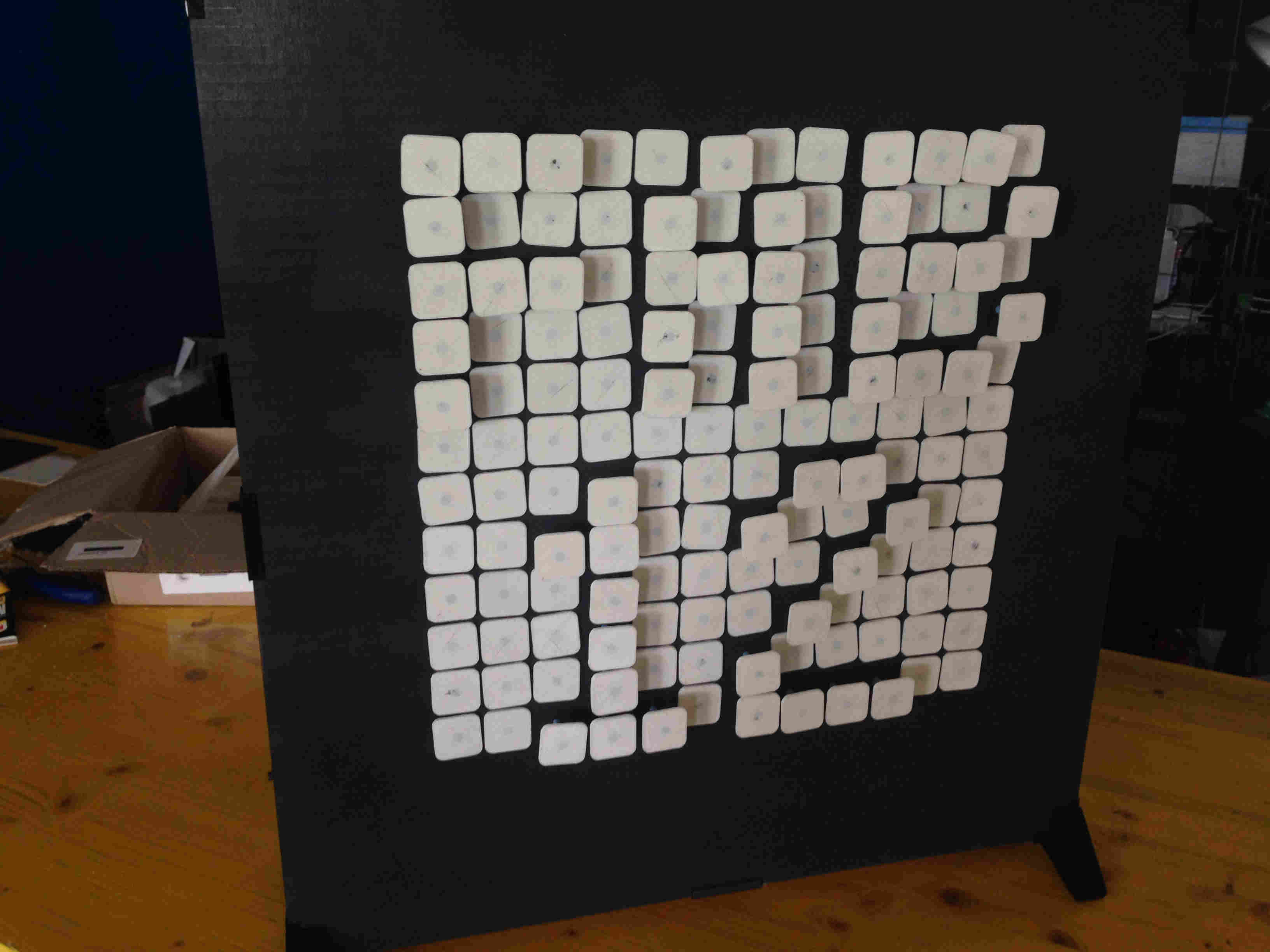

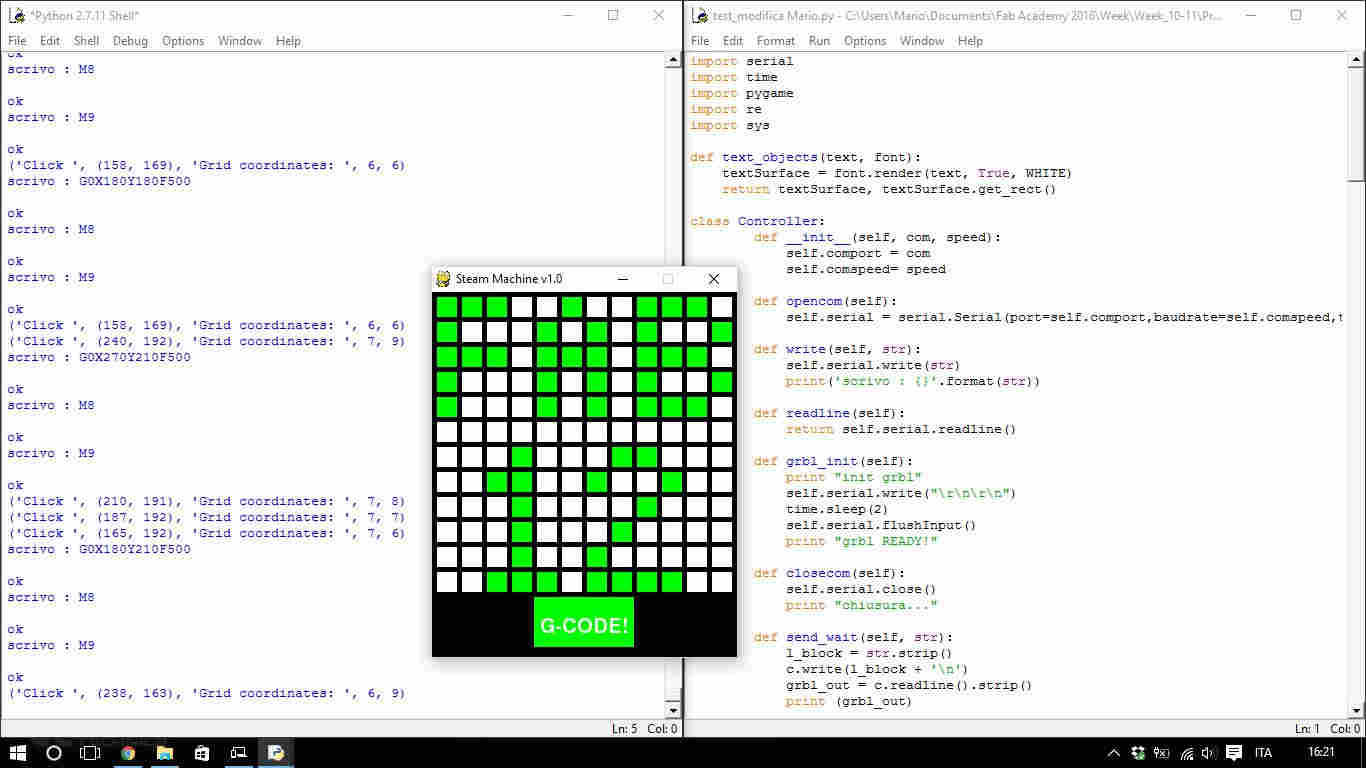

WINDOW_SIZE = [305, 365]
screen = pygame.display.set_mode(WINDOW_SIZE)
# Set title of screen
pygame.display.set_caption("Steam Machine v1.0")
# Loop until the user clicks the close button.
done = False
# Used to manage how fast the screen updates
clock = pygame.time.Clock()
if __name__ == '__main__':
c = Controller("COM7", 115200)
c.opencom()
c.grbl_init()
#time.sleep(5)
#grbl_out = c.readline().strip()
#print(grbl_out)
x_axis = Axis('X','$100','$110','$120',c)
x_axis.setup()
y_axis = Axis('Y','$101','$111','$121',c)
y_axis.setup()
d = Commands()
# -------- Main Program Loop -----------
while not done:
for event in pygame.event.get(): # User did something
if event.type == pygame.QUIT: # If user clicked close
done = True # Flag that we are done so we exit this loop
elif event.type == pygame.MOUSEBUTTONDOWN:
# User clicks the mouse. Get the position
pos = pygame.mouse.get_pos()
# Change the x/y screen coordinates to grid coordinates
column = pos[0] // (WIDTH + MARGIN)
row = pos[1] // (HEIGHT + MARGIN)
print("Click ", pos, "Grid coordinates: ", row, column)
#Tracking changes of grid elements status
try:
#state 1-->0 do nothing
if grid[row][column] == 1:
grid[row][column] = 0
#State 0-->1, move the machine
elif grid[row][column] == 0:
grid[row][column] = 1
d.move_both('G0',OFFSET*column,OFFSET*row,'500')
d.sol_on()
time.sleep(.3)
d.sol_off()
except:
pass
# Set the screen background
screen.fill(BLACK)
#pygame.draw.circle(screen, BLUE, (300, 50), 20, 0)
#pygame.draw.rect(gameDisplay, red,(550,450,100,50))
#draw the send button
width, height = pygame.display.Info().current_w, pygame.display.Info().current_h
pygame.draw.rect(screen, GREEN, [(width/2)-50, height-60, 100, 50])
#text inside the button
smallText = pygame.font.Font("freesansbold.ttf",20)
textSurf, textRect = text_objects("G-CODE!", smallText)
textRect.center = ( (width/2), height-30 )
screen.blit(textSurf, textRect)
# Draw the grid
for row in range(12):
for column in range(12):
color = WHITE
if grid[row][column] == 1:
color = GREEN
pygame.draw.rect(screen,
color,
[(MARGIN + WIDTH) * column + MARGIN,
(MARGIN + HEIGHT) * row + MARGIN,
WIDTH,
HEIGHT])
# Limit to 60 frames per second
clock.tick(60)
# Go ahead and update the screen with what we've drawn.
pygame.display.flip()
# Be IDLE friendly. If you forget this line, the program will 'hang'
# on exit.
pygame.quit()
c.closecom()
