Electronics Fabbing

BOM and costs

Since the electronics section of my final project is comprised of several boards and components (the digits, the keypad, the bluetooth module, the rf module and the main controller), I will summarize here the full Bill of Material for all the different parts, then I will explain and document every and each electronic board in detail.

Component Info Quantity Supplier Product code Price Total
RGB Led WS2812B 140 Electrodragon WS2812B 0.135 € 18.90 €
RF Transceiver CC2500 1 canton-electronics CC2500 3.50 € 3.50 €
BT Transceiver BTM-222 1 RF-Store BTM-222 8.90 € 8.90 €
Conn. JST 6 way S6B-ZR-SM4A-TF 6 Farnell 1830924 0.493 € 2.958 €
Housing JST 6 way ZHR-6 6 Farnell 3357570 0.132 € 0.792 €
Conn. JST 7 way S7B-ZR-SM4A-TF 2 Farnell 2399339 0.471 € 0.942 €
Housing JST 7 way ZHR-7 2 RS-Components 762-0844 0.101 € 0.202 €
Contacts JST SZH-003T-P0.5 50 Farnell 1830899 0.0186 € 0.93 €
Linear Regulator LM1117IMP-3.3 1 Farnell 1469051 0.774 € 0.774 €
AVR Microcontroller ATMega644PA-AU 1 Farnell 1972106 6.96 € 6.96 €
Crystal 7A-20.000MAHE-T 20 MHz 1 RS-Components 753-7082 0.752 € 0.752 €
Mosfet PNP BSS138 SOT-23 5 Farnell 9845330 0.136 € 0.68 €
LED Red LSR976 0805 2 Farnell 1226392 0.052 € 0.104 €
LED Green OVS-0804 1 Farnell 1716766 0.30 € 0.30 €
LED Blue OVS-0804 1 Farnell 1716765 0.883 € 0.883 €
Diode 1N4148 SOD-323 2 Farnell 1843678 0.16 € 0.32 €
Tactile switch FSM2JSMA 7 Farnell 3801287 0.206 € 1.236 €
Capacitor 12pF 0603 2 Farnell 2496884 0.0074 € 0.0148 €
Capacitor 10uF 1206 4 Farnell 1457413 0.194 € 0.776 €
Capacitor 100nF 1206 146 Farnell 2497075 0.0237 € 3.46 €
Resistor 1k 0603 12 Farnell 9331697 0.0099 € 0.1188 €
Resistor 4k7 0603 10 Farnell 9331247 0.0012 € 0.012 €
Resistor 330R 0603 4 Farnell 9331018 0.0012 € 0.0048 €
Resistor 10k 0603 1 Farnell 9330399 0.0012 € 0.0012 €
TOTAL 54.13 €

Work files links

Eagle schematic and layout, and SketchUp render for all the electronic boards
Circuits.zip

7 Segments Digits

Since the main purpose of a scoreboard is obviously to show the actual score during a match, I had to design and build some kind of digit display. Volleyball matches don't exceed scores of 35 points, so the scoreboard need just 4 digits, 2 for team A and 2 for team B.

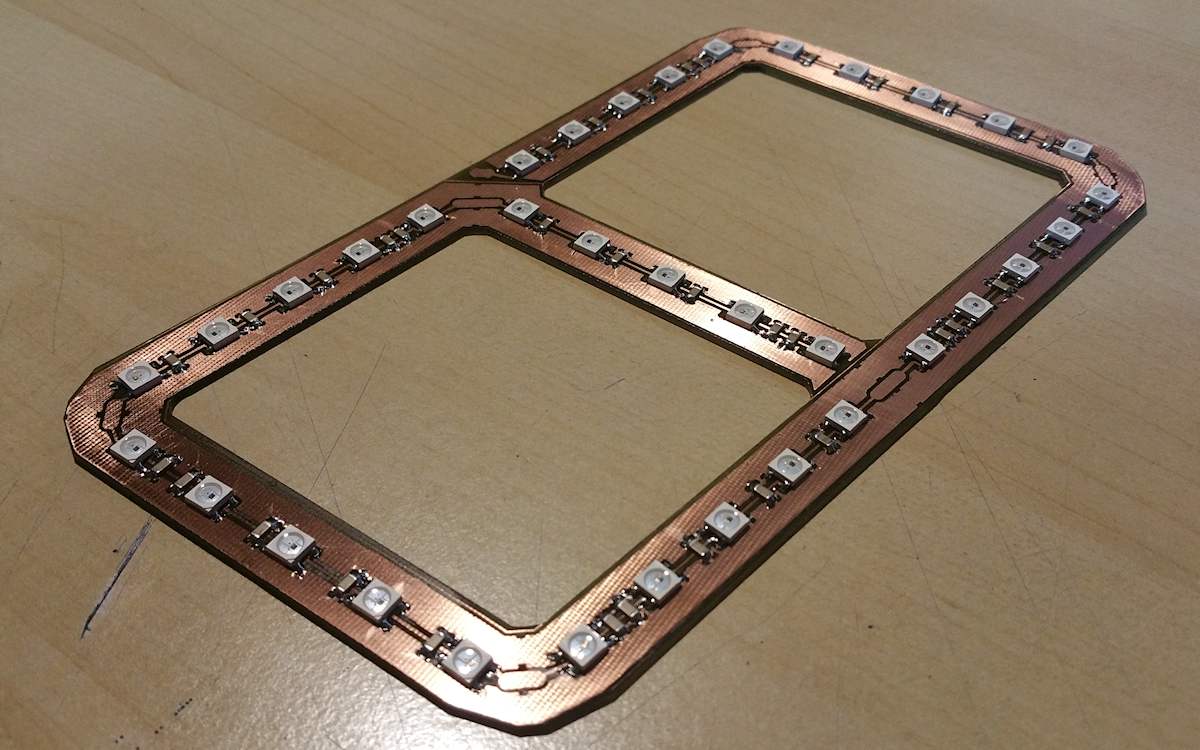

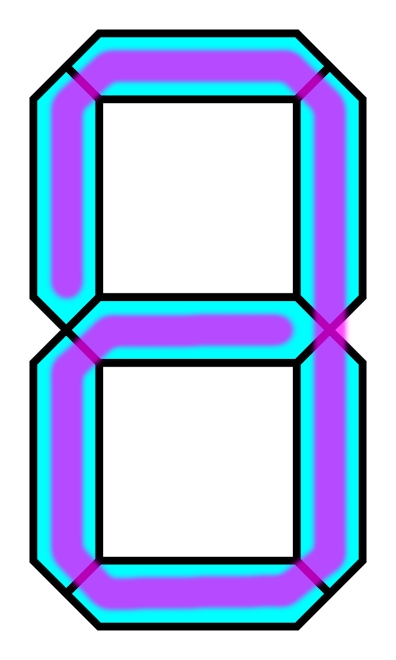

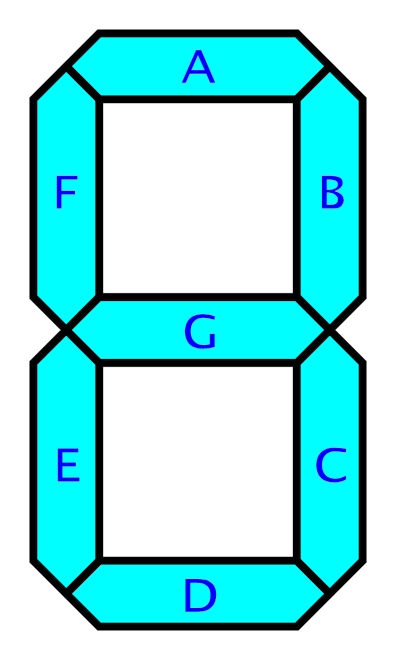

The simplest way of creating numeric displays, according to me, is 7 segments digits. But because my display will use WS2812B, that are daisy-chained, I need to rearrange the segments order, so to create a single digit as a single non intersecting line.

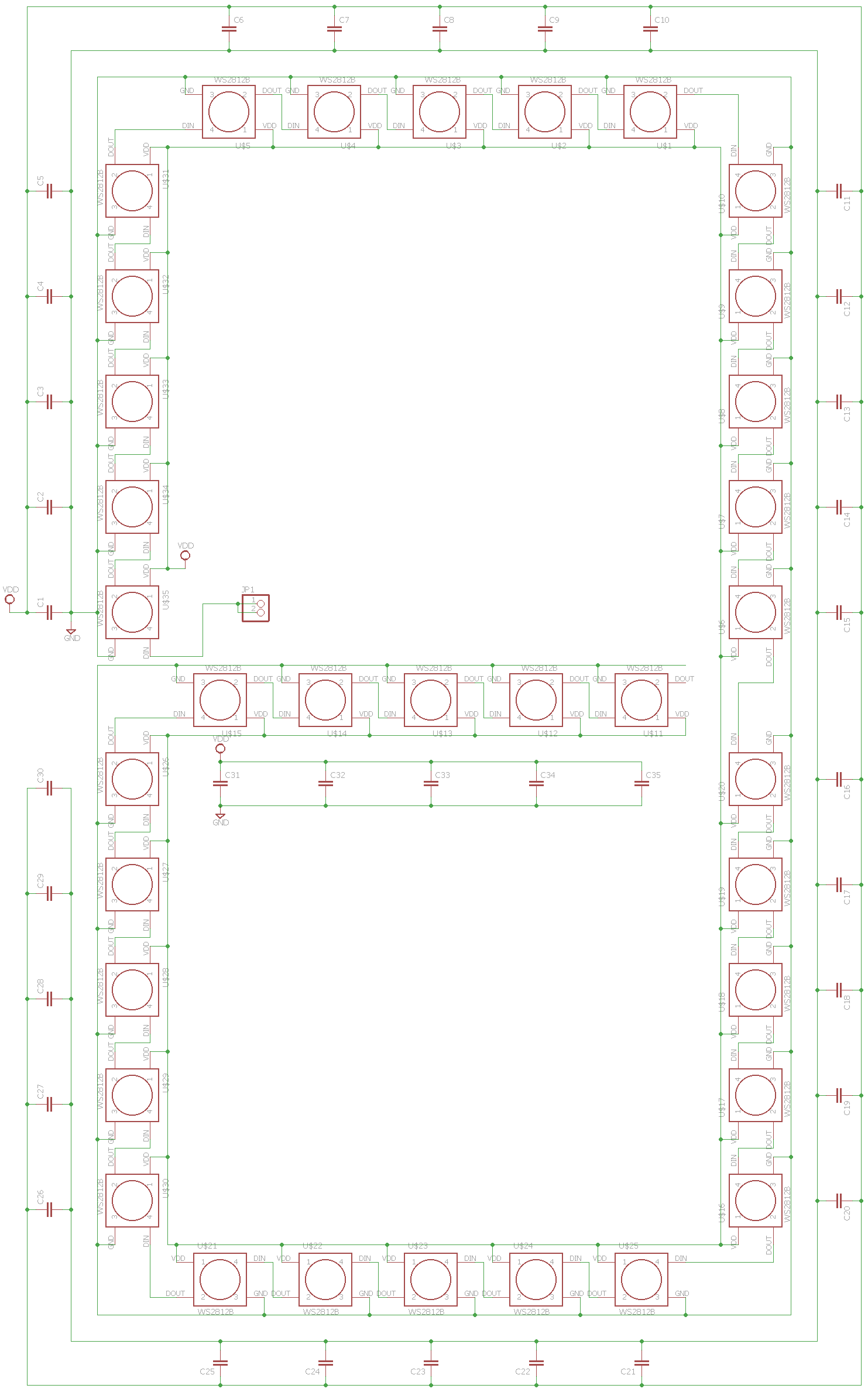

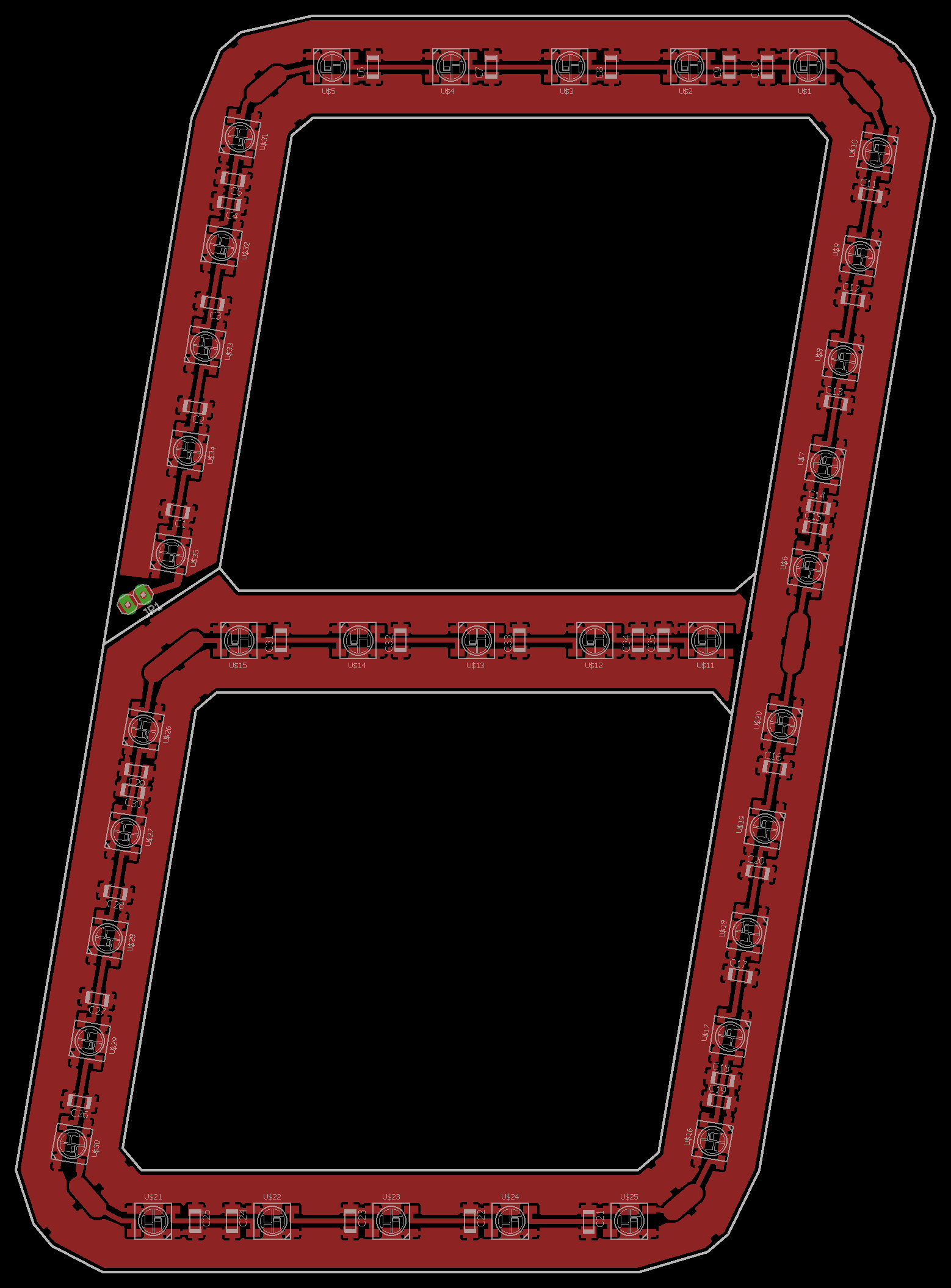

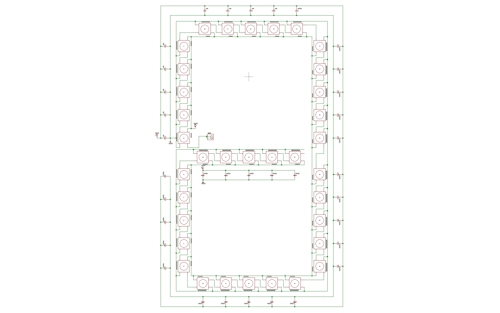

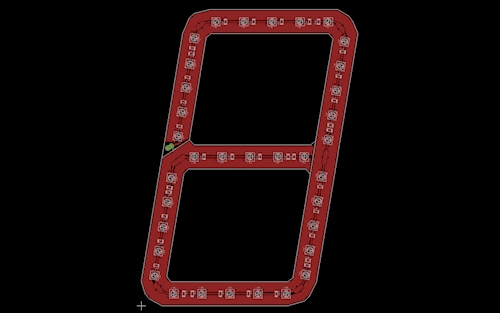

Once that problem is solved, it's just a matter of drawing the schematic and preparing the pcb layout to reflect that order:

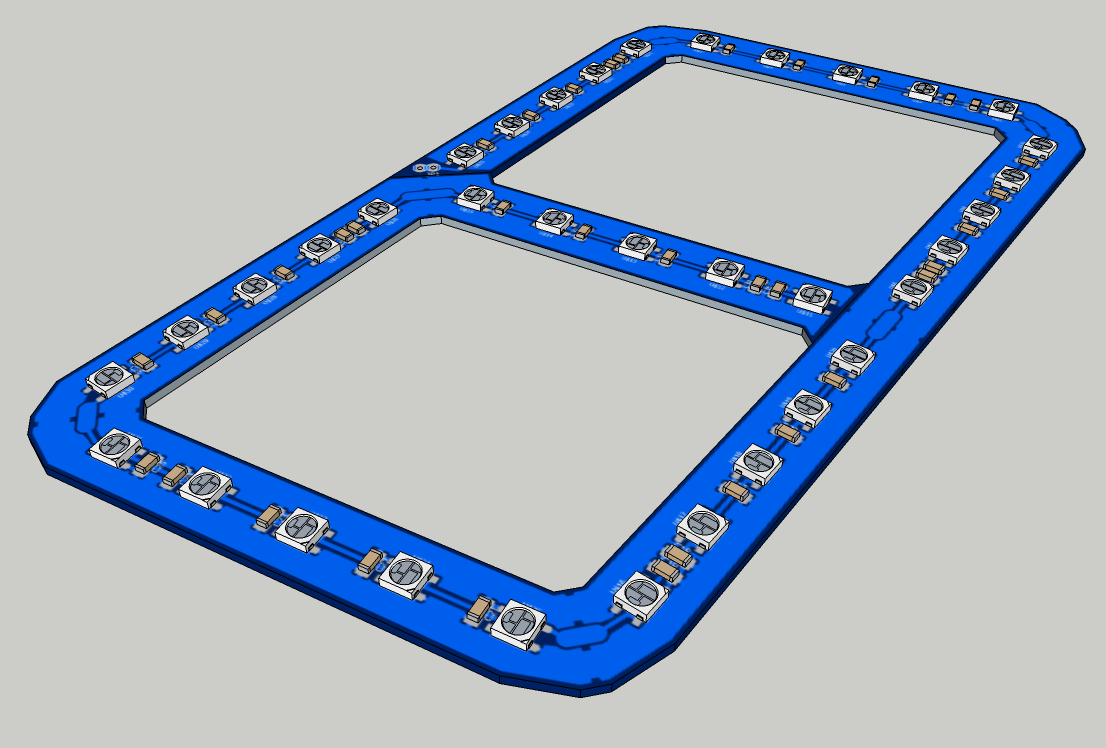

3D Render


Work files links

Eagle schematic and layout, and SketchUp render for 7 segment digit display
Digit.zip

Bluetooth Module

The scoreboard will be remotely controllable with a specific Android APP. To establish the communication, it will use the Bluetooth SPP (Serial Port Profile). So I need a bluetooth module connected to the UART serial port of the microcontroller.

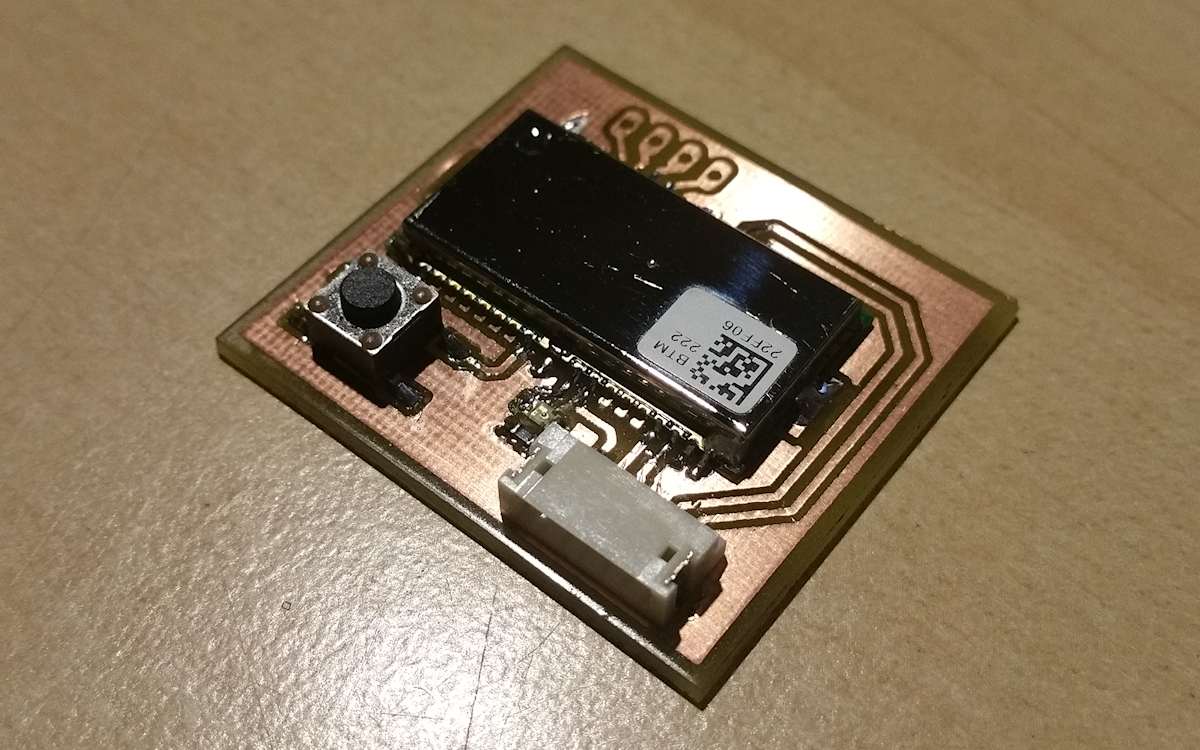

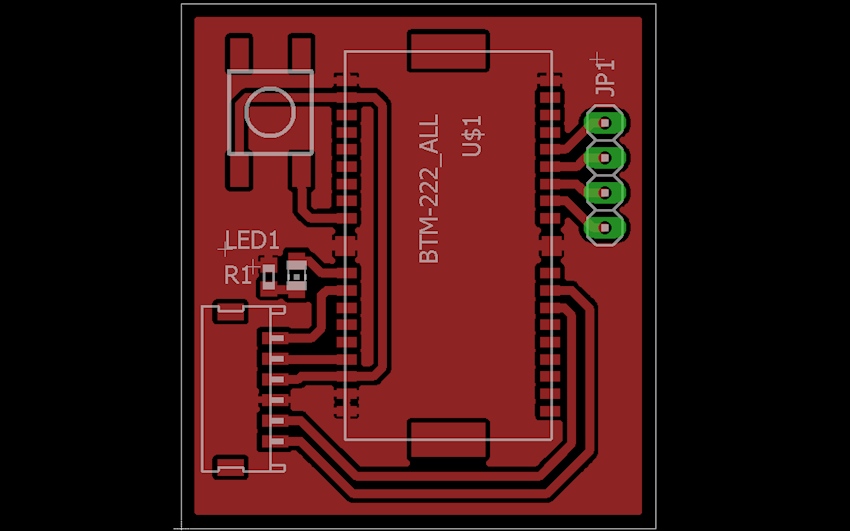

After a bit research I choose the Rayson BTM-222 module (check the BOM for more info), because it's cheap but powerful and has a wide coverage range. I created the custom library part for Eagle and the 3D model for EagleUp plugin.

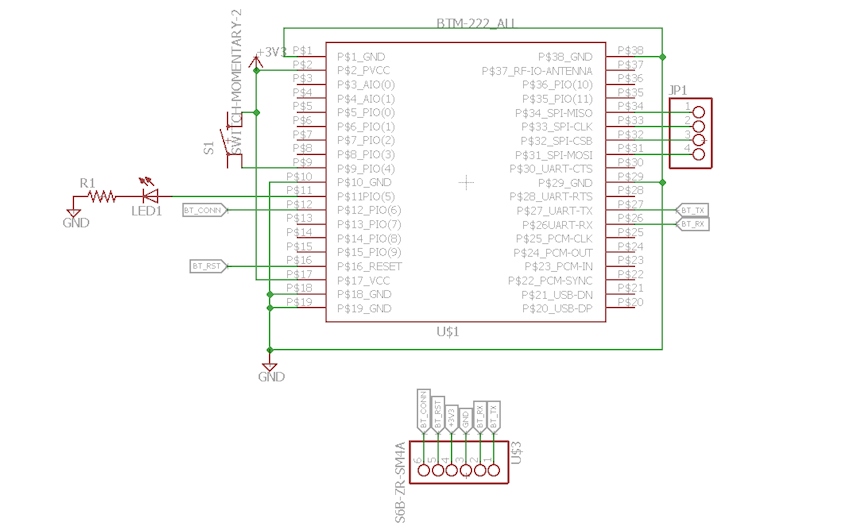

The module schematic is really simple, because essentially it's just a breakout board for the needed signals, and a tactile switch to factory reset the module.

The signal BT_CONN will serve to inform the microcontroller when a Bluetooth connection is established. The 4-pin connector on the back is used to reprogram the original BTM-222 firmware, in case of need, so I didn't fit it on the final board.

3D Render


Work files links

Eagle schematic and layout, and SketchUp render for bluetooth module
Bluetooth.zip

RF Module

The scoreboard will also be remotely controllable with a small 2.4GHz remote. To establish the communication, it will use the Texas Instruments CC2500 radio module (check the BOM for more info). That radio module is really similar to the one I used for the Week 15 - Networking and Communication assignment.

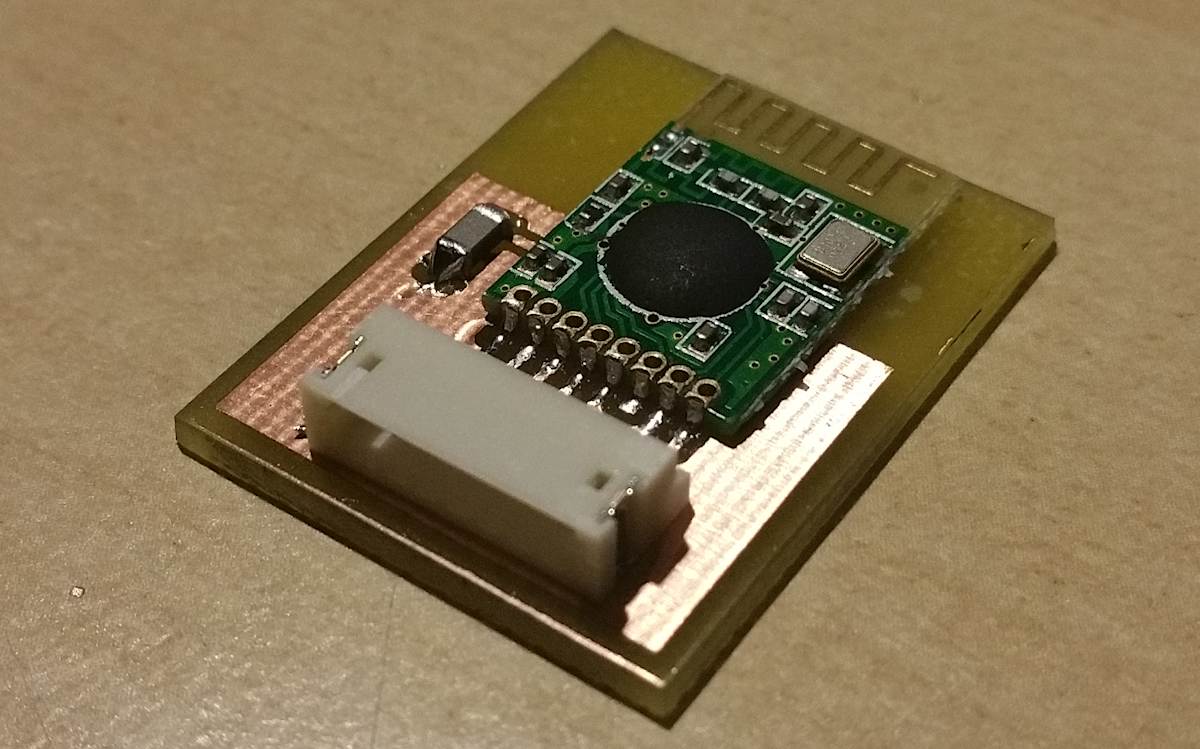

I created the custom library part for Eagle and the 3D model for EagleUp plugin.

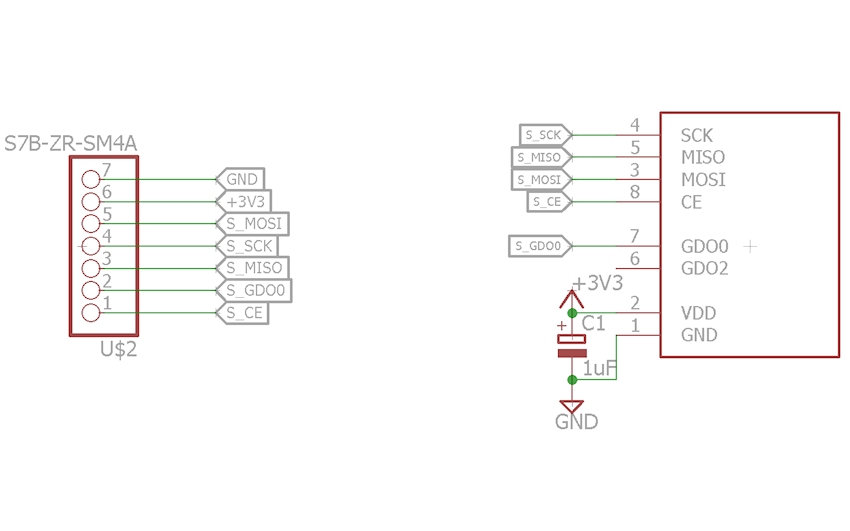

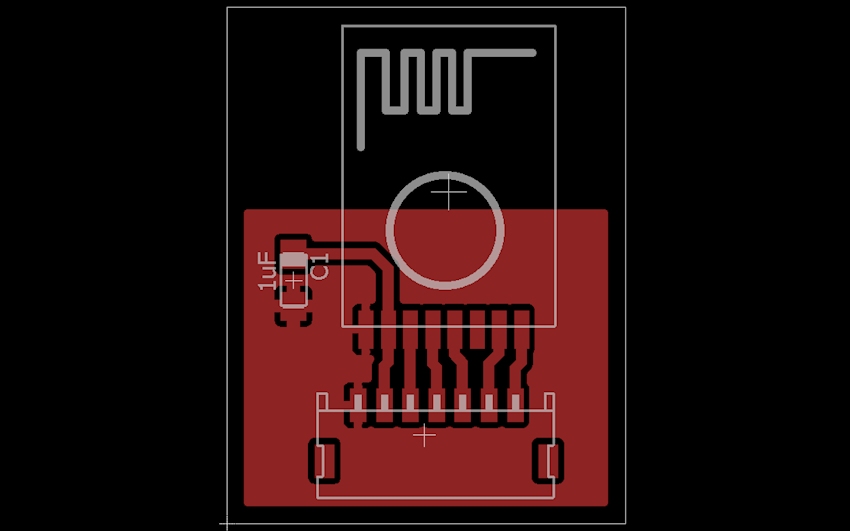

The module schematic is really simple, because essentially it's just a breakout board for the needed signals.

3D Render


Work files links

Eagle schematic and layout, and SketchUp render for RF module
Rf.zip

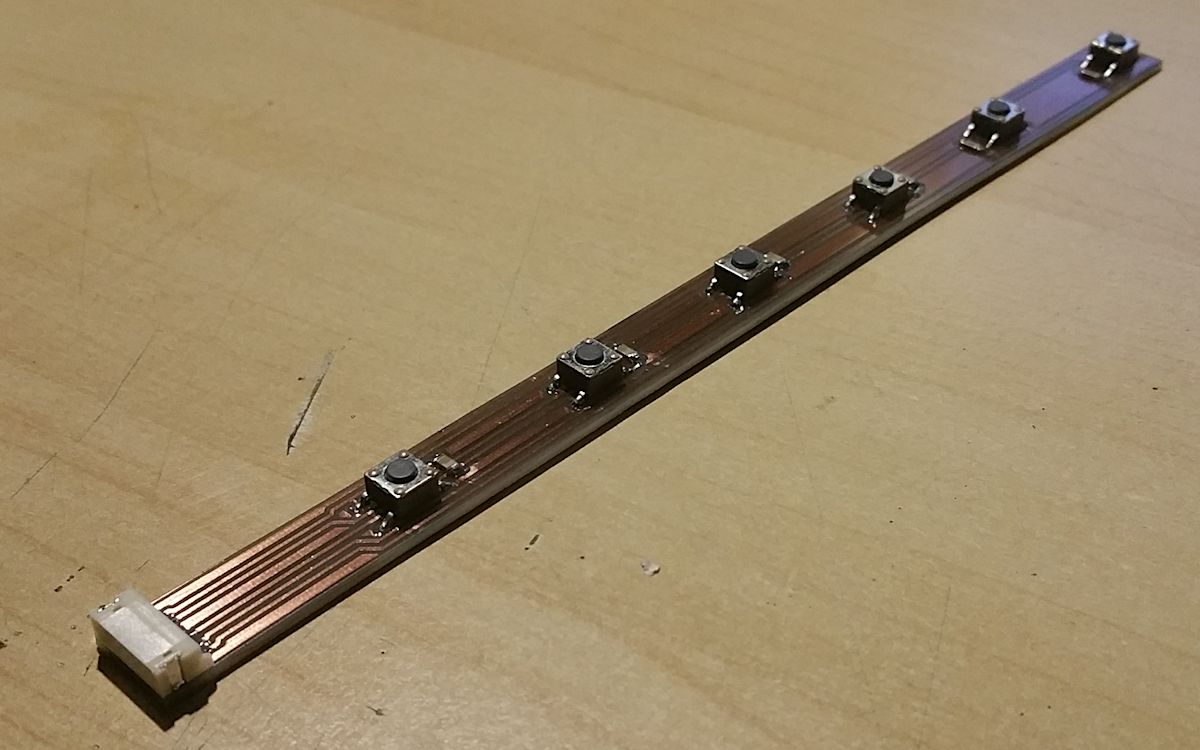

Keypad

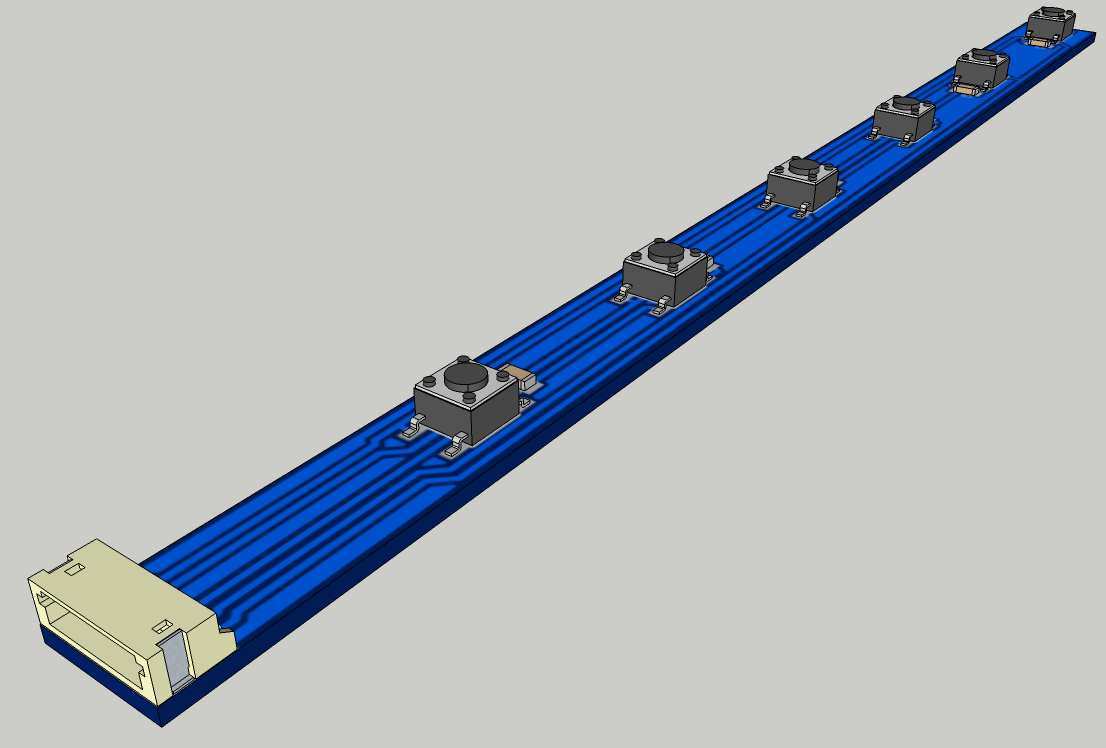

The scoreboard will have a small keypad on the edge of the frame, to control its functionalities in case no remote connection is possible. To explore further the usage of less gpio as possible, I wanted to implement the keypad as a keymatrix.

THIS page explains very well the inner workings of the keymatrix technique. Moreover THIS document from Atmel, explains in detail the combination of keymatrices with interrupt driven GPIO.

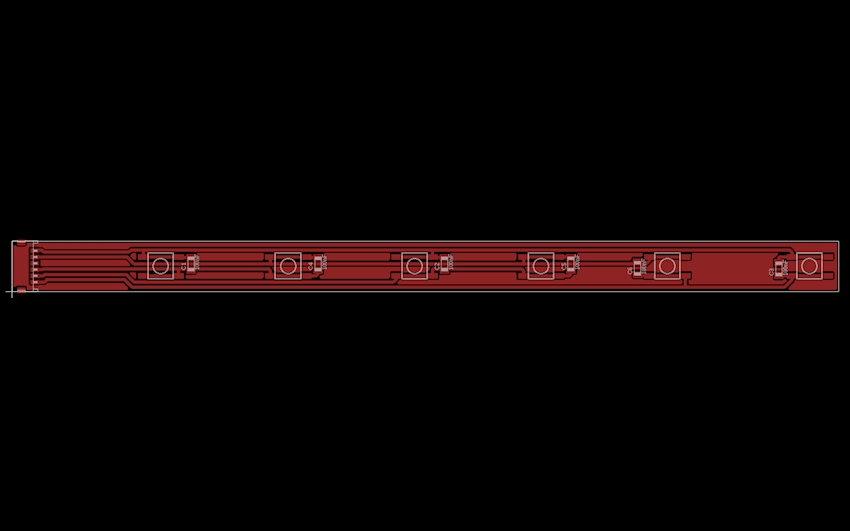

3D Render


Work files links

Eagle schematic and layout, and SketchUp render for keypad
Keypad.zip

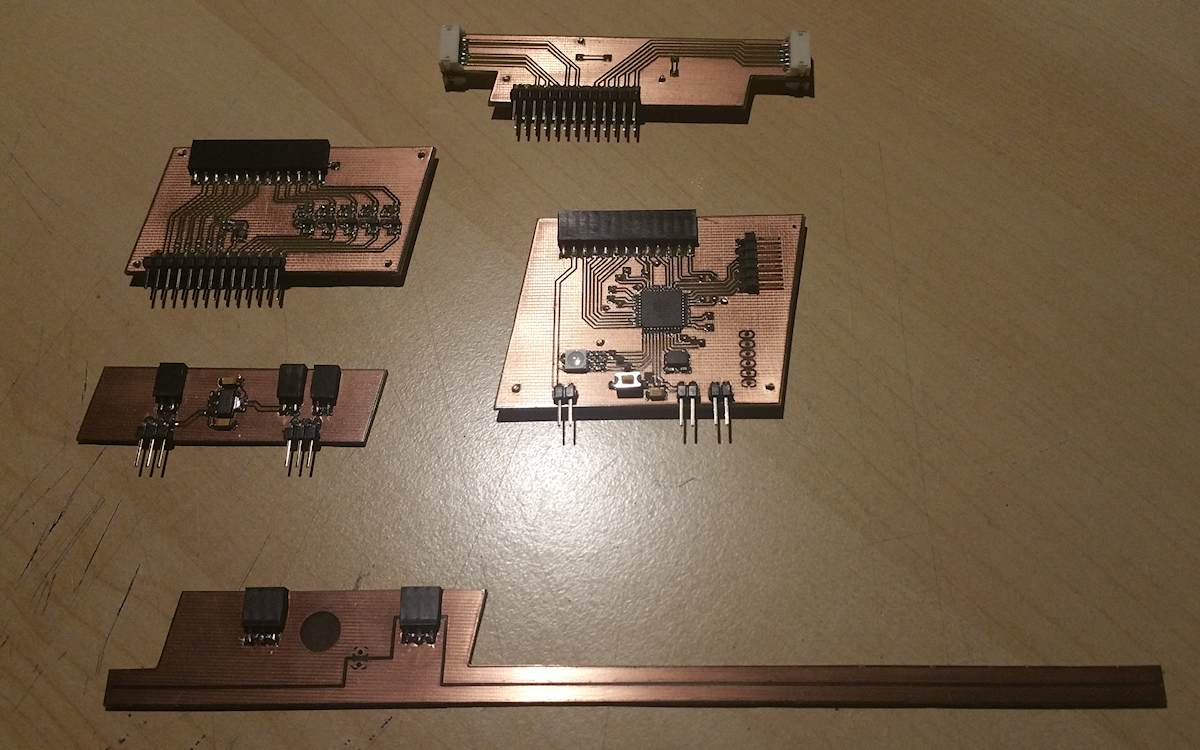

Controller board

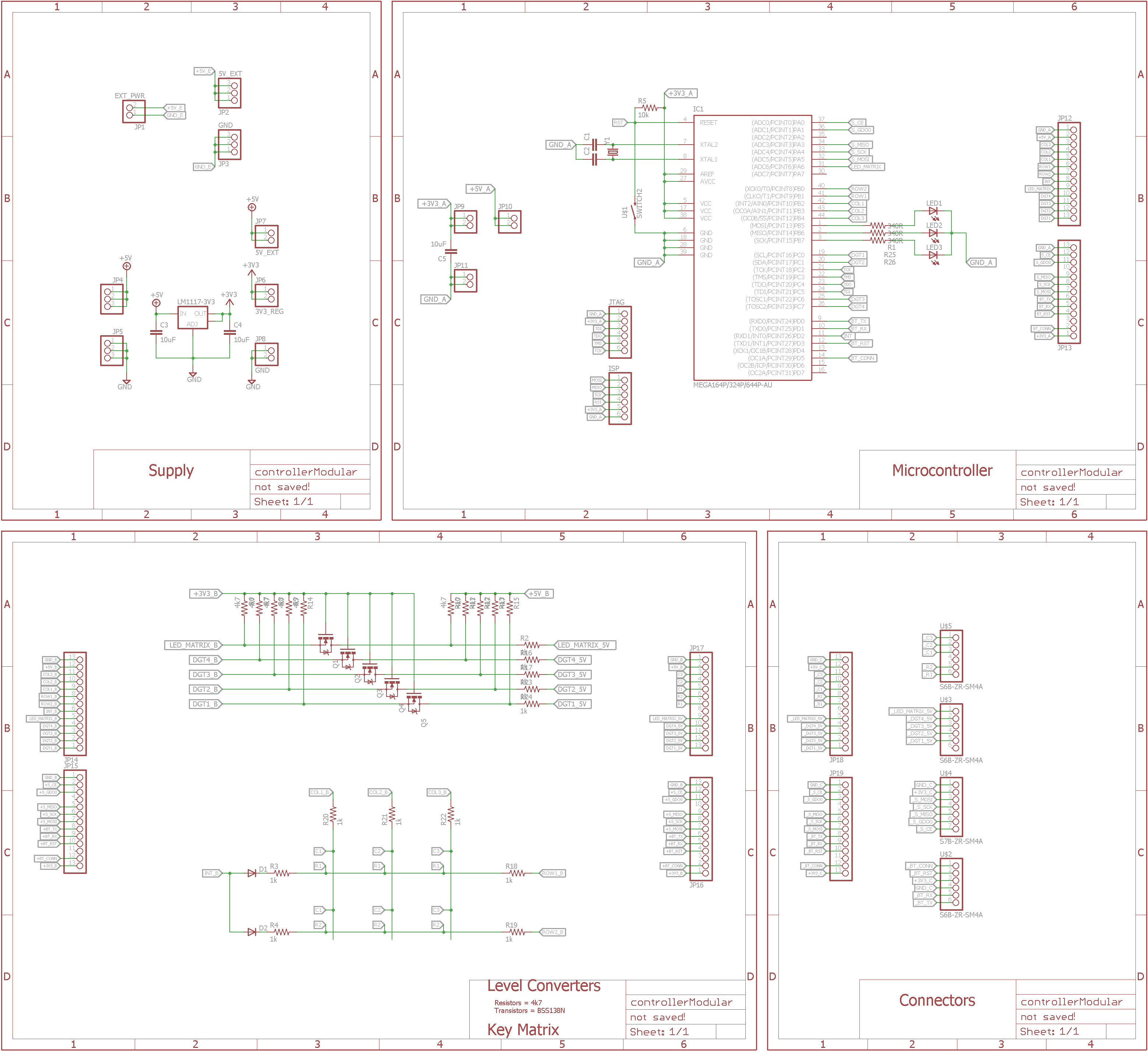

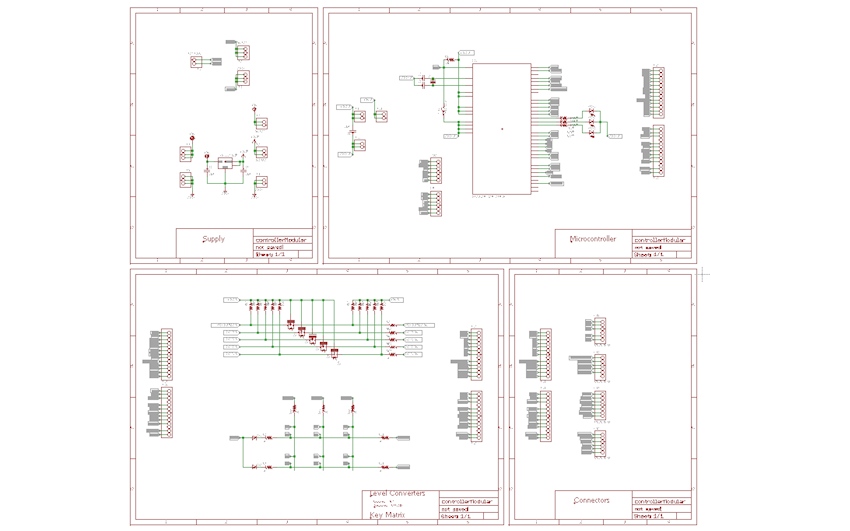

The brains of the scoreboard is a custom circuit board, designed to perform all the operations and functions.

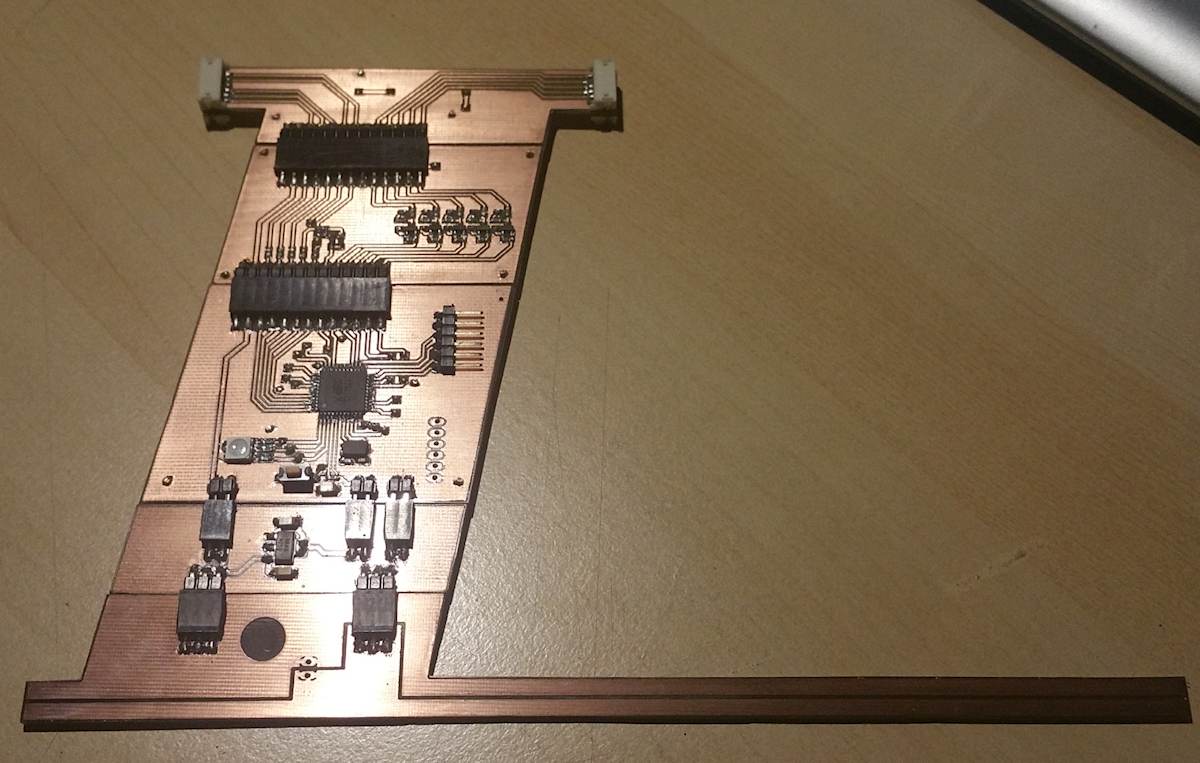

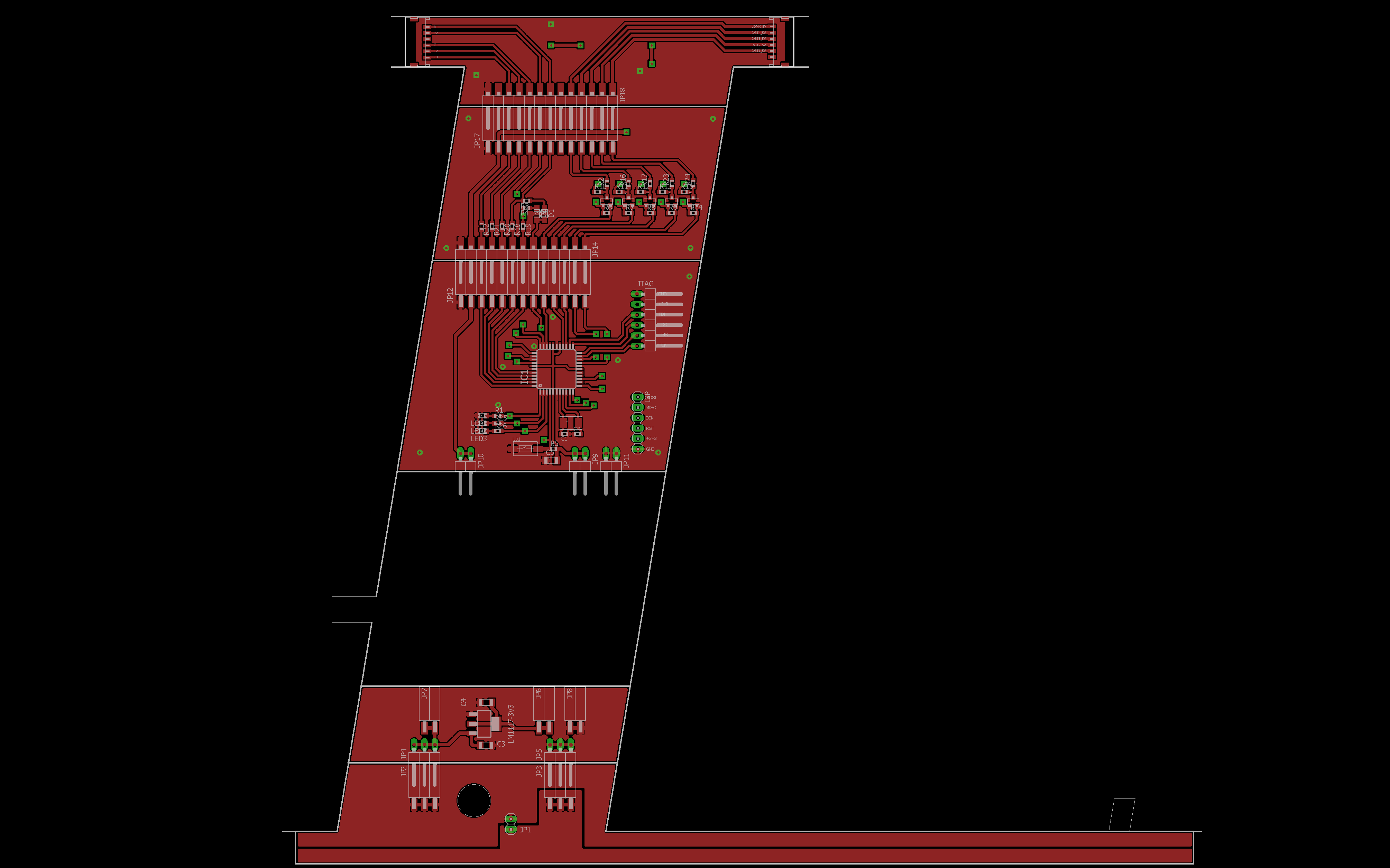

It is composed as a modular board, so that every single module can be repaired, customized, improved etc. In the actual version, there are 5 modules:

  • Power line distribution
    used to bring 5V across the frame in a more tidy way, and avoid wires running all along
  • Power regulation
    used to regulate the input to 3.3V since the microcontroller, the bluetooth module and the rf modules all operates at that voltage
  • Microcontroller and JTAG
    used as the main controlling unit of the board, with onboard crystal, reset switch and JTAG interface for programming and debugging
  • Logic level shifting & keymatrix passives
    used to adapt the microcontroller output logic level toward the WS2812B leds at 5V
    used to avoid ghosting and masking problems on the keymatrix signals
  • Logic signals distribution
    used to route logic signals (for RF module, Bluetooth module, keypad and digits) across the frame in a more tidy way

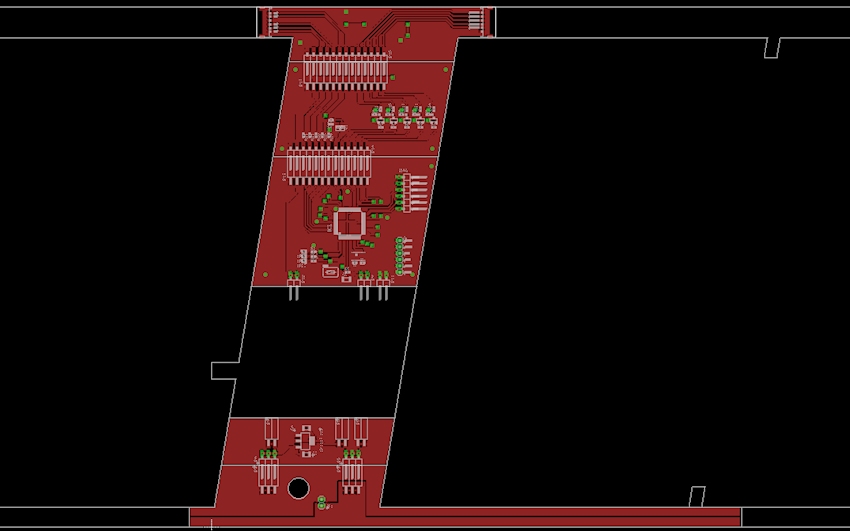

3D Render


Work files links

Eagle schematic and layout, and SketchUp render for controller
Controller.zip

Wiring and Assembly

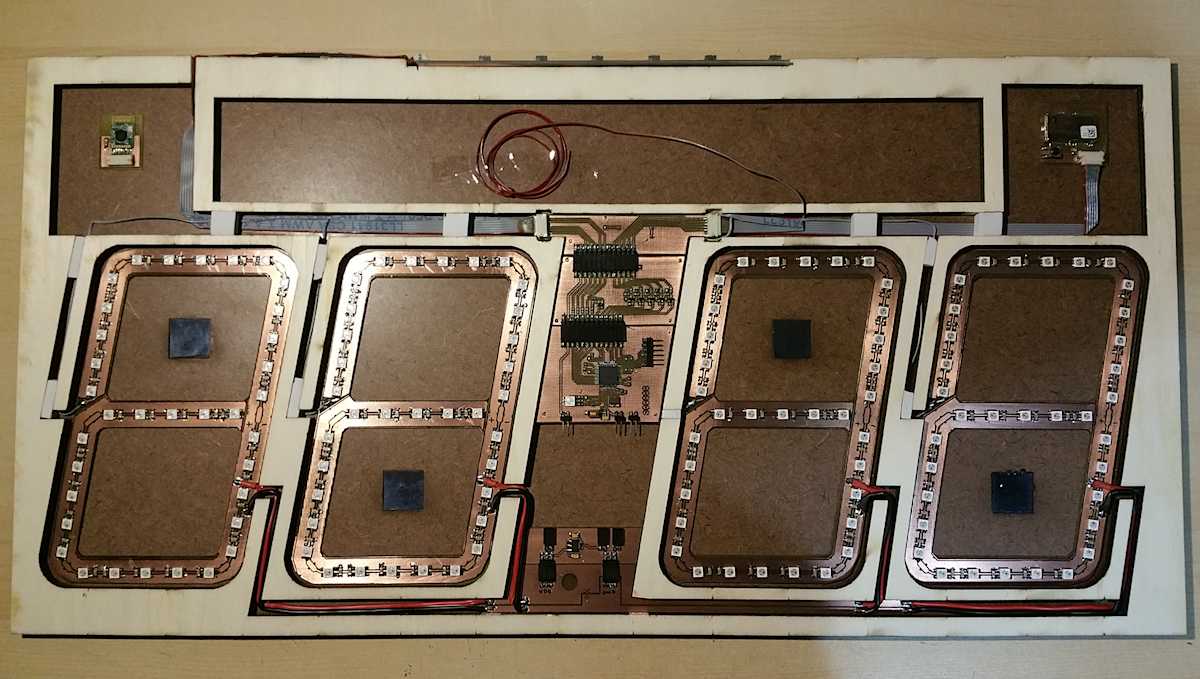

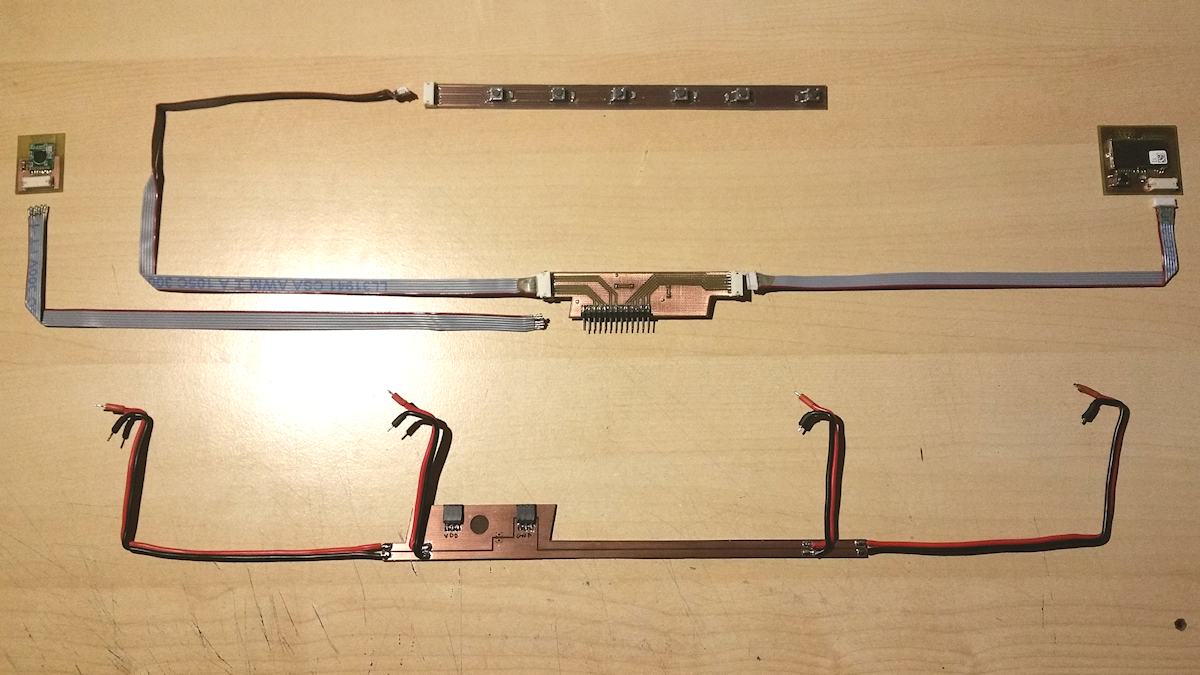

The last step concerning the electronics of the scoreboard is to wire everything together and place the different boards inside the frame.

Having the power and the digital signal distribution modules, is quite simple to wire the several digit displays, and the other components without having a wire nightmare.

Finally everything can be secured in place inside the frame. I had little problems of clearance due to the JST connectors size (I forgot that one of them has 7 pins and not 6 as the others!) but I overcome those using a Dremel and some sandpaper.
