Week assignment is..
○ write an application that interfaces with an input &/or output device that you made,comparing as many tool options as possible

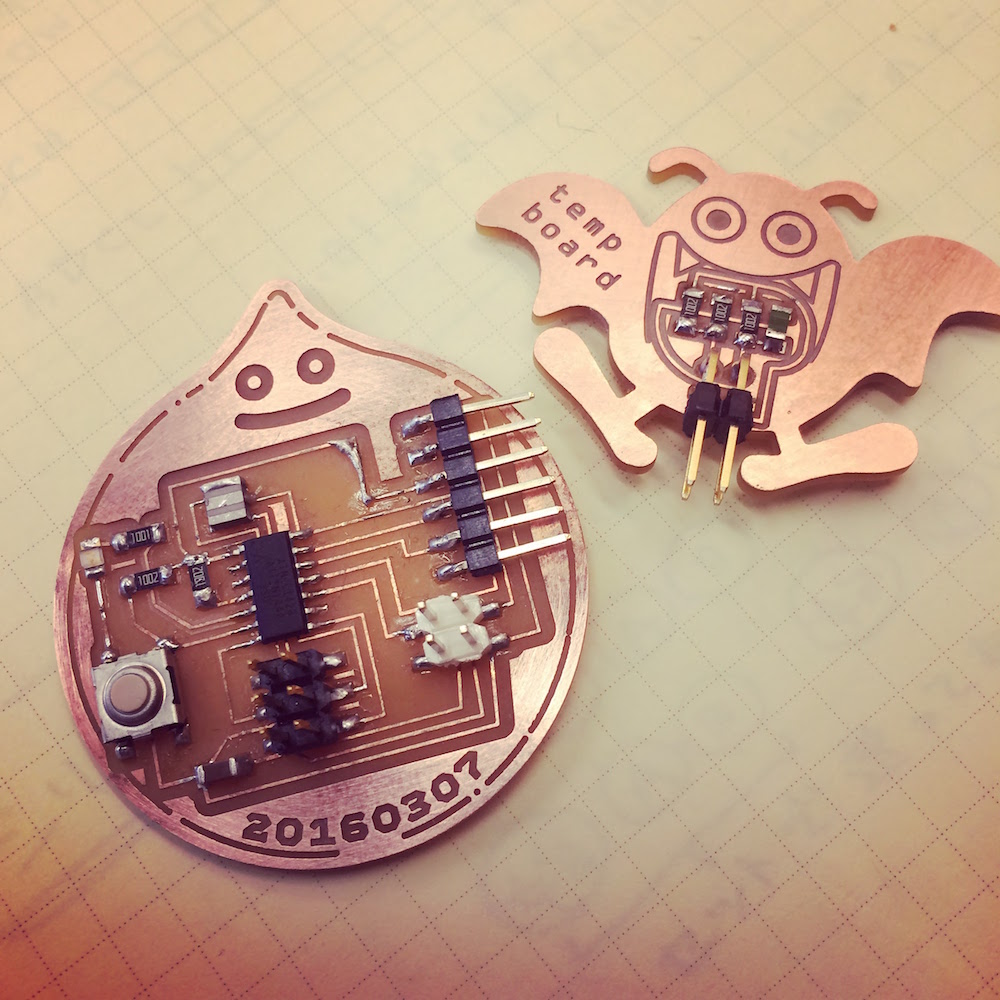

In this week, I tried to make a application to check temperature in the window using my Input devices board. I used the software processsing.
First, I used Adobe illustrator and designed the appearance.This monster is "Drakee" who is the monster of japanese famous video game "DRAGON QUEST".
import processing.serial.*; Serial serial; float x; float B; float R; float V; float r; float T; int value; int b1; int b2; int b3; int b4; int b5; PImage img; void setup() { size(560, 340); serial = new Serial(this,"/dev/tty.usbserial-FTGO00D8", 9600); } void draw() { background(255); if ((b1 == 1) & (b2 == 2) & (b3 == 3) & (b4 == 4)){ V = 2.5 - b5*5.0/(20.0*512.0); R = 10000.0/(5.0/V-1.0); B = 3750.0; r = 10000.0; T = 1.0/(log(R/r)/B+(1/(25.0+273.15))) - 273.15; println(T); } fill(0,0,0); PFont myFont = loadFont("PixelMplus12-Bold-34.vlw"); textFont(myFont); text(year(), 85, 58); text(month(),85, 96); text(day(), 85, 132); text(T, 70, 170); text("FABACADEMY2016 WEEK16 ASSIGNMENT", 10, 280); text("INTERFACE & APPLICATION PROGRAM*", 10, 320); img = loadImage("pic.png"); image(img, 10, 10); } void serialEvent(Serial p){ b1 = b2; b2 = b3; b3 = b4; b4 = b5; b5 = p.read(); }

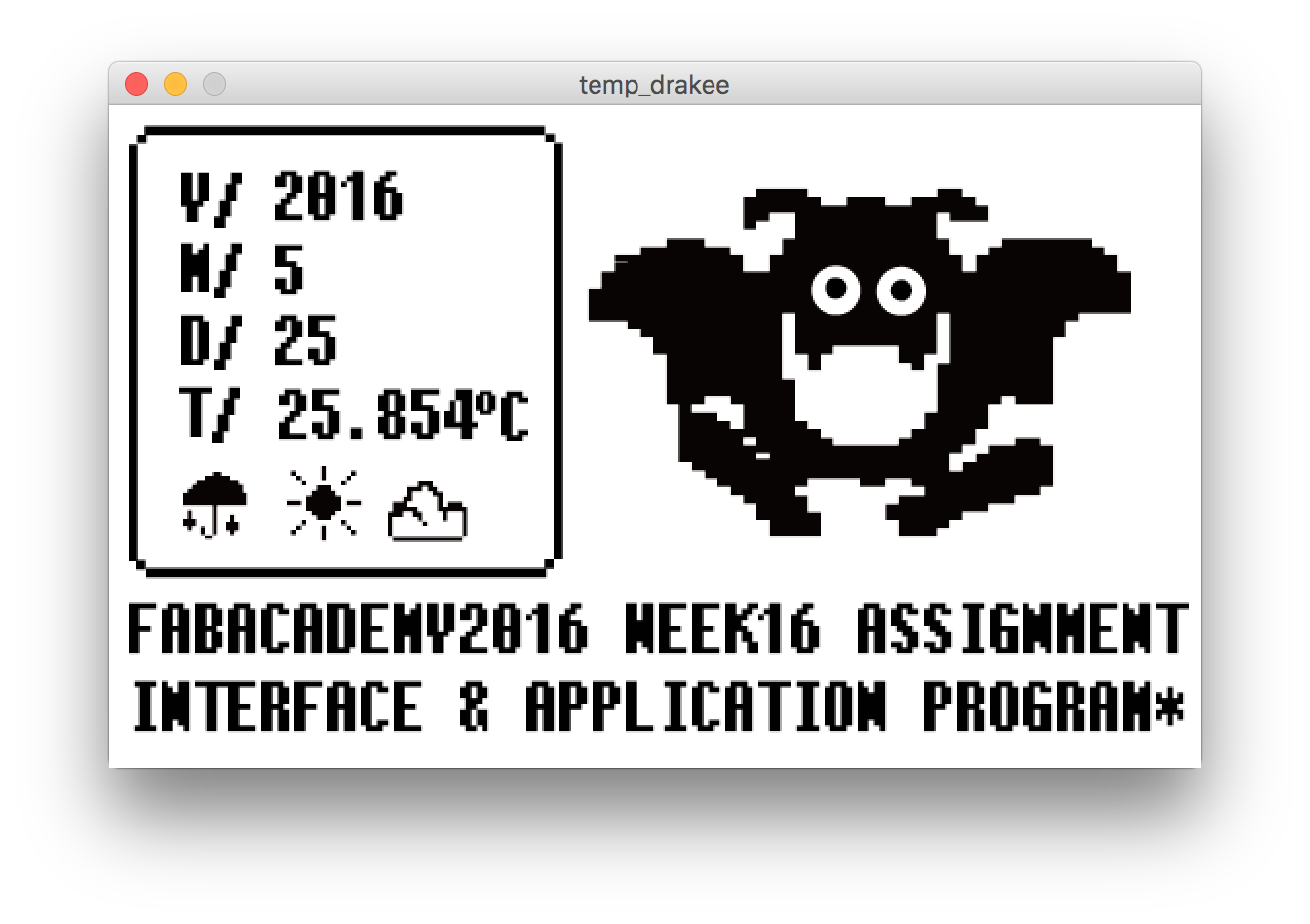

This is my GUI. In the upper left of the window , we can see temperature changing and today's date.
Download : temp_drakee.zip// include .pde, data and img files
And, this is DEMO movie.
