LESSON TEME: 3D Scanning and Printing

  In this week, I tried to print out several 3D objects and scan my body. At first, I printed out a design rules model After printed it out, I check the pricision of our 3D printer. Our 3D printer I used in this time is KEYENCE AGILISTA. AGILISTA is a kind of 3D printer using UV resin as it's material. I also printed out 3D printing textiles which are difficut to make subtractive processes using a kind of a milling machine. These textiles data are here: Chain Mail and Bracelet. Lastly, I tried to scane some objects by using a handy 3D scanner. Our co-workers scanned my body.

web site page
[1] Outputed Object by Using 3D Printer

Test the Design Rules

  The design rules model were printed out by KEYENCE AGILISTA. This 3D printer can output a very pricise object. It took about 4 hours to print out the model. After print out the model, I sank the model into water pool to remove off support materials for all night. Next morning, I picked up the model from the water pool and dried it for a while. The output result seems to be enough good because all slit are constructed and also reproduce the sharp tip in the model data.

web site page
[2] 3D Printer "AGILISTA"
web site page

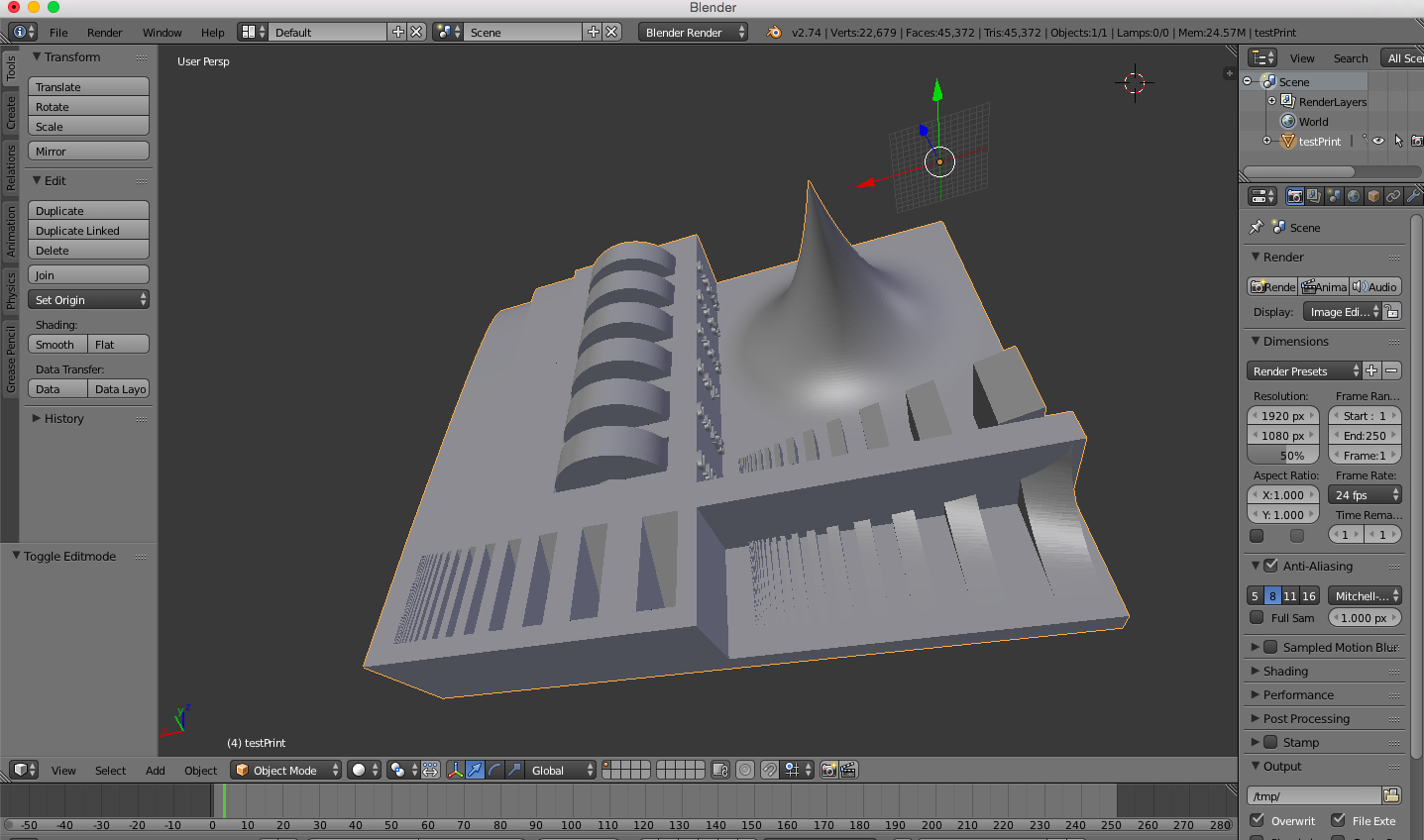

[3] Design Rules for 3D Printer
web site page
[4] Printing Appearance
web site page
[5] Printouted Degin Rules by Using AGILISTA
web site page
[6] Printing Precision of AGILISTA

3D Printing Textiles

  I have prited out only solid models by using several 3d printer. In our local lecture, I knew a genre of 3D Pinting Textiles and wonder that our 3D printer can print out such kind of soft models. So, in this time, I tried to print out two textiles data; one is Chain Mail and the other is Bracelet. I downloaded a Chain Mail File and a Bracelet File from Thingiverse.com By using KEYENCE AGILISTA, it took about 3 hours to print them out. Then, I peel a raft off the models. These models were sank into a water pool to remove out support materials. About 3 hours later, I picked out these models from the water pool and remove out small fragments of support materials by using a sharp spatula. Lastly, I dried these models for a while and weared these models.

web site page
[7] STL Data of Chainmail Object
web site page
[8] Printouted Chainmail Object
web site page
[9] Surface Ditals of Printedout Object
web site page
[10] Still SOLID Object Yet
web site page
[11] Peeling Off Printouted Object from Raft
web site page
[12] Removing Thin Layer Pasting on Surface of Printouted Object
web site page
[13] Sinking Printouted Object into Water Pool
web site page
[14] Pickup Object from Water Pool
web site page
[15] Remove Fragments Pasting on Surface of Object
web site page
[16] Complete!
web site page
[17] Waring Chainmail
web site page
[18] Bracelet Printed out by using AGILISTA

Scan My Body

  I tried to scan several object by using Sense 3D Scanner. This scanner is a kind of handy scanner. So we can easily use it without calibration process. My co-workers scand my body to keep the device in his hand and walk around me. We found that this work should be very careful becase there are a traking lost when we quickly move the scanner. We took my body for several times because of some mistake-scan. It's difficult to fill several holes on these polygon serface on the scanning work. After that, I checked the scan data by using Meshmixer. I haven't printed out the models yet but surely print out it soon.

web site page
[19] Scanning My Body by Using Handy Type 3D Scanner
web site page

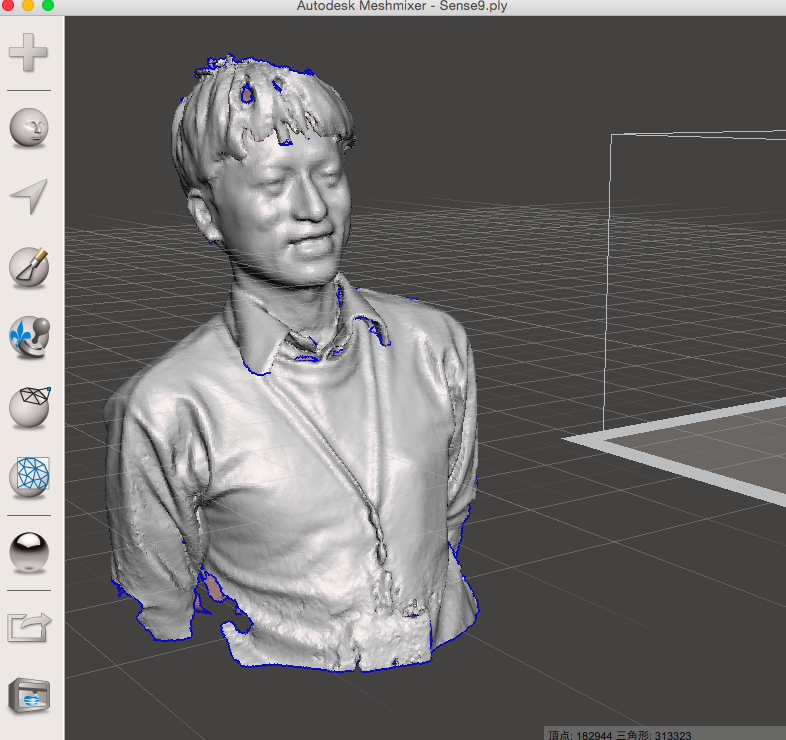

[20] Scanned Data
web site page
[21] Failure Scan Example
web site page
[22] Successed Scan Example

Printout My Original Design

  I printouted my original designed parts for my final project by using AGILISTA. Figure [23] shows the CAD design of my final project. The side parts to join each wood parts are printouted. Also, I printouted the innter parts to fix the electronic parts. The Figure [24] shows the final appearance of all printouted parts.

web site page
[23] Electric Skateboard CAD Design
web site page
[24] Printouted Parts for Skateboard Made by Using 3D Printer

Impression

  I'm very interested in 3D Printing Textiles. This is my first time to print out such kind of soft models. I have a kind of stereotype that a 3D priter prints out a solid object. But, in this time, my stereotype was overturned when I see the textiles works.
