16. Interface and Application Programming

I often create websites.So HTML5 & javascript are one of the most famillier program language for me. So I tried to use node.js. It is easy for me to connecting the network with Node.js. And actually it is used with many web services. In the future, It is a very useful tool for me bacause I will work in web company.

Programming

setup 1

first, I tried to use serial communication with Node.js. So, I sent signal between Node.js and boards I made.


                        /*
                        if you have never used Node.js, install Node.js(https://nodejs.org/en/)
                        */

                        npm install serialport //it is possible to use serial port.



test code

testSerial.js(This program of the function is sending byte to boards I made last week. Then, led blink.)


    'use strict';
    var serialport = require('serialport');
    var SerialPort = serialport.SerialPort;
    var parsers = serialport.parsers;

    var port = new SerialPort('/dev/cu.usbmodemfd121', {
      baudrate: 9600,
      parser: parsers.readline('\r\n')
    });

    port.on('open', function() {
      console.log('Port open');
    });

    port.on('data', function(data) {
      console.log(data);
    });



setup 2

Second, I tried to connect between asynchronous server created with the socket.io package of Node.js and boards I made.


                        /*
                        if you have never used Node.js, install Node.js(https://nodejs.org/en/)
                        */

                        npm install serialport //it is possible to use serial port.
                        npm install socket.io  //it is possible to use realtime communication with Node.js.
                        npm install express    // it is possible to use express frameworks

                        express -e ex16        // generate web application with express


web template window I made with express framework.

coding

index.ejs(this is UI and serial communication program file)


    <body>
      	<div class=\"wrapper\">
      		<div id=\"button1\" class=\"button\"><p>PUSH ME!!</p></div>
        	<div id=\"button2\" class=\"button\"><p>PUSH ME!!</p></div>
      	</div>
        <script src=\"https://ajax.googleapis.com/ajax/libs/jquery/1.11.3/jquery.min.js\"></script>
        <script src=\"http://ajax.googleapis.com/ajax/libs/jquerymobile/1.4.5/jquery.mobile.min.js\"></script>
        <script src=\"/socket.io/socket.io.js\"></script>
        <script>
        	var socket = io.connect(\'192.168.11.20:3000\');
        	socket.on(\'news\',function(data){
          		console.log(data);
          		socket.emit(\'my other event\',{my:\'data\'});
        	});
        	$(function(){
        		$(\"#button1\").on(\'click\', function(){
        			socket.emit(\'my other event\',{button:\'0\'});
        		});
        		$(\"#button2\").on(\'click\', function(){
        			socket.emit(\'my other event\',{button:\'1\'});
        		});
        	});
        </script>
      </body>



reference

DOWNLOAD

Running

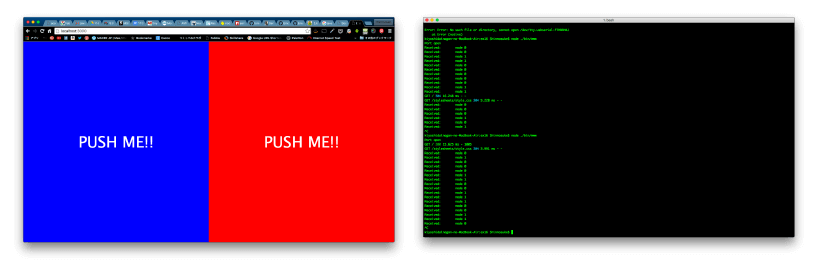

left: UI window    right: server window

Finally, I controlled LEDs with a smartphone. I open a client page such a UI window with it in local network. if I tapped a red button, sent byte '1' and a red led blinked. if I tapped a blue button, sent byte '0' and a blue led blinked.
