Week- 8 Embedded programming

This assignment sounds difficult initially, actually i am not from electronics background and hence i found atmega 328 hard for soldering and then for programming.



Workflow:



  • choosing a board and a circuit
  • milling and cutting the circuit
  • programming the circuit to do anything

Starting with arduino circuit in which ATMEGA-328 is used.



Components of the circuit

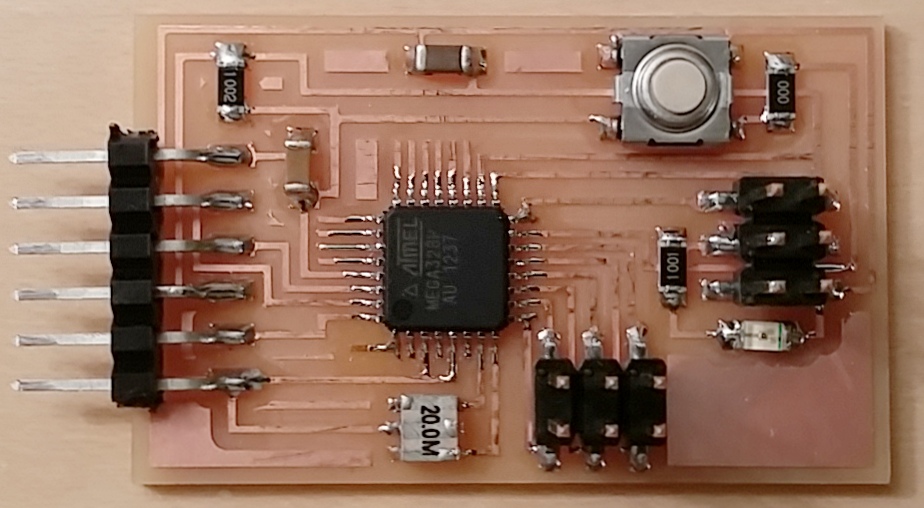

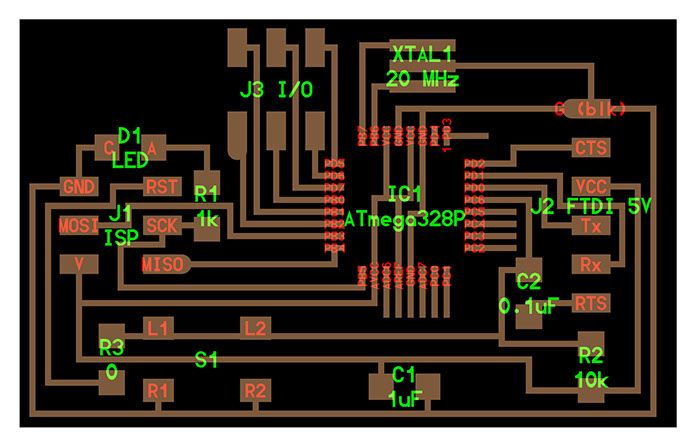

Board

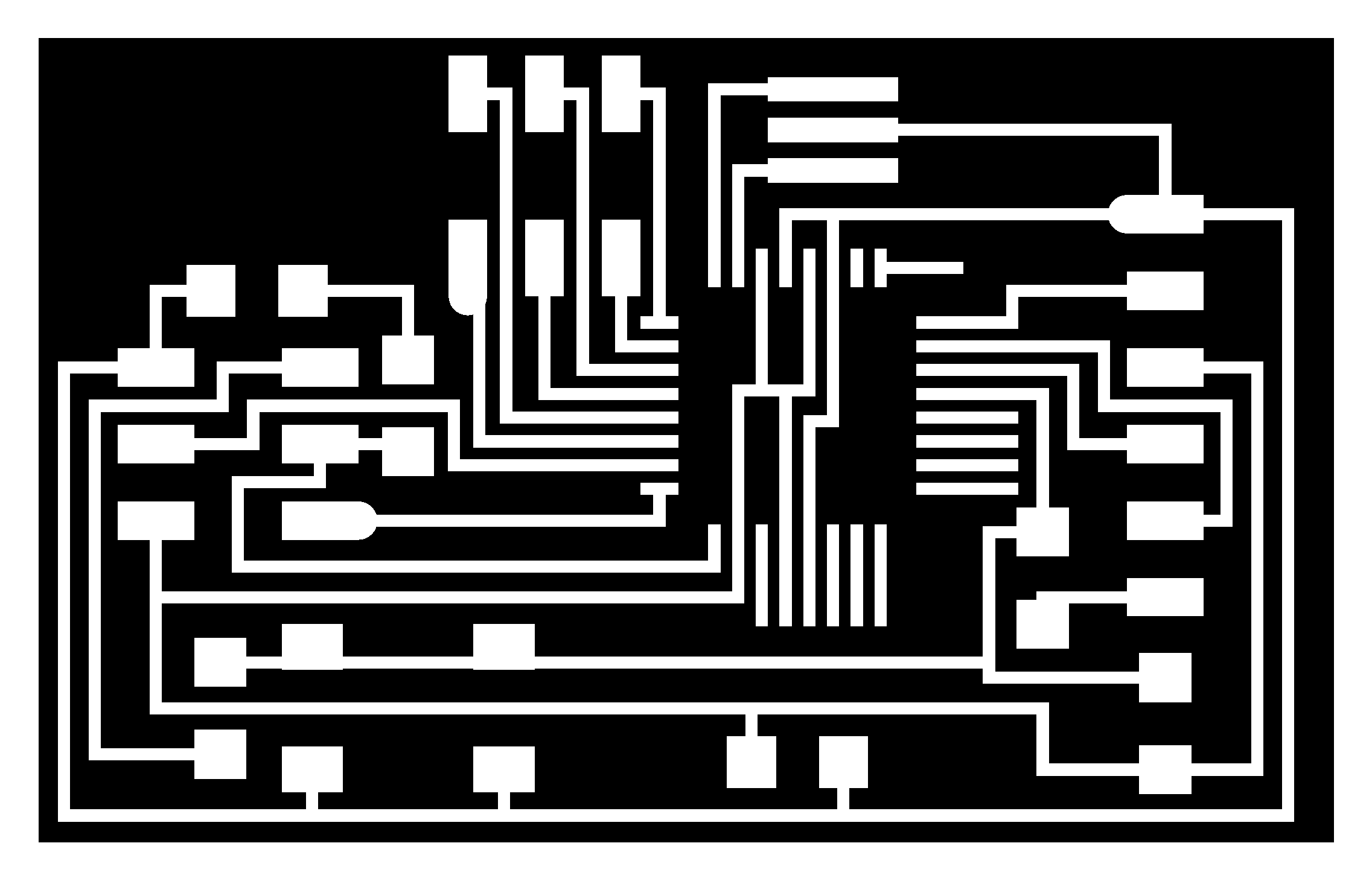

traces

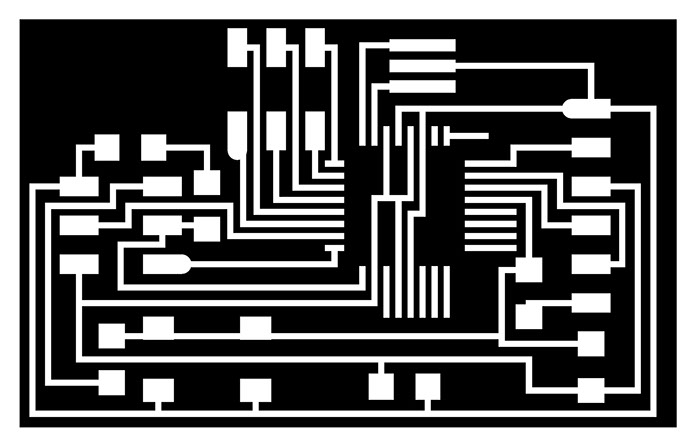

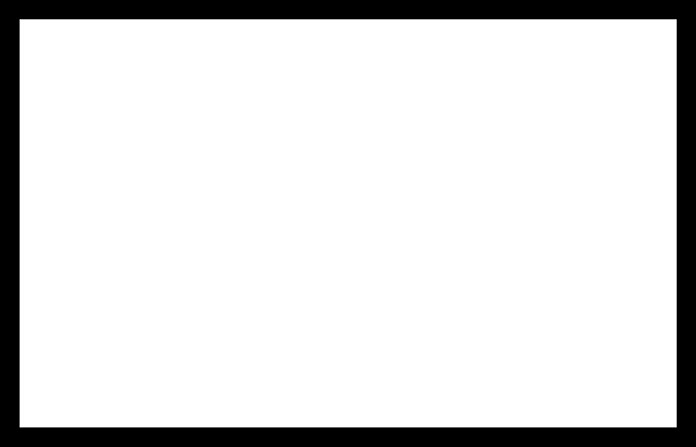

Cutting path

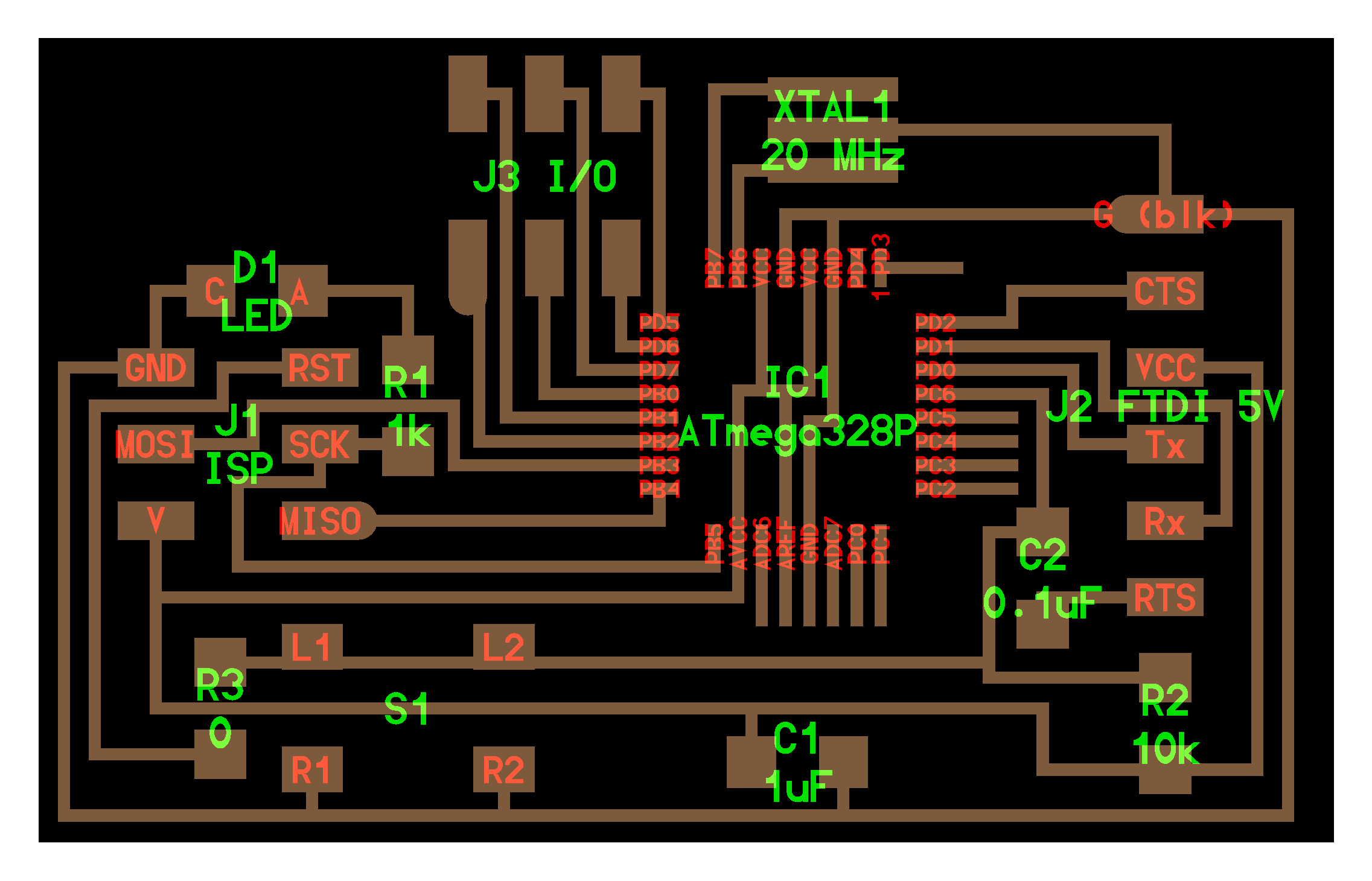

Image for understanding of the pin for analog and digital pins

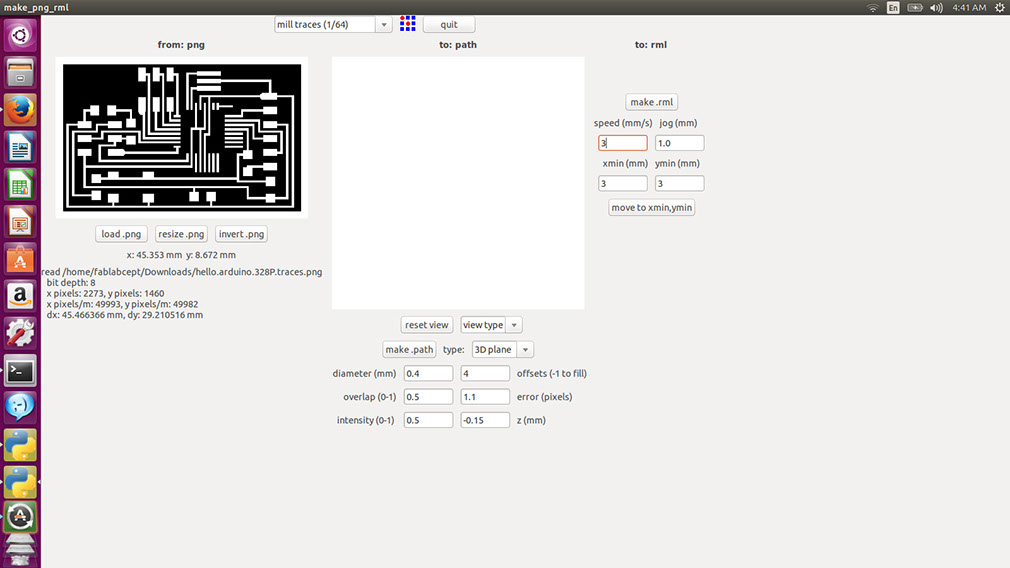

Starting with milling the circuit in -Fab module software

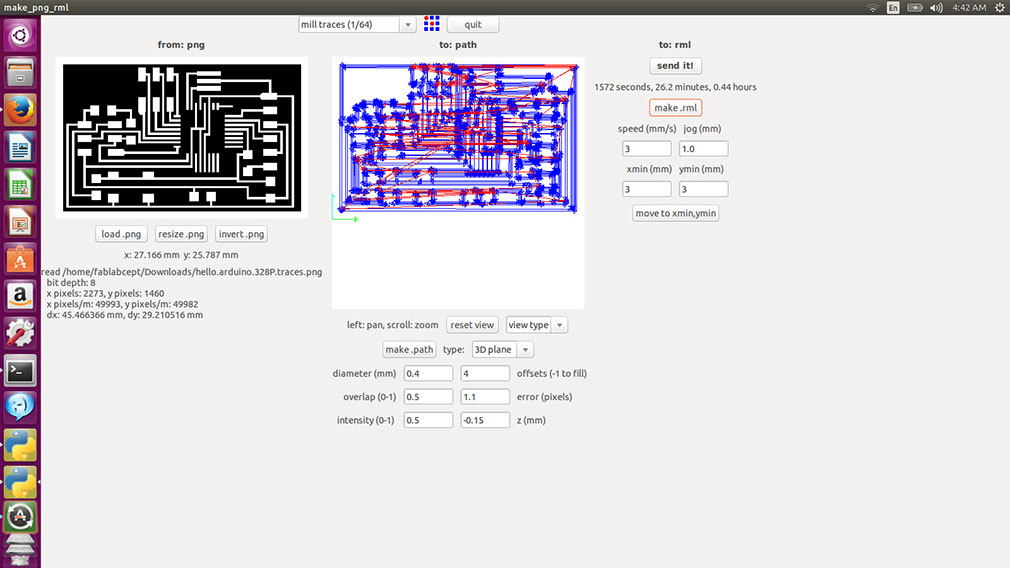

Making the toolpath using the settings for 1/64" bit

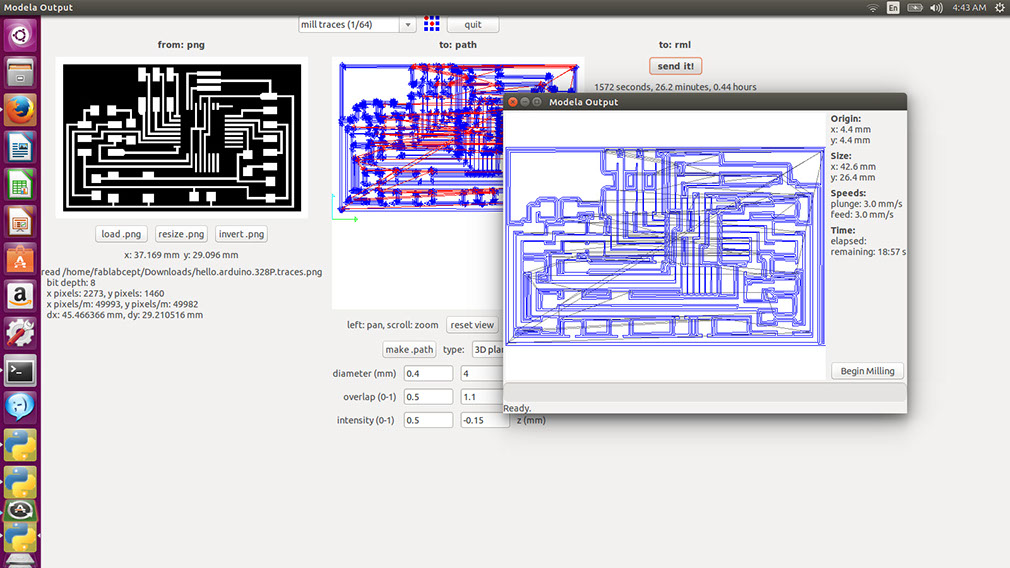

Sending the code to the machine

When milling is done,screen shows something like this

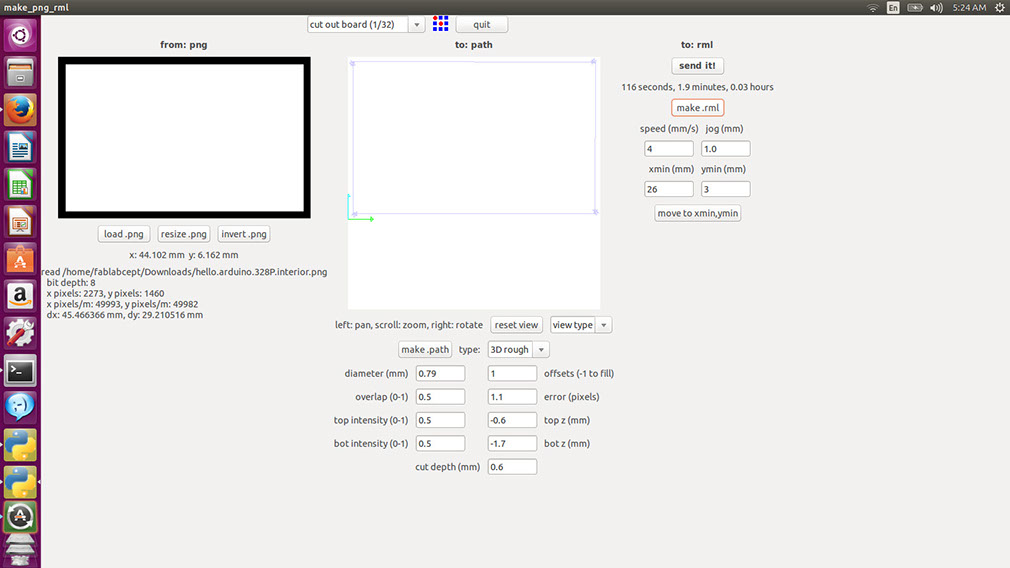

Cutting toolpath of the circuit

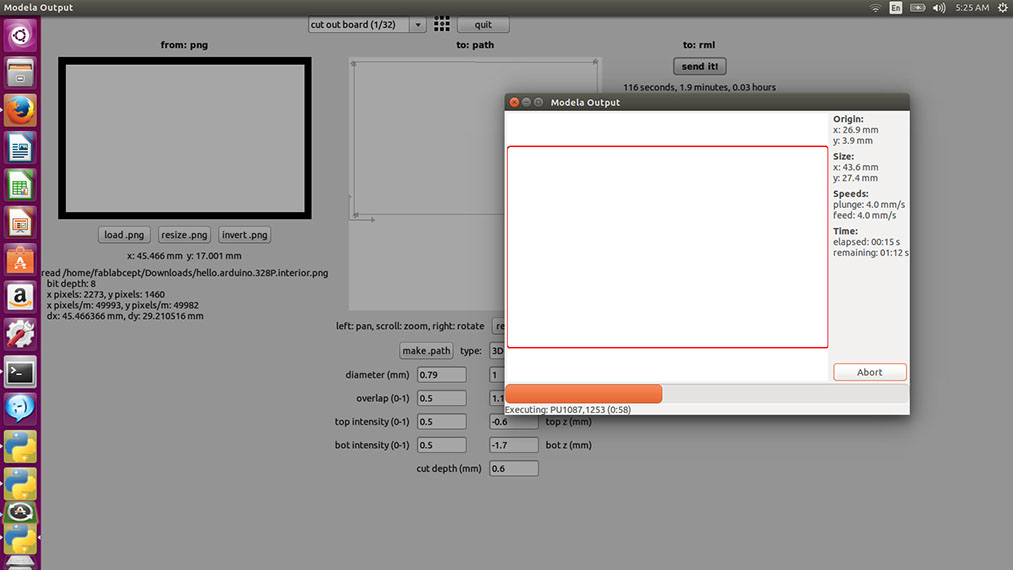

Cutting toolpath running

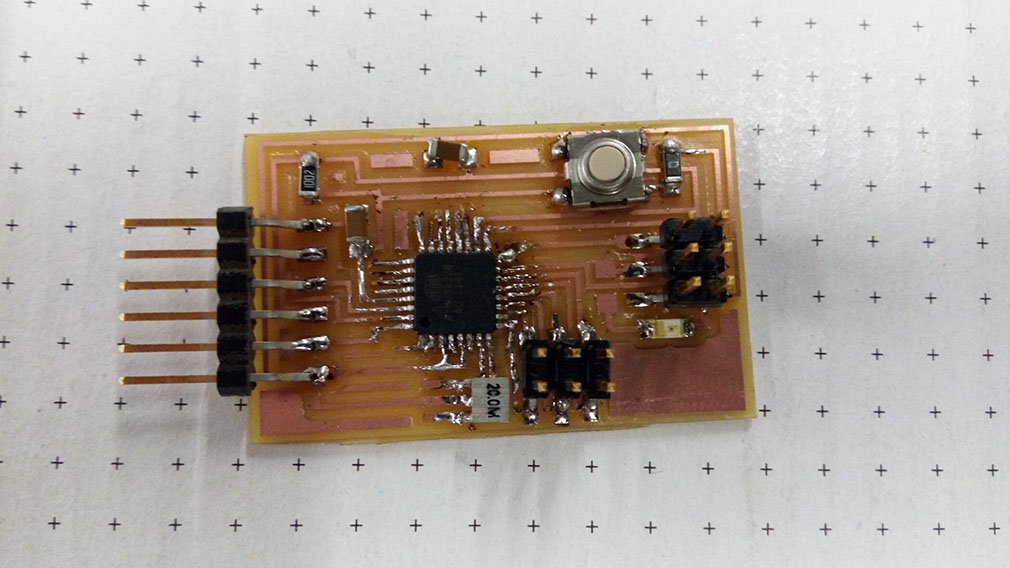

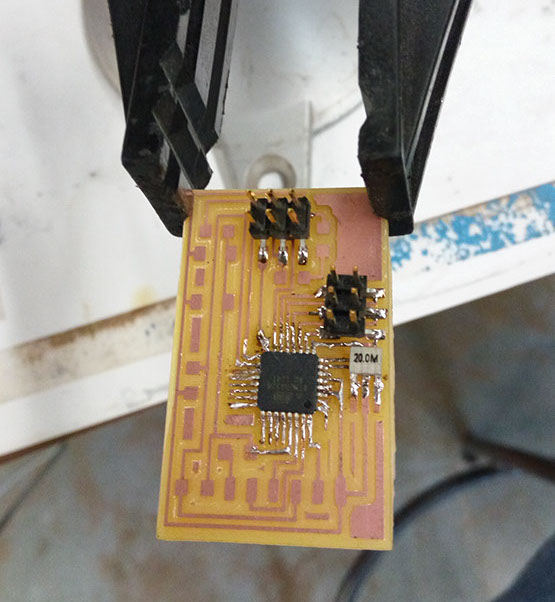

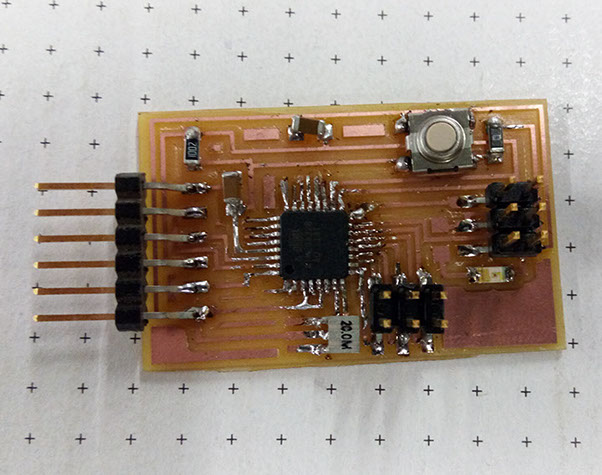

Soldering the circuit with the following components



  • atmega 328
  • 0.1 micro faradey capacitor
  • 0 ohm resistor
  • button
  • LED
  • 6-pin headers
  • 20 Mhz clock
  • 10 K ohm resistor

Connecting the circuit using arduino.



refer week-11 link for how to program using an arduino



link;



http://archive.fabacademy.org/archives/2016/fablabcept/students/466/11.-input-devices.html



Now our circuit is connected to the our board and we can use the board.



Additionally i have uploaded bootloading code from arduinoand then i have uploaded the code for blinking

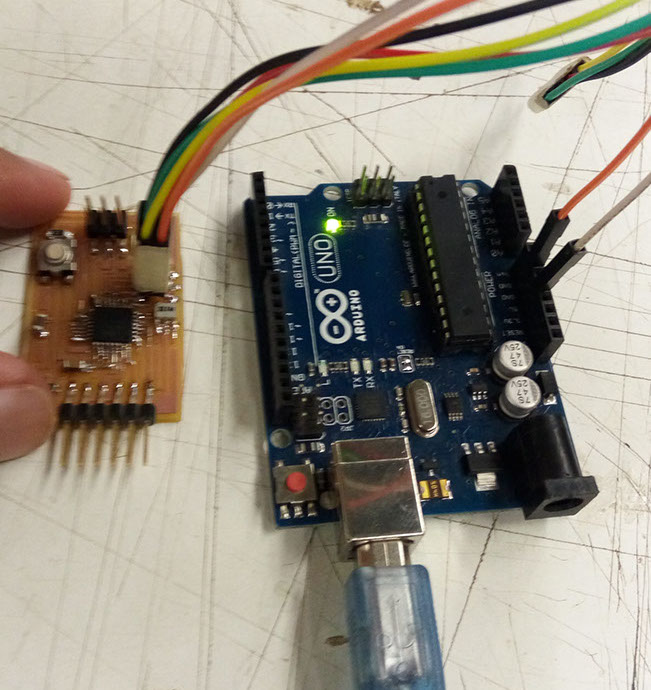

now i am just giving power through arduino as shown in the image

in this page i am having a trouble while uploading the video to this page hence i am putting a link.

Please refer following link:



https://www.youtube.com/watch?v=CDTlcHUmB4U&feature=youtu.be



Here i have made this circuit stop blinking when i am pushing the button.

Code to upload:



//

//

// hello.button.45.c

//

// button hello-world

//    9600 baud FTDI interface

//

// Neil Gershenfeld

// 10/31/10

//

// (c) Massachusetts Institute of Technology 2010

// This work may be reproduced, modified, distributed,

// performed, and displayed for any purpose. Copyright is

// retained and must be preserved. The work is provided

// as is; no warranty is provided, and users accept all

// liability.

//



#include <avr/io.h>

#include <util/delay.h>



#define output(directions,pin) (directions |= pin) // set port direction for output

#define input(directions,pin) (directions &= (~pin)) // set port direction for input

#define set(port,pin) (port |= pin) // set port pin

#define clear(port,pin) (port &= (~pin)) // clear port pin

#define pin_test(pins,pin) (pins & pin) // test for port pin

#define bit_test(byte,bit) (byte & (1 << bit)) // test for bit set

#define bit_delay_time 102 // bit delay for 9600 with overhead

#define bit_delay() _delay_us(bit_delay_time) // RS232 bit delay

#define half_bit_delay() _delay_us(bit_delay_time/2) // RS232 half bit delay



#define input_port PORTB

#define input_direction DDRB

#define input_pin (1 << PC6)

#define input_pins PINB



int main(void) {

   //

   // main

   //

   // set clock divider to /1

   //

   CLKPR = (1 << CLKPCE);

   CLKPR= (0 << CLKPS3) | (0 << CLKPS2) | (0 << CLKPS1) | (0 << CLKPS0);

   //

   // initialize pins

   //



   set(input_port, input_pin); // turn on pull-up

   input(input_direction, input_pin);

   //

   // main loop

   //

   while (1) {

      //

      // wait for button down

      //

      while (0 != pin_test(input_pins,input_pin))

         ;

      digitalWrite(PB5, HIGH);

      //

      // wait for button up

      //

      while (0 == pin_test(input_pins,input_pin))

         ;

      digitalWrite(PB5, LOW);

      }

   }



I wanted to turn on and off the LED on the Arduino Circuit with ATMEGA328 with a button.



Following instructions will help you:



  • Open Arduino software
  • connect arduino UNO
  • upload code of Arduino as ISP from examples
  • now connect arduino that we have made with arduino UNO with the pins that program of Arduino ISP shows
  • Now from tools select atmega board
  • chip as atmega 328
  • choose internal clock of 8 MHz
  • and choose arduino as ISP in tools -> programmer
  • Copy the code from previous paragraph
  • paste it in the arduino window
  • upload it
  • after uploading it successfully, remove all the pins other than ground and 5V.
  • Now when i presses the button on my circuit LED turns off and when i leave the button it again blinks
