INTERFACE AND APPLICATION PROGRAMMING
- Interpret and implement design and programming protocols to create a Graphic User Interface (GUI).
for using NETWORKING AND COMMUNICATION it would be interesting to design a simple interface that send serial data and receive the data from hardware networks. To do so I used Microsoft Visual Studio. now within the designing process i used comercial arduino for deburgging and after i migrate to my board to see the result

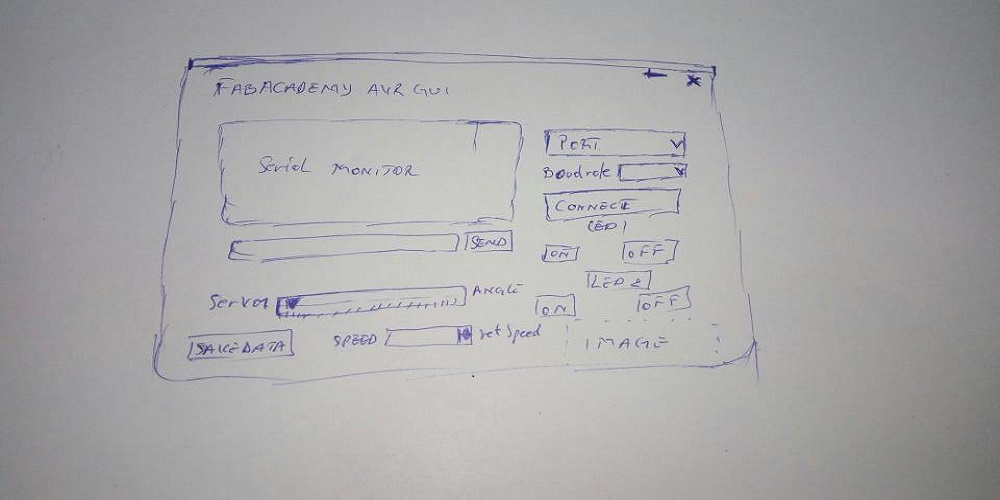

GUI Proposal Schetchup

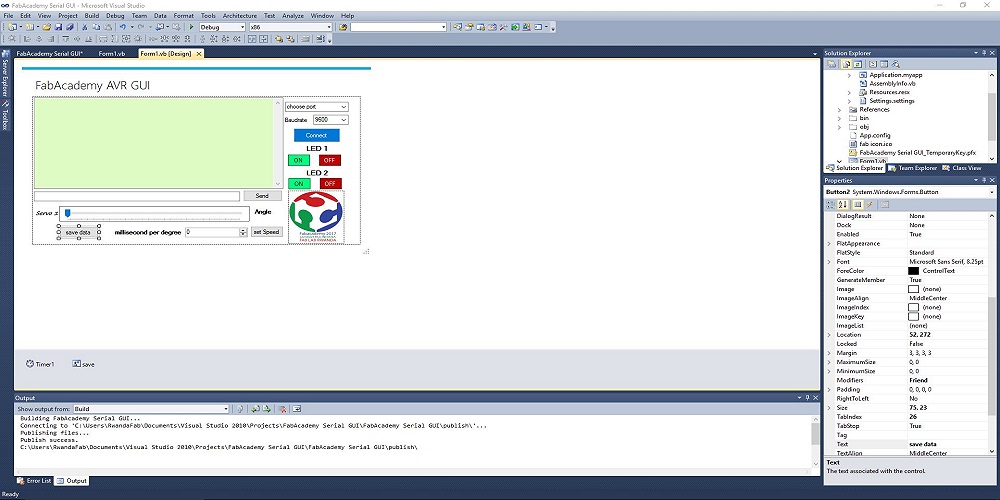

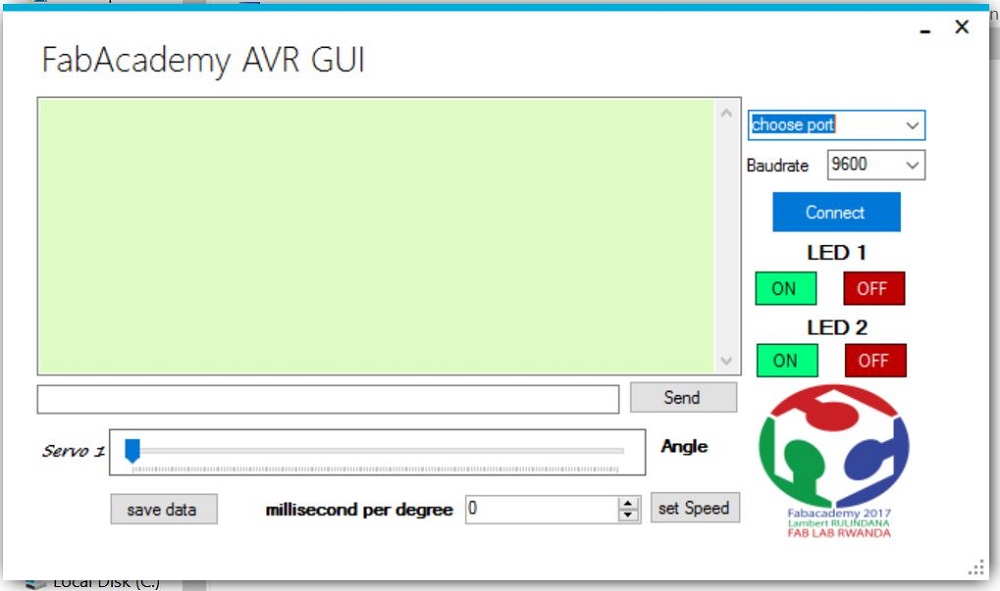

After schetcking the layout i want for my interface i started to create the same layout in visual studio design tab and after customizing everything due to they way i wish i started to give every button, textbox,tab,... the way it have to behave by switching from design to embedded section where i have to write all logics, functions variable and declaration.
After designing and debugging it time to publish setup as we know all of us each setup must have it own icon so to make my icon i used fablab logo which i saved in PNG format by using photoshop, no need of adding plugin in photshop in prder to save CC *.ico file,m so on my side i used
convert icon website

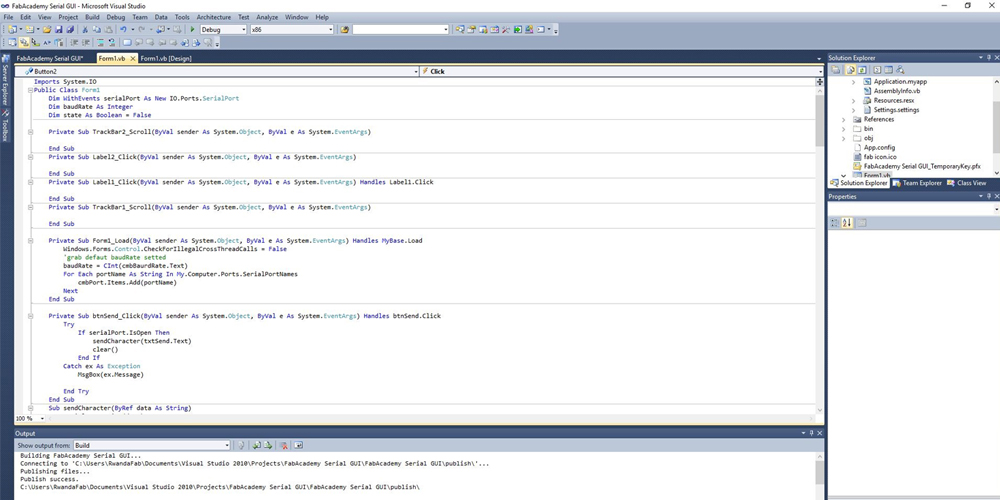

which is free to use and it have the all default size of the icon no thing to worry about just import png file then extract *.ico file directlyImports System.IO Public Class Form1 Dim WithEvents serialPort As New IO.Ports.SerialPort Dim baudRate As Integer Dim state As Boolean = False Private Sub TrackBar2_Scroll(ByVal sender As System.Object, ByVal e As System.EventArgs) End Sub Private Sub Label2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) End Sub Private Sub Label1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Label1.Click End Sub Private Sub TrackBar1_Scroll(ByVal sender As System.Object, ByVal e As System.EventArgs) End Sub Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load Windows.Forms.Control.CheckForIllegalCrossThreadCalls = False 'grab defaut baudRate setted baudRate = CInt(cmbBaurdRate.Text) For Each portName As String In My.Computer.Ports.SerialPortNames cmbPort.Items.Add(portName) Next End Sub Private Sub btnSend_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSend.Click Try If serialPort.IsOpen Then sendCharacter(txtSend.Text) clear() End If Catch ex As Exception MsgBox(ex.Message) End Try End Sub Sub sendCharacter(ByRef data As String) serialPort.Write(data) End Sub Sub connectPort() Try If state = False Then serialPort.BaudRate = baudRate serialPort.PortName = cmbPort.Text serialPort.Open() cmbPort.Enabled = False state = True btnConnect.Text = "Disconnect" Else serialPort.Close() cmbPort.Enabled = True state = False btnConnect.Text = "Connect" Timer1.Enabled = False End If Catch ex As Exception serialPort.Close() MsgBox(ex.Message) End Try End Sub Private Sub cmbPort_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmbPort.SelectedIndexChanged End Sub Private Sub cmbBaurdRate_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmbBaurdRate.SelectedIndexChanged baudRate = CInt(cmbBaurdRate.SelectedItem) End Sub Delegate Sub myMethodDelegate(ByVal [text] As String) Dim myD1 As New myMethodDelegate(AddressOf myShowStringMethod) Sub myShowStringMethod(ByVal myString As String) End Sub Private Sub serialPort_DataReceived(ByVal sender As System.Object, ByVal e As System.IO.Ports.SerialDataReceivedEventArgs) Handles serialPort.DataReceived Dim Distance As String = serialPort.ReadExisting list1.Text &= Distance End Sub 'sub to clear the data from txtSend Sub clear() txtSend.Clear() End Sub Private Sub btnConnect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnConnect.Click If cmbPort.Text = "choose port" Then MsgBox("please select a port") cmbPort.Focus() Else connectPort() End If End Sub Private Sub txtSend_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles txtSend.KeyDown If e.KeyCode = Keys.Enter Then sendCharacter(txtSend.Text) clear() End If End Sub Private Sub btnled1on_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled1on.Click sendCharacter("200") End Sub Private Sub btnled1off_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled1off.Click sendCharacter("201") End Sub Private Sub btnled2on_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled2on.Click sendCharacter("202") End Sub Private Sub btnled2off_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled2off.Click sendCharacter("203") End Sub 'sub to send data to serial monitor and port Sub controlServo(ByVal data As Integer) Try serialPort.WriteLine(data.ToString) lblOutput.Text = Str(data) Catch ex As Exception MsgBox(ex.Message) End Try End Sub Dim t As Integer = 0 Private Sub TrackBar1_Scroll_1(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles TrackBar1.Scroll controlServo(TrackBar1.Value) End Sub Dim counter As Integer = 0 Private Sub Timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Timer1.Tick controlServo(TrackBar1.Value) If TrackBar1.Value < 180 Then TrackBar1.Value = TrackBar1.Value + 1 Else TrackBar1.Value = 0 End If End Sub Dim status As Boolean = False Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click Dim time As Integer = milliseconds.Value If time <= 0 Then MsgBox("please select valid milliseconds") Else If status = False Then Timer1.Interval = time Timer1.Enabled = True Button1.Text = "Stop" status = True Else Timer1.Interval = time Timer1.Enabled = False Button1.Text = "Set speed" status = False End If End If End Sub Private Sub list1_GotFocus(ByVal sender As Object, ByVal e As System.EventArgs) Handles list1.GotFocus list1.Enabled = True End Sub Private Sub list1_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles list1.KeyDown e.Handled = True End Sub Private Sub list1_KeyPress(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyPressEventArgs) Handles list1.KeyPress e.Handled = True End Sub Private Sub list1_LostFocus(ByVal sender As Object, ByVal e As System.EventArgs) Handles list1.LostFocus list1.Enabled = True End Sub Private Sub list1_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles list1.TextChanged End Sub Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click Try Dim stream As StreamWriter save.Filter = "txt files (*.txt)|*.txt|All files (*.*)|*.*" If save.ShowDialog = Windows.Forms.DialogResult.OK Then stream = New StreamWriter(save.FileName) stream.Write(list1.Text) stream.Close() MsgBox("file saved successfully") End If Catch ex As Exception End Try End Sub End Class

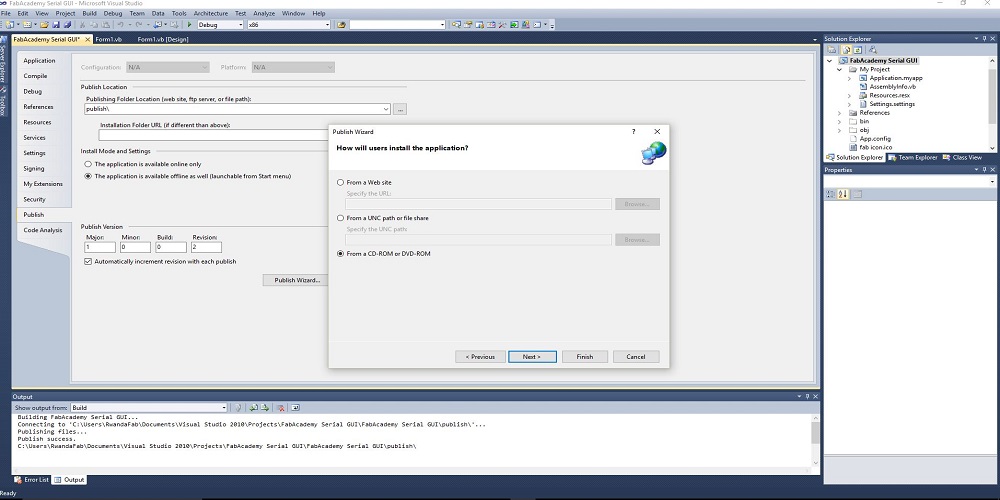

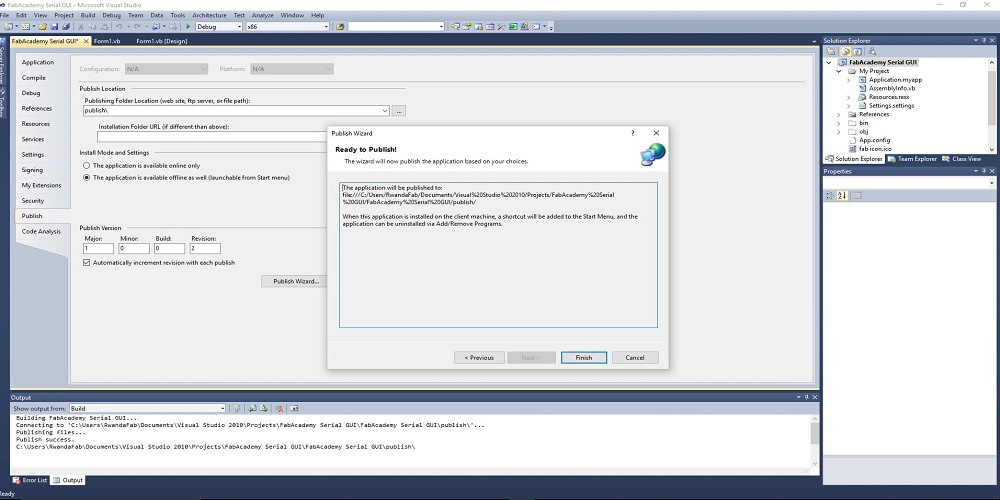

EXTRACTING INSTALLATION FILES

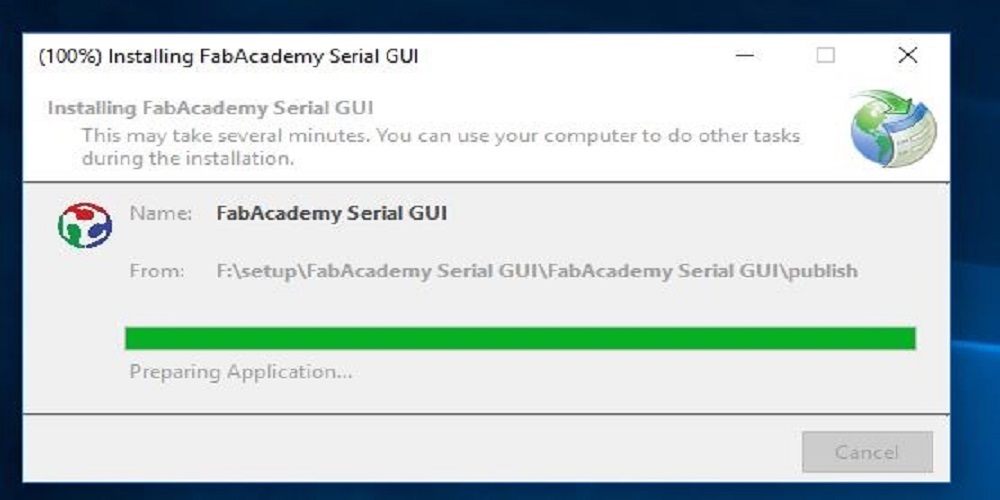

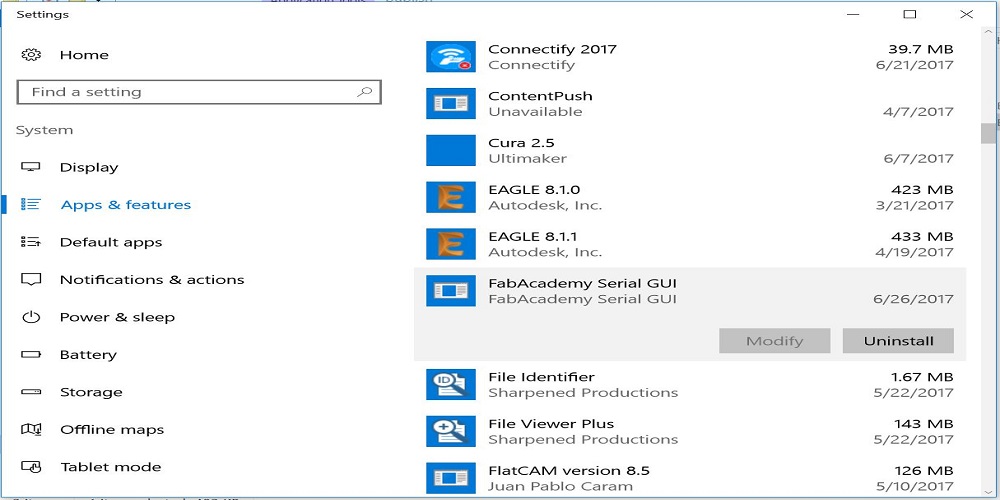

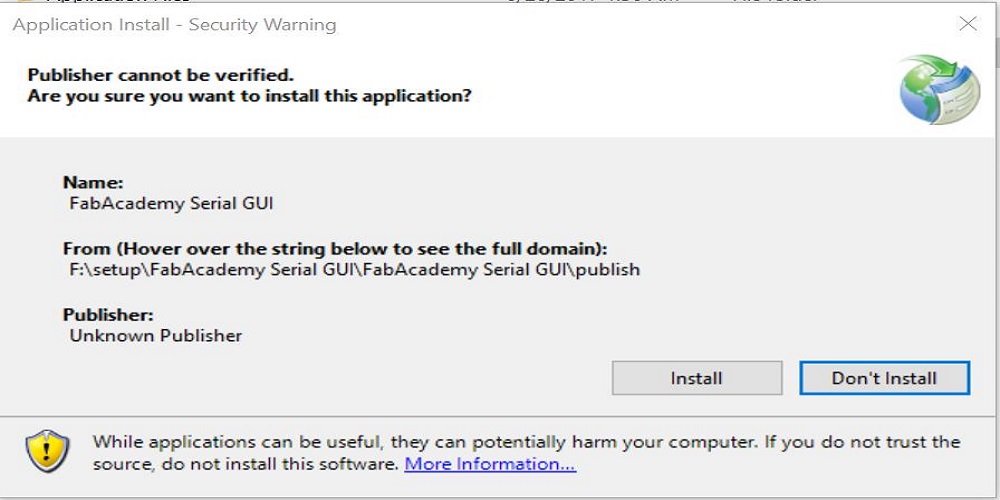

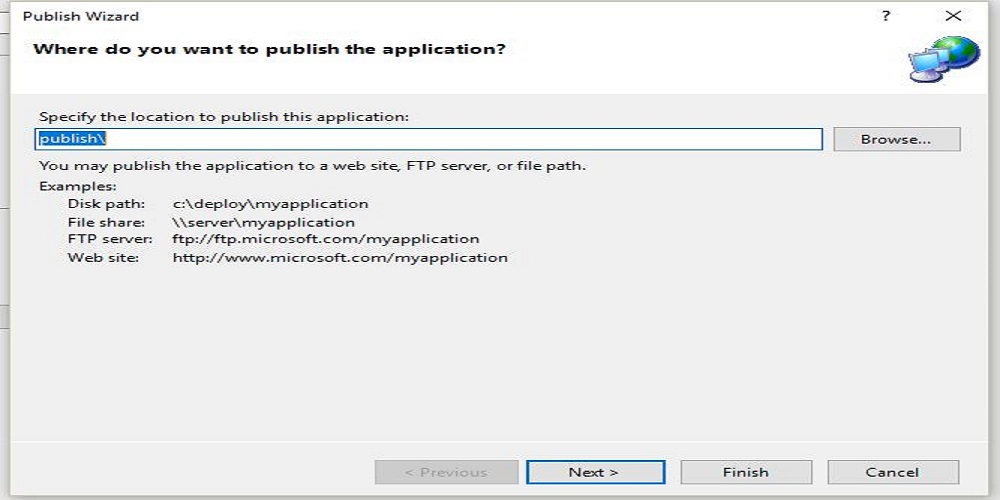

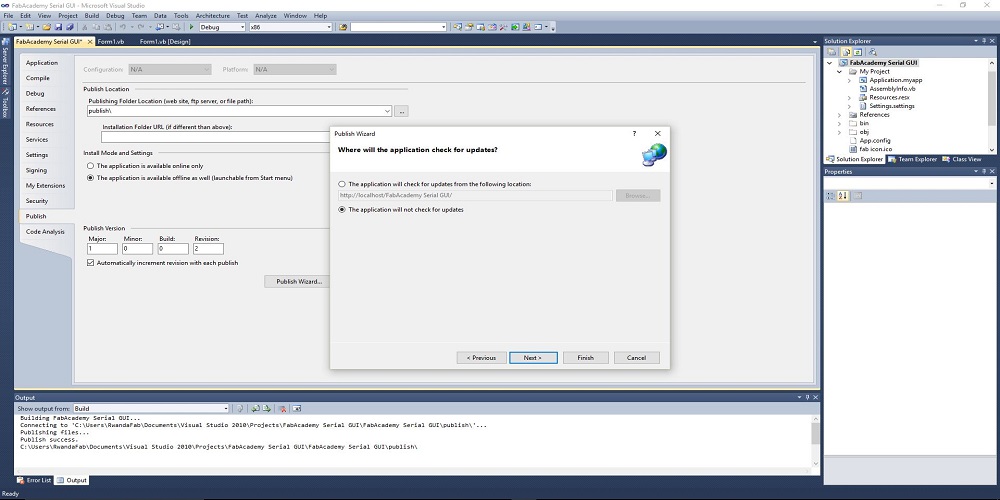

For extracting the installation file i used the following process as i desribed belowAfter having my installation file it time to install and check if it can be used in other computer The installation and unistallion process are easy as other applicaton software
CODE USED IN FABBED BOARD
#includeServo myservo; // create servo object to control a servo int val; void setup() { int ledA = A2; // Pin A2 int ledB = A3; // Pin A3 pinMode(A2, OUTPUT); pinMode(A3, OUTPUT); myservo.attach(3); // attaches the servo on pin 3 to the servo object Serial.begin(9600); //begins serial communication } void loop() { String input = ""; val=Serial.parseInt(); { if (val == 200) { digitalWrite(A2, HIGH); // on } else if (val == 201) { digitalWrite(A2, LOW); // OFF } else if (val == 202) { digitalWrite(A3, HIGH); // ON } else if (val == 203) { digitalWrite(A3, LOW); // OFF } if (val <=180 && val >=0){ myservo.write(val); Serial.println(val); Serial.println(input); } } } void serialEvent(){ }
Download files
codes for application and applicationsetup is for windows user only!
board and code used in board
