Week 6 - ELECTRONICS DESIGN

Week 7 goals :
Assignment:

make something big (with a CNC machine)

Hardware and softwares used for this assignment :
Hardware :
  - CNC milling machine Cyborg 1325
  - Woodworking tools
Softwares :
  - Fusion 360 A 3D CAD design software.
  - Dogbone addin for Fusion 360 which allows to create dogbones on 3D design to prepare files for the CNC milling machines.
  - Adobe illustrator A 2D design tool to prepare the 2D file to cut.
  - enRoute CNC software, a software to control the CNC milling machine.
Source files are here.
and We go:

I have been making furniture for a long time using the cnc. In fact I often use the 18mm wooden plywood, but until now I have not made furniture using parametric design.

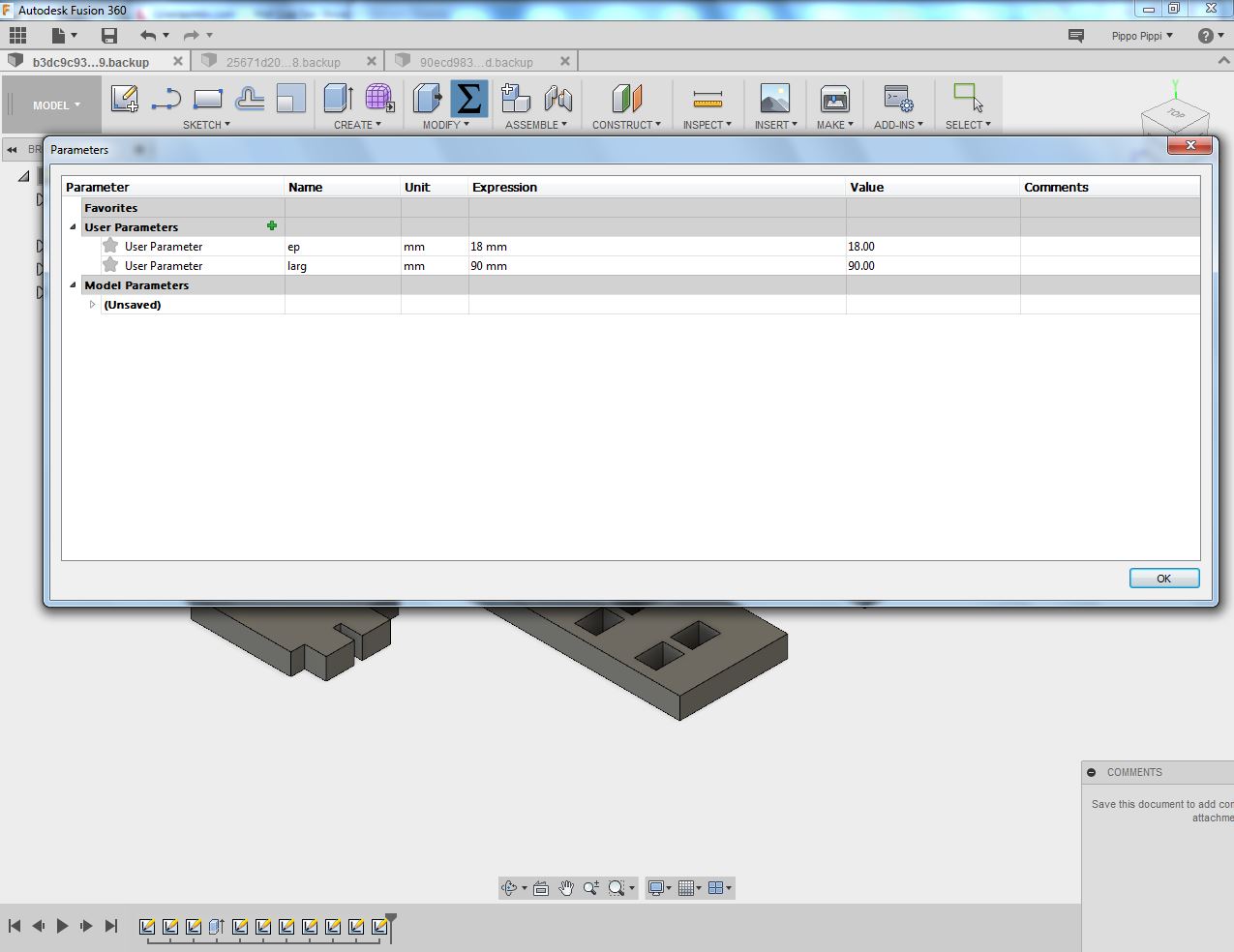

This time I used Fusion 360 to generate a parametric design that can adapt to any wood thickness.


I generally allow for holes on the corners that take into account the cutter radius


I therefore decided to create a parametric design with Fusion360 and use a Fein FMM250 instead.

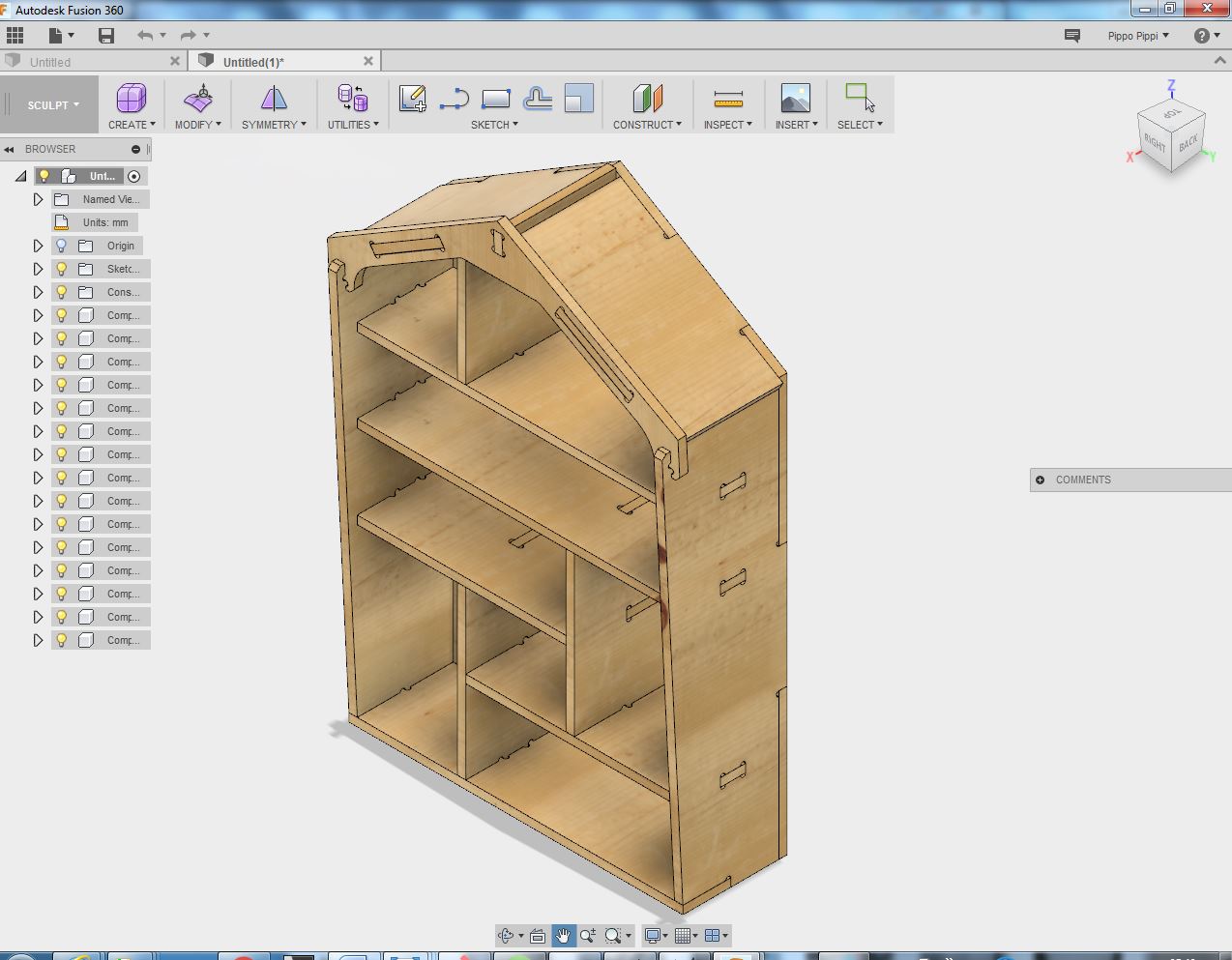

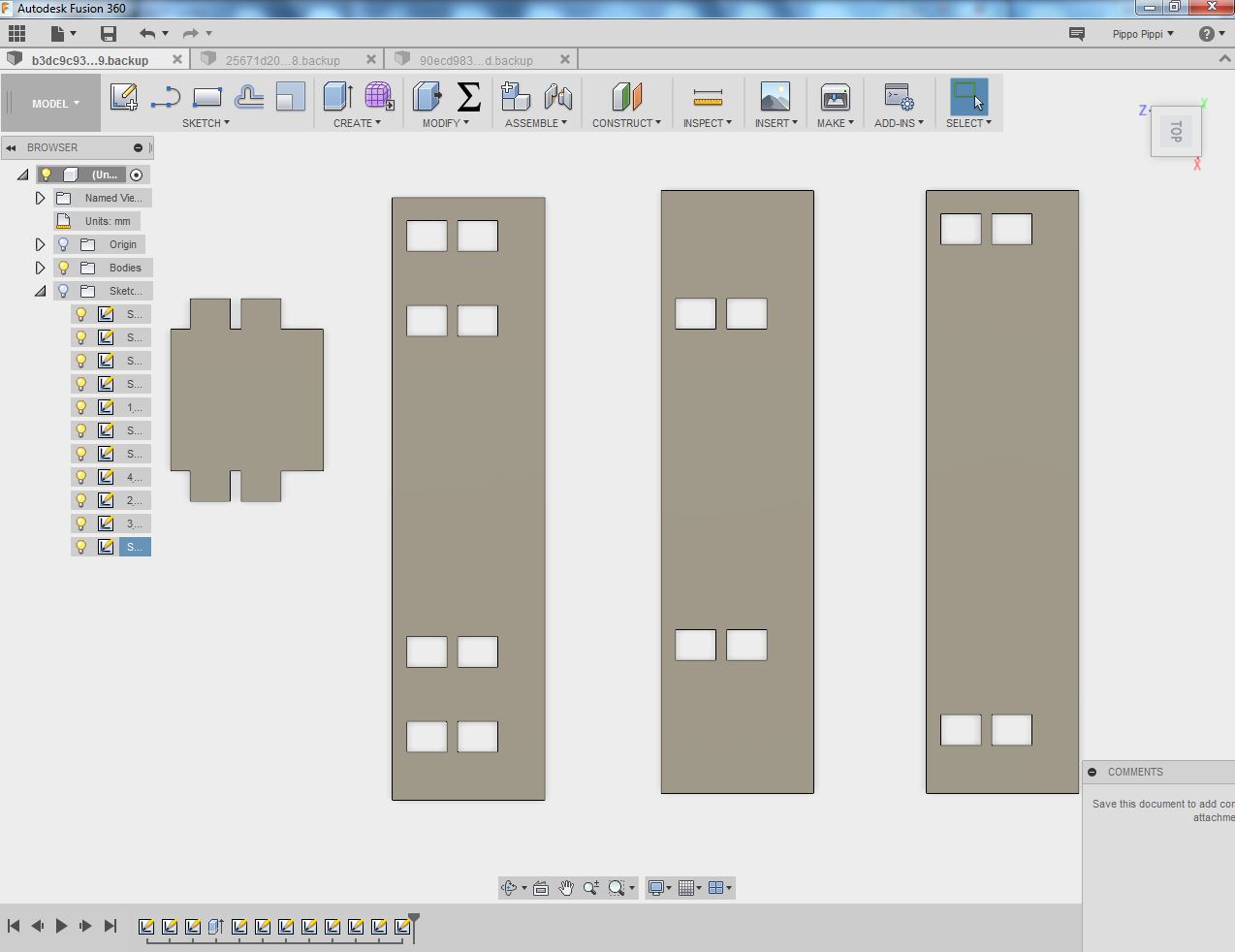

I designed the four basic pieces. If this kit of four pieces is replicated, I can make a very high library to exhibit my 3D prints.

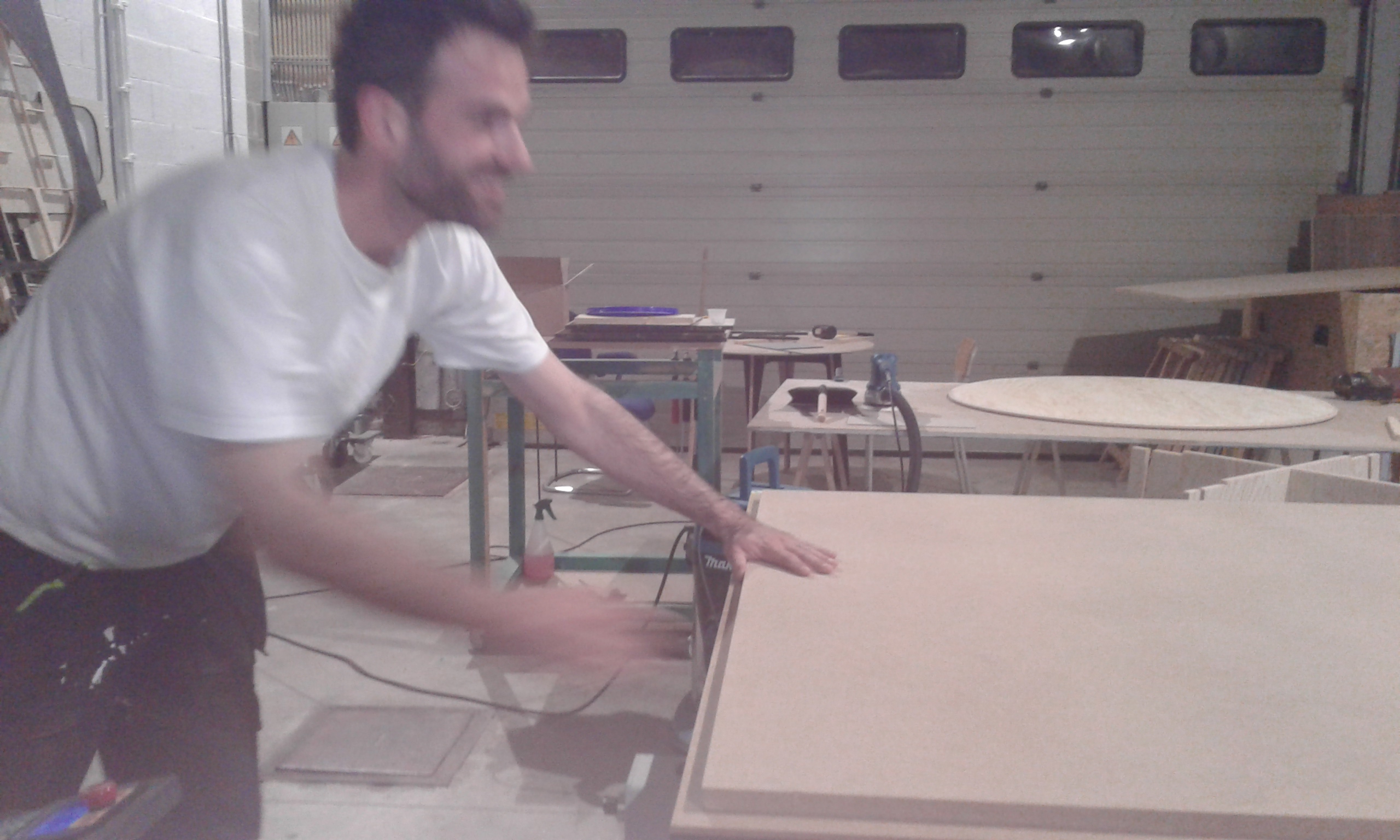

We went in the nearby town Andenne where our friends are using a “cyborg” CNC milling machine (1325), with many options such as cutter and suction surface capable of using large size wooden pieces


I did the tuning of the joints of the cuts in the wood


I used a caliber to measure the thickness of the piece of wood to be used


Unfortunately, the machine did not allow use Fusion360CAM nor RhinoCAM, but a proprietary machine software named EnRoute.


I learned a number of fantastic commands i.e. “open sketch”. I selected the closed area that I wanted to carve. I used the button “closed sketck”, then I selected the last sketck and with the right button of the mouse I accessed the export DXF function.


I measured the dimensions of the piece and I loaded in the program to generate the tool paths

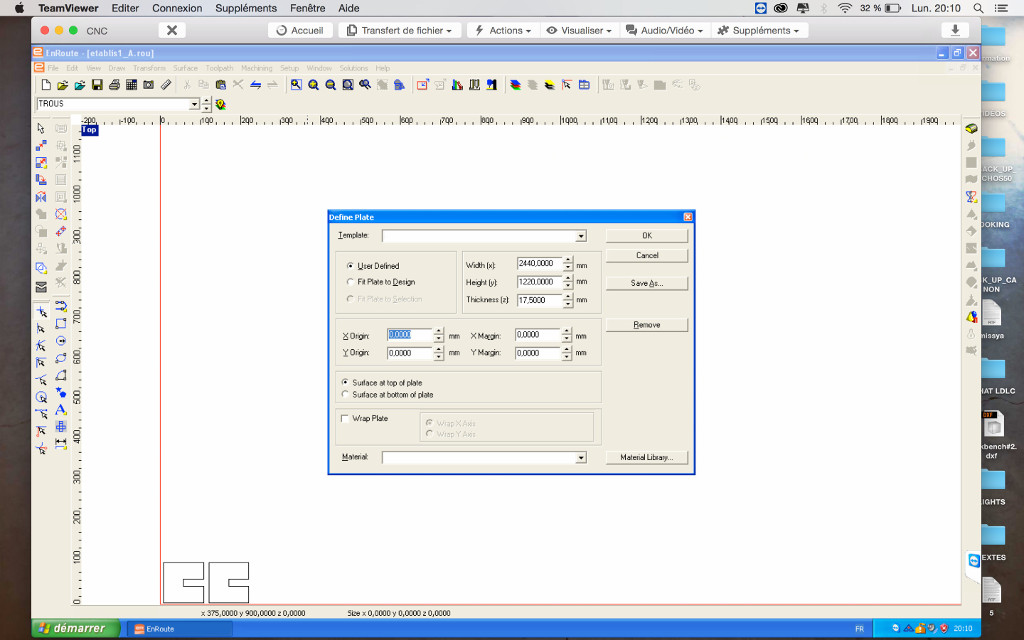

I entered the data in the software by specifying a path to do only one pass at 100mm/sec

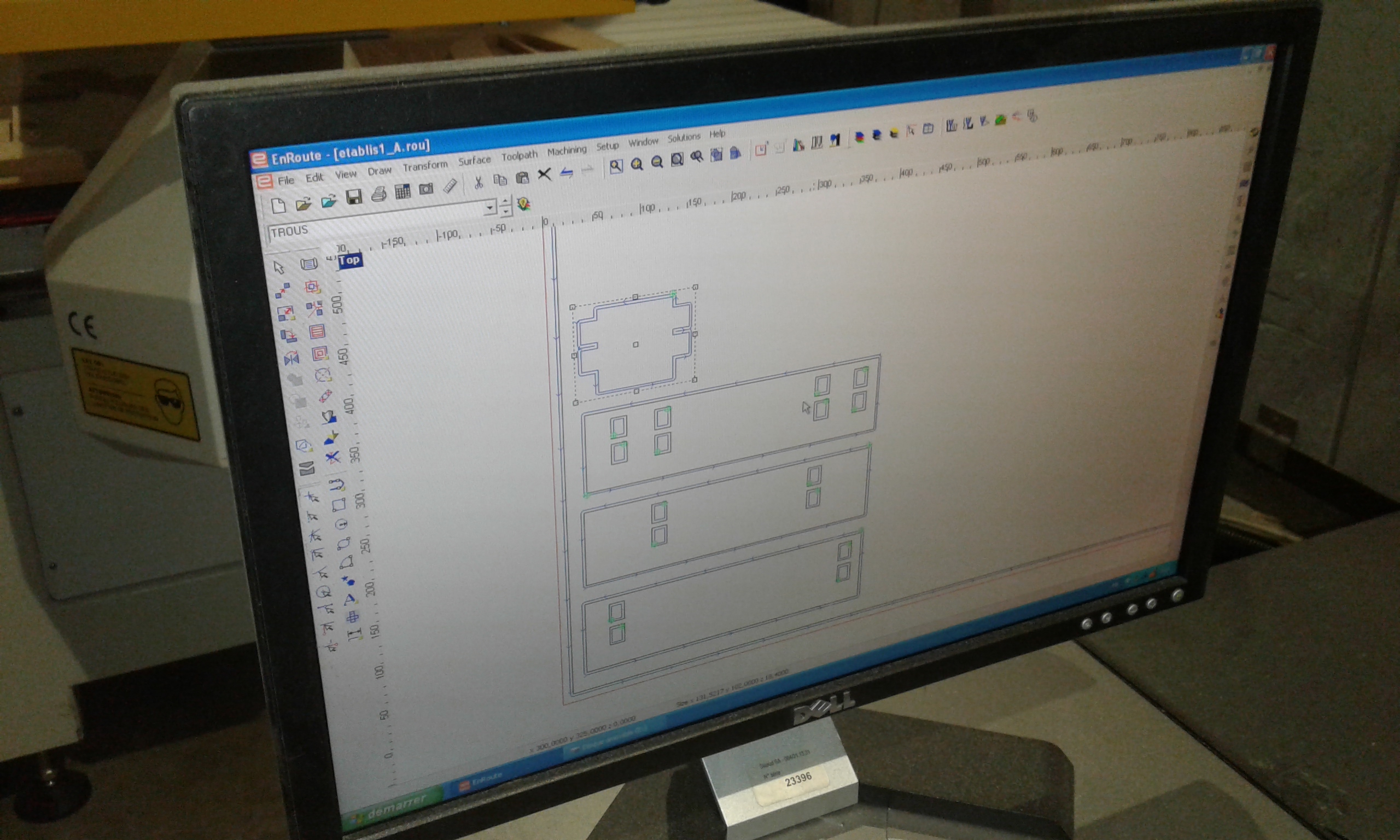

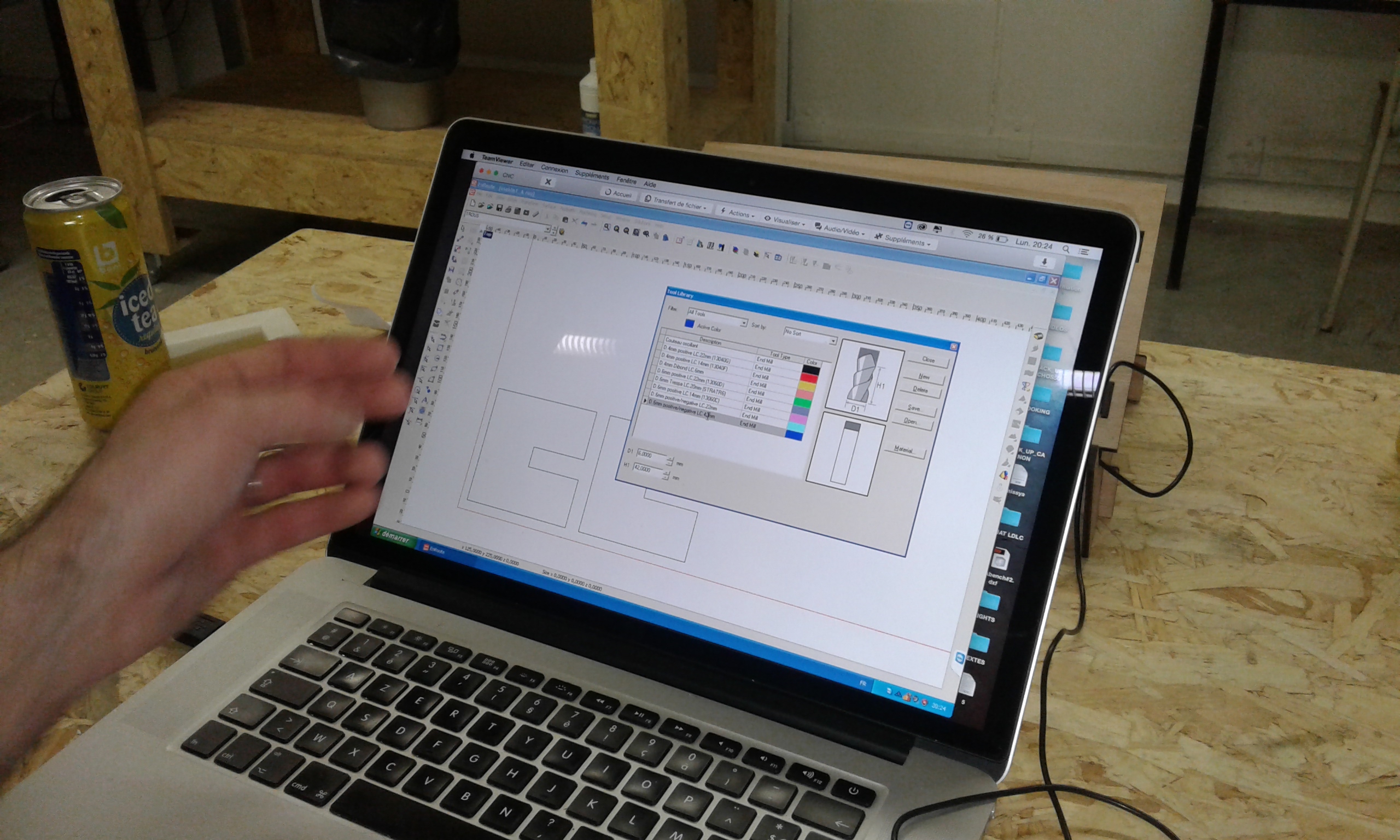

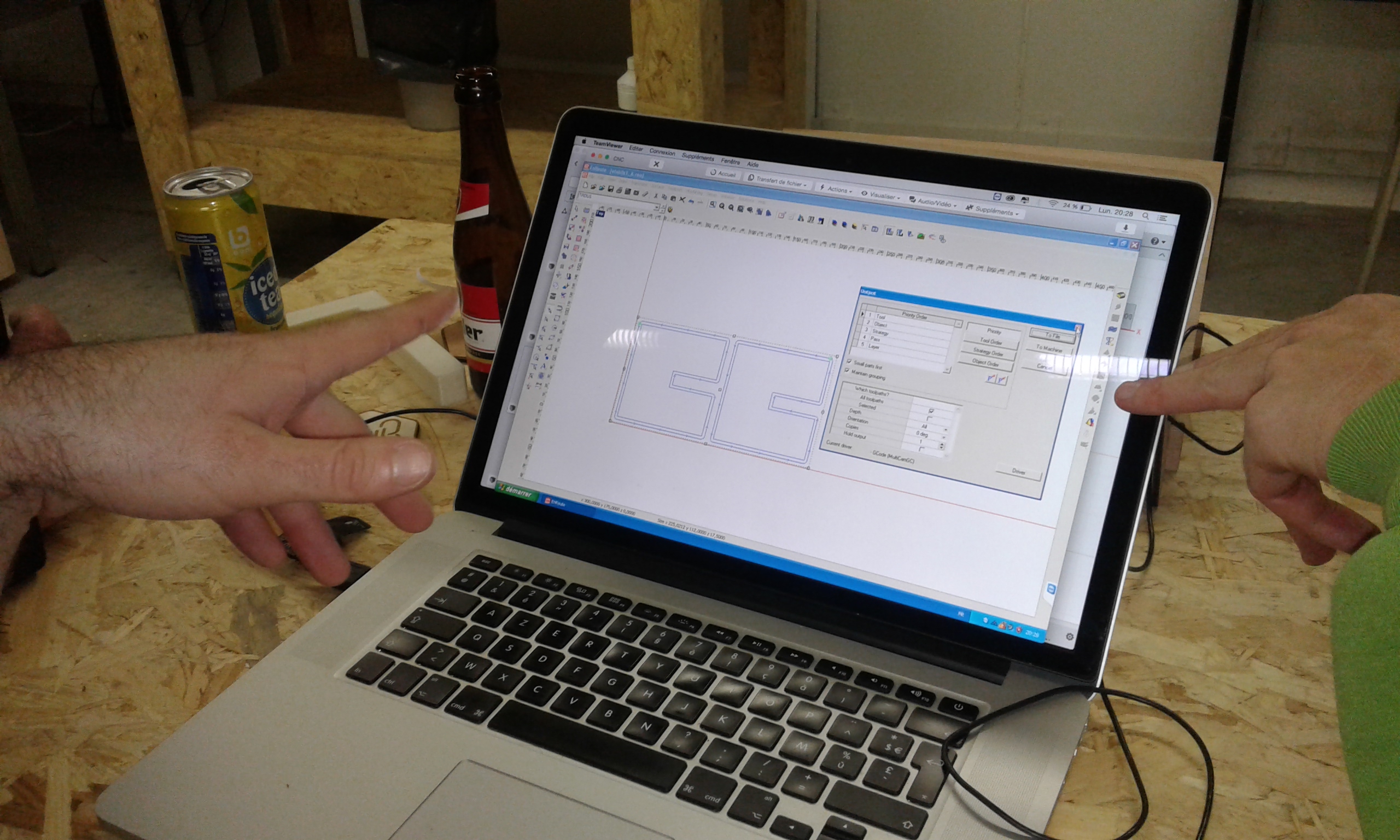

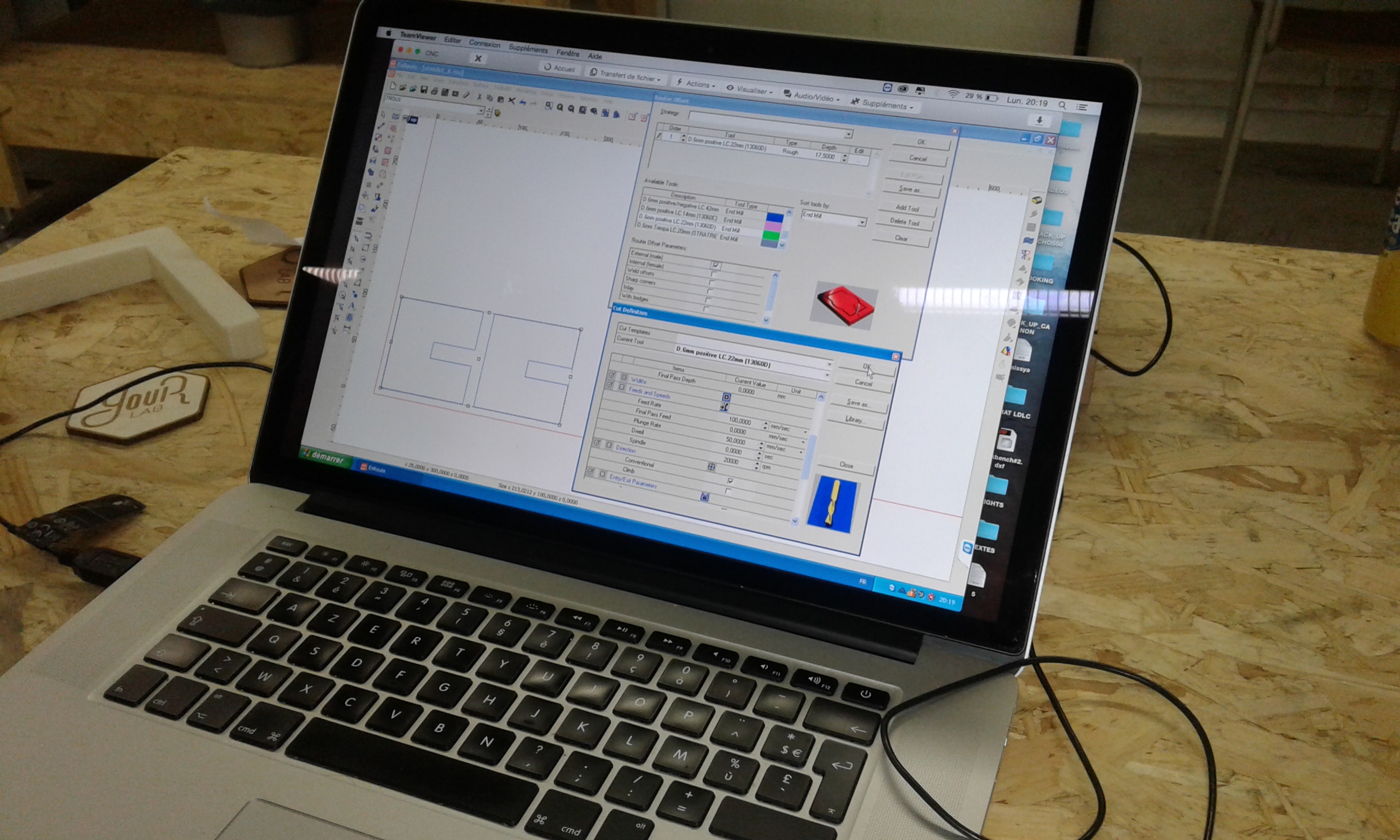

The screen images show the different parameters that are the basis of all the CAM programs


The timber panel used was 17.5mm thick, so I used a 6mm flat mill with 22mm flute.


Since the mill diameter is 6 mm it enables a speed of 20000 rpm and a single pass of 100mm / s


Such high speed was possible due to the fact the CNC machine has a 7KW spindle


EnRoute generated the gcode taking into account the parameters entered


I went through the referencing movement sequence I set up the along X and Y, and I aligned my stock with the y axis

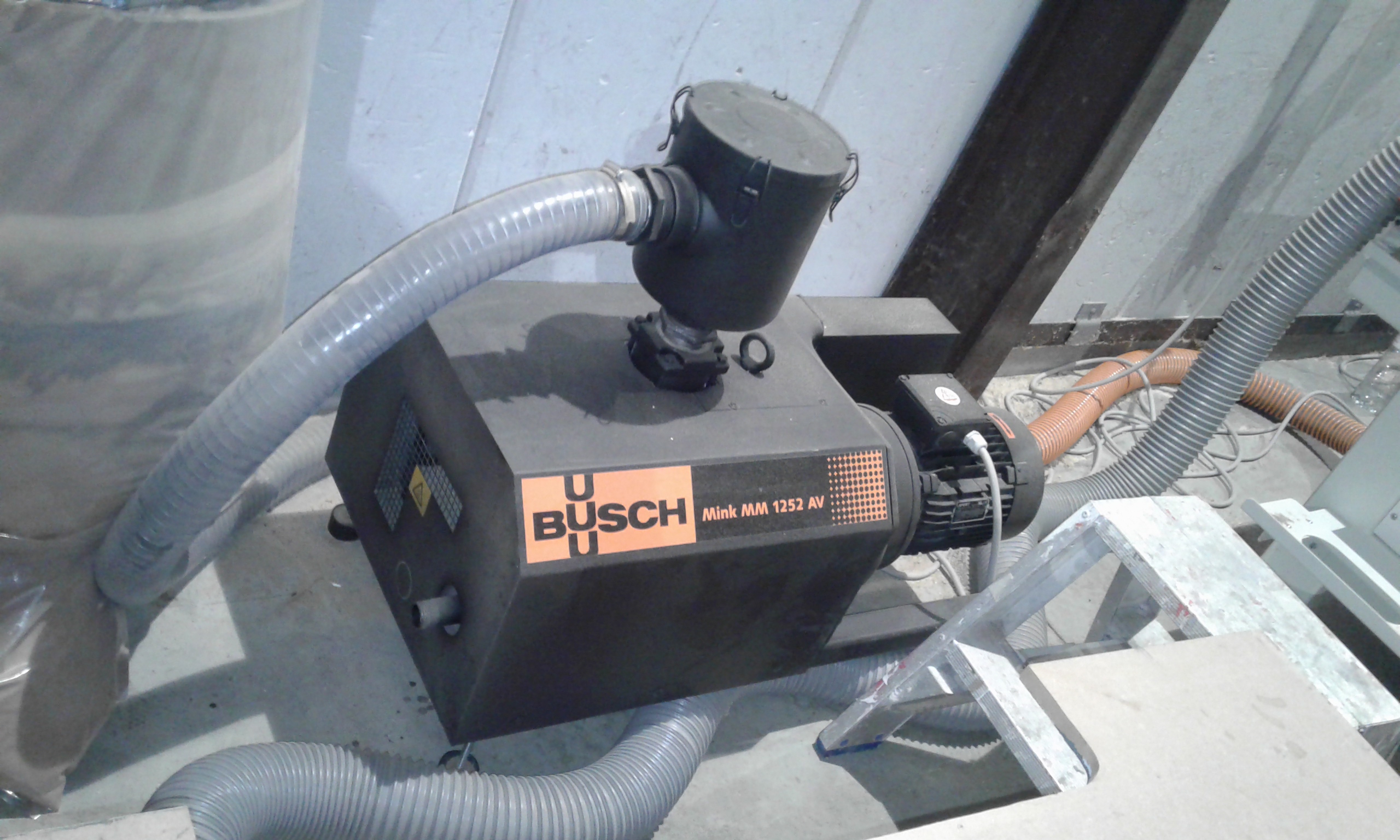

Then I activated the suction pump which operates through a thin MDF panel in order to fix the working panel

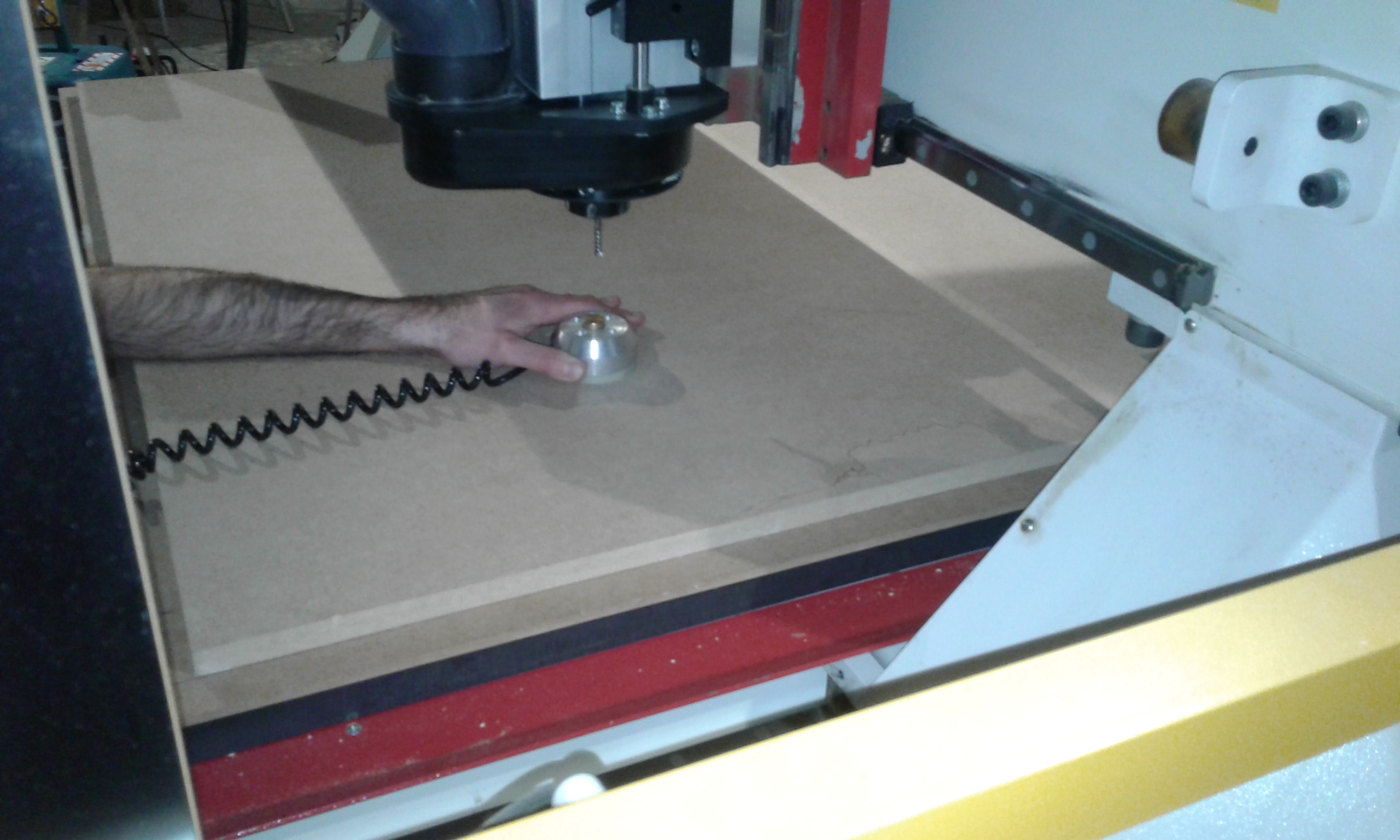

Then we set up the Z reference level at the center of the working area

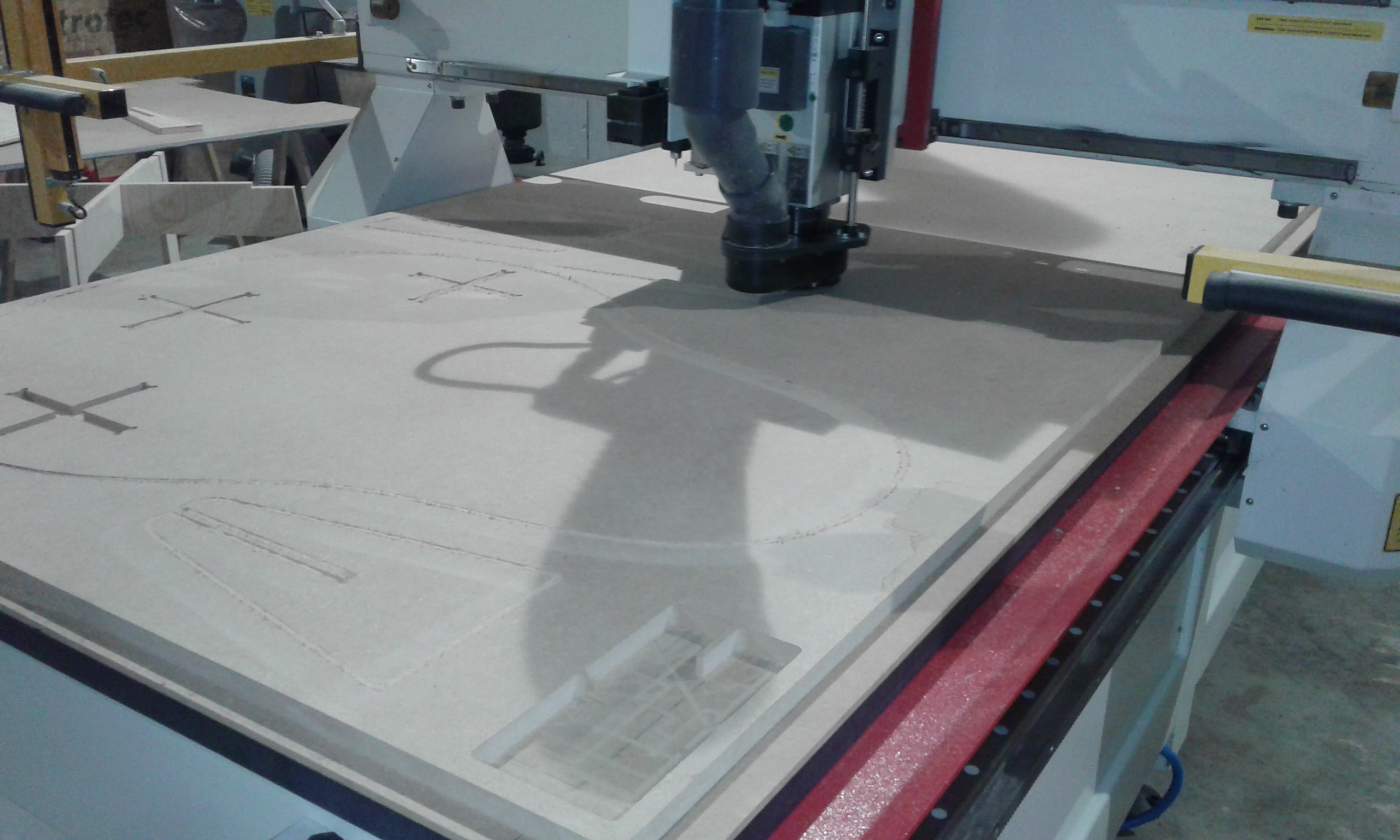

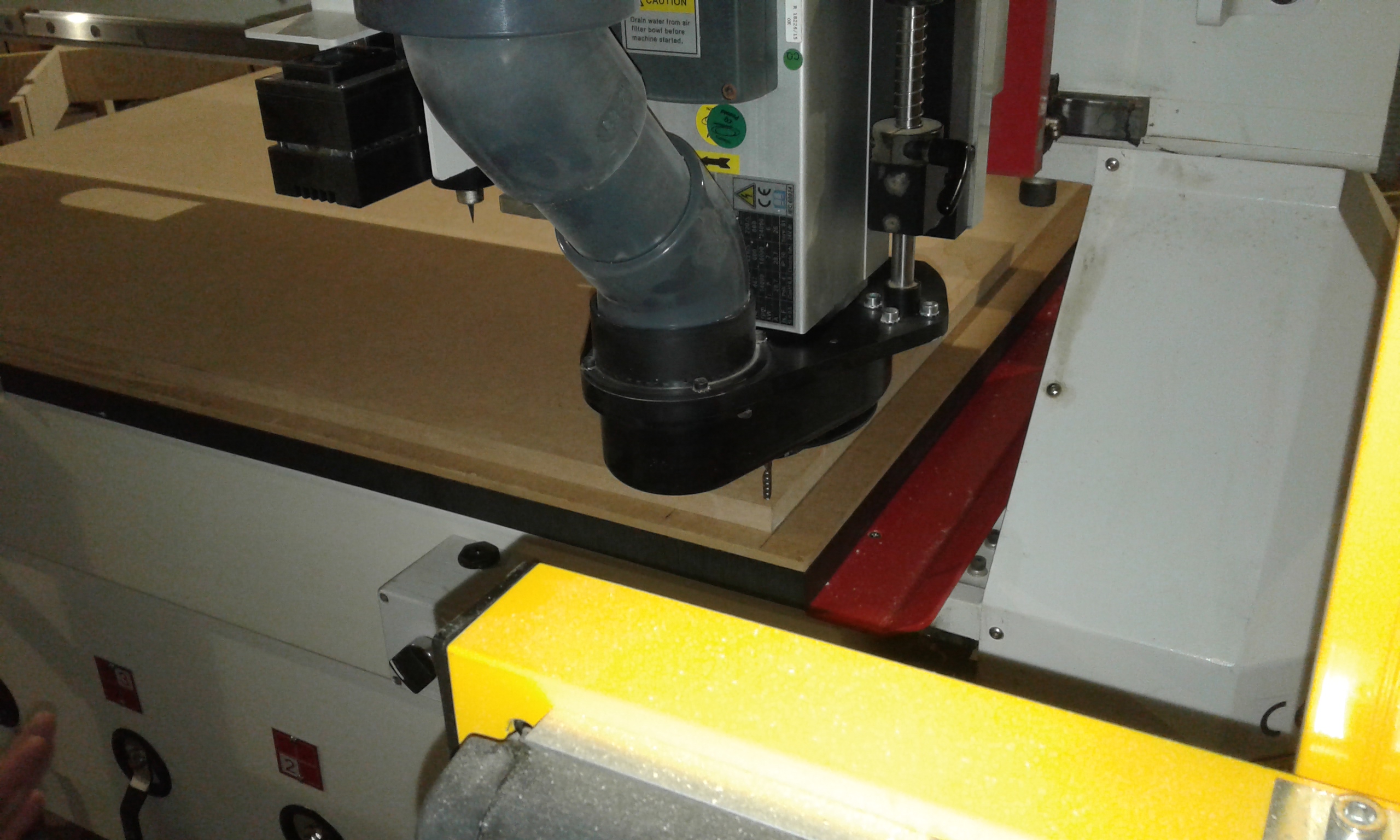

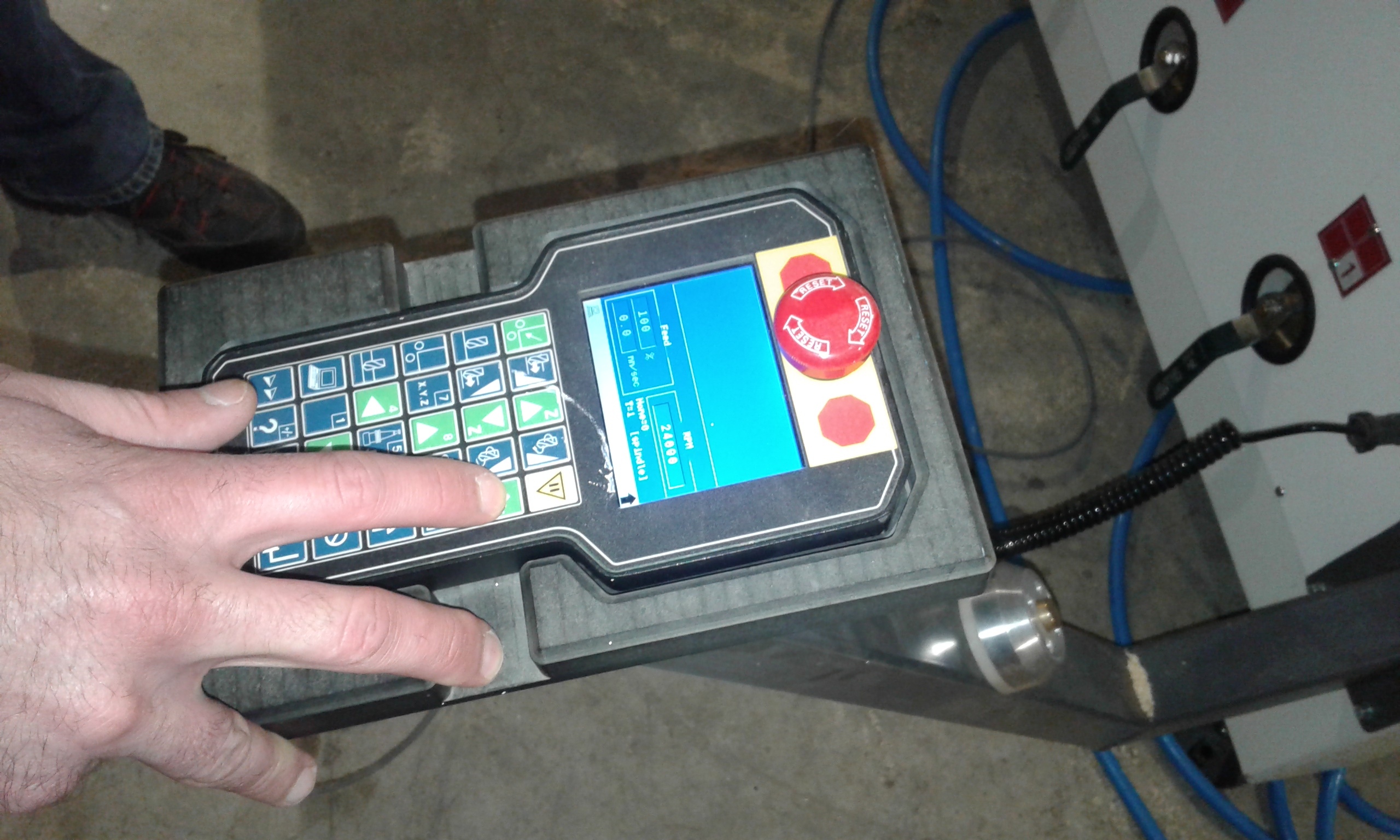

Finally I launched the milling process with gcode program created with EnRoute using a remote control

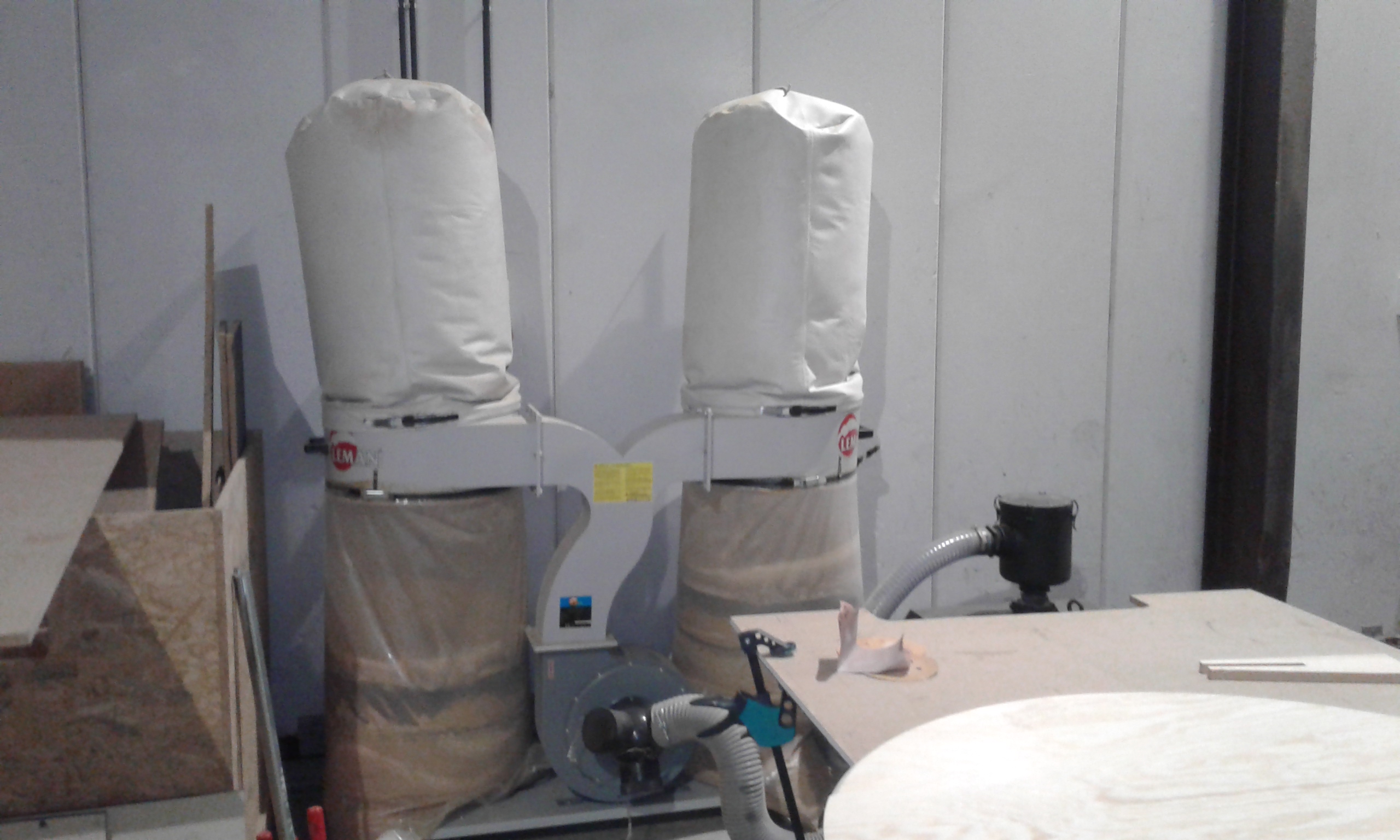

I turned on the vacuum cleaner chip. It uses a cyclone separator

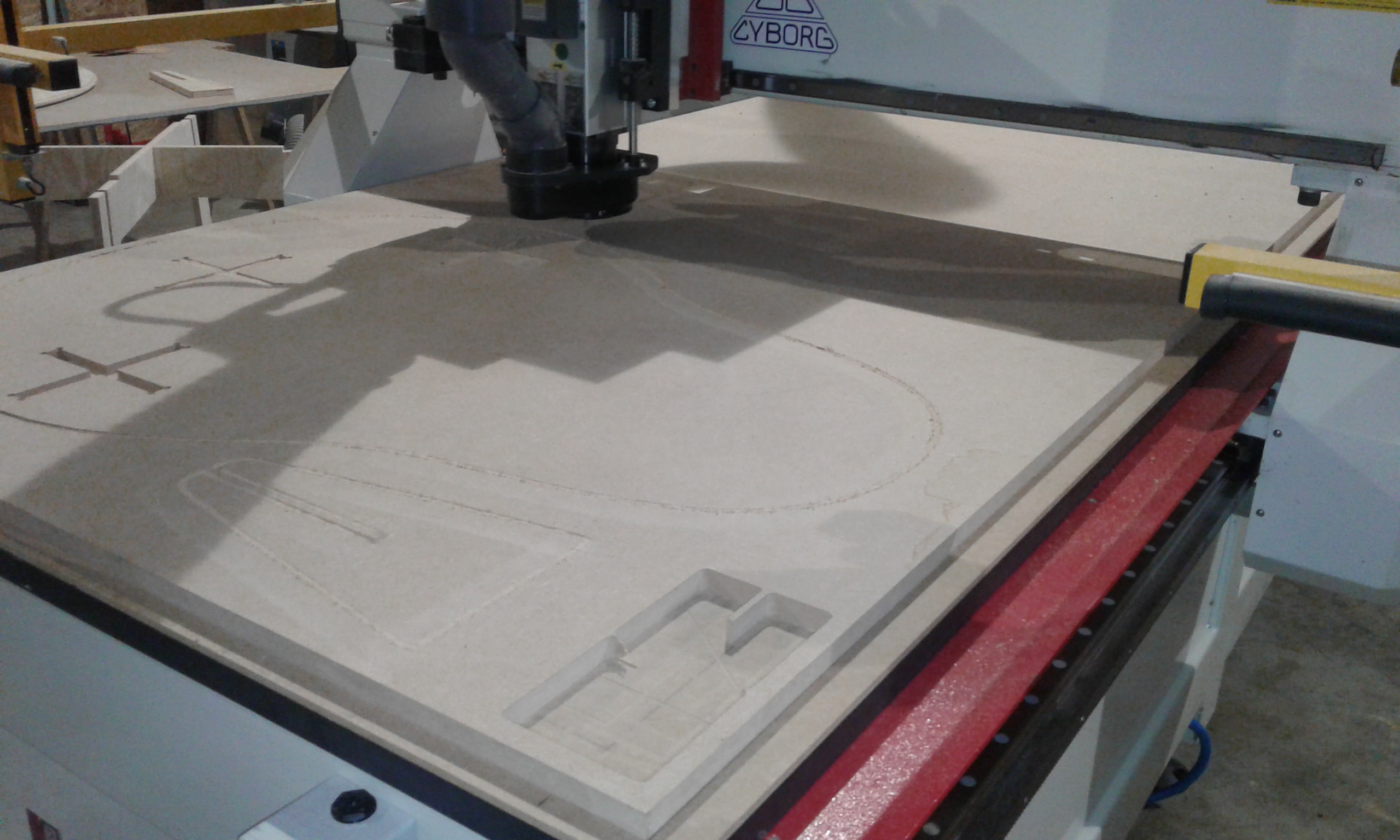

I made the three shelves and four vertical supports


I used the phein to smooth surfaces so as to facilitate the joint because I did not do the holes in the corners

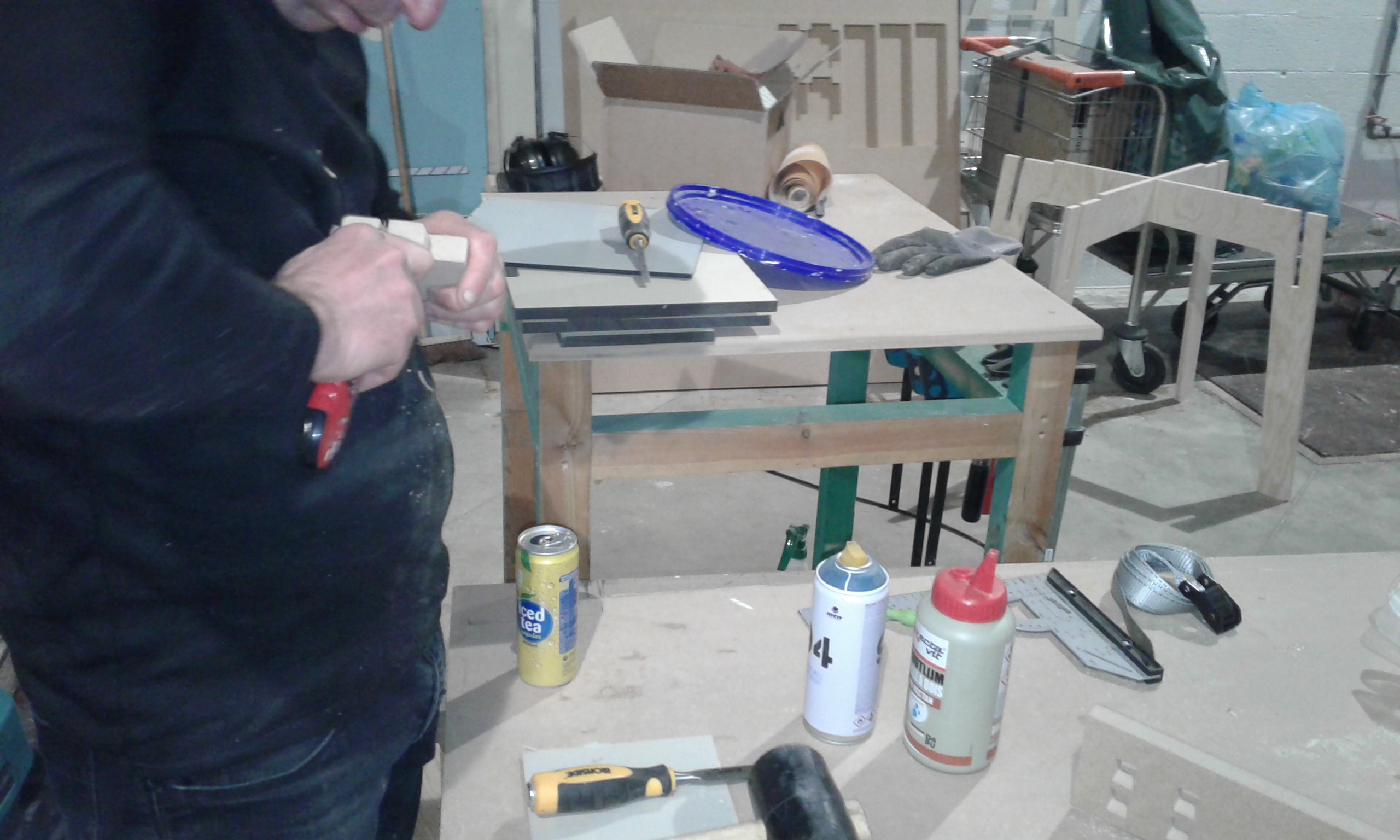

Mounting the shelve was piece of cake thanks to high accuracy of the machine. No glue was needed


So I learned to design parametric furniture, to use another CAM program and use a large cnc.

the video of milling is very little in Kbyte
