Week 16 Interface and application programming

This week we are going to make an interface to visualize the variable that is measuring our input device

Software

MatLab

To make a GUI - Graphic User Interface I used MatLab R2015b. MatLab is a software and a language, and makes available matrix management tools, that makes it optmal for applications on signal procesing, artificial inteligence, computer vision, etc...

Follow the next steps:

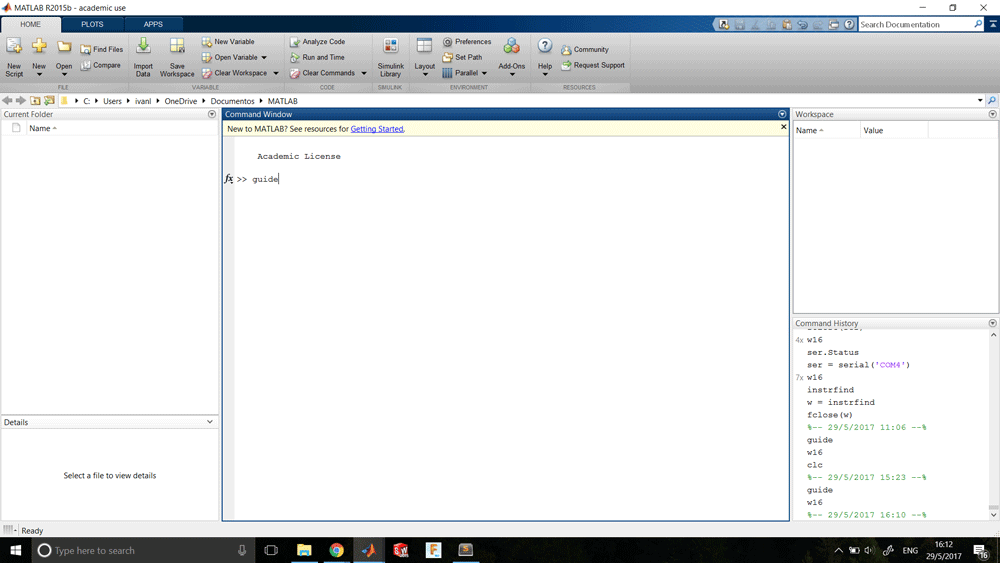

Type guide on it Command Window this will deploy a new window

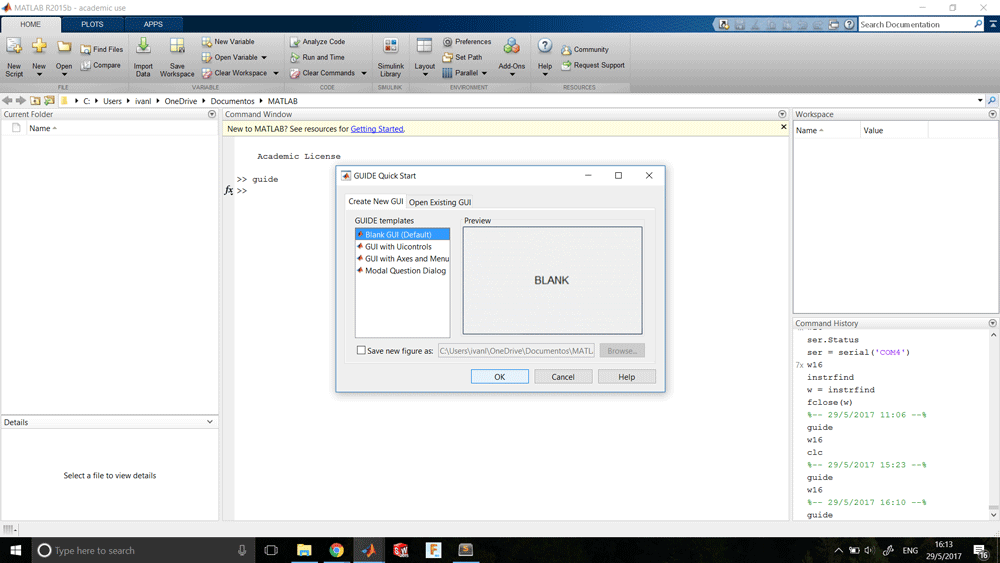

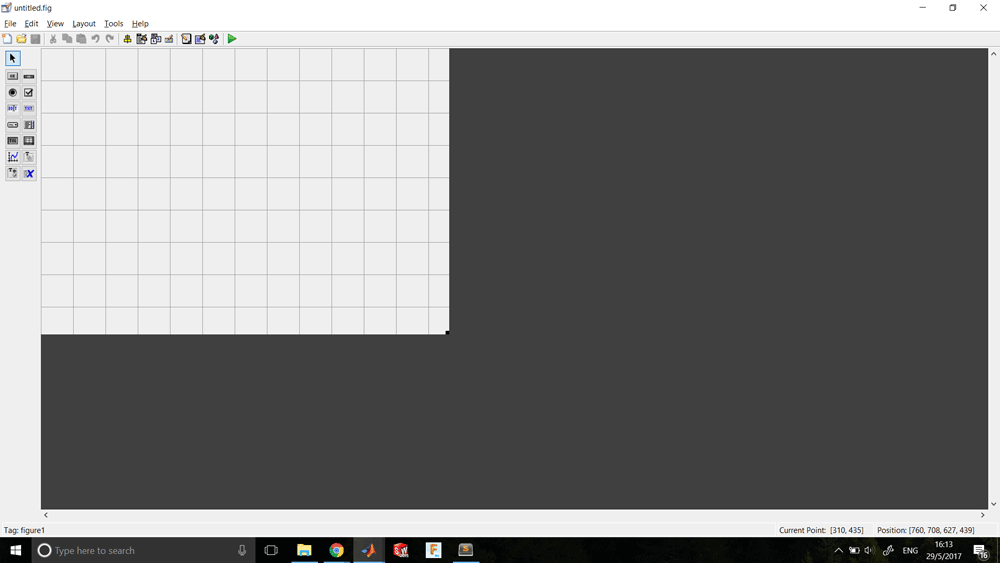

Select Blank GUI (Default) this will open a window where you could edit your interface

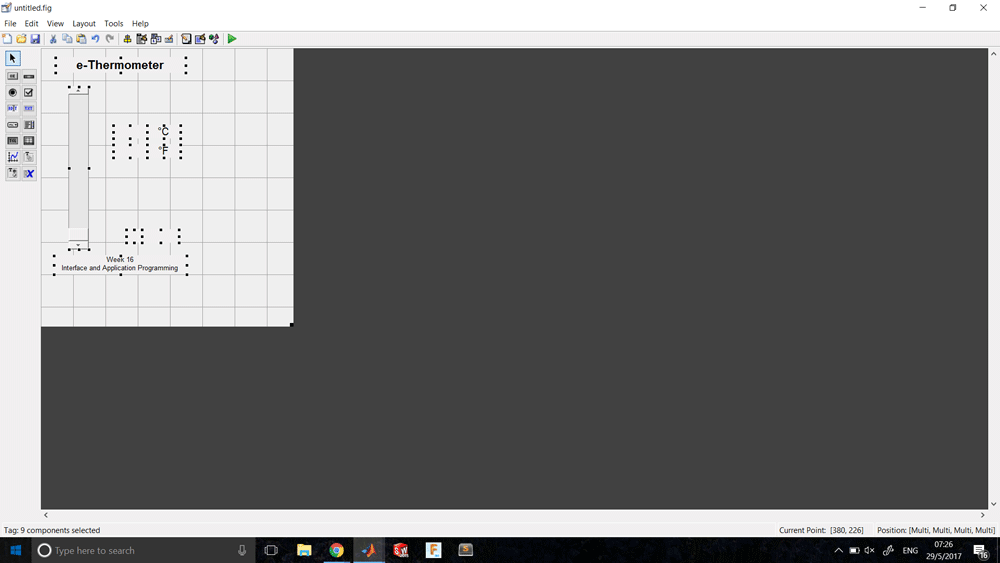

Position the components that you want in your interface (Text box, buttons, sliders, etc...)

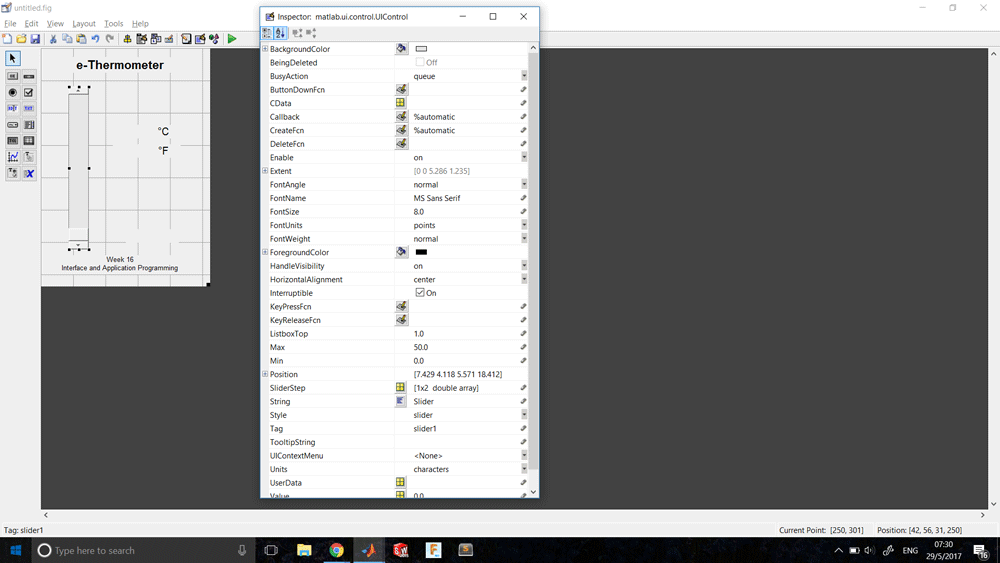

Edit the properties of each components according to your convinience.

Tip - Change the property Tag because it's the name that will identify it on the code editor

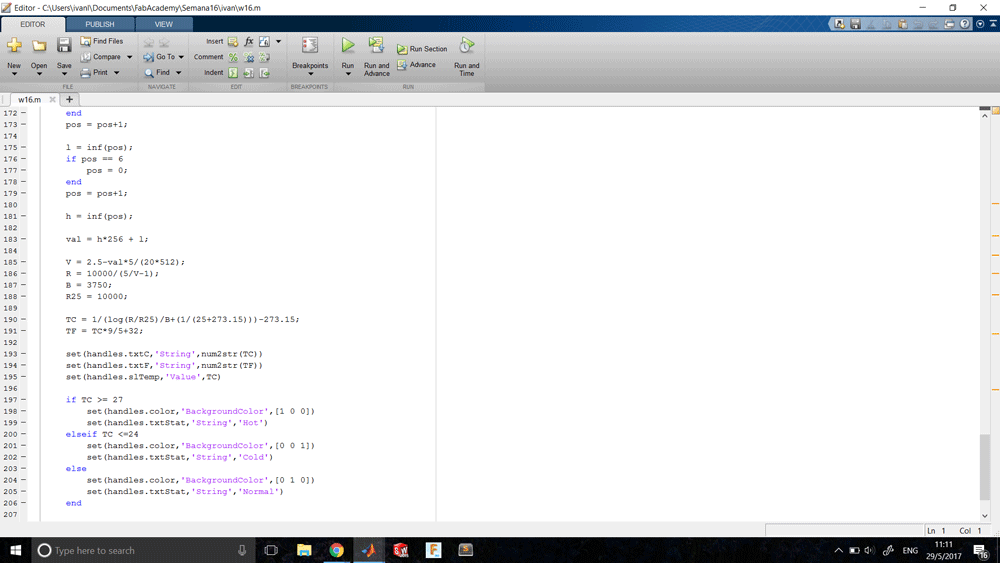

Program the interface on the Editor

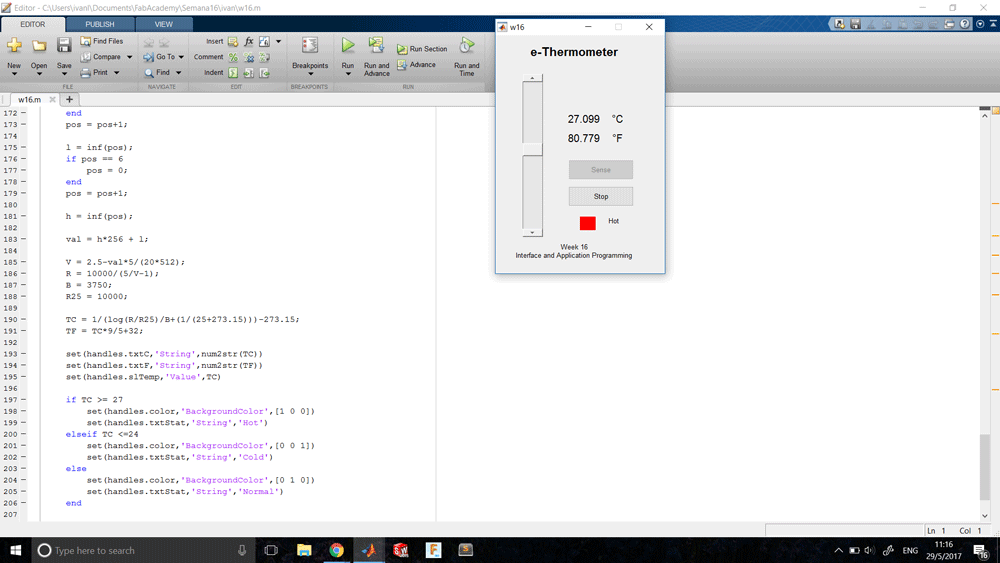

Play your script

Week 16 - Interface and Application Programming from Ivan López on Vimeo.
