Setup Sheet

Job Description:

flat roughing 1/8

Document Path:

dirhamdella v22

Setup

WCS

: #0

Stock

:

DX: 176mm

DY: 76mm

DZ: 39mm

Part

:

DX: 176mm

DY: 76mm

DZ: 35mm

Stock Lower in WCS #0

:

X: 0mm

Y: 0mm

Z: -39mm

Stock Upper in WCS #0

:

X: 176mm

Y: 76mm

Z: 0mm

Total

Number Of Operations:

1

Number Of Tools:

1

Tools:

T2

Maximum Z:

15mm

Minimum Z:

-21.5mm

Maximum Feedrate:

1000.001mm/min

Maximum Spindle Speed:

8500rpm

Cutting Distance:

52099.7mm

Rapid Distance:

36017.42mm

Estimated Cycle Time:

1h:4m:45s

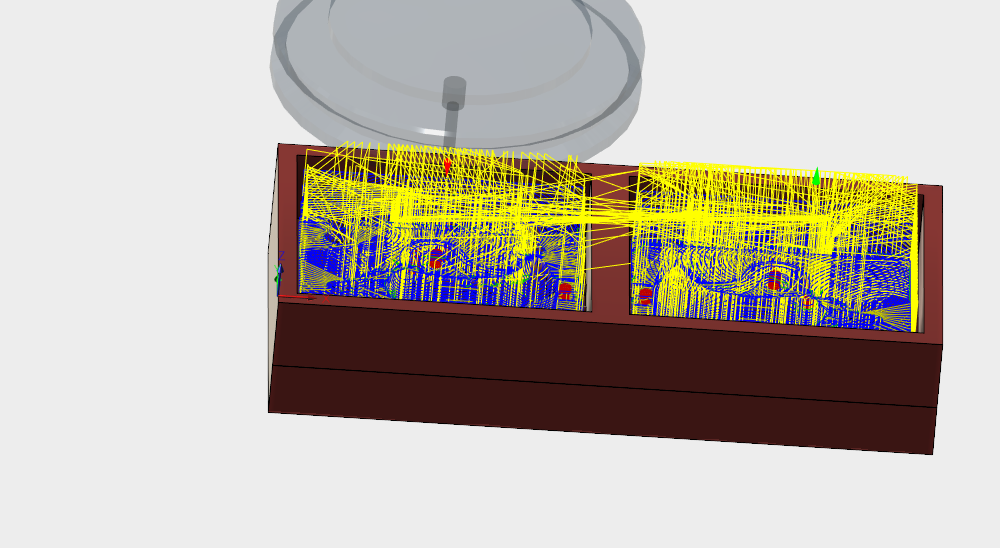

Operation 1/1

Description:

Adaptive1

Strategy:

Adaptive

WCS:

#0

Tolerance:

0.1mm

Stock to Leave:

0.5mm

Maximum stepdown:

5mm

Optimal load:

1.27mm

Load deviation:

0.13mm

Maximum Z:

15mm

Minimum Z:

-21.5mm

Maximum Spindle Speed:

8500rpm

Maximum Feedrate:

1000.001mm/min

Cutting Distance:

52099.7mm

Rapid Distance:

36017.42mm

Estimated Cycle Time:

1h:4m:30s

Coolant:

Off

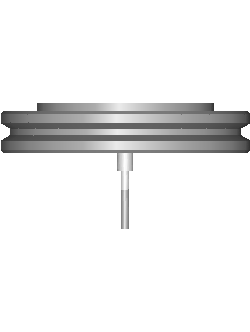

T2 D2 L2

Type:

flat end mill

Diameter:

3.17mm

Length:

30mm

Flutes:

2

Holder:

CT50 - Blank1
