Setup Sheet

Job Description:

flat finish 1/64

Document Path:

dirhamdella v24

Setup

WCS

: #0

Stock

:

DX: 176mm

DY: 76mm

DZ: 39mm

Part

:

DX: 176mm

DY: 76mm

DZ: 35mm

Stock Lower in WCS #0

:

X: 0mm

Y: 0mm

Z: -39mm

Stock Upper in WCS #0

:

X: 176mm

Y: 76mm

Z: 0mm

Total

Number Of Operations:

1

Number Of Tools:

1

Tools:

T4

Maximum Z:

15mm

Minimum Z:

-22mm

Maximum Feedrate:

1000.001mm/min

Maximum Spindle Speed:

8500rpm

Cutting Distance:

4471.16mm

Rapid Distance:

4062.91mm

Estimated Cycle Time:

5m:50s

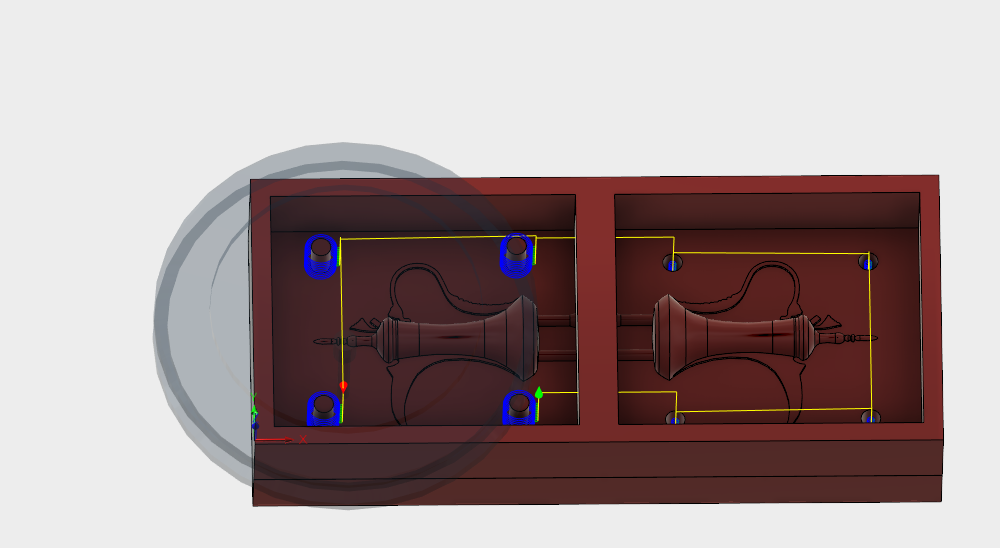

Operation 1/1

Description:

Contour1

Strategy:

Contour

WCS:

#0

Tolerance:

0.01mm

Stock to Leave:

0mm

Maximum stepdown:

0.4mm

Maximum Z:

15mm

Minimum Z:

-22mm

Maximum Spindle Speed:

8500rpm

Maximum Feedrate:

1000.001mm/min

Cutting Distance:

4471.16mm

Rapid Distance:

4062.91mm

Estimated Cycle Time:

5m:35s

Coolant:

Off

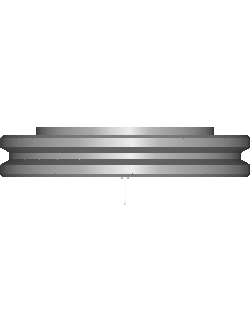

T4 D4 L4

Type:

flat end mill

Diameter:

0.4mm

Length:

10.95mm

Flutes:

2

Holder:

CT50 - Blank1
