for using NETWORKING AND COMMUNICATION it would be interesting to design a simple interface that send serial data and receive the data from hardware networks. To do so I used Microsoft Visual Studio. now within the designing process i used comercial arduino for deburgging and after i migrate to my board to see the result

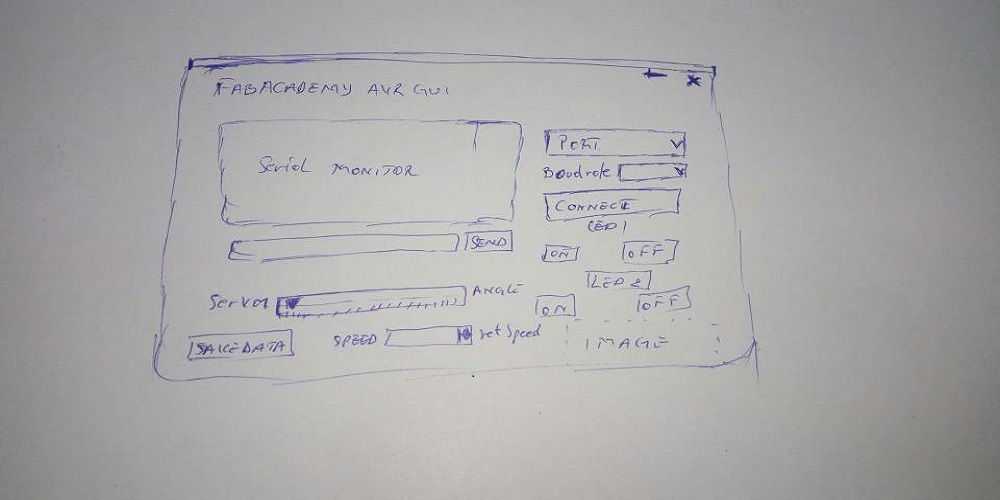

GUI Proposal Schetchup

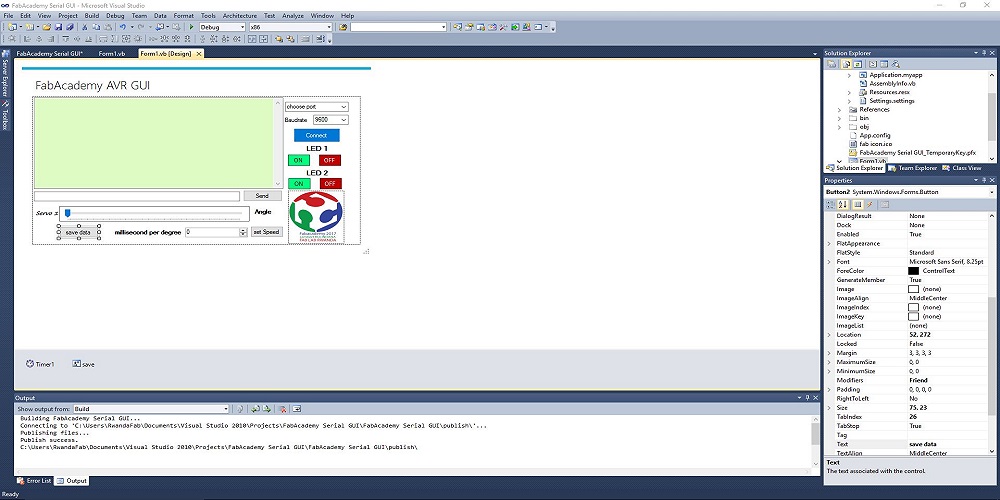

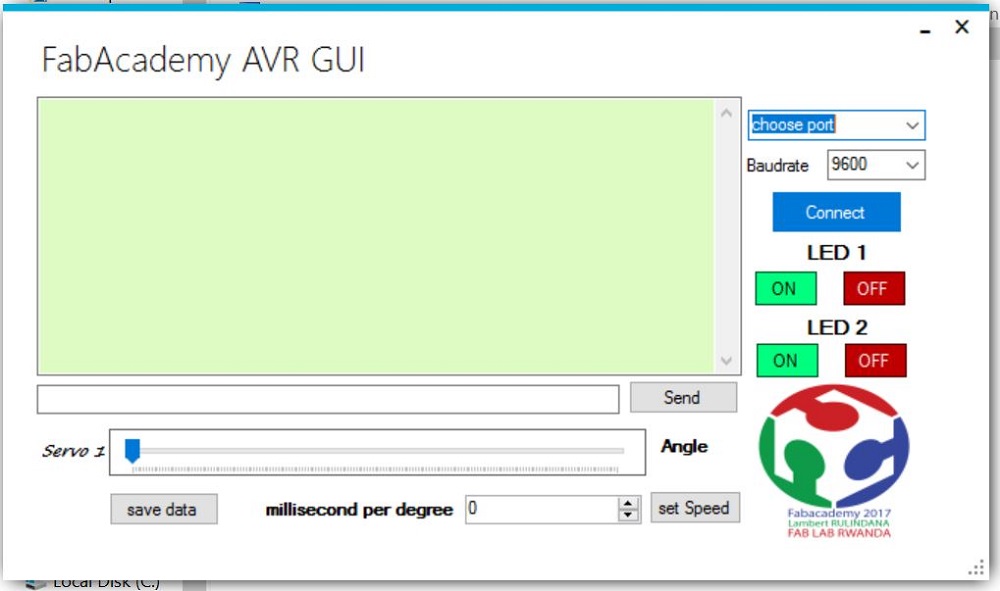

After schetcking the layout i want for my interface i started to create the same layout in visual studio design tab and after customizing everything due to they way i wish i started to give every button, textbox,tab,... the way it have to behave by switching from design to embedded section where i have to write all logics, functions variable and declaration.

After designing and debugging it time to publish setup as we know all of us each setup must have it own icon so to make my icon i used fablab logo which i saved in PNG format by using photoshop, no need of adding plugin in photshop in prder to save CC *.ico file,m so on my side i used

convert icon website

which is free to use and it have the all default size of the icon no thing to worry about just import png file then extract *.ico file directly

Imports System.IO
Public Class Form1
    Dim WithEvents serialPort As New IO.Ports.SerialPort
    Dim baudRate As Integer
    Dim state As Boolean = False

    Private Sub TrackBar2_Scroll(ByVal sender As System.Object, ByVal e As System.EventArgs)

    End Sub
    Private Sub Label2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)

    End Sub
    Private Sub Label1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Label1.Click

    End Sub
    Private Sub TrackBar1_Scroll(ByVal sender As System.Object, ByVal e As System.EventArgs)

    End Sub

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Windows.Forms.Control.CheckForIllegalCrossThreadCalls = False
        'grab defaut baudRate setted
        baudRate = CInt(cmbBaurdRate.Text)
        For Each portName As String In My.Computer.Ports.SerialPortNames
            cmbPort.Items.Add(portName)
        Next
    End Sub

    Private Sub btnSend_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnSend.Click
        Try
            If serialPort.IsOpen Then
                sendCharacter(txtSend.Text)
                clear()
            End If
        Catch ex As Exception
            MsgBox(ex.Message)

        End Try
    End Sub
    Sub sendCharacter(ByRef data As String)
        serialPort.Write(data)
    End Sub
    Sub connectPort()
        Try
            If state = False Then
                serialPort.BaudRate = baudRate
                serialPort.PortName = cmbPort.Text
                serialPort.Open()
                cmbPort.Enabled = False
                state = True
                btnConnect.Text = "Disconnect"
            Else
                serialPort.Close()
                cmbPort.Enabled = True
                state = False
                btnConnect.Text = "Connect"
                Timer1.Enabled = False
            End If
        Catch ex As Exception
            serialPort.Close()
            MsgBox(ex.Message)
        End Try
    End Sub

    Private Sub cmbPort_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmbPort.SelectedIndexChanged

    End Sub

    Private Sub cmbBaurdRate_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmbBaurdRate.SelectedIndexChanged
        baudRate = CInt(cmbBaurdRate.SelectedItem)
    End Sub
    Delegate Sub myMethodDelegate(ByVal [text] As String)
    Dim myD1 As New myMethodDelegate(AddressOf myShowStringMethod)

    Sub myShowStringMethod(ByVal myString As String)

    End Sub
    Private Sub serialPort_DataReceived(ByVal sender As System.Object, ByVal e As System.IO.Ports.SerialDataReceivedEventArgs) Handles serialPort.DataReceived
        Dim Distance As String = serialPort.ReadExisting
        list1.Text &= Distance
    End Sub
    'sub to clear the data from txtSend
    Sub clear()
        txtSend.Clear()
    End Sub

    Private Sub btnConnect_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnConnect.Click
        If cmbPort.Text = "choose port" Then

            MsgBox("please select a port")
            cmbPort.Focus()
        Else
            connectPort()
        End If


    End Sub

    Private Sub txtSend_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles txtSend.KeyDown
        If e.KeyCode = Keys.Enter Then
            sendCharacter(txtSend.Text)
            clear()
        End If
    End Sub

    Private Sub btnled1on_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled1on.Click
        sendCharacter("200")
    End Sub

    Private Sub btnled1off_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled1off.Click
        sendCharacter("201")
    End Sub

    Private Sub btnled2on_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled2on.Click
        sendCharacter("202")
    End Sub

    Private Sub btnled2off_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnled2off.Click
        sendCharacter("203")
    End Sub
    'sub to send data to serial monitor and port
    Sub controlServo(ByVal data As Integer)
        Try
            serialPort.WriteLine(data.ToString)
            lblOutput.Text = Str(data)
        Catch ex As Exception
            MsgBox(ex.Message)
        End Try

    End Sub
    Dim t As Integer = 0

    Private Sub TrackBar1_Scroll_1(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles TrackBar1.Scroll
        controlServo(TrackBar1.Value)
    End Sub

    Dim counter As Integer = 0

    Private Sub Timer1_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Timer1.Tick
        controlServo(TrackBar1.Value)
        If TrackBar1.Value < 180 Then
            TrackBar1.Value = TrackBar1.Value + 1
        Else
            TrackBar1.Value = 0
        End If
    End Sub
    Dim status As Boolean = False
    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        Dim time As Integer = milliseconds.Value
        If time <= 0 Then
            MsgBox("please select valid milliseconds")
        Else
            If status = False Then
                Timer1.Interval = time
                Timer1.Enabled = True
                Button1.Text = "Stop"
                status = True
            Else
                Timer1.Interval = time
                Timer1.Enabled = False
                Button1.Text = "Set speed"
                status = False
            End If
        End If

    End Sub

    Private Sub list1_GotFocus(ByVal sender As Object, ByVal e As System.EventArgs) Handles list1.GotFocus
        list1.Enabled = True
    End Sub

    Private Sub list1_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles list1.KeyDown
        e.Handled = True
    End Sub

    Private Sub list1_KeyPress(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyPressEventArgs) Handles list1.KeyPress
        e.Handled = True
    End Sub

    Private Sub list1_LostFocus(ByVal sender As Object, ByVal e As System.EventArgs) Handles list1.LostFocus
        list1.Enabled = True
    End Sub

    Private Sub list1_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles list1.TextChanged
    End Sub

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        Try
            Dim stream As StreamWriter


            save.Filter = "txt files (*.txt)|*.txt|All files (*.*)|*.*"
            If save.ShowDialog = Windows.Forms.DialogResult.OK Then
                stream = New StreamWriter(save.FileName)
                stream.Write(list1.Text)
                stream.Close()
                MsgBox("file saved successfully")
            End If
        Catch ex As Exception

        End Try
    End Sub
End Class

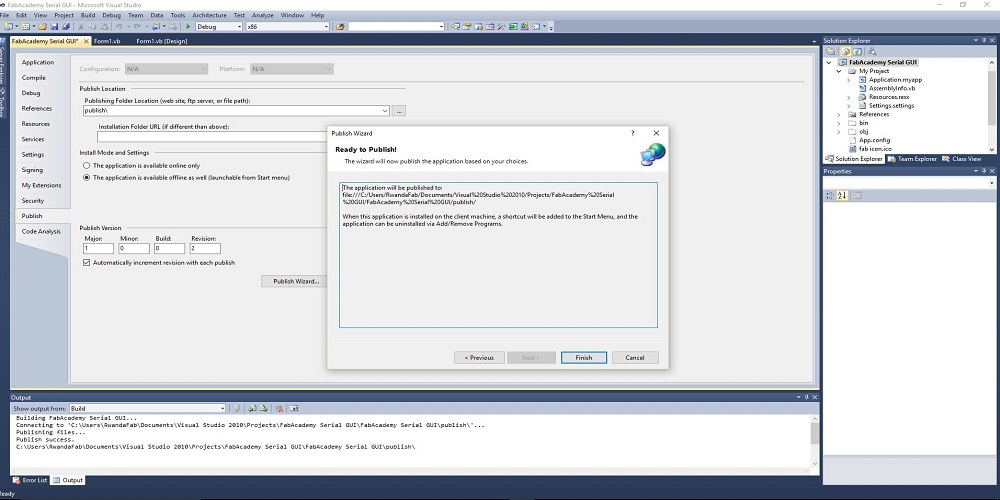

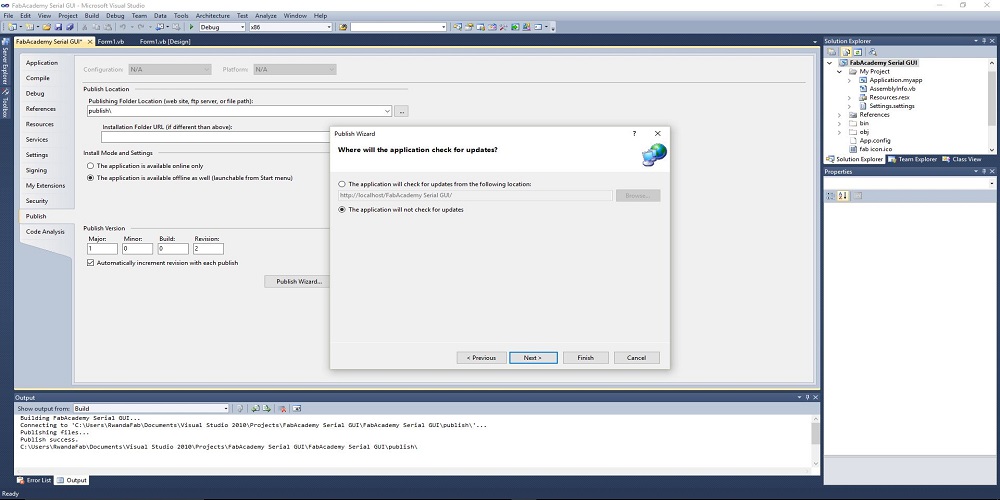

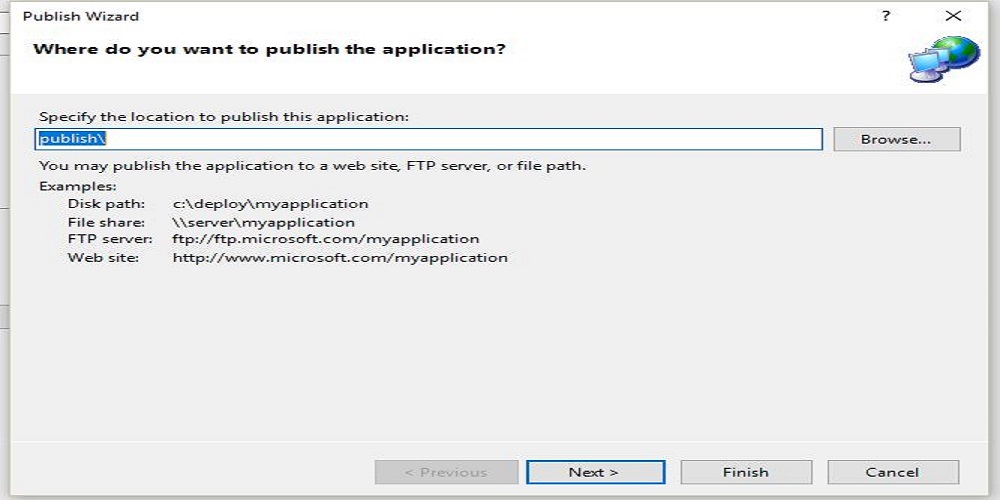

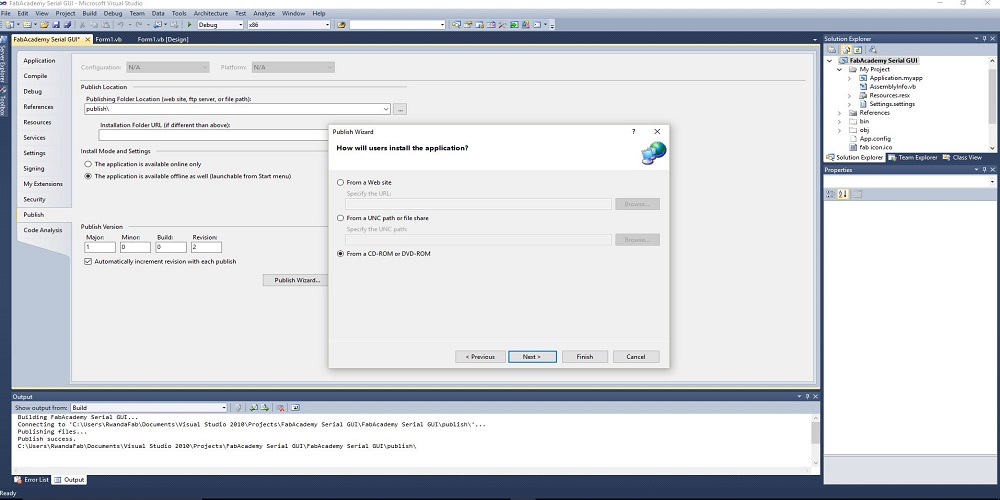

EXTRACTING INSTALLATION FILES

For extracting the installation file i used the following process as i desribed below

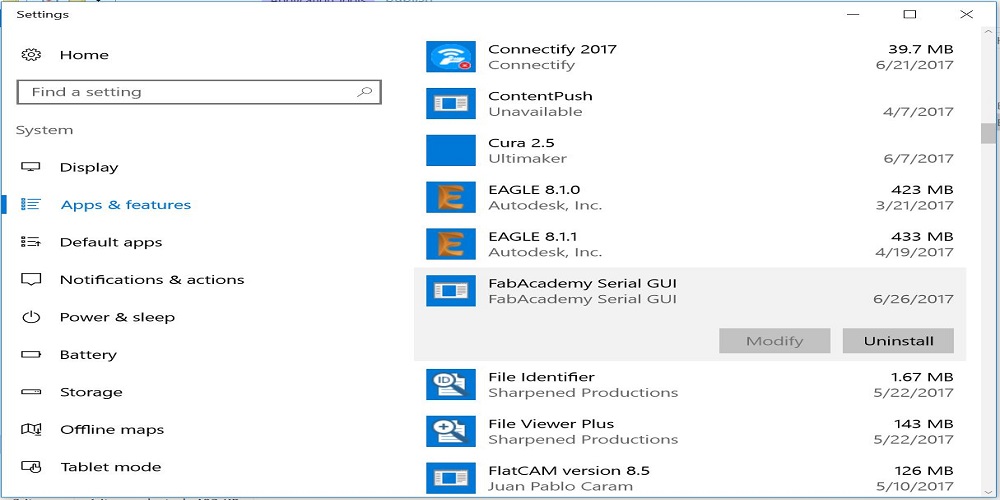

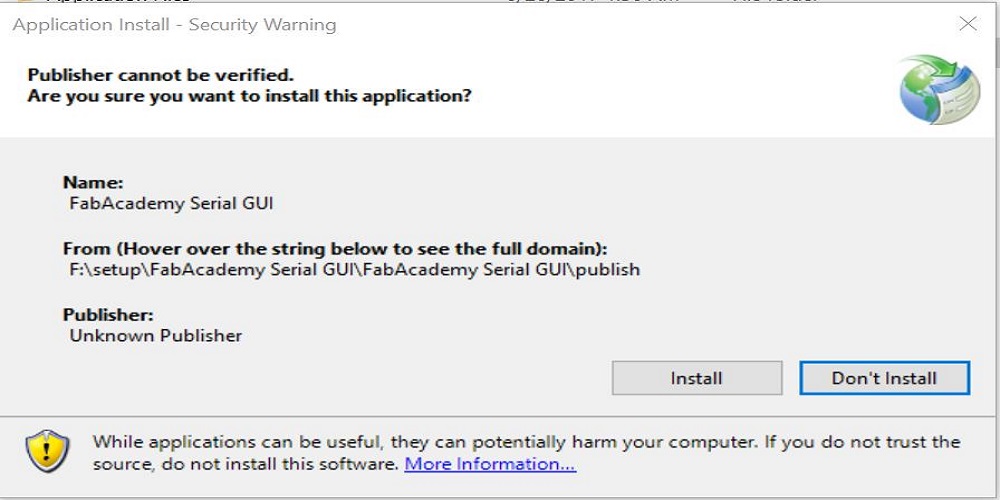

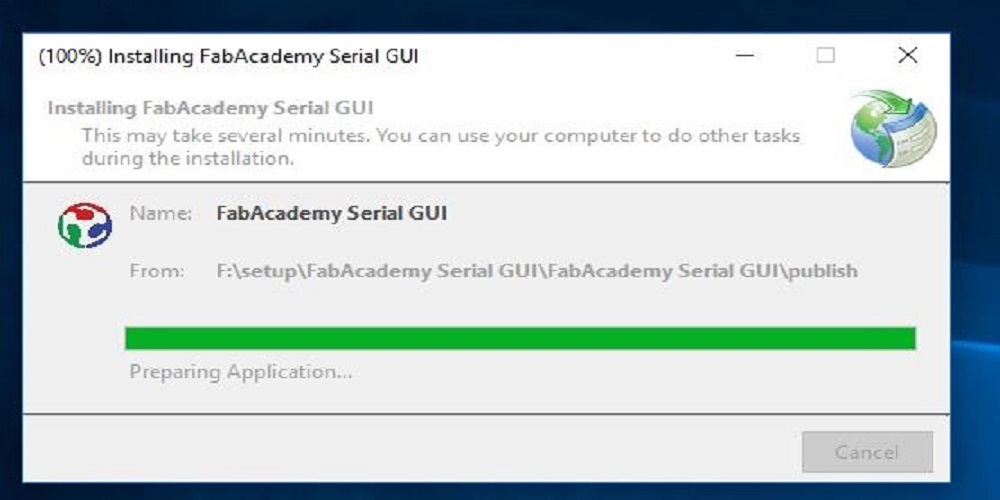

After having my installation file it time to install and check if it can be used in other computer The installation and unistallion process are easy as other applicaton software

CODE USED IN FABBED BOARD

#include

Servo myservo;  // create servo object to control a servo
 int val;
void setup()
{
  int ledA = A2; // Pin A2
  int ledB = A3; // Pin A3
  pinMode(A2, OUTPUT);
  pinMode(A3, OUTPUT);
  myservo.attach(3);  // attaches the servo on pin 3 to the servo object
  Serial.begin(9600); //begins serial communication
}

void loop()
{
String input = "";

  val=Serial.parseInt();


  {
    if (val == 200)
     {
        digitalWrite(A2, HIGH); // on
     }
    else if (val == 201)
    {
       digitalWrite(A2, LOW); // OFF
     }
      else if (val == 202)
    {
       digitalWrite(A3, HIGH); // ON
     }
      else if (val == 203)
    {
       digitalWrite(A3, LOW); // OFF
     }
     if (val <=180 && val >=0){
    myservo.write(val);
    Serial.println(val);
    Serial.println(input);
  }
  }
}
void serialEvent(){

}

Download files

codes for application and application
setup is for windows user only!
board and code used in board
