MENU This project was made using 100% of the Fab Lab Esan machines. Machines that make machines.
5 FABRICATION

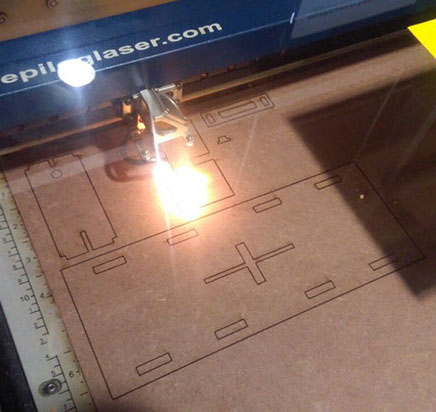

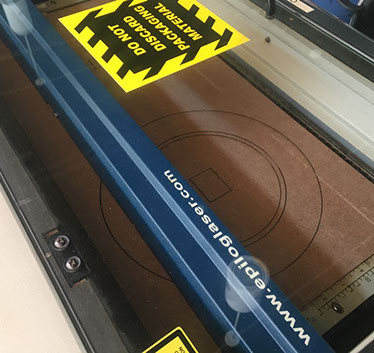

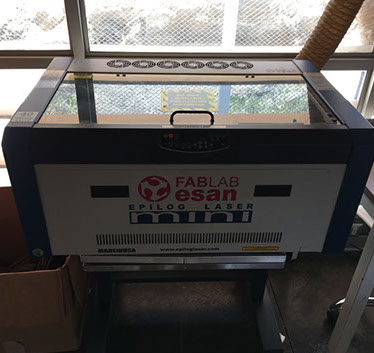

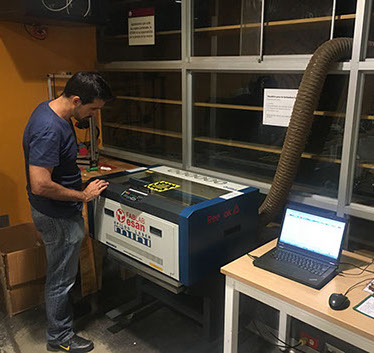

epilog laser laser cutter

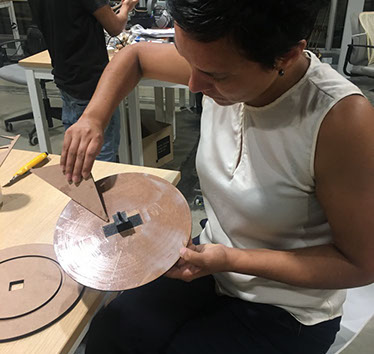

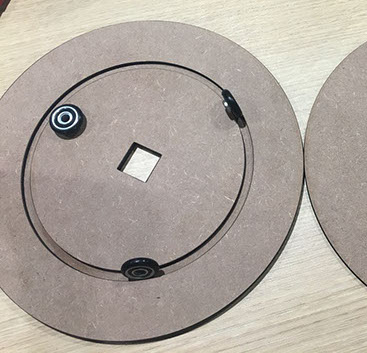

We use the laser cutter to make the turntable discs. The material used here was MDF 3mm thickness. Things were made using the laser cutter: the rotating plates and the support for the cell phone.

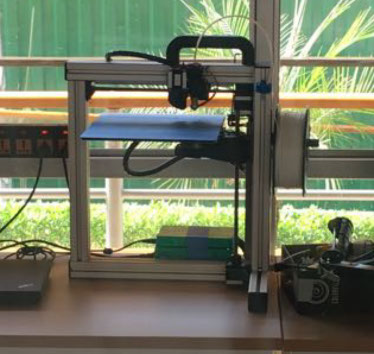

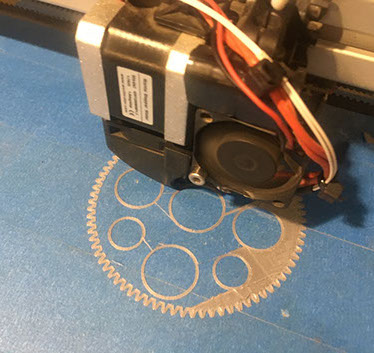

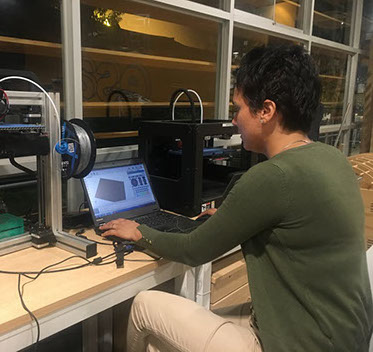

felix 2.0 3d printer
In the Felix 2.0 3d printer we made the first gears. Unfortunately the prints didn't work well for more than we tried several times the filament did not seem to fall homogeneously.

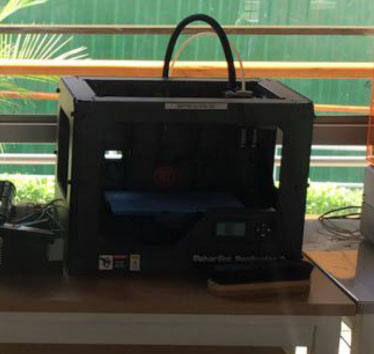

makerbot 3d printer

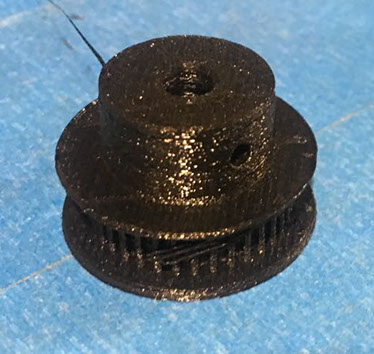

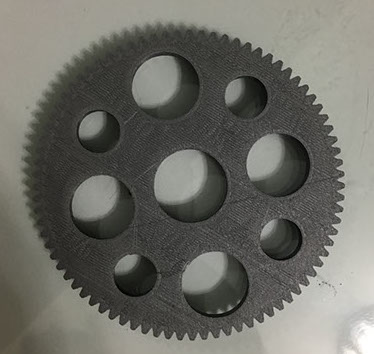

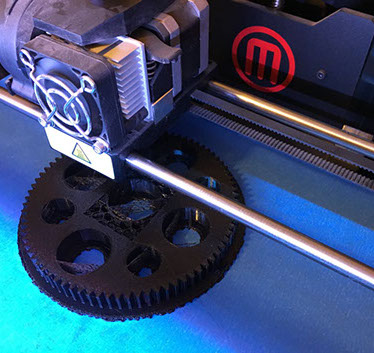

So we had to switch to the Makerbot and here the prints came out of very good quality. We printed in 3d: gears, pulleys, support for motors, support of turntables.

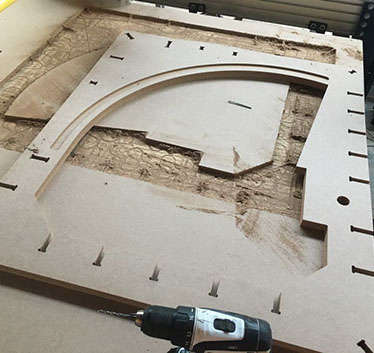

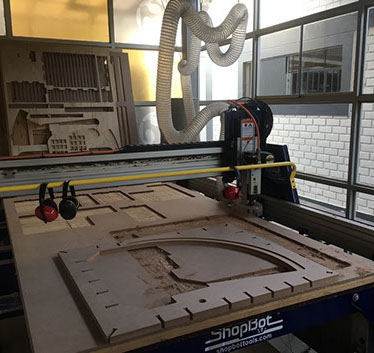

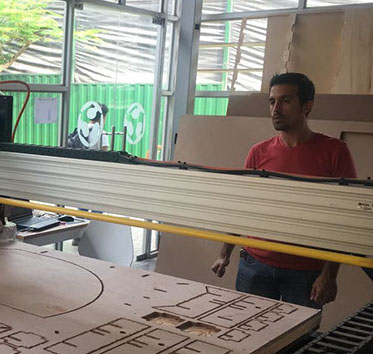

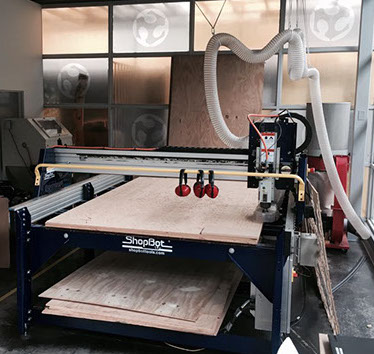

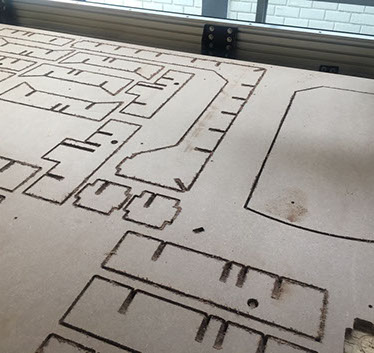

shopbot cnc

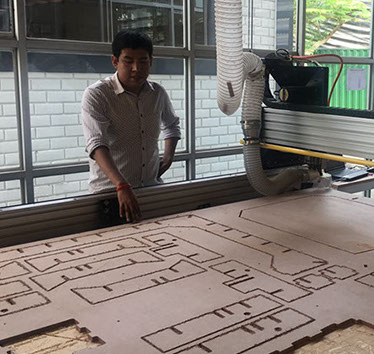

We manufactured the Food Scanner parts in MDF of 12mm thickness using the machine Shopbot. We use two complete MDF for the manufacture of the pieces.

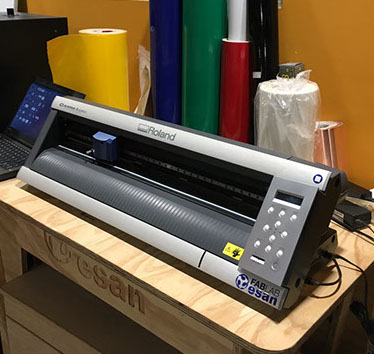

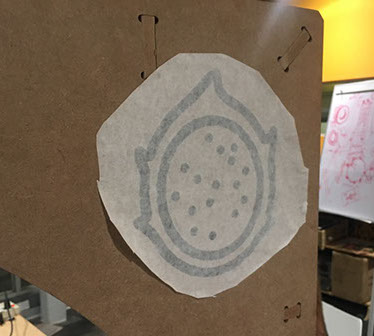

roland vinyl cutter

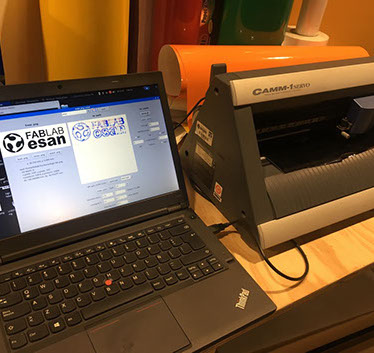

We use the vinyl cutter to make our logo. We got the drawing from the internet but we liked it a lot as a summary image of what the project is.

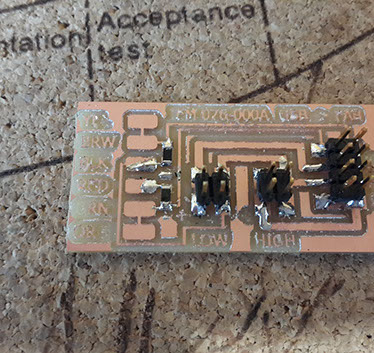

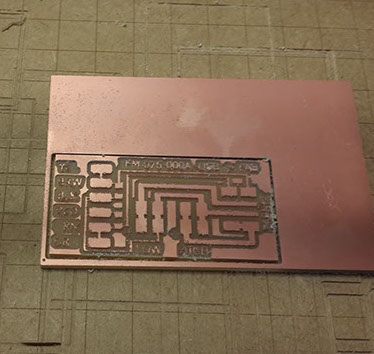

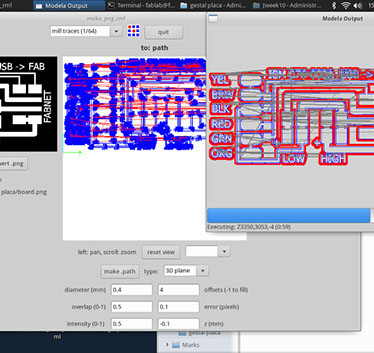

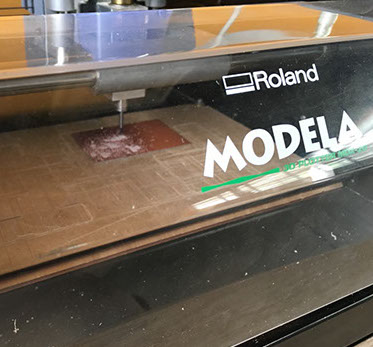

modela
We use the Modela for the manufacture of the boards for the engines.
