in this assignment i'm going to describe my role with our group

it was the group project, so we built a foam cutting machine, which is controlled with Gestalt Nodes

my contribution

first we were grouped into 3 main groups (designing, electronics&programming and operations) but actually all of us worked in the 3 processes

i was one of the electronics and programming team

after we decided to use metal guitar strings i started calculating the required power that enables the string to get enough heat to cut the foam

then we started testing it, after many tries we used a computer power supply

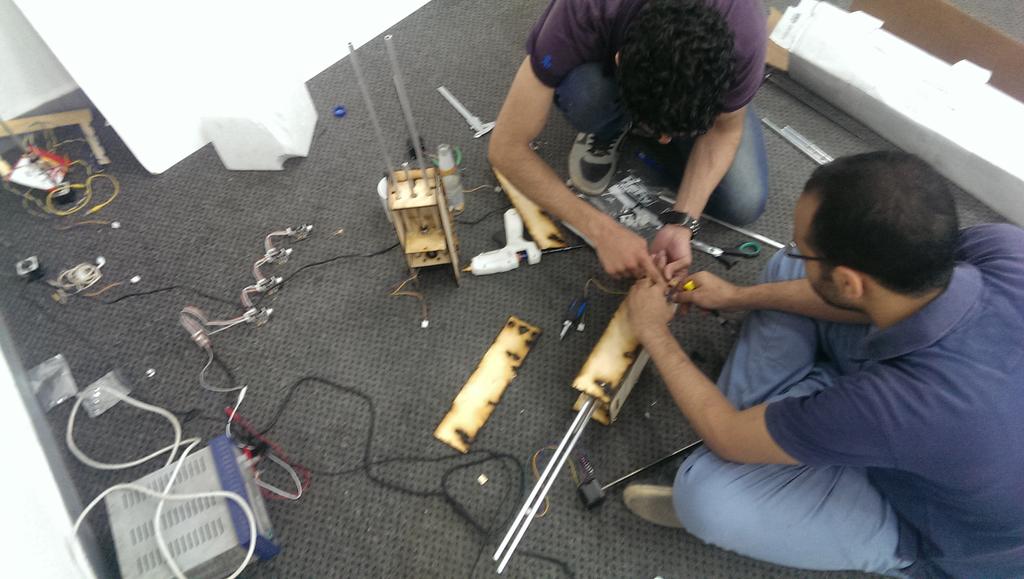

then we started cutting the the machine's chase & assembling it

we had a problem with the laser cutting machine (in it's water chiller "which caused a lens problem" and power supply)

it's not that easy to get a laser cutting machine lens in egypt, so we paused the machine each 10 seconds and then continue cutting for another 10 seconds and pause the machine and so.

trail

here's the final result :

now, it's time to take a machine selfi! :D
