3D Scanning and Printing

by Dhruv Saidava

  1. Home
  2. Assignments
  3. Week 5

Fab Academy Tutorials & References

Assignment

  • Group project: test the design rules for your printer(s)
  • Design and 3D print an object (small, few cm) that could not be made subtractively
  • 3D scan an object (and optionally print it) (extra credit: make your own scanner)

Content

Tools Used
  1. Solid Work
  2. Rhino
  3. Autodesk Remake ( It now converting to ReCap Pro Not available for Mac)
  4. Fusion 360
Autodesk Remake
Step 1 Download ( Education Version) Link | 950 MB

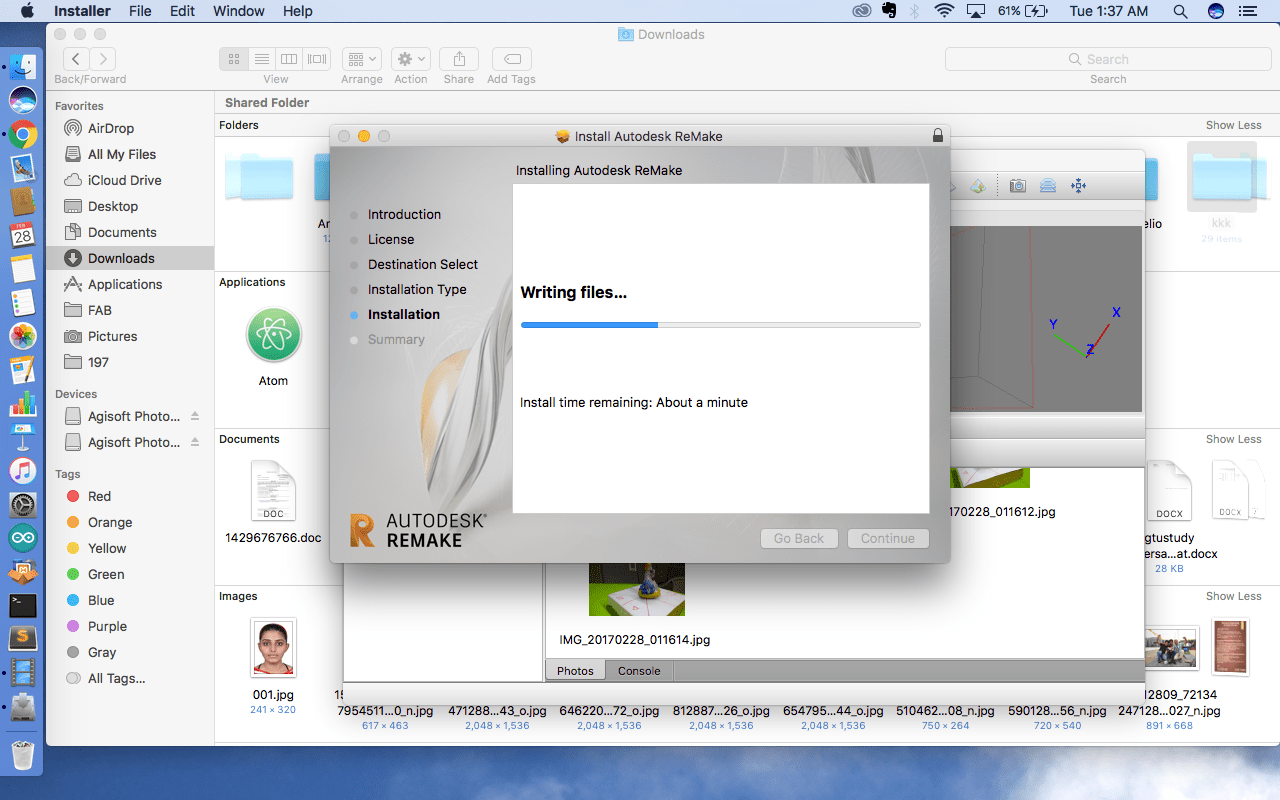

Step 2 Setup

Step 3 Login

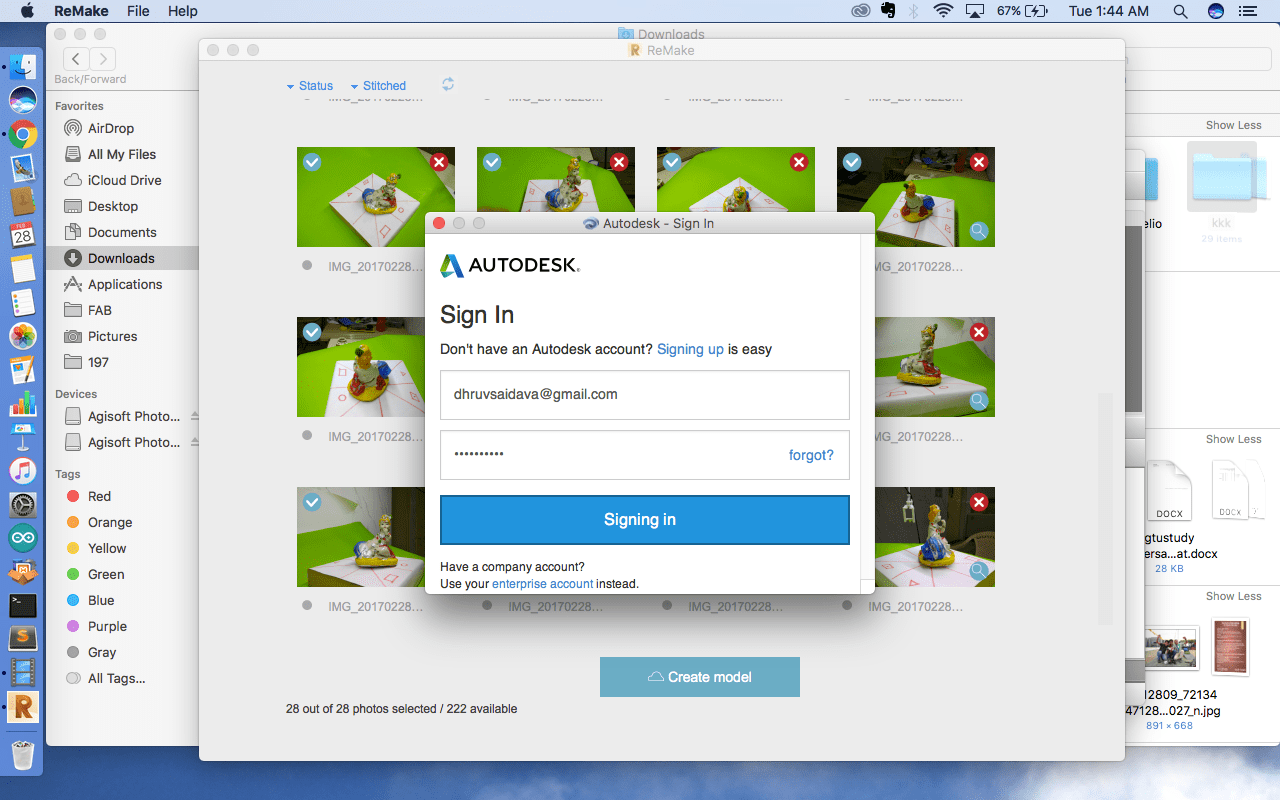

Autodesk Product require Login as this is Cloud based Product it store your photos to cloud and process them.

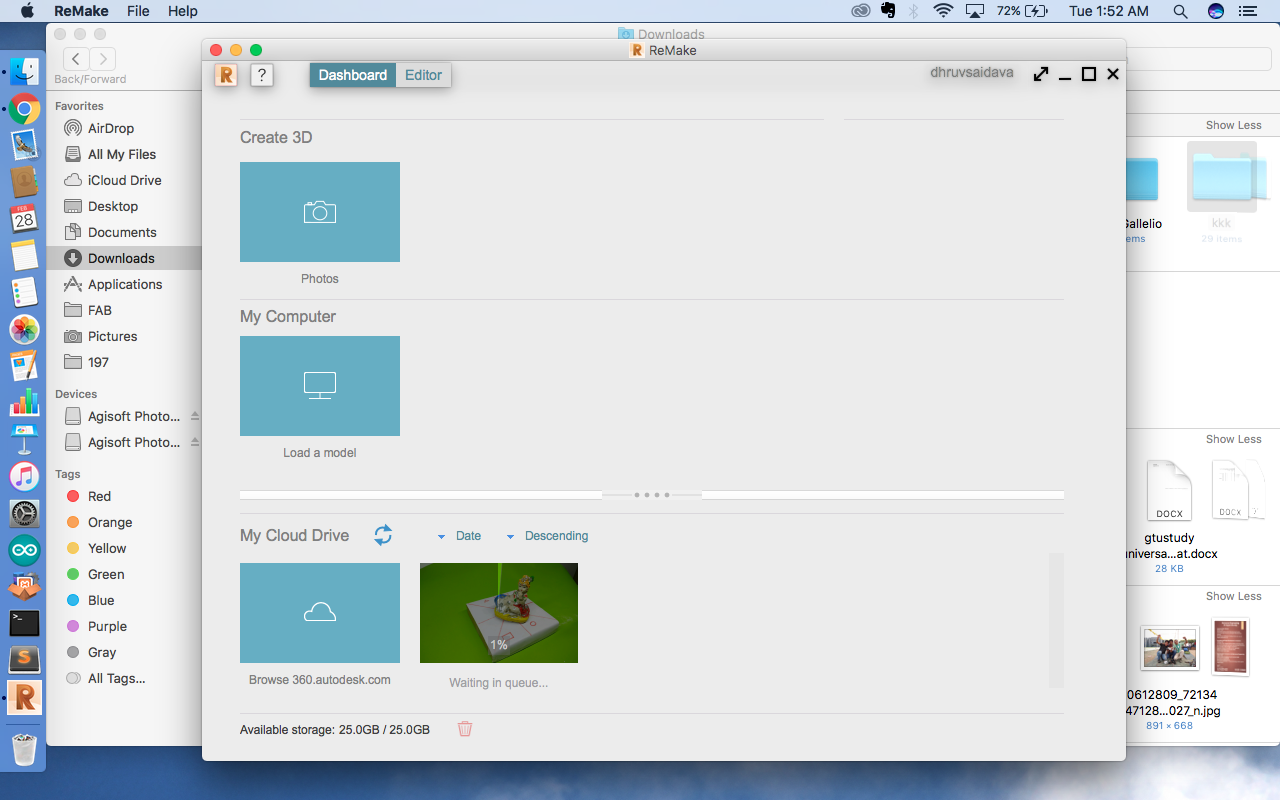

Step 4 Project

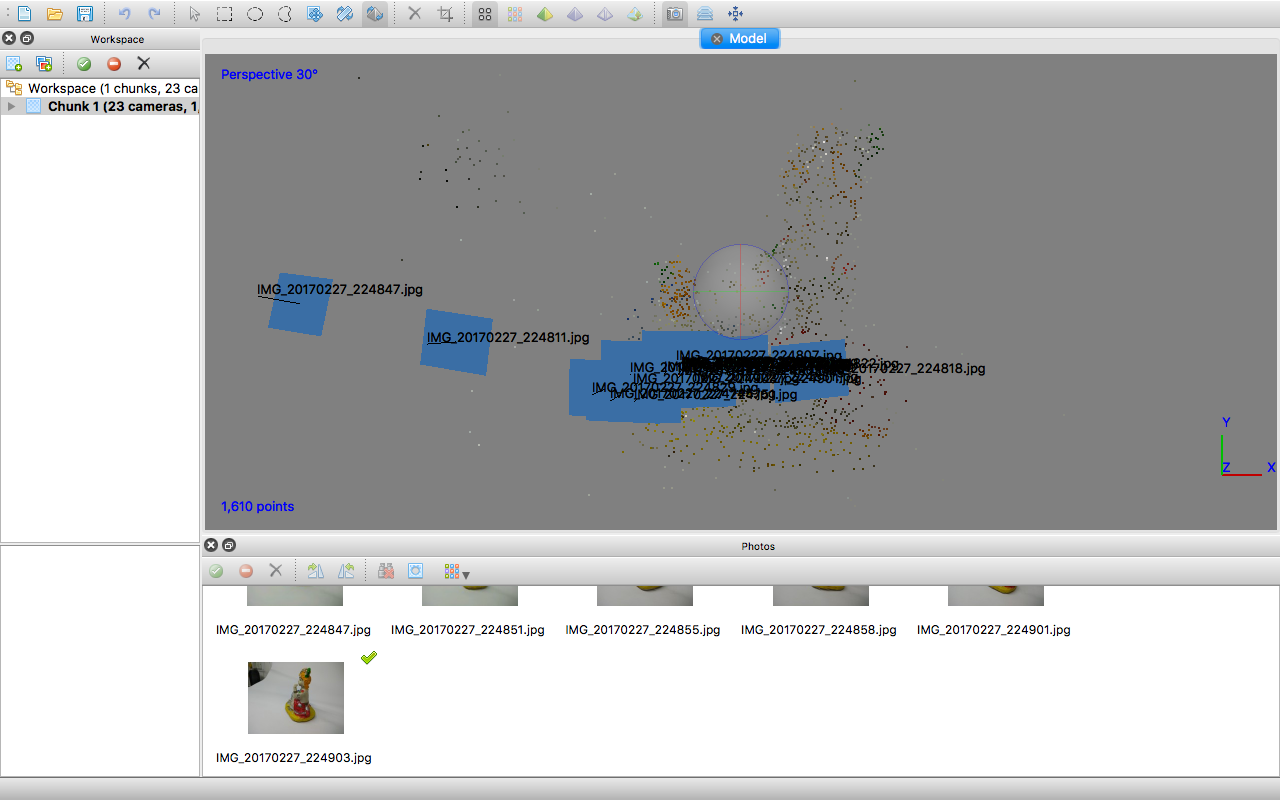

Select Photos and Upload.
this will upload photos to Autodesk Drive and Process
After Process it will show where to store output file.
Output extension is in Format

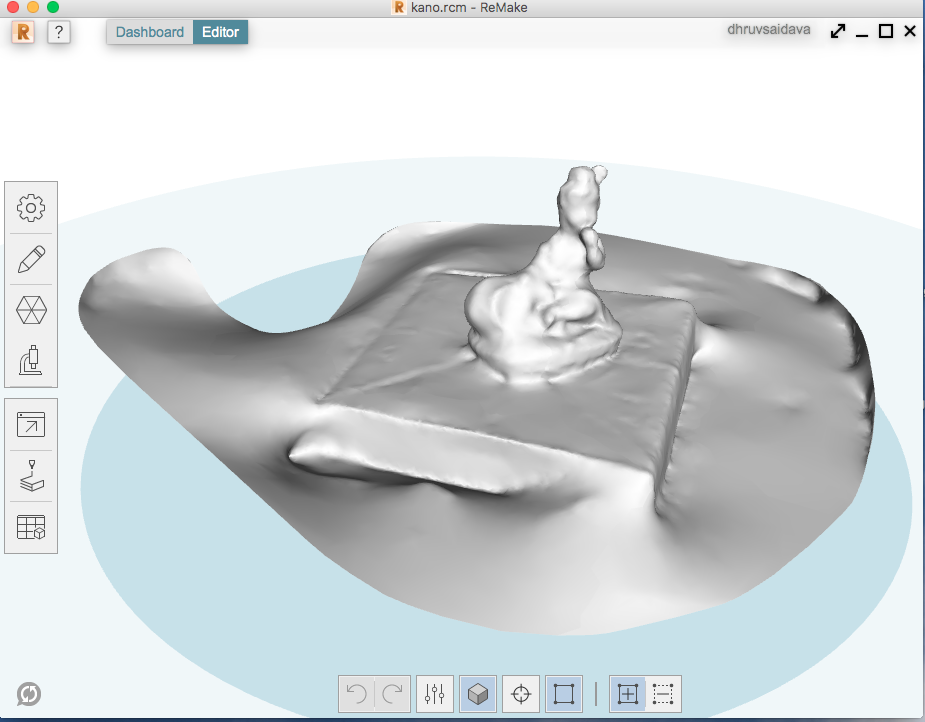

Step 5 Mesh Model

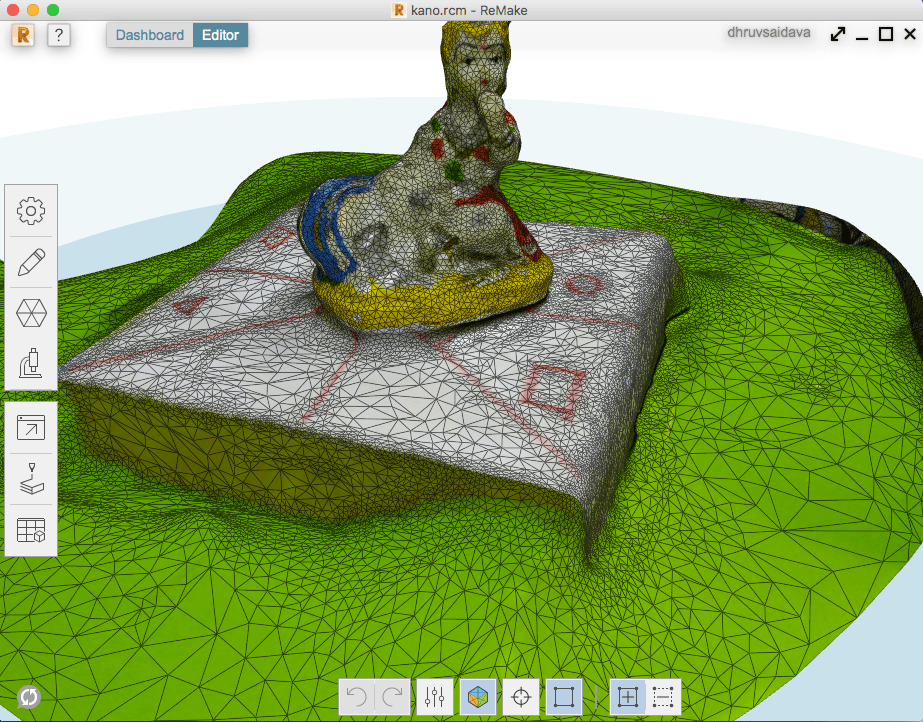

Mesh Model of Kano




Project Done for 3D Printing

Looking for a design for Hinge and interconnection for sensor box. I will Use it in making Holder for Ultrasonic Sensor
Problem Faced
    Scanning from Phone ( object should be steady or Phone if few photos submitted wrong for remake it will spoil your other image ref. so check before uploading)

3D Printing

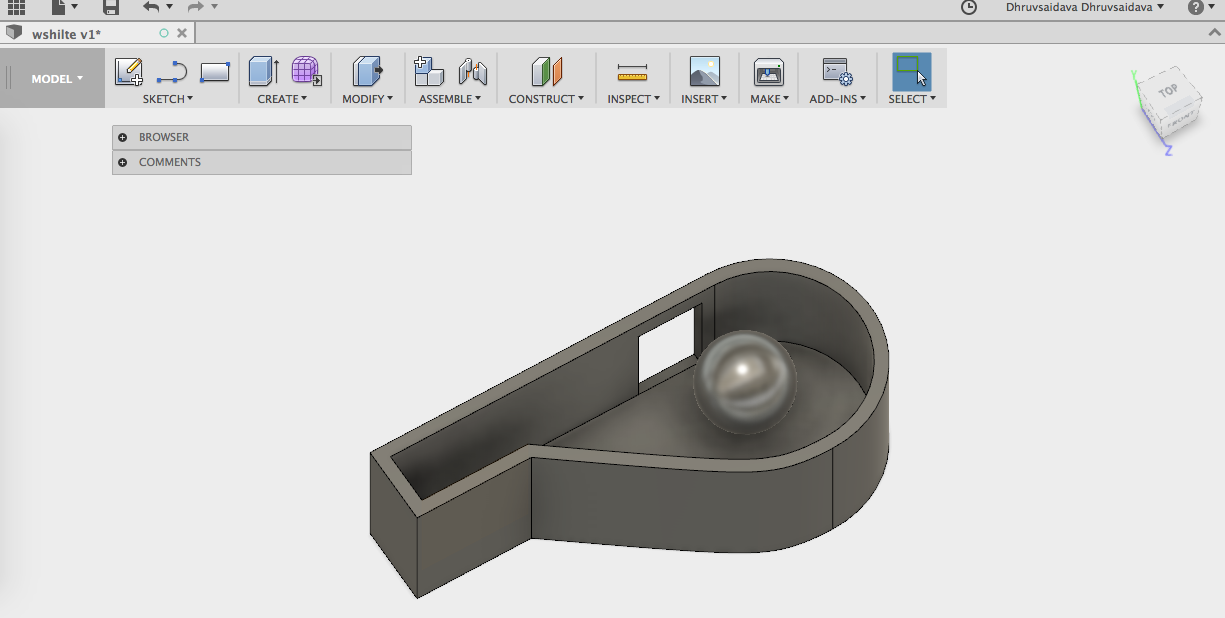

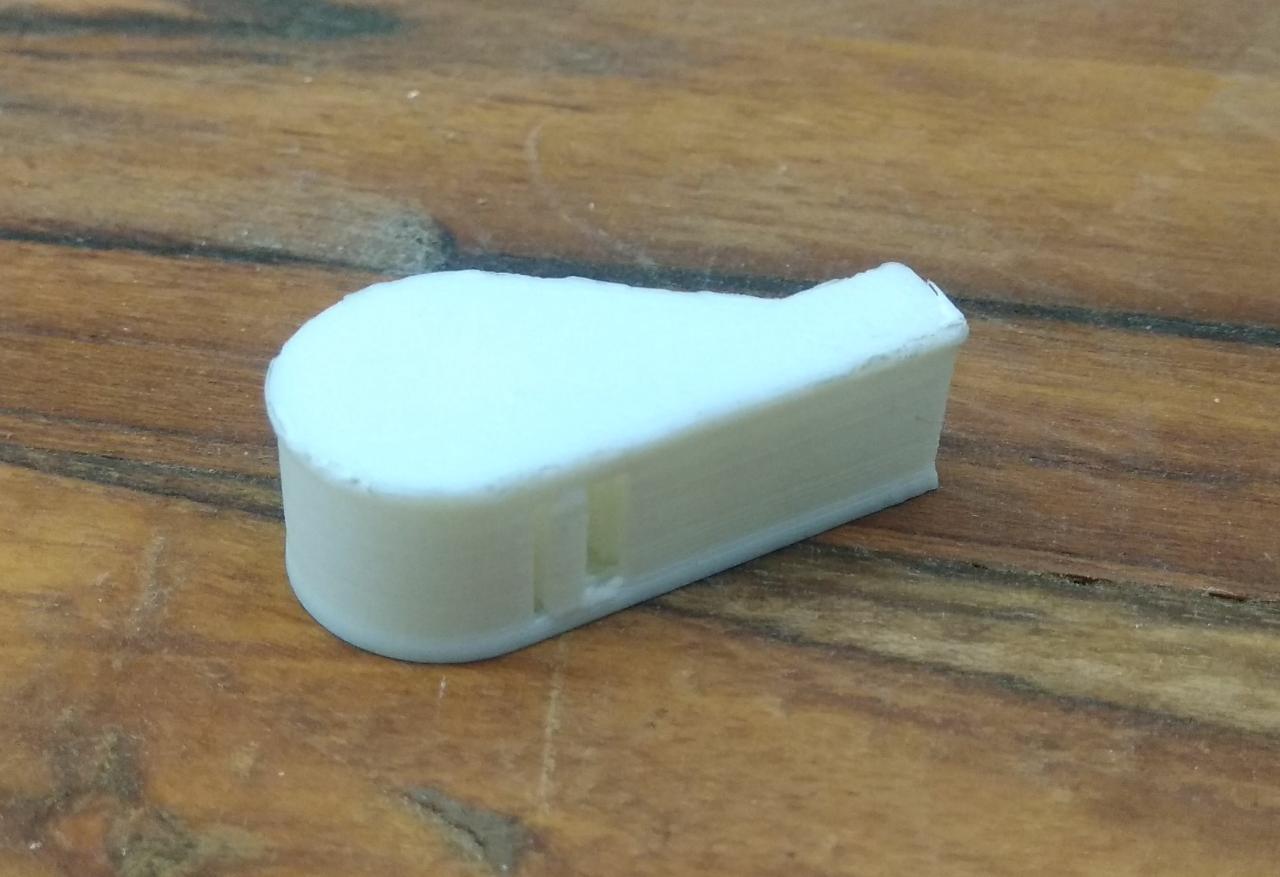

Going to make a whistle in 3D printer. Designing it in Fusion 360.Output is in stl format.

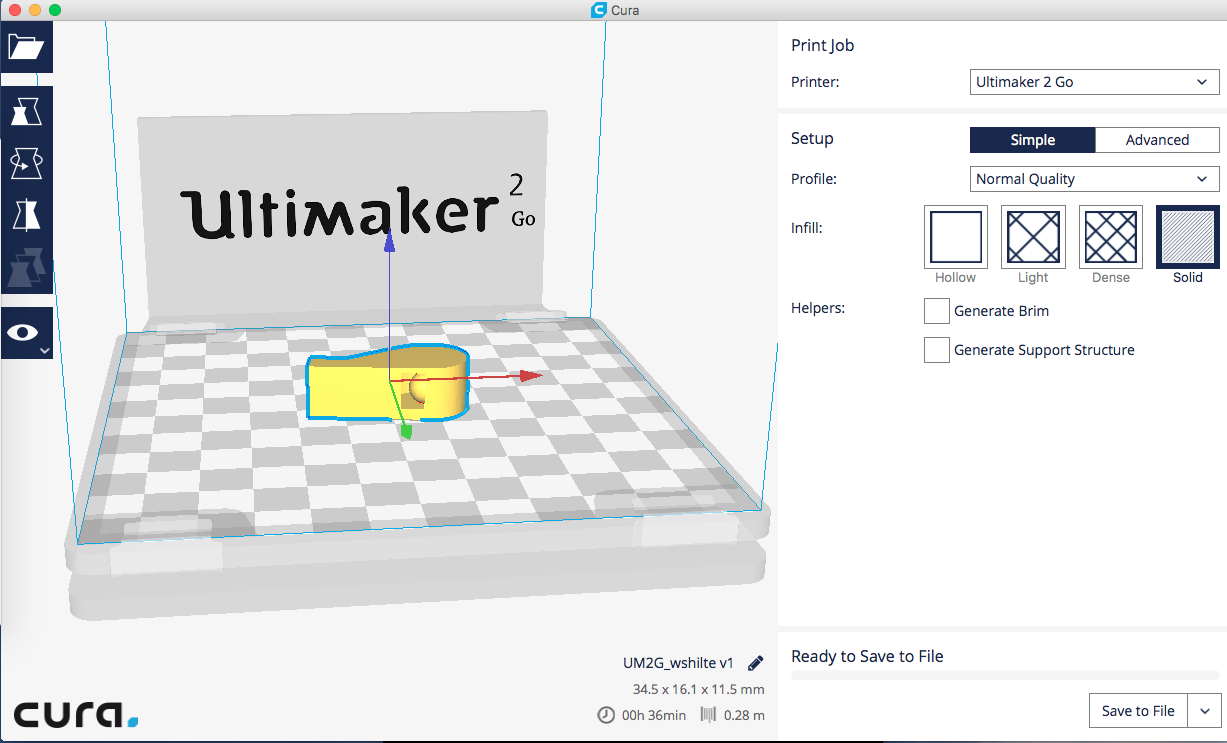

Then making gcode file from it by using Cura.


Files

Output

Some Quick Points
